Isuzu WW
▶
TRUCKS
▶
EXD
▶
11293 - EXD RHD EURO5
▶
3 - Brakes, Brake System
▶

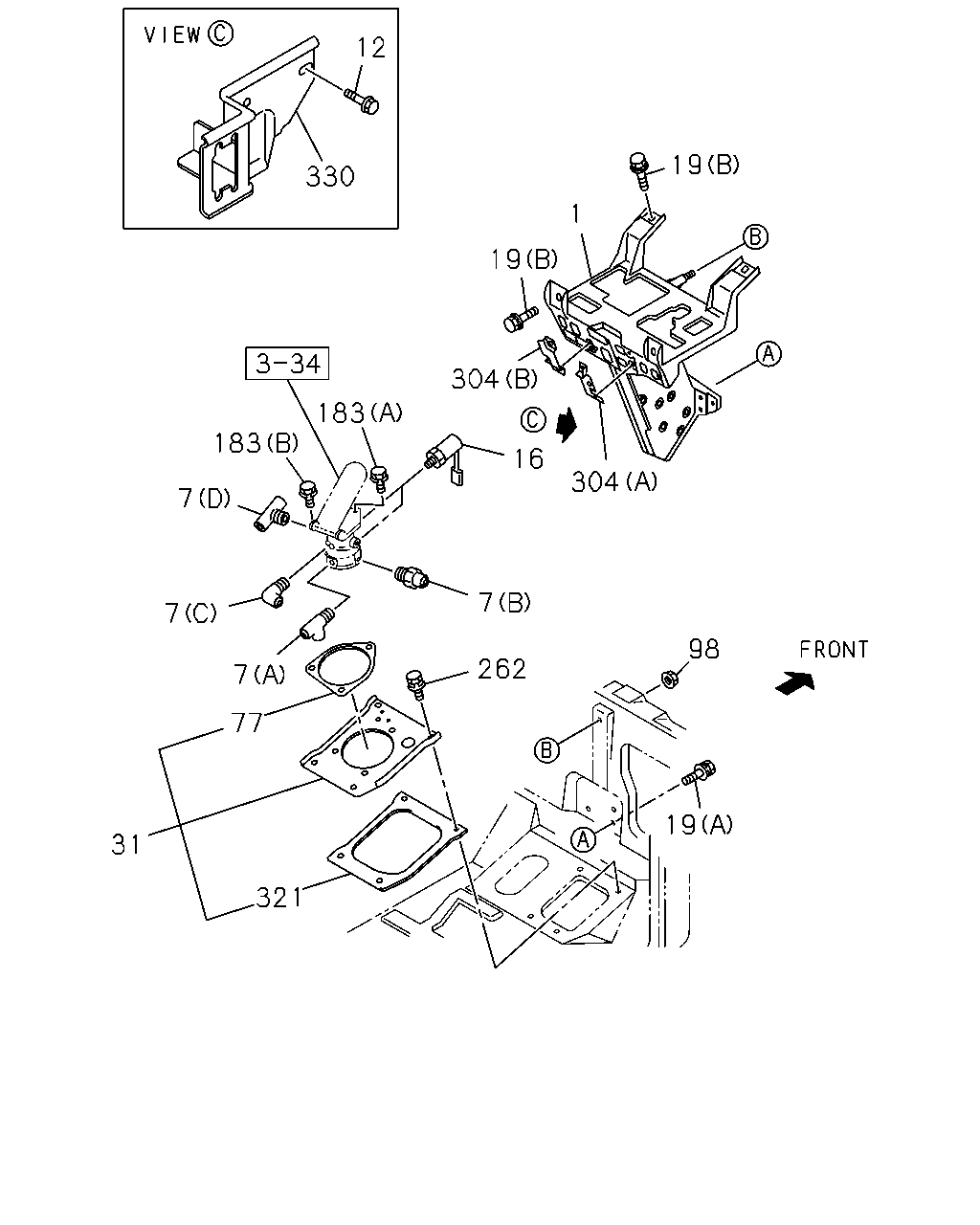

3-10 - BRAKE PEDAL AND CONTROL
▶
3-10 — BRAKE PEDAL AND CONTROL
(#70262) — 23 parça
12
19
330
1
19
304
183
183
16
304
7
7
7
98
262
7
77
19
31
321
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET ASM; PEDAL
AIR BAG(TFQ)
1-73908-191-7
01
1
1009-
1
BRACKET ASM; PEDAL
EXC. AIR BAG(TFQ)
1-73908-477-0
01
1
1009-
7
CONNECTOR; BRK VALVE
(C) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
1009-
7
CONNECTOR; BRK VALVE
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
1009-
7
CONNECTOR; BRK VALVE
(A) DIN12 & R3/8 & RC1/4 3WAY
1-09661-027-0
01
1
1009-
7
CONNECTOR; BRK VALVE
(D) DIN12 & R3/8 & RC1/4 3WAY
1-09661-776-1
01
1
1009-
12
BOLT; BRKT
AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
1009-
12
BOLT; BRKT
EXC. AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
1009-
16
SWITCH; STOP LAMP
STAMP 0.3
8-98010-857-0
02
1
1009-
19
BOLT; BRKT
(A) M8X20
1-79198-002-0
02
1
1009-
19
BOLT; BRKT
AIR BAG(TFQ) (B) M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
1009-
19
BOLT; BRKT
EXC. AIR BAG(TFQ) (B) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1009-
31
PLATE; MTG,BRKT VLV
1-73996-329-1
01
1
1009-
77
RUBBER; SEAL,BRK
1-73996-207-0
01
1
1009-
98
NUT; BRKT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
1009-
183
BOLT; BRK VLV
(A) M10X25 W/LK WASHER
1-09980-503-0
01
1
1009-
183
BOLT; BRK VLV
(B) M10X35 W/LK WASHER
1-09980-504-0
02
1
1009-
262
BOLT; PLATE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
1009-
304
SUPPORT ASM; PEDAL BRKT
AIR BAG(TFQ) (A)
1-73996-341-1
01
1
1009-
304
SUPPORT ASM; PEDAL BRKT
AIR BAG(TFQ) (B)
1-73996-342-1
01
1
1009-
321
SEAL; VALVE
1-73996-143-0
01
1
1009-
330
BRACKET; CONNECTOR
AIR BAG(TFQ)
8-97616-564-1
01
1
1009-
330
BRACKET; CONNECTOR
EXC. AIR BAG(TFQ)
8-97616-605-0
01
1
1009-
