3-08 — PARKING BRAKE (#70261) — 62 parça

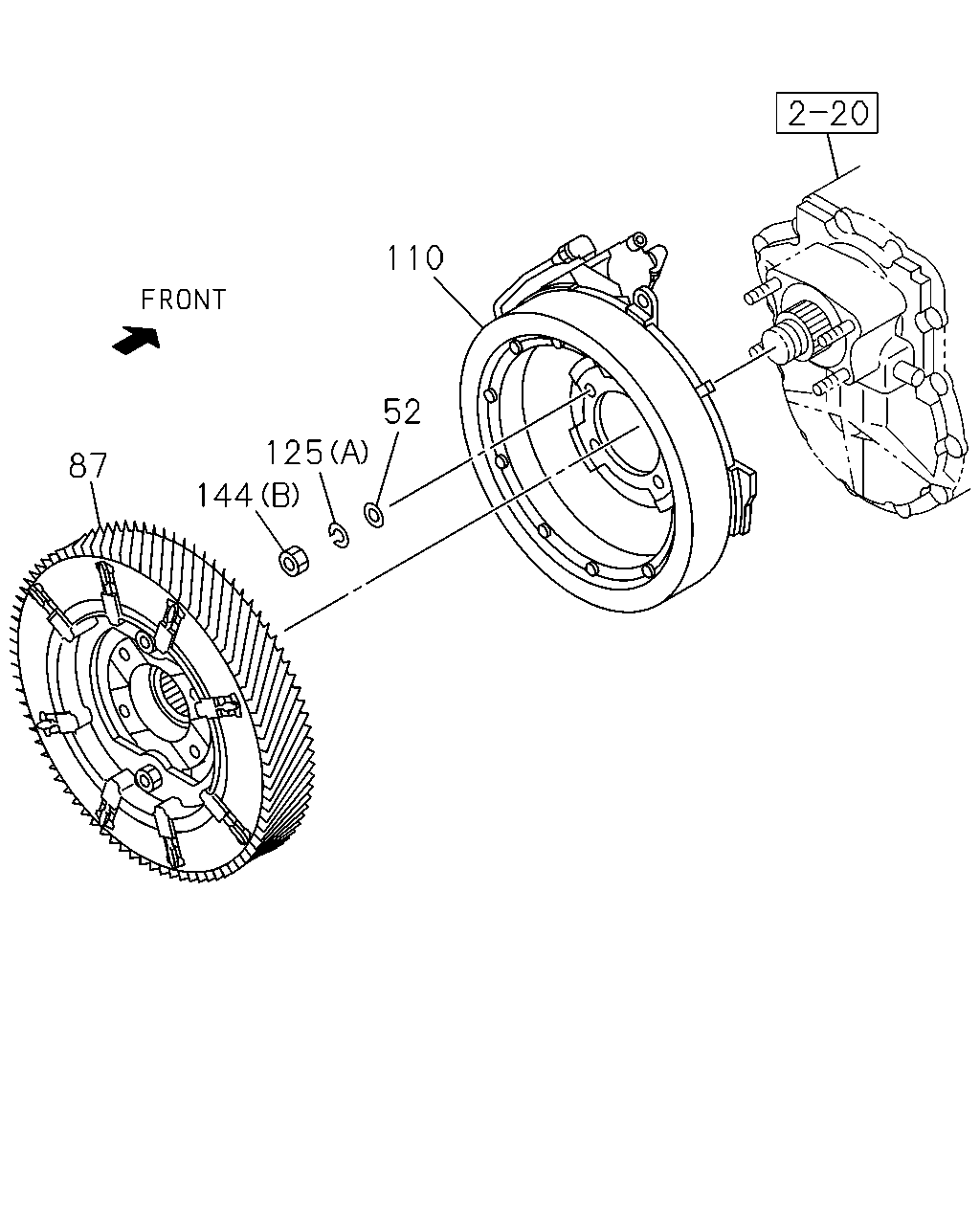

çizim 115187
110 52 125 87 144
BalonParca AdiParca NoAdetTipApplied Date
52 WASHER; PL
BRAKE SYSTEM RETARDER<RE2> ID=17 		9-09164-516-0 04 1 1009-1011
52 WASHER; PL
BRAKE SYSTEM RETARDER<RE2> ID=17 		0-91614-516-0 04 1 1012-
87 DRUM; RETARDER,PARKING BRK
BRAKE SYSTEM RETARDER<RE2> 		1-48610-498-1 01 1 1009-
110 BRAKE ASM; PARKING
BRAKE SYSTEM RETARDER<RE2> 		1-48610-497-3 01 1 1009-
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> (C) ID=12.2 		0-91510-512-0 02 1 1009-
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2 		0-91510-516-0 04 1 1009-
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-429-0 02 1 1009-
144 NUT
BRAKE SYSTEM RETARDER<RE2> (B) M16 		0-91110-516-0 04 1 1009-
144 NUT
BRAKE SYSTEM RETARDER<RE2> (A) M12 		9-09840-280-0 02 1 1009-

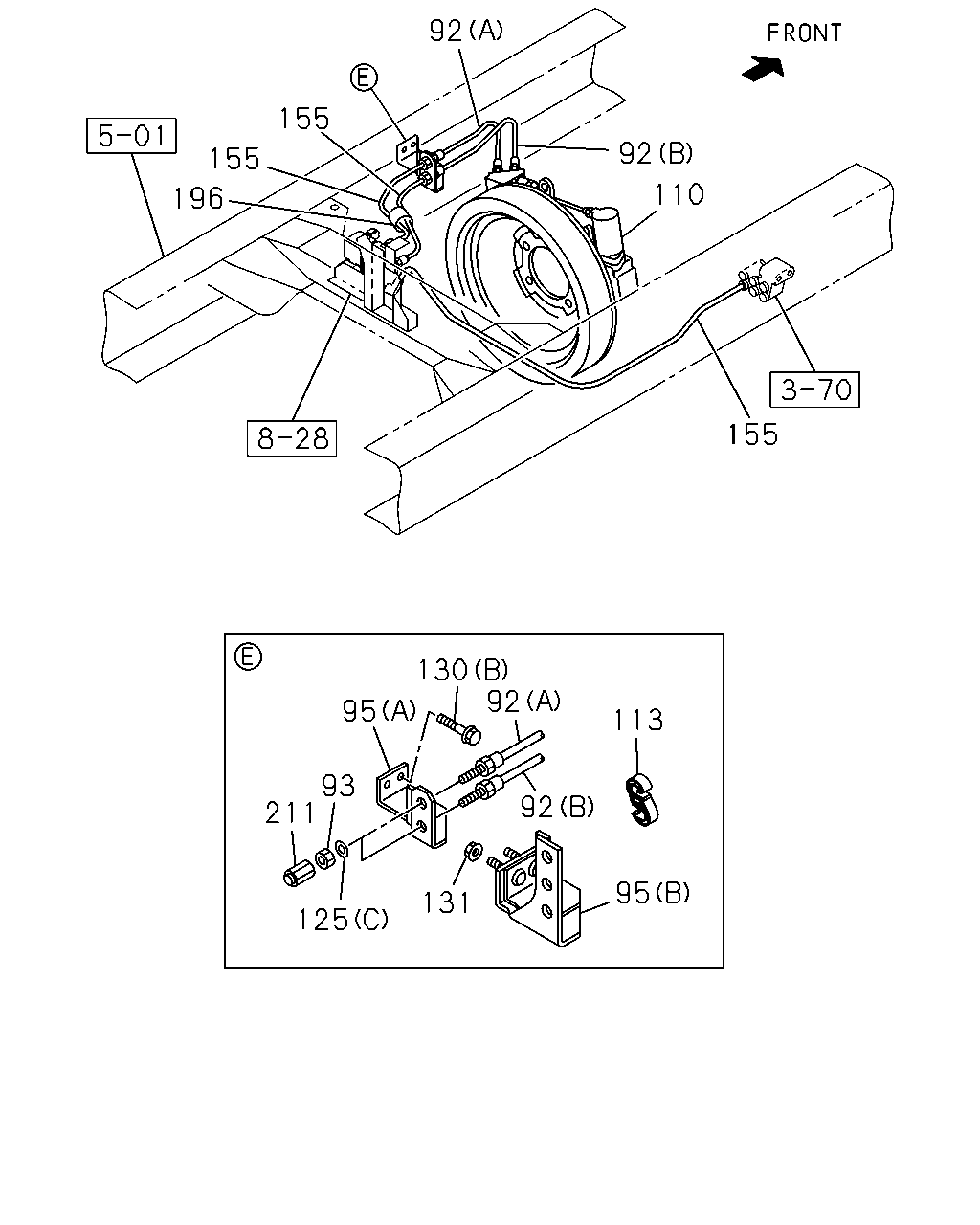

çizim 115363
92 155 92 155 110 196 155 130 92 95 113 93 211 92 95 131 125
BalonParca AdiParca NoAdetTipApplied Date
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER<RE2> (B) L=300 		1-09363-608-0 01 1 1009-
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER<RE2> (A) L=260 		1-09363-609-0 01 1 1009-
93 NUT; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> M12 		9-09840-280-0 02 1 1009-
95 BRACKET; FLEX HOSE,RETARDER
BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) 		1-47471-088-0 01 1 1009-
95 BRACKET; FLEX HOSE,RETARDER
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (B) 		8-98061-851-0 01 1 1009-
110 BRAKE ASM; PARKING
BRAKE SYSTEM RETARDER<RE2> 		1-48610-497-3 01 1 1009-
113 CLIP; HOSE
BRAKE SYSTEM RETARDER<RE2> ID=10 & 10 		1-09709-277-1 01 1 1009-
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> (C) ID=12.2 		0-91510-512-0 02 1 1009-
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2 		0-91510-516-0 04 1 1009-
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-429-0 02 1 1009-
130 BOLT; BRKT
BRAKE SYSTEM RETARDER<RE2> (A) M6X14 HEX SOCKET 		1-48629-145-0 04 1 1009-
130 BOLT; BRKT
BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M8X30 FLANGE 		0-28650-830-0 02 1 1009-
131 NUT; BRKT
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91180-108-0 02 1 1009-
155 TUBE
BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1009-
155 TUBE
BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1009-
155 TUBE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 OD=6 		1-87411-001-0 03 1 1009-
196 TUBE; CORRUGATE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1009-
211 ADAPTER
BRAKE SYSTEM RETARDER<RE2> DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1009-

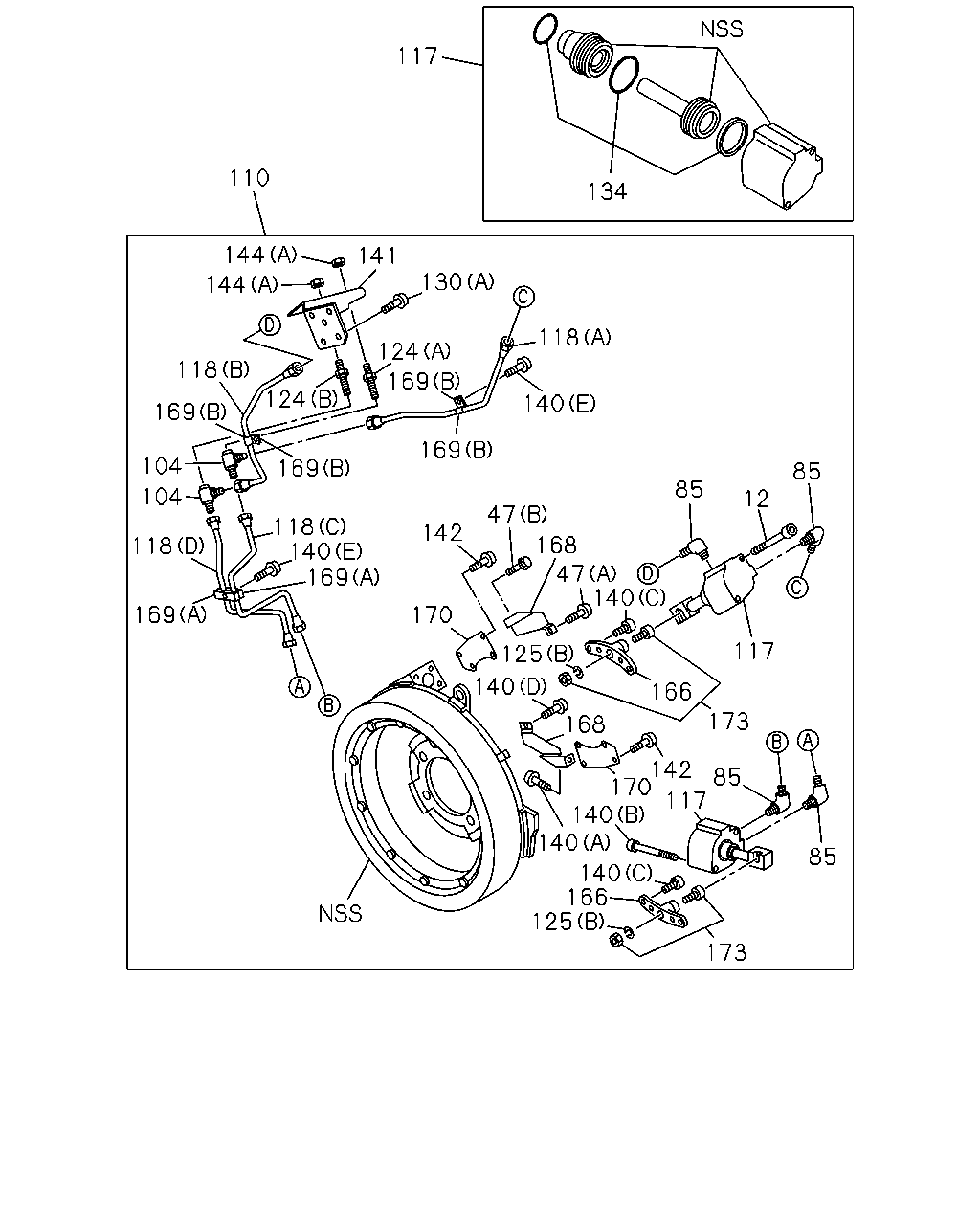

çizim 188767
134 117 110 144 144 118 169 104 104 118 169 169 140 118 169 124 141 130 124 169 118 140 169 47 142 170 168 47 85 12 85 117 140 125 140 168 166 173 85 85 173 117 142 170 140 140 140 166 125
BalonParca AdiParca NoAdetTipApplied Date
12 BOLT; FIX
BRAKE SYSTEM RETARDER<RE2> 		1-48629-461-0 02 1 1009-
47 BOLT; SUPPORT PLATE
BRAKE SYSTEM RETARDER<RE2> (B) M6X10 HEX SOCKET 		1-48629-133-0 01 1 1009-
47 BOLT; SUPPORT PLATE
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-471-0 01 1 1009-
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER<RE2> M12 & PT1/8 		0-92124-306-0 04 1 1009-
104 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> 		1-48629-202-0 02 1 1009-
110 BRAKE ASM; PARKING
BRAKE SYSTEM RETARDER<RE2> 		1-48610-497-3 01 1 1009-
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER<RE2> MAIN 		1-48629-464-0 01 1 1009-
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER<RE2> SUB 		1-48629-465-0 01 1 1009-
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-457-0 01 1 1009-
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-458-0 01 1 1009-
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER<RE2> (C) 		1-48629-459-0 01 1 1009-
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER<RE2> (D) 		1-48629-460-0 01 1 1009-
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (A) M12 2WAY 		1-09654-257-1 01 1 1009-
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-452-0 01 1 1009-
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> (C) ID=12.2 		0-91510-512-0 02 1 1009-
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2 		0-91510-516-0 04 1 1009-
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-429-0 02 1 1009-
130 BOLT; BRKT
BRAKE SYSTEM RETARDER<RE2> (A) M6X14 HEX SOCKET 		1-48629-145-0 04 1 1009-
130 BOLT; BRKT
BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M8X30 FLANGE 		0-28650-830-0 02 1 1009-
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER<RE2> 		1-48629-463-0 02 1 1009-
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (A) M6X10 HEX SOCKET 		1-48629-133-0 01 1 1009-
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (E) M6X20 HEX SOCKET 		1-48629-270-0 03 1 1009-
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-461-0 02 1 1009-
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (C) 		1-48629-462-0 08 1 1009-
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (D) 		1-48629-471-0 01 1 1009-
141 BRACKET
BRAKE SYSTEM RETARDER<RE2> 		1-48629-450-0 01 1 1009-
142 SCREW
BRAKE SYSTEM RETARDER<RE2> M6X10 HEX SOCKET 		1-48629-133-0 08 1 1009-
144 NUT
BRAKE SYSTEM RETARDER<RE2> (B) M16 		0-91110-516-0 04 1 1009-
144 NUT
BRAKE SYSTEM RETARDER<RE2> (A) M12 		9-09840-280-0 02 1 1009-
166 ATTACHMENT; YOKE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-446-0 02 1 1009-
168 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER<RE2> 		1-48629-447-0 02 1 1009-
169 CLAMP
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-249-0 04 1 1009-
169 CLAMP
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-276-0 02 1 1009-
170 COVER; CASE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-448-0 02 1 1009-
173 FOLLOWER
BRAKE SYSTEM RETARDER<RE2> 		1-48629-468-0 02 1 1009-
