Isuzu WW
▶
TRUCKS
▶
EXD
▶
11293 - EXD RHD EURO5
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

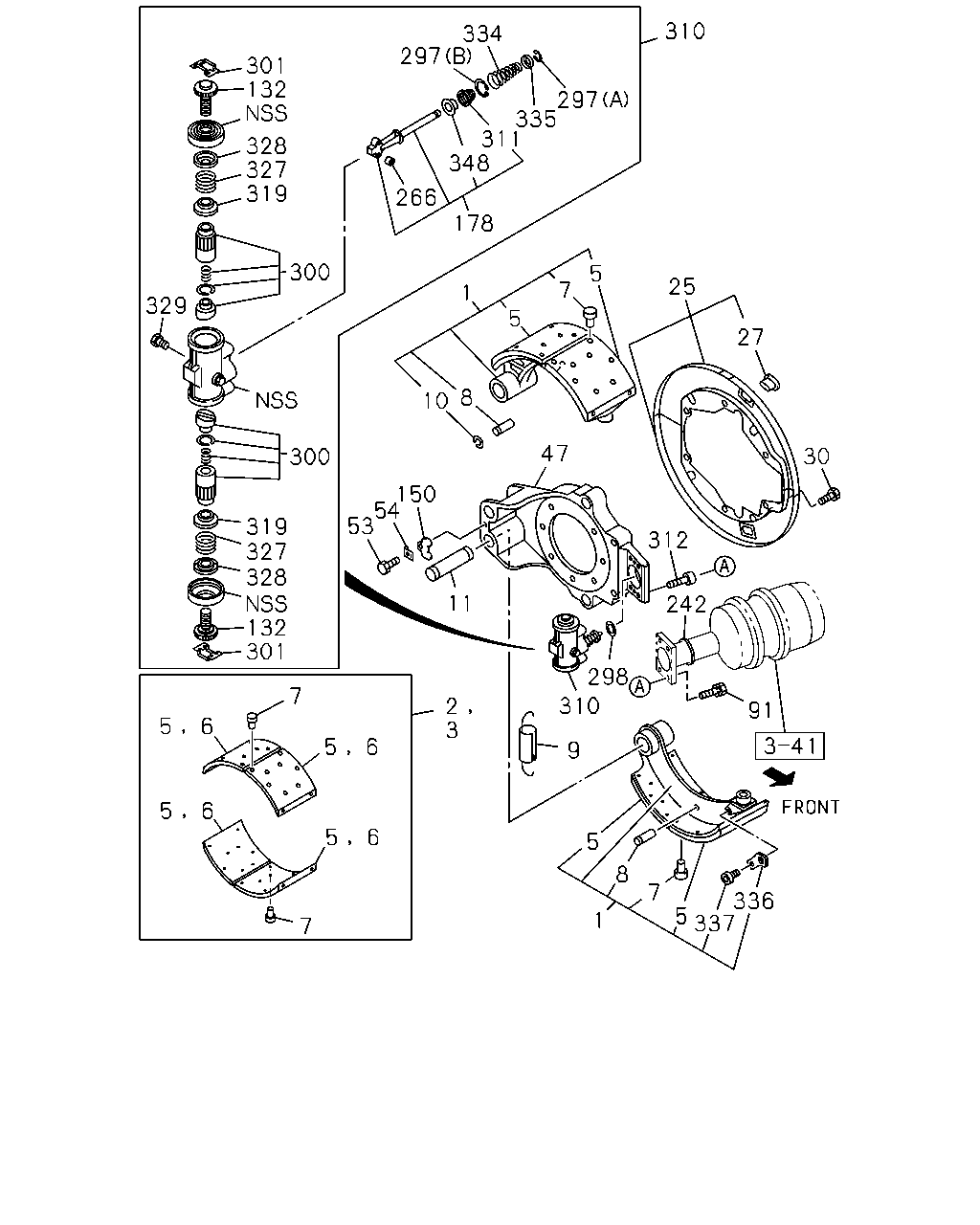

3-05 — REAR WHEEL BRAKE
(#70260) — 61 parça
◀
[305A] REPAIR KIT (13 parça)
[305A] COMPONENT (48 parça)
▶
346
301
328
327
319
334
297
297
335
311
348
329
319
327
328
301
347
301
301
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
297
RING; SNAP
(A)
1-47649-031-0
02
1
1009-
297
RING; SNAP
(B)
1-47649-034-1
02
1
1009-
301
CLIP; ANTI LOTATION
1-47621-017-0
04
1
1009-
311
BOOT; WEDGE
1-47649-042-0
02
1
1009-
319
RING; DRIVE
1-47629-200-0
04
1
1009-
327
SPRING; ADJ
1-47629-196-0
04
1
1009-
328
CAGE; SPRING
1-47629-192-0
04
1
1009-
329
SCREW; LOCATING
1-47619-149-1
04
1
1009-
334
SPRING; ROD
1-47649-041-0
02
1
1009-
335
RETAINER; SPRING
1-47649-020-0
02
1
1009-
346
REPAIR KIT; EXPANDER
1-85576-403-0
02
1
1009-
347
REPAIR KIT; BOOT,EXPANDER
1-85576-404-0
02
1
1009-
348
CAP; EXPANDER
1-47649-044-0
02
1
1009-
310
334
297
301
132
297
335
311
348
328
327
319
266
178
300
5
25
7
1
329
5
27
8
10
47
30
300
150
54
53
319
327
328
132
301
312
11
242
298
7
310
2
3
91
5
6
5
6
9
5
6
5
6
5
8
336
5
337
7
1
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,RR
LEADING
1-47170-324-0
01
1
1009-
1
SHOE; BRK,RR
TRAILING
1-47170-325-0
01
1
1009-
1
SHOE; BRK,RR
LEADING
1-47170-326-0
01
1
1009-
1
SHOE; BRK,RR
TRAILING
1-47170-327-0
01
1
1009-
2
LINING SET; RR BRK,STANDARD
1-88310-775-0
02
1
1009-
3
LINING SET; RR BRK,OVER SIZE
1-88310-776-0
02
1
1009-
5
LINING; RR BRK SHOE,STANDARD
1-47126-093-0
08
1
1009-
6
LINING; RR BRK SHOE,OVER SIZE
1-47126-094-0
08
1
1009-
7
RIVET; LINING,RR BRK
L=15.5
1-09732-053-0
AR
1
1009-
8
PIN; RETURN SPRING,RR BRK SHOE
TRAILING
1-47119-136-0
02
1
1009-
8
PIN; RETURN SPRING,RR BRK SHOE
LEADING
1-47119-172-0
02
1
1009-
9
SPRING; RETURN,BRK SHOE
1-09583-365-1
02
1
1009-
10
RING; SNAP,SPR PIN
ID=10
0-91805-510-0
02
1
1009-
11
PIN; ANCHOR,RR WHEEL BRK
L=138.5
1-47131-045-0
04
1
1009-
25
COVER SET; RR BRK DRUM
1-47151-808-0
01
1
1009-1309
25
COVER SET; RR BRK DRUM
1-47151-878-0
02
1
1310-
25
COVER SET; RR BRK DRUM
1-47151-809-0
01
1
1009-1309
27
COVER; CHECK HOLE,DRUM COVER
1-09333-151-0
04
1
1009-
30
BOLT; DRUM COVER
M10X12
1-47159-187-0
12
1
1009-
47
BRACKET; ANCHOR PIN,RR WHEEL BRK
1-47137-549-0
01
1
1009-1306
47
BRACKET; ANCHOR PIN,RR WHEEL BRK
8-98091-254-1
01
1
1307-
47
BRACKET; ANCHOR PIN,RR WHEEL BRK
1-47137-550-0
01
1
1009-1306
47
BRACKET; ANCHOR PIN,RR WHEEL BRK
8-98091-255-1
01
1
1307-
53
BOLT; LOCK PLATE
M10X16
1-47139-173-0
02
1
1009-
54
WASHER; LK,ANCHOR PIN,RR BRK
1-47133-011-0
02
1
1009-
91
BOLT; CHAMBER
M10X53
1-47139-148-0
08
1
1009-
132
SCREW; ADJ,RR BRK
1-47623-035-2
04
1
1009-
150
PLATE; LK,ANCHOR PIN
1-47133-010-0
02
1
1009-
178
WEDGE; RR WHEEL CYL
1-47640-012-0
02
1
1009-
242
SEAL
1-47159-186-0
04
1
1009-
266
ROLLER; WEDGE
1-47643-007-0
04
1
1009-
297
RING; SNAP
(A)
1-47649-031-0
02
1
1009-
297
RING; SNAP
(B)
1-47649-034-1
02
1
1009-
298
GASKET
1-48259-231-0
02
1
1009-
300
SLEEVE
1-47629-247-1
04
1
1009-
301
CLIP; ANTI LOTATION
1-47621-017-0
04
1
1009-
310
EXPANDER
1-47601-087-0
02
1
1009-
311
BOOT; WEDGE
1-47649-042-0
02
1
1009-
312
BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET
1-47634-008-0
04
1
1009-
319
RING; DRIVE
1-47629-200-0
04
1
1009-
327
SPRING; ADJ
1-47629-196-0
04
1
1009-
328
CAGE; SPRING
1-47629-192-0
04
1
1009-
329
SCREW; LOCATING
1-47619-149-1
04
1
1009-
334
SPRING; ROD
1-47649-041-0
02
1
1009-
335
RETAINER; SPRING
1-47649-020-0
02
1
1009-
336
PLATE; PIVOT
1-47119-152-0
04
1
1009-
337
BOLT; PLATE
1-47119-153-0
04
1
1009-
348
CAP; EXPANDER
1-47649-044-0
02
1
1009-
