Isuzu WW
▶
TRUCKS
▶
EXD
▶
11293 - EXD RHD EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶
2-53 — TRANSMISSION OIL COOLER SYSTEM
(#70256) — 51 parça
◀
[253A] BRACKET AND OTHER PARTS (29 parça)
[253A] FIXING OTHER PARTS (22 parça)
▶
11
8
109
12
50
95
1
101
48
82
111
114
136
210
73
80
179
82
19
81
91
29
178
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; ATF
L=550
1-09365-231-0
01
1
1009-
8
UNION
M22 L=51
0-92123-015-0
02
1
1009-
11
CLIP; PIPE
(A) ID=19 L=28
0-95235-856-0
02
1
1009-
11
CLIP; PIPE
(B) ID=16X2 L=20
0-95325-535-0
05
1
1009-
12
NUT; BRKT
M8 FLANGE
0-91180-108-0
05
1
1009-
19
BRACKET; FLEX HOSE
1-47479-561-1
01
1
1009-
29
BOLT; FILTER TO BRKT
M10X20 FLANGE
0-28051-020-0
01
1
1009-
29
BOLT; FILTER TO BRKT
M8X20 FLANGE
0-28650-820-0
01
1
1009-
29
BOLT; FILTER TO BRKT
M8X30 FLANGE
0-28650-830-0
04
1
1009-
48
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1009-
50
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
02
1
1009-
50
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
05
1
1009-
73
HOSE; FLEX,TRANS
L=500
1-09365-247-0
01
1
1009-
80
UNION; FLEX HOSE
M22 & M22 STRAIGHT
1-09654-204-2
01
1
1009-
81
NUT; UNION
M22
0-91111-522-0
01
1
1009-
82
WASHER; LK,UNION
ID=22.5
0-91510-522-0
02
1
1009-
91
PIPE; OIL,FLEX HOSE TO UNION
L=919
1-49166-987-1
01
1
1009-
95
BRACKET; CLIP
(B)
1-47479-482-0
01
1
1009-
95
BRACKET; CLIP
(B)
1-47479-482-0
04
1
1009-
95
BRACKET; CLIP
(C)
8-97610-663-0
01
1
1009-
95
BRACKET; CLIP
(A)
8-97610-664-0
01
1
1009-
101
UNION; FLEX HOSE
M22 & M22 STRAIGHT
1-09654-204-2
01
1
1009-
109
UNION
M22 L=51
0-92123-015-0
02
1
1009-
111
NUT; UNION
M22
0-91111-522-0
01
1
1009-
114
PIPE; OIL,UNION TO FLEX HOSE
L=849
1-49167-146-0
01
1
1009-
136
CLIP; FLEX HOSE
L=350
1-09707-183-0
01
1
1009-
178
BOLT; BRKT,CLIP
M8X30 FLANGE
0-28650-830-0
01
1
1009-
179
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
1009-
210
BAND; FLEX HOSE
L=175
1-09707-178-0
01
1
1009-
73
1
114
91
94
94
94
29
95
26
95
24
50
11
12
50
92
29
11
92

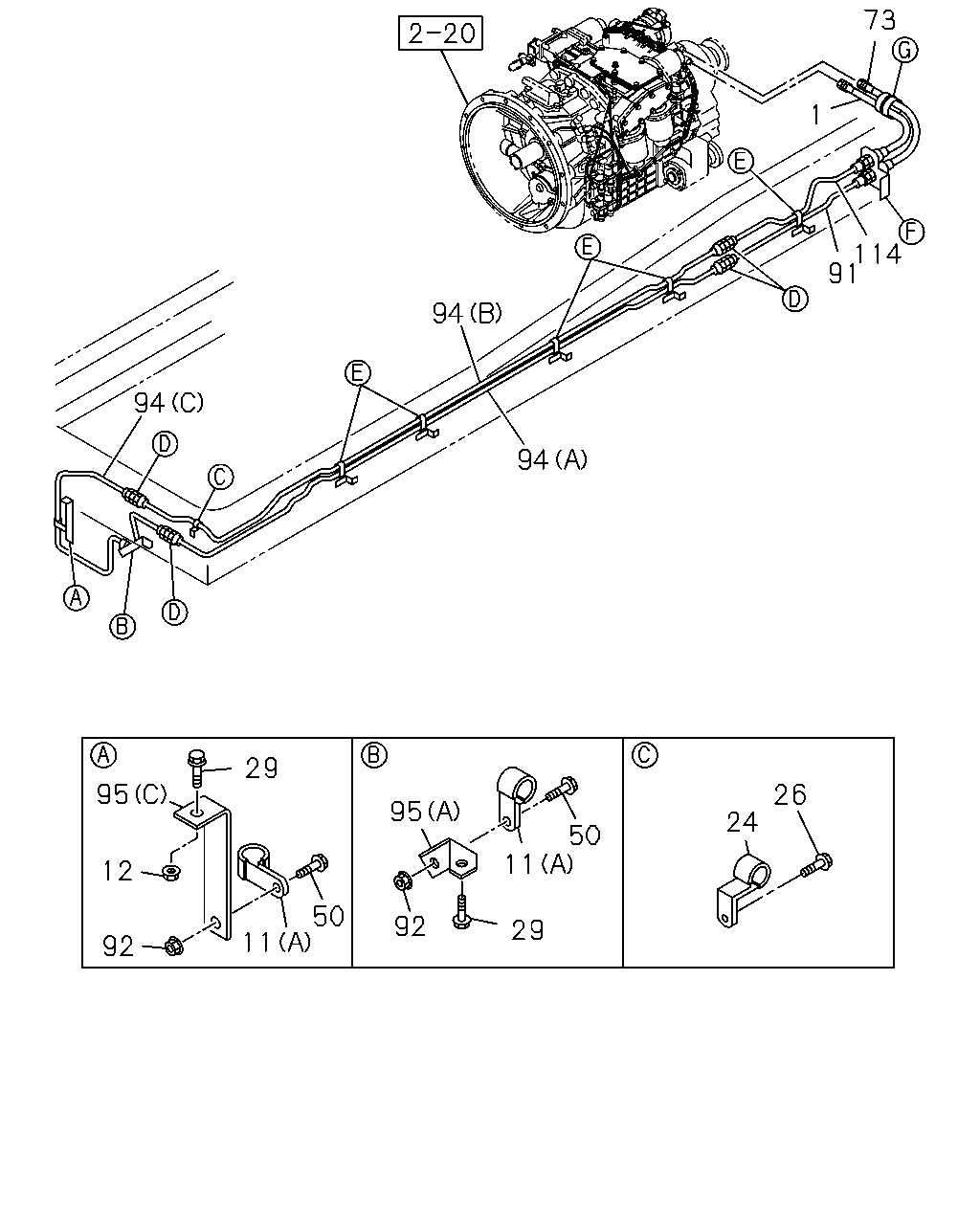

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; ATF
L=550
1-09365-231-0
01
1
1009-
11
CLIP; PIPE
(A) ID=19 L=28
0-95235-856-0
02
1
1009-
11
CLIP; PIPE
(B) ID=16X2 L=20
0-95325-535-0
05
1
1009-
12
NUT; BRKT
M8 FLANGE
0-91180-108-0
05
1
1009-
24
CLIP; OIL PIPE
ID=15 H=24 L=20
1-09700-606-0
01
1
1009-
26
BOLT; PIPE CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1009-
29
BOLT; FILTER TO BRKT
M10X20 FLANGE
0-28051-020-0
01
1
1009-
29
BOLT; FILTER TO BRKT
M8X20 FLANGE
0-28650-820-0
01
1
1009-
29
BOLT; FILTER TO BRKT
M8X30 FLANGE
0-28650-830-0
04
1
1009-
50
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
02
1
1009-
50
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
05
1
1009-
73
HOSE; FLEX,TRANS
L=500
1-09365-247-0
01
1
1009-
91
PIPE; OIL,FLEX HOSE TO UNION
L=919
1-49166-987-1
01
1
1009-
92
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
1009-
94
PIPE; OIL,UNION TO UNION
(B) L=2045
1-49167-291-0
01
1
1009-
94
PIPE; OIL,UNION TO UNION
(A) L=1610
1-49167-565-0
01
1
1009-
94
PIPE; OIL,UNION TO UNION
(C) L=1010
1-49167-738-0
01
1
1009-
95
BRACKET; CLIP
(B)
1-47479-482-0
01
1
1009-
95
BRACKET; CLIP
(B)
1-47479-482-0
04
1
1009-
95
BRACKET; CLIP
(C)
8-97610-663-0
01
1
1009-
95
BRACKET; CLIP
(A)
8-97610-664-0
01
1
1009-
114
PIPE; OIL,UNION TO FLEX HOSE
L=849
1-49167-146-0
01
1
1009-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
