2-26 — MANUAL TRANSMISSION GEAR (#70251) — 242 parça

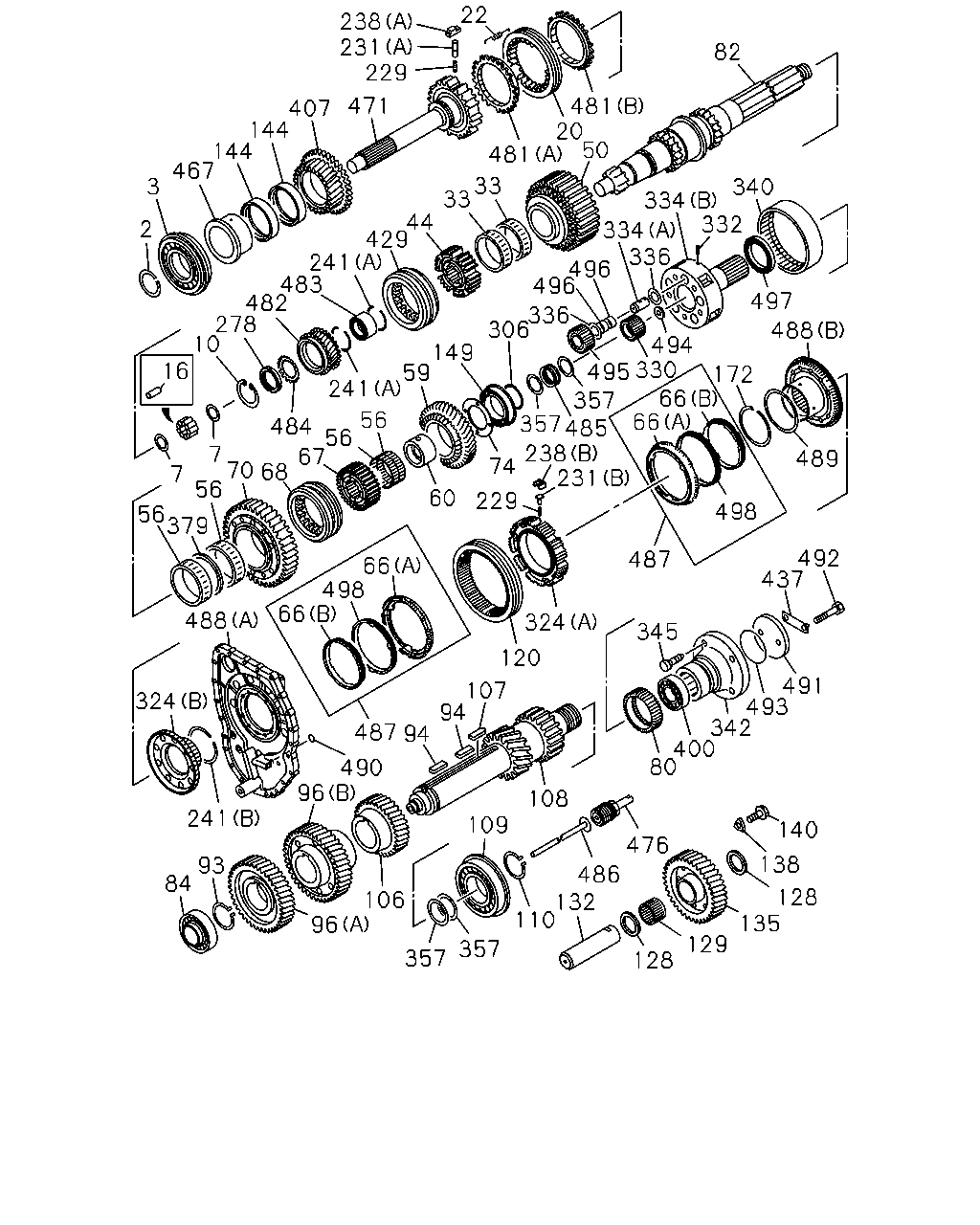

çizim 188768
238 22 229 231 471 407 144 144 467 3 2 16 10 278 482 483 241 429 44 33 33 481 20 481 82 50 334 340 336 334 496 496 336 306 149 59 241 56 484 56 67 68 70 7 7 56 379 488 56 66 66 498 60 229 74 238 357 357 231 485 495 330 494 66 66 497 172 488 489 498 437 491 492 493 342 400 80 345 487 324 120 107 94 94 487 490 96 241 324 93 84 96 357 106 109 110 357 132 486 128 135 138 476 108 140 128 129 332
BalonParca AdiParca NoAdetTipApplied Date
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.53 WHITE 		1-09588-181-0 AR 1 1009-
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.56 YELLOW 		1-09588-182-0 AR 1 1009-
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.60 BLUE 		1-09588-183-0 AR 1 1009-
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.64 GREEN 		1-09588-184-0 AR 1 1009-
3 BEARING; TOP GEAR SHAFT
NSK 		1-09810-278-0 01 1 1009-
7 WASHER; THRUST,MAINSHAFT 1-33239-262-0 02 1 1009-
10 RING; SNAP,PILOT BRG
OD=72.5 		9-09180-168-0 01 1 1009-
16 BEARING; PILOT,MAINSHAFT
NSK 		1-09810-260-0 16 1 1009-
16 BEARING; PILOT,MAINSHAFT
NTN 		1-09810-261-0 16 1 1009-
20 SLEEVE 1-33262-216-1 01 1 1009-
22 SPRING; BLOCK,INSERT 1-09583-363-0 03 1 1009-
33 BEARING; NEEDLE,3RD GEAR
NSK 		1-09811-378-0 02 1 1009-1308
33 BEARING; NEEDLE,3RD GEAR
NTN 		1-09811-379-0 02 1 1009-
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-278-1 01 1 1009-
50 GEAR; 2ND,MAINSHAFT
Z=42 		1-33251-423-0 01 1 1009-
56 BEARING; NEEDLE,1ST,REV
NTN 		1-09811-436-0 04 1 1009-
59 GEAR; REV MAINSHAFT
Z=42 		1-33257-090-0 01 1 1009-
60 COLLAR; REV MAIN 1-33234-098-1 01 1 1009-
66 RING; BLOCK,SYN
(A) 		1-33265-588-0 02 1 1009-1312
66 RING; BLOCK,SYN
(A) 		8-98239-909-1 02 1 1401-
66 RING; BLOCK,SYN
(B) 		1-33265-590-0 02 1 1009-1307
66 RING; BLOCK,SYN
(B) 		8-98239-294-0 02 1 1308-1312
66 RING; BLOCK,SYN
(B) 		8-98239-911-1 02 1 1401-
67 HUB; CLU,1ST TO REV 1-33261-285-0 01 1 1009-
68 SLEEVE; 1ST TO REV 1-33262-232-0 01 1 1009-
70 GEAR; 1ST,MAINSHAFT
Z=47 		1-33255-079-0 01 1 1009-
74 WASHER; THRUST,REV GEAR 1-33239-308-0 01 1 1009-
80 GEAR; SPD DRIVE
Z=11 		1-33371-069-0 01 1 1009-
82 SHAFT; MAIN,TRANS
Z=37-40-19 		1-33231-331-1 01 1 1009-
84 BEARING; COUNTER SHAFT,FRT
NSK 		1-09810-221-0 01 1 1009-
84 BEARING; COUNTER SHAFT,FRT
NTN 		1-09810-222-0 01 1 1009-
93 RING; SNAP,COUNTER FRT BRG 1-09588-149-0 01 1 1009-
94 KEY; FEATHER,COUNTER SHAFT
L=70 		1-09735-046-0 02 1 1009-
96 GEAR; COUNTER DRIVE
(A) Z=35 		1-33331-258-2 01 1 1009-
96 GEAR; COUNTER DRIVE
(B) Z=38 		1-33338-374-3 01 1 1009-
106 GEAR; 2ND,COUNTER
Z=35 		1-33338-391-1 01 1 1009-
107 KEY; FEATHER,2ND COUNTER
L=75.3 		1-09735-042-0 01 1 1009-
108 SHAFT; COUNTER
Z=23-23 		1-33311-329-0 01 1 1009-
109 BEARING; COUNTER SHAFT,RR
NSK 		1-09810-186-0 01 1 1009-
109 BEARING; COUNTER SHAFT,RR
NTN 		1-09810-207-0 01 1 1009-
110 RING; SNAP,COUNTER BRG 1-09588-193-1 01 1 1009-
120 SLEEVE 1-33262-229-0 01 1 1009-
128 WASHER; THRUST,REV SHAFT
T=4.0 		9-33363-015-0 02 1 1009-
129 BEARING; NEEDLE,IDLER
NSK 		1-09811-384-0 01 1 1009-
129 BEARING; NEEDLE,IDLER
NTN 		1-09811-385-0 01 1 1009-
132 SHAFT; REV 1-33351-035-1 01 1 1009-
135 GEAR; REV IDLER
Z=30 		1-33361-089-0 01 1 1009-
138 PIECE; LK,REV SHAFT 9-33354-007-0 01 1 1009-
140 BOLT; LK PIECE
M10X25 		1-09049-006-1 01 1 1009-
144 BEARING; NEEDLE,INPUT GEAR
NTN 		1-09811-436-0 02 1 1009-
149 BEARING; NEEDLE,MAINSHAFT,RR
NSK 		1-09810-256-0 01 1 1009-
149 BEARING; NEEDLE,MAINSHAFT,RR
NTN 		1-09810-257-0 01 1 1009-
172 RING; SNAP,CLU HUB
OD=121.2 		1-09587-031-0 01 1 1009-
229 SPRING; PLUNGER
D=3.8 		1-09580-395-0 06 1 1404-
229 SPRING; PLUNGER
D=6.2 		1-09580-091-1 15 1 1009-1403
229 SPRING; PLUNGER
D=6.2 		1-09580-091-1 09 1 1404-
231 PLUNGER
(A) 		1-33263-033-0 06 1 1009-1403
231 PLUNGER
(A) 		8-98273-831-0 06 1 1404-
231 PLUNGER
(B) 		1-33263-038-1 09 1 1009-
238 INSERT
(A) 		1-33263-036-0 06 1 1009-
238 INSERT
(B) 		1-33263-039-0 09 1 1009-
241 RING; SNAP
(A) 		1-09587-023-0 02 1 1009-
241 RING; SNAP
(B) 		1-09587-104-0 01 1 1009-
278 NUT; BRG 1-09449-080-0 01 1 1009-
306 RING; SNAP,MAINSHAFT 1-09588-149-0 01 1 1009-
324 HUB; CLU
(A) 		1-34231-015-0 01 1 1009-
324 HUB; CLU
(B) 		1-34371-017-0 01 1 1009-1307
324 HUB; CLU
(B) 		8-98239-089-0 01 1 1308-
330 GEAR; SUN
Z=24 		1-34311-010-0 01 1 1009-
332 PIN; LOCK,SHAFT 1-09748-025-0 05 1 1009-
334 SHAFT; PLANETARY GEAR
(A) 		1-34353-010-1 05 1 1009-
334 SHAFT; PLANETARY GEAR
(B) 		1-34372-034-0 01 1 1009-1307
334 SHAFT; PLANETARY GEAR
(B) 		8-98238-294-0 01 1 1308-
336 WASHER; THRUST,PLANETARY GEAR 1-09503-230-0 10 1 1009-
340 GEAR; RING
Z=86 OKUBO GEAR 		1-34371-014-0 01 1 1009-
340 GEAR; RING
Z=86 NIPPON GEAR 		1-34371-018-0 01 1 1009-
340 GEAR; RING
Z=86 ISUZU 		1-34371-019-0 01 1 1009-
342 FLANGE; OUTPUT
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-37243-400-2 01 1 1009-
345 BOLT; FLANGE TO YOKE
EXC. BRAKE SYSTEM RETARDER<RE2> M14X48.5 		1-09046-013-0 04 1 1009-
357 RING 1-31349-044-0 04 1 1009-
379 PIECE; DIST,MAINSHAFT 1-33363-034-0 01 1 1009-
400 BEARING; OUTPUT SHAFT RR
NSK W/SNAP RING 		8-98153-252-0 01 1 1009-
407 GEAR; PRIMARY MAIN
Z=33 		1-33253-717-0 01 1 1009-
429 SLEEVE; 2ND & 3RD 1-33262-222-0 01 1 1009-
437 PLATE; LOCK 1-34252-032-0 01 1 1009-
467 COLLAR; SHAFT 1-33234-091-1 01 1 1009-
471 SHAFT; INPUT 1-33215-019-0 01 1 1009-
476 ADAPTER; PUMP DRIVE 1-33339-091-1 01 1 1009-
481 RING; BLOCK
(A) HIGH 		1-33265-516-1 01 1 1009-1407
481 RING; BLOCK
(A) HIGH 		8-98239-518-1 01 1 1408-1410
481 RING; BLOCK
(A) HIGH 		1-33265-516-1 01 1 1411-
481 RING; BLOCK
(B) LOW 		1-33265-532-1 01 1 1009-1407
481 RING; BLOCK
(B) LOW 		8-98239-519-1 01 1 1408-1410
481 RING; BLOCK
(B) LOW 		1-33265-532-1 01 1 1411-
482 GEAR; PRIMARY
Z=29 		1-33253-720-0 01 1 1009-
483 BEARING; TAPER
NTN 		8-98174-410-0 01 1 1009-1504
483 BEARING; TAPER
NTN 		8-98316-126-0 01 1 1505-
484 PLATE; SETTING 1-33313-023-0 01 1 1009-
485 PIECE; GUIDE 1-33363-040-1 01 1 1009-
486 NOZZLE; CONT SHAFT 1-33219-254-1 01 1 1009-
487 SYNCHRONIZER; RANGE CHANGE 1-33265-616-0 02 1 1009-1307
487 SYNCHRONIZER; RANGE CHANGE 8-98239-293-0 02 1 1308-1312
487 SYNCHRONIZER; RANGE CHANGE 8-98239-908-1 02 1 1401-
488 CLUTCH; DOG,RANGE
(B) 		1-34254-006-1 01 1 1009-1211
488 CLUTCH; DOG,RANGE
(B) 		8-98218-291-0 01 1 1212-1307
488 CLUTCH; DOG,RANGE
(B) 		8-98238-509-0 01 1 1308-
488 CLUTCH; DOG,RANGE
(A) 		8-98060-771-1 01 1 1009-1307
488 CLUTCH; DOG,RANGE
(A) 		8-98239-163-0 01 1 1308-
489 WASHER; THRUST 1-09503-308-0 01 1 1009-
490 GASKET; SEAL,CASE
ID=10 		1-09623-369-0 01 1 1009-
491 PLATE; OUTPUT SHAFT 1-34252-035-1 01 1 1009-
492 BOLT; PLATE 1-09000-750-0 02 1 1009-
493 GASKET; OUTPUT SHAFT 9-09561-385-0 01 1 1009-
494 PLATE; OUTPUT SHAFT 1-34379-020-0 01 1 1009-1307
495 PINION; PLANETARY
Z=30 		1-34361-023-0 05 1 1009-
496 BEARING; PLANETARY 1-09811-437-0 10 1 1009-
497 BEARING; RING GEAR
NSK 		1-09810-276-0 01 1 1009-1307
497 BEARING; RING GEAR
NTN 		1-09810-277-0 01 1 1009-1307
497 BEARING; RING GEAR
NTN 		8-98239-433-0 01 1 1308-
498 CONE; SYN 1-33265-617-0 02 1 1009-1312
498 CONE; SYN 8-98239-910-0 02 1 1401-

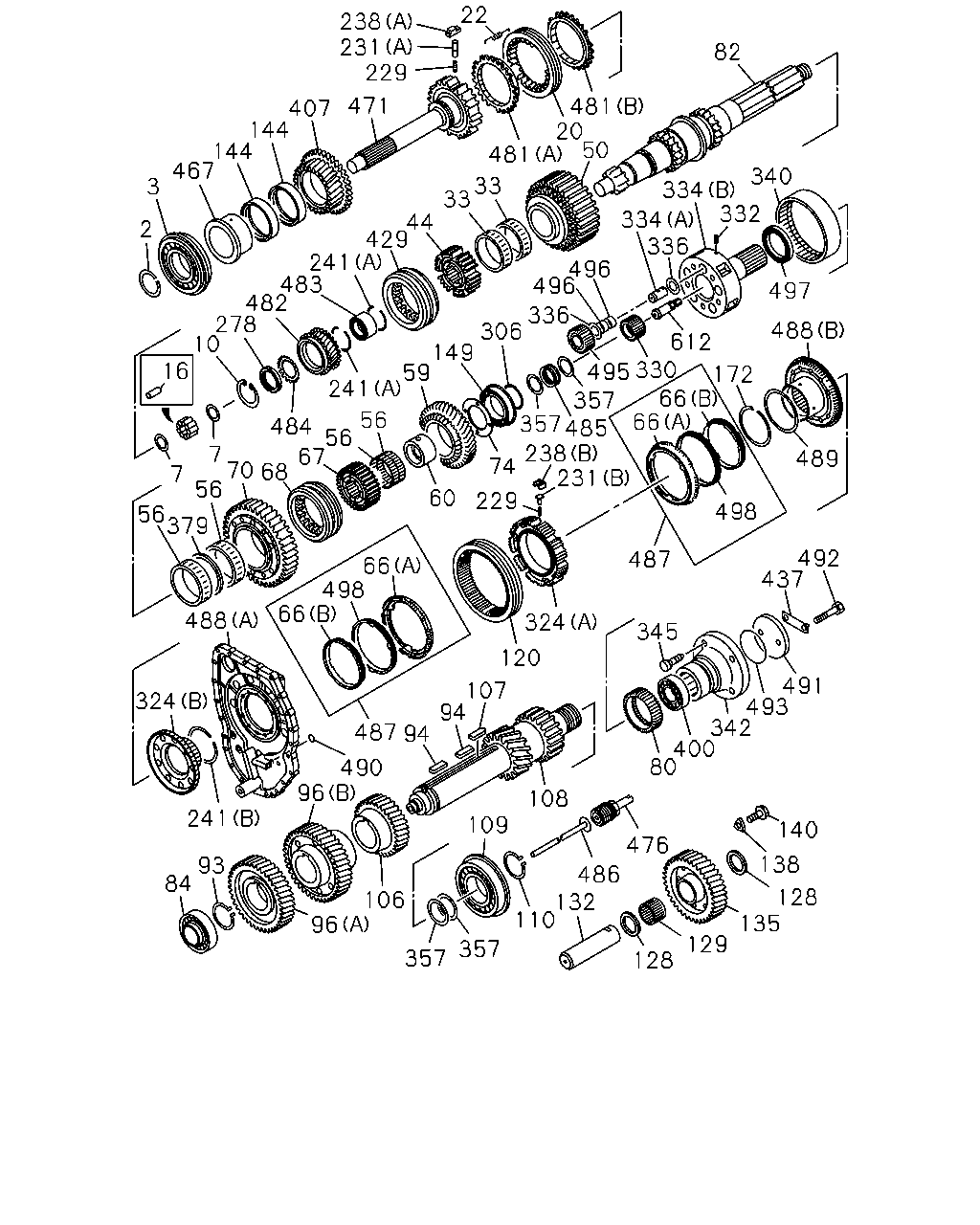

çizim 371008
238 231 22 229 471 407 144 144 467 3 2 16 10 278 482 483 241 429 44 33 33 481 20 481 82 50 334 340 332 334 336 497 488 612 330 496 496 336 306 149 59 241 484 56 56 67 68 70 7 7 56 56 379 488 324 241 84 93 96 490 487 94 94 107 120 324 487 498 489 492 437 491 493 342 400 80 140 138 128 135 129 128 132 486 476 108 109 357 357 110 106 96 66 498 66 60 229 74 357 238 485 357 495 66 66 172 231 345
BalonParca AdiParca NoAdetTipApplied Date
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.53 WHITE 		1-09588-181-0 AR 1 1009-
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.56 YELLOW 		1-09588-182-0 AR 1 1009-
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.60 BLUE 		1-09588-183-0 AR 1 1009-
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.64 GREEN 		1-09588-184-0 AR 1 1009-
3 BEARING; TOP GEAR SHAFT
NSK 		1-09810-278-0 01 1 1009-
7 WASHER; THRUST,MAINSHAFT 1-33239-262-0 02 1 1009-
10 RING; SNAP,PILOT BRG
OD=72.5 		9-09180-168-0 01 1 1009-
16 BEARING; PILOT,MAINSHAFT
NSK 		1-09810-260-0 16 1 1009-
16 BEARING; PILOT,MAINSHAFT
NTN 		1-09810-261-0 16 1 1009-
20 SLEEVE 1-33262-216-1 01 1 1009-
22 SPRING; BLOCK,INSERT 1-09583-363-0 03 1 1009-
33 BEARING; NEEDLE,3RD GEAR
NSK 		1-09811-378-0 02 1 1009-1308
33 BEARING; NEEDLE,3RD GEAR
NTN 		1-09811-379-0 02 1 1009-
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-278-1 01 1 1009-
50 GEAR; 2ND,MAINSHAFT
Z=42 		1-33251-423-0 01 1 1009-
56 BEARING; NEEDLE,1ST,REV
NTN 		1-09811-436-0 04 1 1009-
59 GEAR; REV MAINSHAFT
Z=42 		1-33257-090-0 01 1 1009-
60 COLLAR; REV MAIN 1-33234-098-1 01 1 1009-
66 RING; BLOCK,SYN
(A) 		1-33265-588-0 02 1 1009-1312
66 RING; BLOCK,SYN
(A) 		8-98239-909-1 02 1 1401-
66 RING; BLOCK,SYN
(B) 		1-33265-590-0 02 1 1009-1307
66 RING; BLOCK,SYN
(B) 		8-98239-294-0 02 1 1308-1312
66 RING; BLOCK,SYN
(B) 		8-98239-911-1 02 1 1401-
67 HUB; CLU,1ST TO REV 1-33261-285-0 01 1 1009-
68 SLEEVE; 1ST TO REV 1-33262-232-0 01 1 1009-
70 GEAR; 1ST,MAINSHAFT
Z=47 		1-33255-079-0 01 1 1009-
74 WASHER; THRUST,REV GEAR 1-33239-308-0 01 1 1009-
80 GEAR; SPD DRIVE
Z=11 		1-33371-069-0 01 1 1009-
82 SHAFT; MAIN,TRANS
Z=37-40-19 		1-33231-331-1 01 1 1009-
84 BEARING; COUNTER SHAFT,FRT
NSK 		1-09810-221-0 01 1 1009-
84 BEARING; COUNTER SHAFT,FRT
NTN 		1-09810-222-0 01 1 1009-
93 RING; SNAP,COUNTER FRT BRG 1-09588-149-0 01 1 1009-
94 KEY; FEATHER,COUNTER SHAFT
L=70 		1-09735-046-0 02 1 1009-
96 GEAR; COUNTER DRIVE
(A) Z=35 		1-33331-258-2 01 1 1009-
96 GEAR; COUNTER DRIVE
(B) Z=38 		1-33338-374-3 01 1 1009-
106 GEAR; 2ND,COUNTER
Z=35 		1-33338-391-1 01 1 1009-
107 KEY; FEATHER,2ND COUNTER
L=75.3 		1-09735-042-0 01 1 1009-
108 SHAFT; COUNTER
Z=23-23 		1-33311-329-0 01 1 1009-
109 BEARING; COUNTER SHAFT,RR
NSK 		1-09810-186-0 01 1 1009-
109 BEARING; COUNTER SHAFT,RR
NTN 		1-09810-207-0 01 1 1009-
110 RING; SNAP,COUNTER BRG 1-09588-193-1 01 1 1009-
120 SLEEVE 1-33262-229-0 01 1 1009-
128 WASHER; THRUST,REV SHAFT
T=4.0 		9-33363-015-0 02 1 1009-
129 BEARING; NEEDLE,IDLER
NSK 		1-09811-384-0 01 1 1009-
129 BEARING; NEEDLE,IDLER
NTN 		1-09811-385-0 01 1 1009-
132 SHAFT; REV 1-33351-035-1 01 1 1009-
135 GEAR; REV IDLER
Z=30 		1-33361-089-0 01 1 1009-
138 PIECE; LK,REV SHAFT 9-33354-007-0 01 1 1009-
140 BOLT; LK PIECE
M10X25 		1-09049-006-1 01 1 1009-
144 BEARING; NEEDLE,INPUT GEAR
NTN 		1-09811-436-0 02 1 1009-
149 BEARING; NEEDLE,MAINSHAFT,RR
NSK 		1-09810-256-0 01 1 1009-
149 BEARING; NEEDLE,MAINSHAFT,RR
NTN 		1-09810-257-0 01 1 1009-
172 RING; SNAP,CLU HUB
OD=121.2 		1-09587-031-0 01 1 1009-
229 SPRING; PLUNGER
D=3.8 		1-09580-395-0 06 1 1404-
229 SPRING; PLUNGER
D=6.2 		1-09580-091-1 15 1 1009-1403
229 SPRING; PLUNGER
D=6.2 		1-09580-091-1 09 1 1404-
231 PLUNGER
(A) 		1-33263-033-0 06 1 1009-1403
231 PLUNGER
(A) 		8-98273-831-0 06 1 1404-
231 PLUNGER
(B) 		1-33263-038-1 09 1 1009-
238 INSERT
(A) 		1-33263-036-0 06 1 1009-
238 INSERT
(B) 		1-33263-039-0 09 1 1009-
241 RING; SNAP
(A) 		1-09587-023-0 02 1 1009-
241 RING; SNAP
(B) 		1-09587-104-0 01 1 1009-
278 NUT; BRG 1-09449-080-0 01 1 1009-
306 RING; SNAP,MAINSHAFT 1-09588-149-0 01 1 1009-
324 HUB; CLU
(A) 		1-34231-015-0 01 1 1009-
324 HUB; CLU
(B) 		1-34371-017-0 01 1 1009-1307
324 HUB; CLU
(B) 		8-98239-089-0 01 1 1308-
330 GEAR; SUN
Z=24 		1-34311-010-0 01 1 1009-
332 PIN; LOCK,SHAFT 1-09748-025-0 05 1 1009-
334 SHAFT; PLANETARY GEAR
(A) 		1-34353-010-1 05 1 1009-
334 SHAFT; PLANETARY GEAR
(B) 		1-34372-034-0 01 1 1009-1307
334 SHAFT; PLANETARY GEAR
(B) 		8-98238-294-0 01 1 1308-
336 WASHER; THRUST,PLANETARY GEAR 1-09503-230-0 10 1 1009-
340 GEAR; RING
Z=86 OKUBO GEAR 		1-34371-014-0 01 1 1009-
340 GEAR; RING
Z=86 NIPPON GEAR 		1-34371-018-0 01 1 1009-
340 GEAR; RING
Z=86 ISUZU 		1-34371-019-0 01 1 1009-
342 FLANGE; OUTPUT
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-37243-400-2 01 1 1009-
345 BOLT; FLANGE TO YOKE
EXC. BRAKE SYSTEM RETARDER<RE2> M14X48.5 		1-09046-013-0 04 1 1009-
357 RING 1-31349-044-0 04 1 1009-
379 PIECE; DIST,MAINSHAFT 1-33363-034-0 01 1 1009-
400 BEARING; OUTPUT SHAFT RR
NSK W/SNAP RING 		8-98153-252-0 01 1 1009-
407 GEAR; PRIMARY MAIN
Z=33 		1-33253-717-0 01 1 1009-
429 SLEEVE; 2ND & 3RD 1-33262-222-0 01 1 1009-
437 PLATE; LOCK 1-34252-032-0 01 1 1009-
467 COLLAR; SHAFT 1-33234-091-1 01 1 1009-
471 SHAFT; INPUT 1-33215-019-0 01 1 1009-
476 ADAPTER; PUMP DRIVE 1-33339-091-1 01 1 1009-
481 RING; BLOCK
(A) HIGH 		1-33265-516-1 01 1 1009-1407
481 RING; BLOCK
(A) HIGH 		8-98239-518-1 01 1 1408-1410
481 RING; BLOCK
(A) HIGH 		1-33265-516-1 01 1 1411-
481 RING; BLOCK
(B) LOW 		1-33265-532-1 01 1 1009-1407
481 RING; BLOCK
(B) LOW 		8-98239-519-1 01 1 1408-1410
481 RING; BLOCK
(B) LOW 		1-33265-532-1 01 1 1411-
482 GEAR; PRIMARY
Z=29 		1-33253-720-0 01 1 1009-
483 BEARING; TAPER
NTN 		8-98174-410-0 01 1 1009-1504
483 BEARING; TAPER
NTN 		8-98316-126-0 01 1 1505-
484 PLATE; SETTING 1-33313-023-0 01 1 1009-
485 PIECE; GUIDE 1-33363-040-1 01 1 1009-
486 NOZZLE; CONT SHAFT 1-33219-254-1 01 1 1009-
487 SYNCHRONIZER; RANGE CHANGE 1-33265-616-0 02 1 1009-1307
487 SYNCHRONIZER; RANGE CHANGE 8-98239-293-0 02 1 1308-1312
487 SYNCHRONIZER; RANGE CHANGE 8-98239-908-1 02 1 1401-
488 CLUTCH; DOG,RANGE
(B) 		1-34254-006-1 01 1 1009-1211
488 CLUTCH; DOG,RANGE
(B) 		8-98218-291-0 01 1 1212-1307
488 CLUTCH; DOG,RANGE
(B) 		8-98238-509-0 01 1 1308-
488 CLUTCH; DOG,RANGE
(A) 		8-98060-771-1 01 1 1009-1307
488 CLUTCH; DOG,RANGE
(A) 		8-98239-163-0 01 1 1308-
489 WASHER; THRUST 1-09503-308-0 01 1 1009-
490 GASKET; SEAL,CASE
ID=10 		1-09623-369-0 01 1 1009-
491 PLATE; OUTPUT SHAFT 1-34252-035-1 01 1 1009-
492 BOLT; PLATE 1-09000-750-0 02 1 1009-
493 GASKET; OUTPUT SHAFT 9-09561-385-0 01 1 1009-
495 PINION; PLANETARY
Z=30 		1-34361-023-0 05 1 1009-
496 BEARING; PLANETARY 1-09811-437-0 10 1 1009-
497 BEARING; RING GEAR
NSK 		1-09810-276-0 01 1 1009-1307
497 BEARING; RING GEAR
NTN 		1-09810-277-0 01 1 1009-1307
497 BEARING; RING GEAR
NTN 		8-98239-433-0 01 1 1308-
498 CONE; SYN 1-33265-617-0 02 1 1009-1312
498 CONE; SYN 8-98239-910-0 02 1 1401-
612 GALLERY; OIL 8-98239-463-0 01 1 1308-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
