Isuzu WW
▶
TRUCKS
▶
EXD
▶
11293 - EXD RHD EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-25 - SPEEDOMETER DRIVEN GEAR
▶

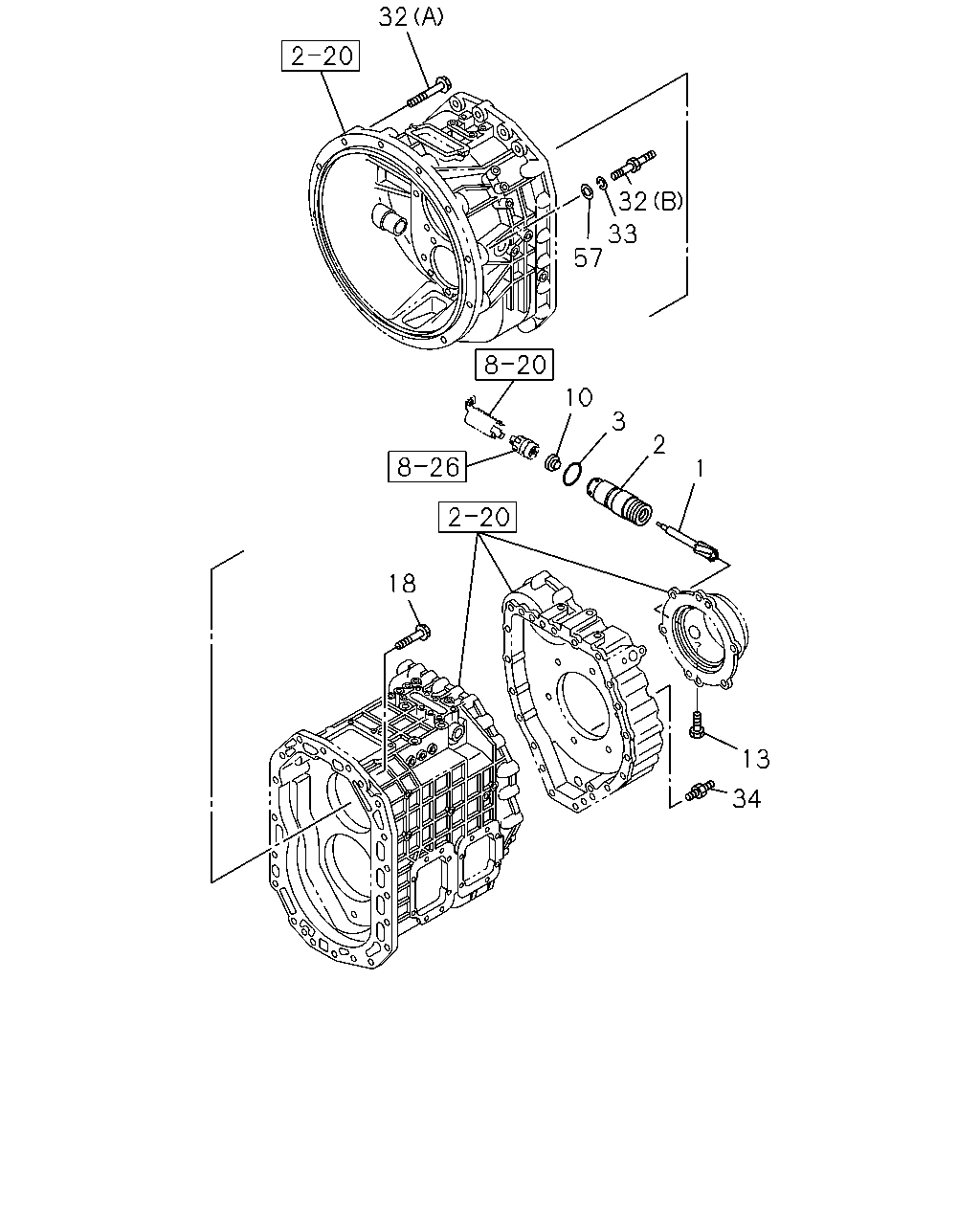

2-25 — SPEEDOMETER DRIVEN GEAR
(#70250) — 11 parça
32
32
33
57
10
3
2
1
18
13
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GEAR; DRIVEN,SPD
Z=17
1-33372-120-4
01
1
1009-
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
1-33373-084-0
01
1
1009-
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-069-0
01
1
1009-
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-510-0
01
1
1009-
13
SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE
8-98014-141-0
01
1
1009-
18
BOLT; CLU HSG TO TRANS
M12X50 FLANGE
0-28151-250-0
18
1
1009-
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X60 FLANGE
0-28151-260-0
11
1
1009-
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X16,M12X67 L=91
1-09029-043-1
01
1
1009-
33
WASHER; LK,CLU HSG
ID=12.2
0-91510-612-0
01
1
1009-
34
STUD; CLU HSG
M10X28,M12X50 L=89.7
1-09049-037-0
01
1
1009-
57
WASHER; PL,CLU HSG
ID=12.5
9-09164-512-0
01
1
1009-
