Isuzu WW
▶
TRUCKS
▶
EXD
▶
11293 - EXD RHD EURO5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#70237) — 47 parça
◀

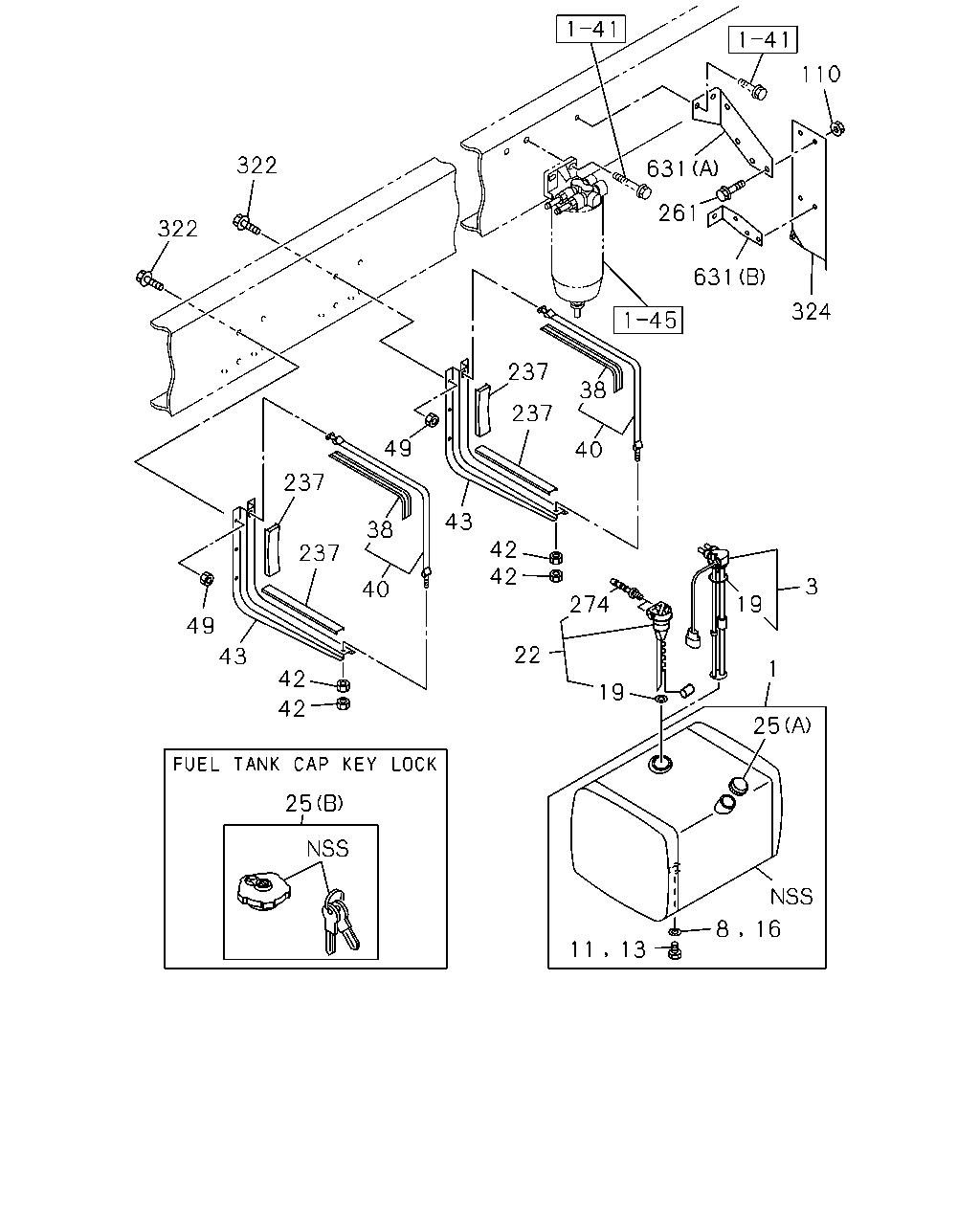

[140A] FIXING (33 parça)

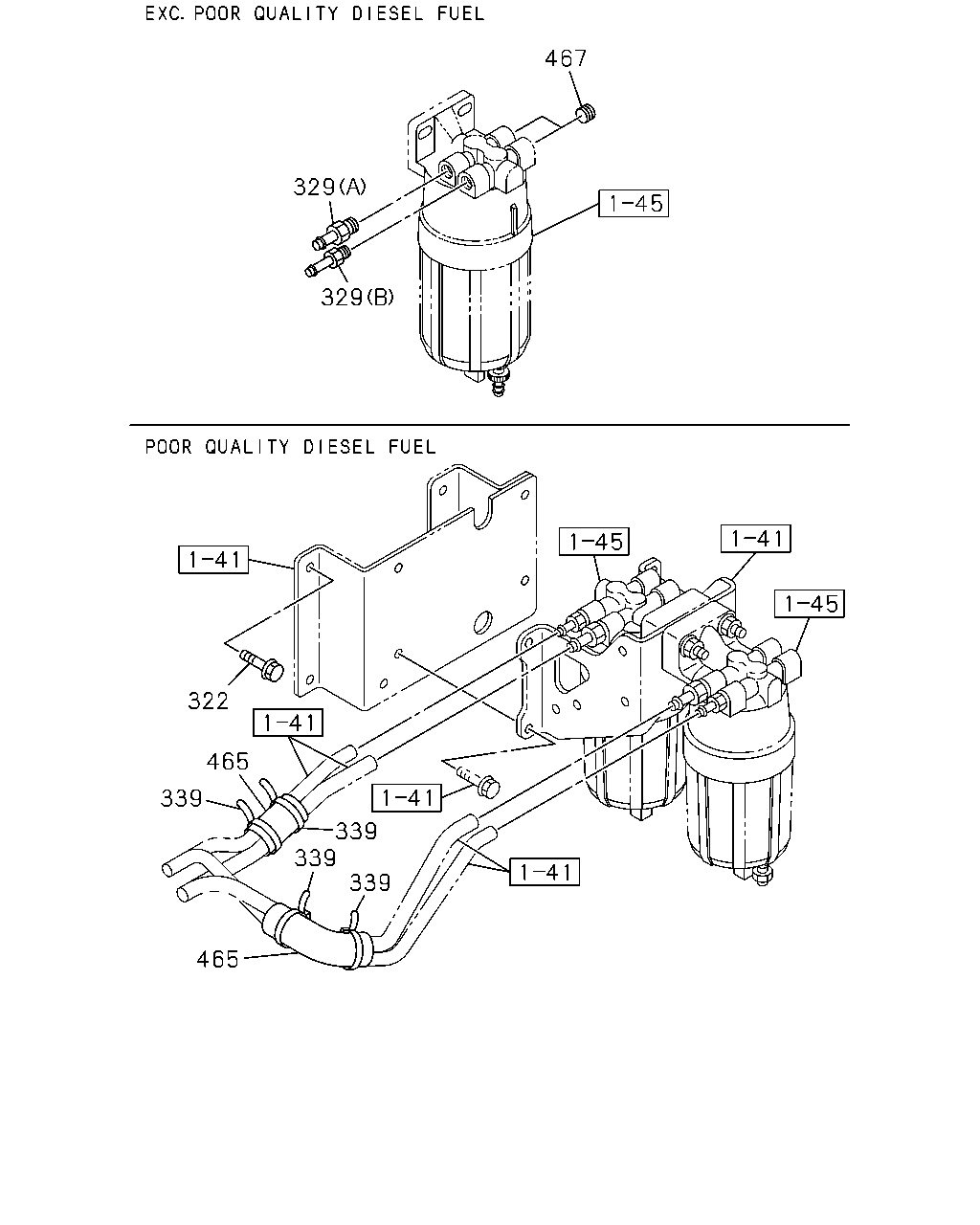

[140A] JOINT;SEDIMENTER (14 parça)
▶
11
13
8
16
25
1
19
3
19
274
22
42
42
43
25
42
42
43
49
237
40
38
237
49
237
237
38
40
631
324
261
631
110
322
322
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
1050X680X625 400L
1-87411-699-1
01
1
1009-1109
1
TANK; FUEL
1050X680X625 400L
1-87411-788-3
01
1
1110-
3
UNIT; FUEL TANK,SUB
8-98217-749-0
01
1
1211-
8
GASKET; DRAIN PLUG,FUEL TANK
ID=18.2 T=1.6
8-98030-453-0
01
1
1211-
11
PLUG; DRAIN,FUEL TANK
M18X12
0-92002-418-0
01
1
1211-
13
PLUG; SCREW,SUB TANK JOINT
M18X12
0-92002-418-0
01
1
1009-1210
16
GASKET; PLUG
ID=18.2 T=1.6
8-98030-453-0
01
1
1009-1210
19
GASKET; FUEL TANK UNIT
ID=58
1-83149-005-0
01
1
1009-1210
19
GASKET; FUEL TANK UNIT
ID=54.5
8-98299-580-0
01
1
1211-
22
UNIT; FUEL TANK
1-83141-132-0
01
1
1009-1210
25
CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> (B)
8-98108-595-0
01
1
1009-
25
CAP; FILLER,FUEL TANK
(A)
8-98115-780-0
01
1
1009-1109
25
CAP; FILLER,FUEL TANK
(A)
8-98182-306-0
01
1
1110-
38
INSULATION; SUPPORT BELT
L=1156
1-22553-039-1
02
1
1009-
40
BELT; SUPPORT,FUEL TANK
L=1210
1-22550-261-0
02
1
1009-1110
40
BELT; SUPPORT,FUEL TANK
L=1210
8-98202-448-0
02
1
1111-
42
NUT; SUPPORT BELT
M10
0-91110-510-0
04
1
1009-
43
BRACKET; FUEL TANK
1-53461-525-1
02
1
1009-
49
NUT; BRKT
FUEL TANK 400L<SDH> M12
0-91110-512-0
12
1
1009-
110
NUT; PROTECTOR
M8 FLANGE
0-91180-108-0
04
1
1009-1102
110
NUT; PROTECTOR
EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE
0-91180-108-0
04
1
1103-
237
GASKET; BRKT TO FUEL TANK
1-22553-037-1
04
1
1009-
261
BOLT; PROTECTOR
M8X20 FLANGE
0-28650-820-0
04
1
1009-1102
261
BOLT; PROTECTOR
EXC. POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE
0-28650-820-0
04
1
1103-
274
CONNECTOR; ELBOW,FUEL TANK PIPE
1-83149-006-0
02
1
1009-1210
322
BOLT; BRKT FIX
POOR QUALITY DIESEL FUEL<KF0> M10X30 FLANGE
0-28051-030-0
04
1
1103-
322
BOLT; BRKT FIX
FUEL TANK 400L<SDH> M12X40 FLANGE
0-28051-240-0
12
1
1009-
324
PROTECTOR; FUEL SEDIMENTER
1-47471-216-0
01
1
1009-1102
324
PROTECTOR; FUEL SEDIMENTER
EXC. POOR QUALITY DIESEL FUEL<KF0>
1-47471-216-0
01
1
1103-
631
BRACKET; PROTECTOR
(B)
1-82698-625-0
01
1
1009-1102
631
BRACKET; PROTECTOR
EXC. POOR QUALITY DIESEL FUEL<KF0> (B)
1-82698-625-0
01
1
1103-
631
BRACKET; PROTECTOR
(A)
8-98043-497-0
01
1
1009-1102
631
BRACKET; PROTECTOR
EXC. POOR QUALITY DIESEL FUEL<KF0> (A)
8-98043-497-0
01
1
1103-
467
329
329
322
465
339
339
339
339
465
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
322
BOLT; BRKT FIX
POOR QUALITY DIESEL FUEL<KF0> M10X30 FLANGE
0-28051-030-0
04
1
1103-
322
BOLT; BRKT FIX
FUEL TANK 400L<SDH> M12X40 FLANGE
0-28051-240-0
12
1
1009-
329
JOINT ASM; EYE,FUEL PIPE
(A) NPTF3/8-18 OD=12
8-98122-952-0
01
1
1009-1102
329
JOINT ASM; EYE,FUEL PIPE
(A) NPTF3/8-18 OD=12
8-98122-952-0
01
1
1009-1102
329
JOINT ASM; EYE,FUEL PIPE
EXC. POOR QUALITY DIESEL FUEL<KF0> (A) NPTF3/8-18 OD=12
8-98122-952-0
01
1
1103-
329
JOINT ASM; EYE,FUEL PIPE
EXC. POOR QUALITY DIESEL FUEL<KF0> (A) NPTF3/8-18 OD=12
8-98122-952-0
01
1
1103-
329
JOINT ASM; EYE,FUEL PIPE
(B) NPTF3/8-18 OD=10
8-98122-953-0
01
1
1009-1102
329
JOINT ASM; EYE,FUEL PIPE
(B) NPTF3/8-18 OD=10
8-98122-953-0
01
1
1009-1102
329
JOINT ASM; EYE,FUEL PIPE
EXC. POOR QUALITY DIESEL FUEL<KF0> (B) NPTF3/8-18 OD=10
8-98122-953-0
01
1
1103-
329
JOINT ASM; EYE,FUEL PIPE
EXC. POOR QUALITY DIESEL FUEL<KF0> (B) NPTF3/8-18 OD=10
8-98122-953-0
01
1
1103-
339
CLIP; BAND,FUEL HOSE
POOR QUALITY DIESEL FUEL<KF0> L=250
5-09707-030-1
04
1
1103-
465
SLEEVE; RUBBER
POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300
1-09360-677-1
02
1
1103-
467
BOLT
NPTF3/8-18
8-97329-623-0
02
1
1009-1102
467
BOLT
EXC. POOR QUALITY DIESEL FUEL<KF0> NPTF3/8-18
8-97329-623-0
02
1
1103-
