Sayfa 0-61 - Isuzu EPC

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#70228) — 100 parça

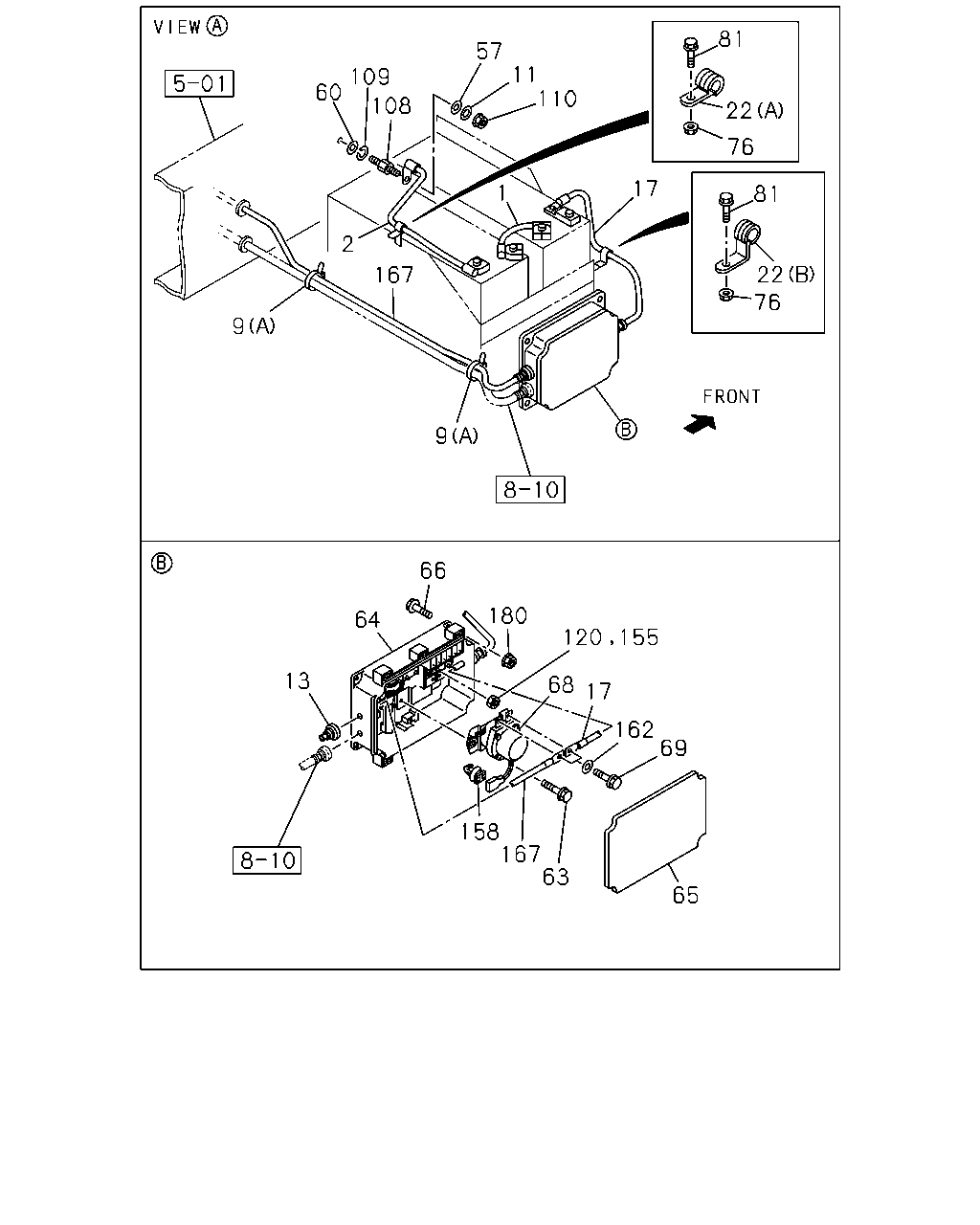

81 57 11 110 109 60 108 22 76 17 1 81 2 22 76 167 9 9 66 180 64 13 68 17 162 69 158 167 63 65 120 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY BATTERY CABLE W/TERMINAL CAP<ECQ> BATTERY 115F51 N120<SJ3> L=265	1-82650-390-1	01	1	1009-
1	CABLE; BATTERY BATTERY CABLE W/TERMINAL CAP<ECQ> BATTERY 145G51 N150<SJ8> L=450	1-82650-391-1	01	1	1009-
1	CABLE; BATTERY BATTERY 115F51 N120<SJ3> EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=265	1-82650-388-1	01	1	1009-
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8> EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=450	1-82650-389-1	01	1	1009-
2	CABLE; BATTERY BATTERY CABLE W/TERMINAL CAP<ECQ> L=720	1-82650-386-1	01	1	1009-
2	CABLE; BATTERY EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=720	1-82650-384-1	01	1	1009-
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	01	1	1009-
9	CLIP; BATTERY CABLE (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-
9	CLIP; BATTERY CABLE BRAKE SYSTEM RETARDER<RE2> (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-
9	CLIP; BATTERY CABLE (B) ID=21 L=30 H=40	1-09700-991-1	01	1	1009-
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	02	1	1009-
9	CLIP; BATTERY CABLE (F) ID=21 L=24	8-94176-807-1	02	1	1009-
9	CLIP; BATTERY CABLE BRAKE SYSTEM RETARDER<RE2> (E) ID=18 L=28 H=30	1-09701-110-0	02	1	1009-
9	CLIP; BATTERY CABLE EXC. BRAKE SYSTEM RETARDER<RE2> (E) ID=18 L=28 H=30	1-09701-110-0	03	1	1009-
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	1009-
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	1009-
17	CABLE; BATTERY (+) TO RELAY BATTERY CABLE W/TERMINAL CAP<ECQ> L=640	1-82652-762-3	01	1	1009-
17	CABLE; BATTERY (+) TO RELAY EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=640	1-82652-760-3	01	1	1009-
22	CLIP; BATTERY CABLE (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	1009-
22	CLIP; BATTERY CABLE (C) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	1009-
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	1009-
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	1009-
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1009-
64	BOX; BATTERY RELAY	1-82510-650-0	01	1	1009-
65	COVER; BATTERY RELAY	1-82510-654-1	01	1	1009-
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	1009-
68	RELAY; BATTERY	1-82550-313-0	01	1	1009-
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	1009-
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	02	1	1009-
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	03	1	1009-
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	1009-
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	1009-
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	1009-
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	01	1	1009-
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	1009-
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	1009-
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	1009-
167	CABLE; BATTERY RELAY TO STARTER BRAKE SYSTEM RETARDER<RE2>	8-97632-938-0	01	1	1009-
167	CABLE; BATTERY RELAY TO STARTER EXC. BRAKE SYSTEM RETARDER<RE2>	8-97632-936-0	01	1	1009-
180	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	1009-

9 9 18 22 22 99 99 9 9 22 9 158 22 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	01	1	1009-
9	CLIP; BATTERY CABLE (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-
9	CLIP; BATTERY CABLE BRAKE SYSTEM RETARDER<RE2> (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-
9	CLIP; BATTERY CABLE (B) ID=21 L=30 H=40	1-09700-991-1	01	1	1009-
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	02	1	1009-
9	CLIP; BATTERY CABLE (F) ID=21 L=24	8-94176-807-1	02	1	1009-
9	CLIP; BATTERY CABLE BRAKE SYSTEM RETARDER<RE2> (E) ID=18 L=28 H=30	1-09701-110-0	02	1	1009-
9	CLIP; BATTERY CABLE EXC. BRAKE SYSTEM RETARDER<RE2> (E) ID=18 L=28 H=30	1-09701-110-0	03	1	1009-
18	CLIP; BATTERY CABLE ID=21 L=24	8-94176-807-1	01	1	1009-
22	CLIP; BATTERY CABLE (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	1009-
22	CLIP; BATTERY CABLE (C) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	1009-
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	02	1	1009-
99	CLIP; BATTERY CABLE (B) ID=18 L=25 H=50	1-09701-096-0	02	1	1009-
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	1009-

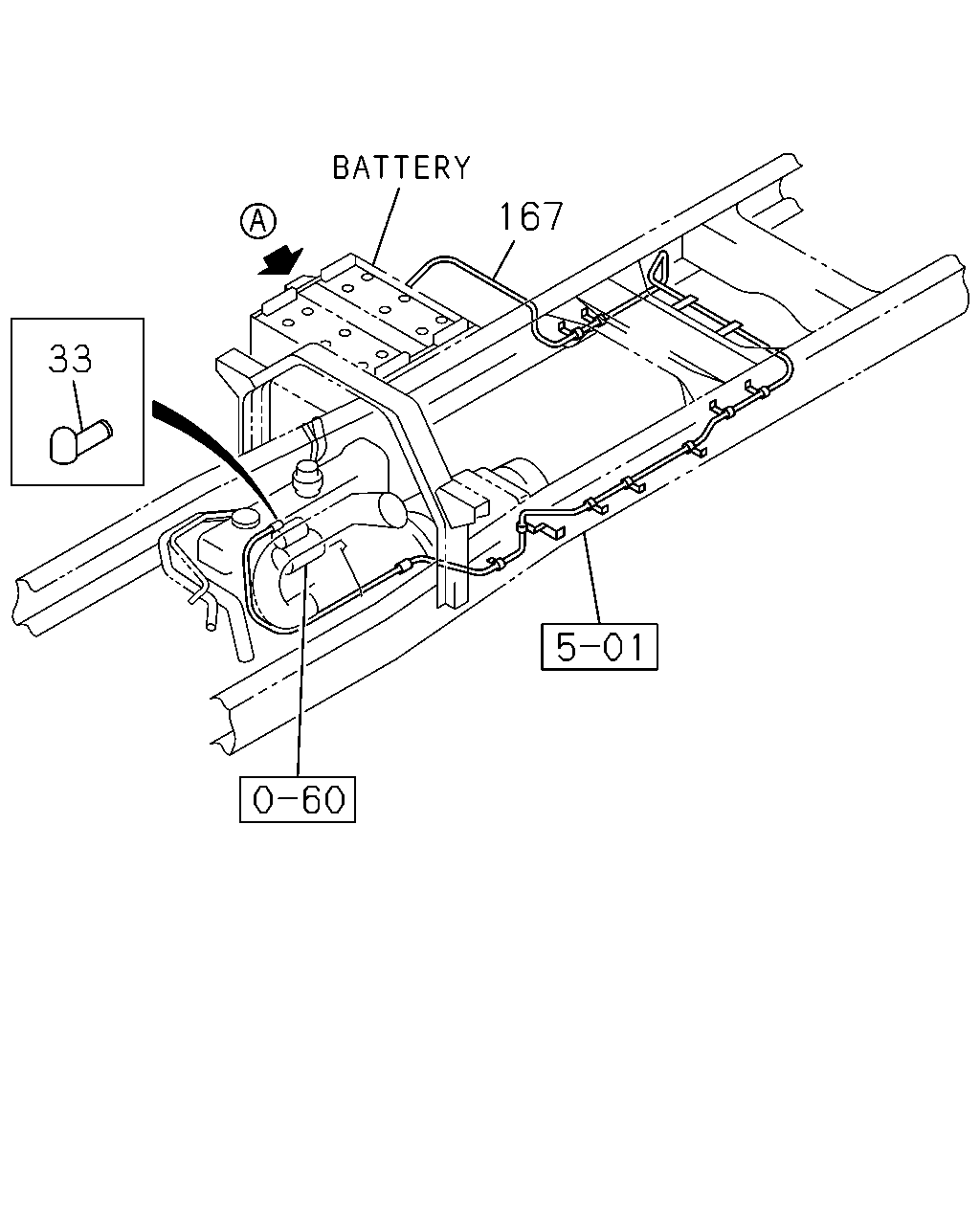

167 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	CAP; INSULATOR	8-97181-965-0	01	1	1009-
167	CABLE; BATTERY RELAY TO STARTER BRAKE SYSTEM RETARDER<RE2>	8-97632-938-0	01	1	1009-
167	CABLE; BATTERY RELAY TO STARTER EXC. BRAKE SYSTEM RETARDER<RE2>	8-97632-936-0	01	1	1009-

64 208 208 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	BOX; BATTERY RELAY	1-82510-650-0	01	1	1009-
208	FUSE (C) 80A	1-82516-031-0	01	1	1009-
208	FUSE (B) 100A	1-82516-032-0	01	1	1009-
208	FUSE (A) 40A GREEN	8-94468-662-0	06	1	1009-

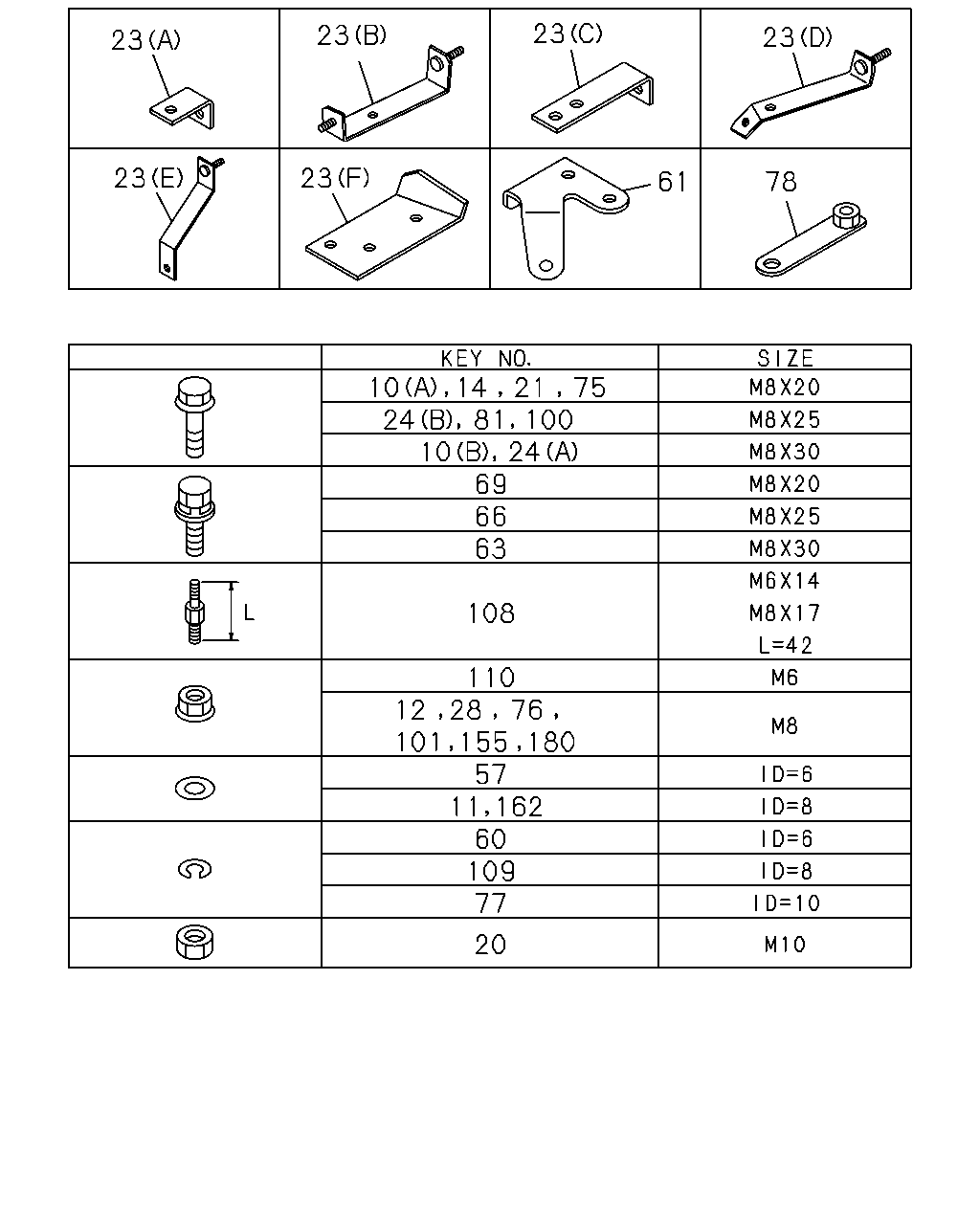

23 23 23 23 23 23 61 78 10 75 100 69 66 63 108 110 28 101 57 11 162 60 109 77 20 14 21 24 81 10 24 12 76 155 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	BOLT; BATTERY CABLE CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-
10	BOLT; BATTERY CABLE CLIP (B) M8X30 FLANGE	0-28650-830-0	03	1	1009-
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	1009-
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	08	1	1009-
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28650-820-0	01	1	1009-
20	NUT; STARTER CABLE M10	8-98011-328-0	01	1	1009-
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28650-820-0	01	1	1009-
23	BRACKET; CABLE CLIP TO FRAME (A) L=40	1-47478-410-0	01	1	1009-
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82698-557-0	01	1	1009-
23	BRACKET; CABLE CLIP TO FRAME (D)	1-82698-574-0	01	1	1009-
23	BRACKET; CABLE CLIP TO FRAME (E)	1-82698-575-1	01	1	1009-
23	BRACKET; CABLE CLIP TO FRAME (B)	1-82698-589-0	01	1	1009-
23	BRACKET; CABLE CLIP TO FRAME (F)	8-98062-598-0	01	1	1009-
24	BOLT; BRKT TO FRAME (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-
24	BOLT; BRKT TO FRAME (A) M8X30 FLANGE	0-28650-830-0	03	1	1009-
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	05	1	1009-
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	1009-
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	1009-
61	BRACKET; BATTERY CABLE	8-97632-262-1	01	1	1009-
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1009-
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	1009-
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	1009-
75	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	02	1	1009-
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	02	1	1009-
77	WASHER; LK,STARTER CABLE ID=10.2	0-91510-610-0	01	1	1009-
78	BRACKET; CLIP BATTERY	1-47476-396-1	01	1	1009-
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	03	1	1009-
100	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28650-825-0	04	1	1009-
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	04	1	1009-
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	1009-
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	1009-
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	1009-
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	1009-
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	1009-
180	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	1009-
