1 |

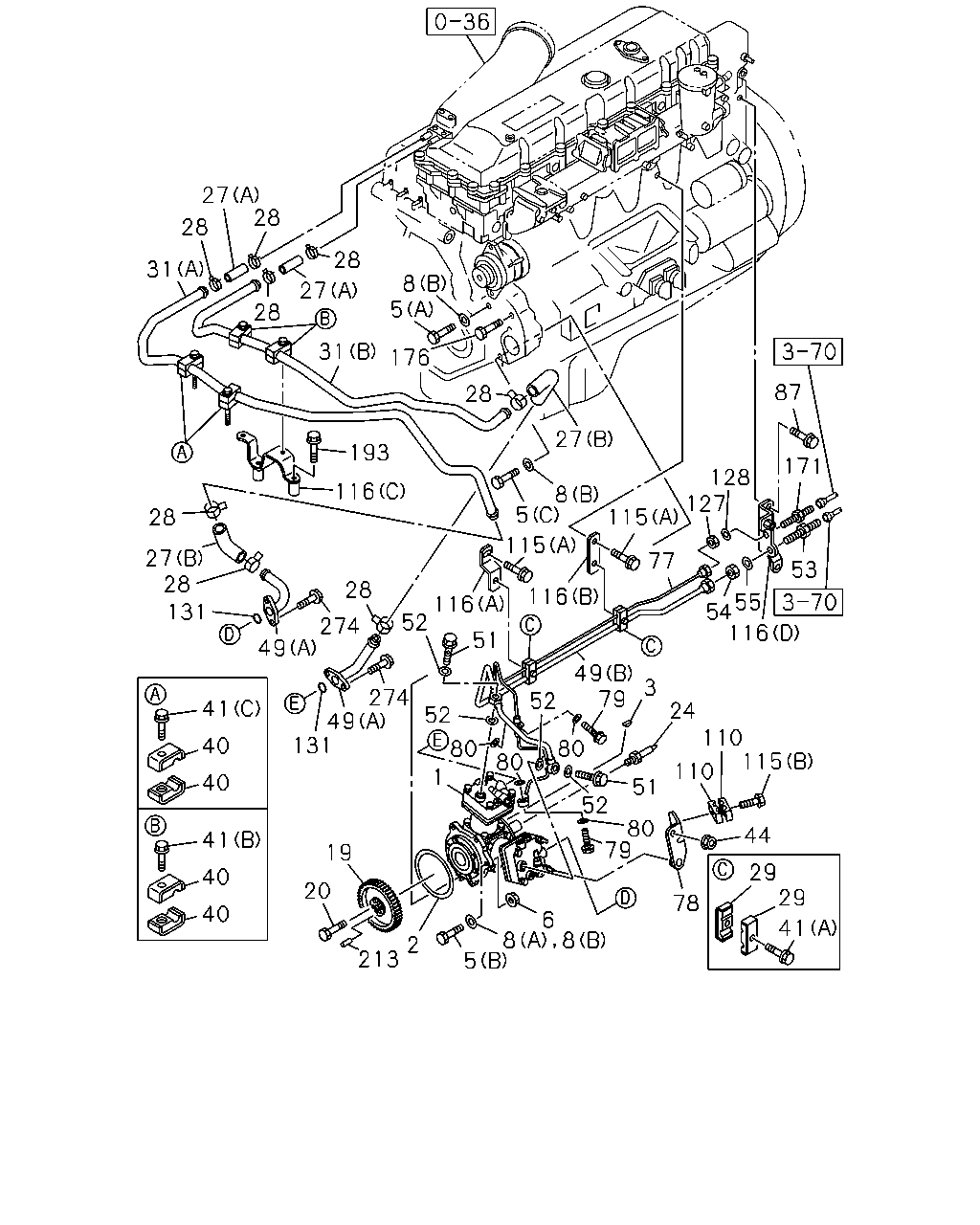

COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
|
1-19100-332-7 |
01 |
1 |
1009-1112 |
| |
1 |
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
|
8-98203-543-1 |
01 |
1 |
1201-1406 |
| |
1 |
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
|
8-98277-235-0 |
01 |
1 |
1407- |
| |
2 |
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09623-476-0 |
01 |
1 |
1009- |
| |
3 |
KEY; COUPLING,INJ PUMP
|
9-08055-622-0 |
01 |
1 |
1009- |
| |
5 |
BOLT; AIR CMPR FIX
(B)
M14X90
|
0-16956-490-0 |
01 |
1 |
1009- |
| |
5 |
BOLT; AIR CMPR FIX
(A)
M14X128
|
8-94399-253-1 |
01 |
1 |
1009- |
| |
5 |
BOLT; AIR CMPR FIX
AIR CONDITIONER MANUAL CONTROL(C60)
(C)
M14X150
|
1-09029-027-1 |
01 |
1 |
1009- |
| |
5 |
BOLT; AIR CMPR FIX
HEATER & DEFROSTER(C41)
(C)
M14X100
|
0-16956-400-0 |
01 |
1 |
1009- |
| |
6 |
NUT; AIR CMPR
M14 FLANGE
|
0-91150-114-0 |
01 |
1 |
1009- |
| |
8 |
WASHER; PL,AIR CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
(A)
ID=14.2
|
1-09503-050-0 |
01 |
1 |
1009- |
| |
8 |
WASHER; PL,AIR CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
ID=15 OD=26
|
9-09164-514-0 |
02 |
1 |
1009- |
| |
8 |
WASHER; PL,AIR CMPR
HEATER & DEFROSTER(C41)
(B)
ID=15 OD=26
|
9-09164-514-0 |
03 |
1 |
1009- |
| |
19 |
GEAR; INJ PUMP
Z=54
|
1-12524-164-1 |
01 |
1 |
1009- |
| |
20 |
BOLT; GEAR TO SHAFT
M12X39 FLANGE
|
1-09070-116-0 |
05 |
1 |
1009- |
| |
24 |
POINTER; AIR CMPR
|
1-11327-017-1 |
01 |
1 |
1009- |
| |
27 |
HOSE; AIR CMPR,SUCTION
(A)
|
0-02117-080-0 |
02 |
1 |
1009- |
| |
27 |
HOSE; AIR CMPR,SUCTION
(B)
|
1-09360-916-0 |
02 |
1 |
1009- |
| |
28 |
CLIP; HOSE,AIR CMPR
ID=22.7
|
8-94466-382-0 |
08 |
1 |
1009- |
| |
29 |
CLIP; AIR PIPE
|
1-09701-210-0 |
04 |
1 |
1009- |
| |
31 |
PIPE; AIR,AIR CMPR SUCTION
(A)
|
8-97629-441-0 |
01 |
1 |
1009- |
| |
31 |
PIPE; AIR,AIR CMPR SUCTION
(B)
|
8-97632-684-0 |
01 |
1 |
1009- |
| |
40 |
CLIP; AIR PIPE
ID=17 L=17
|
1-09701-284-0 |
08 |
1 |
1009- |
| |
41 |
BOLT; CLIP
(A)
M6X40 FLANGE
|
0-28050-640-0 |
02 |
1 |
1009- |
| |
41 |
BOLT; CLIP
(B)
M8X40 FLANGE
|
0-28050-840-0 |
02 |
1 |
1009- |
| |
41 |
BOLT; CLIP
(C)
M8X75 FLANGE
|
8-98020-385-0 |
02 |
1 |
1009- |
| |
44 |
NUT
M8 FLANGE
|
0-91180-208-0 |
02 |
1 |
1009- |
| |
49 |
PIPE; AIR,CHARGE
(A)
|
1-19193-402-0 |
02 |
1 |
1009- |
| |
49 |
PIPE; AIR,CHARGE
(B)
|
1-19193-459-0 |
01 |
1 |
1009- |
| |
51 |
BOLT; EYE,AIR PIPE TO CMPR
M24X39
|
1-09675-175-2 |
02 |
1 |
1009- |
| |
52 |
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=24.5 OD=32
|
9-09571-424-0 |
04 |
1 |
1009- |
| |
53 |
UNION; CHARGE PIPE
M22 & M26 L=79 STRAIGHT
|
1-09654-318-1 |
01 |
1 |
1009- |
| |
54 |
NUT; PIPE UNION
M22
|
0-91111-522-0 |
01 |
1 |
1009- |
| |
55 |
WASHER; LK,PIPE UNION
ID=22.5
|
0-91510-522-0 |
01 |
1 |
1009- |
| |
77 |
PIPE; AIR,GOV
|
1-19193-460-0 |
01 |
1 |
1009- |
| |
78 |
BRACKET; PIPE,AIR GOV
|
1-13729-095-0 |
01 |
1 |
1009- |
| |
79 |
BOLT; EYE,AIR PIPE TO CMPR
M14X27 FLANGE
|
1-09675-086-0 |
02 |
1 |
1009- |
| |
80 |
GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=14.2 OD=25
|
1-09630-141-0 |
04 |
1 |
1009- |
| |
87 |
BOLT; BRKT FIX
M10X20 FLANGE
|
0-28151-020-0 |
02 |
1 |
1009- |
| |
110 |
CLIP; AIR PIPE
|
1-09701-132-1 |
02 |
1 |
1009-1210 |
| |
110 |
CLIP; AIR PIPE
|
1-09701-240-0 |
02 |
1 |
1211- |
| |
115 |
BOLT; AIR PIPE
(B)
M6X30 FLANGE
|
0-28050-630-0 |
01 |
1 |
1009- |
| |
115 |
BOLT; AIR PIPE
(A)
M10X20 FLANGE
|
0-28151-020-0 |
01 |
1 |
1009-1111 |
| |
115 |
BOLT; AIR PIPE
(A)
M10X20 FLANGE
|
0-28151-020-0 |
02 |
1 |
1112- |
| |
116 |
BRACKET; AIR PIPE
(A)
|
1-19199-221-0 |
01 |
1 |
1009- |
| |
116 |
BRACKET; AIR PIPE
(B)
|
1-19199-412-0 |
01 |
1 |
1009- |
| |
116 |
BRACKET; AIR PIPE
(C)
|
8-97632-685-1 |
01 |
1 |
1009- |
| |
116 |
BRACKET; AIR PIPE
(D)
|
8-98157-648-0 |
01 |
1 |
1009- |
| |
127 |
NUT; UNION
M12
|
9-09840-280-0 |
01 |
1 |
1009- |
| |
128 |
WASHER; LK,UNION
ID=12.2
|
0-91510-512-0 |
01 |
1 |
1009- |
| |
131 |
GASKET; AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=26.8
|
1-09623-415-0 |
02 |
1 |
1009- |
| |
171 |
UNION
M12 L=62.5
|
0-92113-206-0 |
01 |
1 |
1009- |
| |
176 |
BOLT; BRKT FIX
M10X130 FLANGE
|
0-28166-013-0 |
01 |
1 |
1009- |
| |
193 |
BOLT; BRKT
M8X50 FLANGE
|
0-28050-850-0 |
02 |
1 |
1009- |
| |
213 |
PIN; AIR CMPR GEAR
OD=5 L=10
|
9-08150-510-0 |
01 |
1 |
1009- |
| |
274 |
BOLT; PIPE
M8X20 FLANGE
|
0-28050-820-0 |
04 |
1 |
1009- |
