Isuzu WW
▶
TRUCKS
▶
EXD
▶
11293 - EXD RHD EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

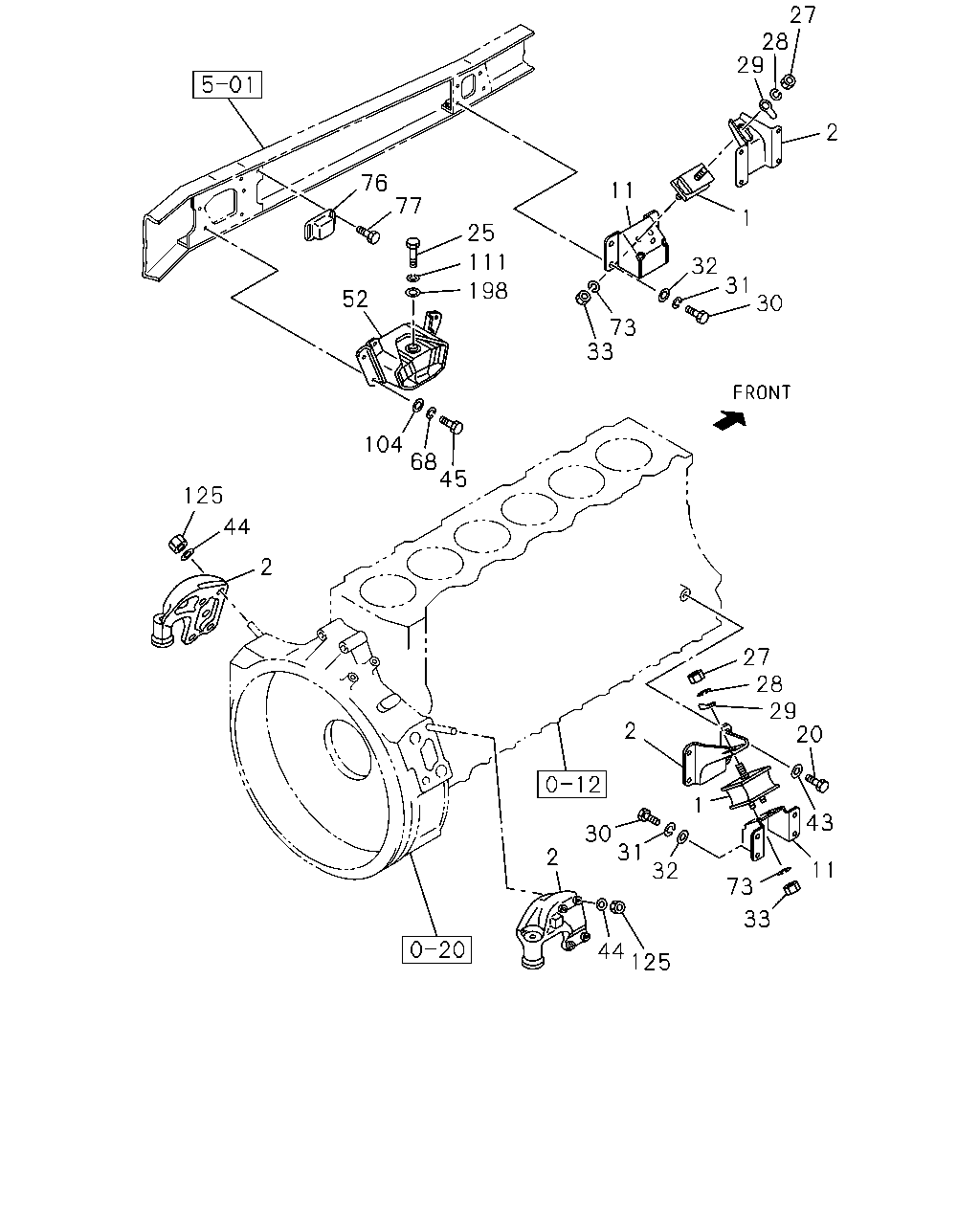

0-22 — ENGINE MOUNTING
(#70208) — 27 parça
27
28
29
2
76
77
11
1
25
111
32
31
30
198
52
73
33
104
68
45
125
44
2
27
28
29
20
2
1
43
30
31
2
11
32
73
33
44
125
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
1-53215-132-2
02
1
1009-
2
FOOT; ENG
FRONT
1-11771-220-0
02
1
1009-
2
FOOT; ENG
REAR
1-11777-197-1
01
1
1009-
2
FOOT; ENG
REAR
8-97617-886-0
01
1
1009-
11
BRACKET; CUSHION RUBBER,FRT
1-53211-272-0
02
1
1009-
20
BOLT; ENG FOOT
M14X32
9-92361-432-0
08
1
1009-
25
BOLT; CUSHION RUBBER TO BRKT
M22X105
1-09000-773-0
02
1
1009-
27
NUT; CUSHION RUBBER TO ENG FOOT
M18
0-91110-518-0
02
1
1009-
28
WASHER; LK,SUPPORT BRKT
ID=18.2
0-91510-518-0
02
1
1009-
29
PLATE; LK,CUSHION RUBBER,FRT
1-53229-040-0
02
1
1009-
30
BOLT; BRKT TO FRAME
M14X35
0-20951-435-0
08
1
1009-
31
WASHER; LK,BRKT TO FRAME
ID=14.2
0-91510-814-0
08
1
1009-
32
WASHER; PL,BRKT TO FRAME
ID=15
8-98010-627-1
08
1
1009-
33
NUT; CUSHION RUBBER TO BRKT
M14
0-91110-514-0
04
1
1009-
43
WASHER; ENG FOOT
ID=14.2
1-09503-050-0
08
1
1009-
44
WASHER; LK,ENG FOOT
ID=18.2 OD=29
1-09503-032-0
08
1
1009-
45
BOLT; CUSHION RUBBER TO FRAME
M14X35
0-20951-435-0
10
1
1009-
52
RUBBER; CUSHION,ENG MTG,RR
1-53225-370-1
01
1
1009-
52
RUBBER; CUSHION,ENG MTG,RR
1-53225-371-1
01
1
1009-
68
WASHER; LK,CUSHION RUBBER
ID=14.2
0-91510-814-0
10
1
1009-
73
WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2
0-91510-814-0
04
1
1009-
76
STOPPER; ENG MTG RUBBER
1-53229-056-1
02
1
1009-
77
BOLT; STOPPER
M8X16 FLANGE
0-28050-816-0
04
1
1009-
104
WASHER; PL,CUSHION RUBBER
ID=15
8-98010-627-1
10
1
1009-
111
WASHER; LK,CUSHION RUBBER TO BRKT
ID=22.5
0-91510-622-0
02
1
1009-
125
NUT; ENG FOOT
M18
0-91110-518-0
08
1
1009-
198
WASHER; PL,CUSHION TO BRKT,RR
ID=23
9-09164-622-0
02
1
1009-
