◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11292 - EXR RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#70192) — 9 parça

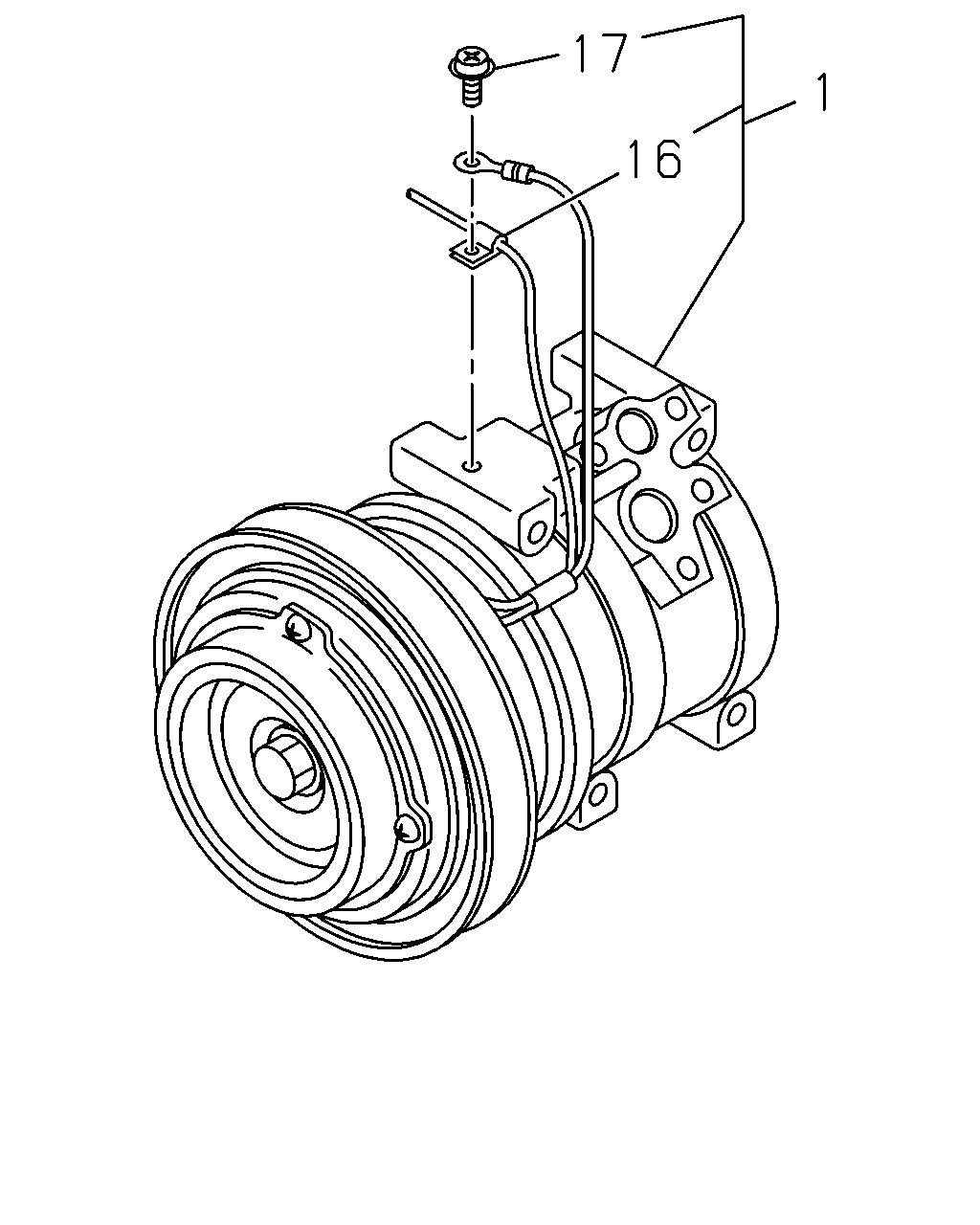

çizim 188667
17 16 1
BalonParca AdiParca NoAdetTipApplied Date
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-329-0 01 1 1009-1302
1 COMPRESSOR ASM; A/C 1-83532-329-0 01 1 1303-1411
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-329-0 01 1 1412-
16 CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-893-0 01 1 1009-1302
16 CLIP; WIRE,MAGNET CLU 1-83579-893-0 01 1 1303-1411
16 CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-893-0 01 1 1412-
17 SCREW; WIRE CLIP MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		5-81129-130-0 01 1 1009-1302
17 SCREW; WIRE CLIP MAGNET CLU 5-81129-130-0 01 1 1303-1411
17 SCREW; WIRE CLIP MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		5-81129-130-0 01 1 1412-
