8-60 — HEATER UNIT; FRONT (#70191) — 42 parça

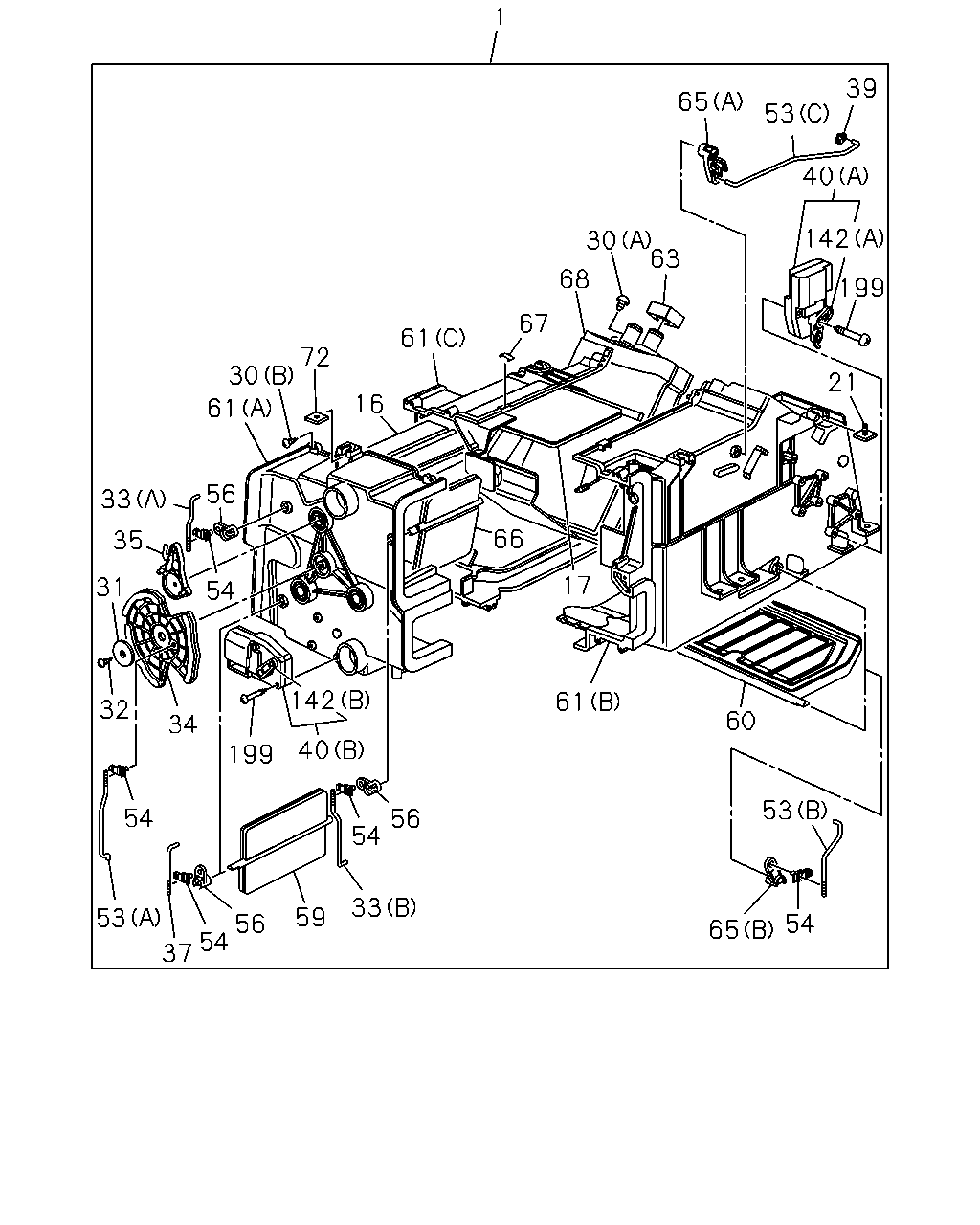

çizim 188671
65 53 60 54 61 17 66 67 68 30 63 21 199 142 40 53 65 39 1 61 16 142 40 54 33 56 59 56 54 37 53 54 34 32 31 54 56 33 61 35 30 72 199
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 1-83511-175-1 01 1 1009-1409
1 HEATER UNIT 8-98238-476-0 01 1 1410-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 1009-
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 1009-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 1009-
30 SCREW; HTR UNIT
(B) M4X16 		8-94324-850-0 12 1 1009-
30 SCREW; HTR UNIT
(A) M5X20 		9-09829-324-1 01 1 1009-1409
30 SCREW; HTR UNIT
(A) M5X16 		8-94248-820-0 01 1 1410-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 1009-
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 1009-1409
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1410-
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 1009-
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 1009-
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 1009-
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 1009-
37 ROD; LEVER 1-83579-620-1 01 1 1009-
39 CLIP; HTR UNIT 1-83574-136-0 01 1 1009-
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-1 01 1 1009-
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 1009-
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 1009-
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 1009-
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 1009-
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 1009-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 1009-
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 1009-
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 1009-
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 1009-
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 1009-1409
61 CASE; HTR UNIT
(B) 		8-98299-713-0 01 1 1410-
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 1009-1409
61 CASE; HTR UNIT
(A) 		8-98299-715-0 01 1 1410-
63 LINING; HTR UNIT 1-83579-557-0 02 1 1009-
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 1009-
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 1009-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-627-0 01 1 1009-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 1009-
68 CORE; HTR UNIT 1-83562-078-1 01 1 1009-1409
68 CORE; HTR UNIT 8-98238-475-0 01 1 1410-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 1009-
142 LEVER; ACTUATOR
(B) 		1-83564-345-1 01 1 1009-
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 1009-
199 SCREW; ACTUATOR 8-94348-809-0 04 1 1009-
