◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11292 - EXR RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#70189) — 61 parça

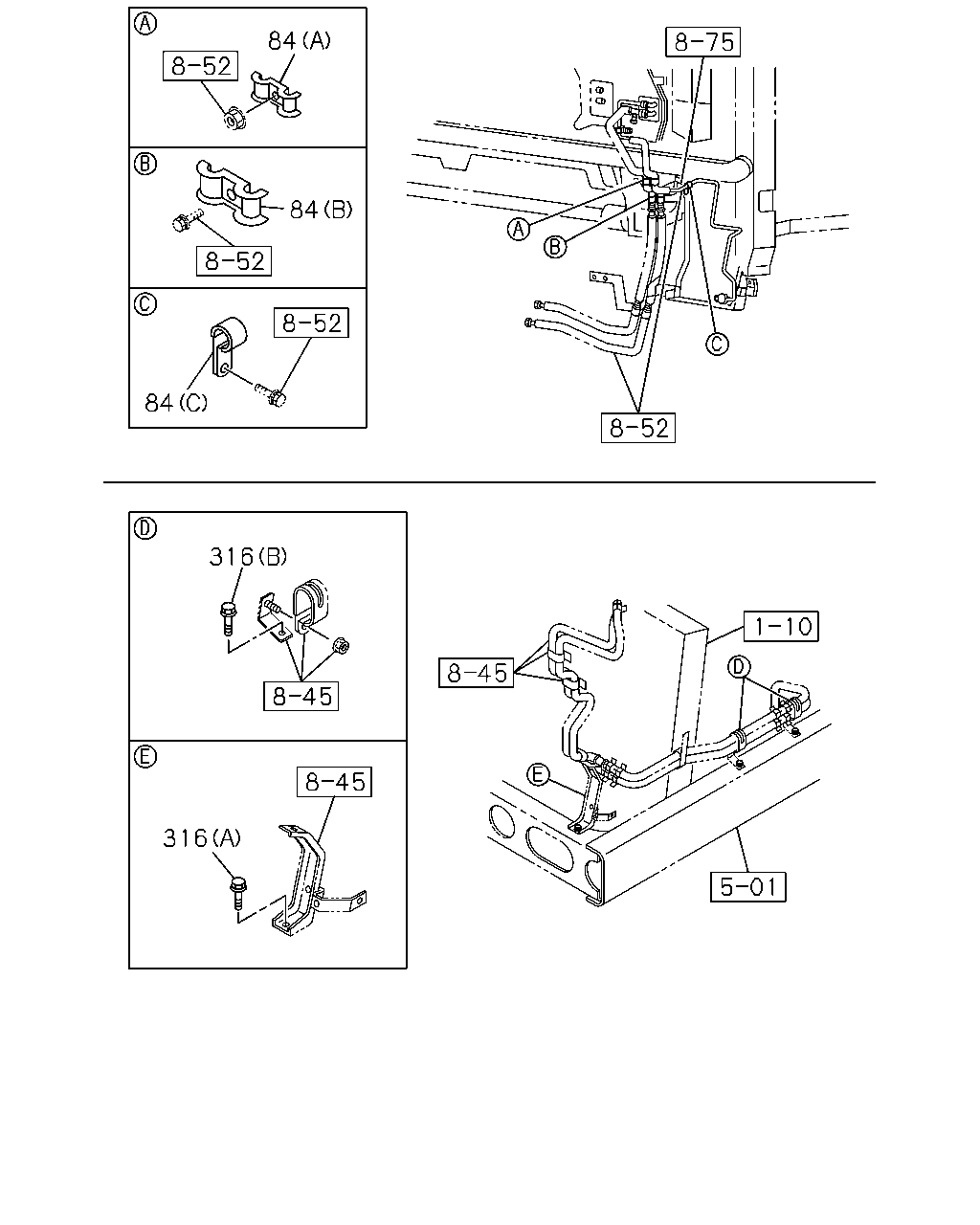

çizim 9147
84 84 84 316 316
BalonParca AdiParca NoAdetTipApplied Date
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20 		0-95234-835-0 01 1 1009-1302
84 CLIP; PIPE
(C) ID=9 L=20 		0-95234-835-0 01 1 1303-1411
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20 		0-95234-835-0 01 1 1412-
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-190-0 01 1 1009-1302
84 CLIP; PIPE
(A) ID=12.2 & 16.2 		1-83574-190-0 01 1 1303-1411
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-190-0 01 1 1412-
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 & 20 		1-83574-195-1 01 1 1009-1302
84 CLIP; PIPE
(B) ID=20 & 20 		1-83574-195-1 01 1 1303-1411
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 & 20 		1-83574-195-1 01 1 1412-
316 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1009-1411
316 BOLT; BRKT FIX
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28050-820-0 01 1 1412-1412
316 BOLT; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28050-820-0 01 1 1412-
316 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1009-1411
316 BOLT; BRKT FIX
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X30 FLANGE 		0-28650-830-0 02 1 1412-1412
316 BOLT; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X30 FLANGE 		0-28650-830-0 02 1 1412-

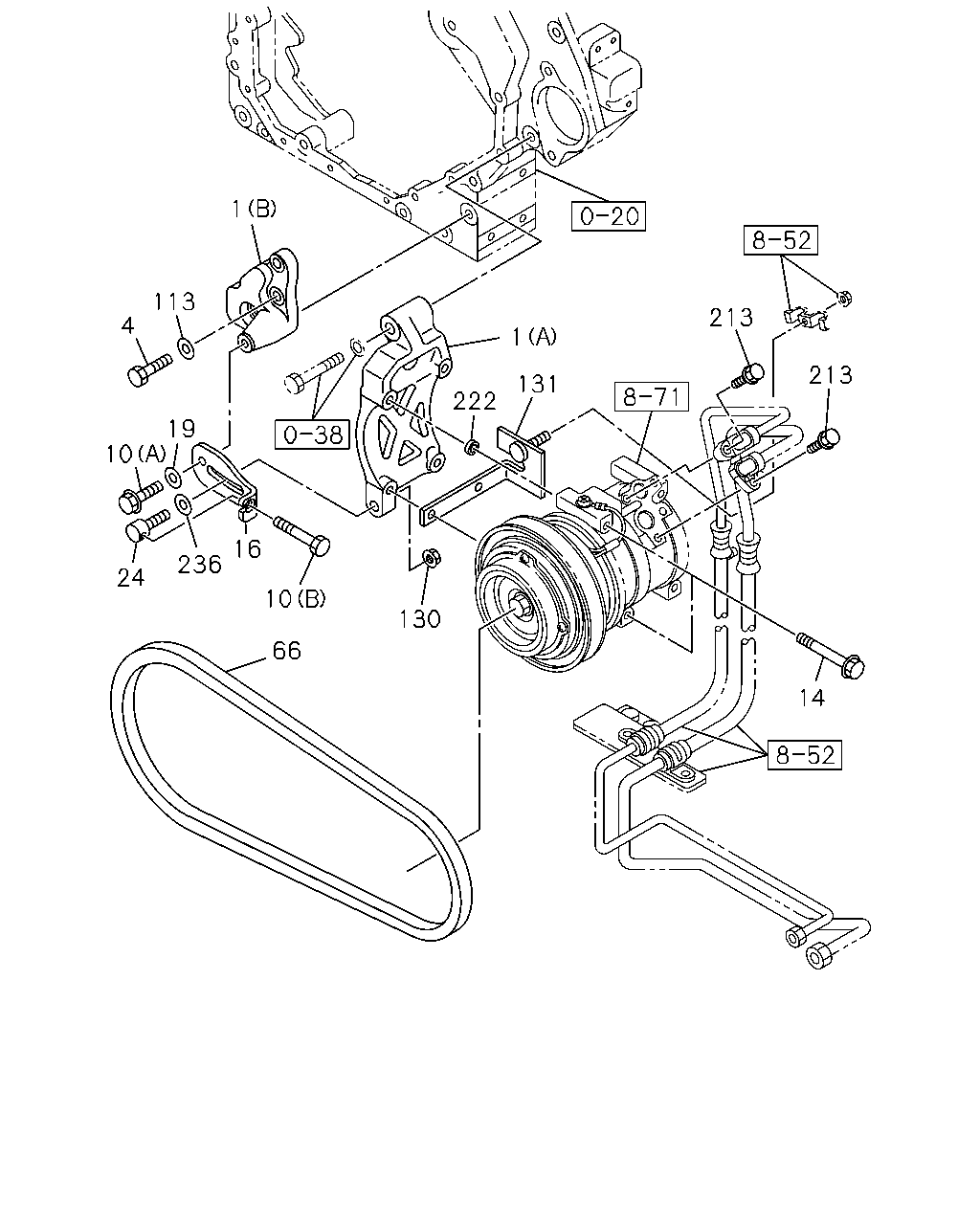

çizim 141047
1 113 4 19 10 24 10 16 236 66 130 131 222 1 213 213 14
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; A/C
(B) 		1-83573-119-0 01 1 1009-
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-095-3 01 1 1009-1302
1 BRACKET; A/C
(A) 		1-83573-095-3 01 1 1303-1411
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-095-3 01 1 1412-
4 BOLT; A/C CMPR BRKT
M14X135 		1-09020-055-0 03 1 1009-
10 BOLT; ADJ PLATE
HEATER & DEFROSTER(C41) (A) M12X35 FLANGE 		0-28751-235-0 01 1 1412-
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X40 FLANGE 		0-28151-240-0 01 1 1009-1302
10 BOLT; ADJ PLATE
(A) M12X40 FLANGE 		0-28151-240-0 01 1 1303-1411
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X40 FLANGE 		0-28151-240-0 01 1 1412-
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90 		1-09009-151-0 01 1 1009-1302
10 BOLT; ADJ PLATE
(B) M10X90 		1-09009-151-0 01 1 1303-1411
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90 		1-09009-151-0 01 1 1412-
10 BOLT; ADJ PLATE
HEATER & DEFROSTER(C41) (A) M12X35 FLANGE 		0-28751-235-0 01 1 1009-1302
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X80 FLANGE 		0-28050-880-0 04 1 1009-1302
14 BOLT; CMPR
M8X80 FLANGE 		0-28050-880-0 04 1 1303-1411
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X80 FLANGE 		0-28050-880-0 04 1 1412-
16 PLATE; ADJ,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-13674-293-2 01 1 1009-1302
16 PLATE; ADJ,CMPR 1-13674-293-2 01 1 1303-1411
16 PLATE; ADJ,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-13674-293-2 01 1 1412-
19 WASHER; PL,ADJ PLATE TO CMPR
HEATER & DEFROSTER(C41) ID=12.5 OD=32 		9-09160-712-0 01 1 1412-
19 WASHER; PL,ADJ PLATE TO CMPR
HEATER & DEFROSTER(C41) ID=12.5 OD=32 		9-09160-712-0 01 1 1009-1302
24 PIECE; SLIDING
AIR CONDITIONER MANUAL CONTROL(C60) M12X45 		1-13674-160-0 01 1 1009-1302
24 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 1303-1411
24 PIECE; SLIDING
AIR CONDITIONER MANUAL CONTROL(C60) M12X45 		1-13674-160-0 01 1 1412-
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1189 		8-97604-138-1 01 1 1009-1302
66 BELT; A/C CMPR
L=1189 		8-97604-138-1 01 1 1303-1411
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1189 		8-97604-138-1 01 1 1412-
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) BEST VALUE PARTS 		1-87610-103-0 01 1 1009-1302
66 BELT; A/C CMPR
BEST VALUE PARTS 		1-87610-103-0 01 1 1303-1411
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) BEST VALUE PARTS 		1-87610-103-0 01 1 1412-
113 WASHER; PL,BRKT
ID=15 OD=26 		9-09164-514-0 03 1 1009-
130 NUT; ADJ BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE 		0-91180-112-0 01 1 1009-1302
130 NUT; ADJ BRKT
M12 FLANGE 		0-91180-112-0 01 1 1303-1411
130 NUT; ADJ BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE 		0-91180-112-0 01 1 1412-
131 STAY; CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-244-0 01 1 1009-1302
131 STAY; CMPR BRKT 1-83573-244-0 01 1 1303-1411
131 STAY; CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-244-0 01 1 1412-
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28050-625-0 02 1 1009-1302
213 BOLT; FLEX HOSE TO CMPR
M6X25 FLANGE 		0-28050-625-0 02 1 1303-1411
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28050-625-0 02 1 1412-
222 GASKET; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) ID=8.4 OD=19 		5-11779-001-0 02 1 1009-1302
222 GASKET; CONNECTOR
ID=8.4 OD=19 		5-11779-001-0 02 1 1303-1411
222 GASKET; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) ID=8.4 OD=19 		5-11779-001-0 02 1 1412-
236 WASHER; PL,ADJ BOLT
AIR CONDITIONER MANUAL CONTROL(C60) ID=12.5 OD=32 		9-09160-712-0 01 1 1009-1302
236 WASHER; PL,ADJ BOLT
ID=12.5 OD=32 		9-09160-712-0 01 1 1303-1411
236 WASHER; PL,ADJ BOLT
AIR CONDITIONER MANUAL CONTROL(C60) ID=12.5 OD=32 		9-09160-712-0 01 1 1412-
