Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#70186) — 336 parça

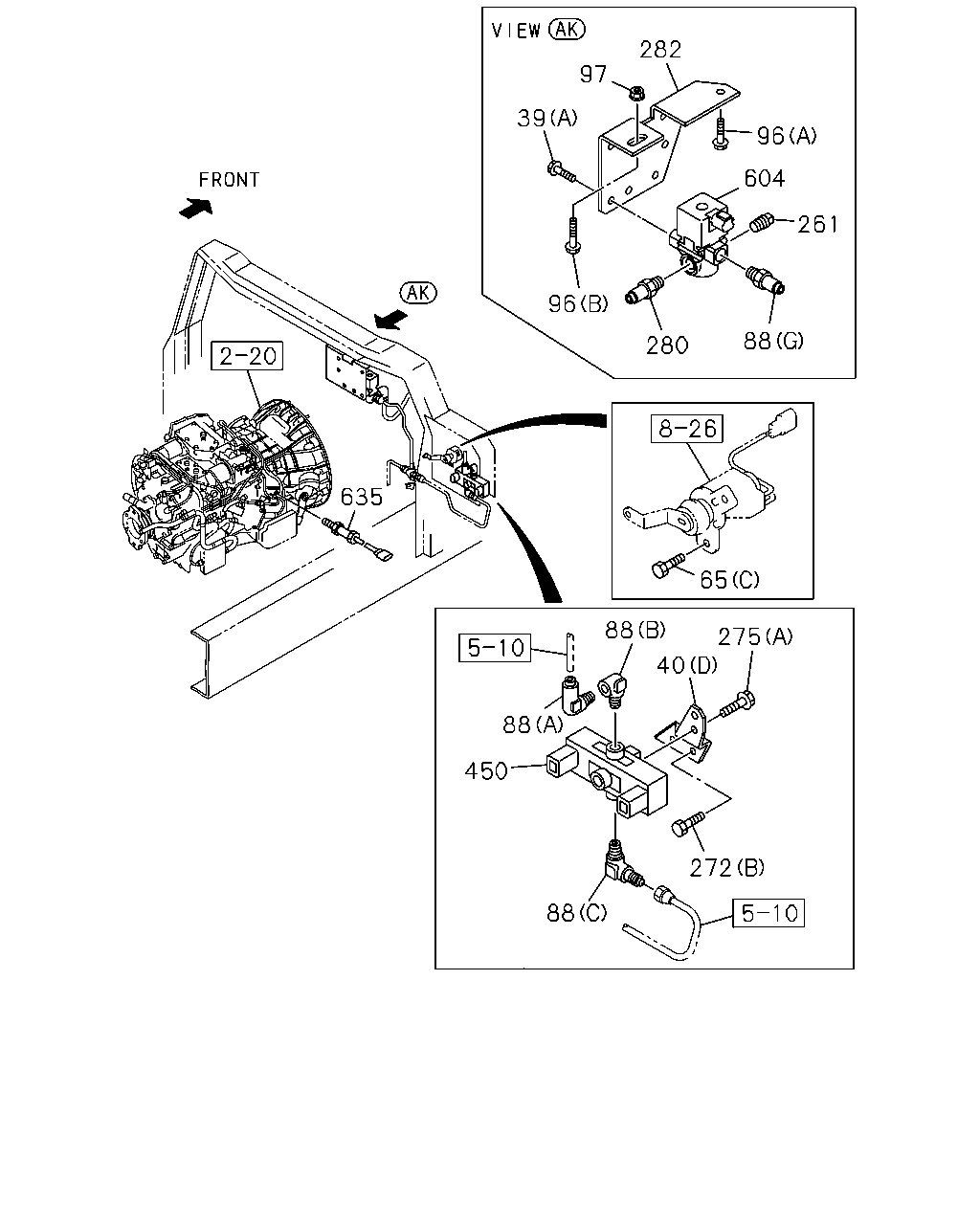

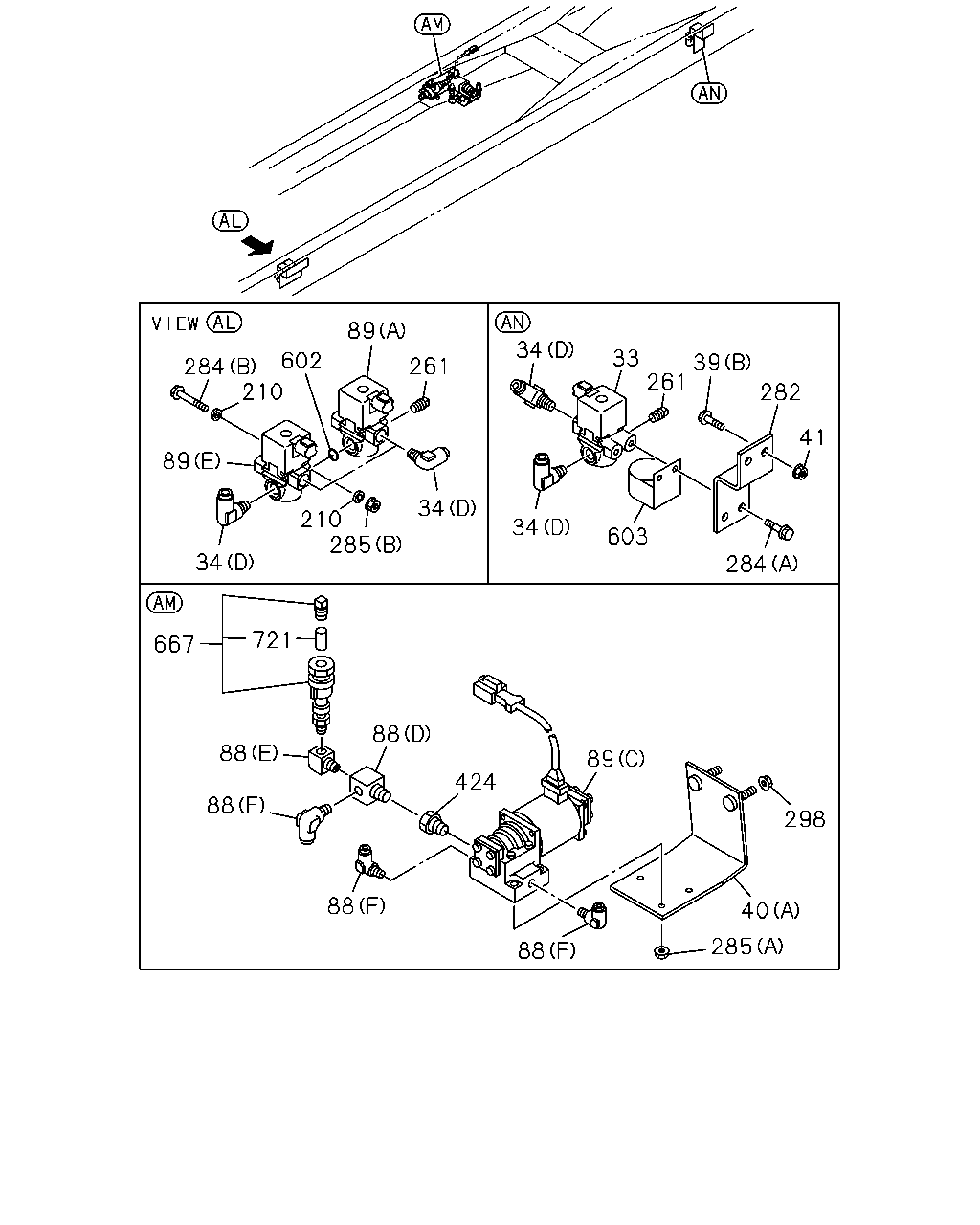

89 602 261 34 285 210 34 89 284 210 34 33 261 39 282 284 603 34 667 721 88 88 88 88 424 89 298 40 285 88 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1)	1-82563-871-2	01	1	1412-1412
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-82563-871-2	01	1	1412-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1412-1412
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1412-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	03	1	1009-1302
34	CONNECTOR; MAG VLV,INL PORT SMOOTHER-G(C1W) (B) PT1/4 & M12 ELBOW	1-09656-665-0	02	1	1009-
34	CONNECTOR; MAG VLV,INL PORT SMOOTHER-G(C1W) (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1009-
34	CONNECTOR; MAG VLV,INL PORT SMOOTHER-G(C1W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1009-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1) (B) M8X30 FLANGE	0-28650-830-0	02	1	1412-1412
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8X30 FLANGE	0-28650-830-0	02	1	1412-
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (D)	1-53458-380-0	01	1	1009-1302
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	1303-1411
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (D)	1-53458-380-0	01	1	1412-
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (E)	8-98069-778-0	01	1	1009-1302
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (B)	8-97614-699-0	01	1	1009-
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (A)	8-98036-296-0	01	1	1009-
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (C)	8-98175-910-0	01	1	1009-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91180-108-0	02	1	1412-1412
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	02	1	1412-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1412-
88	CONNECTOR; MAG VLV (H)	1-09661-073-0	01	1	1303-1411
88	CONNECTOR; MAG VLV SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULL FLOATING CAB(W16) (H)	1-09661-073-0	01	1	1412-
88	CONNECTOR; MAG VLV (G) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1009-1302
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1303-1411
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1412-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1009-1302
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1303-1411
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1412-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	1009-1302
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	1303-1411
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	1412-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	1009-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (D) PT3/8 3WAY	1-09661-300-0	01	1	1009-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-871-2	01	1	1009-1302
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (E)	1-82563-872-1	01	1	1009-1302
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (D)	1-82564-212-1	01	1	1009-
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (C)	1-82564-279-1	01	1	1009-
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (B)	1-82564-354-1	01	1	1009-1302
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (B)	8-98160-653-1	01	1	1303-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER<RE2>	1-82569-266-0	02	1	1009-1302
210	WASHER; PL,BRKT SMOOTHER-G(C1W)	1-82569-266-0	02	1	1009-1302
210	WASHER; PL,BRKT SMOOTHER-G(C1W)	1-82569-266-0	02	1	1303-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	1009-1302
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1009-1302
261	PLUG; MAG VLV SMOOTHER-G(C1W) PT1/4	9-99204-513-0	01	1	1009-1302
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1303-1411
261	PLUG; MAG VLV SMOOTHER-G(C1W) PT1/4	9-99204-513-0	01	1	1303-1411
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1412-1412
261	PLUG; MAG VLV SMOOTHER-G(C1W) PT1/4	9-99204-513-0	01	1	1412-1412
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1) PT1/4	9-99204-513-0	01	1	1412-1412
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1412-
261	PLUG; MAG VLV SMOOTHER-G(C1W) PT1/4	9-99204-513-0	01	1	1412-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) PT1/4	9-99204-513-0	01	1	1412-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1)	1-47471-175-0	01	1	1412-1412
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-47471-175-0	01	1	1412-
282	BRACKET; MAG VLV	1-82569-277-2	01	1	1009-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> (B) M6X50 FLANGE	0-28050-650-0	01	1	1009-1302
284	BOLT; MAG VLV SMOOTHER-G(C1W) (B) M6X50 FLANGE	0-28050-650-0	03	1	1009-
284	BOLT; MAG VLV SMOOTHER-G(C1W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-1411
284	BOLT; MAG VLV SMOOTHER-G(C1W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1412-1412
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1) (A) M8X20 FLANGE	0-28650-820-0	02	1	1412-1412
284	BOLT; MAG VLV SMOOTHER-G(C1W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1412-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X20 FLANGE	0-28650-820-0	02	1	1412-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> (B) M6 FLANGE	0-91180-106-0	01	1	1009-1302
285	NUT; MAG VLV SMOOTHER-G(C1W) (A) M5	0-91110-505-0	03	1	1009-
285	NUT; MAG VLV SMOOTHER-G(C1W) (B) M6 FLANGE	0-91180-106-0	03	1	1009-
298	NUT; MAG VLV SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	02	1	1009-
424	ADAPTER SMOOTHER-G(C1W) PT3/8	1-09664-210-0	01	1	1009-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> ID=16.8	9-09565-117-0	01	1	1009-1302
602	GASKET; MAG VLV SMOOTHER-G(C1W) ID=16.8	9-09565-117-0	01	1	1009-1302
602	GASKET; MAG VLV SMOOTHER-G(C1W) ID=16.8	9-09565-117-0	01	1	1303-
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1)	1-47471-046-0	01	1	1412-1412
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-47471-046-0	01	1	1412-
667	LUBRICATION SMOOTHER-G(C1W)	8-98063-001-0	01	1	1009-
721	ELEMENT; LUBRICATION SMOOTHER-G(C1W)	1-33779-028-0	01	1	1009-

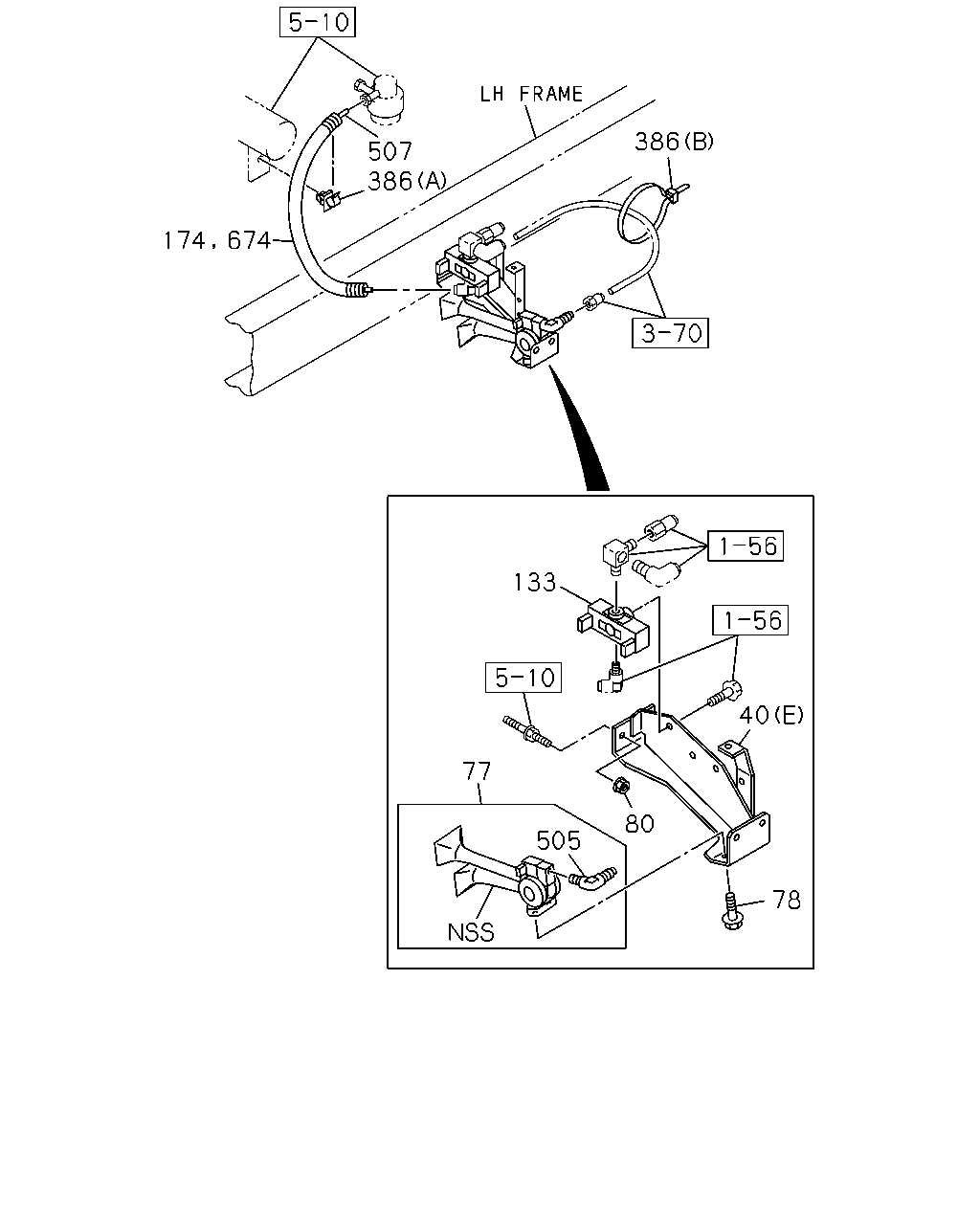

174 674 386 507 386 133 40 80 78 505 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (D)	1-53458-380-0	01	1	1009-1302
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	1303-1411
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (D)	1-53458-380-0	01	1	1412-
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (E)	8-98069-778-0	01	1	1009-1302
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (B)	8-97614-699-0	01	1	1009-
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (A)	8-98036-296-0	01	1	1009-
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (C)	8-98175-910-0	01	1	1009-
77	HORN ASM	1-83430-041-2	01	1	1009-1302
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	1009-1302
80	NUT; MAG VLV FULL FLOATING CAB(W16) M12 FLANGE	0-91180-212-0	02	1	1009-1302
133	VALVE; MAG,AIR HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	1009-1302
174	COVER FULL FLOATING CAB(W16) L=800	1-83129-031-1	01	1	1009-1302
386	CLIP; HARNESS FULL FLOATING CAB(W16) (B) L=350	1-09707-183-0	02	1	1009-1302
386	CLIP; HARNESS FULL FLOATING CAB(W16) (A) ID=9.5	5-09709-020-0	01	1	1009-1302
505	JOINT; AIR HORN	1-83439-006-0	01	1	1009-1302
507	TUBE; NYLON FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1009-1302
674	TUBE; CORRUGATE FULL FLOATING CAB(W16) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	1009-1302

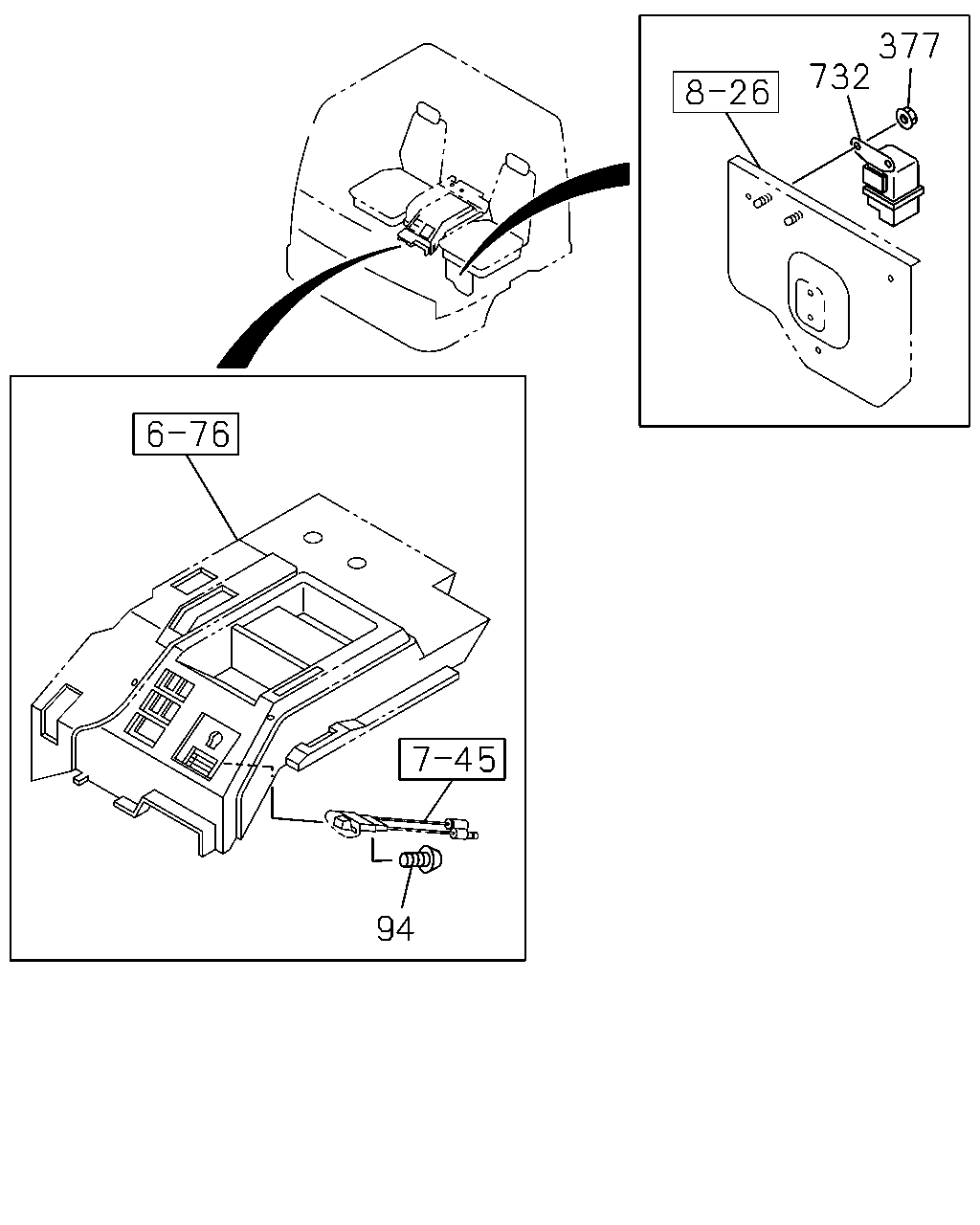

94 732 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	1009-
377	NUT; RELAY AIR BAG(TFQ) M6 FLANGE	0-91180-106-0	01	1	1009-1302
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	1303-1411
377	NUT; RELAY AIR BAG(TFQ) M6 FLANGE	0-91180-106-0	01	1	1412-
377	NUT; RELAY SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	1009-
732	RELAY; EDS SMOOTHER-G(C1W)	1-82550-337-1	01	1	1009-

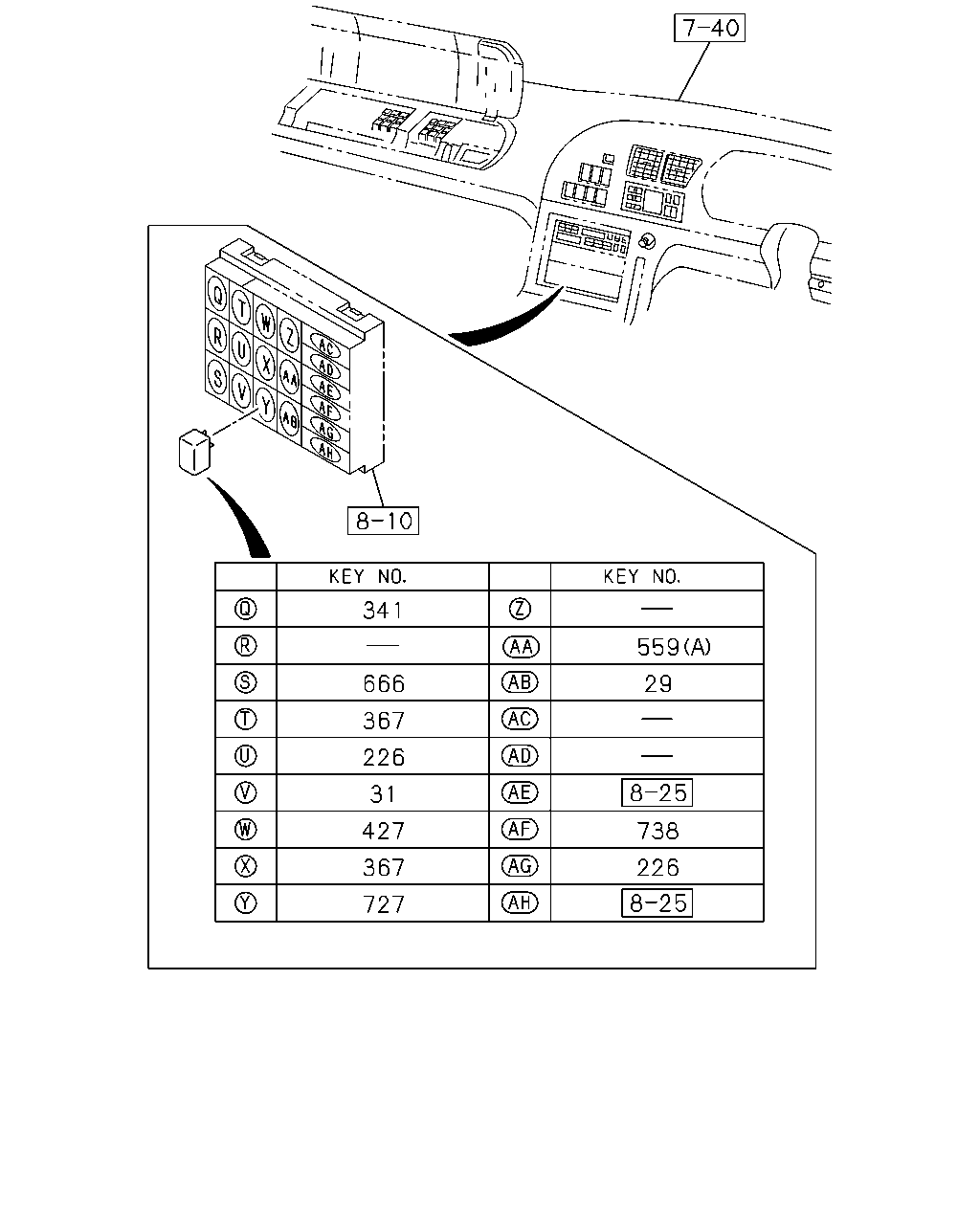

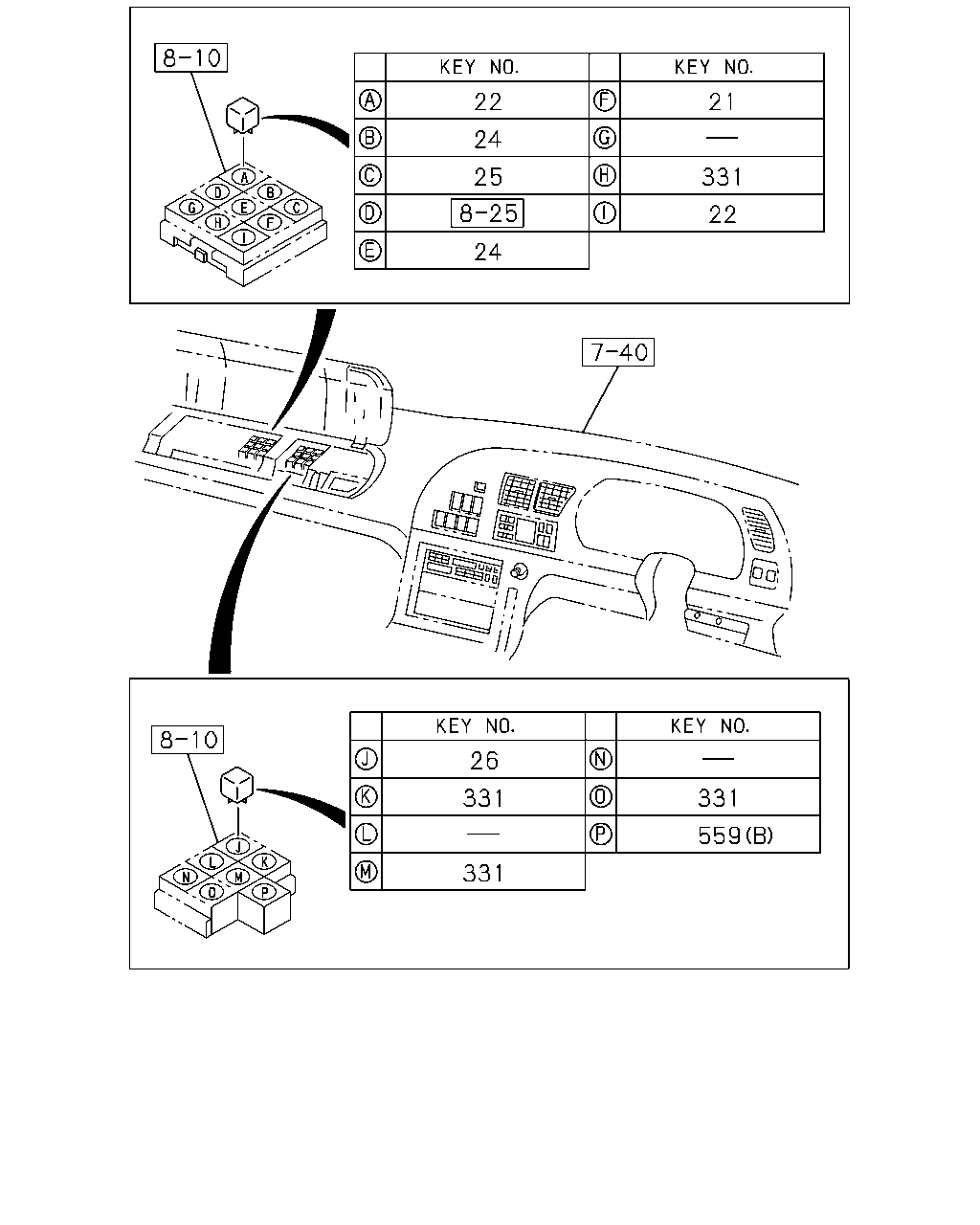

22 24 25 24 21 331 22 26 331 331 331 559

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	RELAY; TRAILER TAIL 24V 12.5A PANASONIC	8-97262-933-0	01	1	1009-1302
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	1009-
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	1009-
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1009-
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	1009-
331	RELAY; A/C 24V 12.5A PANASONIC	8-97262-933-0	01	1	1303-1411
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1412-1412
331	RELAY; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1412-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	03	1	1009-1302
331	RELAY; A/C 24V 12.5A PANASONIC	8-97262-933-0	02	1	1303-1411
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	1412-
559	RELAY; MAG VLV SMOOTHER-G(C1W) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1009-
559	RELAY; MAG VLV SMOOTHER-G(C1W) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1009-

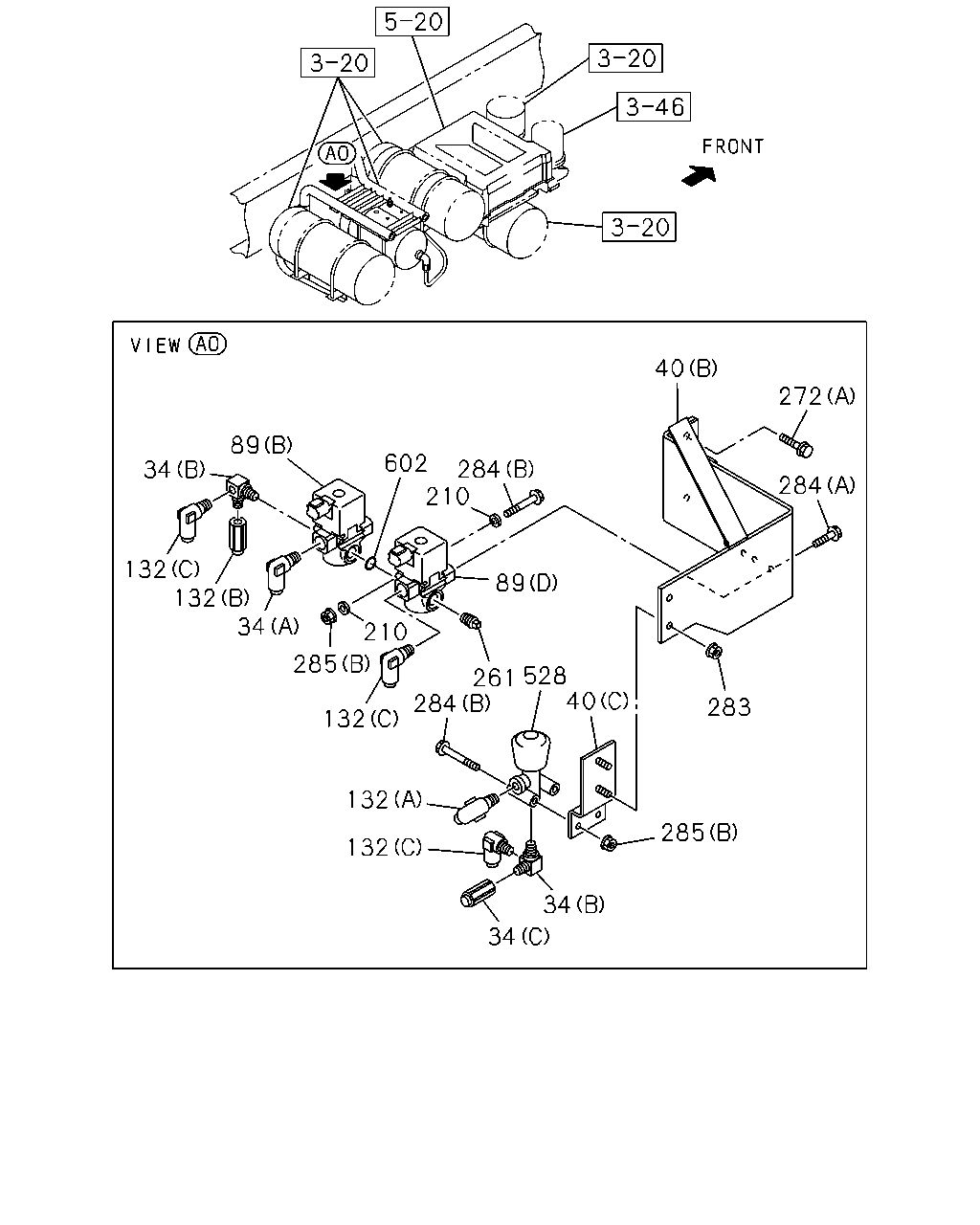

40 272 284 283 285 34 34 132 132 132 284 285 34 132 132 34 89 602 284 210 89 210 261 528 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1412-1412
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1412-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	03	1	1009-1302
34	CONNECTOR; MAG VLV,INL PORT SMOOTHER-G(C1W) (B) PT1/4 & M12 ELBOW	1-09656-665-0	02	1	1009-
34	CONNECTOR; MAG VLV,INL PORT SMOOTHER-G(C1W) (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1009-
34	CONNECTOR; MAG VLV,INL PORT SMOOTHER-G(C1W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1009-
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (D)	1-53458-380-0	01	1	1009-1302
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	1303-1411
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (D)	1-53458-380-0	01	1	1412-
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (E)	8-98069-778-0	01	1	1009-1302
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (B)	8-97614-699-0	01	1	1009-
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (A)	8-98036-296-0	01	1	1009-
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (C)	8-98175-910-0	01	1	1009-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-871-2	01	1	1009-1302
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (E)	1-82563-872-1	01	1	1009-1302
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (D)	1-82564-212-1	01	1	1009-
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (C)	1-82564-279-1	01	1	1009-
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (B)	1-82564-354-1	01	1	1009-1302
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (B)	8-98160-653-1	01	1	1303-
132	CONNECTOR; OUTLET,MAG VLV SMOOTHER-G(C1W) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1009-
132	CONNECTOR; OUTLET,MAG VLV SMOOTHER-G(C1W) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1009-
132	CONNECTOR; OUTLET,MAG VLV SMOOTHER-G(C1W) (A) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1009-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER<RE2>	1-82569-266-0	02	1	1009-1302
210	WASHER; PL,BRKT SMOOTHER-G(C1W)	1-82569-266-0	02	1	1009-1302
210	WASHER; PL,BRKT SMOOTHER-G(C1W)	1-82569-266-0	02	1	1303-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	1009-1302
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1009-1302
261	PLUG; MAG VLV SMOOTHER-G(C1W) PT1/4	9-99204-513-0	01	1	1009-1302
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1303-1411
261	PLUG; MAG VLV SMOOTHER-G(C1W) PT1/4	9-99204-513-0	01	1	1303-1411
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1412-1412
261	PLUG; MAG VLV SMOOTHER-G(C1W) PT1/4	9-99204-513-0	01	1	1412-1412
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1) PT1/4	9-99204-513-0	01	1	1412-1412
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1412-
261	PLUG; MAG VLV SMOOTHER-G(C1W) PT1/4	9-99204-513-0	01	1	1412-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) PT1/4	9-99204-513-0	01	1	1412-
272	BOLT; MAG VLV (B) M10X20 FLANGE	0-28651-020-0	02	1	1009-1208
272	BOLT; MAG VLV (B) M10X25 FLANGE	0-28651-025-0	02	1	1209-1411
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X25 FLANGE	0-28651-025-0	02	1	1412-
272	BOLT; MAG VLV SMOOTHER-G(C1W) (A) M8X30 FLANGE	0-28650-830-0	02	1	1009-
283	NUT; BRKT SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	1009-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> (B) M6X50 FLANGE	0-28050-650-0	01	1	1009-1302
284	BOLT; MAG VLV SMOOTHER-G(C1W) (B) M6X50 FLANGE	0-28050-650-0	03	1	1009-
284	BOLT; MAG VLV SMOOTHER-G(C1W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-1411
284	BOLT; MAG VLV SMOOTHER-G(C1W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1412-1412
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1) (A) M8X20 FLANGE	0-28650-820-0	02	1	1412-1412
284	BOLT; MAG VLV SMOOTHER-G(C1W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1412-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X20 FLANGE	0-28650-820-0	02	1	1412-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> (B) M6 FLANGE	0-91180-106-0	01	1	1009-1302
285	NUT; MAG VLV SMOOTHER-G(C1W) (A) M5	0-91110-505-0	03	1	1009-
285	NUT; MAG VLV SMOOTHER-G(C1W) (B) M6 FLANGE	0-91180-106-0	03	1	1009-
528	VALVE; PRESSURE REDUCING SMOOTHER-G(C1W)	1-48410-738-0	01	1	1009-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> ID=16.8	9-09565-117-0	01	1	1009-1302
602	GASKET; MAG VLV SMOOTHER-G(C1W) ID=16.8	9-09565-117-0	01	1	1009-1302
602	GASKET; MAG VLV SMOOTHER-G(C1W) ID=16.8	9-09565-117-0	01	1	1303-

282 97 39 96 604 261 88 280 96 65 275 88 40 272 88 450 88 635

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1) (B) M8X30 FLANGE	0-28650-830-0	02	1	1412-1412
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8X30 FLANGE	0-28650-830-0	02	1	1412-
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (D)	1-53458-380-0	01	1	1009-1302
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	1303-1411
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (D)	1-53458-380-0	01	1	1412-
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (E)	8-98069-778-0	01	1	1009-1302
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (B)	8-97614-699-0	01	1	1009-
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (A)	8-98036-296-0	01	1	1009-
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (C)	8-98175-910-0	01	1	1009-
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	04	1	1304-
65	BOLT; SOCKET FIX (A) M8X30 FLANGE	0-28650-830-0	02	1	1009-1302
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	06	1	1303-1303
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	02	1	1304-
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE	0-28650-825-0	04	1	1009-1302
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (C) M6X16 FLANGE	0-28050-616-0	02	1	1009-1302
65	BOLT; SOCKET FIX (C) M6X25 FLANGE	0-28050-625-0	02	1	1303-1411
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (C) M6X25 FLANGE	0-28050-625-0	02	1	1412-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1412-
88	CONNECTOR; MAG VLV (H)	1-09661-073-0	01	1	1303-1411
88	CONNECTOR; MAG VLV SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULL FLOATING CAB(W16) (H)	1-09661-073-0	01	1	1412-
88	CONNECTOR; MAG VLV (G) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1009-1302
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1303-1411
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1412-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1009-1302
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1303-1411
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1412-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	1009-1302
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	1303-1411
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	1412-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	1009-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (D) PT3/8 3WAY	1-09661-300-0	01	1	1009-
96	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-
96	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1009-
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	1009-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	1009-1302
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1009-1302
261	PLUG; MAG VLV SMOOTHER-G(C1W) PT1/4	9-99204-513-0	01	1	1009-1302
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1303-1411
261	PLUG; MAG VLV SMOOTHER-G(C1W) PT1/4	9-99204-513-0	01	1	1303-1411
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1412-1412
261	PLUG; MAG VLV SMOOTHER-G(C1W) PT1/4	9-99204-513-0	01	1	1412-1412
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1) PT1/4	9-99204-513-0	01	1	1412-1412
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1412-
261	PLUG; MAG VLV SMOOTHER-G(C1W) PT1/4	9-99204-513-0	01	1	1412-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) PT1/4	9-99204-513-0	01	1	1412-
272	BOLT; MAG VLV (B) M10X20 FLANGE	0-28651-020-0	02	1	1009-1208
272	BOLT; MAG VLV (B) M10X25 FLANGE	0-28651-025-0	02	1	1209-1411
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X25 FLANGE	0-28651-025-0	02	1	1412-
272	BOLT; MAG VLV SMOOTHER-G(C1W) (A) M8X30 FLANGE	0-28650-830-0	02	1	1009-
275	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	01	1	1303-1411
275	BOLT; BRKT FULL FLOATING CAB(W16) (C) M8X12 FLANGE	0-28050-812-0	01	1	1412-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	1009-1302
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	1303-1411
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	1412-
280	CONNECTOR; IN,MAG VLV M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1)	1-47471-175-0	01	1	1412-1412
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-47471-175-0	01	1	1412-
282	BRACKET; MAG VLV	1-82569-277-2	01	1	1009-
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	01	1	1009-1302
450	VALVE; MAG	1-53458-378-2	02	1	1303-1411
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	02	1	1412-
604	VALVE; MAG,ENG CONT	1-82563-871-2	01	1	1009-
635	SENSOR; PICK UP,INPUT SHAFT MJX12P M/T SMOOTHER-G(Y4S)	1-81510-736-1	01	1	1009-

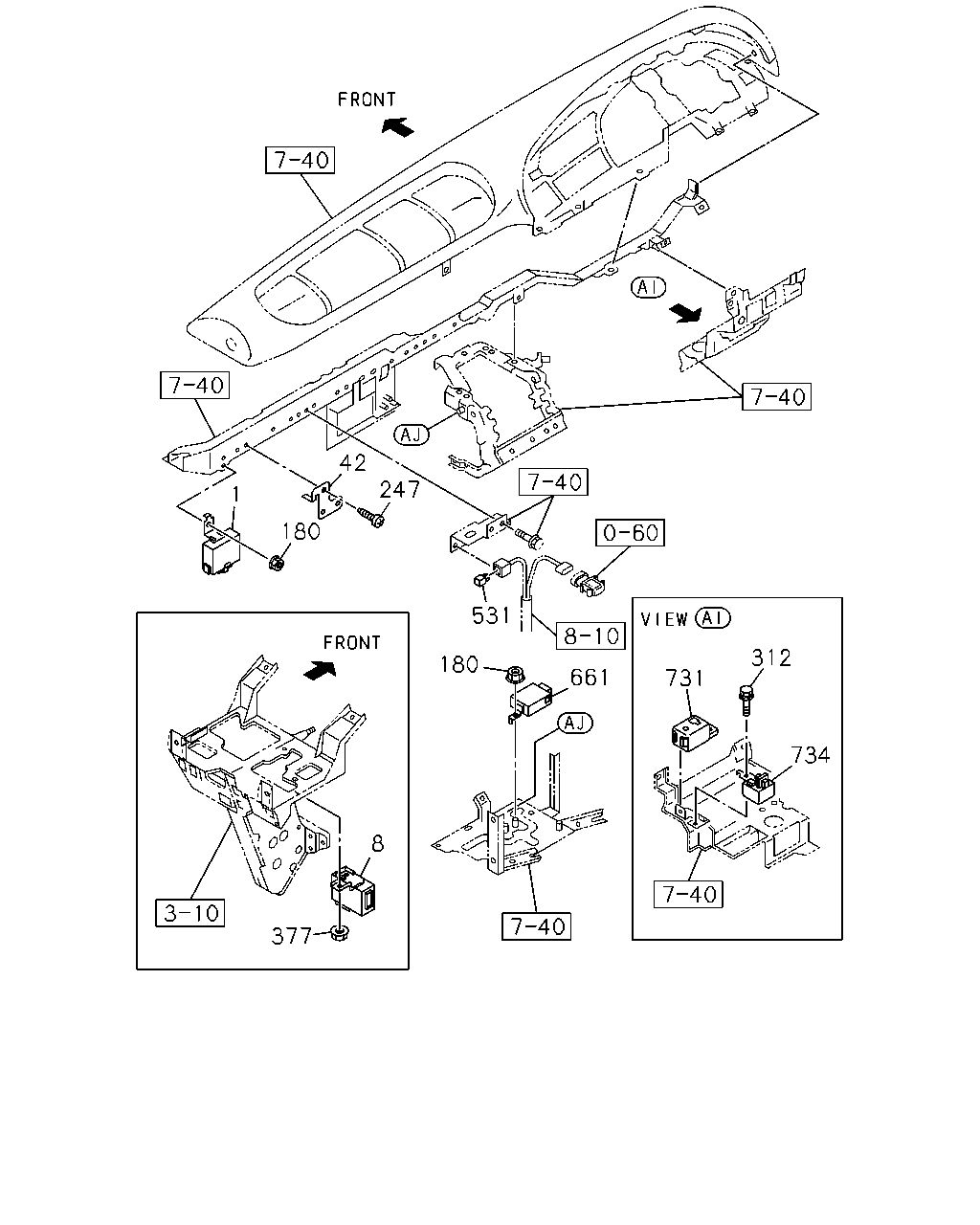

180 1 42 531 180 247 661 731 734 312 8 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	8-97613-970-1	01	1	1009-
8	RELAY; WIPER AIR BAG(TFQ)	1-83316-002-4	01	1	1009-1302
8	RELAY; WIPER	1-83316-002-4	01	1	1303-1411
8	RELAY; WIPER AIR BAG(TFQ)	1-83316-002-4	01	1	1412-
42	BRACKET; RELAY	1-82698-128-2	01	1	1009-
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	02	1	1009-1302
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	1303-
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	1303-
247	SCREW; BRKT M5X14	8-94279-325-0	01	1	1009-
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1009-
377	NUT; RELAY AIR BAG(TFQ) M6 FLANGE	0-91180-106-0	01	1	1009-1302
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	1303-1411
377	NUT; RELAY AIR BAG(TFQ) M6 FLANGE	0-91180-106-0	01	1	1412-
377	NUT; RELAY SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	1009-
531	RELAY; MAIN 24V	8-98167-175-0	01	1	1009-
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	1009-
731	ALARM; INFORMATION SMOOTHER-G(C1W)	1-83460-051-1	01	1	1009-
734	ALARM; MULTI	1-83460-106-0	01	1	1009-

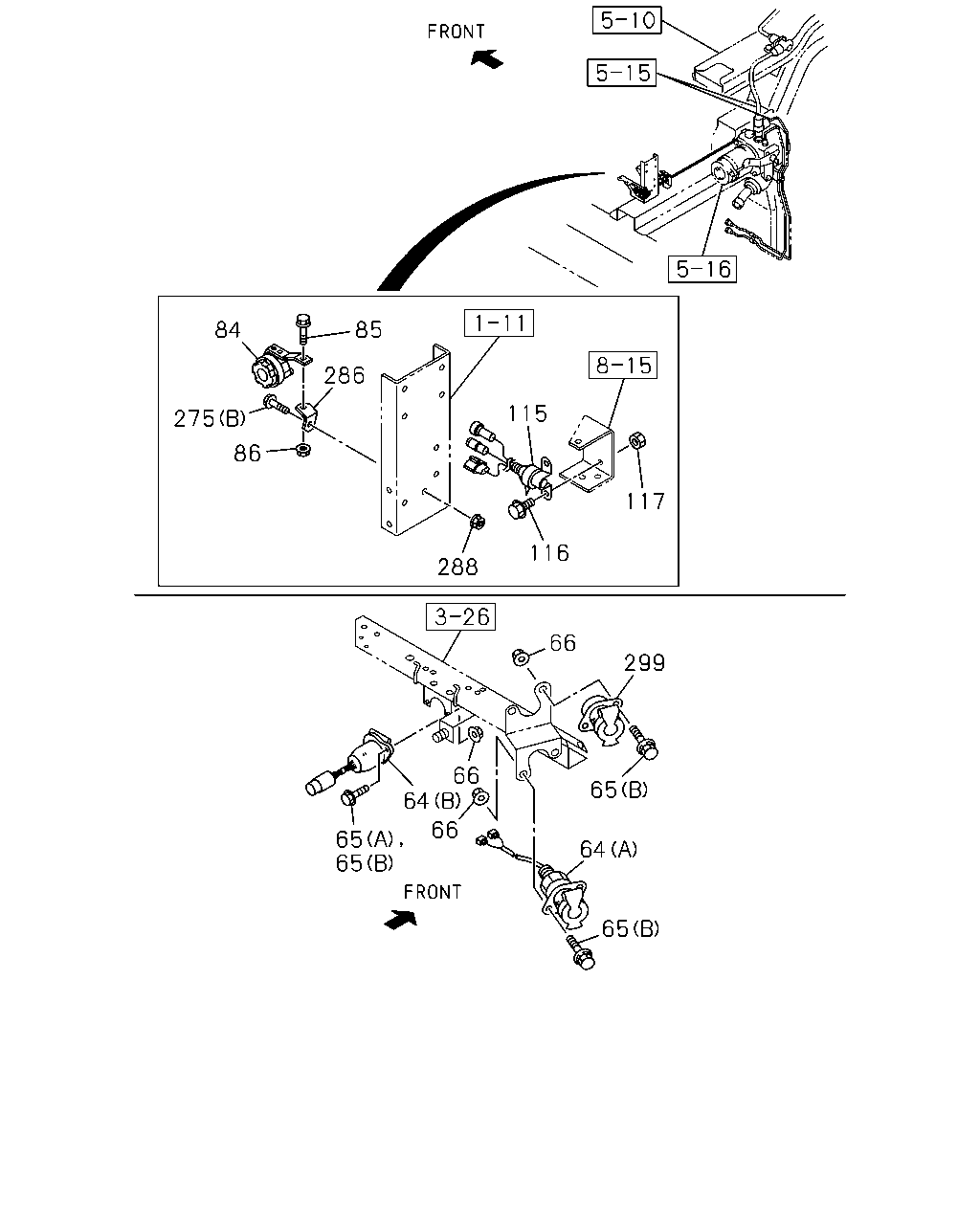

85 286 84 86 288 116 117 115 66 299 65 64 65 66 66 64 65 65 275

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	SOCKET; TRAILER (B) 7P	1-82523-014-0	01	1	1009-
64	SOCKET; TRAILER ANTILOCK BRAKE SYSTEM(BFA) (A) L=1200	8-98163-928-1	01	1	1009-1302
64	SOCKET; TRAILER (A) L=1200	8-98163-928-1	01	1	1303-
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	04	1	1304-
65	BOLT; SOCKET FIX (A) M8X30 FLANGE	0-28650-830-0	02	1	1009-1302
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	06	1	1303-1303
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	02	1	1304-
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE	0-28650-825-0	04	1	1009-1302
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (C) M6X16 FLANGE	0-28050-616-0	02	1	1009-1302
65	BOLT; SOCKET FIX (C) M6X25 FLANGE	0-28050-625-0	02	1	1303-1411
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (C) M6X25 FLANGE	0-28050-625-0	02	1	1412-
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	05	1	1009-1302
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	02	1	1303-
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	1009-
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	1009-
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	1009-
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	1009-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	1009-
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	1009-1302
275	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	01	1	1303-1411
275	BOLT; BRKT FULL FLOATING CAB(W16) (C) M8X12 FLANGE	0-28050-812-0	01	1	1412-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	1009-1302
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	1303-1411
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	1412-
286	BRACKET	1-82699-199-0	01	1	1009-
288	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	1009-
299	SOCKET; PARKING ANTILOCK BRAKE SYSTEM(BFA)	1-82699-396-2	01	1	1009-1302
299	SOCKET; PARKING	1-82699-396-2	01	1	1303-

341 666 367 226 31 427 367 727 559 29 738 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	RELAY; HORN 24V 10A PANASONIC	8-97173-035-1	01	1	1303-
31	RELAY; PTO CONT TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	1009-1302
31	RELAY; PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	1303-
226	RELAY; EXH BRK 24V 10A PANASONIC	8-97173-035-1	01	1	1009-
341	RELAY FULL FLOATING CAB(W16) 24V 10A PANASONIC	8-97173-035-1	01	1	1009-1302
341	RELAY 24V 10A PANASONIC	8-97173-035-1	01	1	1303-1411
341	RELAY FULL FLOATING CAB(W16) 24V 10A PANASONIC	8-97173-035-1	01	1	1412-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	1009-
367	RELAY; NEUTRAL SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	1009-
427	RELAY; RETARDER BRAKE SYSTEM RETARDER<RE2> 24V 10A PANASONIC	8-97173-035-1	02	1	1009-1302
559	RELAY; MAG VLV SMOOTHER-G(C1W) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1009-
559	RELAY; MAG VLV SMOOTHER-G(C1W) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1009-
666	RELAY; STARTER SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	1009-
727	RELAY; START CUT 24V 10A PANASONIC	8-97173-035-1	01	1	1009-1306
727	RELAY; START CUT 24V 10A PANASONIC	8-98167-173-0	01	1	1307-
738	RELAY; EXH & RETARDER CUT 24V 10A PANASONIC	8-97173-035-1	01	1	1009-

717 724 722 718 717 290 289 741

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
289	BOLT SMOOTHER-G(C1W) M8X25 FLANGE	0-28650-825-0	02	1	1009-
290	NUT SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	02	1	1009-
717	FILTER; MAG VLV SMOOTHER-G(C1W)	8-98092-703-0	01	1	1009-
718	CONNECTOR; FILTER SMOOTHER-G(C1W) DIN8 & M16 ELBOW	1-09661-531-0	01	1	1009-
722	ELEMENT; AIR FILTER SMOOTHER-G(C1W)	1-33779-040-0	01	1	1009-
724	GASKET; AIR FILTER SMOOTHER-G(C1W)	5-09623-075-0	01	1	1009-
741	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) DIN8 & M16 STRAIGHT	1-09661-530-0	01	1	1303-

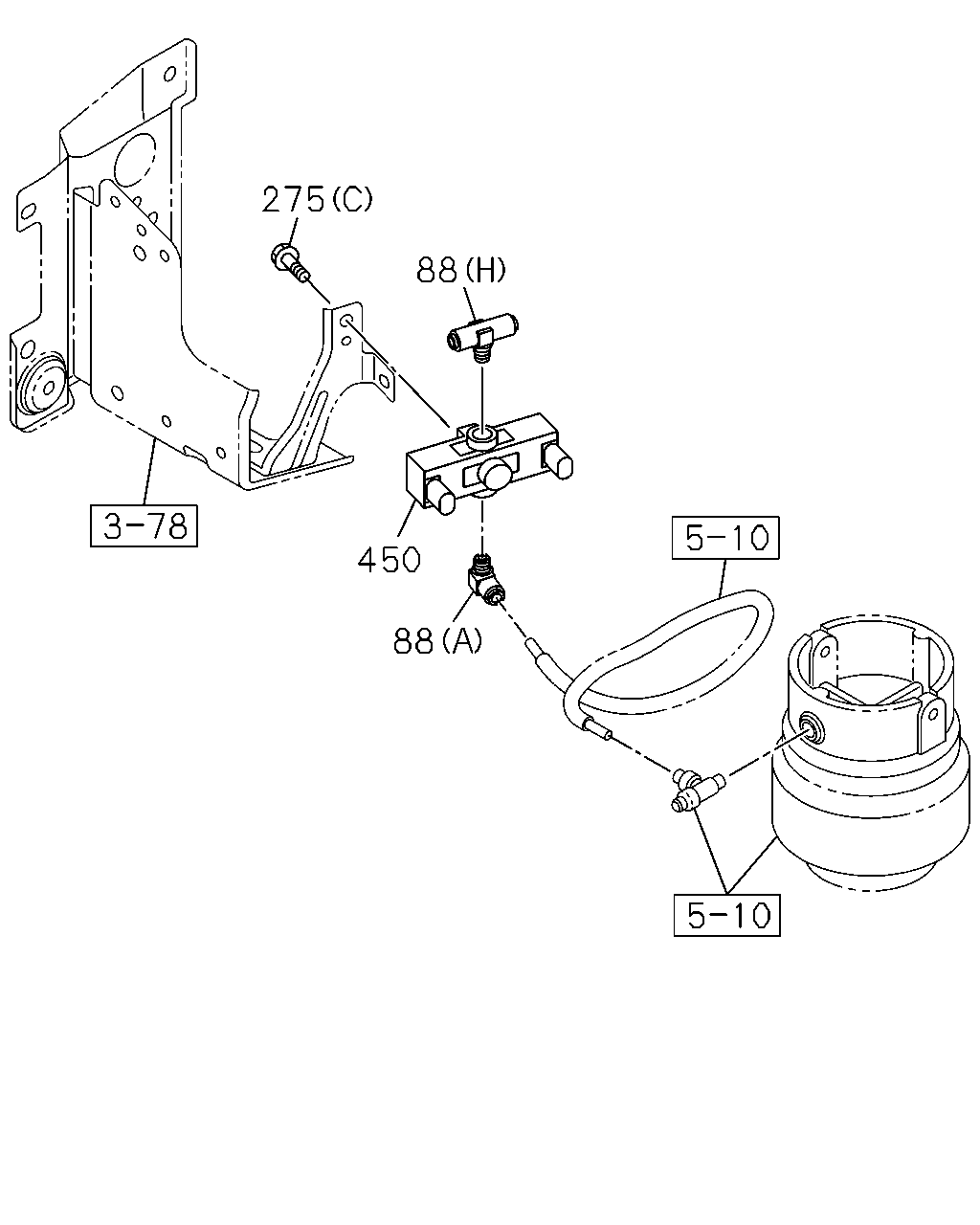

275 88 450 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1412-
88	CONNECTOR; MAG VLV (H)	1-09661-073-0	01	1	1303-1411
88	CONNECTOR; MAG VLV SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULL FLOATING CAB(W16) (H)	1-09661-073-0	01	1	1412-
88	CONNECTOR; MAG VLV (G) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1009-1302
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1303-1411
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1412-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1009-1302
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1303-1411
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1412-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	1009-1302
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	1303-1411
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	1412-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	1009-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (D) PT3/8 3WAY	1-09661-300-0	01	1	1009-
275	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	01	1	1303-1411
275	BOLT; BRKT FULL FLOATING CAB(W16) (C) M8X12 FLANGE	0-28050-812-0	01	1	1412-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	1009-1302
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	1303-1411
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	1412-
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	01	1	1009-1302
450	VALVE; MAG	1-53458-378-2	02	1	1303-1411
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	02	1	1412-

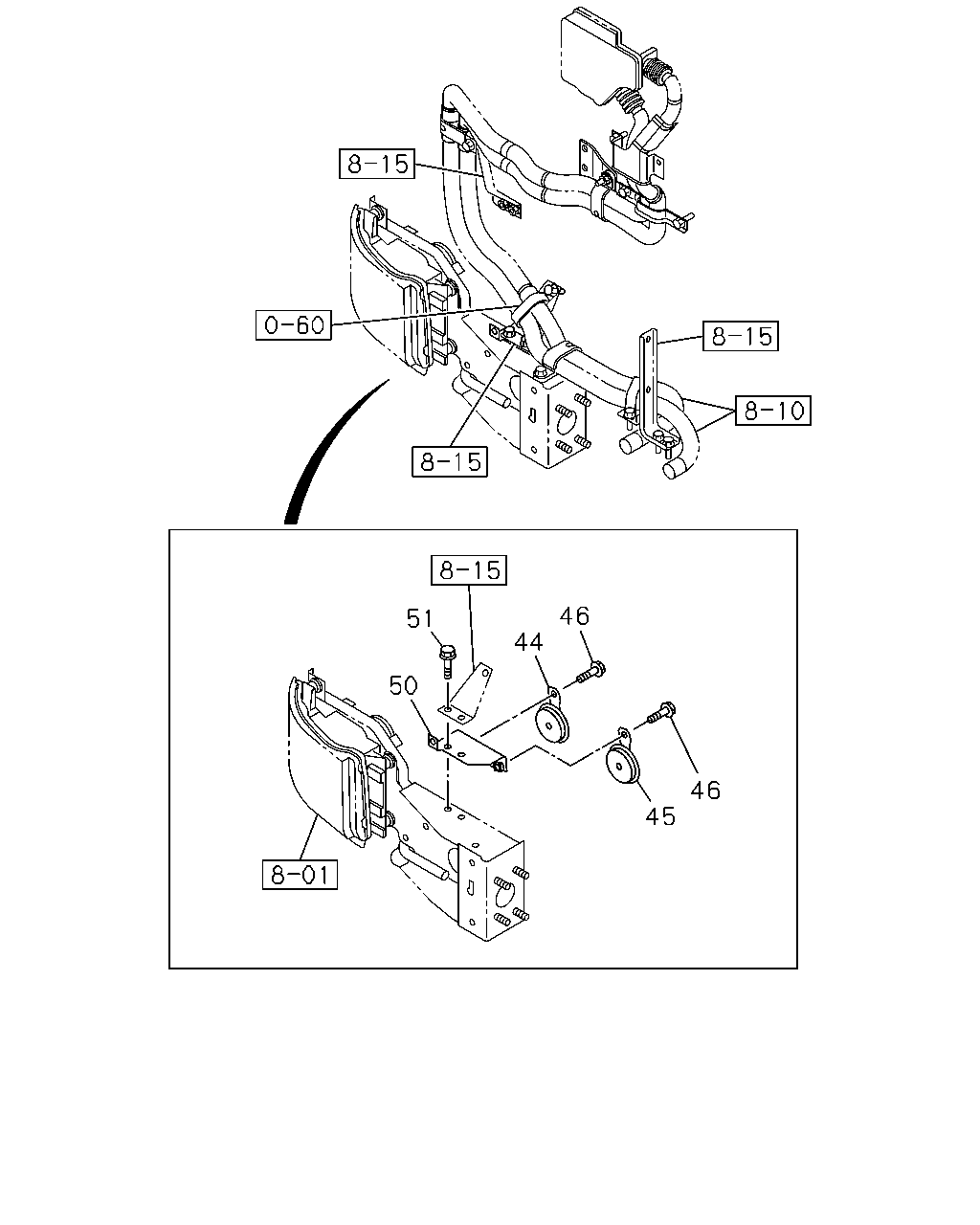

50 51 44 45 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	HORN; HIGH NOTE	1-83410-061-1	01	1	1303-
45	HORN; LOW NOTE	1-83410-062-1	01	1	1303-
46	BOLT; HORN TO BODY M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1303-
50	BRACKET; HORN	8-98210-372-0	01	1	1303-
51	BOLT; HORN TO BRKT M8X25 FLANGE	0-28650-825-0	02	1	1303-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
