8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#70183) — 79 parça

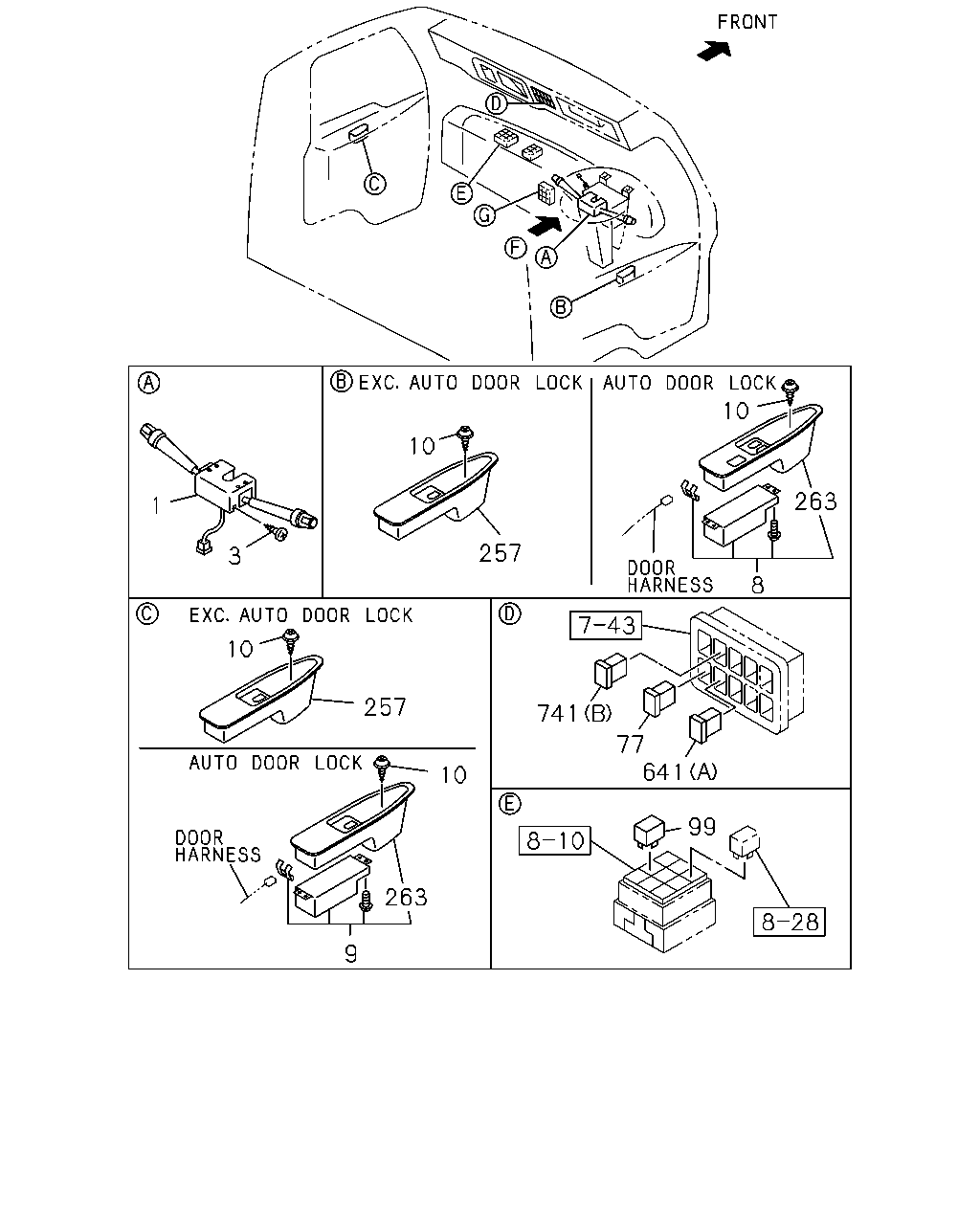

çizim 137914
10 263 8 257 10 1 257 10 741 77 641 99 263 9 10 3
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB
EXC. SMOOTHER-G(C1W),AIR BAG(TFQ) 		8-98152-592-0 01 1 1412-
1 SWITCH; COMB
AIR BAG(TFQ) EXC. SMOOTHER-G(C1W),BRAKE SYSTEM RETARDER<RE2> 		1-82360-548-1 01 1 1009-1302
1 SWITCH; COMB
EXC. SMOOTHER-G(C1W) 		1-82360-548-1 01 1 1303-1411
1 SWITCH; COMB
AIR BAG(TFQ) EXC. SMOOTHER-G(C1W) 		1-82360-548-1 01 1 1412-
1 SWITCH; COMB
SMOOTHER-G(C1W) AIR BAG(TFQ) EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82360-701-1 01 1 1009-1302
1 SWITCH; COMB
SMOOTHER-G(C1W) 		1-82360-701-1 01 1 1303-1411
1 SWITCH; COMB
SMOOTHER-G(C1W) AIR BAG(TFQ) 		1-82360-701-1 01 1 1412-
1 SWITCH; COMB
SMOOTHER-G(C1W) BRAKE SYSTEM RETARDER<RE2> AIR BAG(TFQ) 		1-82360-700-1 01 1 1009-1302
1 SWITCH; COMB
SMOOTHER-G(C1W) BRAKE SYSTEM RETARDER<RE2> EXC. AIR BAG(TFQ) 		8-98152-593-0 01 1 1009-1302
1 SWITCH; COMB
SMOOTHER-G(C1W) EXC. BRAKE SYSTEM RETARDER<RE2>,AIR BAG(TFQ) 		8-98152-594-0 01 1 1009-1302
1 SWITCH; COMB
EXC. SMOOTHER-G(C1W),BRAKE SYSTEM RETARDER<RE2>, AIRBAG(TFQ) 		8-98152-592-0 01 1 1009-1302
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 1009-
8 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> DRIVER SIDE 		1-82380-166-2 01 1 1009-1302
8 SWITCH; POWER WINDOW
DRIVER SIDE 		1-82380-166-2 01 1 1303-
9 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> PASSENGER SIDE 		1-82380-167-1 01 1 1009-1302
9 SWITCH; POWER WINDOW
PASSENGER SIDE 		1-82380-167-1 01 1 1303-
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 1009-
77 SWITCH; PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82340-413-0 01 1 1009-1302
77 SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		8-97386-993-4 01 1 1303-
99 RELAY; FOG LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009-
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> 		1-82389-011-2 01 1 1009-1302
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> 		1-82389-012-2 01 1 1009-1302
263 COVER; SW
AUTO DOOR LOCK<AU4> DRIVER SIDE 		1-82385-005-2 01 1 1009-1302
263 COVER; SW
DRIVER SIDE 		1-82385-005-2 01 1 1303-
263 COVER; SW
AUTO DOOR LOCK<AU4> PASSENGER SIDE 		1-82385-006-3 01 1 1009-1302
263 COVER; SW
PASSENGER SIDE 		1-82385-006-3 01 1 1303-
641 SWITCH; MAP
SMOOTHER-G(C1W) (A) 		8-97615-637-0 01 1 1009-1302
641 SWITCH; MAP
SMOOTHER-G(C1W) (B) 		8-98222-524-1 01 1 1303-
741 SWITCH; TRAILER
SMOOTHER-G(C1W) (A) 		8-98147-983-0 01 1 1009-1302
741 SWITCH; TRAILER
SMOOTHER-G(C1W) (B) 		8-98222-522-1 01 1 1303-

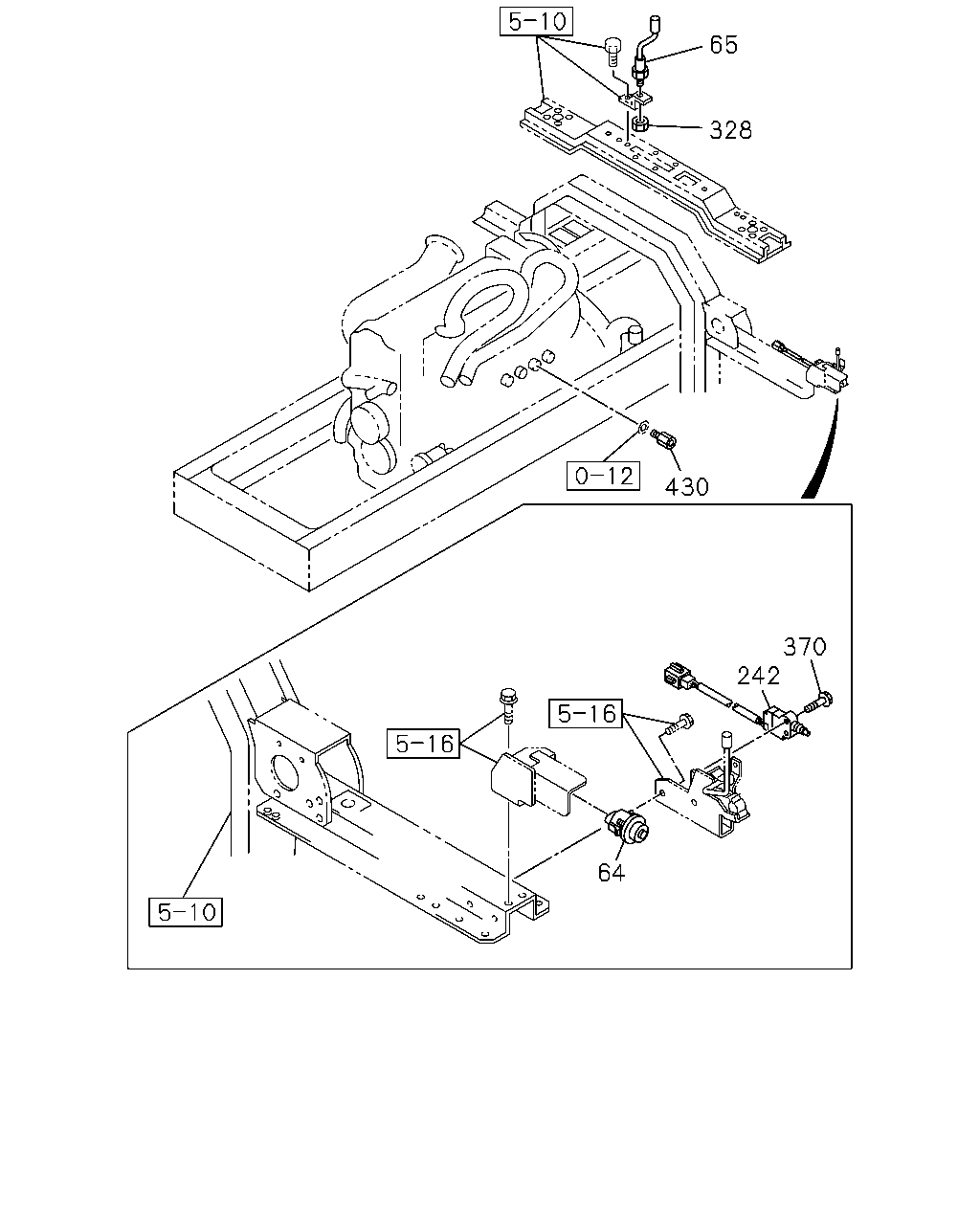

çizim 138260
65 328 430 370 242 64
BalonParca AdiParca NoAdetTipApplied Date
64 SWITCH; CAB TILT MAIN 1-82380-173-2 01 1 1009-
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 1009-
242 SWITCH
STAMP NO 		1-82380-172-1 01 1 1009-
328 NUT; SW
M16 		0-91110-516-0 01 1 1009-
370 BOLT; SW
M6X30 FLANGE 		0-28650-630-0 02 1 1009-
430 ADAPTER; SW
M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 1009-

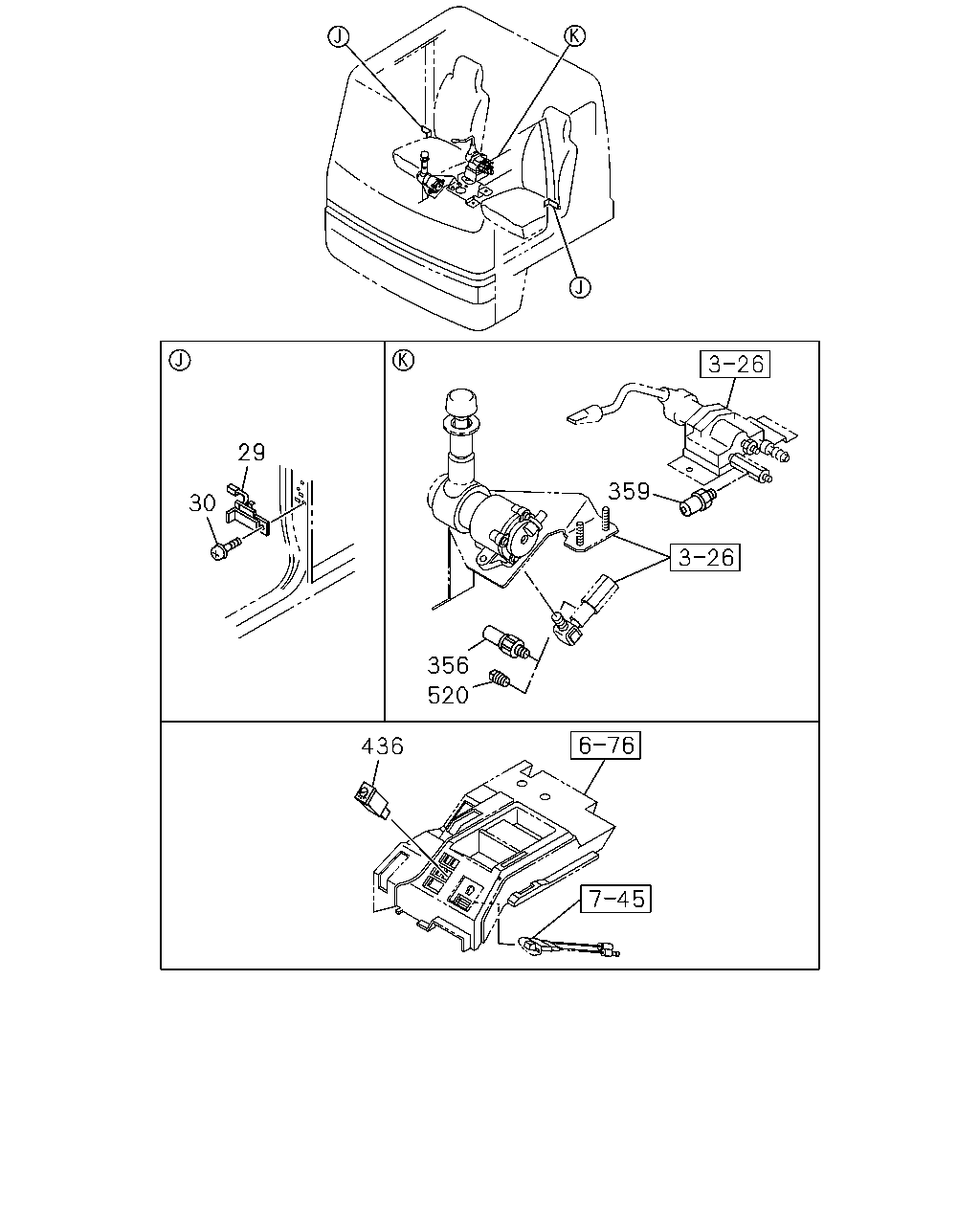

çizim 138310
29 30 359 356 520 436
BalonParca AdiParca NoAdetTipApplied Date
29 SWITCH; DOOR 8-97855-032-3 02 1 1009-
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 02 1 1009-
356 SWITCH; TRAILER,LOW PRESS
HONG KONG EQUIPMENT(PQ1) STAMP 2.0 		8-98010-856-1 01 1 1009-1302
356 SWITCH; TRAILER,LOW PRESS
STAMP 2.0 		8-98010-856-2 01 1 1303-1411
356 SWITCH; TRAILER,LOW PRESS
HONG KONG EQUIPMENT(PQ1) STAMP 2.0 		8-98010-856-2 01 1 1412-
359 SWITCH; TRAILER BRAKE
STAMP 0.3 		8-98010-857-0 01 1 1009-
436 SWITCH; HEADLAMP LEVELING 1-82330-043-0 01 1 1009-1302
436 SWITCH; HEADLAMP LEVELING 8-97386-981-2 01 1 1303-
520 PLUG; CONNECTOR
SINGAPORE EQUIPMENT(WQ3) PT1/4 		9-99204-513-0 01 1 1504-
520 PLUG; CONNECTOR
EXC. HONG KONG EQUIPMENT(PQ1) PT1/4 		9-99204-513-0 01 1 1009-1302

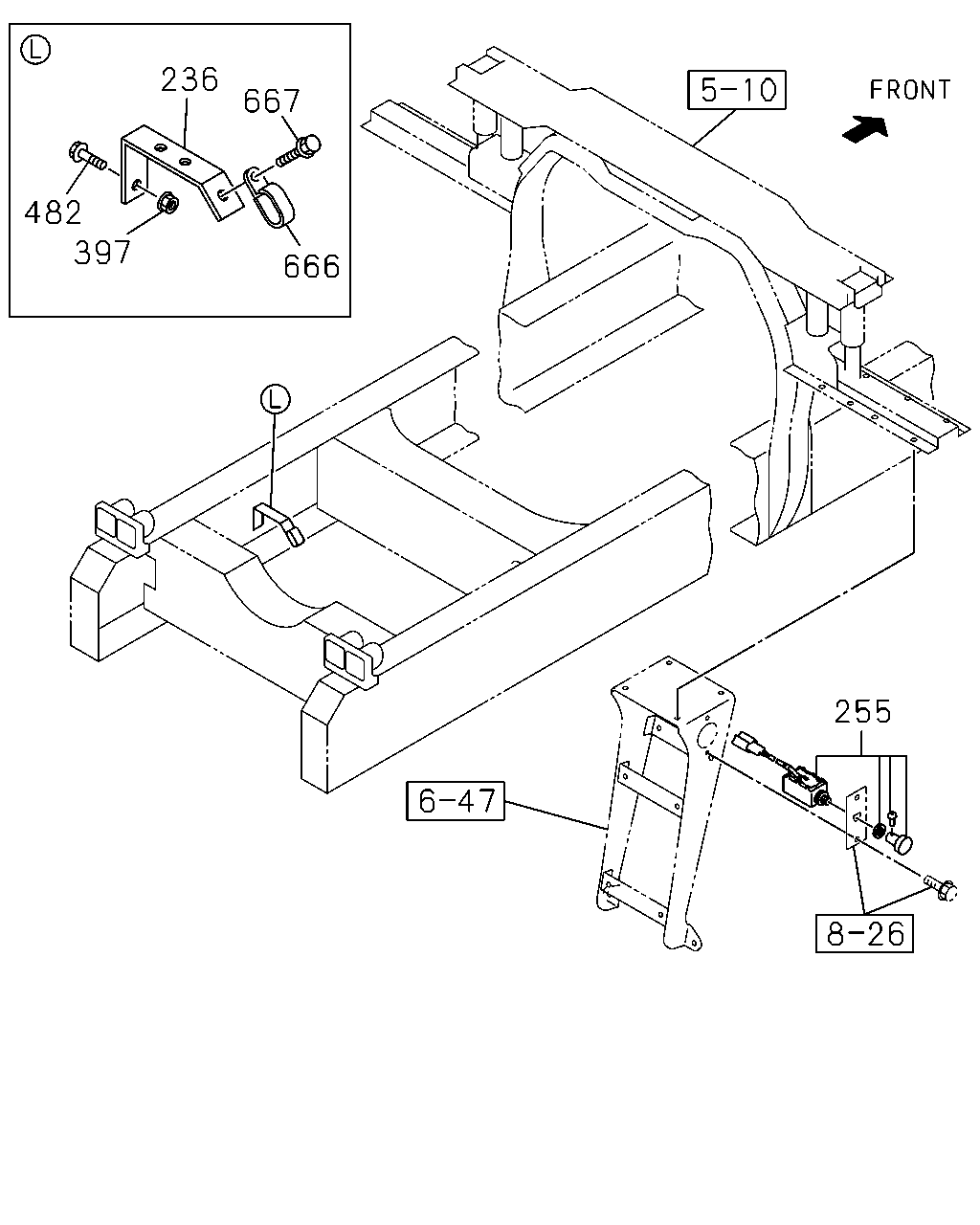

çizim 138391
236 482 666 667 397 255
BalonParca AdiParca NoAdetTipApplied Date
236 BRACKET; AXLE HARNESS,RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-82698-258-0 01 1 1009-1302
236 BRACKET; AXLE HARNESS,RR 1-82698-258-0 01 1 1303-
255 SWITCH; SEARCH LIGHT
INSPECTION LAMP<T95> 		8-98106-483-0 01 1 1009-1302
255 SWITCH; SEARCH LIGHT 8-98106-483-0 01 1 1303-
397 NUT; BRKT FIX
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 01 1 1009-1302
397 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 1303-
482 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE 		0-28650-830-0 01 1 1009-1302
482 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1303-
666 CLIP; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) ID=11X2 L=16 		0-95325-025-0 01 1 1009-1302
666 CLIP; AXLE HARNESS
ID=11X2 L=16 		0-95325-025-0 01 1 1303-
667 BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1302
667 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1303-

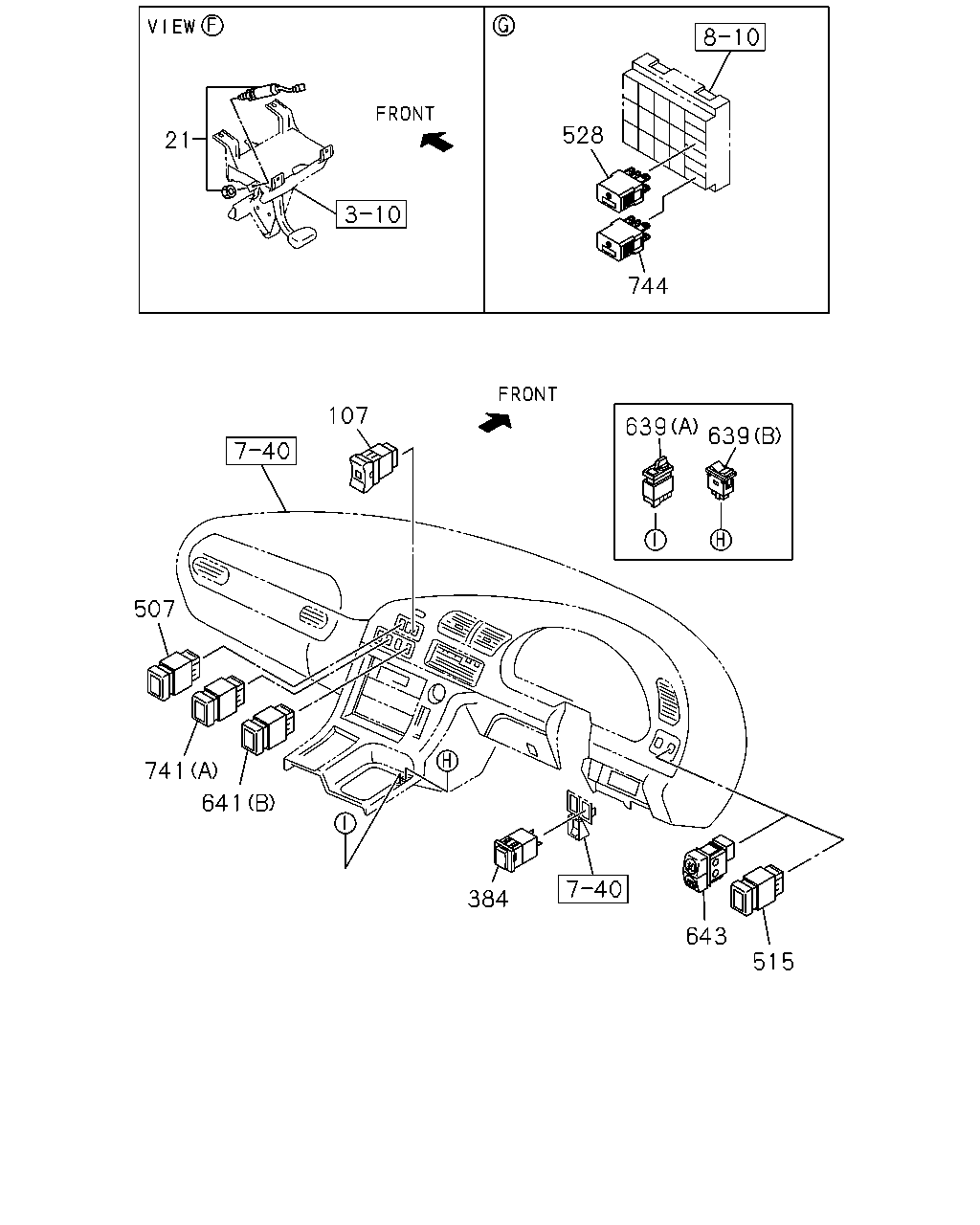

çizim 188657
21 528 744 639 639 107 507 741 641 384 643 515
BalonParca AdiParca NoAdetTipApplied Date
21 SWITCH; CLU
EXC. SMOOTHER-G(C1W) 		1-82380-114-3 01 1 1009-
107 SWITCH; REMOTE CONT,MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82350-233-0 01 1 1009-1302
107 SWITCH; REMOTE CONT,MIRROR 8-98011-343-2 01 1 1303-1411
107 SWITCH; REMOTE CONT,MIRROR
MIR STAY O/S W/REMOTE<TBA> 		8-98011-343-2 01 1 1412-
384 SWITCH; IDLING CONT,ELEC 1-82350-213-1 01 1 1009-
507 SWITCH; MIRROR HEATER
MIR O/S RR VIEW HEATED<DNN> 		1-82340-423-0 01 1 1009-1302
507 SWITCH; MIRROR HEATER 8-97386-924-3 01 1 1303-1411
507 SWITCH; MIRROR HEATER
MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-97386-924-3 01 1 1412-
515 SWITCH; FLUORESCENT LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> EXC. SMOOTHER-G(C1W) 		8-97386-917-2 01 1 1412-
528 RELAY; BUZZER
24V 10A PANASONIC 		8-97173-035-1 01 1 1009-
639 SWITCH; EMERGENCY
SMOOTHER-G(C1W) (A) 		1-82330-068-0 01 1 1009-
639 SWITCH; EMERGENCY
SMOOTHER-G(C1W) (B) 		1-82350-363-0 01 1 1009-
641 SWITCH; MAP
SMOOTHER-G(C1W) (A) 		8-97615-637-0 01 1 1009-1302
641 SWITCH; MAP
SMOOTHER-G(C1W) (B) 		8-98222-524-1 01 1 1303-
643 SWITCH; SKIP SHIFT
SMOOTHER-G(C1W) LAMP-ROOM OPERATION W/CONSOLE<C93> 		8-98144-539-2 01 1 1412-
643 SWITCH; SKIP SHIFT
SMOOTHER-G(C1W) 		8-97381-251-0 01 1 1009-1302
643 SWITCH; SKIP SHIFT
SMOOTHER-G(C1W) 		8-98129-204-2 01 1 1303-1411
643 SWITCH; SKIP SHIFT
SMOOTHER-G(C1W) EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> 		8-98129-204-2 01 1 1412-
741 SWITCH; TRAILER
SMOOTHER-G(C1W) (A) 		8-98147-983-0 01 1 1009-1302
741 SWITCH; TRAILER
SMOOTHER-G(C1W) (B) 		8-98222-522-1 01 1 1303-
744 RELAY; TILT,LID OPEN
24V 10A PANASONIC 		8-97173-035-1 01 1 1303-
