Isuzu WW
▶
TRUCKS
▶
EXR
▶
11292 - EXR RHD EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-20 - METER CABLE
▶
8-20 — METER CABLE
(#70181) — 19 parça
◀

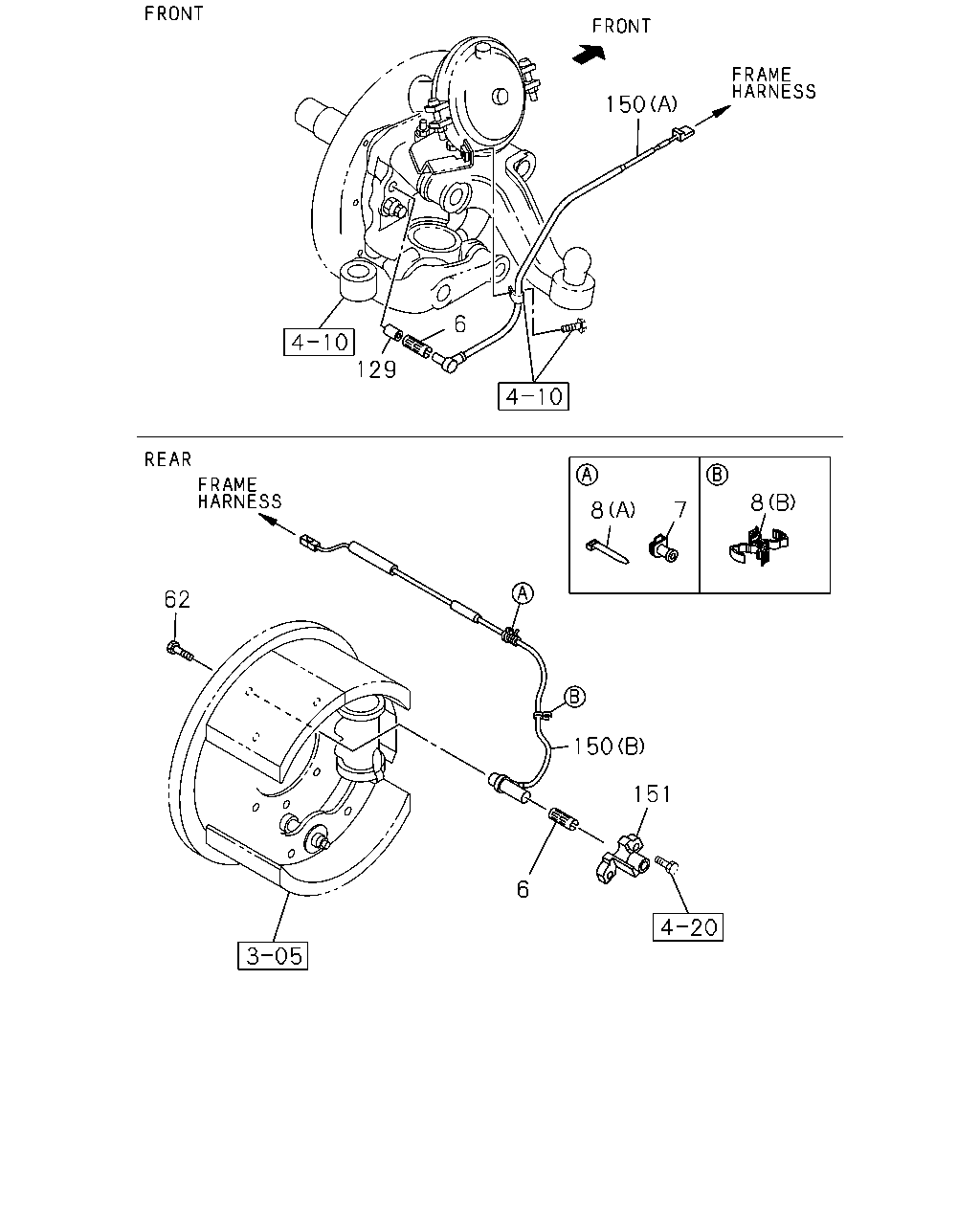

[820A] AXLE SIDE (18 parça)
[820A] TRANSMISSION SIDE (1 parça)
▶
150
129
62
150
151
8
7
8
6
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HOLDER; SPD SENSOR
1-83129-260-1
02
1
1009-
6
HOLDER; SPD SENSOR
1-83129-260-1
02
1
1009-
7
GROMMET; SPD SENSOR
ID=8
1-82699-740-1
01
1
1009-1411
7
GROMMET; SPD SENSOR
FINAL GEAR 39/9 18.5"(W4T) FINAL GEAR 18.5 INCH<C1C> ID=8
1-82699-740-1
01
1
1412-
8
CLIP; HARNESS
(B) ID=6-10 & 6-10
1-09709-192-1
01
1
1009-1411
8
CLIP; HARNESS
FINAL GEAR 39/9 18.5"(W4T) FINAL GEAR 18.5 INCH<C1C> (B) ID=6-10 & 6-10
1-09709-192-1
01
1
1412-
8
CLIP; HARNESS
(A) L=140
5-09707-031-1
01
1
1009-1411
8
CLIP; HARNESS
FINAL GEAR 39/9 18.5"(W4T) FINAL GEAR 18.5 INCH<C1C> (A) L=140
5-09707-031-1
01
1
1412-
62
BOLT; SENSOR
M8X16
9-05820-816-0
02
1
1009-1506
62
BOLT; SENSOR
M8X16 HEX SOCKET
0-58330-816-0
02
1
1507-
129
COLLAR
1-83129-471-0
02
1
1009-
150
SENSOR; SPEED,ABS
(A)
1-83127-961-1
02
1
1009-
150
SENSOR; SPEED,ABS
(B)
8-98128-860-0
01
1
1009-
150
SENSOR; SPEED,ABS
(B)
8-98128-861-0
01
1
1009-
151
BRACKET; SPD SENSOR
1-83129-405-0
01
1
1009-1504
151
BRACKET; SPD SENSOR
8-98299-398-0
01
1
1505-
151
BRACKET; SPD SENSOR
1-83129-406-0
01
1
1009-1504
151
BRACKET; SPD SENSOR
8-98299-399-0
01
1
1505-
228
228
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
228
PROTECTOR; SENSOR
8-98119-901-0
01
1
1009-
