8-15 — FIXING PARTS; WIRING HARNESS (#70180) — 683 parça
çizim 136875
1 1 1 1 178 178 178 178 178 178 178 178 503 178 530
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(A) ID=29 OD=39 L=40 		1-09337-013-0 02 1 1009-
1 SLEEVE; RUBBER
(D) ID=38.1 L=25 		1-09337-052-0 01 1 1009-
1 SLEEVE; RUBBER
(C) ID=18 OD=22 L=25 		8-94412-773-0 01 1 1009-
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=38.1 L=50 		5-09360-835-0 01 1 1009-1302
1 SLEEVE; RUBBER
(B) ID=38.1 L=50 		5-09360-835-0 01 1 1303-1411
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=38.1 L=50 		5-09360-835-0 01 1 1412-
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 1009-
178 GROMMET; HARNESS
(B) ID=32 OD=40 T=23 		1-09332-112-0 01 1 1009-1302
178 GROMMET; HARNESS
(H) ID=18 OD=23 T=12 		1-09332-035-0 01 1 1303-
178 GROMMET; HARNESS
(D) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1009-
178 GROMMET; HARNESS
(E) ID=32 OD=40 T=18 		1-09891-003-0 02 1 1009-1302
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 03 1 1303-
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=28 OD=35 T=17 		9-09956-256-2 04 1 1009-1302
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 04 1 1303-
178 GROMMET; HARNESS
INSPECTION LAMP<T95> (G) ID=19 OD=23 T=18 		9-09956-130-1 01 1 1009-1302
178 GROMMET; HARNESS
(I) ID=39 OD=45 T=19 		1-09332-077-0 01 1 1303-
178 GROMMET; HARNESS
SMOOTHER-G(C1W) (I) ID=39 OD=45 T=19 		1-09332-077-0 01 1 1303-
178 GROMMET; HARNESS
EXC. SMOOTHER-G(C1W) (F) 		1-82698-551-0 01 1 1009-
503 CONNECTOR
EXC. SMOOTHER-G(C1W) 		1-82690-666-0 01 1 1009-1411
503 CONNECTOR
HONG KONG EQUIPMENT(PQ1) EXC. SMOOTHER-G(C1W) 		1-82690-666-0 01 1 1412-1412
503 CONNECTOR
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W) 		1-82690-666-0 01 1 1412-
530 SEAL; HARNESS
SMOOTHER-G(C1W) 180X40 		1-72498-019-1 03 1 1303-
530 SEAL; HARNESS
EXC. SMOOTHER-G(C1W) 180X40 		1-72498-019-1 01 1 1303-
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1009-1302
530 SEAL; HARNESS
180X40 		1-72498-019-1 13 1 1303-
530 SEAL; HARNESS
100X40 		1-72498-022-1 01 1 1009-

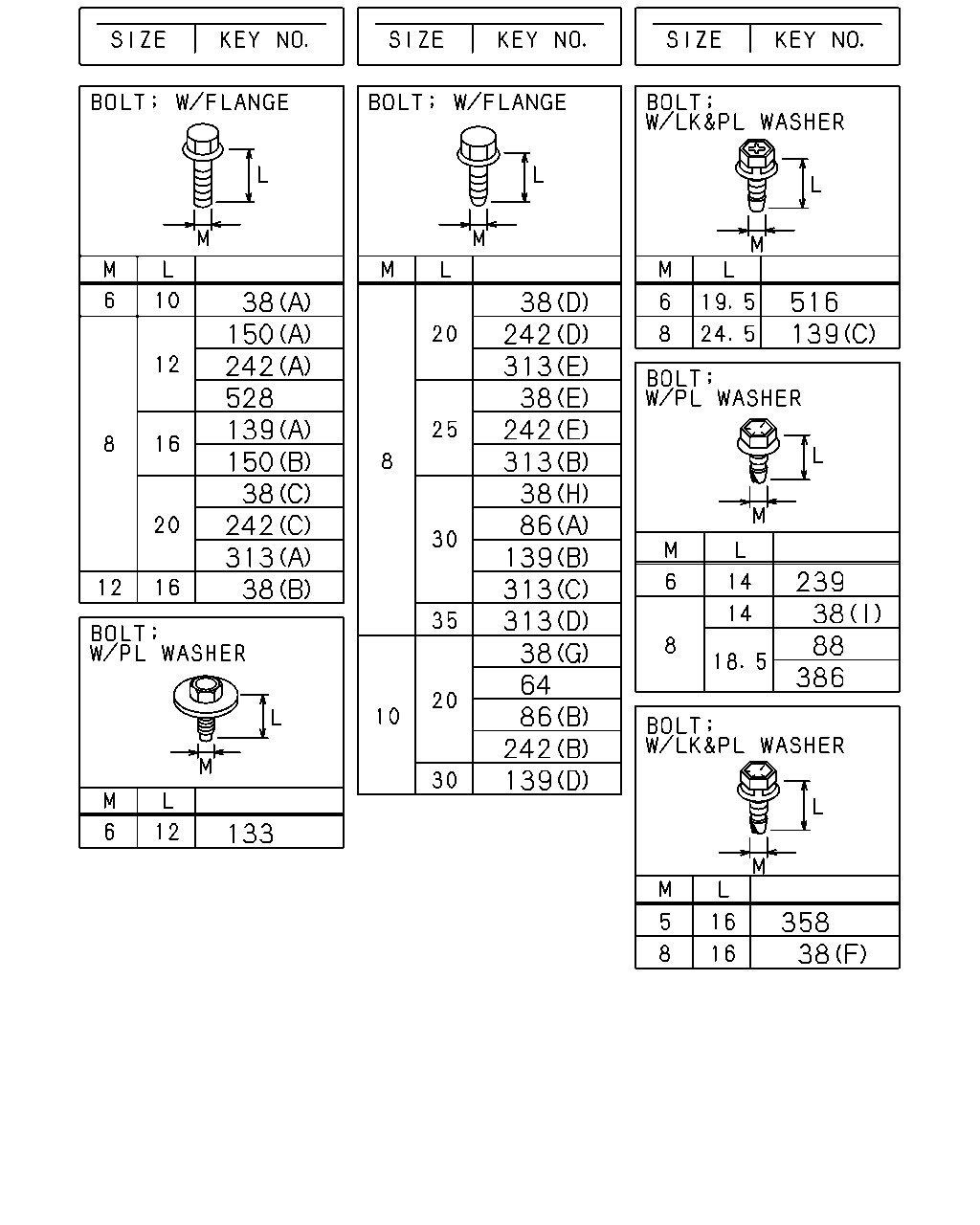

çizim 136939
38 150 242 139 528 38 313 242 38 150 133 38 139 242 242 313 242 38 38 313 86 313 38 313 86 139 64 516 239 88 38 386 358 38
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 06 1 1305-
38 BOLT; CLIP,HARNESS
MJT7S M/T(Y3E) (G) M10X20 FLANGE 		0-28751-020-0 01 1 1303-
38 BOLT; CLIP,HARNESS
(H) M8X30 FLANGE 		0-28650-830-0 04 1 1303-
38 BOLT; CLIP,HARNESS
(A) M6X10 FLANGE 		0-28050-610-0 01 1 1009-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 05 1 1009-1302
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 01 1 1303-1303
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 03 1 1304-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 09 1 1009-1302
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 08 1 1303-1303
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 09 1 1304-1304
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1305-
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 03 1 1009-1302
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (E) M8X25 FLANGE 		0-28650-825-0 03 1 1009-1302
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (E) M8X25 FLANGE 		0-28650-825-0 02 1 1303-
38 BOLT; CLIP,HARNESS
(G) M10X20 FLANGE 		0-28751-020-0 01 1 1009-1302
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 04 1 1303-1303
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 01 1 1304-
38 BOLT; CLIP,HARNESS
(B) M12X16 FLANGE 		1-09044-079-0 01 1 1009-1105
38 BOLT; CLIP,HARNESS
(B) M12X16 FLANGE 		0-28051-216-0 01 1 1106-
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (D) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1303-1303
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1303-1303
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1304-1304
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 04 1 1305-
38 BOLT; CLIP,HARNESS
MJT7 M/T<Y9E> (D) M8X20 FLANGE 		0-28650-820-0 03 1 1009-1302
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 1303-
38 BOLT; CLIP,HARNESS
MJT7S M/T(Y3E) (D) M8X20 FLANGE 		0-28650-820-0 02 1 1303-
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (H) M8X30 FLANGE 		0-28650-830-0 01 1 1009-
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (F) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 1009-1201
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (I) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-
38 BOLT; CLIP,HARNESS
EXC. SMOOTHER-G(C1W) (F) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 1009-1201
38 BOLT; CLIP,HARNESS
EXC. SMOOTHER-G(C1W) (I) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1202-
64 SCREW; CLIP
MJX12P M/T SMOOTHER-G(Y4S) M10X20 FLANGE 		0-28751-020-0 02 1 1009-1302
64 SCREW; CLIP
SMOOTHER-G(C1W) M10X20 FLANGE 		0-28751-020-0 01 1 1303-
86 BOLT; CLIP BRKT
SMOOTHER-G(C1W) (B) M10X20 FLANGE 		0-28751-020-0 01 1 1303-
86 BOLT; CLIP BRKT
EXC. SMOOTHER-G(C1W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1009-1302
86 BOLT; CLIP BRKT
MJT7S M/T(Y3E) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1303-
88 BOLT; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1009-1302
88 BOLT; DOOR HARNESS EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1303-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 1009-
139 BOLT; BRKT
(D) M10X30 FLANGE 		0-28151-030-0 01 1 1112-
139 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 03 1 1009-1111
139 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1112-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 05 1 1009-1302
139 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1009-
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X30 FLANGE 		0-28650-830-0 02 1 1009-1302
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1303-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1303-
139 BOLT; BRKT
SMOOTHER-G(C1W) (B) M8X30 FLANGE 		0-28650-830-0 01 1 1009-
150 BOLT; CLIP
(A) M8X12 FLANGE 		0-28050-812-0 05 1 1009-
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 07 1 1009-
239 BOLT; GRAND
M6X14 W/PL WASHER 		8-98164-836-0 02 1 1009-
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1009-
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 04 1 1009-1302
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 01 1 1303-
242 BOLT; BRKT,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 05 1 1009-1302
242 BOLT; BRKT,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 1303-
242 BOLT; BRKT,HARNESS
(B) M10X20 FLANGE 		0-28651-020-0 02 1 1009-1302
242 BOLT; BRKT,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 02 1 1303-
313 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28650-825-0 01 1 1412-
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 03 1 1304-
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 03 1 1009-1302
313 BOLT; BRKT
(E) M8X20 FLANGE 		0-28650-820-0 02 1 1303-
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1009-1302
313 BOLT; BRKT
(D) M8X35 FLANGE 		0-28650-835-0 01 1 1303-1411
313 BOLT; BRKT
POOR QUALITY DIESEL FUEL<KF0> (D) M8X35 FLANGE 		0-28650-835-0 01 1 1412-
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 06 1 1009-1302
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 04 1 1303-1303
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1304-
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1009-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1303-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1009-
528 BOLT; CONNECTOR
MJX12P M/T SMOOTHER-G(Y4S) M8X12 FLANGE 		0-28050-812-0 01 1 1009-1302
528 BOLT; CONNECTOR
SMOOTHER-G(C1W) M8X12 FLANGE 		0-28050-812-0 01 1 1303-

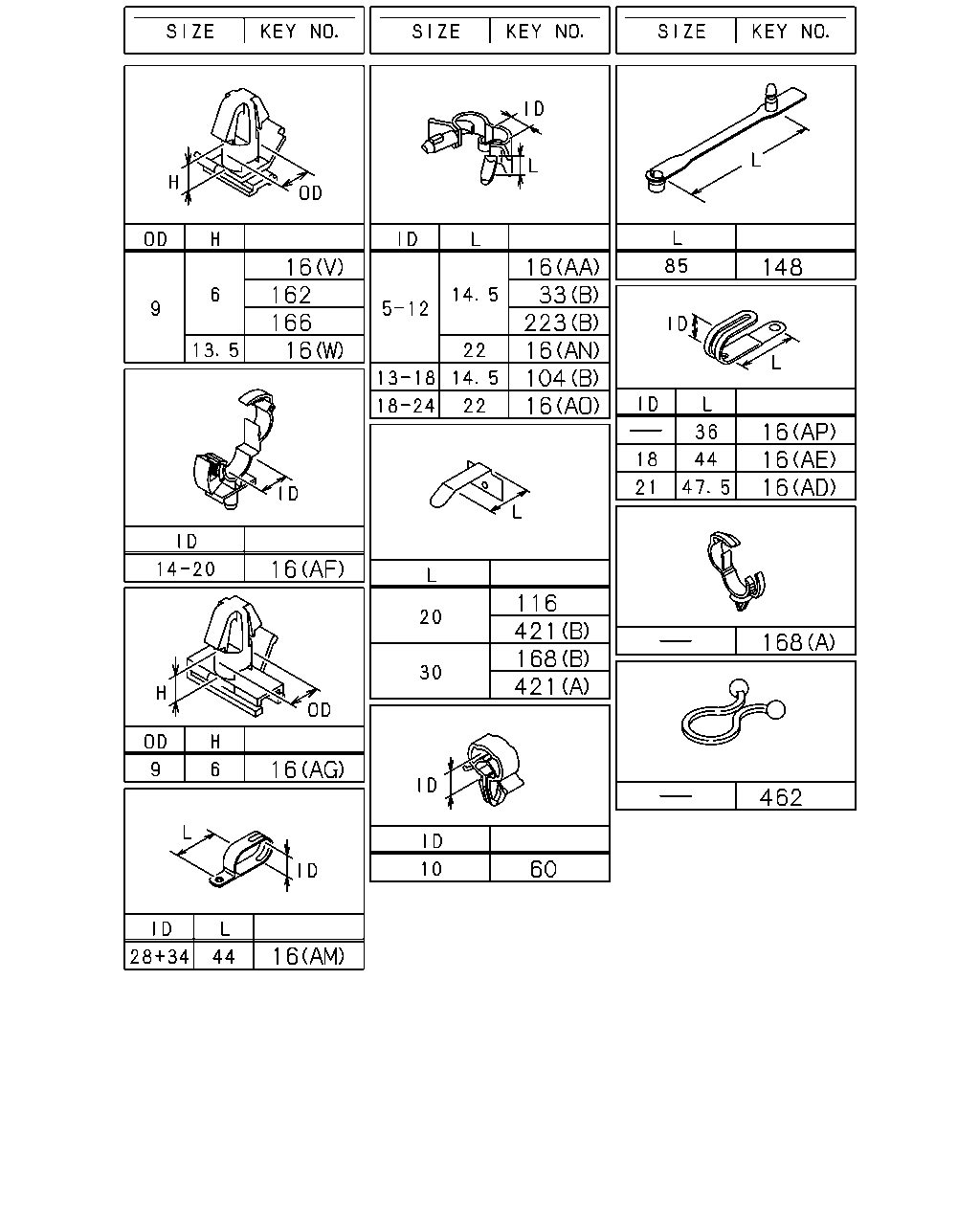

çizim 137153
16 16 16 16 166 162 16 16 223 104 16 33 116 421 168 421 60 462 168 16 16 16 148 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (AA) ID=5-12 L=14.5 		1-09987-221-0 04 1 1412-
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (AB) L=250 		5-09707-030-1 01 1 1412-
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 02 1 1305-1411
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 02 1 1305-1411
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 02 1 1412-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AB) L=250 		5-09707-030-1 02 1 1412-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (T) L=350 		1-09707-183-0 01 1 1303-
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-1304
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-1304
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-1304
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 02 1 1305-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AA) ID=5-12 L=14.5 		1-09987-221-0 02 1 1103-1302
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 02 1 1303-1304
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 05 1 1305-
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 02 1 1009-
16 CLIP; HARNESS
(B) T=0.8 ID=16 L=20 		0-95235-535-0 02 1 1009-
16 CLIP; HARNESS
(D) ID=19 L=20 		0-95235-836-0 01 1 1009-
16 CLIP; HARNESS
(E) ID=22 L=32 		1-09700-126-1 01 1 1009-
16 CLIP; HARNESS
(G) ID=28 L=58 		1-09700-400-0 07 1 1009-1302
16 CLIP; HARNESS
(G) ID=28 L=58 		1-09700-400-0 03 1 1303-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 13 1 1009-1010
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 14 1 1011-1303
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 1304-
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 02 1 1009-1302
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 01 1 1303-1303
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 13 1 1304-1304
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 1305-1411
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (H) ID=11 L=41 		1-09700-403-0 02 1 1412-
16 CLIP; HARNESS
(M) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) EXC. BRAKE SYSTEM RETARDER<RE2> (M) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1009-1302
16 CLIP; HARNESS
(F) ID=31 L=35 		1-09700-329-1 01 1 1303-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (F) ID=31 L=35 		1-09700-329-1 01 1 1303-
16 CLIP; HARNESS
(N) SYNTHETIC RUBBER ID=35 H=45 L=33 		1-09700-947-0 01 1 1009-
16 CLIP; HARNESS
(P) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1009-1302
16 CLIP; HARNESS
(P) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 1303-
16 CLIP; HARNESS
(R) ID=9 H=80 L=23 		1-09701-061-0 02 1 1009-
16 CLIP; HARNESS
(O) ID=18 L=28 		1-09701-067-0 03 1 1009-
16 CLIP; HARNESS
(Q) ID=15 L=28 		1-09701-216-0 01 1 1009-
16 CLIP; HARNESS
(X) ID=28 L=40 		1-09701-261-0 01 1 1009-
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 01 1 1009-1302
16 CLIP; HARNESS
INSPECTION LAMP<T95> (S) L=180 		1-09707-162-1 01 1 1009-1302
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 05 1 1009-1302
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 06 1 1303-1304
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 1305-
16 CLIP; HARNESS
(U) W/SPONGE RUBBER 		1-09709-150-0 01 1 1009-
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 02 1 1009-1302
16 CLIP; HARNESS
MJT7 M/T<Y9E> (V) OD=9 H=6 		1-09709-178-0 02 1 1009-1302
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 1009-
16 CLIP; HARNESS
(AN) ID=5-12 L=22 		1-09709-288-0 02 1 1009-
16 CLIP; HARNESS
(AO) ID=18-24 L=22 		1-09709-295-0 01 1 1009-
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 04 1 1009-1102
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 03 1 1103-1302
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 02 1 1303-1411
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AA) ID=5-12 L=14.5 		1-09987-221-0 02 1 1412-
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 10 1 1009-1205
16 CLIP; HARNESS
(AB) L=250 		8-98216-430-0 10 1 1206-
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 02 1 1009-1102
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 02 1 1103-1302
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AB) L=250 		5-09707-030-1 02 1 1103-1302
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 08 1 1009-1302
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 01 1 1303-1304
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 11 1 1305-
16 CLIP; HARNESS
(AC) L=140 		5-09707-031-1 01 1 1009-1302
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 02 1 1303-1303
16 CLIP; HARNESS
(AI) ID=20 L=50 		9-09917-430-0 04 1 1304-
16 CLIP; HARNESS
(AD) ID=21 L=47.5 		8-94178-108-0 03 1 1009-
16 CLIP; HARNESS
(AF) ID=14-20 		8-97061-603-0 03 1 1009-
16 CLIP; HARNESS
(AE) ID=18 L=44 		8-97367-985-1 02 1 1009-
16 CLIP; HARNESS
(AG) OD=9 H=6 		8-97368-793-0 02 1 1009-
16 CLIP; HARNESS
(Y) ID=17 L=20 		8-97619-251-0 01 1 1009-1302
16 CLIP; HARNESS
(J) ID=20 L=50 		1-09700-679-1 01 1 1303-
16 CLIP; HARNESS
(AK) L=251 		8-97619-917-0 01 1 1009-
16 CLIP; HARNESS
(Z) ID=10 L=16.5 		8-98082-034-0 02 1 1009-
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 01 1 1009-1302
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 02 1 1303-
16 CLIP; HARNESS
(AI) ID=20 L=50 		9-09917-430-0 08 1 1009-1302
16 CLIP; HARNESS
(AI) ID=20 L=50 		9-09917-430-0 07 1 1303-1303
16 CLIP; HARNESS
(AI) ID=20 L=50 		9-09917-430-0 03 1 1304-
16 CLIP; HARNESS
(AJ) ID=22 L=52 		9-09917-431-0 03 1 1009-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=16 		0-95235-025-0 02 1 1009-1302
16 CLIP; HARNESS
(C) ID=11 L=16 		0-95235-025-0 02 1 1303-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AL) L=382 		1-09707-196-0 03 1 1009-1302
16 CLIP; HARNESS
(AK) L=251 		8-97619-917-0 04 1 1303-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AB) L=250 		5-09707-030-1 03 1 1009-1302
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 03 1 1303-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (J) ID=20 L=50 		1-09700-679-1 01 1 1009-1302
16 CLIP; HARNESS
(AR) ID=18 L=38 H=23 		1-09701-147-0 01 1 1303-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (L) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-1302
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 02 1 1303-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (H) ID=11 L=41 		1-09700-403-0 01 1 1009-1302
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 02 1 1303-1304
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 03 1 1305-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (V) OD=9 H=6 		1-09709-178-0 01 1 1009-1302
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 01 1 1009-1302
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 01 1 1303-1304
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 01 1 1303-1304
16 CLIP; HARNESS
SMOOTHER-G(C1W) (V) OD=9 H=6 		1-09709-178-0 01 1 1303-1304
16 CLIP; HARNESS
SMOOTHER-G(C1W) (V) OD=9 H=6 		1-09709-178-0 01 1 1305-
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 01 1 1305-
16 CLIP; HARNESS
MJT7 M/T<Y9E> (B) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1009-1303
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (B) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1304-
16 CLIP; HARNESS
MJT7 M/T<Y9E> (K) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 1009-1302
16 CLIP; HARNESS
MJT7S M/T(Y3E) (B) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1303-
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (I) ID=10 H=25 L=20 		1-09700-519-0 01 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (I) ID=10 H=25 L=20 		1-09700-519-0 01 1 1303-
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (V) OD=9 H=6 		1-09709-178-0 07 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (V) OD=9 H=6 		1-09709-178-0 07 1 1303-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AM) ID=28+34 L=44 		1-09701-311-0 01 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AQ) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 1303-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AA) ID=5-12 L=14.5 		1-09987-221-0 01 1 1009-1102
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AA) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1302
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (AA) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AP) L=36 		8-94224-891-1 01 1 1009-1302
16 CLIP; HARNESS
(AP) L=36 		8-94224-891-1 01 1 1009-1302
16 CLIP; HARNESS
(AP) L=36 		8-94224-891-1 01 1 1303-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AJ) ID=22 L=52 		9-09917-431-0 01 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (T) L=350 		1-09707-183-0 02 1 1303-1304
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 02 1 1305-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (T) L=350 		1-09707-183-0 02 1 1305-
16 CLIP; HARNESS
SMOOTHER-G(C1W) BRAKE SYSTEM RETARDER<RE2> (N) RUBBER ID=35 H=45 L=33 		8-97615-568-0 03 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) EXC. BRAKE SYSTEM RETARDER<RE2> (AQ) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (M) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1303-
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (F) ID=31 L=35 		1-09700-329-1 01 1 1009-1302
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (AB) L=250 		5-09707-030-1 01 1 1009-1302
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 06 1 1303-1304
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 01 1 1305-
33 CLIP; HARNESS,VLV
SMOOTHER-G(C1W) (C) L=180 		1-09707-162-1 01 1 1303-
33 CLIP; HARNESS,VLV
SMOOTHER-G(C1W) (A) L=350 		1-09707-183-0 02 1 1009-1302
33 CLIP; HARNESS,VLV
SMOOTHER-G(C1W) (A) L=350 		1-09707-183-0 01 1 1303-
33 CLIP; HARNESS,VLV
SMOOTHER-G(C1W) (B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1009-
60 CLIP; CONSOLE HARNESS,SW PTO
ID=10 		8-94450-392-0 01 1 1009-1302
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=13-18 L=14.5 		1-09709-290-0 06 1 1009-1302
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 04 1 1009-1302
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 02 1 1303-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1009-1409
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 07 1 1410-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 03 1 1009-
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 1009-
166 CLIP; HARNESS CLU SW
EXC. SMOOTHER-G(C1W) OD=9 H=6 		1-09709-178-0 01 1 1009-1411
166 CLIP; HARNESS CLU SW
HONG KONG EQUIPMENT(PQ1) EXC. SMOOTHER-G(C1W) OD=9 H=6 		1-09709-178-0 01 1 1412-1412
166 CLIP; HARNESS CLU SW
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W) OD=9 H=6 		1-09709-178-0 01 1 1412-
168 CLIP; DASH HARNESS
HEATER & DEFROSTER(C41) (B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 1412-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 06 1 1009-1302
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 05 1 1303-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 1009-1302
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1009-
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 04 1 1009-1302
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 03 1 1303-
421 CLIP; FLOOR HARNESS
SMOOTHER-G(C1W) (A) L=30 SET=10 PIECE 		1-09987-265-0 05 1 1009-
421 CLIP; FLOOR HARNESS
EXC. SMOOTHER-G(C1W) (B) L=20 SET=10 PIECE 		1-09987-246-2 05 1 1009-1302
462 CLIP; HARNESS,HTR
HEATER & DEFROSTER(C41) ID=20 		1-09709-068-0 02 1 1412-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		1-09709-068-0 02 1 1009-1302

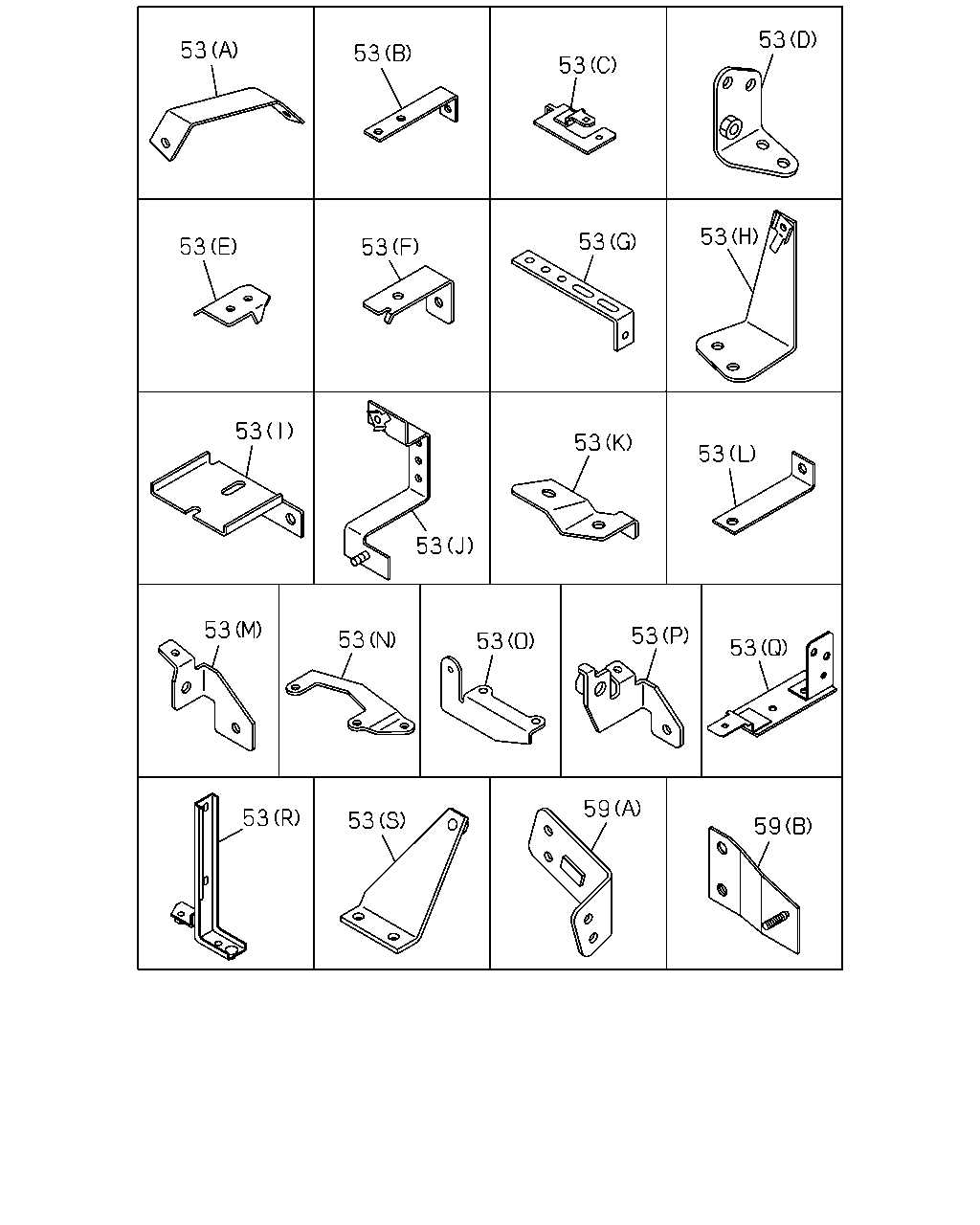

çizim 137359
53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 59 59 53 53
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(A) 		1-47479-537-0 03 1 1304-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 10 1 1009-1302
53 BRACKET; HARNESS
(A) 		1-47479-537-0 05 1 1303-1303
53 BRACKET; HARNESS
(A) 		1-47479-537-0 02 1 1304-
53 BRACKET; HARNESS
(G) L=160 H=30 		1-47479-759-0 01 1 1009-1302
53 BRACKET; HARNESS
(Q) 		8-97638-190-0 01 1 1303-
53 BRACKET; HARNESS
(C) 		1-82698-495-2 01 1 1009-1302
53 BRACKET; HARNESS
(R) 		8-98227-138-0 01 1 1303-
53 BRACKET; HARNESS
(D) 		8-97610-339-1 01 1 1009-
53 BRACKET; HARNESS
(E) 		8-97625-412-0 02 1 1009-
53 BRACKET; HARNESS
(F) 		8-97625-794-0 01 1 1009-
53 BRACKET; HARNESS
(K) 		8-97630-437-0 01 1 1009-
53 BRACKET; HARNESS
(I) 		8-98032-696-0 01 1 1009-1302
53 BRACKET; HARNESS
(S) 		8-98227-141-0 01 1 1303-
53 BRACKET; HARNESS
(J) 		8-98050-989-0 01 1 1009-1302
53 BRACKET; HARNESS
(H) 		8-98052-592-0 01 1 1009-1302
53 BRACKET; HARNESS
(M) 		8-98123-473-1 01 1 1009-1111
53 BRACKET; HARNESS
(P) 		8-98194-068-0 01 1 1112-
53 BRACKET; HARNESS
(N) 		8-98123-474-0 01 1 1009-
53 BRACKET; HARNESS
(O) 		8-98123-475-0 01 1 1009-
53 BRACKET; HARNESS
(B) 		8-98124-778-0 01 1 1009-1411
53 BRACKET; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (B) 		8-98124-778-0 01 1 1412-
53 BRACKET; HARNESS
SMOOTHER-G(C1W) (L) L=95 		1-82699-085-0 01 1 1009-
59 BRACKET; FRAME HARNESS
(A) 		1-82698-531-0 01 1 1009-1302
59 BRACKET; FRAME HARNESS
(A) 		8-97639-069-0 01 1 1303-
59 BRACKET; FRAME HARNESS
(B) 		8-98061-135-1 01 1 1009-

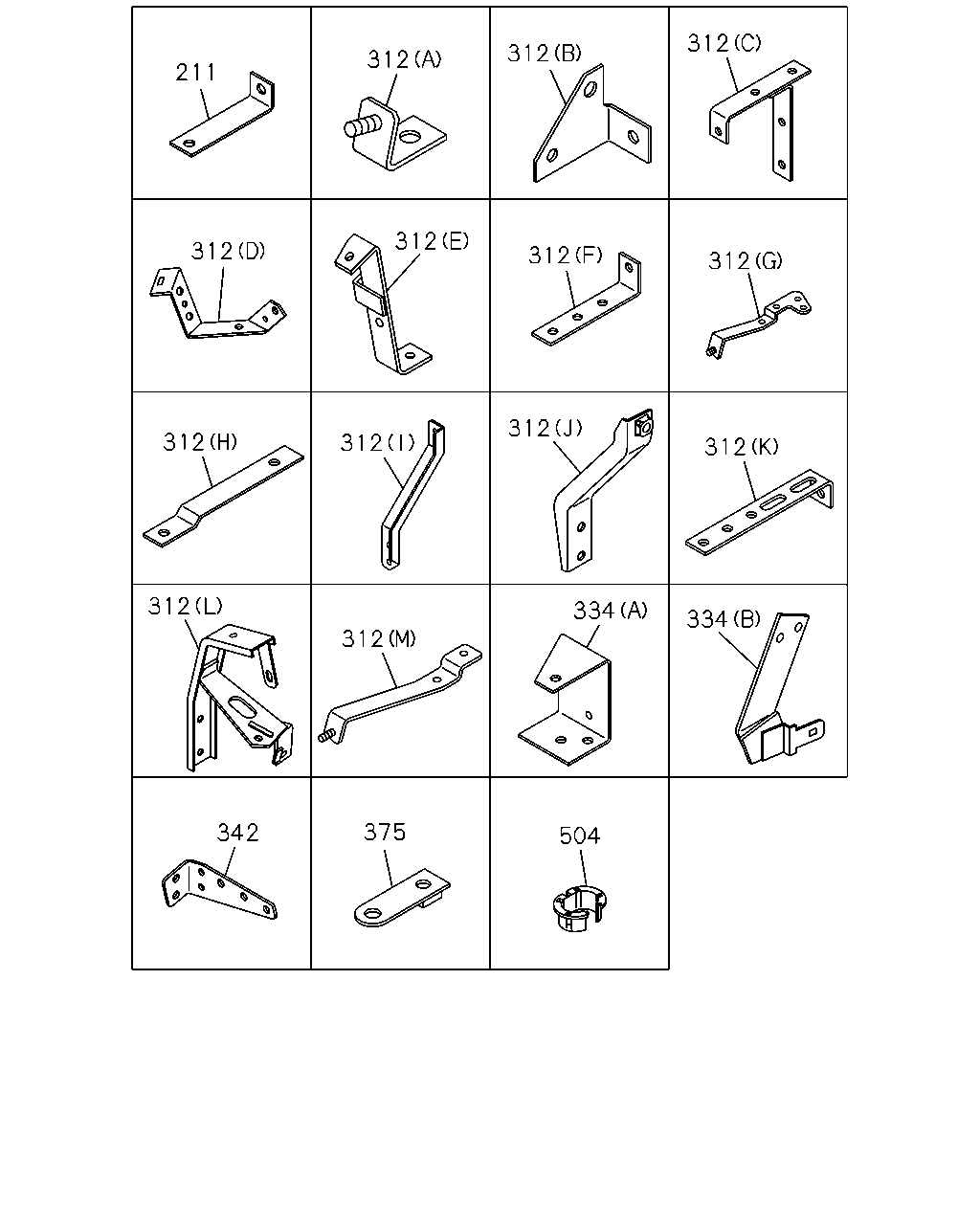

çizim 137791
211 312 312 312 312 312 312 312 312 312 312 312 312 312 334 334 342 375 504
BalonParca AdiParca NoAdetTipApplied Date
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) L=95 		1-82699-085-0 02 1 1009-1302
211 BRACKET; AXLE HARNESS
L=95 		1-82699-085-0 02 1 1303-
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (M) 		8-98254-842-0 01 1 1412-
312 BRACKET; CLIP HARNESS
(D) 		1-82698-556-0 01 1 1009-1302
312 BRACKET; CLIP HARNESS
MJT7S M/T(Y3E) (F) L=120 H=35 		1-82698-088-0 01 1 1303-1303
312 BRACKET; CLIP HARNESS
EXC. SMOOTHER-G(C1W) (F) L=120 H=35 		1-82698-088-0 01 1 1304-
312 BRACKET; CLIP HARNESS
(H) 		8-98035-927-1 01 1 1009-
312 BRACKET; CLIP HARNESS
(I) 		8-98052-591-0 01 1 1009-1302
312 BRACKET; CLIP HARNESS
(J) 		8-97636-868-1 01 1 1303-
312 BRACKET; CLIP HARNESS
(F) L=82 B=20 		1-47478-420-0 01 1 1009-1302
312 BRACKET; CLIP HARNESS
(K) L=160 H=30 		1-47479-759-0 01 1 1303-
312 BRACKET; CLIP HARNESS
(E) L=195.5 		1-82698-502-0 01 1 1009-1302
312 BRACKET; CLIP HARNESS
(L) 		8-97638-177-0 01 1 1303-
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (G) 		1-82698-443-0 01 1 1009-1302
312 BRACKET; CLIP HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (A) 		1-82698-586-0 01 1 1009-1302
312 BRACKET; CLIP HARNESS
SMOOTHER-G(C1W) (A) 		1-82698-586-0 01 1 1303-
312 BRACKET; CLIP HARNESS
SMOOTHER-G(C1W) (B) 		1-82698-570-0 01 1 1009-
312 BRACKET; CLIP HARNESS
EXC. SMOOTHER-G(C1W) (C) 		1-82698-479-0 01 1 1009-1302
334 BRACKET
(A) 		1-53457-153-2 01 1 1009-
334 BRACKET
SMOOTHER-G(C1W) (B) 		1-82698-650-0 01 1 1009-
342 BRACKET; HARNESS CAB MTG 1-82699-625-0 01 1 1009-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 1009-
504 PROTECTOR; HARNESS
MIR O/S RR VIEW HEATED<DNN> 		1-82698-391-0 02 1 1009-1302
504 PROTECTOR; HARNESS 1-82698-391-0 02 1 1303-1411
504 PROTECTOR; HARNESS
MIR STAY O/S W/REMOTE<TBA> MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		1-82698-391-0 02 1 1412-
çizim 138024
119 423 340 552 515 294 219 524
BalonParca AdiParca NoAdetTipApplied Date
119 SCREW; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> M5X14 W/PL WASHER 		8-94447-551-0 02 1 1009-1302
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 1303-
219 NUT
M8 FLANGE 		0-91180-108-0 15 1 1009-1302
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1303-1303
219 NUT
M8 FLANGE 		0-91180-108-0 09 1 1304-1304
219 NUT
M8 FLANGE 		0-91180-108-0 07 1 1305-
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 1009-1302
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1303-
219 NUT
MJT7 M/T<Y9E> M8 FLANGE 		0-91180-108-0 01 1 1009-1302
219 NUT
M8 FLANGE 		0-91180-108-0 11 1 1303-1303
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1304-1304
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1304-1304
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1305-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1305-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1305-
219 NUT
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 05 1 1009-
294 NUT
EXC. SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 1304-
294 NUT
SMOOTHER-G(C1W) M10 FLANGE 		0-91180-210-0 01 1 1303-
294 NUT
M8 FLANGE 		0-91180-108-0 05 1 1103-1302
294 NUT
M8 FLANGE 		0-91180-108-0 07 1 1303-1303
294 NUT
M8 FLANGE 		0-91180-108-0 03 1 1304-
294 NUT
M8 FLANGE 		0-91180-108-0 08 1 1009-1102
294 NUT
M8 FLANGE 		0-91180-108-0 03 1 1103-1302
294 NUT
MJT7S M/T(Y3E) M8 FLANGE 		0-91180-108-0 01 1 1303-1303
294 NUT
M8 FLANGE 		0-91180-108-0 04 1 1304-
340 NUT; HARNESS CAB TO FRAME
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 05 1 1009-
423 WASHER; HARNESS,EARTH
SMOOTHER-G(C1W) ID=8.4 		1-09503-264-0 04 1 1009-
423 WASHER; HARNESS,EARTH
EXC. SMOOTHER-G(C1W) ID=8.4 		1-09503-264-0 03 1 1009-
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1009-1304
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1305-
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1305-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 1009-
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 1009-1302
çizim 188659
14 16 51 67 81 104 206 212 305 369 16 81 102 111 142 171 194 208 305 380 470 16 142 16 14 194 212 14 16 33 48 194 380 470 16 33 51 142 208
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 1009-
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1009-1010
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 01 1 1009-
14 CLIP; BAND,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) L=350 		1-09707-183-0 03 1 1009-1302
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 03 1 1303-
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (AA) ID=5-12 L=14.5 		1-09987-221-0 04 1 1412-
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (AB) L=250 		5-09707-030-1 01 1 1412-
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 02 1 1305-1411
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 02 1 1305-1411
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 02 1 1412-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AB) L=250 		5-09707-030-1 02 1 1412-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (T) L=350 		1-09707-183-0 01 1 1303-
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-1304
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-1304
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-1304
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 02 1 1305-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AA) ID=5-12 L=14.5 		1-09987-221-0 02 1 1103-1302
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 02 1 1303-1304
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 05 1 1305-
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 02 1 1009-
16 CLIP; HARNESS
(B) T=0.8 ID=16 L=20 		0-95235-535-0 02 1 1009-
16 CLIP; HARNESS
(D) ID=19 L=20 		0-95235-836-0 01 1 1009-
16 CLIP; HARNESS
(E) ID=22 L=32 		1-09700-126-1 01 1 1009-
16 CLIP; HARNESS
(G) ID=28 L=58 		1-09700-400-0 07 1 1009-1302
16 CLIP; HARNESS
(G) ID=28 L=58 		1-09700-400-0 03 1 1303-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 13 1 1009-1010
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 14 1 1011-1303
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 1304-
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 02 1 1009-1302
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 01 1 1303-1303
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 13 1 1304-1304
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 1305-1411
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (H) ID=11 L=41 		1-09700-403-0 02 1 1412-
16 CLIP; HARNESS
(M) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) EXC. BRAKE SYSTEM RETARDER<RE2> (M) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1009-1302
16 CLIP; HARNESS
(F) ID=31 L=35 		1-09700-329-1 01 1 1303-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (F) ID=31 L=35 		1-09700-329-1 01 1 1303-
16 CLIP; HARNESS
(N) SYNTHETIC RUBBER ID=35 H=45 L=33 		1-09700-947-0 01 1 1009-
16 CLIP; HARNESS
(P) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1009-1302
16 CLIP; HARNESS
(P) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 1303-
16 CLIP; HARNESS
(R) ID=9 H=80 L=23 		1-09701-061-0 02 1 1009-
16 CLIP; HARNESS
(O) ID=18 L=28 		1-09701-067-0 03 1 1009-
16 CLIP; HARNESS
(Q) ID=15 L=28 		1-09701-216-0 01 1 1009-
16 CLIP; HARNESS
(X) ID=28 L=40 		1-09701-261-0 01 1 1009-
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 01 1 1009-1302
16 CLIP; HARNESS
INSPECTION LAMP<T95> (S) L=180 		1-09707-162-1 01 1 1009-1302
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 05 1 1009-1302
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 06 1 1303-1304
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 1305-
16 CLIP; HARNESS
(U) W/SPONGE RUBBER 		1-09709-150-0 01 1 1009-
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 02 1 1009-1302
16 CLIP; HARNESS
MJT7 M/T<Y9E> (V) OD=9 H=6 		1-09709-178-0 02 1 1009-1302
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 1009-
16 CLIP; HARNESS
(AN) ID=5-12 L=22 		1-09709-288-0 02 1 1009-
16 CLIP; HARNESS
(AO) ID=18-24 L=22 		1-09709-295-0 01 1 1009-
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 04 1 1009-1102
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 03 1 1103-1302
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 02 1 1303-1411
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AA) ID=5-12 L=14.5 		1-09987-221-0 02 1 1412-
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 10 1 1009-1205
16 CLIP; HARNESS
(AB) L=250 		8-98216-430-0 10 1 1206-
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 02 1 1009-1102
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 02 1 1103-1302
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AB) L=250 		5-09707-030-1 02 1 1103-1302
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 08 1 1009-1302
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 01 1 1303-1304
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 11 1 1305-
16 CLIP; HARNESS
(AC) L=140 		5-09707-031-1 01 1 1009-1302
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 02 1 1303-1303
16 CLIP; HARNESS
(AI) ID=20 L=50 		9-09917-430-0 04 1 1304-
16 CLIP; HARNESS
(AD) ID=21 L=47.5 		8-94178-108-0 03 1 1009-
16 CLIP; HARNESS
(AF) ID=14-20 		8-97061-603-0 03 1 1009-
16 CLIP; HARNESS
(AE) ID=18 L=44 		8-97367-985-1 02 1 1009-
16 CLIP; HARNESS
(AG) OD=9 H=6 		8-97368-793-0 02 1 1009-
16 CLIP; HARNESS
(Y) ID=17 L=20 		8-97619-251-0 01 1 1009-1302
16 CLIP; HARNESS
(J) ID=20 L=50 		1-09700-679-1 01 1 1303-
16 CLIP; HARNESS
(AK) L=251 		8-97619-917-0 01 1 1009-
16 CLIP; HARNESS
(Z) ID=10 L=16.5 		8-98082-034-0 02 1 1009-
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 01 1 1009-1302
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 02 1 1303-
16 CLIP; HARNESS
(AI) ID=20 L=50 		9-09917-430-0 08 1 1009-1302
16 CLIP; HARNESS
(AI) ID=20 L=50 		9-09917-430-0 07 1 1303-1303
16 CLIP; HARNESS
(AI) ID=20 L=50 		9-09917-430-0 03 1 1304-
16 CLIP; HARNESS
(AJ) ID=22 L=52 		9-09917-431-0 03 1 1009-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=16 		0-95235-025-0 02 1 1009-1302
16 CLIP; HARNESS
(C) ID=11 L=16 		0-95235-025-0 02 1 1303-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AL) L=382 		1-09707-196-0 03 1 1009-1302
16 CLIP; HARNESS
(AK) L=251 		8-97619-917-0 04 1 1303-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AB) L=250 		5-09707-030-1 03 1 1009-1302
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 03 1 1303-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (J) ID=20 L=50 		1-09700-679-1 01 1 1009-1302
16 CLIP; HARNESS
(AR) ID=18 L=38 H=23 		1-09701-147-0 01 1 1303-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (L) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-1302
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 02 1 1303-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (H) ID=11 L=41 		1-09700-403-0 01 1 1009-1302
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 02 1 1303-1304
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 03 1 1305-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (V) OD=9 H=6 		1-09709-178-0 01 1 1009-1302
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 01 1 1009-1302
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 01 1 1303-1304
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 01 1 1303-1304
16 CLIP; HARNESS
SMOOTHER-G(C1W) (V) OD=9 H=6 		1-09709-178-0 01 1 1303-1304
16 CLIP; HARNESS
SMOOTHER-G(C1W) (V) OD=9 H=6 		1-09709-178-0 01 1 1305-
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 01 1 1305-
16 CLIP; HARNESS
MJT7 M/T<Y9E> (B) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1009-1303
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (B) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1304-
16 CLIP; HARNESS
MJT7 M/T<Y9E> (K) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 1009-1302
16 CLIP; HARNESS
MJT7S M/T(Y3E) (B) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1303-
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (I) ID=10 H=25 L=20 		1-09700-519-0 01 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (I) ID=10 H=25 L=20 		1-09700-519-0 01 1 1303-
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (V) OD=9 H=6 		1-09709-178-0 07 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (V) OD=9 H=6 		1-09709-178-0 07 1 1303-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AM) ID=28+34 L=44 		1-09701-311-0 01 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AQ) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 1303-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AA) ID=5-12 L=14.5 		1-09987-221-0 01 1 1009-1102
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AA) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1302
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (AA) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AP) L=36 		8-94224-891-1 01 1 1009-1302
16 CLIP; HARNESS
(AP) L=36 		8-94224-891-1 01 1 1009-1302
16 CLIP; HARNESS
(AP) L=36 		8-94224-891-1 01 1 1303-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AJ) ID=22 L=52 		9-09917-431-0 01 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (T) L=350 		1-09707-183-0 02 1 1303-1304
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 02 1 1305-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (T) L=350 		1-09707-183-0 02 1 1305-
16 CLIP; HARNESS
SMOOTHER-G(C1W) BRAKE SYSTEM RETARDER<RE2> (N) RUBBER ID=35 H=45 L=33 		8-97615-568-0 03 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) EXC. BRAKE SYSTEM RETARDER<RE2> (AQ) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (M) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1303-
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (F) ID=31 L=35 		1-09700-329-1 01 1 1009-1302
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (AB) L=250 		5-09707-030-1 01 1 1009-1302
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 06 1 1303-1304
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 01 1 1305-
33 CLIP; HARNESS,VLV
SMOOTHER-G(C1W) (C) L=180 		1-09707-162-1 01 1 1303-
33 CLIP; HARNESS,VLV
SMOOTHER-G(C1W) (A) L=350 		1-09707-183-0 02 1 1009-1302
33 CLIP; HARNESS,VLV
SMOOTHER-G(C1W) (A) L=350 		1-09707-183-0 01 1 1303-
33 CLIP; HARNESS,VLV
SMOOTHER-G(C1W) (B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1009-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 04 1 1304-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1009-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 06 1 1009-1102
48 CLIP; FRAME HARNESS
EXC. SMOOTHER-G(C1W) (C) L=350 		1-09707-183-0 06 1 1009-1102
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 12 1 1103-1302
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 07 1 1303-1303
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1304-
48 CLIP; FRAME HARNESS
SMOOTHER-G(C1W) (D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1009-
48 CLIP; FRAME HARNESS
SMOOTHER-G(C1W) (C) L=350 		1-09707-183-0 07 1 1009-1102
48 CLIP; FRAME HARNESS
BRAKE SYSTEM RETARDER<RE2> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) L=350 		1-09707-183-0 01 1 1103-1302
48 CLIP; FRAME HARNESS
(E) ID=39 H=28 L=32 		1-09701-263-0 04 1 1303-
48 CLIP; FRAME HARNESS
EXC. SMOOTHER-G(C1W) (A) ID=26 L=26 		1-09701-236-0 01 1 1009-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 1009-1302
51 CLIP; COOLER CMPR
(A) L=180 		1-09707-162-1 01 1 1303-1411
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 1412-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 1009-1302
51 CLIP; COOLER CMPR
(B) L=140 		5-09707-031-1 01 1 1303-1411
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 1412-
67 CLIP; BAND,HARNESS,CLU SW
MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) L=140 		5-09707-031-1 01 1 1009-1302
67 CLIP; BAND,HARNESS,CLU SW
MJX M/T<Y9N> TRANSMISSION CONTROL CABLE TYPE(C1A) L=140 		5-09707-031-1 01 1 1303-
81 CLIP; HARNESS
FRONT SPOILER<VP1> (A) L=140 		5-09707-031-1 04 1 1009-1302
81 CLIP; HARNESS
EXC. FRONT SPOILER<VP1> (B) L=250 		5-09707-030-1 02 1 1009-1302
81 CLIP; HARNESS
EXC. FRONT SPOILER<VP1> (A) L=140 		5-09707-031-1 08 1 1009-1302
102 CLIP; BAND
MJX12P M/T SMOOTHER-G(Y4S) L=250 		5-09707-030-1 01 1 1009-1302
102 CLIP; BAND
SMOOTHER-G(C1W) L=250 		5-09707-030-1 01 1 1303-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=13-18 L=14.5 		1-09709-290-0 06 1 1009-1302
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 04 1 1009-1302
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 02 1 1303-
111 CLIP; STOP LAMP SW HARNESS
L=250 		5-09707-030-1 01 1 1009-1302
142 CLIP; HARNESS,ENG
(A) L=180 		1-09707-162-1 01 1 1009-1207
142 CLIP; HARNESS,ENG
(A) L=180 		8-98216-427-0 01 1 1208-
142 CLIP; HARNESS,ENG
(B) L=250 		5-09707-030-1 02 1 1009-1205
142 CLIP; HARNESS,ENG
(B) L=250 		8-98216-430-0 02 1 1206-
142 CLIP; HARNESS,ENG
(C) L=251 		8-97619-917-0 01 1 1009-
171 CLIP; STARTER HARNESS
L=250 		5-09707-030-1 05 1 1009-1302
171 CLIP; STARTER HARNESS
L=250 		5-09707-030-1 02 1 1303-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 1009-
194 CLIP; BAND
(C) L=350 		1-09707-183-0 05 1 1009-1202
194 CLIP; BAND
(C) L=350 		1-09707-183-0 06 1 1203-1302
194 CLIP; BAND
(C) L=350 		1-09707-183-0 04 1 1303-
194 CLIP; BAND
(B) L=250 		5-09707-030-1 01 1 1009-1302
194 CLIP; BAND
MJX12P M/T SMOOTHER-G(Y4S) (B) L=250 		5-09707-030-1 06 1 1009-1302
194 CLIP; BAND
SMOOTHER-G(C1W) (B) L=250 		5-09707-030-1 09 1 1303-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 1009-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> (A) L=180 		1-09707-162-1 01 1 1009-1302
208 CLIP; HARNESS,MAG VLV
(B) L=250 		5-09707-030-1 01 1 1303-
212 CLIP; HORN HARNESS
(A) ID=19 L=28 		0-95235-856-0 01 1 1009-1302
212 CLIP; HORN HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1009-1302
212 CLIP; HORN HARNESS
(D) L=300 		1-09707-001-1 01 1 1009-1302
212 CLIP; HORN HARNESS
(E) L=140 		5-09707-031-1 01 1 1009-1302
212 CLIP; HORN HARNESS
SMOOTHER-G(C1W) (C) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 1009-1302
212 CLIP; HORN HARNESS
EXC. SMOOTHER-G(C1W) (F) ID=18 H=23 L=28 		1-09700-860-0 03 1 1009-1302
305 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 01 1 1009-1302
305 CLIP; ENG HARNESS
(B) L=250 		5-09707-030-1 04 1 1303-
369 CLIP; BAND EDS HARNESS
L=140 		5-09707-031-1 01 1 1303-
380 CLIP; EARTH HARNESS
(A) L=250 		5-09707-030-1 01 1 1009-1302
380 CLIP; EARTH HARNESS
(B) L=350 		1-09707-183-0 01 1 1303-
470 CLIP; HARNESS,LICENSE LAMP
(A) L=350 		1-09707-183-0 01 1 1009-
470 CLIP; HARNESS,LICENSE LAMP
(B) L=250 		5-09707-030-1 02 1 1009-1111
470 CLIP; HARNESS,LICENSE LAMP
(B) L=250 		5-09707-030-1 04 1 1112-
çizim 188660
128 212 16 48 16 16 16 16 16 128 16 16 16 235 223 48 16 16 16 16 16 16 16 263 16 16 212 16 48 48 16 212 16 16 16 16 212 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (AA) ID=5-12 L=14.5 		1-09987-221-0 04 1 1412-
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (AB) L=250 		5-09707-030-1 01 1 1412-
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 02 1 1305-1411
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 02 1 1305-1411
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 02 1 1412-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AB) L=250 		5-09707-030-1 02 1 1412-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (T) L=350 		1-09707-183-0 01 1 1303-
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-1304
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-1304
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-1304
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 02 1 1305-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AA) ID=5-12 L=14.5 		1-09987-221-0 02 1 1103-1302
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 02 1 1303-1304
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 05 1 1305-
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 02 1 1009-
16 CLIP; HARNESS
(B) T=0.8 ID=16 L=20 		0-95235-535-0 02 1 1009-
16 CLIP; HARNESS
(D) ID=19 L=20 		0-95235-836-0 01 1 1009-
16 CLIP; HARNESS
(E) ID=22 L=32 		1-09700-126-1 01 1 1009-
16 CLIP; HARNESS
(G) ID=28 L=58 		1-09700-400-0 07 1 1009-1302
16 CLIP; HARNESS
(G) ID=28 L=58 		1-09700-400-0 03 1 1303-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 13 1 1009-1010
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 14 1 1011-1303
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 1304-
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 02 1 1009-1302
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 01 1 1303-1303
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 13 1 1304-1304
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 1305-1411
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (H) ID=11 L=41 		1-09700-403-0 02 1 1412-
16 CLIP; HARNESS
(M) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) EXC. BRAKE SYSTEM RETARDER<RE2> (M) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1009-1302
16 CLIP; HARNESS
(F) ID=31 L=35 		1-09700-329-1 01 1 1303-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (F) ID=31 L=35 		1-09700-329-1 01 1 1303-
16 CLIP; HARNESS
(N) SYNTHETIC RUBBER ID=35 H=45 L=33 		1-09700-947-0 01 1 1009-
16 CLIP; HARNESS
(P) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1009-1302
16 CLIP; HARNESS
(P) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 1303-
16 CLIP; HARNESS
(R) ID=9 H=80 L=23 		1-09701-061-0 02 1 1009-
16 CLIP; HARNESS
(O) ID=18 L=28 		1-09701-067-0 03 1 1009-
16 CLIP; HARNESS
(Q) ID=15 L=28 		1-09701-216-0 01 1 1009-
16 CLIP; HARNESS
(X) ID=28 L=40 		1-09701-261-0 01 1 1009-
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 01 1 1009-1302
16 CLIP; HARNESS
INSPECTION LAMP<T95> (S) L=180 		1-09707-162-1 01 1 1009-1302
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 05 1 1009-1302
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 06 1 1303-1304
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 1305-
16 CLIP; HARNESS
(U) W/SPONGE RUBBER 		1-09709-150-0 01 1 1009-
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 02 1 1009-1302
16 CLIP; HARNESS
MJT7 M/T<Y9E> (V) OD=9 H=6 		1-09709-178-0 02 1 1009-1302
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 1009-
16 CLIP; HARNESS
(AN) ID=5-12 L=22 		1-09709-288-0 02 1 1009-
16 CLIP; HARNESS
(AO) ID=18-24 L=22 		1-09709-295-0 01 1 1009-
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 04 1 1009-1102
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 03 1 1103-1302
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 02 1 1303-1411
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AA) ID=5-12 L=14.5 		1-09987-221-0 02 1 1412-
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 10 1 1009-1205
16 CLIP; HARNESS
(AB) L=250 		8-98216-430-0 10 1 1206-
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 02 1 1009-1102
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 02 1 1103-1302
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AB) L=250 		5-09707-030-1 02 1 1103-1302
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 08 1 1009-1302
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 01 1 1303-1304
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 11 1 1305-
16 CLIP; HARNESS
(AC) L=140 		5-09707-031-1 01 1 1009-1302
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 02 1 1303-1303
16 CLIP; HARNESS
(AI) ID=20 L=50 		9-09917-430-0 04 1 1304-
16 CLIP; HARNESS
(AD) ID=21 L=47.5 		8-94178-108-0 03 1 1009-
16 CLIP; HARNESS
(AF) ID=14-20 		8-97061-603-0 03 1 1009-
16 CLIP; HARNESS
(AE) ID=18 L=44 		8-97367-985-1 02 1 1009-
16 CLIP; HARNESS
(AG) OD=9 H=6 		8-97368-793-0 02 1 1009-
16 CLIP; HARNESS
(Y) ID=17 L=20 		8-97619-251-0 01 1 1009-1302
16 CLIP; HARNESS
(J) ID=20 L=50 		1-09700-679-1 01 1 1303-
16 CLIP; HARNESS
(AK) L=251 		8-97619-917-0 01 1 1009-
16 CLIP; HARNESS
(Z) ID=10 L=16.5 		8-98082-034-0 02 1 1009-
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 01 1 1009-1302
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 02 1 1303-
16 CLIP; HARNESS
(AI) ID=20 L=50 		9-09917-430-0 08 1 1009-1302
16 CLIP; HARNESS
(AI) ID=20 L=50 		9-09917-430-0 07 1 1303-1303
16 CLIP; HARNESS
(AI) ID=20 L=50 		9-09917-430-0 03 1 1304-
16 CLIP; HARNESS
(AJ) ID=22 L=52 		9-09917-431-0 03 1 1009-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=16 		0-95235-025-0 02 1 1009-1302
16 CLIP; HARNESS
(C) ID=11 L=16 		0-95235-025-0 02 1 1303-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AL) L=382 		1-09707-196-0 03 1 1009-1302
16 CLIP; HARNESS
(AK) L=251 		8-97619-917-0 04 1 1303-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AB) L=250 		5-09707-030-1 03 1 1009-1302
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 03 1 1303-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (J) ID=20 L=50 		1-09700-679-1 01 1 1009-1302
16 CLIP; HARNESS
(AR) ID=18 L=38 H=23 		1-09701-147-0 01 1 1303-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (L) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-1302
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 02 1 1303-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (H) ID=11 L=41 		1-09700-403-0 01 1 1009-1302
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 02 1 1303-1304
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 03 1 1305-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (V) OD=9 H=6 		1-09709-178-0 01 1 1009-1302
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 01 1 1009-1302
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 01 1 1303-1304
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 01 1 1303-1304
16 CLIP; HARNESS
SMOOTHER-G(C1W) (V) OD=9 H=6 		1-09709-178-0 01 1 1303-1304
16 CLIP; HARNESS
SMOOTHER-G(C1W) (V) OD=9 H=6 		1-09709-178-0 01 1 1305-
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 01 1 1305-
16 CLIP; HARNESS
MJT7 M/T<Y9E> (B) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1009-1303
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (B) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1304-
16 CLIP; HARNESS
MJT7 M/T<Y9E> (K) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 1009-1302
16 CLIP; HARNESS
MJT7S M/T(Y3E) (B) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1303-
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (I) ID=10 H=25 L=20 		1-09700-519-0 01 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (I) ID=10 H=25 L=20 		1-09700-519-0 01 1 1303-
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (V) OD=9 H=6 		1-09709-178-0 07 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (V) OD=9 H=6 		1-09709-178-0 07 1 1303-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AM) ID=28+34 L=44 		1-09701-311-0 01 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AQ) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 1303-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AA) ID=5-12 L=14.5 		1-09987-221-0 01 1 1009-1102
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AA) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1302
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (AA) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AP) L=36 		8-94224-891-1 01 1 1009-1302
16 CLIP; HARNESS
(AP) L=36 		8-94224-891-1 01 1 1009-1302
16 CLIP; HARNESS
(AP) L=36 		8-94224-891-1 01 1 1303-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AJ) ID=22 L=52 		9-09917-431-0 01 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (T) L=350 		1-09707-183-0 02 1 1303-1304
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 02 1 1305-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (T) L=350 		1-09707-183-0 02 1 1305-
16 CLIP; HARNESS
SMOOTHER-G(C1W) BRAKE SYSTEM RETARDER<RE2> (N) RUBBER ID=35 H=45 L=33 		8-97615-568-0 03 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) EXC. BRAKE SYSTEM RETARDER<RE2> (AQ) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (M) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1303-
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (F) ID=31 L=35 		1-09700-329-1 01 1 1009-1302
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (AB) L=250 		5-09707-030-1 01 1 1009-1302
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 06 1 1303-1304
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 01 1 1305-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 04 1 1304-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1009-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 06 1 1009-1102
48 CLIP; FRAME HARNESS
EXC. SMOOTHER-G(C1W) (C) L=350 		1-09707-183-0 06 1 1009-1102
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 12 1 1103-1302
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 07 1 1303-1303
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1304-
48 CLIP; FRAME HARNESS
SMOOTHER-G(C1W) (D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1009-
48 CLIP; FRAME HARNESS
SMOOTHER-G(C1W) (C) L=350 		1-09707-183-0 07 1 1009-1102
48 CLIP; FRAME HARNESS
BRAKE SYSTEM RETARDER<RE2> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) L=350 		1-09707-183-0 01 1 1103-1302
48 CLIP; FRAME HARNESS
(E) ID=39 H=28 L=32 		1-09701-263-0 04 1 1303-
48 CLIP; FRAME HARNESS
EXC. SMOOTHER-G(C1W) (A) ID=26 L=26 		1-09701-236-0 01 1 1009-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 1009-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 1009-
212 CLIP; HORN HARNESS
(A) ID=19 L=28 		0-95235-856-0 01 1 1009-1302
212 CLIP; HORN HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1009-1302
212 CLIP; HORN HARNESS
(D) L=300 		1-09707-001-1 01 1 1009-1302
212 CLIP; HORN HARNESS
(E) L=140 		5-09707-031-1 01 1 1009-1302
212 CLIP; HORN HARNESS
SMOOTHER-G(C1W) (C) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 1009-1302
212 CLIP; HORN HARNESS
EXC. SMOOTHER-G(C1W) (F) ID=18 H=23 L=28 		1-09700-860-0 03 1 1009-1302
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1009-
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 04 1 1009-1302
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 03 1 1303-
235 CLIP; HARNESS,SPD SENSOR,SSPS
EXC. SMOOTHER-G(C1W) ID=10 H=25 L=20 		1-09700-519-0 01 1 1009-1302
235 CLIP; HARNESS,SPD SENSOR,SSPS
MJT7S M/T(Y3E) ID=10 H=25 L=20 		1-09700-519-0 01 1 1303-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 02 1 1009-1302
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
