Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#70179) — 239 parça

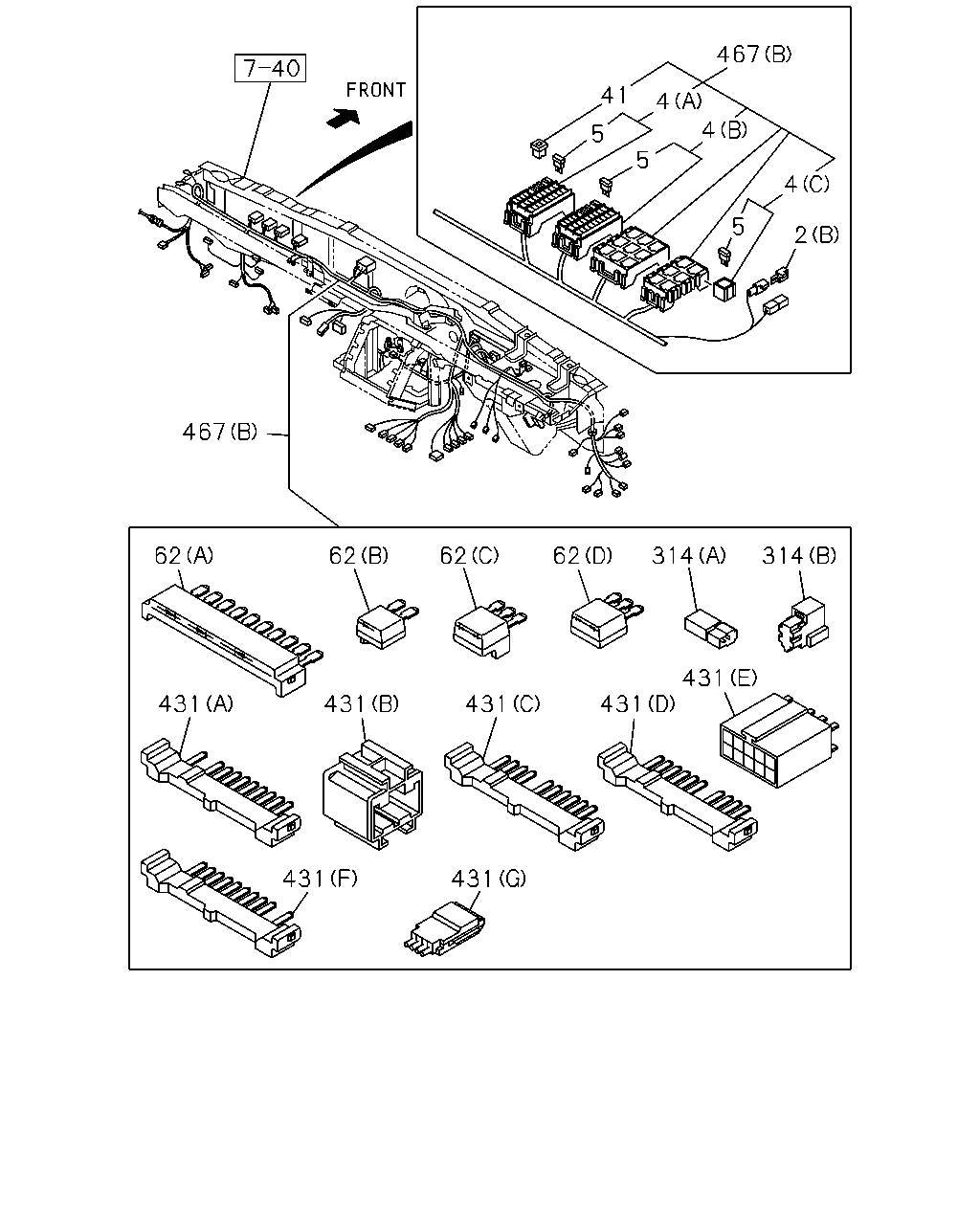

467 41 4 5 4 5 4 5 2 467 62 62 62 62 314 314 431 431 431 431 431 431 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DIODE; CABLE HARNESS (A) GRAY 2P-1.3A	1-81514-015-0	01	1	1009-1302
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	01	1	1303-1411
2	DIODE; CABLE HARNESS HONG KONG EQUIPMENT(PQ1) (B) BLACK 2P-1.5A	8-94422-639-1	01	1	1412-
2	DIODE; CABLE HARNESS BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A	8-94422-639-1	01	1	1009-1302
4	BOX ASM; FUSE,HARNESS (A) 7.5AX22 10AX4	1-82510-455-0	01	1	1009-1302
4	BOX ASM; FUSE,HARNESS (A) 7.5AX20 10AX4 15AX1	1-82510-478-0	01	1	1303-
4	BOX ASM; FUSE,HARNESS (B) 15AX25 25AX2	1-82510-602-0	01	1	1009-
4	BOX ASM; FUSE,HARNESS (C) 15AX3	1-82510-638-0	01	1	1009-
5	FUSE; FACIA HARNESS 10A RED	5-82516-002-0	04	1	1009-
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	28	1	1009-1302
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	27	1	1303-
5	FUSE; FACIA HARNESS 25A CLEAR	5-82516-005-0	02	1	1009-
5	FUSE; FACIA HARNESS 7.5A BROWN	8-94159-007-0	22	1	1009-1302
5	FUSE; FACIA HARNESS 7.5A BROWN	8-94159-007-0	20	1	1303-
41	PULLER; FUSE L=25.3 B=11.5	8-94121-482-0	01	1	1009-
62	DIODE; HARNESS (A) BLACK 10P	1-82699-703-0	03	1	1009-
62	DIODE; HARNESS (C) BLACK 3P-1.5A	8-94416-438-1	03	1	1009-1302
62	DIODE; HARNESS (C) BLACK 3P-1.5A	8-94416-438-1	02	1	1303-
62	DIODE; HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	09	1	1009-1302
62	DIODE; HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	07	1	1303-
62	DIODE; HARNESS (D) BLACK 3P-1.5A	8-94422-640-1	03	1	1009-
314	RESISTOR; HARNESS (A) RESISTANCE NO.5 2K OHM	1-81515-025-0	01	1	1009-1302
314	RESISTOR; HARNESS (B) BLUE	1-82691-204-0	02	1	1009-1302
431	CONNECTOR; JOINT (B) 6P	1-82691-206-0	01	1	1009-1302
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	03	1	1009-1302
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	13	1	1009-1302
431	CONNECTOR; JOINT (D) 10P GREEN	1-82699-599-0	03	1	1009-1302
431	CONNECTOR; JOINT (A) 10P BROWN	1-82699-601-0	07	1	1009-1302
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	01	1	1009-1302
431	CONNECTOR; JOINT (G) 4P	8-97376-776-0	17	1	1009-1302
467	HARNESS; FACIA (A)	8-97635-060-0	01	1	1009-1302
467	HARNESS; FACIA (A)	8-97645-324-0	01	1	1303-
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) AIR BAG(TFQ) EXC. SMOOTHER-G(C1W) (B)	8-97635-010-2	01	1	1009-1302
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W),AIR BAG(TFQ) (B)	8-97635-013-2	01	1	1009-1302
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) AIR BAG(TFQ) (B)	8-97635-009-2	01	1	1009-1302
467	HARNESS; FACIA SMOOTHER-G(C1W) (B)	8-97645-321-2	01	1	1303-1411
467	HARNESS; FACIA SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) (B)	8-97645-321-2	01	1	1412-
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG(TFQ) (B)	8-97635-012-2	01	1	1009-1302
467	HARNESS; FACIA EXC. SMOOTHER-G(C1W) (B)	8-97645-322-2	01	1	1303-1411
467	HARNESS; FACIA HONG KONG EQUIPMENT(PQ1) EXC. SMOOTHER-G(C1W) (B)	8-97645-322-2	01	1	1412-1412
467	HARNESS; FACIA HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W) (B)	8-97645-322-2	01	1	1412-

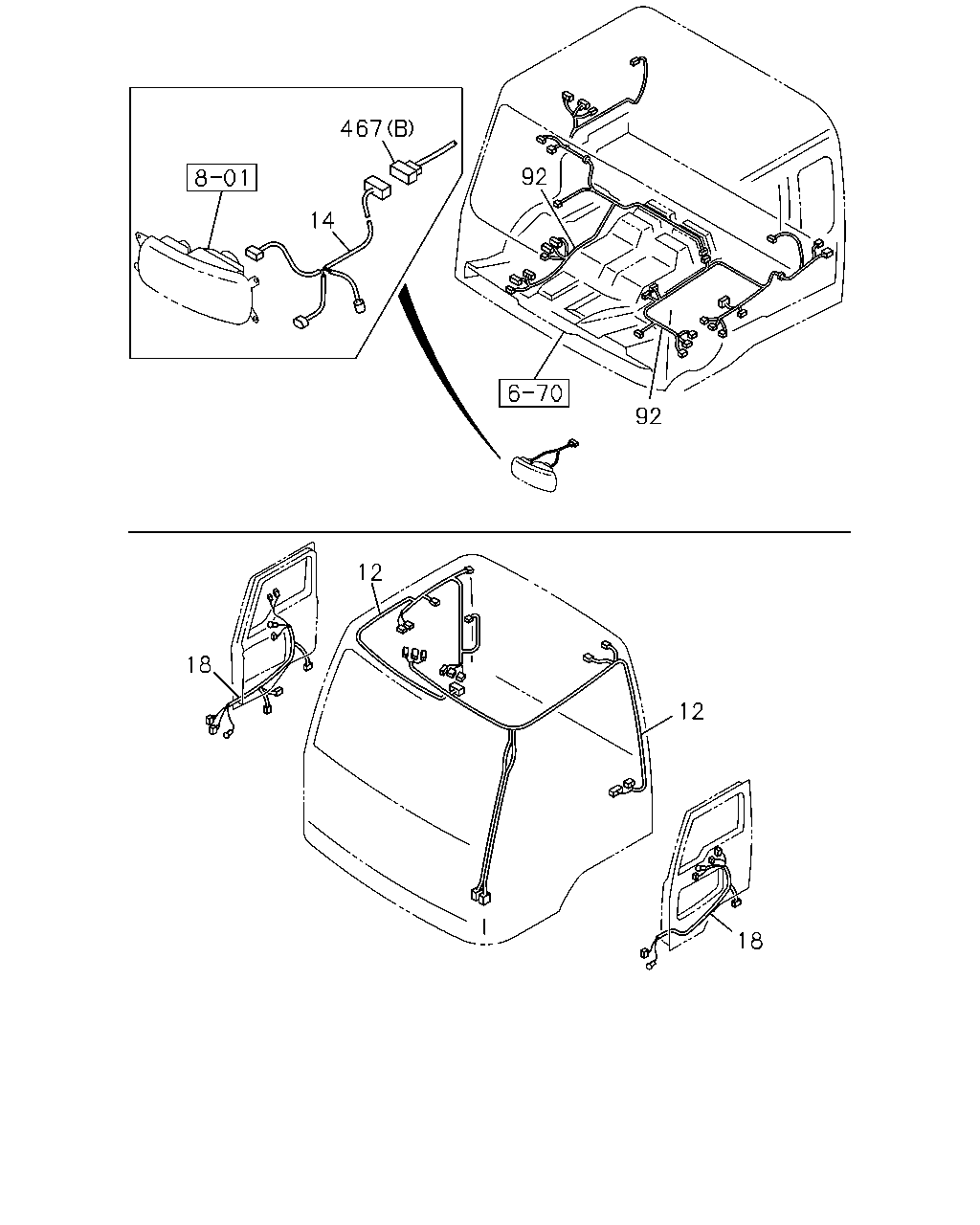

467 14 92 12 12 18 18 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	HARNESS; ROOF LAMP-ROOM OPERATION W/CONSOLE<C93> PASSENGER SIDE	8-98284-066-0	01	1	1412-
12	HARNESS; ROOF PASSENGER SIDE	8-97611-861-1	01	1	1009-1302
12	HARNESS; ROOF PASSENGER SIDE	8-97644-022-2	01	1	1303-1410
12	HARNESS; ROOF PASSENGER SIDE	8-98284-065-0	01	1	1411-1411
12	HARNESS; ROOF EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> PASSENGER SIDE	8-98284-065-0	01	1	1412-
12	HARNESS; ROOF DRIVER SIDE	8-97611-862-0	01	1	1009-1302
12	HARNESS; ROOF DRIVER SIDE	8-97611-862-0	01	1	1303-
14	HARNESS; HEADLAMP BUMPER W/HEADLAMPS<SLB>	8-97607-335-0	02	1	1009-1302
14	HARNESS; HEADLAMP	8-98156-953-2	02	1	1303-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4>	8-97631-060-0	01	1	1009-1302
18	HARNESS; DOOR	8-97644-086-0	01	1	1303-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4>	8-97631-061-0	01	1	1009-1302
18	HARNESS; DOOR	8-97644-087-0	01	1	1303-
92	HARNESS; FLOOR EXC. SMOOTHER-G(C1W),SEAT BELT PRE TENSIONER 3POINTW/AIR BAG(7MC)	8-97644-014-1	01	1	1412-
92	HARNESS; FLOOR SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) EXC. SMOOTHER-G(C1W)	8-97631-056-2	01	1	1009-1302
92	HARNESS; FLOOR MJT7S M/T(Y3E)	8-97645-330-0	01	1	1303-
92	HARNESS; FLOOR SMOOTHER-G(C1W)	8-97631-426-1	01	1	1009-1210
92	HARNESS; FLOOR SMOOTHER-G(C1W)	8-98229-078-0	01	1	1211-1302
92	HARNESS; FLOOR SMOOTHER-G(C1W)	8-97645-331-1	01	1	1303-
92	HARNESS; FLOOR SMOOTHER-G(C1W) SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC)	8-97631-055-2	01	1	1009-1302
92	HARNESS; FLOOR SMOOTHER-G(C1W)	8-97645-326-0	01	1	1303-1401
92	HARNESS; FLOOR SMOOTHER-G(C1W)	8-98258-216-0	01	1	1402-1411
92	HARNESS; FLOOR SMOOTHER-G(C1W) SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC)	8-98258-216-0	01	1	1412-
92	HARNESS; FLOOR EXC. SMOOTHER-G(C1W)	8-97631-425-1	01	1	1009-1302
92	HARNESS; FLOOR EXC. SMOOTHER-G(C1W)	8-97645-327-0	01	1	1303-1411
92	HARNESS; FLOOR SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) EXC. SMOOTHER-G(C1W)	8-97645-327-0	01	1	1412-
92	HARNESS; FLOOR EXC. SMOOTHER-G(C1W),SEAT BELT PRE TENSIONER 3POINTW/AIR BAG(7MC)	8-97635-015-0	01	1	1009-1302
467	HARNESS; FACIA (A)	8-97635-060-0	01	1	1009-1302
467	HARNESS; FACIA (A)	8-97645-324-0	01	1	1303-
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) AIR BAG(TFQ) EXC. SMOOTHER-G(C1W) (B)	8-97635-010-2	01	1	1009-1302
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W),AIR BAG(TFQ) (B)	8-97635-013-2	01	1	1009-1302
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) AIR BAG(TFQ) (B)	8-97635-009-2	01	1	1009-1302
467	HARNESS; FACIA SMOOTHER-G(C1W) (B)	8-97645-321-2	01	1	1303-1411
467	HARNESS; FACIA SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) (B)	8-97645-321-2	01	1	1412-
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG(TFQ) (B)	8-97635-012-2	01	1	1009-1302
467	HARNESS; FACIA EXC. SMOOTHER-G(C1W) (B)	8-97645-322-2	01	1	1303-1411
467	HARNESS; FACIA HONG KONG EQUIPMENT(PQ1) EXC. SMOOTHER-G(C1W) (B)	8-97645-322-2	01	1	1412-1412
467	HARNESS; FACIA HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W) (B)	8-97645-322-2	01	1	1412-

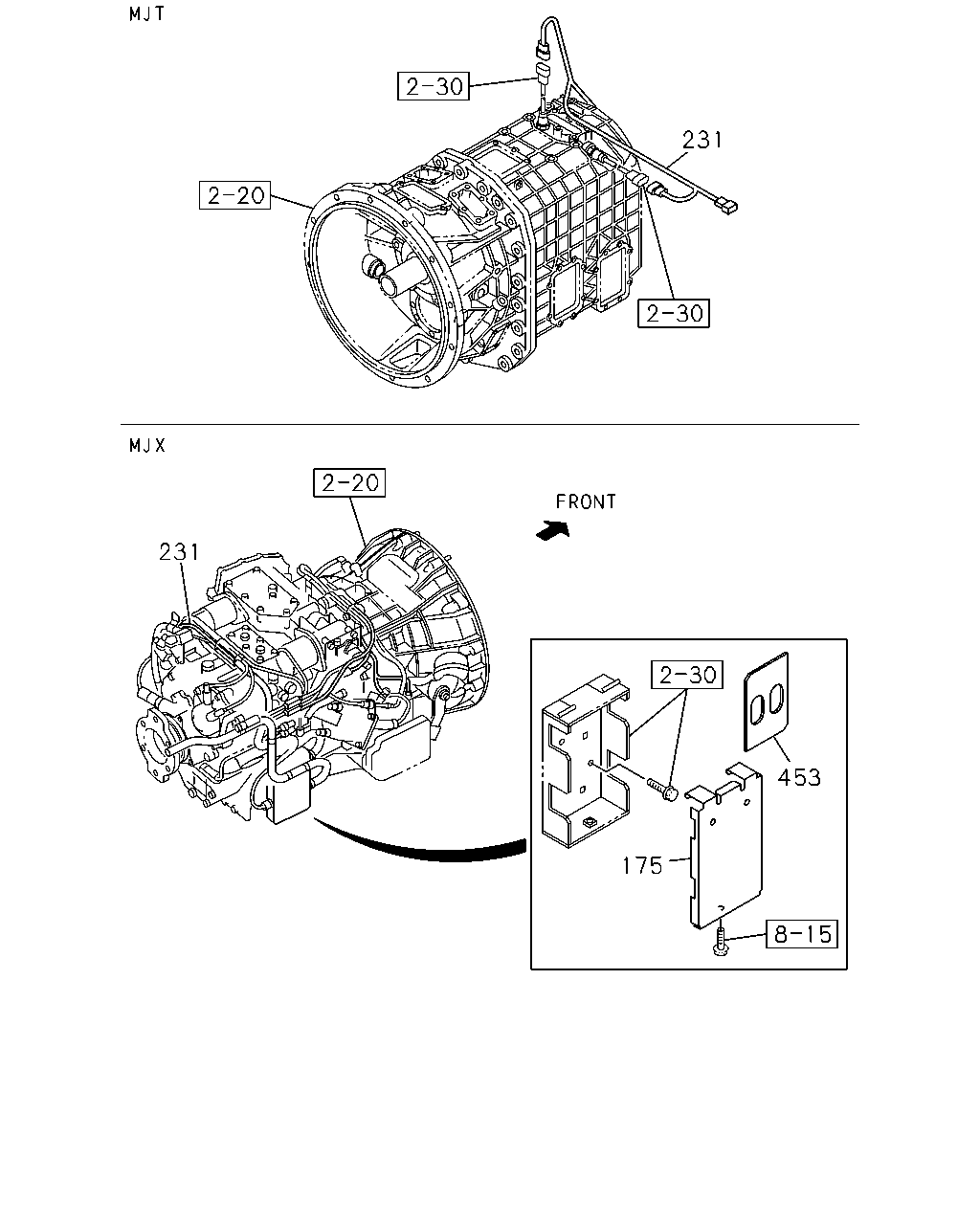

231 231 175 453

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
175	BOX; CONNECTOR MJX12P M/T SMOOTHER-G(Y4S)	1-82569-435-1	01	1	1009-1302
175	BOX; CONNECTOR SMOOTHER-G(C1W)	1-82569-435-1	01	1	1303-
231	HARNESS; TRANS MJT7 M/T<Y9E>	8-97615-725-1	01	1	1009-1302
231	HARNESS; TRANS MJT7S M/T(Y3E)	8-97615-725-1	01	1	1303-
231	HARNESS; TRANS SMOOTHER-G(C1W) BRAKE SYSTEM RETARDER<RE2>	8-97631-169-0	01	1	1009-1302
231	HARNESS; TRANS SMOOTHER-G(C1W)	8-97631-168-1	01	1	1303-
231	HARNESS; TRANS SMOOTHER-G(C1W) EXC. BRAKE SYSTEM RETARDER<RE2>	8-97631-168-0	01	1	1009-1302
453	PROTECTOR; HARNESS	8-98213-847-1	01	1	1207-1302
453	PROTECTOR; HARNESS MJX12P M/T SMOOTHER-G(Y4S)	8-98213-847-1	01	1	1303-

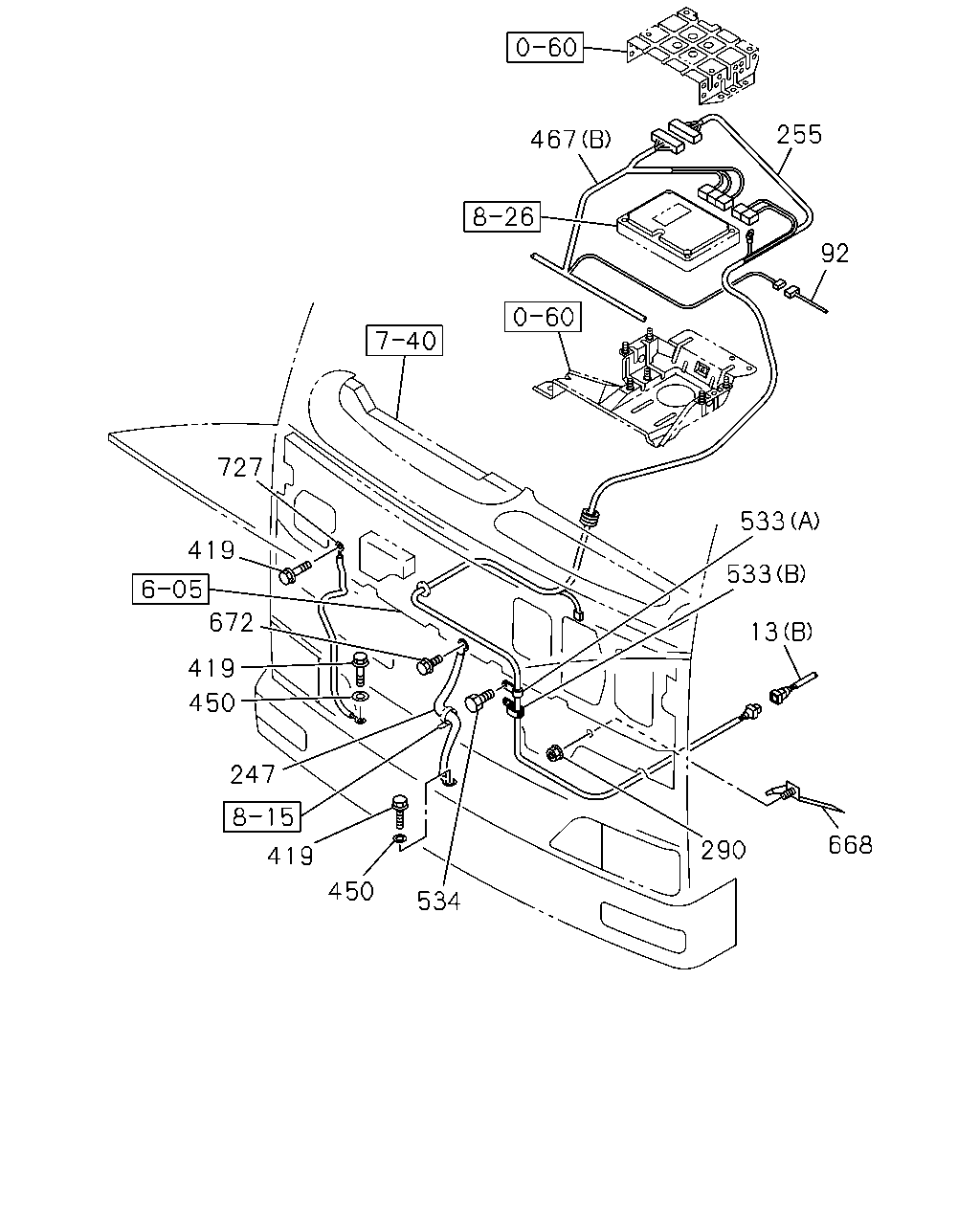

533 533 13 668 290 534 450 419 247 450 672 419 419 727 467 255 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

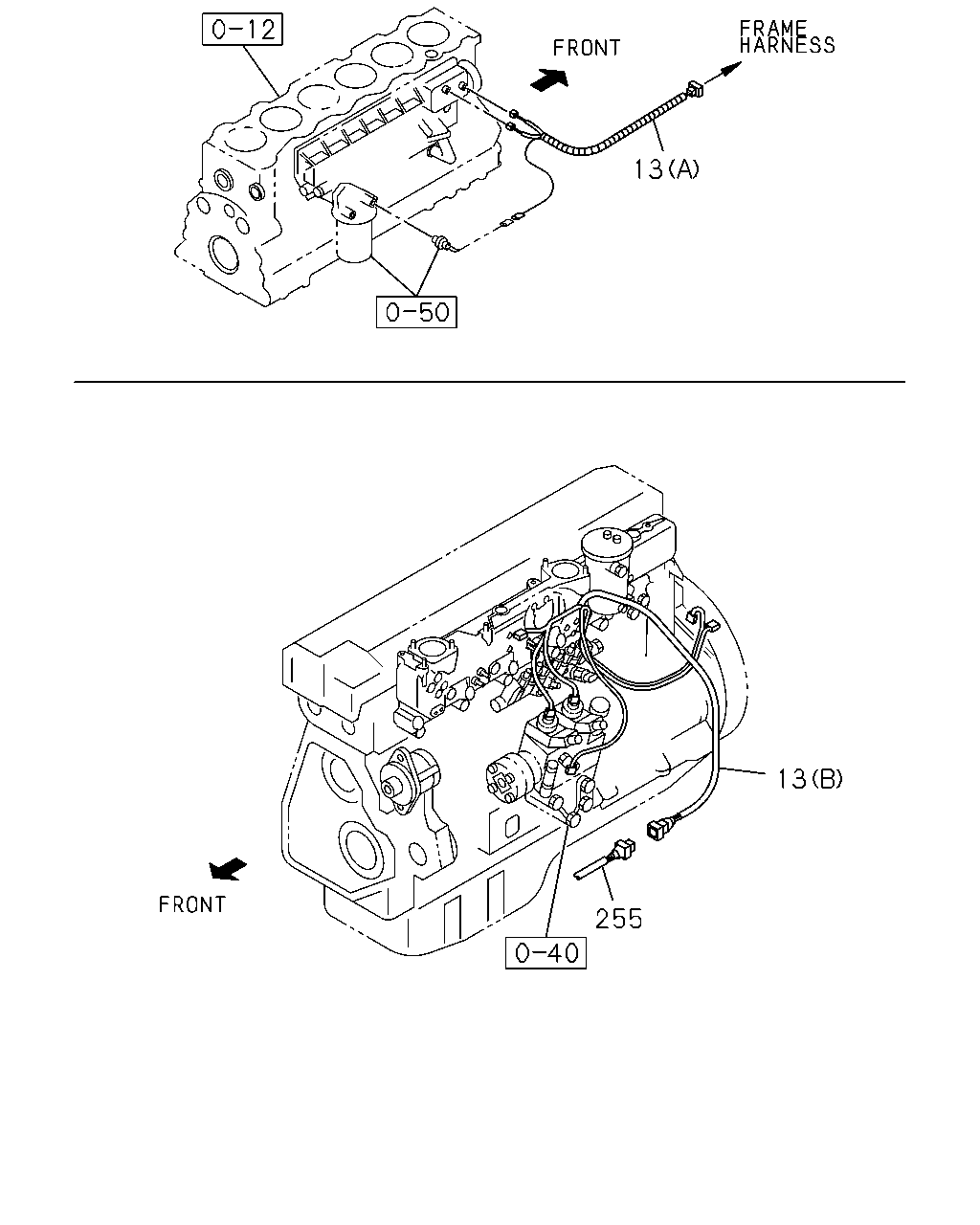

13	HARNESS; ENG (B)	8-98152-248-0	01	1	1009-1204
13	HARNESS; ENG (B)	8-98210-224-0	01	1	1205-
13	HARNESS; ENG (A)	8-98126-840-2	01	1	1009-
92	HARNESS; FLOOR EXC. SMOOTHER-G(C1W),SEAT BELT PRE TENSIONER 3POINTW/AIR BAG(7MC)	8-97644-014-1	01	1	1412-
92	HARNESS; FLOOR SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) EXC. SMOOTHER-G(C1W)	8-97631-056-2	01	1	1009-1302
92	HARNESS; FLOOR MJT7S M/T(Y3E)	8-97645-330-0	01	1	1303-
92	HARNESS; FLOOR SMOOTHER-G(C1W)	8-97631-426-1	01	1	1009-1210
92	HARNESS; FLOOR SMOOTHER-G(C1W)	8-98229-078-0	01	1	1211-1302
92	HARNESS; FLOOR SMOOTHER-G(C1W)	8-97645-331-1	01	1	1303-
92	HARNESS; FLOOR SMOOTHER-G(C1W) SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC)	8-97631-055-2	01	1	1009-1302
92	HARNESS; FLOOR SMOOTHER-G(C1W)	8-97645-326-0	01	1	1303-1401
92	HARNESS; FLOOR SMOOTHER-G(C1W)	8-98258-216-0	01	1	1402-1411
92	HARNESS; FLOOR SMOOTHER-G(C1W) SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC)	8-98258-216-0	01	1	1412-
92	HARNESS; FLOOR EXC. SMOOTHER-G(C1W)	8-97631-425-1	01	1	1009-1302
92	HARNESS; FLOOR EXC. SMOOTHER-G(C1W)	8-97645-327-0	01	1	1303-1411
92	HARNESS; FLOOR SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) EXC. SMOOTHER-G(C1W)	8-97645-327-0	01	1	1412-
92	HARNESS; FLOOR EXC. SMOOTHER-G(C1W),SEAT BELT PRE TENSIONER 3POINTW/AIR BAG(7MC)	8-97635-015-0	01	1	1009-1302
247	CABLE; BONDING,CAB L=570	1-82662-390-1	01	1	1009-
255	HARNESS; ELEC GOV	8-97631-059-0	01	1	1009-1302
255	HARNESS; ELEC GOV	8-97645-325-2	01	1	1303-
290	NUT; BRKT HEATER & DEFROSTER(C41) M8 FLANGE	0-91180-108-0	01	1	1412-
290	NUT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1009-1302
419	BOLT; CAB EARTH M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	1009-1201
419	BOLT; CAB EARTH M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1202-
419	BOLT; CAB EARTH M8X16 W/LK&PL WASHER	8-97087-055-0	03	1	1009-1201
419	BOLT; CAB EARTH M8X14 W/PL WASHER	8-98164-837-0	04	1	1202-1302
419	BOLT; CAB EARTH M8X14 W/PL WASHER	8-98164-837-0	03	1	1303-
419	BOLT; CAB EARTH M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	1009-1201
419	BOLT; CAB EARTH M8X24 W/PL WASHER	8-98141-256-1	01	1	1202-1302
419	BOLT; CAB EARTH M8X24 W/PL WASHER	8-98141-256-1	02	1	1303-
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	03	1	1009-1302
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	04	1	1303-
467	HARNESS; FACIA (A)	8-97635-060-0	01	1	1009-1302
467	HARNESS; FACIA (A)	8-97645-324-0	01	1	1303-
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) AIR BAG(TFQ) EXC. SMOOTHER-G(C1W) (B)	8-97635-010-2	01	1	1009-1302
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W),AIR BAG(TFQ) (B)	8-97635-013-2	01	1	1009-1302
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) AIR BAG(TFQ) (B)	8-97635-009-2	01	1	1009-1302
467	HARNESS; FACIA SMOOTHER-G(C1W) (B)	8-97645-321-2	01	1	1303-1411
467	HARNESS; FACIA SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) (B)	8-97645-321-2	01	1	1412-
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG(TFQ) (B)	8-97635-012-2	01	1	1009-1302
467	HARNESS; FACIA EXC. SMOOTHER-G(C1W) (B)	8-97645-322-2	01	1	1303-1411
467	HARNESS; FACIA HONG KONG EQUIPMENT(PQ1) EXC. SMOOTHER-G(C1W) (B)	8-97645-322-2	01	1	1412-1412
467	HARNESS; FACIA HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W) (B)	8-97645-322-2	01	1	1412-
533	CLIP SMOOTHER-G(C1W) (B) ID=28 & 34 L=63	1-09701-310-0	01	1	1009-
533	CLIP EXC. SMOOTHER-G(C1W) (A) ID=31 L=35	1-09700-329-1	01	1	1009-1302
533	CLIP EXC. SMOOTHER-G(C1W) (A) ID=35 L=35	1-09700-684-0	01	1	1303-
534	BOLT M8X16 FLANGE	0-28050-816-0	01	1	1009-
668	BRACKET; HARNESS HEATER & DEFROSTER(C41)	1-82698-415-1	01	1	1412-
668	BRACKET; HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-82698-415-1	01	1	1009-1302
672	BOLT; BONDING M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	1009-1302
672	BOLT; BONDING M8X14 W/PL WASHER	8-98164-837-0	01	1	1303-
727	HARNESS; CAB,EARTH L=760	8-97632-854-0	01	1	1303-

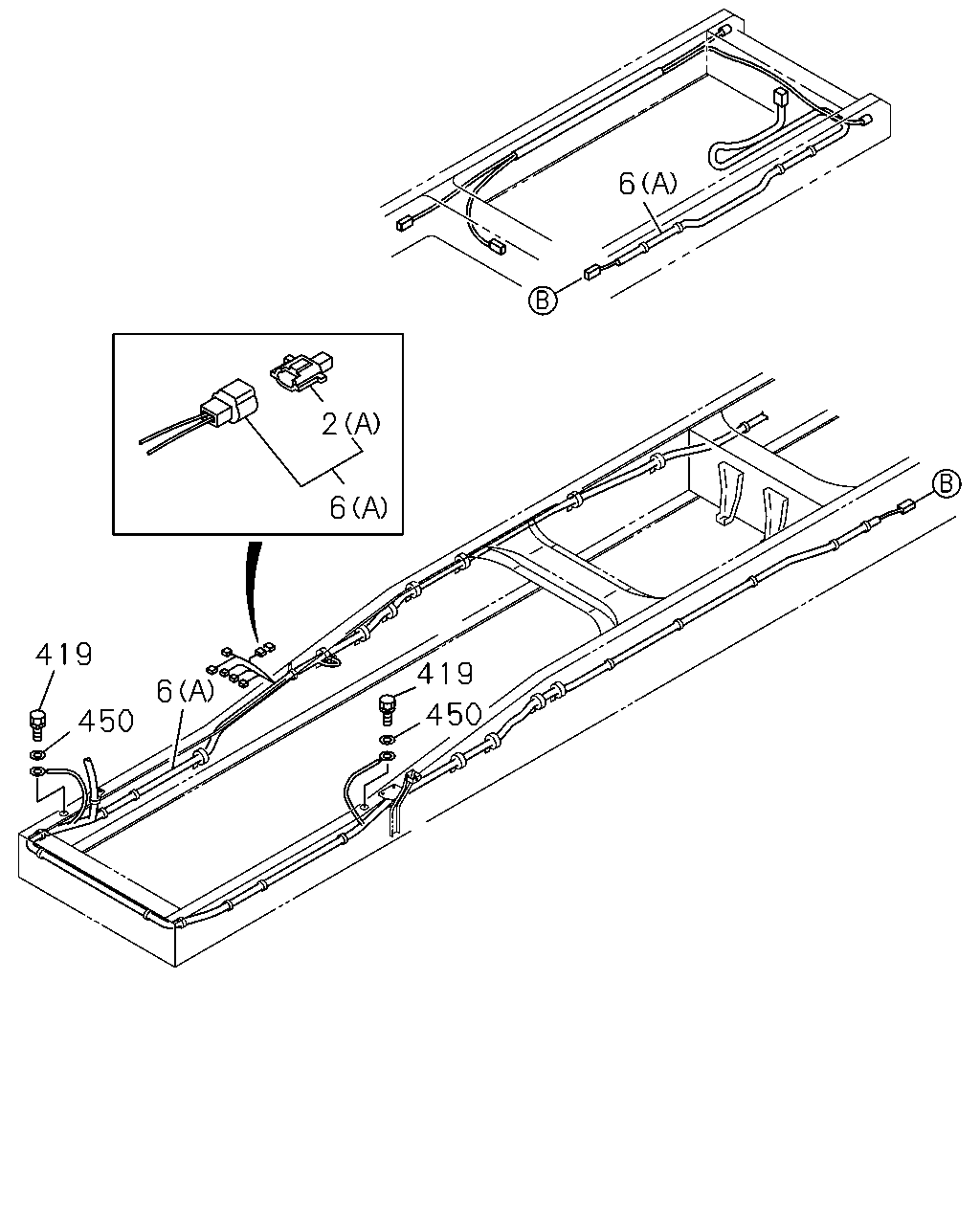

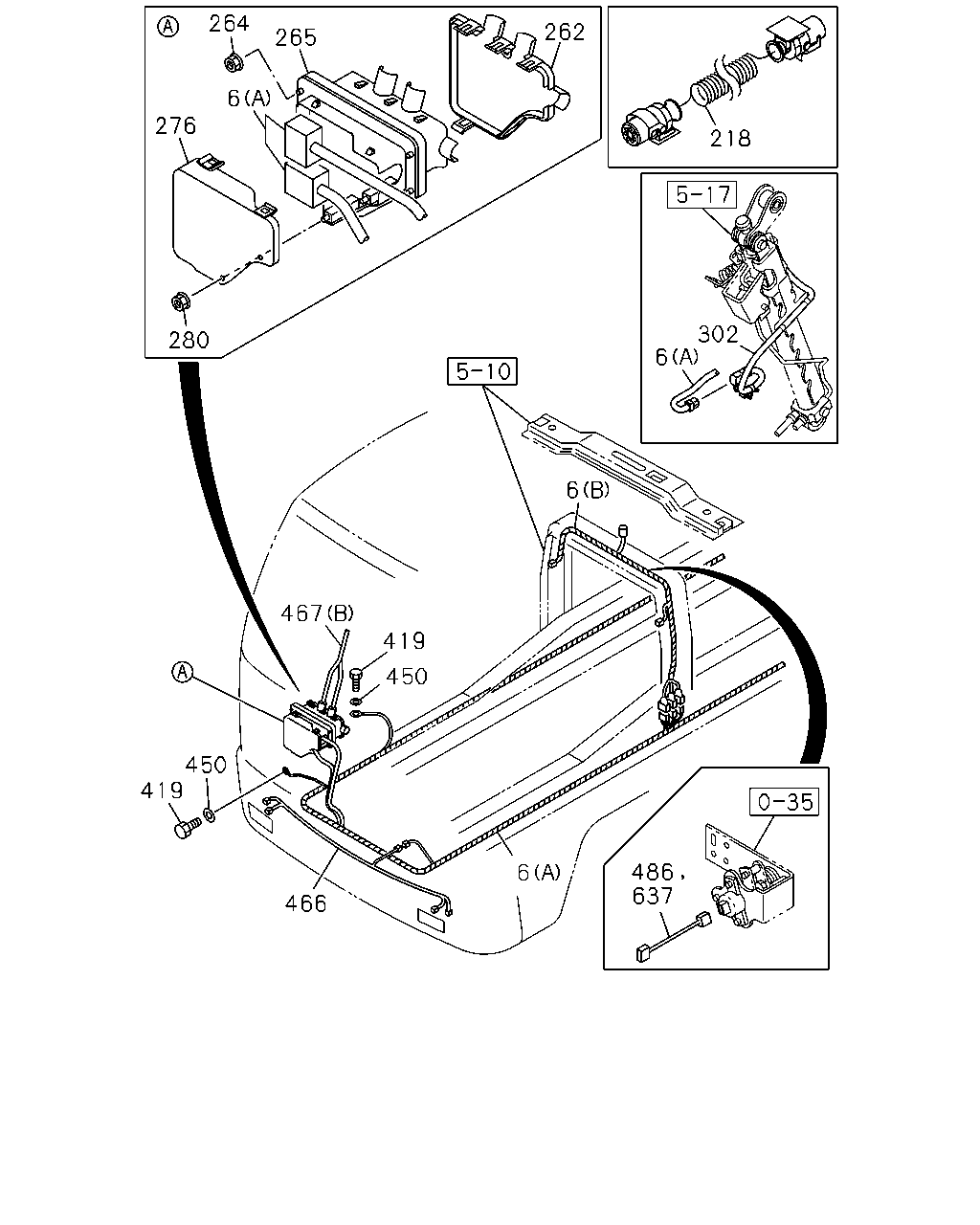

6 6 302 218 262 265 264 6 276 280 467 419 450 450 419 466 6 486 637

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME SMOOTHER-G(C1W) POOR QUALITY DIESEL FUEL<KF0> (A)	8-98186-079-0	01	1	1103-1302
6	HARNESS; FRAME SMOOTHER-G(C1W) (A)	8-98232-946-3	01	1	1303-1411
6	HARNESS; FRAME SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) (A)	8-98232-946-3	01	1	1412-
6	HARNESS; FRAME POOR QUALITY DIESEL FUEL<KF0> EXC. SMOOTHER-G(C1W) (A)	8-98186-078-0	01	1	1103-1302
6	HARNESS; FRAME SMOOTHER-G(C1W) (A)	8-97631-065-3	01	1	1009-1102
6	HARNESS; FRAME SMOOTHER-G(C1W) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-97631-065-3	01	1	1103-1302
6	HARNESS; FRAME EXC. SMOOTHER-G(C1W) (A)	8-98232-945-2	01	1	1303-1411
6	HARNESS; FRAME HONG KONG EQUIPMENT(PQ1) EXC. SMOOTHER-G(C1W) (A)	8-98232-945-2	01	1	1412-1412
6	HARNESS; FRAME HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W) (A)	8-98232-945-3	01	1	1412-
6	HARNESS; FRAME EXC. SMOOTHER-G(C1W) (A)	8-97631-064-3	01	1	1009-1102
6	HARNESS; FRAME EXC. SMOOTHER-G(C1W),POOR QUALITY DIESEL FUEL<KF0> (A)	8-97631-064-3	01	1	1103-1302
6	HARNESS; FRAME (B)	8-97631-087-1	01	1	1009-1302
6	HARNESS; FRAME (B)	8-98232-960-2	01	1	1303-
218	CABLE; JUMPER,ABS ANTILOCK BRAKE SYSTEM(BFA) L=4000	1-82659-187-3	01	1	1009-1302
218	CABLE; JUMPER,ABS L=4000	1-82659-187-3	01	1	1303-
262	COVER; CONNECTOR BOX,FRT PNL	1-82699-582-1	01	1	1009-
264	NUT; CONNECTOR BOX M6 FLANGE W/RUBBER	1-09984-180-0	04	1	1009-
265	BOX; CONN,FRT PNL	1-82699-581-3	01	1	1009-
276	COVER; BOX,FRAME HARNESS	1-82699-585-2	01	1	1009-
280	NUT; BOX ASM FIX M6 FLANGE W/RUBBER	1-09984-180-0	02	1	1009-
302	HARNESS; POWER CAB TILT	8-97636-525-0	01	1	1303-
419	BOLT; CAB EARTH M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	1009-1201
419	BOLT; CAB EARTH M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1202-
419	BOLT; CAB EARTH M8X16 W/LK&PL WASHER	8-97087-055-0	03	1	1009-1201
419	BOLT; CAB EARTH M8X14 W/PL WASHER	8-98164-837-0	04	1	1202-1302
419	BOLT; CAB EARTH M8X14 W/PL WASHER	8-98164-837-0	03	1	1303-
419	BOLT; CAB EARTH M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	1009-1201
419	BOLT; CAB EARTH M8X24 W/PL WASHER	8-98141-256-1	01	1	1202-1302
419	BOLT; CAB EARTH M8X24 W/PL WASHER	8-98141-256-1	02	1	1303-
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	03	1	1009-1302
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	04	1	1303-
466	HARNESS; BUMPER FRONT SPOILER<VP1>	8-97610-100-0	01	1	1009-1302
466	HARNESS; BUMPER EXC. FRONT SPOILER<VP1>	8-97610-101-0	01	1	1009-1302
467	HARNESS; FACIA (A)	8-97635-060-0	01	1	1009-1302
467	HARNESS; FACIA (A)	8-97645-324-0	01	1	1303-
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) AIR BAG(TFQ) EXC. SMOOTHER-G(C1W) (B)	8-97635-010-2	01	1	1009-1302
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W),AIR BAG(TFQ) (B)	8-97635-013-2	01	1	1009-1302
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) AIR BAG(TFQ) (B)	8-97635-009-2	01	1	1009-1302
467	HARNESS; FACIA SMOOTHER-G(C1W) (B)	8-97645-321-2	01	1	1303-1411
467	HARNESS; FACIA SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) (B)	8-97645-321-2	01	1	1412-
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG(TFQ) (B)	8-97635-012-2	01	1	1009-1302
467	HARNESS; FACIA EXC. SMOOTHER-G(C1W) (B)	8-97645-322-2	01	1	1303-1411
467	HARNESS; FACIA HONG KONG EQUIPMENT(PQ1) EXC. SMOOTHER-G(C1W) (B)	8-97645-322-2	01	1	1412-1412
467	HARNESS; FACIA HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W) (B)	8-97645-322-2	01	1	1412-
486	HARNESS; ALL SPEED ACCEL PTO CONTROL OPERATION CAB BACK<TBZ>	8-97624-338-0	01	1	1303-
637	HARNESS; EXT,S/SENSOR PTO CONTROL OPERATION CAB BACK<TBZ>	1-82675-934-0	01	1	1009-1302

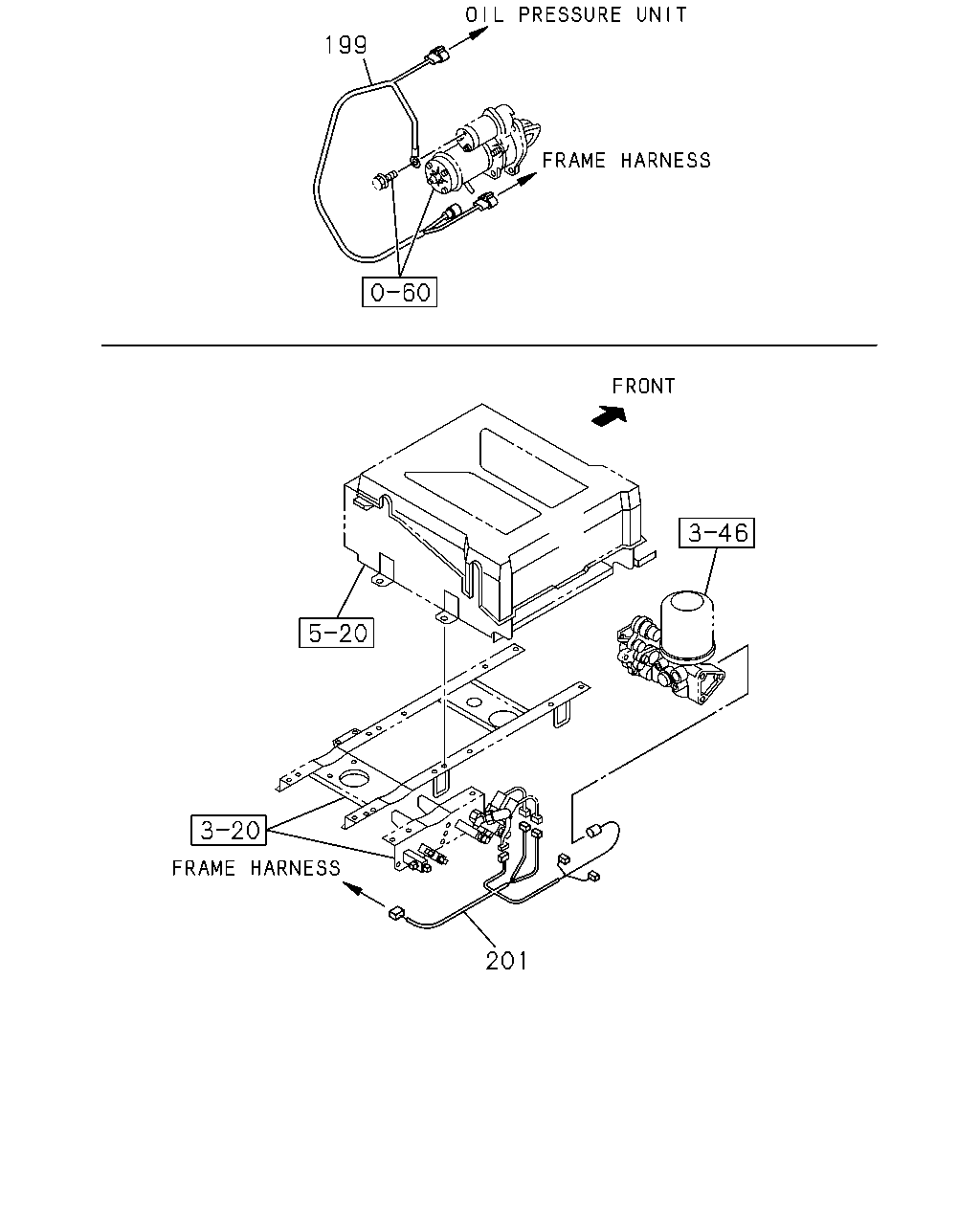

199 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
199	HARNESS; STARTER	8-97607-313-0	01	1	1009-
201	HARNESS; AIR TANK SMOOTHER-G(C1W)	8-97631-202-1	01	1	1009-1302
201	HARNESS; AIR TANK	8-98232-957-2	01	1	1303-1411
201	HARNESS; AIR TANK FULL FLOATING CAB(W16)	8-98232-957-2	01	1	1412-
201	HARNESS; AIR TANK EXC. SMOOTHER-G(C1W)	8-97631-094-1	01	1	1009-1302

267 467 266 467 394 467 467 265 467

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BOX; CONN,FRT PNL	1-82699-581-3	01	1	1009-
266	BRACKET; CONN BOX	1-82699-580-0	01	1	1009-
267	BOLT; BRKT M6X16 W/PL WASHER	1-09981-438-0	02	1	1009-
394	NUT; RELAY BOX TO BODY EXC. HONG KONG EQUIPMENT(PQ1) M6 FLANGE	0-91180-106-0	01	1	1412-1412
394	NUT; RELAY BOX TO BODY EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M6 FLANGE	0-91180-106-0	01	1	1412-
467	HARNESS; FACIA (A)	8-97635-060-0	01	1	1009-1302
467	HARNESS; FACIA (A)	8-97645-324-0	01	1	1303-
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) AIR BAG(TFQ) EXC. SMOOTHER-G(C1W) (B)	8-97635-010-2	01	1	1009-1302
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W),AIR BAG(TFQ) (B)	8-97635-013-2	01	1	1009-1302
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) AIR BAG(TFQ) (B)	8-97635-009-2	01	1	1009-1302
467	HARNESS; FACIA SMOOTHER-G(C1W) (B)	8-97645-321-2	01	1	1303-1411
467	HARNESS; FACIA SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) (B)	8-97645-321-2	01	1	1412-
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG(TFQ) (B)	8-97635-012-2	01	1	1009-1302
467	HARNESS; FACIA EXC. SMOOTHER-G(C1W) (B)	8-97645-322-2	01	1	1303-1411
467	HARNESS; FACIA HONG KONG EQUIPMENT(PQ1) EXC. SMOOTHER-G(C1W) (B)	8-97645-322-2	01	1	1412-1412
467	HARNESS; FACIA HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W) (B)	8-97645-322-2	01	1	1412-

2 6 6 419 450 6 419 450

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DIODE; CABLE HARNESS (A) GRAY 2P-1.3A	1-81514-015-0	01	1	1009-1302
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	01	1	1303-1411
2	DIODE; CABLE HARNESS HONG KONG EQUIPMENT(PQ1) (B) BLACK 2P-1.5A	8-94422-639-1	01	1	1412-
2	DIODE; CABLE HARNESS BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A	8-94422-639-1	01	1	1009-1302
6	HARNESS; FRAME SMOOTHER-G(C1W) POOR QUALITY DIESEL FUEL<KF0> (A)	8-98186-079-0	01	1	1103-1302
6	HARNESS; FRAME SMOOTHER-G(C1W) (A)	8-98232-946-3	01	1	1303-1411
6	HARNESS; FRAME SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) (A)	8-98232-946-3	01	1	1412-
6	HARNESS; FRAME POOR QUALITY DIESEL FUEL<KF0> EXC. SMOOTHER-G(C1W) (A)	8-98186-078-0	01	1	1103-1302
6	HARNESS; FRAME SMOOTHER-G(C1W) (A)	8-97631-065-3	01	1	1009-1102
6	HARNESS; FRAME SMOOTHER-G(C1W) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-97631-065-3	01	1	1103-1302
6	HARNESS; FRAME EXC. SMOOTHER-G(C1W) (A)	8-98232-945-2	01	1	1303-1411
6	HARNESS; FRAME HONG KONG EQUIPMENT(PQ1) EXC. SMOOTHER-G(C1W) (A)	8-98232-945-2	01	1	1412-1412
6	HARNESS; FRAME HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W) (A)	8-98232-945-3	01	1	1412-
6	HARNESS; FRAME EXC. SMOOTHER-G(C1W) (A)	8-97631-064-3	01	1	1009-1102
6	HARNESS; FRAME EXC. SMOOTHER-G(C1W),POOR QUALITY DIESEL FUEL<KF0> (A)	8-97631-064-3	01	1	1103-1302
6	HARNESS; FRAME (B)	8-97631-087-1	01	1	1009-1302
6	HARNESS; FRAME (B)	8-98232-960-2	01	1	1303-
419	BOLT; CAB EARTH M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	1009-1201
419	BOLT; CAB EARTH M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1202-
419	BOLT; CAB EARTH M8X16 W/LK&PL WASHER	8-97087-055-0	03	1	1009-1201
419	BOLT; CAB EARTH M8X14 W/PL WASHER	8-98164-837-0	04	1	1202-1302
419	BOLT; CAB EARTH M8X14 W/PL WASHER	8-98164-837-0	03	1	1303-
419	BOLT; CAB EARTH M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	1009-1201
419	BOLT; CAB EARTH M8X24 W/PL WASHER	8-98141-256-1	01	1	1202-1302
419	BOLT; CAB EARTH M8X24 W/PL WASHER	8-98141-256-1	02	1	1303-
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	03	1	1009-1302
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	04	1	1303-

13 13 255

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	HARNESS; ENG (B)	8-98152-248-0	01	1	1009-1204
13	HARNESS; ENG (B)	8-98210-224-0	01	1	1205-
13	HARNESS; ENG (A)	8-98126-840-2	01	1	1009-
255	HARNESS; ELEC GOV	8-97631-059-0	01	1	1009-1302
255	HARNESS; ELEC GOV	8-97645-325-2	01	1	1303-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
