◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11292 - EXR RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-05 - INTERIOR LAMP ▶
8-05 — INTERIOR LAMP (#70178) — 63 parça
çizim 136192
33 33 24 25 35 27 34 35
BalonParca AdiParca NoAdetTipApplied Date
24 LAMP; STEP 1-82140-052-1 01 1 1009-
25 BULB; STEP LAMP
24V 5W 		1-82194-042-0 01 1 1009-
27 LENS; STEP LAMP 1-82145-019-0 01 1 1009-
33 GROMMET; SCREW,LAMP
M4 		5-09470-002-0 02 1 1009-
34 COVER; STEP LAMP
SINGAPORE EQUIPMENT(WQ3) EXC. CORNERING LAMP<TDS> 		8-98086-130-0 02 1 1009-1302
35 SCREW; STEP LAMP
(A) M4X20 		1-82149-006-0 02 1 1009-
35 SCREW; STEP LAMP
SINGAPORE EQUIPMENT(WQ3) EXC. CORNERING LAMP<TDS> (B) M4X20 TAPPING W/PL WASHER 		0-74360-420-0 04 1 1009-1302

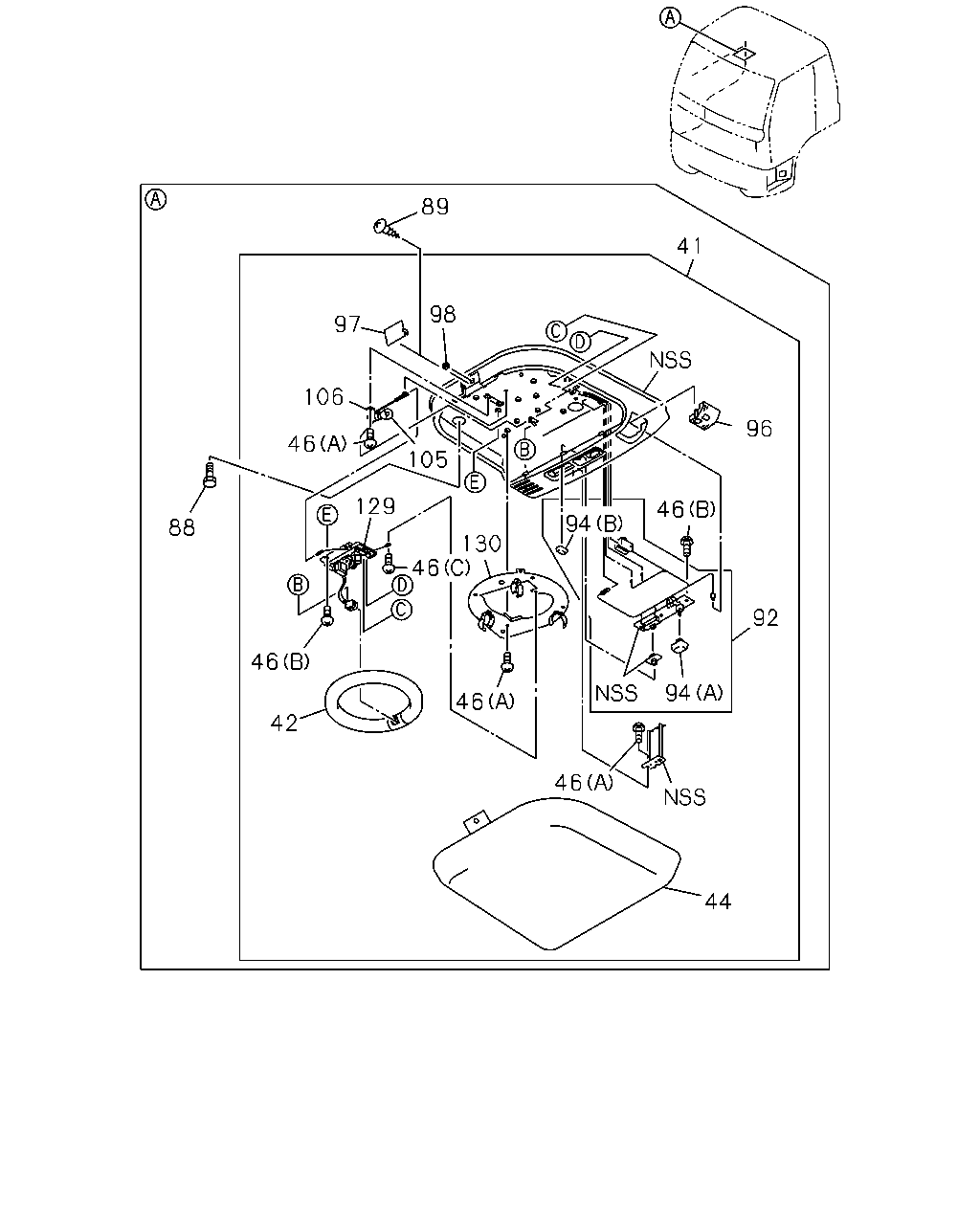

çizim 136371
89 97 106 46 88 46 42 46 46 129 105 98 130 41 96 46 94 92 94 46 44
BalonParca AdiParca NoAdetTipApplied Date
41 LAMP ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> EXC. LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> 		1-86830-323-1 01 1 1412-
41 LAMP ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> 		1-86830-315-2 01 1 1009-1302
41 LAMP ASM; FLUORESCENT 1-86830-315-2 01 1 1303-1411
41 LAMP ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> 		1-86830-315-2 01 1 1412-
42 LAMP; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> 		1-86830-094-1 01 1 1009-1302
42 LAMP; FLUORESCENT 1-86830-094-1 01 1 1303-1411
42 LAMP; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> 		1-86830-094-1 01 1 1412-
44 LENS; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-092-0 01 1 1009-1302
44 LENS; FLUORESCENT LAMP 1-86830-092-0 01 1 1303-1411
44 LENS; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-092-0 01 1 1412-
46 SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (A) M5X10 TAPPING 		1-86830-095-0 08 1 1009-1302
46 SCREW; FLUORESCENT LAMP
(A) M5X10 TAPPING 		1-86830-095-0 08 1 1303-1411
46 SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (A) M5X10 TAPPING 		1-86830-095-0 08 1 1412-
46 SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (B) M4X12 		1-86830-202-0 07 1 1009-1302
46 SCREW; FLUORESCENT LAMP
(B) M4X12 		1-86830-202-0 07 1 1303-1411
46 SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (B) M4X12 		1-86830-202-0 07 1 1412-
46 SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (C) M3X6 TAPPING 		1-86830-336-0 01 1 1009-1302
46 SCREW; FLUORESCENT LAMP
(C) M3X6 TAPPING 		1-86830-336-0 01 1 1303-1411
46 SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (C) M3X6 TAPPING 		1-86830-336-0 01 1 1412-
88 BOLT; LAMP
ROOM LAMP FLUORESCENT<NGG> M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1009-1302
88 BOLT; LAMP
M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1303-1411
88 BOLT; LAMP
ROOM LAMP FLUORESCENT<NGG> M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1412-
89 SCREW; LENS,FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> M5X10 TAPPING 		0-71240-510-0 01 1 1009-1302
89 SCREW; LENS,FLUORESCENT LAMP
M5X10 TAPPING 		0-71240-510-0 01 1 1303-1411
89 SCREW; LENS,FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> M5X10 TAPPING 		0-71240-510-0 01 1 1412-
92 SWITCH ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> EXC. LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> 		1-86830-341-0 01 1 1412-
92 SWITCH ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> 		1-86830-306-0 01 1 1009-1302
92 SWITCH ASM; FLUORESCENT 1-86830-306-0 01 1 1303-1411
92 SWITCH ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> 		1-86830-306-0 01 1 1412-
94 KNOB; ROOM LAMP SW
ROOM LAMP FLUORESCENT<NGG> (A) 		1-86830-312-0 01 1 1009-1302
94 KNOB; ROOM LAMP SW
(A) 		1-86830-312-0 01 1 1303-1411
94 KNOB; ROOM LAMP SW
ROOM LAMP FLUORESCENT<NGG> (A) 		1-86830-312-0 01 1 1412-
94 KNOB; ROOM LAMP SW
ROOM LAMP FLUORESCENT<NGG> (B) 		1-86830-313-0 01 1 1009-1302
94 KNOB; ROOM LAMP SW
(B) 		1-86830-313-0 01 1 1303-1411
94 KNOB; ROOM LAMP SW
ROOM LAMP FLUORESCENT<NGG> (B) 		1-86830-313-0 01 1 1412-
96 CAP; SPOT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-385-0 01 1 1009-1302
96 CAP; SPOT LAMP 1-86830-385-0 01 1 1303-1411
96 CAP; SPOT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-385-0 01 1 1412-
97 CAP; LENS FIX
ROOM LAMP FLUORESCENT<NGG> 		1-86830-311-0 01 1 1009-1302
97 CAP; LENS FIX 1-86830-311-0 01 1 1303-1411
97 CAP; LENS FIX
ROOM LAMP FLUORESCENT<NGG> 		1-86830-311-0 01 1 1412-
98 GROMMET; SCREW,LENS FIX
ROOM LAMP FLUORESCENT<NGG> 		1-86830-102-0 01 1 1009-1302
98 GROMMET; SCREW,LENS FIX 1-86830-102-0 01 1 1303-1411
98 GROMMET; SCREW,LENS FIX
ROOM LAMP FLUORESCENT<NGG> 		1-86830-102-0 01 1 1412-
105 BULB; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 28V 20W 		1-86830-200-0 01 1 1009-1302
105 BULB; FLUORESCENT LAMP
28V 20W 		1-86830-200-0 01 1 1303-1411
105 BULB; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 28V 20W 		1-86830-200-0 01 1 1412-
106 SOCKET; BULB
ROOM LAMP FLUORESCENT<NGG> 		1-86830-201-0 01 1 1009-1302
106 SOCKET; BULB 1-86830-201-0 01 1 1303-1411
106 SOCKET; BULB
ROOM LAMP FLUORESCENT<NGG> 		1-86830-201-0 01 1 1412-
129 INVERTER ASM; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-338-0 01 1 1009-1302
129 INVERTER ASM; FLUORESCENT LAMP 1-86830-338-0 01 1 1303-1411
129 INVERTER ASM; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-338-0 01 1 1412-
130 PLATE ASM; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-339-0 01 1 1009-1302
130 PLATE ASM; FLUORESCENT LAMP 1-86830-339-0 01 1 1303-1411
130 PLATE ASM; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-339-0 01 1 1412-
