Isuzu WW
▶
TRUCKS
▶
EXR
▶
11292 - EXR RHD EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶
8-01 — LAMP; FRONT AND FRONT SIDE
(#70176) — 202 parça
◀

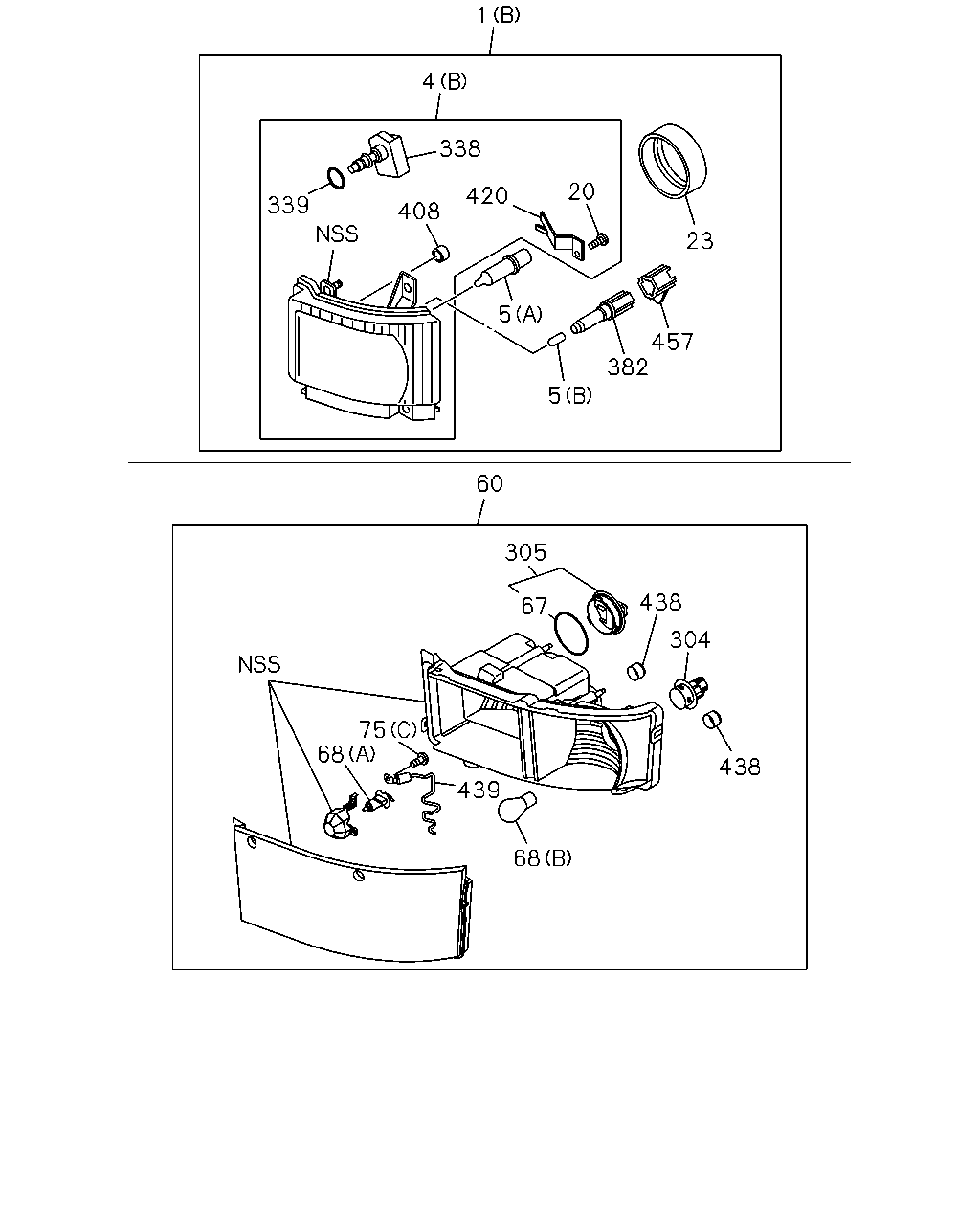

[801A] -'13/2 COMPONENT;HEADLAMP (25 parça)

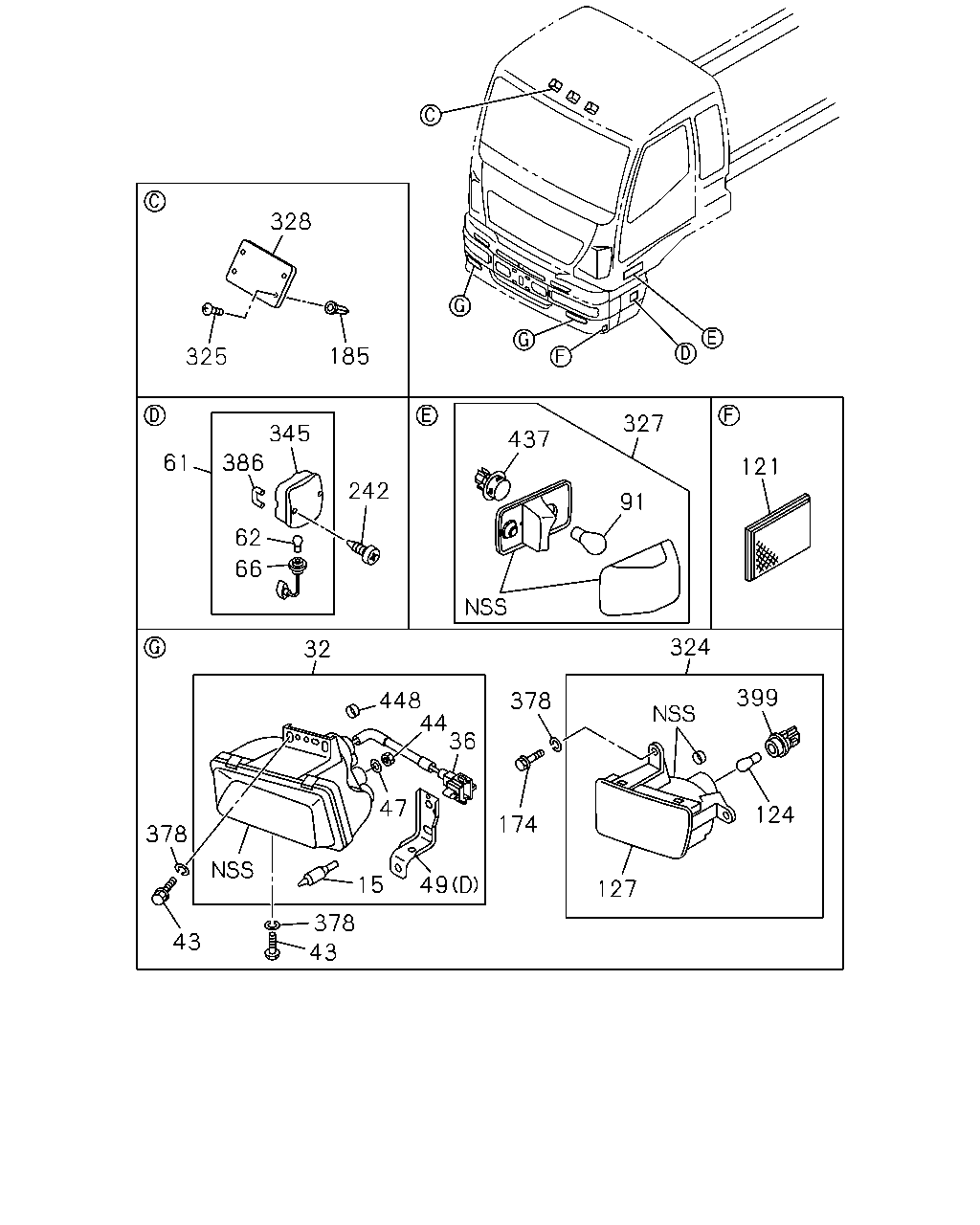

[801A] -'13/2 CORNERING,FOG,FLASHER LAMP (46 parça)

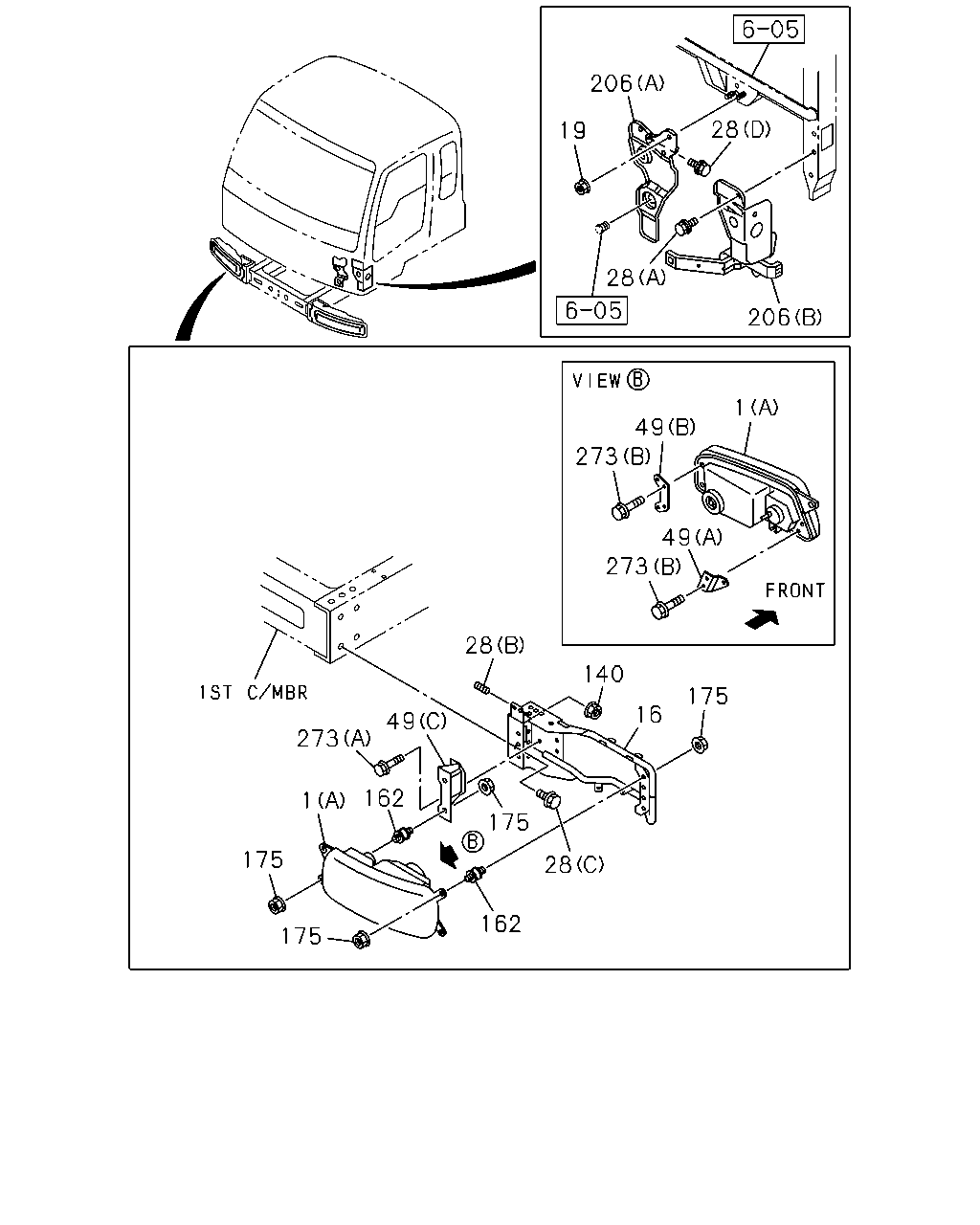

[801A] -'13/2 FIXING;HEADLAMP (38 parça)

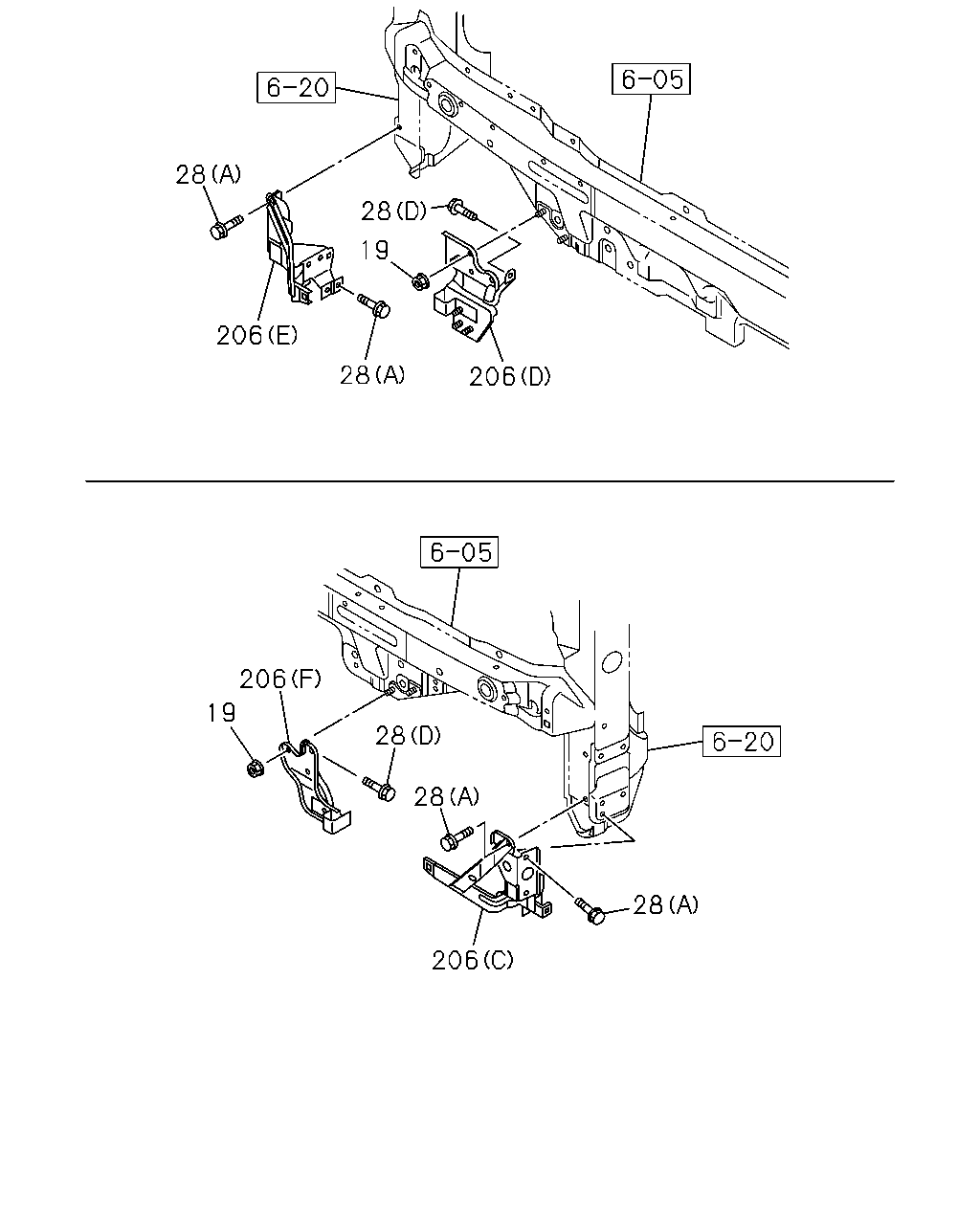

[801A] '13/3- FIXING;HEADLAMP (33 parça)

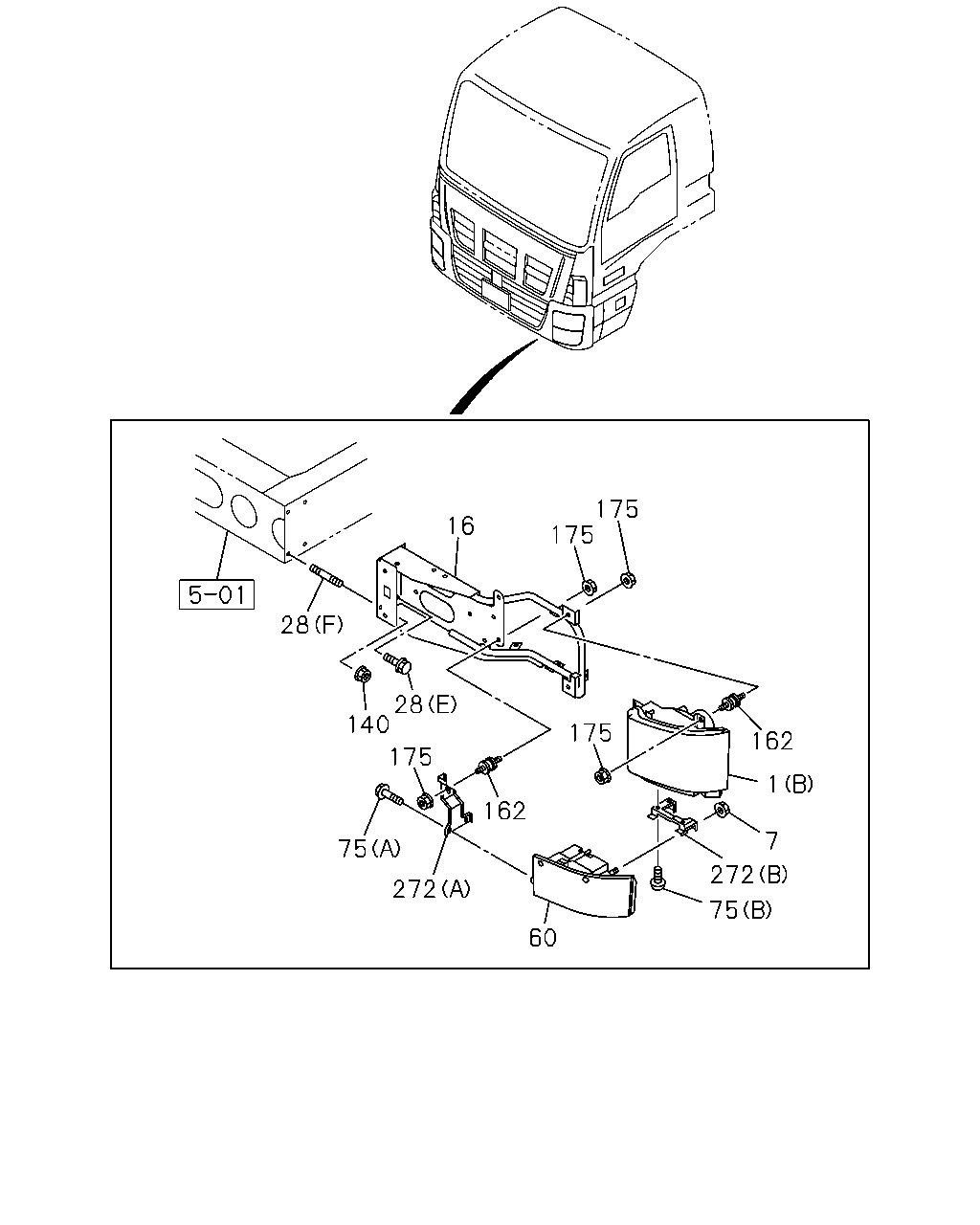

[801A] '13/3- COMPONENT;HEAD,COMB LAMP (37 parça)
[801A] '13/3- BRACKET (15 parça)
[801A] '13/3- OTHER LAMP (8 parça)
▶
1
4
13
211
340
13
12
5
202
202
18
23
14
339
338
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
(A)
8-98097-188-0
01
1
1009-1302
1
LAMP ASM; HEAD
(B)
8-98225-620-0
01
1
1303-1305
1
LAMP ASM; HEAD
(B)
8-98241-312-0
01
1
1306-
1
LAMP ASM; HEAD
(A)
8-98097-189-0
01
1
1009-1302
1
LAMP ASM; HEAD
(B)
8-98225-621-0
01
1
1303-1305
1
LAMP ASM; HEAD
(B)
8-98241-313-0
01
1
1306-
4
HEADLAMP UNIT
(A)
1-82119-214-0
01
1
1009-1302
4
HEADLAMP UNIT
(B)
8-98199-566-0
01
1
1303-
4
HEADLAMP UNIT
(A)
1-82119-215-0
01
1
1009-1302
4
HEADLAMP UNIT
(B)
8-98199-567-0
01
1
1303-
5
BULB; HEADLAMP
(B) 24V 5W
1-82194-042-0
02
1
1303-
5
BULB; HEADLAMP
(A) 24V 75/70W
1-82194-063-0
02
1
1009-
12
HARNESS; HEADLAMP
1-82118-014-0
02
1
1009-1302
13
CLIP; HEADLAMP
(A)
1-82119-084-0
02
1
1009-1302
13
CLIP; HEADLAMP
(B)
8-94381-588-0
14
1
1009-1302
14
CAP; BULB,LAMP
1-86830-148-0
02
1
1009-1302
18
SCREW; GEAR CASE
M4X16 TAPPING
1-82119-067-0
08
1
1009-1302
23
COVER; BULB,HEADLAMP
1-86830-147-0
02
1
1009-1302
23
COVER; BULB,HEADLAMP
8-97232-491-0
02
1
1303-
202
GEAR UNIT; HEADLAMP
1-86830-139-0
04
1
1009-1302
211
TUBE; HEADLAMP
8-98101-137-0
01
1
1009-1302
211
TUBE; HEADLAMP
8-98101-138-0
01
1
1009-1302
338
LEVELING; HEADLAMP
8-98010-256-0
02
1
1009-
339
GASKET; LEVELING
1-86830-158-0
02
1
1009-
340
BULB; POSITION
24V 5W
1-82194-042-0
02
1
1009-1302
328
325
185
345
386
61
242
62
66
437
327
91
121
32
448
44
36
47
378
43
43
378
15
49
174
378
324
399
124
127
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
BULB; FOG LAMP
24V 70W
1-82194-106-0
02
1
1009-1302
32
LAMP ASM; FOG
8-98149-150-1
01
1
1009-1301
32
LAMP ASM; FOG
8-98232-065-0
01
1
1302-1302
32
LAMP ASM; FOG
8-98149-149-1
01
1
1009-1301
32
LAMP ASM; FOG
8-98232-064-0
01
1
1302-1302
36
CORD; FOG LAMP
1-82118-016-0
01
1
1009-1302
36
CORD; FOG LAMP
1-82118-015-0
01
1
1009-1302
43
BOLT; FOG LAMP
M6X20 FLANGE
0-28650-620-0
04
1
1009-1302
43
BOLT; FOG LAMP
FRONT SPOILER<VP1> M8X20 FLANGE
0-28650-820-0
02
1
1009-1302
43
BOLT; FOG LAMP
EXC. FRONT SPOILER<VP1> M6X20 FLANGE
0-28650-620-0
02
1
1009-1302
44
NUT; FOG LAMP
M6
8-98217-430-0
02
1
1205-1302
47
WASHER; PL,FOG LAMP
8-98217-429-0
02
1
1205-1302
49
BRACKET; LAMP
(A)
1-82117-100-0
02
1
1009-1302
49
BRACKET; LAMP
(B)
1-82117-101-1
01
1
1009-1302
49
BRACKET; LAMP
(B)
1-82117-102-1
01
1
1009-1302
49
BRACKET; LAMP
(C)
1-82117-176-0
01
1
1009-1302
49
BRACKET; LAMP
(C)
1-82117-177-0
01
1
1009-1302
49
BRACKET; LAMP
(D)
8-98051-437-0
01
1
1009-1302
49
BRACKET; LAMP
(D)
8-98051-438-0
01
1
1009-1302
61
LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W
1-86830-389-1
01
1
1009-1302
61
LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W
1-86830-388-1
01
1
1009-1302
62
BULB; CORNERING LAMP
CORNERING LAMP<TDS> 24V 30W
8-97010-179-0
02
1
1009-1302
66
HARNESS; CORNERING LAMP
CORNERING LAMP<TDS>
1-86830-146-0
02
1
1009-1302
91
BULB; SIDE TURN SIGNAL
24V 21W
8-98051-495-0
02
1
1009-
121
REFLECTOR; REFLEX
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)
8-98013-990-1
02
1
1009-1302
124
BULB; FRT TURN SIGNAL
24V 21W
1-82194-105-0
02
1
1009-1302
127
LENS; FRT TURN SIGNAL
ORANGE
1-82215-074-0
01
1
1009-1302
127
LENS; FRT TURN SIGNAL
ORANGE
1-82215-073-0
01
1
1009-1302
174
BOLT
M6X20 FLANGE
0-28650-620-0
04
1
1009-1302
185
GROMMET; SCREW
M5 SCREW GROMMET
1-09983-131-0
12
1
1009-
242
SCREW; CORNERING LAMP
CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS
0-71090-420-0
04
1
1009-1302
324
LAMP; FRT FLASHER
1-82210-260-1
01
1
1009-1302
324
LAMP; FRT FLASHER
1-82210-259-1
01
1
1009-1302
325
SCREW; SPD INDICATOR LAMP
M5X14 TAPPING
0-71040-514-0
12
1
1009-
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-181-3
01
1
1009-
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-180-4
01
1
1009-
328
COVER; LAMP
1-76217-122-1
03
1
1009-
345
LAMP UNIT; CORNERING
CORNERING LAMP<TDS>
8-98004-042-0
01
1
1009-1302
345
LAMP UNIT; CORNERING
CORNERING LAMP<TDS>
8-98004-041-0
01
1
1009-1302
378
WASHER; PL
ID=6.4
0-91610-606-0
04
1
1009-1302
378
WASHER; PL
ID=6.4
0-91610-606-0
04
1
1009-1302
378
WASHER; PL
EXC. FRONT SPOILER<VP1> ID=6.4
0-91610-606-0
02
1
1009-1302
386
TUBE; CORNERING LAMP
CORNERING LAMP<TDS>
8-94451-175-0
02
1
1009-1302
399
SOCKET; TURN SIGNAL
1-82219-038-0
02
1
1009-1302
437
SOCKET; SIDE,TURN
8-98051-390-0
02
1
1009-
448
CAP ASM; LAMP
8-97378-874-0
02
1
1009-1302
206
28
19
28
206
49
1
273
49
273
175
16
140
28
49
273
162
175
28
162
175
175
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
(A)
8-98097-188-0
01
1
1009-1302
1
LAMP ASM; HEAD
(B)
8-98225-620-0
01
1
1303-1305
1
LAMP ASM; HEAD
(B)
8-98241-312-0
01
1
1306-
1
LAMP ASM; HEAD
(A)
8-98097-189-0
01
1
1009-1302
1
LAMP ASM; HEAD
(B)
8-98225-621-0
01
1
1303-1305
1
LAMP ASM; HEAD
(B)
8-98241-313-0
01
1
1306-
16
BRACKET; HEADLAMP
8-97608-505-1
01
1
1009-1302
16
BRACKET; HEADLAMP
8-98121-414-3
01
1
1303-
16
BRACKET; HEADLAMP
8-97613-935-0
01
1
1009-1302
16
BRACKET; HEADLAMP
8-98121-415-3
01
1
1303-
19
NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE
1-09985-340-0
04
1
1009-
28
BOLT; HEADLAMP
(C) M10X30 FLANGE
0-28651-030-0
06
1
1009-1302
28
BOLT; HEADLAMP
(E) M12X35 FLANGE
0-28051-235-0
04
1
1303-
28
BOLT; HEADLAMP
(B) M10X28,M10X15 L=50
5-09300-050-0
02
1
1009-1302
28
BOLT; HEADLAMP
(F) M12X30,M12X16 L=56
8-98144-947-0
04
1
1303-
28
BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
06
1
1009-
28
BOLT; HEADLAMP
(D) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
1009-
49
BRACKET; LAMP
(A)
1-82117-100-0
02
1
1009-1302
49
BRACKET; LAMP
(B)
1-82117-101-1
01
1
1009-1302
49
BRACKET; LAMP
(B)
1-82117-102-1
01
1
1009-1302
49
BRACKET; LAMP
(C)
1-82117-176-0
01
1
1009-1302
49
BRACKET; LAMP
(C)
1-82117-177-0
01
1
1009-1302
49
BRACKET; LAMP
(D)
8-98051-437-0
01
1
1009-1302
49
BRACKET; LAMP
(D)
8-98051-438-0
01
1
1009-1302
140
NUT
M10 FLANGE
0-91180-210-0
02
1
1009-1302
140
NUT
M12 FLANGE
0-91180-212-0
04
1
1303-
162
RUBBER; CUSHION UPR
1-82117-086-0
08
1
1009-
175
NUT; BRKT CUSHION RUBBER
M8 FLANGE
0-91180-108-0
16
1
1009-
206
HOLDER; HEADLAMP
(A)
1-65671-570-6
01
1
1009-1302
206
HOLDER; HEADLAMP
(F)
8-98121-219-1
01
1
1303-
206
HOLDER; HEADLAMP
(B)
1-65671-762-3
01
1
1009-1302
206
HOLDER; HEADLAMP
(C)
8-98121-335-0
01
1
1303-
206
HOLDER; HEADLAMP
(B)
1-65671-761-3
01
1
1009-1302
206
HOLDER; HEADLAMP
(D)
8-98121-218-2
01
1
1303-
206
HOLDER; HEADLAMP
(A)
1-65671-817-0
01
1
1009-1302
206
HOLDER; HEADLAMP
(E)
8-98121-330-0
01
1
1303-
273
BOLT; BRKT
(A) M8X20 FLANGE
0-28050-820-0
04
1
1009-1302
273
BOLT; BRKT
(B) M6X16 FLANGE
0-28650-616-0
08
1
1009-1302
16
175
175
28
28
140
175
175
62
1
7
272
75
60
162
272
75
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
(A)
8-98097-188-0
01
1
1009-1302
1
LAMP ASM; HEAD
(B)
8-98225-620-0
01
1
1303-1305
1
LAMP ASM; HEAD
(B)
8-98241-312-0
01
1
1306-
1
LAMP ASM; HEAD
(A)
8-98097-189-0
01
1
1009-1302
1
LAMP ASM; HEAD
(B)
8-98225-621-0
01
1
1303-1305
1
LAMP ASM; HEAD
(B)
8-98241-313-0
01
1
1306-
7
NUT; FRT COMB LAMP
M6 FLANGE
0-91180-106-0
04
1
1303-
16
BRACKET; HEADLAMP
8-97608-505-1
01
1
1009-1302
16
BRACKET; HEADLAMP
8-98121-414-3
01
1
1303-
16
BRACKET; HEADLAMP
8-97613-935-0
01
1
1009-1302
16
BRACKET; HEADLAMP
8-98121-415-3
01
1
1303-
28
BOLT; HEADLAMP
(C) M10X30 FLANGE
0-28651-030-0
06
1
1009-1302
28
BOLT; HEADLAMP
(E) M12X35 FLANGE
0-28051-235-0
04
1
1303-
28
BOLT; HEADLAMP
(B) M10X28,M10X15 L=50
5-09300-050-0
02
1
1009-1302
28
BOLT; HEADLAMP
(F) M12X30,M12X16 L=56
8-98144-947-0
04
1
1303-
28
BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
06
1
1009-
28
BOLT; HEADLAMP
(D) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
1009-
60
LAMP ASM; FRT COMB
8-98159-978-2
01
1
1303-1303
60
LAMP ASM; FRT COMB
8-98238-625-0
01
1
1303-
60
LAMP ASM; FRT COMB
8-98159-979-2
01
1
1303-1303
60
LAMP ASM; FRT COMB
8-98238-626-0
01
1
1303-
62
BULB; CORNERING LAMP
CORNERING LAMP<TDS> 24V 30W
8-97010-179-0
02
1
1009-1302
75
SCREW; FRT COMB LAMP
(A) M6X16 FLANGE
0-28650-616-0
04
1
1303-
75
SCREW; FRT COMB LAMP
(B) M5X16 TAPPING W/PL WASHER
0-74360-516-0
06
1
1303-
75
SCREW; FRT COMB LAMP
(C)
8-98074-439-0
02
1
1303-
140
NUT
M10 FLANGE
0-91180-210-0
02
1
1009-1302
140
NUT
M12 FLANGE
0-91180-212-0
04
1
1303-
162
RUBBER; CUSHION UPR
1-82117-086-0
08
1
1009-
175
NUT; BRKT CUSHION RUBBER
M8 FLANGE
0-91180-108-0
16
1
1009-
272
BRACKET; FRT COMB LAMP
(A)
8-98051-934-0
01
1
1303-
272
BRACKET; FRT COMB LAMP
(A)
8-98051-935-0
01
1
1303-
272
BRACKET; FRT COMB LAMP
(B)
8-98051-937-0
01
1
1303-
272
BRACKET; FRT COMB LAMP
(B)
8-98051-938-0
01
1
1303-
1
4
338
20
420
23
457
382
5
5
408
339
60
305
67
438
304
438
68
439
75
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
(A)
8-98097-188-0
01
1
1009-1302
1
LAMP ASM; HEAD
(B)
8-98225-620-0
01
1
1303-1305
1
LAMP ASM; HEAD
(B)
8-98241-312-0
01
1
1306-
1
LAMP ASM; HEAD
(A)
8-98097-189-0
01
1
1009-1302
1
LAMP ASM; HEAD
(B)
8-98225-621-0
01
1
1303-1305
1
LAMP ASM; HEAD
(B)
8-98241-313-0
01
1
1306-
4
HEADLAMP UNIT
(A)
1-82119-214-0
01
1
1009-1302
4
HEADLAMP UNIT
(B)
8-98199-566-0
01
1
1303-
4
HEADLAMP UNIT
(A)
1-82119-215-0
01
1
1009-1302
4
HEADLAMP UNIT
(B)
8-98199-567-0
01
1
1303-
5
BULB; HEADLAMP
(B) 24V 5W
1-82194-042-0
02
1
1303-
5
BULB; HEADLAMP
(A) 24V 75/70W
1-82194-063-0
02
1
1009-
20
SCREW; HEADLAMP
8-97378-871-0
06
1
1303-
23
COVER; BULB,HEADLAMP
1-86830-147-0
02
1
1009-1302
23
COVER; BULB,HEADLAMP
8-97232-491-0
02
1
1303-
60
LAMP ASM; FRT COMB
8-98159-978-2
01
1
1303-1303
60
LAMP ASM; FRT COMB
8-98238-625-0
01
1
1303-
60
LAMP ASM; FRT COMB
8-98159-979-2
01
1
1303-1303
60
LAMP ASM; FRT COMB
8-98238-626-0
01
1
1303-
67
GASKET; FRT COMB LAMP
8-98238-656-0
02
1
1303-
68
BULB; FRT COMB LAMP
(A) 24V 70W
1-82194-106-0
02
1
1303-
68
BULB; FRT COMB LAMP
(B) 24V 21W
8-98051-495-0
02
1
1303-
75
SCREW; FRT COMB LAMP
(A) M6X16 FLANGE
0-28650-616-0
04
1
1303-
75
SCREW; FRT COMB LAMP
(B) M5X16 TAPPING W/PL WASHER
0-74360-516-0
06
1
1303-
75
SCREW; FRT COMB LAMP
(C)
8-98074-439-0
02
1
1303-
304
PLUG; SOCKET,FRT COMB LAMP
8-98051-390-0
02
1
1303-
305
COVER; FRT COMB LAMP
8-98074-440-0
02
1
1303-1303
305
COVER; FRT COMB LAMP
8-98240-559-0
02
1
1303-
338
LEVELING; HEADLAMP
8-98010-256-0
02
1
1009-
339
GASKET; LEVELING
1-86830-158-0
02
1
1009-
382
PLUG; SOCKET,HEADLAMP
8-98225-685-0
02
1
1303-
408
CAP; BREATHER,HEADLAMP
8-97378-874-0
02
1
1303-
420
SPRING; BULB,HEADLAMP
8-98218-601-0
02
1
1303-
438
CAP; BREATHER,FRT COMB LAMP
8-97378-874-0
04
1
1303-1303
438
CAP; BREATHER,FRT COMB LAMP
8-97378-874-0
02
1
1303-
439
SPRING SET; COMB LAMP
8-98075-644-0
02
1
1303-
457
GRIP; HEADLAMP
8-98241-354-0
02
1
1306-
28
206
19
28
206
28
28
206
19
28
206
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE
1-09985-340-0
04
1
1009-
28
BOLT; HEADLAMP
(C) M10X30 FLANGE
0-28651-030-0
06
1
1009-1302
28
BOLT; HEADLAMP
(E) M12X35 FLANGE
0-28051-235-0
04
1
1303-
28
BOLT; HEADLAMP
(B) M10X28,M10X15 L=50
5-09300-050-0
02
1
1009-1302
28
BOLT; HEADLAMP
(F) M12X30,M12X16 L=56
8-98144-947-0
04
1
1303-
28
BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
06
1
1009-
28
BOLT; HEADLAMP
(D) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
1009-
206
HOLDER; HEADLAMP
(A)
1-65671-570-6
01
1
1009-1302
206
HOLDER; HEADLAMP
(F)
8-98121-219-1
01
1
1303-
206
HOLDER; HEADLAMP
(B)
1-65671-762-3
01
1
1009-1302
206
HOLDER; HEADLAMP
(C)
8-98121-335-0
01
1
1303-
206
HOLDER; HEADLAMP
(B)
1-65671-761-3
01
1
1009-1302
206
HOLDER; HEADLAMP
(D)
8-98121-218-2
01
1
1303-
206
HOLDER; HEADLAMP
(A)
1-65671-817-0
01
1
1009-1302
206
HOLDER; HEADLAMP
(E)
8-98121-330-0
01
1
1303-
328
185
325
327
437
91
427
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
91
BULB; SIDE TURN SIGNAL
24V 21W
8-98051-495-0
02
1
1009-
185
GROMMET; SCREW
M5 SCREW GROMMET
1-09983-131-0
12
1
1009-
325
SCREW; SPD INDICATOR LAMP
M5X14 TAPPING
0-71040-514-0
12
1
1009-
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-181-3
01
1
1009-
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-180-4
01
1
1009-
328
COVER; LAMP
1-76217-122-1
03
1
1009-
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
02
1
1307-
437
SOCKET; SIDE,TURN
8-98051-390-0
02
1
1009-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
