◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11292 - EXR RHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶

7-70 — SEPARATER AND BED (#70175) — 120 parça

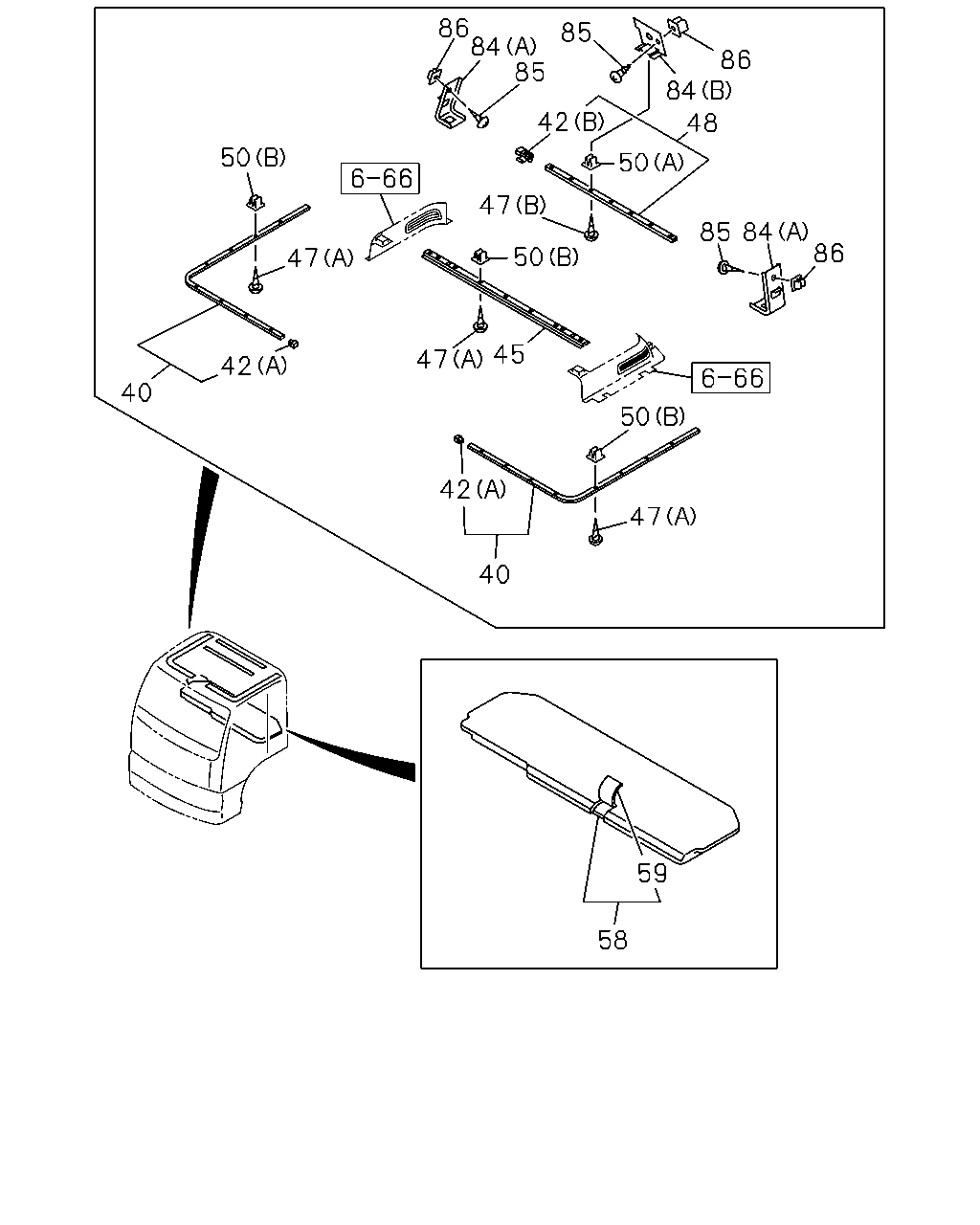

40 42 50 47 47 45 42 40 47 50 50 85 84 86 50 48 84 86 85 85 84 86 47 59 58 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	1412-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	1412-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	1009-1302
40	RAIL; CURTAIN,SIDE	1-73907-538-1	01	1	1303-1411
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	1412-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	1009-1302
40	RAIL; CURTAIN,SIDE	1-73907-537-1	01	1	1303-1411
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	1412-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	1009-1302
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	1009-1302
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	1412-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	1412-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	1009-1302
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	04	1	1303-1411
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	1412-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	1009-1302
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	02	1	1303-1411
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	1412-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	1009-1302
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	1009-1302
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-545-2	01	1	1412-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-3	01	1	1009-1302
45	RAIL; CURTAIN,FRT	1-73907-546-3	01	1	1303-1411
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>	1-73907-546-3	01	1	1412-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	1009-1302
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	1009-1302
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	1303-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	1009-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	1412-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	1009-1302
48	RAIL; CURTAIN,BACK	1-73996-386-1	01	1	1303-1411
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	1412-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	1009-1302
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	1009-
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	1009-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-112-2	01	1	1009-1302
58	BED; MAT	1-75127-112-2	01	1	1303-1411
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-112-2	01	1	1412-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-130-1	01	1	1009-1302
59	COVER ASM; TRIM,BED MAT	1-75127-130-1	01	1	1303-1411
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-130-1	01	1	1412-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	1009-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	1009-
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	1009-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	1009-

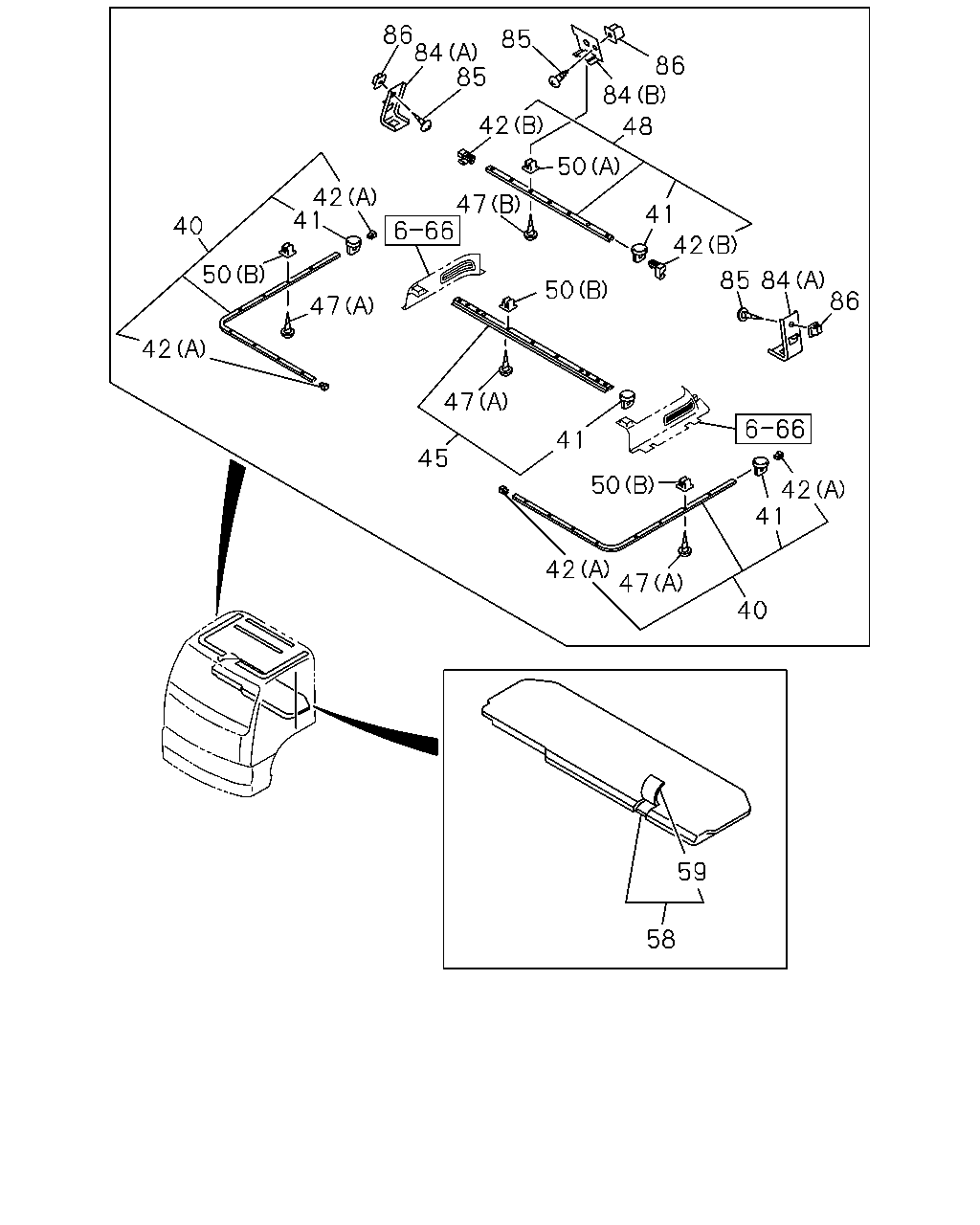

86 85 84 48 86 84 85 42 50 41 42 85 84 86 47 50 42 41 40 50 47 47 41 50 41 42 42 45 42 47 40 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	1412-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	1412-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	1009-1302
40	RAIL; CURTAIN,SIDE	1-73907-538-1	01	1	1303-1411
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	1412-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	1009-1302
40	RAIL; CURTAIN,SIDE	1-73907-537-1	01	1	1303-1411
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	1412-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	1009-1302
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	1009-1302
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	42	1	1009-1302
41	HOOK; CURTAIN RAIL H=14.5 WHITE	1-73996-398-0	42	1	1303-1411
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	42	1	1412-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	1009-1302
41	HOOK; CURTAIN RAIL H=14.5 WHITE	1-73996-398-0	14	1	1303-1411
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	14	1	1412-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	1412-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	1412-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	1009-1302
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	04	1	1303-1411
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	1412-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	1009-1302
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	02	1	1303-1411
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	1412-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	1009-1302
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	1009-1302
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-545-2	01	1	1412-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-3	01	1	1009-1302
45	RAIL; CURTAIN,FRT	1-73907-546-3	01	1	1303-1411
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>	1-73907-546-3	01	1	1412-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	1009-1302
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	1009-1302
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	1303-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	1009-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	1412-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	1009-1302
48	RAIL; CURTAIN,BACK	1-73996-386-1	01	1	1303-1411
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	1412-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	1009-1302
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	1009-
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	1009-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-112-2	01	1	1009-1302
58	BED; MAT	1-75127-112-2	01	1	1303-1411
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-112-2	01	1	1412-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-130-1	01	1	1009-1302
59	COVER ASM; TRIM,BED MAT	1-75127-130-1	01	1	1303-1411
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-130-1	01	1	1412-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	1009-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	1009-
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	1009-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	1009-

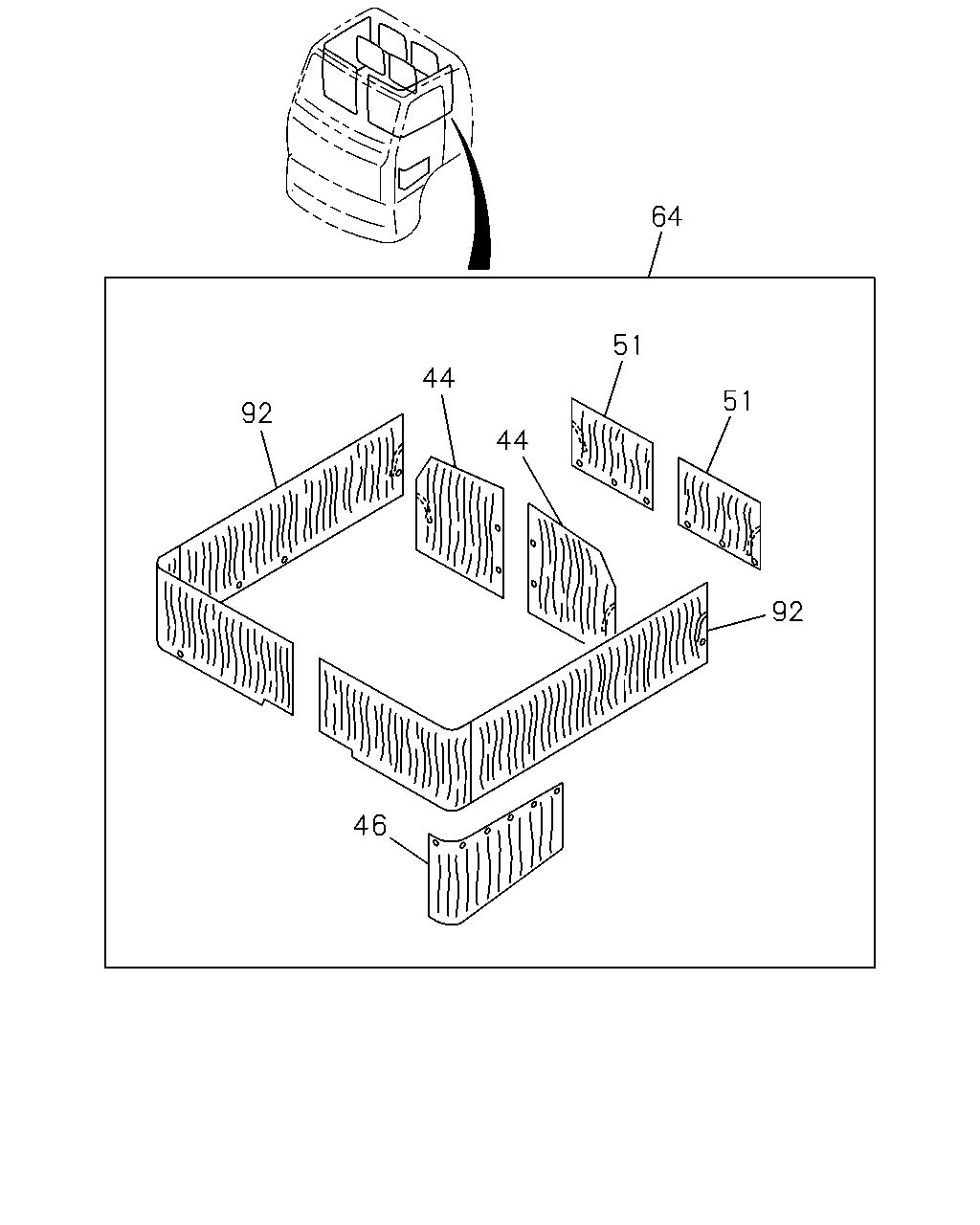

64 92 44 51 51 44 46 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ>	1-73907-480-1	01	1	1009-1302
44	CURTAIN ASM; CABIN CENTER	1-73907-480-1	01	1	1303-1411
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>	1-73907-480-1	01	1	1412-
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ>	1-73907-481-1	01	1	1009-1302
44	CURTAIN ASM; CABIN CENTER	1-73907-481-1	01	1	1303-1411
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>	1-73907-481-1	01	1	1412-
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4> LOW ROOF<6XQ>	1-73907-426-0	01	1	1009-1302
46	CURTAIN ASM; DOOR	1-73907-426-0	01	1	1303-1411
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-426-0	01	1	1412-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> LOW ROOF<6XQ>	1-73907-482-1	01	1	1009-1302
51	CURTAIN; BACK	1-73907-482-1	01	1	1303-1411
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-482-1	01	1	1412-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> LOW ROOF<6XQ>	1-73907-483-1	01	1	1009-1302
51	CURTAIN; BACK	1-73907-483-1	01	1	1303-1411
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-483-1	01	1	1412-
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> LOW ROOF<6XQ>	1-73907-479-1	01	1	1009-1302
64	CURTAIN KIT	1-73907-479-1	01	1	1303-1411
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73907-479-1	01	1	1412-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> LOW ROOF<6XQ>	1-73907-484-1	01	1	1009-1302
92	CURTAIN ASM; ROUND	1-73907-484-1	01	1	1303-1411
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-484-1	01	1	1412-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> LOW ROOF<6XQ>	1-73907-485-1	01	1	1009-1302
92	CURTAIN ASM; ROUND	1-73907-485-1	01	1	1303-1411
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-485-1	01	1	1412-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
