Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#70173) — 307 parça

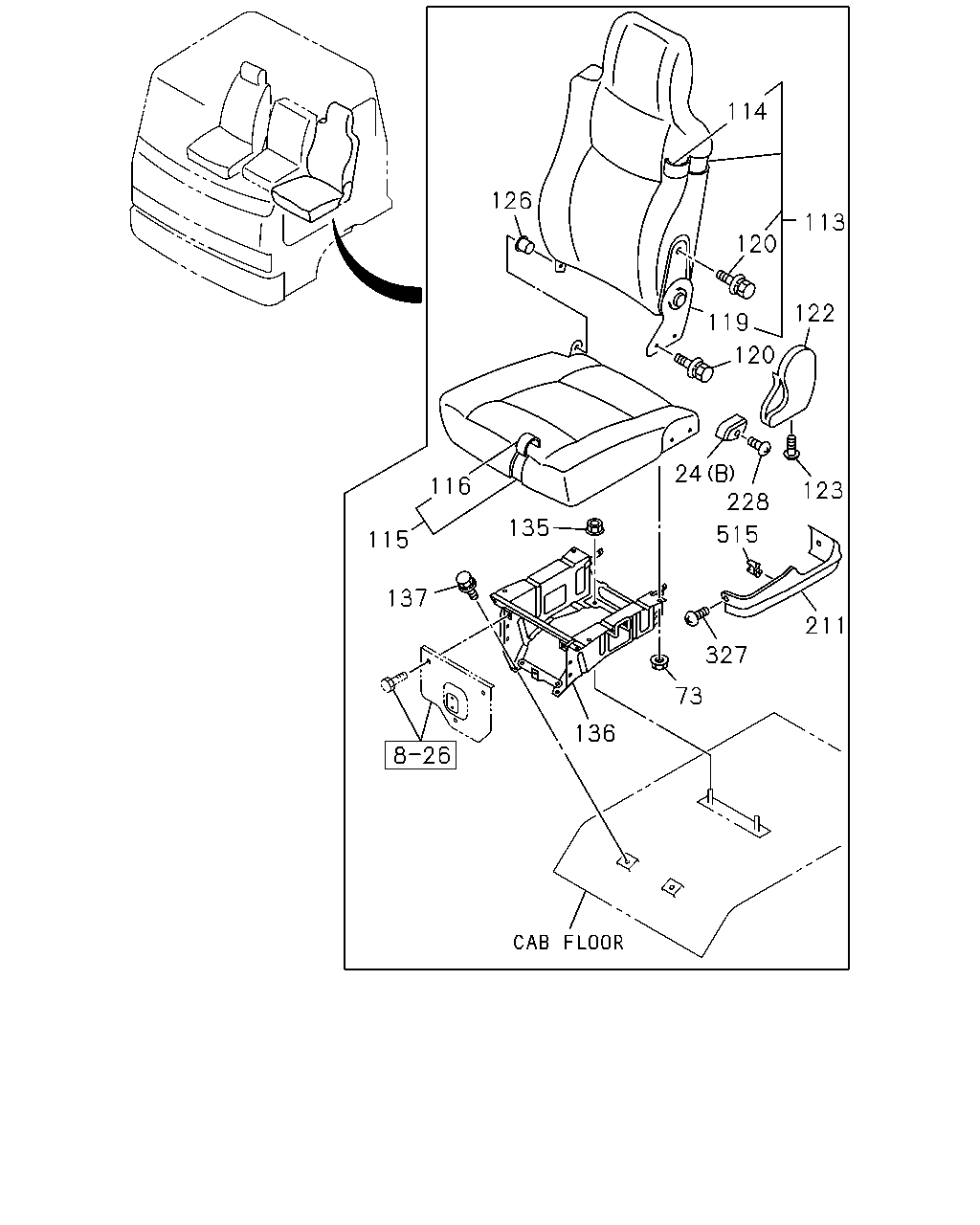

126 114 120 113 122 119 120 24 228 123 515 211 327 73 136 137 115 116 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	KNOB; RECLINING,FRT,SEAT VINYL SEAT(A83) (B) DARK GRAY	8-97859-019-0	01	1	1009-1302
24	KNOB; RECLINING,FRT,SEAT (A)	1-75418-066-0	01	1	1009-1411
24	KNOB; RECLINING,FRT,SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75418-066-0	01	1	1412-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	1009-
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-759-0	01	1	1009-1009
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ)	8-98168-280-0	01	1	1010-1302
113	BACK ASM; SEAT	8-98168-280-0	01	1	1303-
113	BACK ASM; SEAT VINYL SEAT(A83)	1-75207-652-2	01	1	1009-1302
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ)	1-75127-189-0	01	1	1009-1009
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ)	8-98168-295-0	01	1	1010-1302
114	COVER; TRIM,PASSENGER SEAT,BACK	8-98168-295-0	01	1	1303-
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT(A83)	1-75127-171-1	01	1	1009-1302
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-771-0	01	1	1009-1009
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ)	8-98168-131-0	01	1	1010-1302
115	CUSHION ASM; PASSENGER SEAT	8-98168-131-0	01	1	1303-
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT(A83)	1-75207-300-0	01	1	1009-1302
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	1-75127-188-0	01	1	1009-1009
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	8-98168-270-0	01	1	1010-1302
116	COVER; TRIM,PASSENGER SEAT,CUSHION	8-98168-270-0	01	1	1303-
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT(A83)	1-75127-124-0	01	1	1009-1302
119	ADJ; SEAT RECLINING,ASSIST SIDE FABRIC SEAT W/RECLINING(SFQ)	1-75417-597-0	01	1	1009-1302
119	ADJ; SEAT RECLINING,ASSIST SIDE	1-75417-597-0	01	1	1303-
120	BOLT; RECLINING ADJ FABRIC SEAT W/RECLINING(SFQ) M8X20	8-97255-906-0	04	1	1009-1302
120	BOLT; RECLINING ADJ VINYL SEAT(A83) M8X20	8-97255-906-0	02	1	1009-1302
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	04	1	1303-
122	COVER; ADJ,RECLINING FABRIC SEAT W/RECLINING(SFQ)	1-75417-598-0	01	1	1009-1302
122	COVER; ADJ,RECLINING VINYL SEAT(A83) DARK GRAY	8-97859-018-0	01	1	1009-1302
122	COVER; ADJ,RECLINING	1-75417-598-0	01	1	1303-
123	SCREW; COVER,RECLINING FABRIC SEAT W/RECLINING(SFQ) M6X12	9-03490-612-0	01	1	1009-1302
123	SCREW; COVER,RECLINING VINYL SEAT(A83) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	1009-1302
123	SCREW; COVER,RECLINING M6X12	9-03490-612-0	01	1	1303-
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	1009-
135	NUT; SEAT STAND M10 FLANGE	0-91180-110-0	02	1	1009-
136	STAND; PASSENGER SEAT VINYL SEAT(A83)	1-75558-602-3	01	1	1009-1302
136	STAND; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75558-522-8	01	1	1009-1302
136	STAND; PASSENGER SEAT	1-75558-522-8	01	1	1303-1305
136	STAND; PASSENGER SEAT	8-98242-290-0	01	1	1306-
137	BOLT; STAND M10X20 FLANGE	0-28451-020-0	02	1	1009-
211	COVER; FRT SEAT VINYL SEAT(A83)	1-72538-274-0	01	1	1009-1302
228	SCREW; KNOB VINYL SEAT(A83) PASSENGER M4X6	8-97042-273-0	01	1	1009-1302
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	1009-1411
228	SCREW; KNOB SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M4	8-98062-662-0	01	1	1412-
327	CLIP; COVER	1-09987-273-0	02	1	1009-1302
327	CLIP; COVER VINYL SEAT(A83)	1-09987-273-0	02	1	1009-1302
327	CLIP; COVER	1-09987-273-0	02	1	1303-1411
327	CLIP; COVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-273-0	02	1	1412-
515	CLIP; PIPE VINYL SEAT(A83) BLACK	8-94227-248-1	01	1	1009-1302

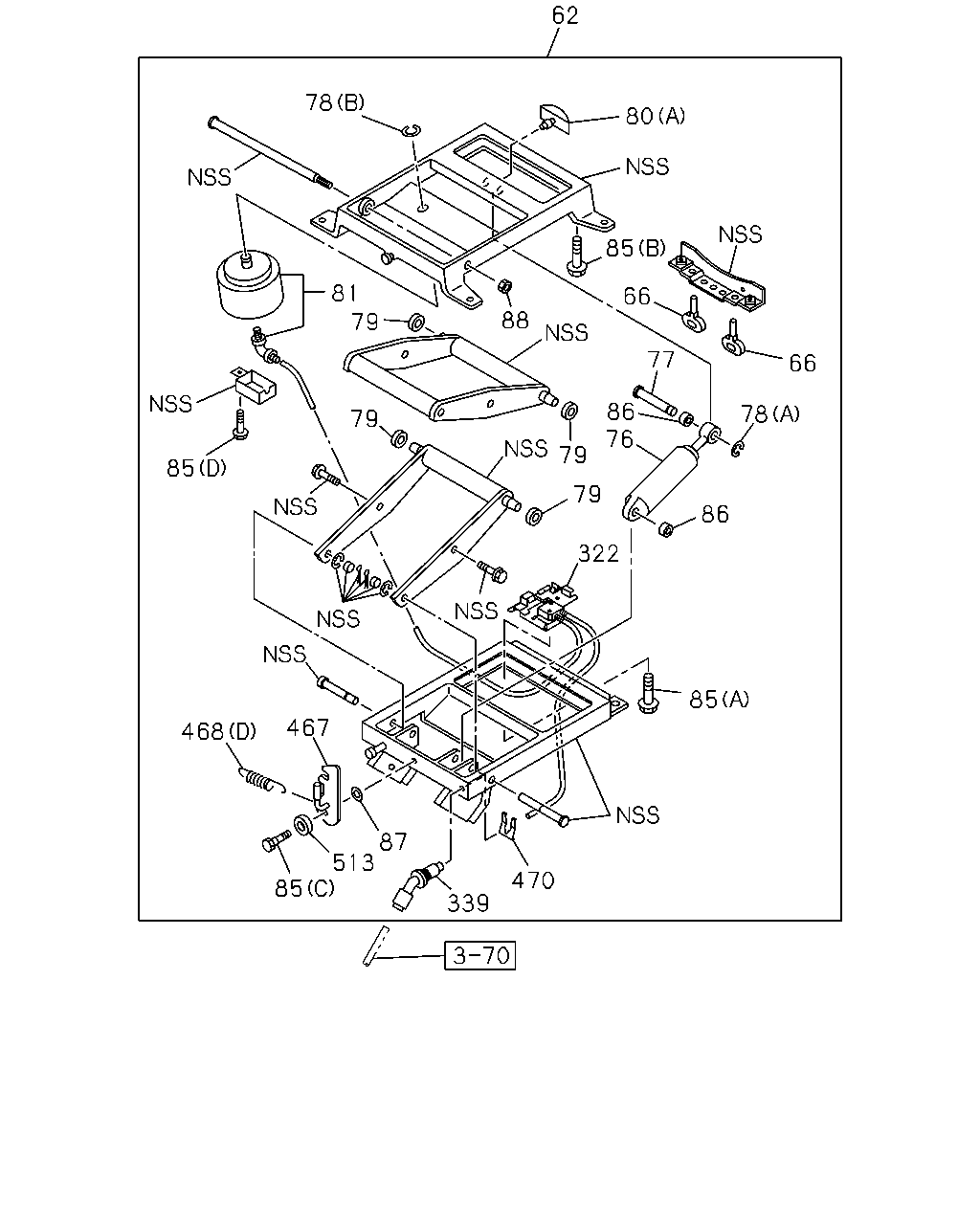

62 80 85 66 77 66 78 86 86 76 79 79 322 85 470 339 88 78 81 79 79 87 513 85 467 468 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-262-7	01	1	1009-1302
62	DAMPER ASM; SEAT SUSP	1-75537-262-8	01	1	1303-1403
62	DAMPER ASM; SEAT SUSP	8-98261-449-0	01	1	1404-1411
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98261-449-0	01	1	1412-
66	RUBBER; LWR STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-145-0	02	1	1009-1302
66	RUBBER; LWR STOPPER	1-75538-145-0	02	1	1303-1411
66	RUBBER; LWR STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-145-0	02	1	1412-
76	DAMPER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-230-2	01	1	1009-1302
76	DAMPER; AIR SUSP	1-75537-230-2	01	1	1303-1411
76	DAMPER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-230-2	01	1	1412-
77	PIN; DAMPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-138-2	01	1	1009-1302
77	PIN; DAMPER	1-75538-138-2	01	1	1303-1411
77	PIN; DAMPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-138-2	01	1	1412-
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	1009-1302
78	RING; SNAP (A) ID=8	9-09185-408-0	01	1	1303-1411
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	1412-
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15	9-09185-415-0	01	1	1009-1302
78	RING; SNAP (B) ID=15	9-09185-415-0	01	1	1303-1411
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15	9-09185-415-0	01	1	1412-
79	ROLLER ASM; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-159-0	04	1	1009-1302
79	ROLLER ASM; AIR SUSP	1-75538-159-0	04	1	1303-1403
79	ROLLER ASM; AIR SUSP	8-98261-489-0	04	1	1404-1411
79	ROLLER ASM; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98261-489-0	04	1	1412-
80	RUBBER; STOPPER CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1009-1302
80	RUBBER; STOPPER CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1303-
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09987-123-0	01	1	1009-1302
80	RUBBER; STOPPER (A)	1-09987-123-0	01	1	1303-1411
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09987-123-0	01	1	1412-
81	SPRING; AIR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-151-2	01	1	1009-1302
81	SPRING; AIR	1-75538-151-2	01	1	1303-1312
81	SPRING; AIR	8-98242-816-0	01	1	1401-1411
81	SPRING; AIR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98242-816-0	01	1	1412-
85	BOLT; AIR SUSP (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-1411
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1412-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09980-577-0	01	1	1009-1302
85	BOLT; AIR SUSP (C)	1-09980-577-1	01	1	1303-1411
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09980-577-1	01	1	1412-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12	1-75538-208-0	02	1	1009-1302
85	BOLT; AIR SUSP (A) M6X12	1-75538-208-1	02	1	1303-1411
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12	1-75538-208-1	02	1	1412-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	1009-1302
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	1303-1312
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-1411
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1412-
86	BUSHING; GUIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1009-1302
86	BUSHING; GUIDE OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1303-1411
86	BUSHING; GUIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1412-
87	WASHER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	0-91510-508-0	01	1	1009-1302
87	WASHER; AIR SUSP ID=8.2	0-91510-508-0	01	1	1303-1411
87	WASHER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	0-91510-508-0	01	1	1412-
88	NUT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10	1-75537-273-1	01	1	1009-1302
88	NUT; AIR SUSP M10	1-75537-273-1	01	1	1303-1411
88	NUT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10	1-75537-273-1	01	1	1412-
322	VALVE; AIR SPRING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-186-2	01	1	1009-1302
322	VALVE; AIR SPRING	1-75538-186-3	01	1	1303-1411
322	VALVE; AIR SPRING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-186-3	01	1	1412-
339	UNION; DRIVER SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-131-3	01	1	1009-1302
339	UNION; DRIVER SEAT	1-75538-131-3	01	1	1303-1411
339	UNION; DRIVER SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-131-3	01	1	1412-
467	LEVER; LOCK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-134-0	01	1	1009-1302
467	LEVER; LOCK	1-75538-134-0	01	1	1303-1411
467	LEVER; LOCK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-134-0	01	1	1412-
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1009-1411
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	01	1	1412-
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1009-1411
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	01	1	1412-
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1009-1411
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	02	1	1412-
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	1009-1302
468	SPRING; RETURN (D)	1-75538-132-0	01	1	1303-1411
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	1412-
470	CLIP; HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-137-0	01	1	1009-1302
470	CLIP; HOSE	1-75538-137-0	01	1	1303-1411
470	CLIP; HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-137-0	01	1	1412-
513	SPACER; LEVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	1009-1302
513	SPACER; LEVER	1-75538-133-0	01	1	1303-1411
513	SPACER; LEVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	1412-

506 360 175 176 16 188 188 189 359 403 179 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING CENTER SEAT(SA1)	1-75418-062-1	01	1	1009-
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	1-75207-762-0	01	1	1009-1011
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT(A83) CENTER SEAT(SA1)	1-75026-856-3	01	1	1009-1302
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	8-98168-329-1	01	1	1012-1302
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT(SA1)	8-98168-329-1	01	1	1303-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT(A83) CENTER SEAT(SA1)	1-75116-710-1	01	1	1009-1302
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	1-75127-191-0	01	1	1009-1011
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	8-98168-332-0	01	1	1012-1302
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT(SA1)	8-98168-332-0	01	1	1303-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT(A83) CENTER SEAT(SA1)	1-75116-696-1	01	1	1009-1302
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	1-75127-190-0	01	1	1009-1011
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	8-98168-326-0	01	1	1012-1302
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT(SA1)	8-98168-326-0	01	1	1303-
182	CUSHION ASM; CENTER SEAT CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	1-75207-761-0	01	1	1009-1011
182	CUSHION ASM; CENTER SEAT VINYL SEAT(A83) CENTER SEAT(SA1)	1-75026-845-4	01	1	1009-1302
182	CUSHION ASM; CENTER SEAT CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	8-98168-318-2	01	1	1012-1302
182	CUSHION ASM; CENTER SEAT CENTER SEAT(SA1)	8-98168-318-2	01	1	1303-
188	BOLT; BACK TO CUSHION CENTER SEAT(SA1) M10X16 FLANGE	1-75198-053-0	04	1	1009-
189	BUSHING; HINGE,CENTER SEAT BACK CENTER SEAT(SA1)	8-97854-900-0	01	1	1009-
359	BOX; PARCEL CENTER SEAT(SA1)	8-98145-114-0	01	1	1009-
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1009-1104
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70080-416-0	06	1	1105-
360	SCREW; PARCEL CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1009-
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1009-
403	NUT; CENTER SEAT CENTER SEAT(SA1) M8 FLANGE	0-91180-108-0	04	1	1009-
506	CAP; PARCEL BOX CENTER SEAT(SA1)	1-09983-180-3	02	1	1009-

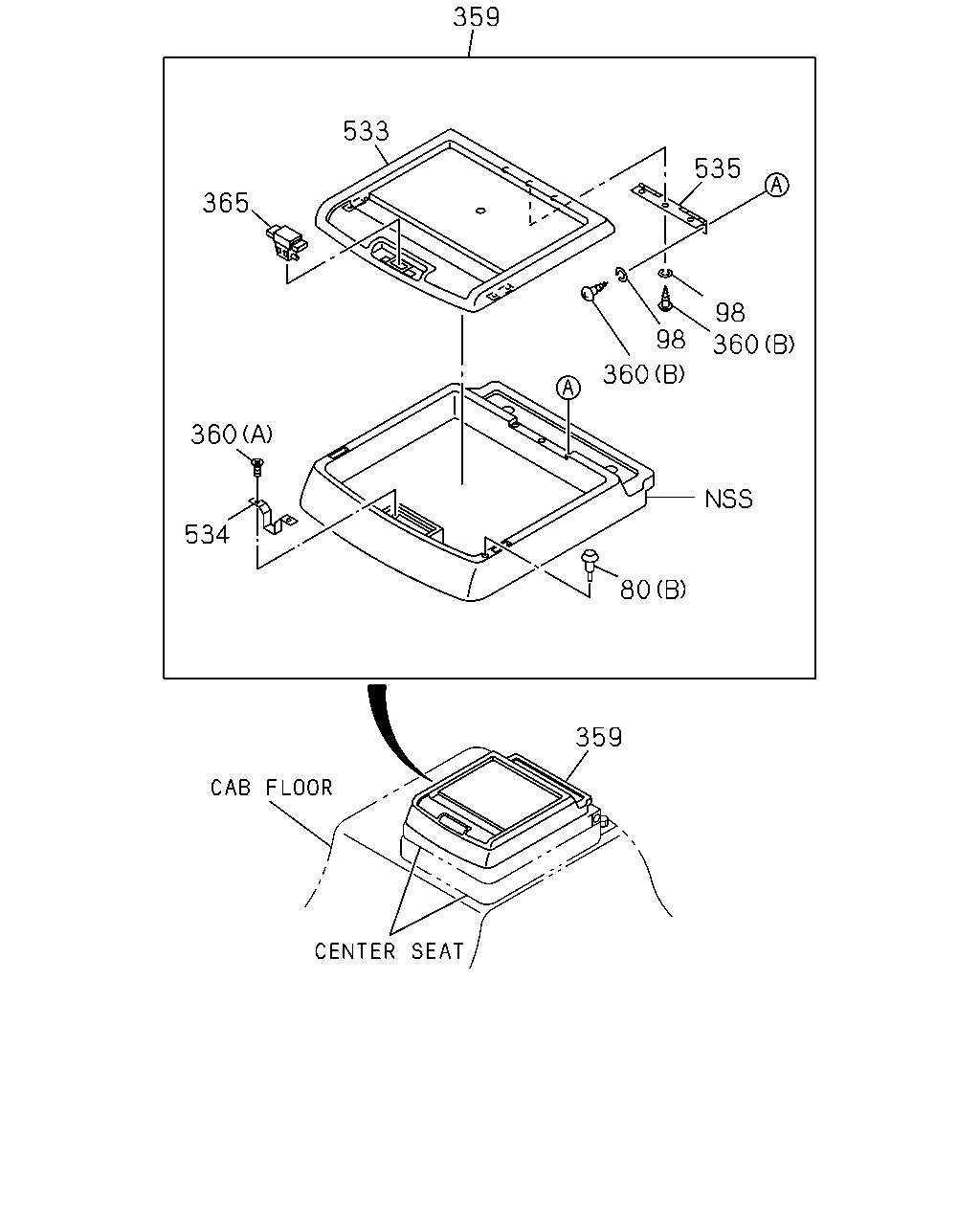

359 533 365 360 534 360 80 359 360 98 98 535

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	RUBBER; STOPPER CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1009-1302
80	RUBBER; STOPPER CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1303-
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09987-123-0	01	1	1009-1302
80	RUBBER; STOPPER (A)	1-09987-123-0	01	1	1303-1411
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09987-123-0	01	1	1412-
98	WASHER; HINGE CENTER SEAT(SA1) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	1009-
359	BOX; PARCEL CENTER SEAT(SA1)	8-98145-114-0	01	1	1009-
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1009-1104
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70080-416-0	06	1	1105-
360	SCREW; PARCEL CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1009-
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1009-
365	LOCK ASM; SEAT CENTER SEAT(SA1)	1-72538-180-0	01	1	1009-
533	LID; PARCEL BOX CENTER SEAT(SA1)	8-98145-118-0	01	1	1009-
534	STRIKER; PARCEL BOX CENTER SEAT(SA1)	1-72538-190-0	01	1	1009-
535	HINGE; PARCEL BOX CENTER SEAT(SA1)	1-72447-391-1	01	1	1009-

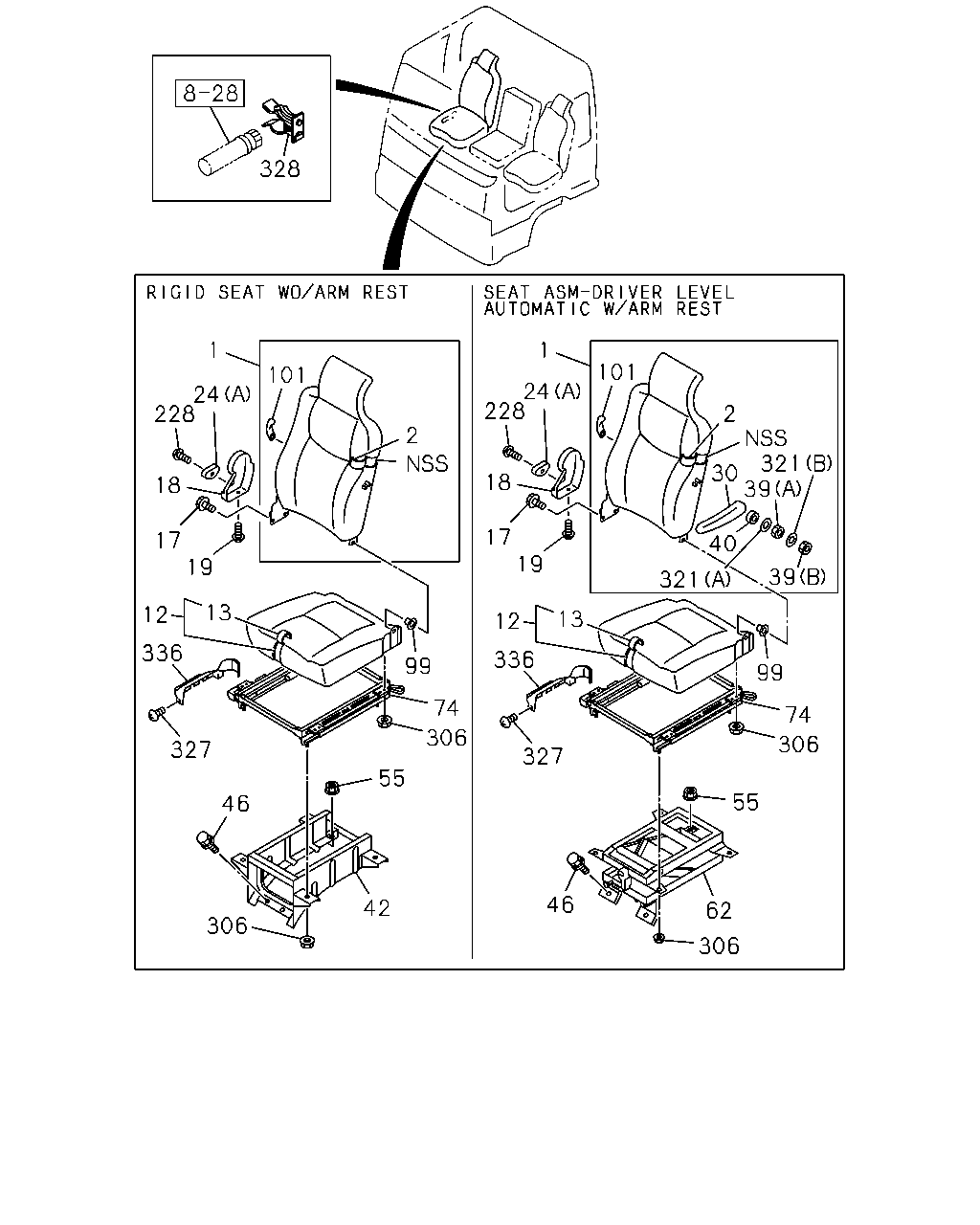

328 306 62 46 55 306 74 99 327 336 12 13 321 39 40 39 321 2 101 19 17 18 228 24 1 42 306 46 55 327 306 74 99 336 12 13 19 17 18 228 24 1 2 101 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98135-639-0	01	1	1009-1009
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-072-0	01	1	1010-1302
1	BACK ASM; SEAT	8-98168-072-0	01	1	1303-1411
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-072-0	01	1	1412-
1	BACK ASM; SEAT VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ)	8-98135-635-0	01	1	1009-1302
1	BACK ASM; SEAT VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98135-630-0	01	1	1009-1302
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-187-0	01	1	1009-1009
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-089-0	01	1	1010-1302
2	COVER; TRIM,FRT SEAT,BACK	8-98168-089-0	01	1	1303-1411
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-089-0	01	1	1412-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ)	1-75127-165-1	01	1	1009-1302
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-146-2	01	1	1009-1302
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-770-0	01	1	1009-1009
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-048-0	01	1	1010-1302
12	CUSHION; SEAT,FRT	8-98168-048-0	01	1	1303-1411
12	CUSHION; SEAT,FRT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-048-0	01	1	1412-
12	CUSHION; SEAT,FRT VINYL SEAT(A83)	1-75207-603-2	01	1	1009-1302
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-186-0	01	1	1009-1009
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-081-0	01	1	1010-1302
13	COVER; TRIM,FRT SEAT,CUSHION	8-98168-081-0	01	1	1303-1411
13	COVER; TRIM,FRT SEAT,CUSHION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-081-0	01	1	1412-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT(A83)	1-75127-102-1	01	1	1009-1302
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	1009-1411
17	BOLT; RECLINING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20	8-97255-906-0	02	1	1412-
18	COVER; RECLINING DARK GRAY	8-97867-020-0	01	1	1009-1411
18	COVER; RECLINING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DARK GRAY	8-97867-020-0	01	1	1412-
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	1009-1411
19	SCREW; COVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	1412-
24	KNOB; RECLINING,FRT,SEAT VINYL SEAT(A83) (B) DARK GRAY	8-97859-019-0	01	1	1009-1302
24	KNOB; RECLINING,FRT,SEAT (A)	1-75418-066-0	01	1	1009-1411
24	KNOB; RECLINING,FRT,SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75418-066-0	01	1	1412-
30	REST ASM; ARM,FRT SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-185-0	01	1	1009-1009
30	REST ASM; ARM,FRT SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-091-0	01	1	1010-1302
30	REST ASM; ARM,FRT SEAT	8-98168-091-0	01	1	1303-1411
30	REST ASM; ARM,FRT SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-091-0	01	1	1412-
30	REST ASM; ARM,FRT SEAT VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-015-1	01	1	1009-1302
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8	1-75147-657-0	01	1	1009-1302
39	NUT; ARM REST (B) M8	1-75147-657-0	01	1	1303-1411
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8	1-75147-657-0	01	1	1412-
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10	9-09110-410-0	01	1	1009-1302
39	NUT; ARM REST (A) M10	9-09110-410-0	01	1	1303-1411
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10	9-09110-410-0	01	1	1412-
40	SPACER; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	1009-1302
40	SPACER; ARM REST	8-94285-921-0	02	1	1303-1411
40	SPACER; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	1412-
42	STAND; DRIVER SEAT VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ)	1-75558-604-1	01	1	1009-1302
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1009-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	1009-
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-262-7	01	1	1009-1302
62	DAMPER ASM; SEAT SUSP	1-75537-262-8	01	1	1303-1403
62	DAMPER ASM; SEAT SUSP	8-98261-449-0	01	1	1404-1411
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98261-449-0	01	1	1412-
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-330-3	01	1	1009-1411
74	ADJUSTER; FRT SEAT,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-330-3	01	1	1412-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98291-644-0	01	1	1503-
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	1009-1411
99	BUSHING; SEAT BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-97854-087-0	01	1	1412-
101	LEVER ASM; LUMBAR	5-75190-138-0	01	1	1009-1411
101	LEVER ASM; LUMBAR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	5-75190-138-0	01	1	1412-
228	SCREW; KNOB VINYL SEAT(A83) PASSENGER M4X6	8-97042-273-0	01	1	1009-1302
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	1009-1411
228	SCREW; KNOB SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M4	8-98062-662-0	01	1	1412-
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	14	1	1009-1411
306	NUT; SEAT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	14	1	1412-
321	WASHER; PL,ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=10.5 OD=22	9-09160-610-0	01	1	1009-1302
321	WASHER; PL,ARM REST (A) ID=10.5 OD=22	9-09160-610-0	01	1	1303-1411
321	WASHER; PL,ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=10.5 OD=22	9-09160-610-0	01	1	1412-
321	WASHER; PL,ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 OD=22	9-09164-708-0	01	1	1009-1302
321	WASHER; PL,ARM REST (B) ID=8.4 OD=22	9-09164-708-0	01	1	1303-1411
321	WASHER; PL,ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 OD=22	9-09164-708-0	01	1	1412-
327	CLIP; COVER	1-09987-273-0	02	1	1009-1302
327	CLIP; COVER VINYL SEAT(A83)	1-09987-273-0	02	1	1009-1302
327	CLIP; COVER	1-09987-273-0	02	1	1303-1411
327	CLIP; COVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-273-0	02	1	1412-
328	CLIP; HANDY WARNING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-72537-239-0	01	1	1009-1302
328	CLIP; HANDY WARNING	1-72537-239-0	01	1	1303-1411
328	CLIP; HANDY WARNING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-72537-239-0	01	1	1412-
336	COVER; DRIVER SEAT	1-75518-303-0	01	1	1009-1411
336	COVER; DRIVER SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-303-0	01	1	1412-

63 306 63 306 201 551 158 158 201 551 518 302 518 551 72 518 302 518 72 302 302 551 302 543 518 302 543 543 74 302 543 518 278 532 51 512 51 468 468 512 51 51 278 532 278 302 518 518 518 543 518 471 468 529 468

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER	1-75518-325-1	04	1	1009-1411
51	SCREW; COVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-325-1	04	1	1412-
63	ADJUSTER; SEAT SLIDE (A)	1-75518-199-1	01	1	1009-1411
63	ADJUSTER; SEAT SLIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-199-1	01	1	1412-
63	ADJUSTER; SEAT SLIDE (B)	1-75518-323-0	01	1	1009-1411
63	ADJUSTER; SEAT SLIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-323-0	01	1	1412-
72	SPACER; SEAT ADJ	1-75518-334-1	02	1	1009-1411
72	SPACER; SEAT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-334-1	02	1	1412-1502
72	SPACER; SEAT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98291-668-0	02	1	1503-
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-330-3	01	1	1009-1411
74	ADJUSTER; FRT SEAT,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-330-3	01	1	1412-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98291-644-0	01	1	1503-
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1009-1411
158	BUSHING; LINK ARM SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-209-0	02	1	1412-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1009-1411
201	CABLE; ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667	1-75518-288-0	01	1	1412-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1009-1411
201	CABLE; ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605	1-75518-289-1	01	1	1412-
278	COLLAR; FRT SEAT	1-75518-244-0	03	1	1009-1411
278	COLLAR; FRT SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-244-0	03	1	1412-
302	BOLT; ADJ,HEIGHT CONT (C)	1-75518-266-2	02	1	1009-1411
302	BOLT; ADJ,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-266-2	02	1	1412-
302	BOLT; ADJ,HEIGHT CONT (A)	1-75518-270-1	04	1	1009-1411
302	BOLT; ADJ,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-270-1	04	1	1412-1502
302	BOLT; ADJ,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	8-98291-667-0	04	1	1503-
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-336-1	02	1	1009-1411
302	BOLT; ADJ,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-336-1	02	1	1412-
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	14	1	1009-1411
306	NUT; SEAT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	14	1	1412-
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1009-1411
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	01	1	1412-
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1009-1411
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	01	1	1412-
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1009-1411
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	02	1	1412-
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	1009-1302
468	SPRING; RETURN (D)	1-75538-132-0	01	1	1303-1411
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	1412-
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1009-1411
471	LEVER; SEAT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98107-869-0	01	1	1412-
512	COVER; LEVER	1-75518-243-1	02	1	1009-1411
512	COVER; LEVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-243-1	02	1	1412-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1009-1411
518	NUT; TILT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-263-0	01	1	1412-
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1009-1411
518	NUT; TILT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8	1-75518-264-0	04	1	1412-
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1009-1411
518	NUT; TILT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT	5-09984-020-0	02	1	1412-
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1009-1411
518	NUT; TILT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 FLANGE	8-94152-886-0	04	1	1412-
529	PIN; LINK	1-75518-262-0	01	1	1009-1411
529	PIN; LINK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-262-0	01	1	1412-
532	LEVER ASM; TILT (A)	1-75518-203-0	01	1	1009-1411
532	LEVER ASM; TILT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-203-0	01	1	1412-
532	LEVER ASM; TILT (B)	1-75518-204-1	01	1	1009-1411
532	LEVER ASM; TILT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-204-1	01	1	1412-
543	WASHER; HEIGHT ADJUSTER (A)	1-75518-335-0	02	1	1009-1411
543	WASHER; HEIGHT ADJUSTER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-335-0	02	1	1412-1502
543	WASHER; HEIGHT ADJUSTER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=13 OD=19	8-98291-669-0	02	1	1503-
543	WASHER; HEIGHT ADJUSTER (B) ID=8.4	9-09160-508-0	04	1	1009-1411
543	WASHER; HEIGHT ADJUSTER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4	9-09160-508-0	04	1	1412-
551	SLIDER; HEIGHT ADJ	1-75518-265-0	04	1	1009-1411
551	SLIDER; HEIGHT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-265-0	04	1	1412-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
