Isuzu WW
▶
TRUCKS
▶
EXR
▶
11292 - EXR RHD EURO5
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-45 - CONSOLE BOX
▶
7-45 — CONSOLE BOX
(#70172) — 43 parça
◀
[745A] SWITCH HOLE COVER (5 parça)
[745A] CONSOLE BOX AND OTHER PARTS (13 parça)
[745A] COMPONENT (25 parça)
▶
315
334
315
315

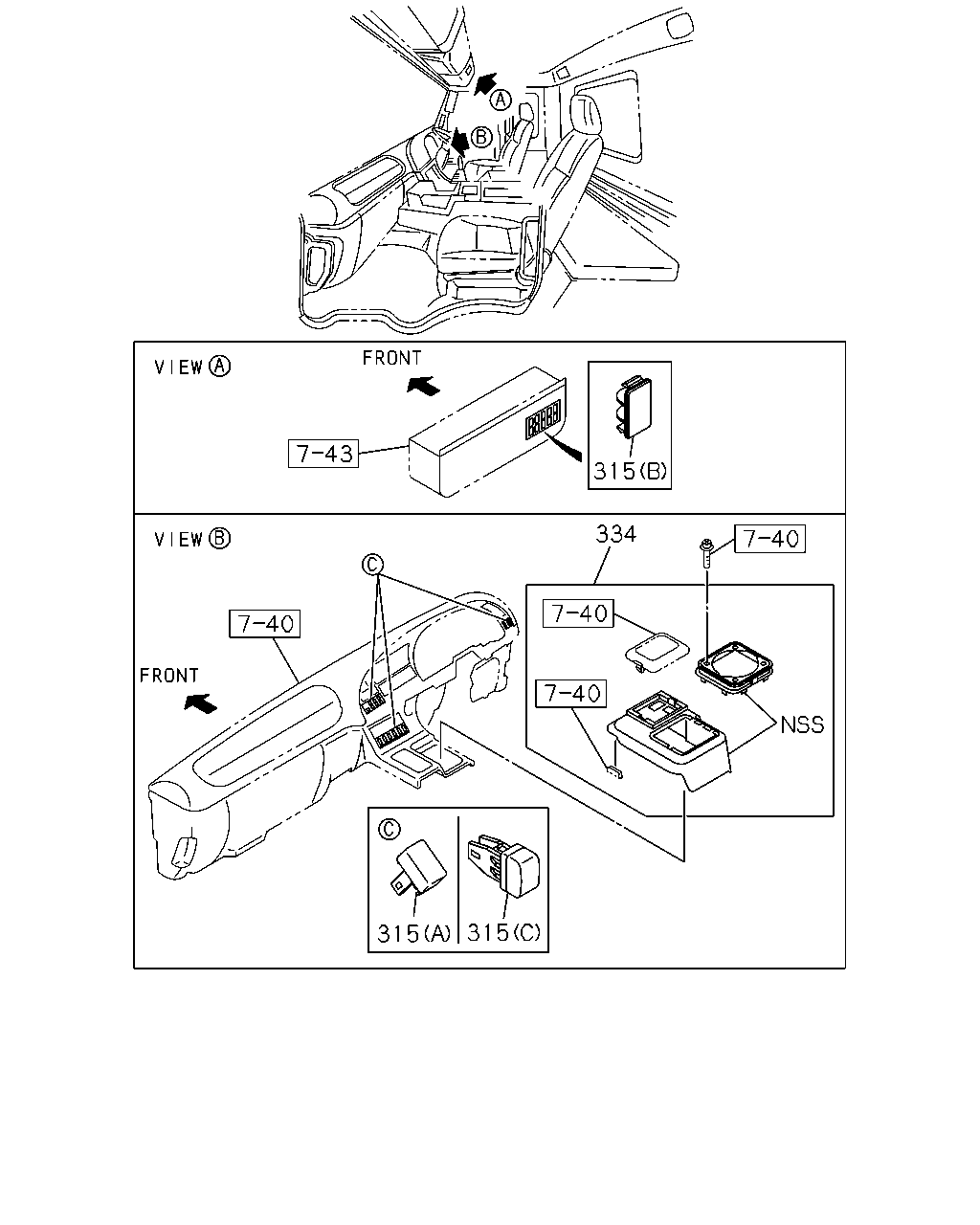

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
315
COVER; HOLE,SW
(A)
1-82359-069-2
AR
1
1009-1301
315
COVER; HOLE,SW
(C)
8-98025-954-1
AR
1
1302-
315
COVER; HOLE,SW
(B)
8-97043-732-1
AR
1
1009-
334
COVER; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S)
1-72447-969-1
01
1
1009-1302
334
COVER; CHANGE LEVER
SMOOTHER-G(C1W)
1-72447-969-1
01
1
1303-
44
44
113
195
296
212
195
171
307
317
250
195

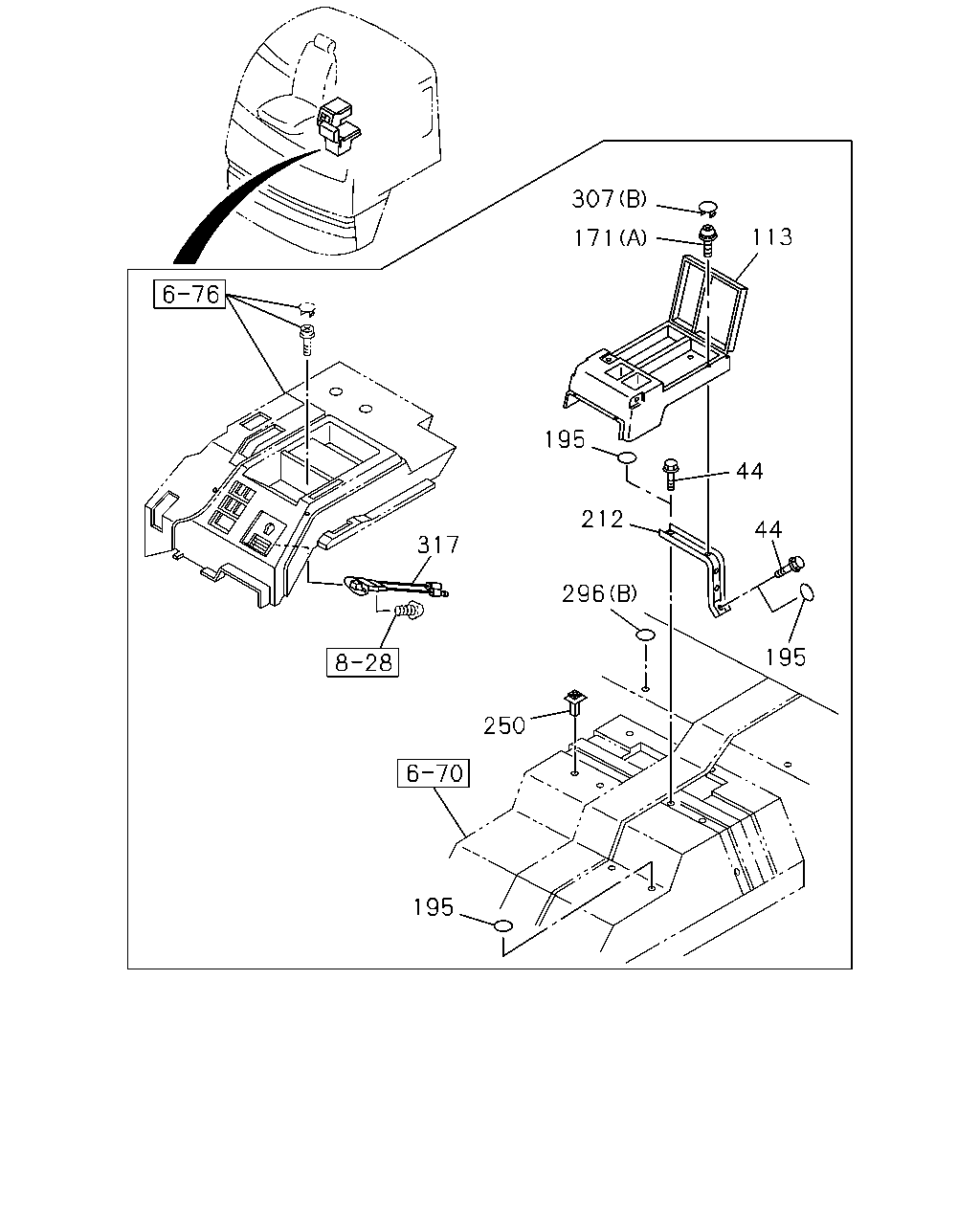

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
44
BOLT; SUPPORT,CTR CONSOLE
CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1009-
113
BOX; CONSOLE
CENTER SEAT DELETE(SP9)
1-72537-325-1
01
1
1009-
171
SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (B) M5X14 FLAT HEAD
1-72537-169-0
06
1
1009-
171
SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER
8-94279-404-0
04
1
1009-
195
SEAL; CENTER CONSOLE
EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK
1-76798-019-0
05
1
1009-
212
SUPPORT; CONSOLE TO COMPT
CENTER SEAT DELETE(SP9)
1-72537-095-1
01
1
1009-
250
GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
03
1
1009-
296
SEAL
(B) OD=25 BLACK
1-76798-019-0
01
1
1009-
296
SEAL
CENTER SEAT DELETE(SP9) (A)
1-72537-094-1
01
1
1009-
307
COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (A)
1-72537-188-0
02
1
1009-
307
COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (C)
1-72537-270-1
02
1
1009-
307
COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B)
1-76337-461-0
04
1
1009-
317
CONSENT
1-82523-020-2
01
1
1009-
268
310
171
312
311
171
311
29
35
8
29
11
113
29
214
296
311
29
312
171
332
332
312
313
356
332
313
313
307
375
376
307
268
106
310

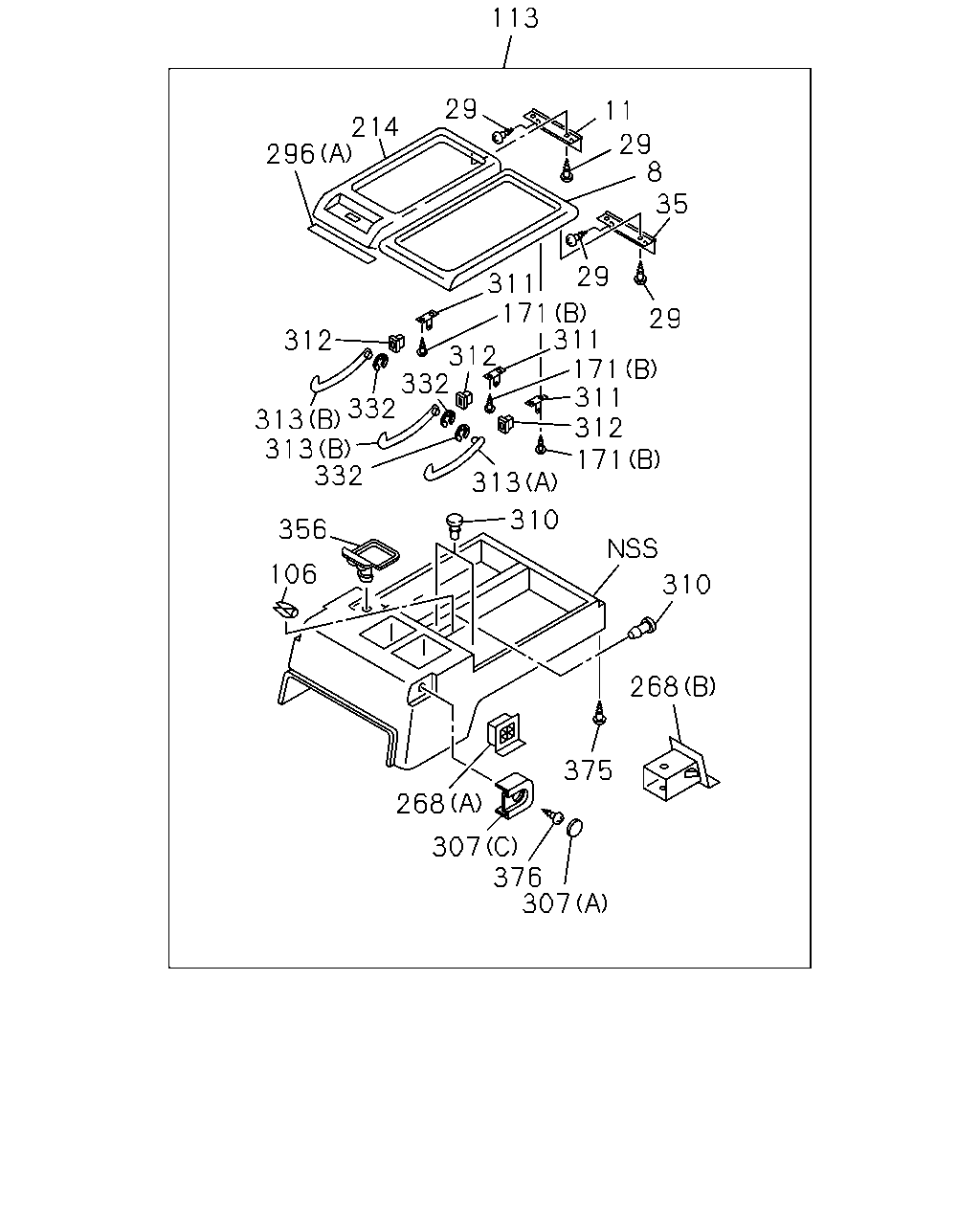

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9)
1-72537-332-0
01
1
1009-
11
HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9)
1-72537-070-2
01
1
1009-
29
SCREW; HINGE
CENTER SEAT DELETE(SP9) M5X14 BINDING HEAD
1-72537-168-0
08
1
1009-
35
HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9)
1-72538-182-1
01
1
1009-
106
LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9)
1-72537-079-0
02
1
1009-
113
BOX; CONSOLE
CENTER SEAT DELETE(SP9)
1-72537-325-1
01
1
1009-
171
SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (B) M5X14 FLAT HEAD
1-72537-169-0
06
1
1009-
171
SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER
8-94279-404-0
04
1
1009-
214
LID; CONSOLE
CENTER SEAT DELETE(SP9)
1-72537-339-0
01
1
1009-
268
COVER; DUCT
CENTER SEAT DELETE(SP9) (B)
1-72537-268-0
01
1
1009-
268
COVER; DUCT
CENTER SEAT DELETE(SP9) (A)
1-72537-269-0
01
1
1009-
296
SEAL
(B) OD=25 BLACK
1-76798-019-0
01
1
1009-
296
SEAL
CENTER SEAT DELETE(SP9) (A)
1-72537-094-1
01
1
1009-
307
COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (A)
1-72537-188-0
02
1
1009-
307
COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (C)
1-72537-270-1
02
1
1009-
307
COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B)
1-76337-461-0
04
1
1009-
310
CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9)
1-72538-187-0
02
1
1009-
311
HOLDER; CONSOLE
CENTER SEAT DELETE(SP9)
1-72538-188-2
03
1
1009-
312
STOPPER; CONSOLE
CENTER SEAT DELETE(SP9)
1-72538-186-1
03
1
1009-
313
ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (A)
1-72538-184-3
01
1
1009-
313
ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (B)
1-72538-185-3
02
1
1009-
332
RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9)
1-72537-170-0
03
1
1009-
356
COVER; KNOB
CENTER SEAT DELETE(SP9)
1-72537-271-1
01
1
1009-
375
SCREW; TAP BUSHING
CENTER SEAT DELETE(SP9) M6X20
1-72537-319-0
02
1
1009-
376
SCREW; TAP DUCT
CENTER SEAT DELETE(SP9) M4X14
1-72537-320-0
03
1
1009-
