7-43 — SUN VISOR AND ASSIST GRIP (#70171) — 124 parça

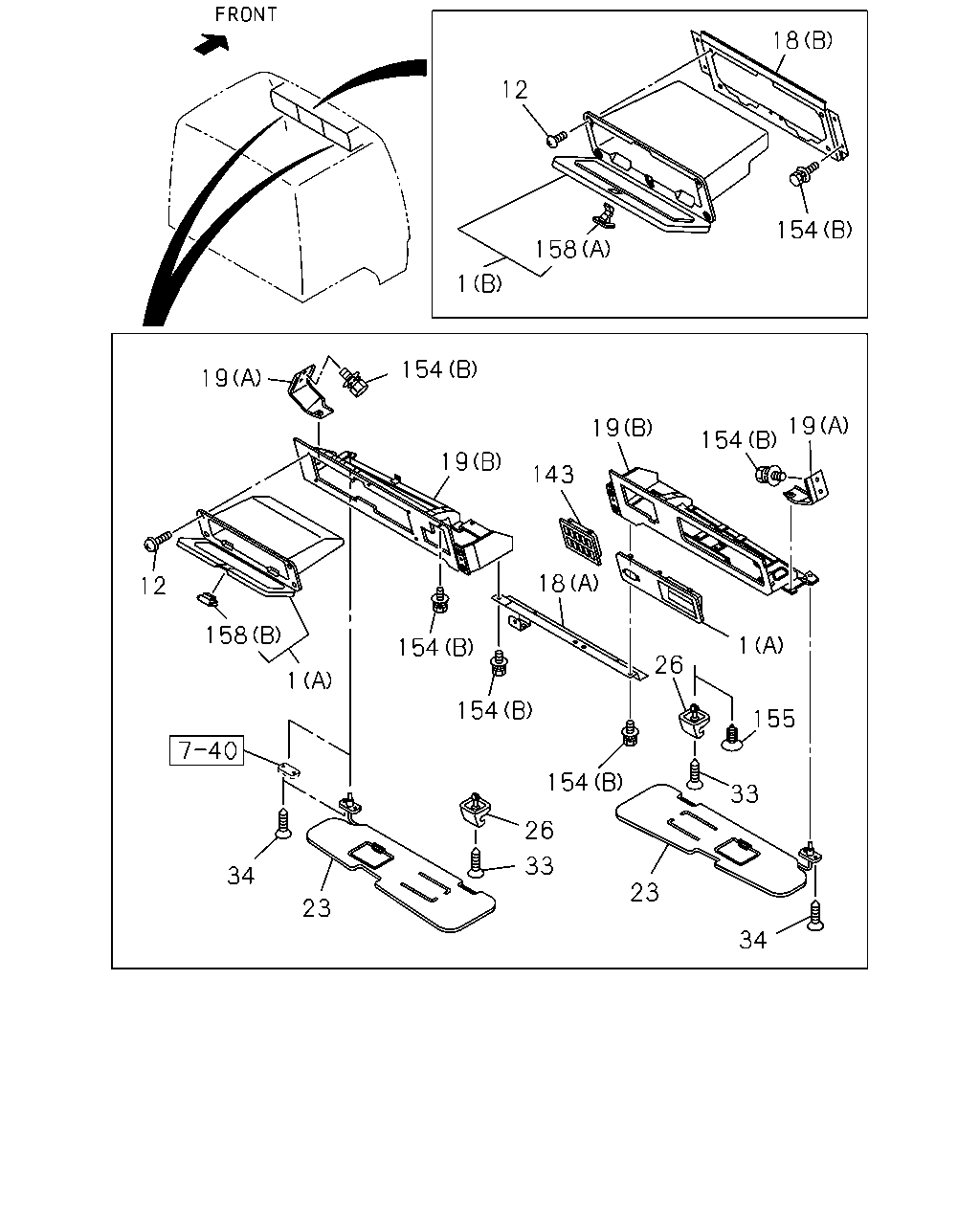

12 18 154 158 1 154 19 19 19 154 19 143 18 1 26 155 33 23 34 26 33 23 154 154 1 34 158 12 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-968-0	01	1	1009-
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	1009-
1	BOARD; HEADER SHELF TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> (A)	1-72447-760-4	01	1	1009-1302
1	BOARD; HEADER SHELF EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> (A)	1-72447-876-4	01	1	1009-1302
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	1303-
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	1009-1302
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	1303-
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	1303-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	1009-
18	SUPPORT; HEADER SHELF CENTER (A)	8-98118-217-1	01	1	1009-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-879-7	01	1	1009-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	1009-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	1009-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	1009-
23	SUN VISOR	1-73138-156-1	01	1	1009-
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-1	01	1	1009-1302
23	SUN VISOR	1-73138-157-1	01	1	1303-1411
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-1	01	1	1412-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	1009-1302
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73137-175-0	01	1	1009-1302
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	1303-1411
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	1303-1411
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	1412-
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73137-175-0	01	1	1412-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1009-1302
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1009-1302
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1303-1411
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1303-1411
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1412-
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1412-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	1009-
143	BEZEL	1-72447-768-2	01	1	1009-
154	BOLT; SUPPORT GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1403-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1403-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	1009-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1009-1302
154	BOLT; SUPPORT (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1303-1402
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	1403-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1009-1302
155	FASTENER; HOLDER EXC. SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	1412-
155	FASTENER; HOLDER EXC. SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	1009-1302
158	LOCK; HEADER SHELF (A)	1-72538-312-0	01	1	1009-
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	1009-

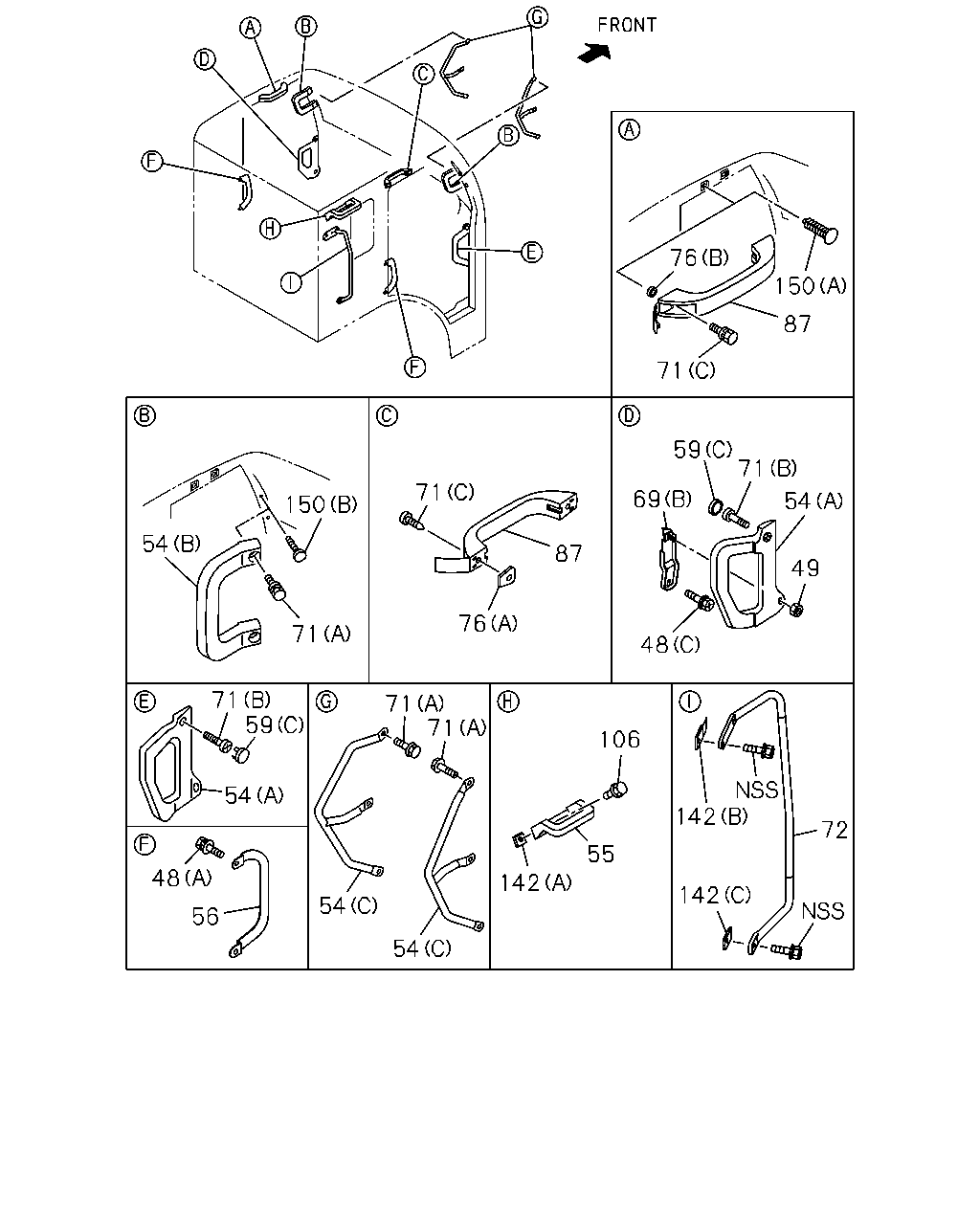

150 76 71 59 54 71 49 69 48 71 87 76 150 71 54 71 59 54 71 71 54 142 106 142 72 142 48 56 54 87 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1009-
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	1009-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	1009-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1009-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1009-
49	NUT; ASSIST GRIP EXC. HONG KONG EQUIPMENT(PQ1) M6 FLANGE	0-91180-106-0	01	1	1009-1302
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-73618-185-1	02	1	1009-1302
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK>,HONG KONG EQUIPMENT(PQ1) (B)	1-73618-185-1	01	1	1009-1302
54	GRIP; ASSIST,QUARTER SIDE HONG KONG EQUIPMENT(PQ1) (C)	8-98139-071-2	01	1	1009-1302
54	GRIP; ASSIST,QUARTER SIDE (C)	8-98139-071-2	01	1	1303-
54	GRIP; ASSIST,QUARTER SIDE HONG KONG EQUIPMENT(PQ1) (C)	8-98153-870-1	01	1	1009-1302
54	GRIP; ASSIST,QUARTER SIDE (C)	8-98153-870-1	01	1	1303-
54	GRIP; ASSIST,QUARTER SIDE EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-73617-564-1	01	1	1009-1302
54	GRIP; ASSIST,QUARTER SIDE EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-73617-563-1	01	1	1009-1302
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	01	1	1403-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE,DRIVER & PASSENGER<W63>	1-73618-169-1	02	1	1403-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	1009-1302
56	GRIP; ASSIST,SIDE SILL HONG KONG EQUIPMENT(PQ1)	8-98139-073-1	01	1	1009-1302
56	GRIP; ASSIST,SIDE SILL	8-98139-073-1	01	1	1303-
56	GRIP; ASSIST,SIDE SILL HONG KONG EQUIPMENT(PQ1)	8-98139-072-1	01	1	1009-1302
56	GRIP; ASSIST,SIDE SILL	8-98139-072-1	01	1	1303-
56	GRIP; ASSIST,SIDE SILL EXC. HONG KONG EQUIPMENT(PQ1)	8-98081-700-0	02	1	1009-1302
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	1009-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	1009-
59	COVER; ASSIST GRIP EXC. HONG KONG EQUIPMENT(PQ1) (C)	1-73617-565-0	02	1	1009-1302
69	BRACKET; ASSIST GRIP (A)	1-65570-243-0	01	1	1009-
69	BRACKET; ASSIST GRIP (A)	1-65570-242-0	01	1	1009-
69	BRACKET; ASSIST GRIP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-73618-178-2	01	1	1009-1302
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	1009-1302
71	SCREW (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	1303-
71	SCREW ASSIST GRIP A POST<NBK> EXC. HONG KONG EQUIPMENT(PQ1) (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	1009-1302
71	SCREW (A) M6X34 W/LK&PL WASHER	8-94279-411-0	05	1	1303-
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	02	1	1009-1302
71	SCREW EXC. ASSIST GRIP A POST<NBK>,HONG KONG EQUIPMENT(PQ1) (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	1009-1302
71	SCREW HONG KONG EQUIPMENT(PQ1) (A) M6X34 W/LK&PL WASHER	8-94279-411-0	05	1	1009-1302
71	SCREW EXC. HONG KONG EQUIPMENT(PQ1) (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	1009-1302
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-608-1	01	1	1009-1302
72	GRIP; ASSIST,CAB ENTRY,BACK	1-71907-608-1	01	1	1303-
76	SPACER; ASSIST GRIP (A)	1-73618-180-0	02	1	1009-
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> (B) OD=13 T=4.5	8-94230-464-1	02	1	1009-1302
76	SPACER; ASSIST GRIP (B) OD=13 T=4.5	8-94230-464-1	02	1	1303-
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	02	1	1009-1302
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	02	1	1303-
87	GRIP; ASSIST,CANT RAIL SIDE EXC. ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	01	1	1009-1302
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	02	1	1403-
106	SCREW; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1403-
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1009-1302
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	02	1	1403-
142	SEAL; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) 25X25	8-94272-533-0	04	1	1403-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (C)	1-71907-604-0	01	1	1009-1302
142	SEAL; ASSIST GRIP (C)	1-71907-604-0	01	1	1303-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-1	02	1	1009-1302
142	SEAL; ASSIST GRIP (B)	1-71997-691-1	02	1	1303-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	1009-1302
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	1009-1302
150	CLIP; ASSIST GRIP HOLE HONG KONG EQUIPMENT(PQ1) (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	1009-1302
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK>,HONG KONG EQUIPMENT(PQ1) (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	1009-1302
150	CLIP; ASSIST GRIP HOLE (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	1303-

64 64 64 62 48 48 48 48 154 69 66 103 48 59 59 48 48 59 48 103 66 69 48 59 48 62 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1009-
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	1009-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	1009-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1009-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1009-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	1009-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	1009-
59	COVER; ASSIST GRIP EXC. HONG KONG EQUIPMENT(PQ1) (C)	1-73617-565-0	02	1	1009-1302
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	1009-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	1009-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	1009-
69	BRACKET; ASSIST GRIP (A)	1-65570-243-0	01	1	1009-
69	BRACKET; ASSIST GRIP (A)	1-65570-242-0	01	1	1009-
69	BRACKET; ASSIST GRIP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-73618-178-2	01	1	1009-1302
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	1009-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	1009-
154	BOLT; SUPPORT GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1403-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1403-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	1009-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1009-1302
154	BOLT; SUPPORT (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1303-1402
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	1403-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1009-1302
