7-40 — INSTRUMENT PANEL AND BOX (#70170) — 155 parça

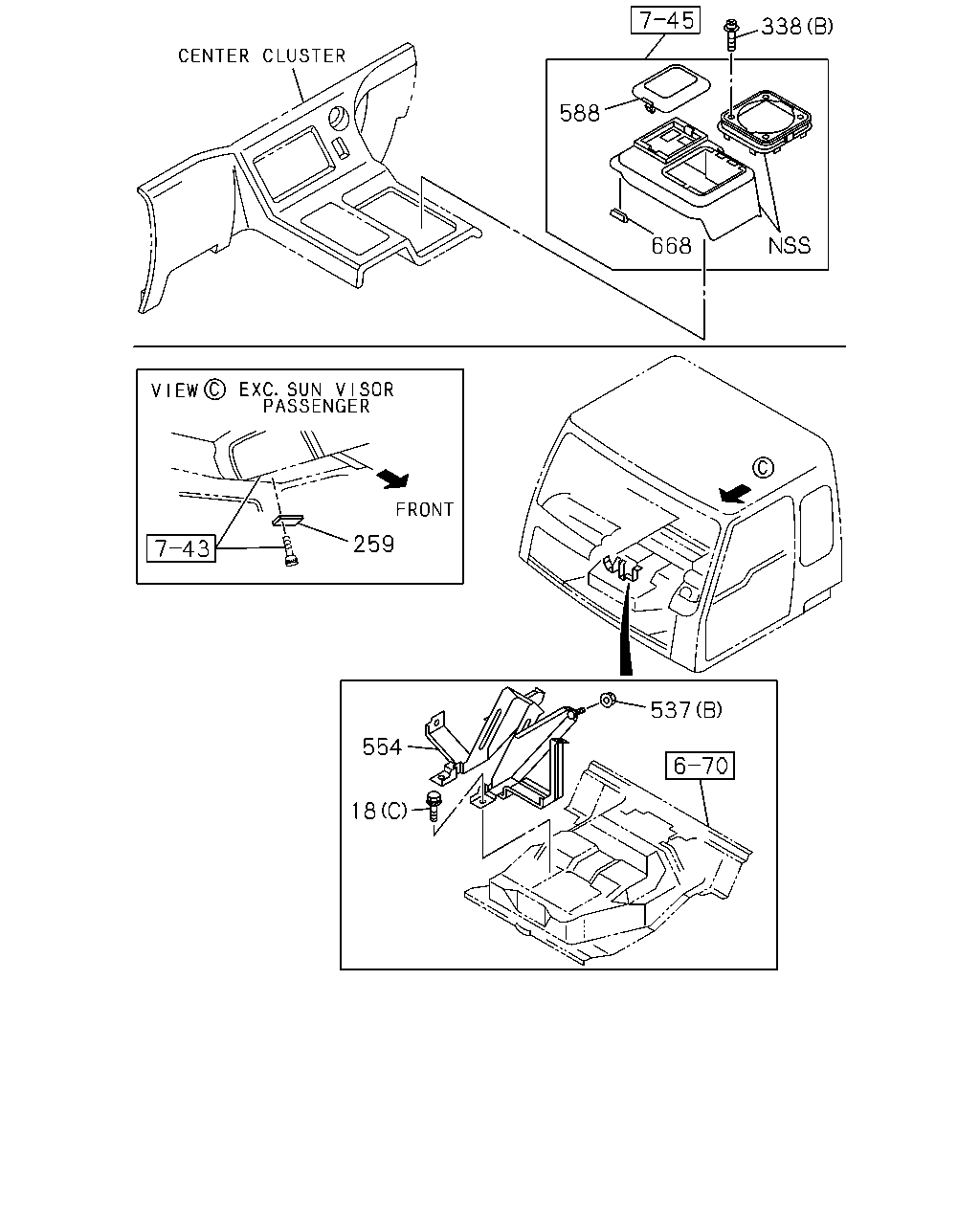

çizim 133039
668 338 588 259 537 554 18
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 1009-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1009-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1009-
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 1412-
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 1009-1302
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 10 1 1303-1305
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 17 1 1306-1411
338 SCREW; COVER
AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X14 		8-94279-325-0 17 1 1412-1412
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X14 		8-94279-325-0 17 1 1412-
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 17 1 1009-1302
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 07 1 1303-1305
338 SCREW; COVER
MJX12P M/T SMOOTHER-G(Y4S) (B) M4X8 W/PL WASHER 		0-36210-408-0 04 1 1009-1302
338 SCREW; COVER
SMOOTHER-G(C1W) (B) M4X8 W/PL WASHER 		0-36210-408-0 04 1 1303-
537 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 01 1 1009-
537 NUT; BRKT
SMOOTHER-G(C1W) (B) M8 W/DISHED WASHER 		8-97329-625-0 01 1 1009-
554 BRACKET; CENTER BEZEL 1-65671-826-0 01 1 1009-
588 LID; BOX
MJX12P M/T SMOOTHER-G(Y4S) 		1-72447-974-1 01 1 1009-1302
588 LID; BOX
SMOOTHER-G(C1W) 		1-72447-974-1 01 1 1303-
668 FINISHER; COVER
MJX12P M/T SMOOTHER-G(Y4S) L=167 		1-71996-271-0 01 1 1009-1302
668 FINISHER; COVER
SMOOTHER-G(C1W) L=167 		1-71996-271-0 01 1 1303-

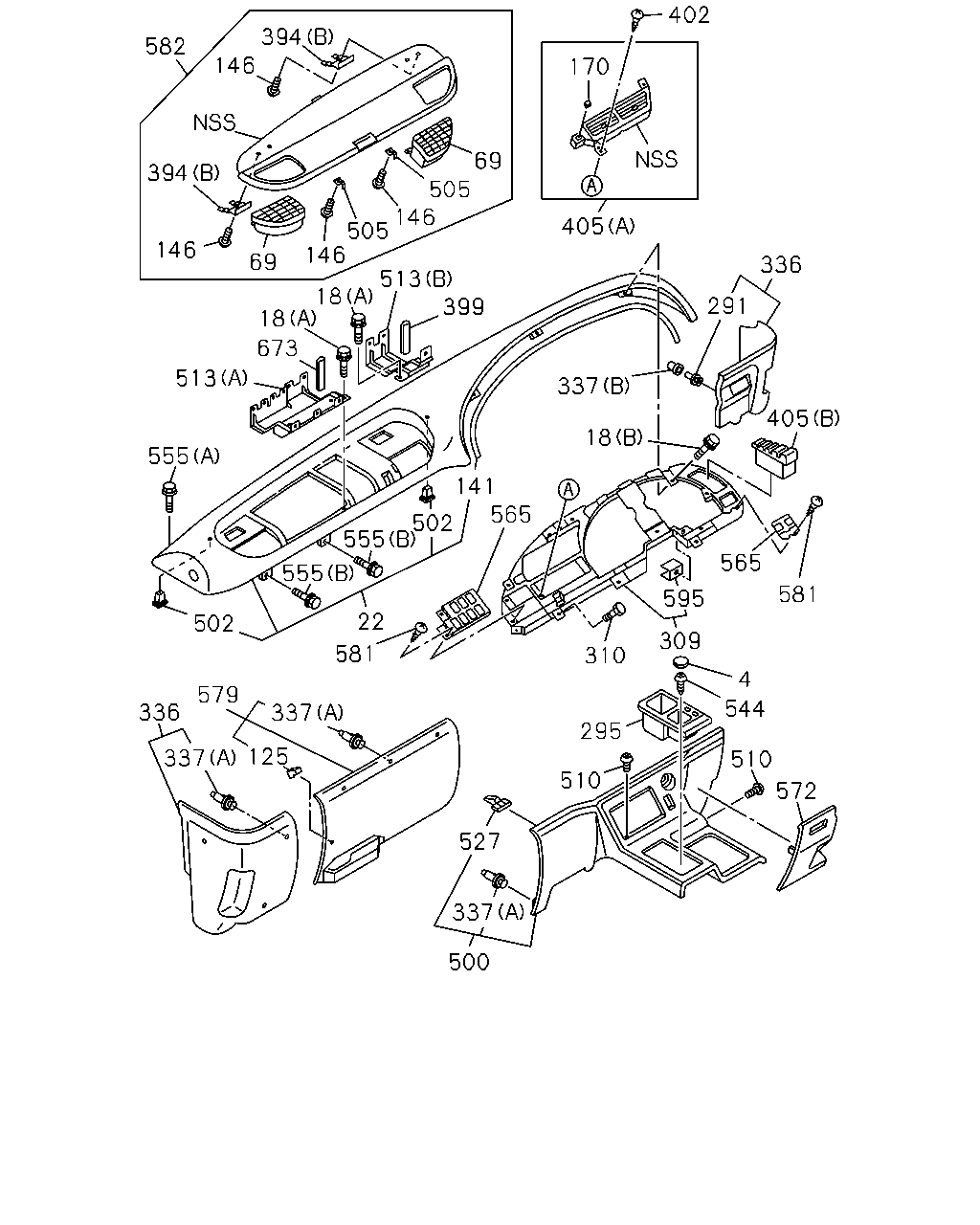

çizim 188647
582 394 146 394 146 69 146 505 146 505 69 402 170 405 513 18 513 18 673 555 502 555 555 502 141 399 291 337 18 336 405 581 565 595 309 4 544 310 22 565 581 336 579 337 337 125 527 510 572 295 510 337 500
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 1009-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 1009-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1009-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1009-
22 PAD; INST 1-72317-372-1 01 1 1009-
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 1009-
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 1009-
125 CLIP; INST PANEL 8-97217-066-0 04 1 1303-1305
125 CLIP; INST PANEL 8-97217-066-0 10 1 1306-1411
125 CLIP; INST PANEL
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97217-066-0 10 1 1412-1412
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-97217-066-0 10 1 1412-
125 CLIP; INST PANEL 8-97217-066-0 11 1 1009-1302
125 CLIP; INST PANEL 8-97217-066-0 07 1 1303-1305
125 CLIP; INST PANEL 8-97217-066-0 01 1 1306-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 1009-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 1009-
170 COVER; HOLE 1-76367-068-0 01 1 1009-
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 1009-
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 1009-
309 PANEL; SW,INST 1-72418-009-6 01 1 1009-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1009-
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 1009-
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 1009-
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 1009-
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 1009-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 1009-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 1009-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 1009-
399 FINISHER; HARNESS
L=50 		8-94270-377-1 01 1 1303-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 1009-
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 1009-
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 1009-
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. INST PANEL CARBON<EGW> 		1-72437-619-0 01 1 1409-
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) EXC. INST PANEL CARBON<EGW> 		1-72437-628-0 01 1 1409-
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) 		1-72437-628-0 01 1 1009-1302
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) 		8-98217-877-0 01 1 1303-1304
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) 		1-72437-628-0 01 1 1305-1305
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) 		8-98217-877-0 01 1 1306-1408
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) INST PANEL CARBON<EGW> 		8-98217-877-0 01 1 1409-
500 CLUSTER; INST CENTER
EXC. SMOOTHER-G(C1W) 		1-72437-619-0 01 1 1009-1302
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98217-875-0 01 1 1303-1304
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-72437-619-0 01 1 1305-1305
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98217-875-0 01 1 1306-1408
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) INST PANEL CARBON<EGW> 		8-98217-875-0 01 1 1409-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 1009-
505 LOCK; LID 1-72558-024-2 02 1 1009-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 1009-
513 BRACKET; RELAY
(B) 		1-73907-327-3 01 1 1009-
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 1009-
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 1009-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 1009-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1009-
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1009-
565 BEZEL; SW PANEL 1-72418-010-2 01 1 1009-
565 BEZEL; SW PANEL 1-72418-011-3 01 1 1009-
572 COVER; INSPECTION 1-72437-634-0 01 1 1009-
579 COVER; INST PNL 1-72437-626-0 01 1 1009-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 1009-
582 LID; FUSE & RELAY 1-72547-124-0 01 1 1009-
595 NUT; HOOK 1-72418-013-0 11 1 1009-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 1009-

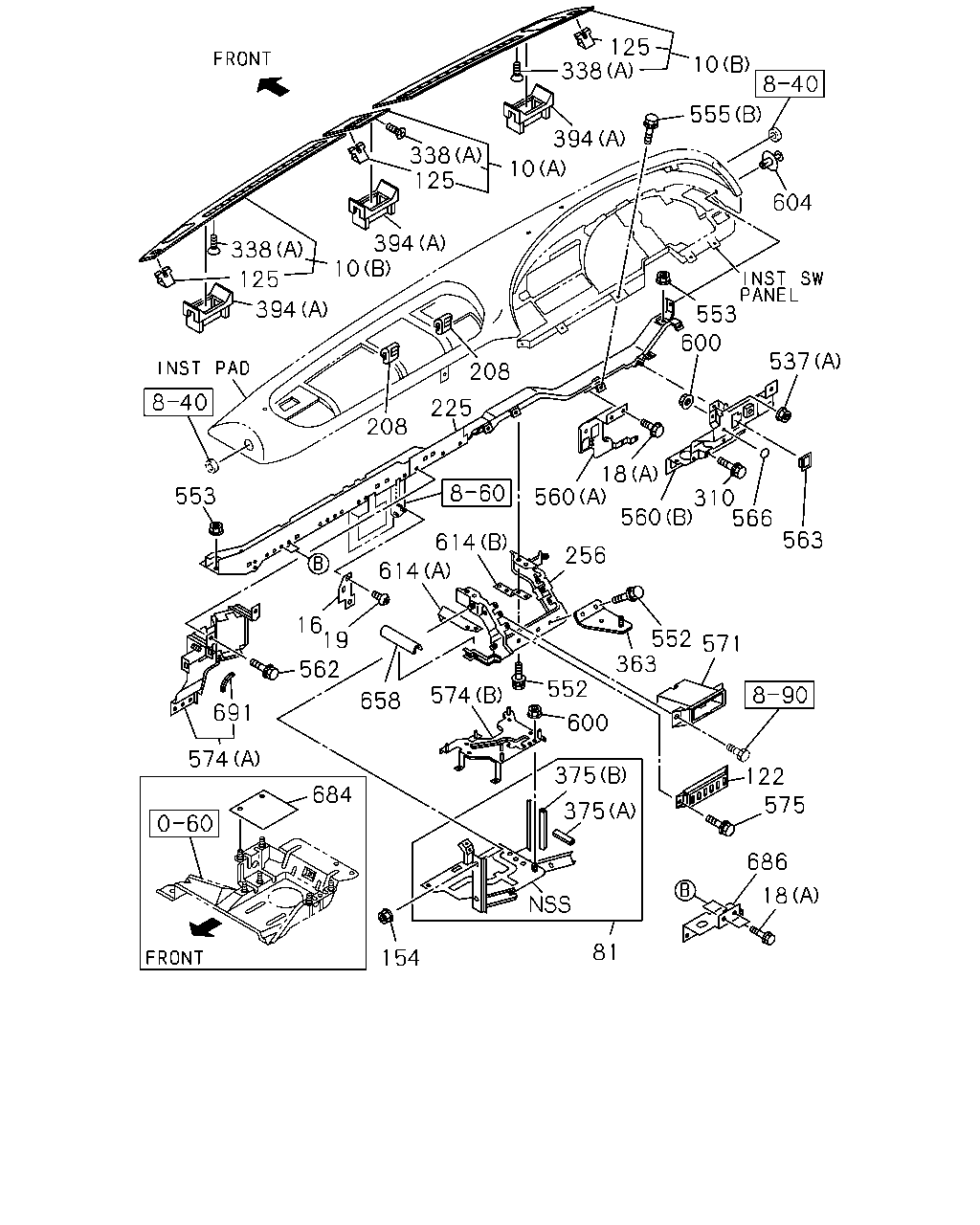

çizim 188649
208 225 208 394 125 338 394 10 338 394 10 125 338 125 555 10 604 553 600 537 310 18 560 566 560 563 552 256 614 614 16 19 562 553 691 574 574 658 684 375 375 154 81 18 571 363 122 575 686 600 552
BalonParca AdiParca NoAdetTipApplied Date
10 PANEL ASM; GARNISH
(A) CENTER 		1-72437-540-6 01 1 1009-1411
10 PANEL ASM; GARNISH
AIR CONDITIONER MANUAL CONTROL(C60) (A) CENTER 		1-72437-540-6 01 1 1412-1412
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) CENTER 		1-72437-540-6 01 1 1412-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 1009-1411
10 PANEL ASM; GARNISH
AIR CONDITIONER MANUAL CONTROL(C60) (B) W/SPEAKER NET 		1-72437-601-6 01 1 1412-1412
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) W/SPEAKER NET 		1-72437-601-6 01 1 1412-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-600-7 01 1 1009-1302
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-600-7 01 1 1303-1411
10 PANEL ASM; GARNISH
AIR CONDITIONER MANUAL CONTROL(C60) (B) W/SPEAKER NET 		1-72437-600-7 01 1 1412-1412
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) W/SPEAKER NET 		1-72437-600-7 01 1 1412-
16 BRACKET; INST PNL 1-73908-023-2 01 1 1009-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 1009-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1009-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1009-
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 1009-
81 BRACKET; ELEC CONT UNIT 1-73907-739-0 01 1 1009-1302
81 BRACKET; ELEC CONT UNIT 8-98160-932-0 01 1 1303-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 1009-
125 CLIP; INST PANEL 8-97217-066-0 04 1 1303-1305
125 CLIP; INST PANEL 8-97217-066-0 10 1 1306-1411
125 CLIP; INST PANEL
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97217-066-0 10 1 1412-1412
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-97217-066-0 10 1 1412-
125 CLIP; INST PANEL 8-97217-066-0 11 1 1009-1302
125 CLIP; INST PANEL 8-97217-066-0 07 1 1303-1305
125 CLIP; INST PANEL 8-97217-066-0 01 1 1306-
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 1009-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 1009-
225 FRAME; FACIA 1-65671-725-8 01 1 1009-
256 BEZEL ASM; CENTER 1-65671-828-2 01 1 1009-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1009-
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 10 1 1303-1305
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 17 1 1306-1411
338 SCREW; COVER
AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X14 		8-94279-325-0 17 1 1412-1412
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X14 		8-94279-325-0 17 1 1412-
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 17 1 1009-1302
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 07 1 1303-1305
338 SCREW; COVER
MJX12P M/T SMOOTHER-G(Y4S) (B) M4X8 W/PL WASHER 		0-36210-408-0 04 1 1009-1302
338 SCREW; COVER
SMOOTHER-G(C1W) (B) M4X8 W/PL WASHER 		0-36210-408-0 04 1 1303-
363 SUPPORT ASM; COMPT PANEL CTR
MJX12P M/T SMOOTHER-G(Y4S) 		1-73907-776-0 01 1 1009-1302
363 SUPPORT ASM; COMPT PANEL CTR
SMOOTHER-G(C1W) 		1-73907-776-0 01 1 1303-
375 FINISHER; BRKT,CONT UNIT
(B) L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 1009-1302
375 FINISHER; BRKT,CONT UNIT
(B) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 1303-
375 FINISHER; BRKT,CONT UNIT
(A) L=80 		5-71997-133-0 01 1 1009-1302
375 FINISHER; BRKT,CONT UNIT
(A) L=80 SERVICED BY L=90 		1-71997-795-0 01 1 1303-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 1009-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 1009-
537 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 01 1 1009-
537 NUT; BRKT
SMOOTHER-G(C1W) (B) M8 W/DISHED WASHER 		8-97329-625-0 01 1 1009-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1009-
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 1009-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1009-
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1009-
560 BRACKET
(A) 		1-65681-197-2 01 1 1009-
560 BRACKET
(B) 		1-65671-760-4 01 1 1009-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1009-
563 BEZEL; BRKT 1-72448-410-3 01 1 1009-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1009-1302
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1303-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1303-
571 BEZEL; POCKET 1-72438-151-3 01 1 1009-
571 BEZEL; POCKET
EXC. RADIO AM/FM STEREO CD(UT3) 		1-72438-151-3 01 1 1009-
574 PANEL; RELAY BOX
(B) 		1-73907-690-2 01 1 1009-1411
574 PANEL; RELAY BOX
CAB SUSPENSION-FULL FLOATING(SMK),FULL FLOATING CAB(W16) (B) 		1-73907-690-2 01 1 1412-
574 PANEL; RELAY BOX
(A) 		1-73907-761-2 01 1 1009-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1009-
600 NUT; PANEL
M6 FLANGE 		0-91180-106-0 03 1 1009-
604 CLIP; INST PAD 1-09983-123-0 01 1 1009-
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 1009-
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 1009-
658 FINISHER; BEZEL
L=80 		5-71997-133-0 01 1 1009-1302
658 FINISHER; BEZEL
L=80 SERVICED BY L=90 		1-71997-795-0 01 1 1303-
684 RUBBER; HARNESS 1-82698-417-1 01 1 1009-
686 BRACKET; SENSOR & RELAY 1-65681-226-1 01 1 1009-
691 FINISHER; HARNESS PROTECTOR
L=50 		8-94270-377-1 01 1 1009-
