Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#70168) — 388 parça

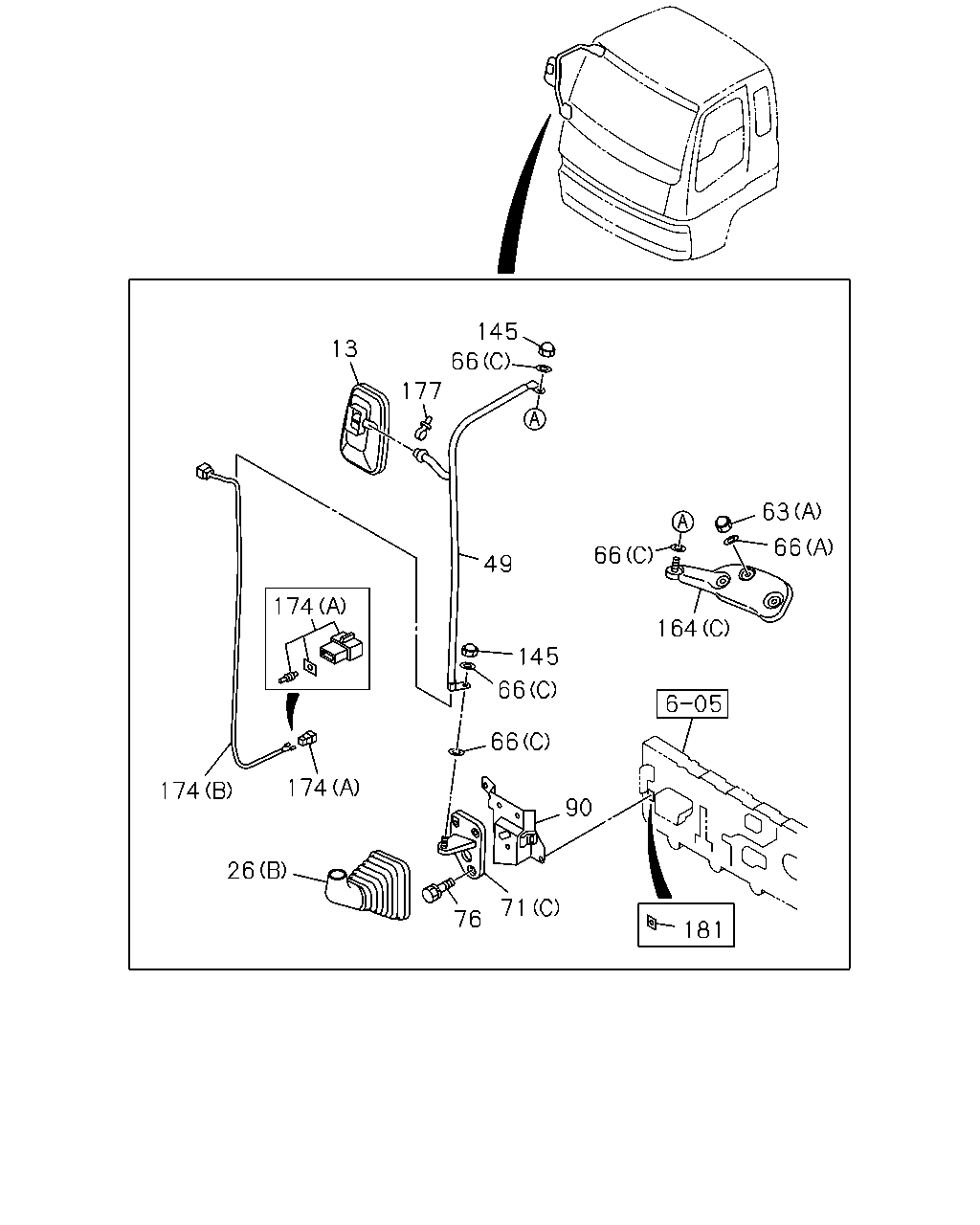

145 66 177 13 49 145 66 66 90 71 76 164 66 63 174 174 26 66 174 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	1-71707-182-0	01	1	1009-1411
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1)	1-71707-182-0	01	1	1412-1412
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71707-182-0	01	1	1412-1510
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98324-747-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW	1-71707-181-0	01	1	1009-1411
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1)	1-71707-181-0	01	1	1412-1412
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71707-181-0	01	1	1412-1504
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98288-715-1	01	1	1505-1510
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98324-746-0	01	1	1511-
26	COVER; OUTSIDE MIRROR (A)	1-71707-222-0	01	1	1009-1411
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71707-222-0	01	1	1412-1412
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71707-222-0	01	1	1412-
26	COVER; OUTSIDE MIRROR (B)	1-71798-316-2	01	1	1009-1411
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71798-316-2	01	1	1412-1412
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-316-2	01	1	1412-
26	COVER; OUTSIDE MIRROR (A)	1-71707-221-0	01	1	1009-1411
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71707-221-0	01	1	1412-1412
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71707-221-0	01	1	1412-
26	COVER; OUTSIDE MIRROR (B)	1-71798-695-0	01	1	1009-1411
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71798-695-0	01	1	1412-1412
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-695-0	01	1	1412-
49	STAY; MIRROR SIDE	1-71707-177-1	01	1	1009-1411
49	STAY; MIRROR SIDE HONG KONG EQUIPMENT(PQ1)	1-71707-177-1	01	1	1412-1412
49	STAY; MIRROR SIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71707-177-1	01	1	1412-
49	STAY; MIRROR SIDE	1-71707-175-1	01	1	1009-1411
49	STAY; MIRROR SIDE HONG KONG EQUIPMENT(PQ1)	1-71707-175-1	01	1	1412-1412
49	STAY; MIRROR SIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71707-175-1	01	1	1412-
63	NUT; STAY (A) M8	1-09984-187-0	06	1	1009-1411
63	NUT; STAY HONG KONG EQUIPMENT(PQ1) (A) M8	1-09984-187-0	06	1	1412-1412
63	NUT; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8	1-09984-187-0	06	1	1412-
63	NUT; STAY (D) M14	0-91110-514-0	01	1	1009-1411
63	NUT; STAY HONG KONG EQUIPMENT(PQ1) (D) M14	0-91110-514-0	01	1	1412-1412
63	NUT; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) M14	0-91110-514-0	01	1	1412-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (B) M8	1-71798-603-1	02	1	1009-1302
63	NUT; STAY (B) M8	1-71798-603-1	02	1	1303-1411
63	NUT; STAY HONG KONG EQUIPMENT(PQ1) (B) M8	1-71798-603-1	02	1	1412-1412
63	NUT; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8	1-71798-603-1	02	1	1412-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT	1-71798-859-0	01	1	1009-1302
63	NUT; STAY (C) M10 CAP NUT	1-71798-859-0	01	1	1303-1411
63	NUT; STAY HONG KONG EQUIPMENT(PQ1) (C) M10 CAP NUT	1-71798-859-0	01	1	1412-1412
63	NUT; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) M10 CAP NUT	1-71798-859-0	01	1	1412-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	1009-1302
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	1303-1411
66	WASHER; PL HONG KONG EQUIPMENT(PQ1) (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	1412-1412
66	WASHER; PL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	1412-
66	WASHER; PL (B) ID=12.5	1-09985-334-0	04	1	1009-1411
66	WASHER; PL HONG KONG EQUIPMENT(PQ1) (B) ID=12.5	1-09985-334-0	04	1	1412-1412
66	WASHER; PL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=12.5	1-09985-334-0	04	1	1412-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1009-1411
66	WASHER; PL HONG KONG EQUIPMENT(PQ1) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1412-1412
66	WASHER; PL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1412-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1009-1302
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-224-0	02	1	1009-1411
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71707-224-0	02	1	1412-1412
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71707-224-0	02	1	1412-
71	BRACKET; OUTSIDE MIRROR (B)	1-71797-809-2	01	1	1009-1411
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71797-809-2	01	1	1412-1412
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71797-809-2	01	1	1412-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-309-4	01	1	1009-1411
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (C)	1-71798-309-4	01	1	1412-1412
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	1-71798-309-4	01	1	1412-
76	BOLT; STAY BRKT M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	1009-1411
76	BOLT; STAY BRKT HONG KONG EQUIPMENT(PQ1) M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	1412-1412
76	BOLT; STAY BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	1412-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	1009-
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	1009-
145	NUT; CAP,SUB STAY M10	1-09984-183-0	02	1	1009-1411
145	NUT; CAP,SUB STAY HONG KONG EQUIPMENT(PQ1) M10	1-09984-183-0	02	1	1412-1412
145	NUT; CAP,SUB STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M10	1-09984-183-0	02	1	1412-
164	STAY; ROOF (B)	1-71798-299-4	01	1	1009-1411
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1) (B)	1-71798-299-4	01	1	1412-1412
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-299-4	01	1	1412-
164	STAY; ROOF (C)	1-71707-090-0	01	1	1009-1411
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1) (C)	1-71707-090-0	01	1	1412-1412
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	1-71707-090-0	01	1	1412-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-602-1	01	1	1009-1302
164	STAY; ROOF (A)	1-71798-602-1	01	1	1303-1411
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1) (A)	1-71798-602-1	01	1	1412-1412
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71798-602-1	01	1	1412-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> (A)	1-82662-365-1	02	1	1009-1302
174	HARNESS; MIRROR (A)	1-82662-365-1	02	1	1303-1411
174	HARNESS; MIRROR MIR STAY O/S W/REMOTE<TBA> MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	1-82662-365-1	02	1	1412-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> (B)	8-97610-653-0	01	1	1009-1302
174	HARNESS; MIRROR (B)	8-97610-653-0	01	1	1303-1411
174	HARNESS; MIRROR MIR STAY O/S W/REMOTE<TBA> MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-97610-653-0	01	1	1412-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> (B)	8-97610-652-0	01	1	1009-1302
174	HARNESS; MIRROR (B)	8-97610-652-0	01	1	1303-1411
174	HARNESS; MIRROR MIR STAY O/S W/REMOTE<TBA> MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-97610-652-0	01	1	1412-
177	CLIP; HARNESS L=140	5-09707-031-1	02	1	1009-1411
177	CLIP; HARNESS HONG KONG EQUIPMENT(PQ1) L=140	5-09707-031-1	02	1	1412-1412
177	CLIP; HARNESS HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=140	5-09707-031-1	02	1	1412-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	1009-

29 32 86 135 30 21 87 32 30 29 134 132 135 21 87 86 13 53 53 71 26 25 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	1-71707-182-0	01	1	1009-1411
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1)	1-71707-182-0	01	1	1412-1412
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71707-182-0	01	1	1412-1510
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98324-747-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW	1-71707-181-0	01	1	1009-1411
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1)	1-71707-181-0	01	1	1412-1412
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71707-181-0	01	1	1412-1504
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98288-715-1	01	1	1505-1510
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98324-746-0	01	1	1511-
14	MIRROR ASM; OUTSIDE	1-71707-231-0	01	1	1009-1411
14	MIRROR ASM; OUTSIDE HONG KONG EQUIPMENT(PQ1)	1-71707-231-0	01	1	1412-1412
14	MIRROR ASM; OUTSIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71707-231-0	01	1	1412-1510
14	MIRROR ASM; OUTSIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98324-759-0	01	1	1511-
14	MIRROR ASM; OUTSIDE	1-71707-230-0	01	1	1009-1411
14	MIRROR ASM; OUTSIDE HONG KONG EQUIPMENT(PQ1)	1-71707-230-0	01	1	1412-1412
14	MIRROR ASM; OUTSIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71707-230-0	01	1	1412-1504
14	MIRROR ASM; OUTSIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98288-714-0	01	1	1505-1510
14	MIRROR ASM; OUTSIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98324-757-0	01	1	1511-
21	NUT; MIRROR M5	1-09984-124-0	04	1	1009-1411
21	NUT; MIRROR HONG KONG EQUIPMENT(PQ1) M5	1-09984-124-0	04	1	1412-1412
21	NUT; MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M5	1-09984-124-0	04	1	1412-
25	SCREW; OUTSIDE MIRROR M6X40	1-71707-223-0	04	1	1009-1411
25	SCREW; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) M6X40	1-71707-223-0	04	1	1412-1412
25	SCREW; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M6X40	1-71707-223-0	04	1	1412-
26	COVER; OUTSIDE MIRROR (A)	1-71707-222-0	01	1	1009-1411
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71707-222-0	01	1	1412-1412
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71707-222-0	01	1	1412-
26	COVER; OUTSIDE MIRROR (B)	1-71798-316-2	01	1	1009-1411
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71798-316-2	01	1	1412-1412
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-316-2	01	1	1412-
26	COVER; OUTSIDE MIRROR (A)	1-71707-221-0	01	1	1009-1411
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71707-221-0	01	1	1412-1412
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71707-221-0	01	1	1412-
26	COVER; OUTSIDE MIRROR (B)	1-71798-695-0	01	1	1009-1411
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71798-695-0	01	1	1412-1412
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-695-0	01	1	1412-
29	MIRROR ASM; UNDER (A)	1-71797-137-1	01	1	1009-1411
29	MIRROR ASM; UNDER HONG KONG EQUIPMENT(PQ1) (A)	1-71797-137-1	01	1	1412-1412
29	MIRROR ASM; UNDER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71797-137-1	01	1	1412-
29	MIRROR ASM; UNDER (B)	1-71798-421-1	01	1	1009-1411
29	MIRROR ASM; UNDER HONG KONG EQUIPMENT(PQ1) (B)	1-71798-421-1	01	1	1412-1412
29	MIRROR ASM; UNDER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-421-1	01	1	1412-
30	MIRROR; UNDER (A)	1-71797-853-1	01	1	1009-1411
30	MIRROR; UNDER HONG KONG EQUIPMENT(PQ1) (A)	1-71797-853-1	01	1	1412-1412
30	MIRROR; UNDER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71797-853-1	01	1	1412-
30	MIRROR; UNDER (B)	1-71798-592-1	01	1	1009-1411
30	MIRROR; UNDER HONG KONG EQUIPMENT(PQ1) (B)	1-71798-592-1	01	1	1412-1412
30	MIRROR; UNDER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-592-1	01	1	1412-
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	04	1	1009-1411
32	SCREW; UNDER MIRROR HONG KONG EQUIPMENT(PQ1) M5X40 W/PL WASHER	1-71737-797-0	04	1	1412-1412
32	SCREW; UNDER MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M5X40 W/PL WASHER	1-71737-797-0	04	1	1412-
53	PIVOT; SIDE MIRROR ID=22.2	1-71736-489-2	02	1	1009-1302
53	PIVOT; SIDE MIRROR ID=22.2	1-71736-489-2	04	1	1303-1411
53	PIVOT; SIDE MIRROR HONG KONG EQUIPMENT(PQ1) ID=22.2	1-71736-489-2	04	1	1412-1412
53	PIVOT; SIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=22.2	1-71736-489-2	04	1	1412-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-224-0	02	1	1009-1411
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71707-224-0	02	1	1412-1412
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71707-224-0	02	1	1412-
71	BRACKET; OUTSIDE MIRROR (B)	1-71797-809-2	01	1	1009-1411
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71797-809-2	01	1	1412-1412
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71797-809-2	01	1	1412-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-309-4	01	1	1009-1411
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (C)	1-71798-309-4	01	1	1412-1412
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	1-71798-309-4	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR (C) BLACK	1-71737-649-1	01	1	1009-1411
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (C) BLACK	1-71737-649-1	01	1	1412-1412
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) BLACK	1-71737-649-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR (D) BLACK	1-71737-652-1	01	1	1009-1411
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (D) BLACK	1-71737-652-1	01	1	1412-1412
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) BLACK	1-71737-652-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR (A)	1-71798-732-0	01	1	1009-1411
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71798-732-0	01	1	1412-1412
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71798-732-0	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR (B)	1-71798-733-0	01	1	1009-1411
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71798-733-0	01	1	1412-1412
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-733-0	01	1	1412-
87	SPACER	1-71737-646-2	02	1	1009-1411
87	SPACER HONG KONG EQUIPMENT(PQ1)	1-71737-646-2	02	1	1412-1412
87	SPACER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71737-646-2	02	1	1412-
132	RING; MIRROR	1-71737-935-0	01	1	1009-1411
132	RING; MIRROR HONG KONG EQUIPMENT(PQ1)	1-71737-935-0	01	1	1412-1412
132	RING; MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71737-935-0	01	1	1412-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	1009-1411
134	CLIP; MIRROR LENS HONG KONG EQUIPMENT(PQ1)	1-71737-936-0	01	1	1412-1412
134	CLIP; MIRROR LENS HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71737-936-0	01	1	1412-
135	LENS; MIRROR,SIDE UNDER (B)	1-71707-130-0	01	1	1009-1411
135	LENS; MIRROR,SIDE UNDER HONG KONG EQUIPMENT(PQ1) (B)	1-71707-130-0	01	1	1412-1412
135	LENS; MIRROR,SIDE UNDER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71707-130-0	01	1	1412-
135	LENS; MIRROR,SIDE UNDER (A)	1-71737-929-0	01	1	1009-1411
135	LENS; MIRROR,SIDE UNDER HONG KONG EQUIPMENT(PQ1) (A)	1-71737-929-0	01	1	1412-1412
135	LENS; MIRROR,SIDE UNDER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71737-929-0	01	1	1412-

2 1 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM	1-73117-033-1	01	1	1009-1411
1	MIRROR; ROOM RR VIEW MIRROR<D31>	1-73117-033-1	01	1	1412-
2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	1009-1411
2	SCREW; MIRROR TO BODY RR VIEW MIRROR<D31> M6X20	1-09981-310-0	02	1	1412-
150	PLUG; MIRROR HOLE EXC. RR VIEW MIRROR<D31> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	1412-

63 151 46 170 170 171 172 169 200 168 173 165 54 46 46 166 164 63 66 63 167 67 118 201 118 165 58 66 49 177 29 174 66 190 13 118 166 66 58 71 90 76 66 26 63 86 86 29 174 174 58 172 164 66 63 66 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	1-71707-182-0	01	1	1009-1411
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1)	1-71707-182-0	01	1	1412-1412
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71707-182-0	01	1	1412-1510
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98324-747-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW	1-71707-181-0	01	1	1009-1411
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1)	1-71707-181-0	01	1	1412-1412
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71707-181-0	01	1	1412-1504
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98288-715-1	01	1	1505-1510
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98324-746-0	01	1	1511-
26	COVER; OUTSIDE MIRROR (A)	1-71707-222-0	01	1	1009-1411
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71707-222-0	01	1	1412-1412
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71707-222-0	01	1	1412-
26	COVER; OUTSIDE MIRROR (B)	1-71798-316-2	01	1	1009-1411
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71798-316-2	01	1	1412-1412
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-316-2	01	1	1412-
26	COVER; OUTSIDE MIRROR (A)	1-71707-221-0	01	1	1009-1411
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71707-221-0	01	1	1412-1412
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71707-221-0	01	1	1412-
26	COVER; OUTSIDE MIRROR (B)	1-71798-695-0	01	1	1009-1411
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71798-695-0	01	1	1412-1412
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-695-0	01	1	1412-
29	MIRROR ASM; UNDER (A)	1-71797-137-1	01	1	1009-1411
29	MIRROR ASM; UNDER HONG KONG EQUIPMENT(PQ1) (A)	1-71797-137-1	01	1	1412-1412
29	MIRROR ASM; UNDER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71797-137-1	01	1	1412-
29	MIRROR ASM; UNDER (B)	1-71798-421-1	01	1	1009-1411
29	MIRROR ASM; UNDER HONG KONG EQUIPMENT(PQ1) (B)	1-71798-421-1	01	1	1412-1412
29	MIRROR ASM; UNDER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-421-1	01	1	1412-
46	WASHER; LK,STAY (B) ID=16.7 OD=22.5 WAVE WASHER	9-61166-107-0	02	1	1009-1411
46	WASHER; LK,STAY HONG KONG EQUIPMENT(PQ1) (B) ID=16.7 OD=22.5 WAVE WASHER	9-61166-107-0	02	1	1412-1412
46	WASHER; LK,STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=16.7 OD=22.5 WAVE WASHER	9-61166-107-0	02	1	1412-
46	WASHER; LK,STAY MIR STAY O/S W/REMOTE<TBA> (A) ID=10	1-09985-345-0	01	1	1009-1302
46	WASHER; LK,STAY (A) ID=10	1-09985-345-0	01	1	1303-1411
46	WASHER; LK,STAY HONG KONG EQUIPMENT(PQ1) (A) ID=10	1-09985-345-0	01	1	1412-1412
46	WASHER; LK,STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=10	1-09985-345-0	01	1	1412-
49	STAY; MIRROR SIDE	1-71707-177-1	01	1	1009-1411
49	STAY; MIRROR SIDE HONG KONG EQUIPMENT(PQ1)	1-71707-177-1	01	1	1412-1412
49	STAY; MIRROR SIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71707-177-1	01	1	1412-
49	STAY; MIRROR SIDE	1-71707-175-1	01	1	1009-1411
49	STAY; MIRROR SIDE HONG KONG EQUIPMENT(PQ1)	1-71707-175-1	01	1	1412-1412
49	STAY; MIRROR SIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71707-175-1	01	1	1412-
54	BOLT; STAY	1-09980-618-0	01	1	1009-1411
54	BOLT; STAY HONG KONG EQUIPMENT(PQ1)	1-09980-618-0	01	1	1412-1412
54	BOLT; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-09980-618-0	01	1	1412-
58	NUT; MIRROR STAY (A) M12	1-09984-178-1	02	1	1009-1411
58	NUT; MIRROR STAY HONG KONG EQUIPMENT(PQ1) (A) M12	1-09984-178-1	02	1	1412-1412
58	NUT; MIRROR STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M12	1-09984-178-1	02	1	1412-
58	NUT; MIRROR STAY (B) M12	1-09984-184-1	01	1	1009-1411
58	NUT; MIRROR STAY HONG KONG EQUIPMENT(PQ1) (B) M12	1-09984-184-1	01	1	1412-1412
58	NUT; MIRROR STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M12	1-09984-184-1	01	1	1412-
63	NUT; STAY (A) M8	1-09984-187-0	06	1	1009-1411
63	NUT; STAY HONG KONG EQUIPMENT(PQ1) (A) M8	1-09984-187-0	06	1	1412-1412
63	NUT; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8	1-09984-187-0	06	1	1412-
63	NUT; STAY (D) M14	0-91110-514-0	01	1	1009-1411
63	NUT; STAY HONG KONG EQUIPMENT(PQ1) (D) M14	0-91110-514-0	01	1	1412-1412
63	NUT; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) M14	0-91110-514-0	01	1	1412-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (B) M8	1-71798-603-1	02	1	1009-1302
63	NUT; STAY (B) M8	1-71798-603-1	02	1	1303-1411
63	NUT; STAY HONG KONG EQUIPMENT(PQ1) (B) M8	1-71798-603-1	02	1	1412-1412
63	NUT; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8	1-71798-603-1	02	1	1412-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT	1-71798-859-0	01	1	1009-1302
63	NUT; STAY (C) M10 CAP NUT	1-71798-859-0	01	1	1303-1411
63	NUT; STAY HONG KONG EQUIPMENT(PQ1) (C) M10 CAP NUT	1-71798-859-0	01	1	1412-1412
63	NUT; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) M10 CAP NUT	1-71798-859-0	01	1	1412-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	1009-1302
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	1303-1411
66	WASHER; PL HONG KONG EQUIPMENT(PQ1) (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	1412-1412
66	WASHER; PL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	1412-
66	WASHER; PL (B) ID=12.5	1-09985-334-0	04	1	1009-1411
66	WASHER; PL HONG KONG EQUIPMENT(PQ1) (B) ID=12.5	1-09985-334-0	04	1	1412-1412
66	WASHER; PL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=12.5	1-09985-334-0	04	1	1412-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1009-1411
66	WASHER; PL HONG KONG EQUIPMENT(PQ1) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1412-1412
66	WASHER; PL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1412-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1009-1302
67	NUT; STAY M12	1-09984-178-1	01	1	1009-1411
67	NUT; STAY HONG KONG EQUIPMENT(PQ1) M12	1-09984-178-1	01	1	1412-1412
67	NUT; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M12	1-09984-178-1	01	1	1412-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-224-0	02	1	1009-1411
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71707-224-0	02	1	1412-1412
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71707-224-0	02	1	1412-
71	BRACKET; OUTSIDE MIRROR (B)	1-71797-809-2	01	1	1009-1411
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71797-809-2	01	1	1412-1412
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71797-809-2	01	1	1412-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-309-4	01	1	1009-1411
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (C)	1-71798-309-4	01	1	1412-1412
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	1-71798-309-4	01	1	1412-
76	BOLT; STAY BRKT M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	1009-1411
76	BOLT; STAY BRKT HONG KONG EQUIPMENT(PQ1) M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	1412-1412
76	BOLT; STAY BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	1412-
86	COVER; STAY,OUTSIDE MIRROR (C) BLACK	1-71737-649-1	01	1	1009-1411
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (C) BLACK	1-71737-649-1	01	1	1412-1412
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) BLACK	1-71737-649-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR (D) BLACK	1-71737-652-1	01	1	1009-1411
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (D) BLACK	1-71737-652-1	01	1	1412-1412
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) BLACK	1-71737-652-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR (A)	1-71798-732-0	01	1	1009-1411
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71798-732-0	01	1	1412-1412
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71798-732-0	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR (B)	1-71798-733-0	01	1	1009-1411
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71798-733-0	01	1	1412-1412
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-733-0	01	1	1412-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	1009-
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	1009-
118	JOINT ASM; BALL (A)	1-71797-805-1	01	1	1009-1411
118	JOINT ASM; BALL HONG KONG EQUIPMENT(PQ1) (A)	1-71797-805-1	01	1	1412-1412
118	JOINT ASM; BALL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71797-805-1	01	1	1412-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (C) RH THREAD	1-71798-819-2	01	1	1009-1302
118	JOINT ASM; BALL (C) RH THREAD	1-71798-819-2	01	1	1303-1411
118	JOINT ASM; BALL HONG KONG EQUIPMENT(PQ1) (C) RH THREAD	1-71798-819-2	01	1	1412-1412
118	JOINT ASM; BALL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) RH THREAD	1-71798-819-2	01	1	1412-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (B) LH THREAD	1-71798-820-2	01	1	1009-1302
118	JOINT ASM; BALL (B) LH THREAD	1-71798-820-2	01	1	1303-1411
118	JOINT ASM; BALL HONG KONG EQUIPMENT(PQ1) (B) LH THREAD	1-71798-820-2	01	1	1412-1412
118	JOINT ASM; BALL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) LH THREAD	1-71798-820-2	01	1	1412-
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	1009-1302
151	WASHER; PL,MIRROR ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	1303-1411
151	WASHER; PL,MIRROR HONG KONG EQUIPMENT(PQ1) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	1412-1412
151	WASHER; PL,MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	1412-
164	STAY; ROOF (B)	1-71798-299-4	01	1	1009-1411
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1) (B)	1-71798-299-4	01	1	1412-1412
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-299-4	01	1	1412-
164	STAY; ROOF (C)	1-71707-090-0	01	1	1009-1411
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1) (C)	1-71707-090-0	01	1	1412-1412
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	1-71707-090-0	01	1	1412-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-602-1	01	1	1009-1302
164	STAY; ROOF (A)	1-71798-602-1	01	1	1303-1411
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1) (A)	1-71798-602-1	01	1	1412-1412
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71798-602-1	01	1	1412-
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-600-1	01	1	1009-1302
165	LINK; POWER MIRROR (B)	1-71798-600-1	01	1	1303-1411
165	LINK; POWER MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71798-600-1	01	1	1412-1412
165	LINK; POWER MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-600-1	01	1	1412-
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-782-2	01	1	1009-1302
165	LINK; POWER MIRROR (A)	1-71798-782-2	01	1	1303-1411
165	LINK; POWER MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71798-782-2	01	1	1412-1412
165	LINK; POWER MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71798-782-2	01	1	1412-
166	BUSHING; STAY	1-09983-179-0	02	1	1009-1411
166	BUSHING; STAY HONG KONG EQUIPMENT(PQ1)	1-09983-179-0	02	1	1412-1412
166	BUSHING; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-09983-179-0	02	1	1412-
167	RUBBER; STOPPER MIR STAY O/S W/REMOTE<TBA>	1-71798-308-0	01	1	1009-1302
167	RUBBER; STOPPER	1-71798-308-0	01	1	1303-1411
167	RUBBER; STOPPER HONG KONG EQUIPMENT(PQ1)	1-71798-308-0	01	1	1412-1412
167	RUBBER; STOPPER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71798-308-0	01	1	1412-
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA>	1-86855-031-0	01	1	1009-1302
168	POWER UNIT; MIRROR STAY	1-86855-031-0	01	1	1303-1311
168	POWER UNIT; MIRROR STAY	8-98251-163-0	01	1	1312-1411
168	POWER UNIT; MIRROR STAY HONG KONG EQUIPMENT(PQ1)	8-98251-163-0	01	1	1412-1412
168	POWER UNIT; MIRROR STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98251-163-0	01	1	1412-
169	WASHER; PL,POWER UNIT MIR STAY O/S W/REMOTE<TBA> ID=26.2 OD=44 T=2	1-86855-011-1	01	1	1009-1302
169	WASHER; PL,POWER UNIT ID=26.2 OD=44 T=2	1-86855-011-1	01	1	1303-1411
169	WASHER; PL,POWER UNIT HONG KONG EQUIPMENT(PQ1) ID=26.2 OD=44 T=2	1-86855-011-1	01	1	1412-1412
169	WASHER; PL,POWER UNIT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=26.2 OD=44 T=2	1-86855-011-1	01	1	1412-
170	CAP; POWER UNIT MIR STAY O/S W/REMOTE<TBA> (A)	1-86855-012-0	01	1	1009-1302
170	CAP; POWER UNIT (A)	1-86855-012-0	01	1	1303-1411
170	CAP; POWER UNIT HONG KONG EQUIPMENT(PQ1) (A)	1-86855-012-0	01	1	1412-1412
170	CAP; POWER UNIT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-86855-012-0	01	1	1412-
170	CAP; POWER UNIT MIR STAY O/S W/REMOTE<TBA> (B)	1-86855-014-1	01	1	1009-1302
170	CAP; POWER UNIT (B)	1-86855-014-1	01	1	1303-1411
170	CAP; POWER UNIT HONG KONG EQUIPMENT(PQ1) (B)	1-86855-014-1	01	1	1412-1412
170	CAP; POWER UNIT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-86855-014-1	01	1	1412-
171	NUT; POWER UNIT MIR STAY O/S W/REMOTE<TBA> M26	1-86855-013-1	01	1	1009-1302
171	NUT; POWER UNIT M26	1-86855-013-1	01	1	1303-1411
171	NUT; POWER UNIT HONG KONG EQUIPMENT(PQ1) M26	1-86855-013-1	01	1	1412-1412
171	NUT; POWER UNIT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M26	1-86855-013-1	01	1	1412-
172	SEAL; RUBBER,POWER UNIT MIR STAY O/S W/REMOTE<TBA> (A)	1-79928-003-1	01	1	1009-1302
172	SEAL; RUBBER,POWER UNIT (A)	1-79928-003-1	01	1	1303-1411
172	SEAL; RUBBER,POWER UNIT HONG KONG EQUIPMENT(PQ1) (A)	1-79928-003-1	01	1	1412-1412
172	SEAL; RUBBER,POWER UNIT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-79928-003-1	01	1	1412-
172	SEAL; RUBBER,POWER UNIT MIR STAY O/S W/REMOTE<TBA> (B)	1-86855-015-0	01	1	1009-1302
172	SEAL; RUBBER,POWER UNIT (B)	1-86855-015-0	01	1	1303-1411
172	SEAL; RUBBER,POWER UNIT HONG KONG EQUIPMENT(PQ1) (B)	1-86855-015-0	01	1	1412-1412
172	SEAL; RUBBER,POWER UNIT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-86855-015-0	01	1	1412-
173	BOLT; POWER UNIT MIR STAY O/S W/REMOTE<TBA> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	1009-1302
173	BOLT; POWER UNIT M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	1303-1411
173	BOLT; POWER UNIT HONG KONG EQUIPMENT(PQ1) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	1412-1412
173	BOLT; POWER UNIT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	1412-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> (A)	1-82662-365-1	02	1	1009-1302
174	HARNESS; MIRROR (A)	1-82662-365-1	02	1	1303-1411
174	HARNESS; MIRROR MIR STAY O/S W/REMOTE<TBA> MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	1-82662-365-1	02	1	1412-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> (B)	8-97610-653-0	01	1	1009-1302
174	HARNESS; MIRROR (B)	8-97610-653-0	01	1	1303-1411
174	HARNESS; MIRROR MIR STAY O/S W/REMOTE<TBA> MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-97610-653-0	01	1	1412-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> (B)	8-97610-652-0	01	1	1009-1302
174	HARNESS; MIRROR (B)	8-97610-652-0	01	1	1303-1411
174	HARNESS; MIRROR MIR STAY O/S W/REMOTE<TBA> MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-97610-652-0	01	1	1412-
177	CLIP; HARNESS L=140	5-09707-031-1	02	1	1009-1411
177	CLIP; HARNESS HONG KONG EQUIPMENT(PQ1) L=140	5-09707-031-1	02	1	1412-1412
177	CLIP; HARNESS HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=140	5-09707-031-1	02	1	1412-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	1009-
190	SCREW; COVER M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	1009-1411
190	SCREW; COVER HONG KONG EQUIPMENT(PQ1) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	1412-1412
190	SCREW; COVER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	1412-
200	STOPPER; STAY MIR STAY O/S W/REMOTE<TBA>	1-71798-597-0	01	1	1009-1302
200	STOPPER; STAY	1-71798-597-0	01	1	1303-1411
200	STOPPER; STAY HONG KONG EQUIPMENT(PQ1)	1-71798-597-0	01	1	1412-1412
200	STOPPER; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71798-597-0	01	1	1412-
201	ROD; MIRROR MIR STAY O/S W/REMOTE<TBA>	1-71798-821-0	01	1	1009-1302
201	ROD; MIRROR	1-71798-821-0	01	1	1303-1411
201	ROD; MIRROR HONG KONG EQUIPMENT(PQ1)	1-71798-821-0	01	1	1412-1412
201	ROD; MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71798-821-0	01	1	1412-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
