7-10 — CAUTION PLATE AND LABEL (#70167) — 108 parça

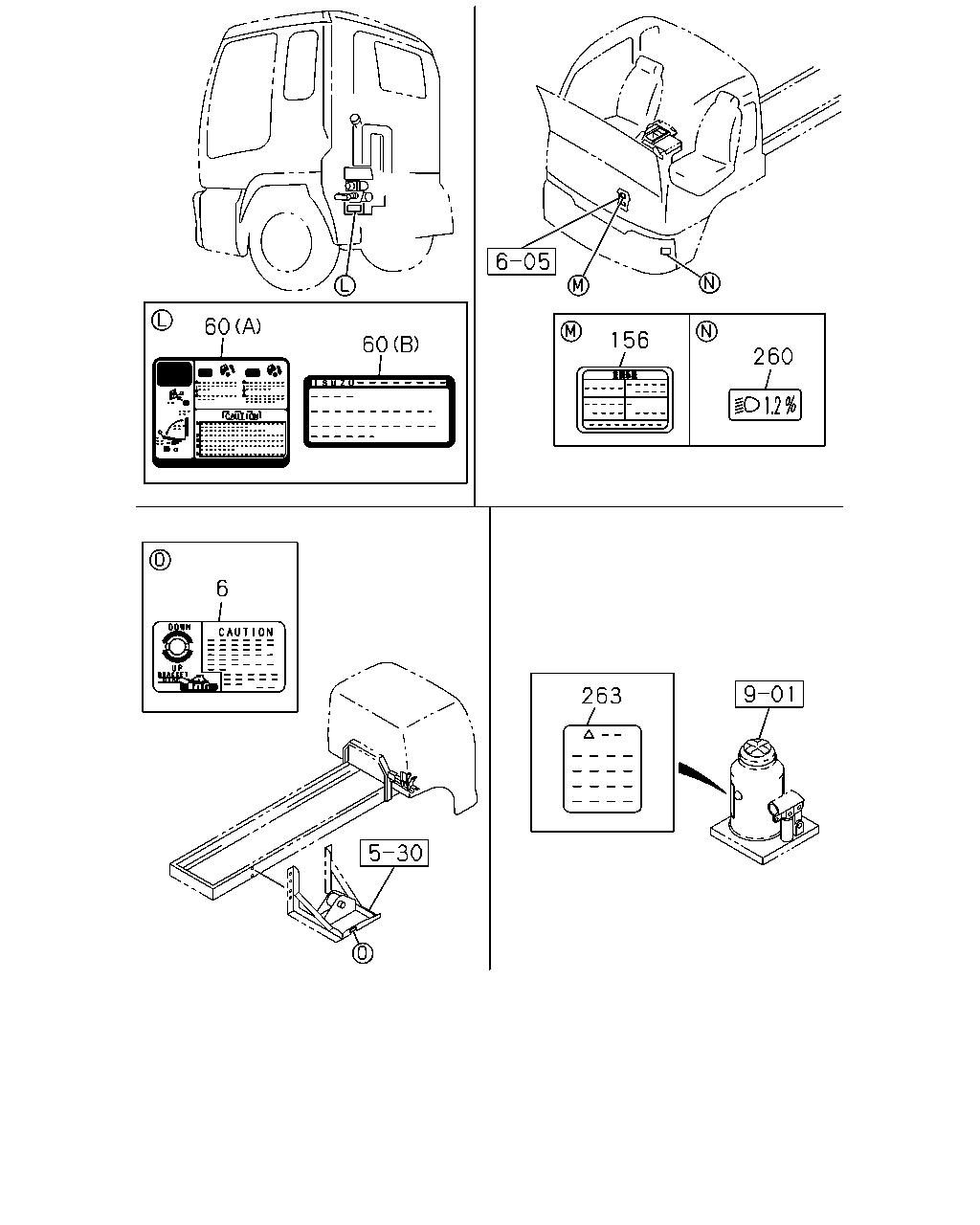

60 60 156 260 6 263

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ENGLISH<RR8>	8-98082-437-0	01	1	1412-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7>	8-98082-438-0	01	1	1009-1302
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13>	8-98082-438-0	01	1	1303-1411
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7>	8-98082-438-0	01	1	1412-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ENGLISH<RR8>	8-98082-437-0	01	1	1009-1302
60	PLATE; CAUTION,CAB TILT CAUTIONS ENGLISH<RR8> (A)	8-98174-581-0	01	1	1412-
60	PLATE; CAUTION,CAB TILT CAUTIONS ENGLISH<RR8> (B)	8-98174-582-0	01	1	1412-
60	PLATE; CAUTION,CAB TILT CAUTIONS CHINESE<SL7> (A)	1-85883-242-0	01	1	1009-1302
60	PLATE; CAUTION,CAB TILT (A)	8-98191-063-0	01	1	1303-1411
60	PLATE; CAUTION,CAB TILT CAUTIONS CHINESE<SL7> (A)	8-98191-063-0	01	1	1412-
60	PLATE; CAUTION,CAB TILT CAUTIONS ENGLISH<RR8> (A)	1-85883-234-0	01	1	1009-1302
60	PLATE; CAUTION,CAB TILT (B)	8-98191-071-0	01	1	1303-1411
60	PLATE; CAUTION,CAB TILT CAUTIONS CHINESE<SL7> (B)	8-98191-071-0	01	1	1412-
156	PLATE; CAUTION,A/C AIR CONDITIONER MANUAL CONTROL(C60) CAUTIONS CHINESE<SL7>	8-98055-383-0	01	1	1009-1302
156	PLATE; CAUTION,A/C	8-98231-357-0	01	1	1303-1411
156	PLATE; CAUTION,A/C AIR CONDITIONER MANUAL CONTROL(C60) CAUTIONS CHINESE<SL7>	8-98231-357-0	01	1	1412-
260	PLATE; CAUTION,HEAD LAMP LEVELING	1-85878-416-1	01	1	1009-1302
263	PLATE; CAUTION,JACK TOOL B KIT<SL1> CAUTIONS CHINESE<SL7>	1-85881-878-0	01	1	1009-1302
263	PLATE; CAUTION,JACK	1-85881-878-0	01	1	1303-1411
263	PLATE; CAUTION,JACK TOOL B KIT<SL1> CAUTIONS CHINESE<SL7>	1-85881-878-0	01	1	1412-

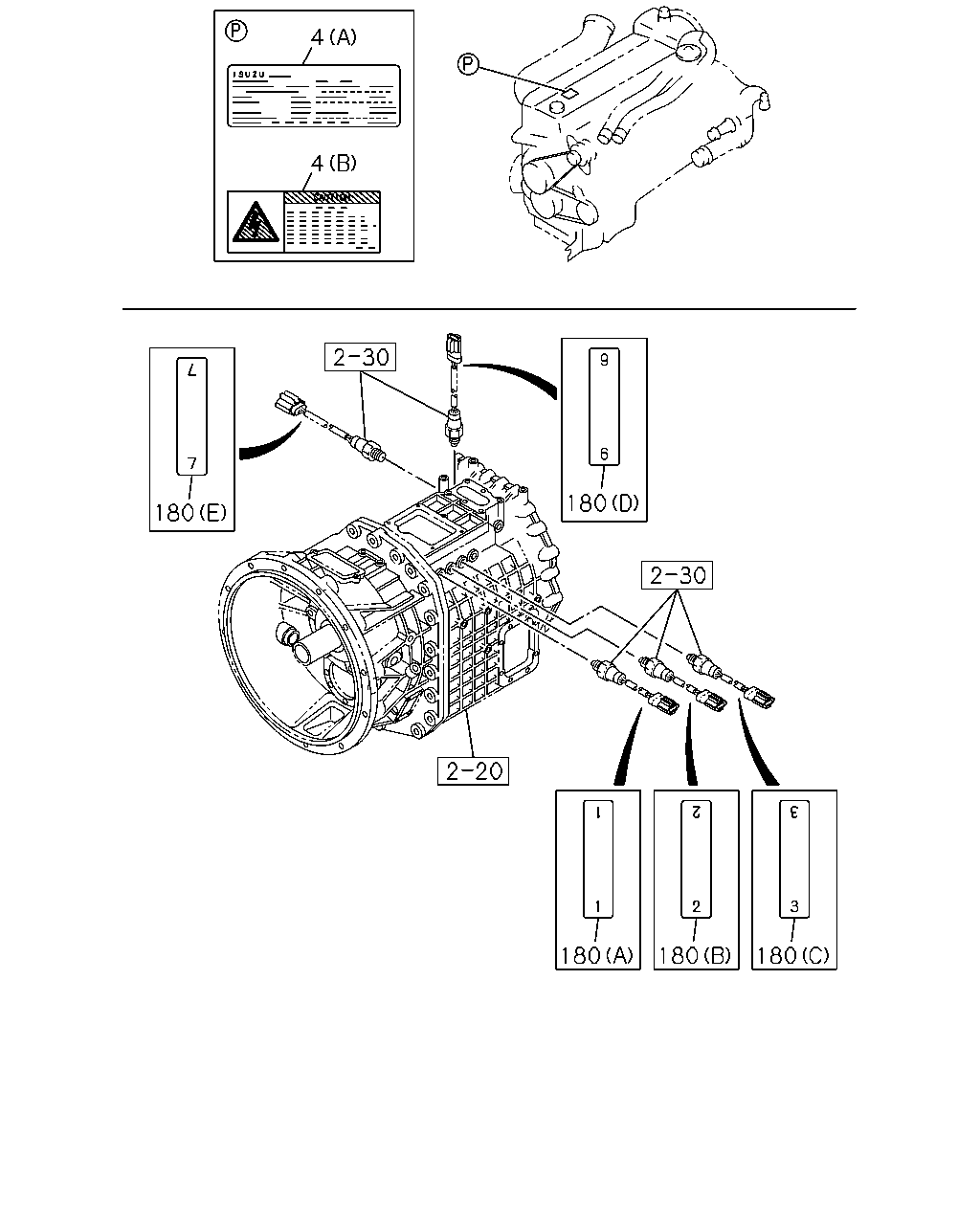

180 180 180 180 4 4 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	LABEL; ENG MAINTENANCE (A)	1-85875-350-2	01	1	1009-
4	LABEL; ENG MAINTENANCE (B)	8-94391-524-0	01	1	1009-
180	PLATE; CAUTION,SWITCH MJX12P M/T SMOOTHER-G(Y4S) (A)	1-85881-871-0	01	1	1009-
180	PLATE; CAUTION,SWITCH MJX12P M/T SMOOTHER-G(Y4S) (B)	1-85881-872-0	01	1	1009-
180	PLATE; CAUTION,SWITCH MJX12P M/T SMOOTHER-G(Y4S) (C)	1-85881-873-0	01	1	1009-
180	PLATE; CAUTION,SWITCH MJX12P M/T SMOOTHER-G(Y4S) (D)	1-85881-880-0	01	1	1009-
180	PLATE; CAUTION,SWITCH MJX12P M/T SMOOTHER-G(Y4S) (E)	1-85881-881-0	01	1	1009-

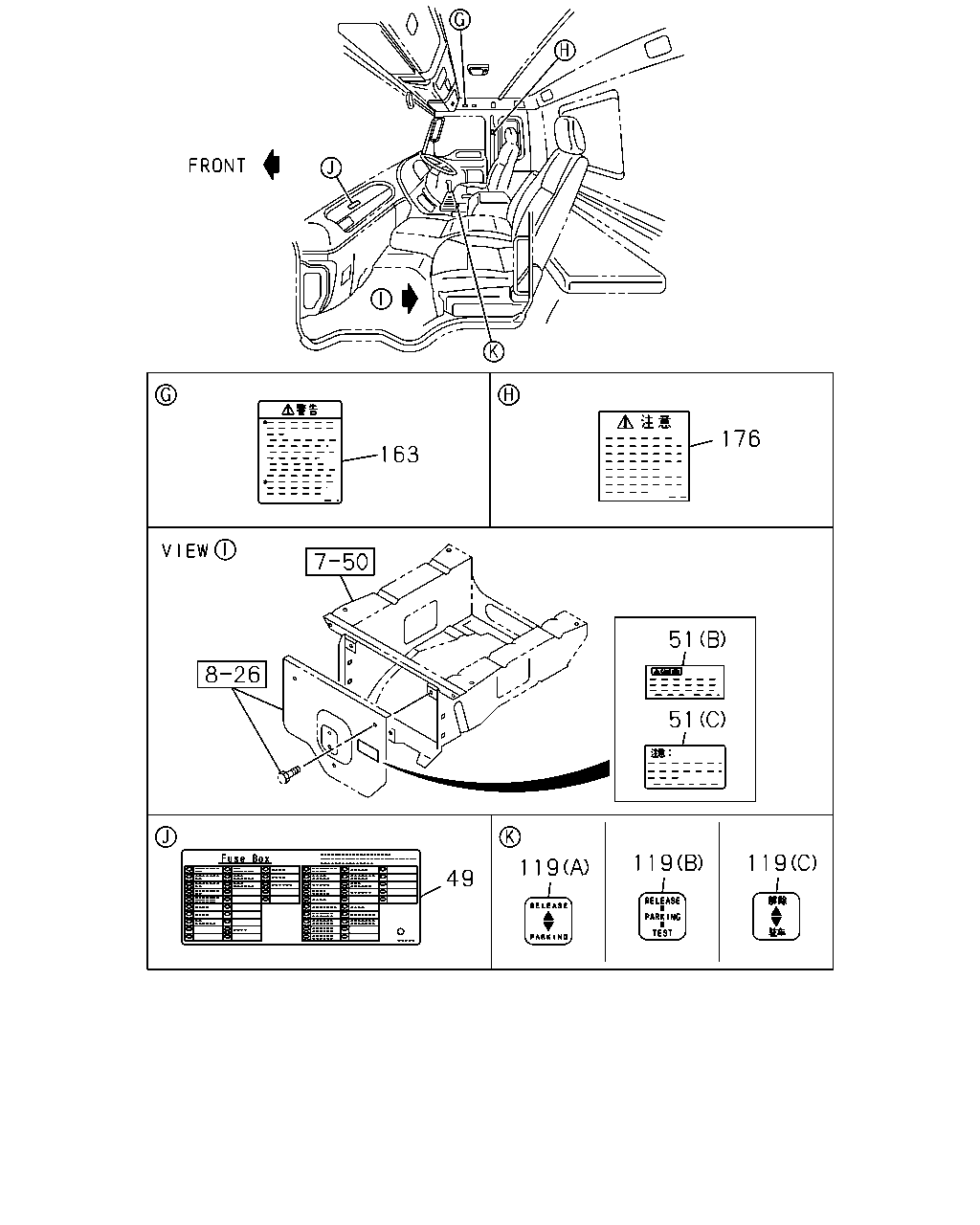

163 176 51 51 119 119 119 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PLATE; CAUTION,FUSE BOX CAUTIONS ENGLISH<RR8>	8-97631-090-1	01	1	1412-
49	PLATE; CAUTION,FUSE BOX CAUTIONS CHINESE<SL7>	8-97631-089-1	01	1	1009-1302
49	PLATE; CAUTION,FUSE BOX	8-97631-089-1	01	1	1303-1411
49	PLATE; CAUTION,FUSE BOX CAUTIONS CHINESE<SL7>	8-97631-089-1	01	1	1412-
49	PLATE; CAUTION,FUSE BOX CAUTIONS ENGLISH<RR8>	8-97631-090-1	01	1	1009-1302
51	PLATE; CAUTION,WARNING SMOOTHER-G(C1W) CAUTIONS ENGLISH<RR8> (B)	1-85878-544-0	01	1	1412-
51	PLATE; CAUTION,WARNING (A)	1-85880-777-0	01	1	1009-1411
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7> (A)	1-85880-777-0	01	1	1412-1412
51	PLATE; CAUTION,WARNING CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> (A)	1-85880-777-0	01	1	1412-
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7> (C)	8-97616-500-0	01	1	1009-1302
51	PLATE; CAUTION,WARNING SMOOTHER-G(C1W) (C)	8-97616-500-0	01	1	1303-1411
51	PLATE; CAUTION,WARNING SMOOTHER-G(C1W) CAUTIONS CHINESE<SL7> (C)	8-97616-500-0	01	1	1412-
51	PLATE; CAUTION,WARNING CAUTIONS ENGLISH<RR8> (B)	1-85878-544-0	01	1	1009-1302
51	PLATE; CAUTION,WARNING (D)	1-85878-571-0	01	1	1303-
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS ENGLISH<RR8> (B)	1-85881-791-0	01	1	1412-
119	PLATE; CAUTION,HAND BRK LEVER BRAKE REGULATION HONG KONG<TCZ> (A)	1-85881-759-0	01	1	1009-1302
119	PLATE; CAUTION,HAND BRK LEVER (C)	1-85881-874-0	01	1	1303-1411
119	PLATE; CAUTION,HAND BRK LEVER HONG KONG EQUIPMENT(PQ1) (C)	1-85881-874-0	01	1	1412-
119	PLATE; CAUTION,HAND BRK LEVER EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-85881-791-0	01	1	1009-1302
163	PLATE; NAME,AIR BAG CAUTIONS ENGLISH<RR8> AIR BAG(TFQ)	1-85878-485-0	01	1	1412-
163	PLATE; NAME,AIR BAG CAUTIONS CHINESE<SL7> AIR BAG(TFQ)	1-85878-109-0	01	1	1009-1302
163	PLATE; NAME,AIR BAG	1-85878-109-0	01	1	1303-1411
163	PLATE; NAME,AIR BAG CAUTIONS CHINESE<SL7> AIR BAG(TFQ)	1-85878-109-0	01	1	1412-
163	PLATE; NAME,AIR BAG CAUTIONS ENGLISH<RR8> AIR BAG(TFQ)	1-85878-485-0	01	1	1009-1302
176	LABEL; SEAT BELT CAUTIONS ENGLISH<RR8> SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC)	1-85878-486-0	01	1	1412-
176	LABEL; SEAT BELT CAUTIONS CHINESE<SL7> SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC)	1-85878-108-0	01	1	1009-1302
176	LABEL; SEAT BELT	1-85878-108-0	01	1	1303-1411
176	LABEL; SEAT BELT CAUTIONS CHINESE<SL7> SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC)	1-85878-108-0	01	1	1412-
176	LABEL; SEAT BELT CAUTIONS ENGLISH<RR8> SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC)	1-85878-486-0	01	1	1009-1302

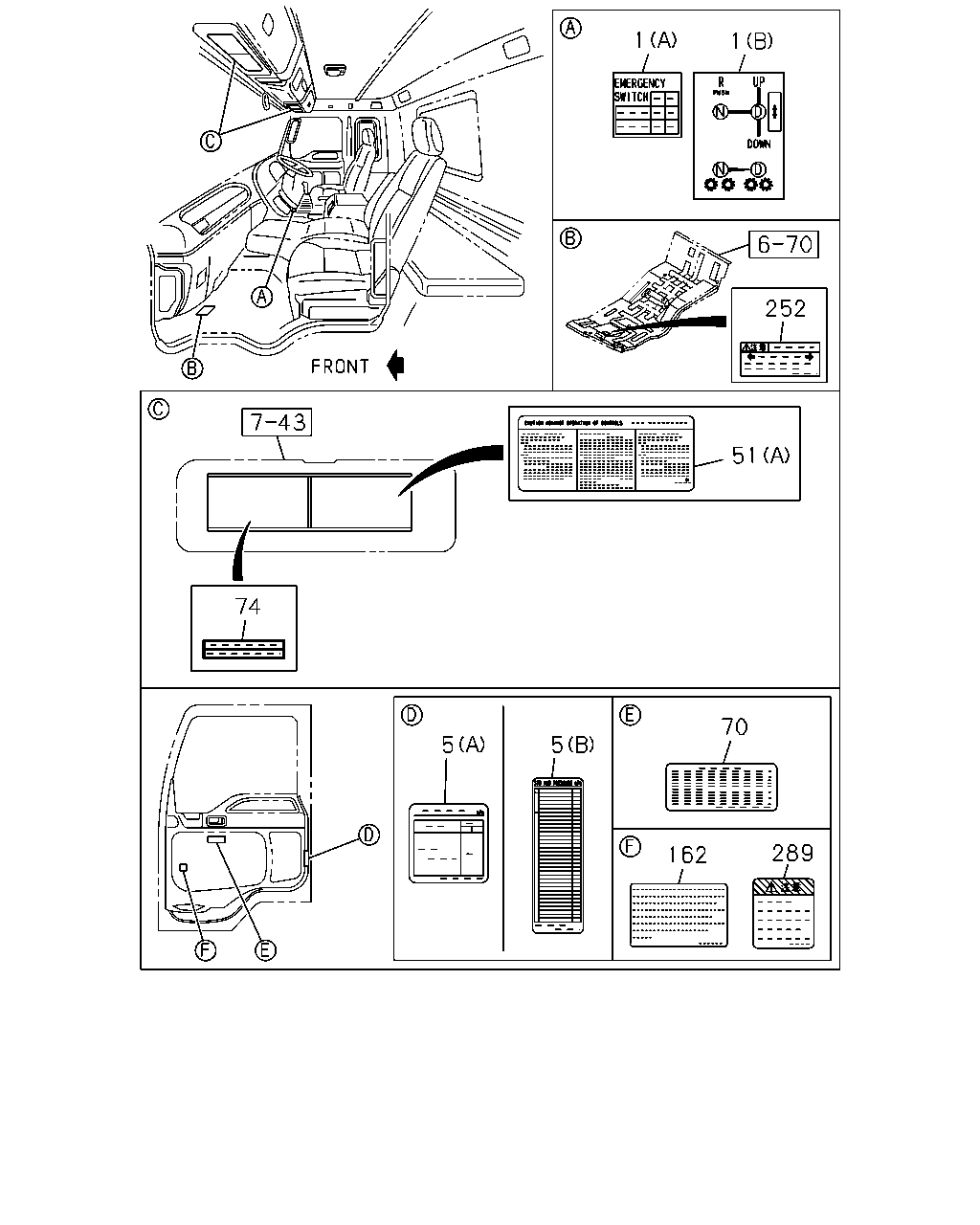

162 289 5 5 70 74 51 252 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PLATE; CAUTION,SHIFT PATTERN MJX12P M/T SMOOTHER-G(Y4S) (B)	1-85881-842-0	01	1	1009-1302
1	PLATE; CAUTION,SHIFT PATTERN SMOOTHER-G(C1W) (B)	1-85881-842-0	01	1	1303-
1	PLATE; CAUTION,SHIFT PATTERN MJX12P M/T SMOOTHER-G(Y4S) (A)	1-85881-879-1	01	1	1009-1302
1	PLATE; CAUTION,SHIFT PATTERN SMOOTHER-G(C1W) (A)	1-85881-879-1	01	1	1303-
5	LABEL; TIRE AIR PRESSURE CAUTIONS ENGLISH<RR8> (B)	1-85880-778-0	01	1	1412-
5	LABEL; TIRE AIR PRESSURE CAUTIONS CHINESE<SL7> (A)	1-85881-887-0	01	1	1009-1302
5	LABEL; TIRE AIR PRESSURE TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) (A)	1-85881-887-0	01	1	1303-1411
5	LABEL; TIRE AIR PRESSURE TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) CAUTIONS CHINESE<SL7> (A)	1-85881-887-0	01	1	1412-
5	LABEL; TIRE AIR PRESSURE EXC. CAUTIONS CHINESE<SL7> (B)	1-85880-778-0	01	1	1009-1302
51	PLATE; CAUTION,WARNING SMOOTHER-G(C1W) CAUTIONS ENGLISH<RR8> (B)	1-85878-544-0	01	1	1412-
51	PLATE; CAUTION,WARNING (A)	1-85880-777-0	01	1	1009-1411
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7> (A)	1-85880-777-0	01	1	1412-1412
51	PLATE; CAUTION,WARNING CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> (A)	1-85880-777-0	01	1	1412-
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7> (C)	8-97616-500-0	01	1	1009-1302
51	PLATE; CAUTION,WARNING SMOOTHER-G(C1W) (C)	8-97616-500-0	01	1	1303-1411
51	PLATE; CAUTION,WARNING SMOOTHER-G(C1W) CAUTIONS CHINESE<SL7> (C)	8-97616-500-0	01	1	1412-
51	PLATE; CAUTION,WARNING CAUTIONS ENGLISH<RR8> (B)	1-85878-544-0	01	1	1009-1302
51	PLATE; CAUTION,WARNING (D)	1-85878-571-0	01	1	1303-
70	PLATE; CAUTION,ACT SMOOTHER-G(C1W) CAUTIONS CHINESE<SL7>	1-85878-547-0	01	1	1009-1302
70	PLATE; CAUTION,ACT SMOOTHER-G(C1W)	1-85878-547-0	01	1	1303-
70	PLATE; CAUTION,ACT SMOOTHER-G(C1W) CAUTIONS ENGLISH<RR8>	1-85878-484-0	01	1	1009-1302
74	PLATE; CAUTION,CHANGE LEV SMOOTHER-G(C1W) CAUTIONS CHINESE<SL7>	1-85881-928-0	01	1	1009-1302
74	PLATE; CAUTION,CHANGE LEV SMOOTHER-G(C1W)	1-85881-928-0	01	1	1303-
74	PLATE; CAUTION,CHANGE LEV SMOOTHER-G(C1W) CAUTIONS ENGLISH<RR8>	1-85881-869-0	01	1	1009-1302
162	PLATE; CAUTION,FUEL CAUTIONS ENGLISH<RR8>	8-97623-712-0	01	1	1412-
162	PLATE; CAUTION,FUEL CAUTIONS CHINESE<SL7>	1-85875-457-0	01	1	1009-1302
162	PLATE; CAUTION,FUEL	1-85875-457-0	01	1	1303-1411
162	PLATE; CAUTION,FUEL CAUTIONS CHINESE<SL7>	1-85875-457-0	01	1	1412-
162	PLATE; CAUTION,FUEL CAUTIONS ENGLISH<RR8>	8-97623-712-0	01	1	1009-1302
252	PLATE; CAUTION,HARNESS CAUTIONS ENGLISH<RR8>	1-85878-488-1	01	1	1412-
252	PLATE; CAUTION,HARNESS CAUTIONS CHINESE<SL7>	1-85878-515-0	01	1	1009-1302
252	PLATE; CAUTION,HARNESS	1-85878-515-0	01	1	1303-1411
252	PLATE; CAUTION,HARNESS CAUTIONS CHINESE<SL7>	1-85878-515-0	01	1	1412-
252	PLATE; CAUTION,HARNESS CAUTIONS ENGLISH<RR8>	1-85878-488-1	01	1	1009-1302
289	PLATE; CAUTION,DRIVING HONG KONG EQUIPMENT(PQ1) CAUTIONS CHINESE<SL7>	1-85883-223-1	01	1	1009-1302
289	PLATE; CAUTION,DRIVING	1-85883-223-1	01	1	1303-1411
289	PLATE; CAUTION,DRIVING HONG KONG EQUIPMENT(PQ1) CAUTIONS CHINESE<SL7>	1-85883-223-1	01	1	1412-

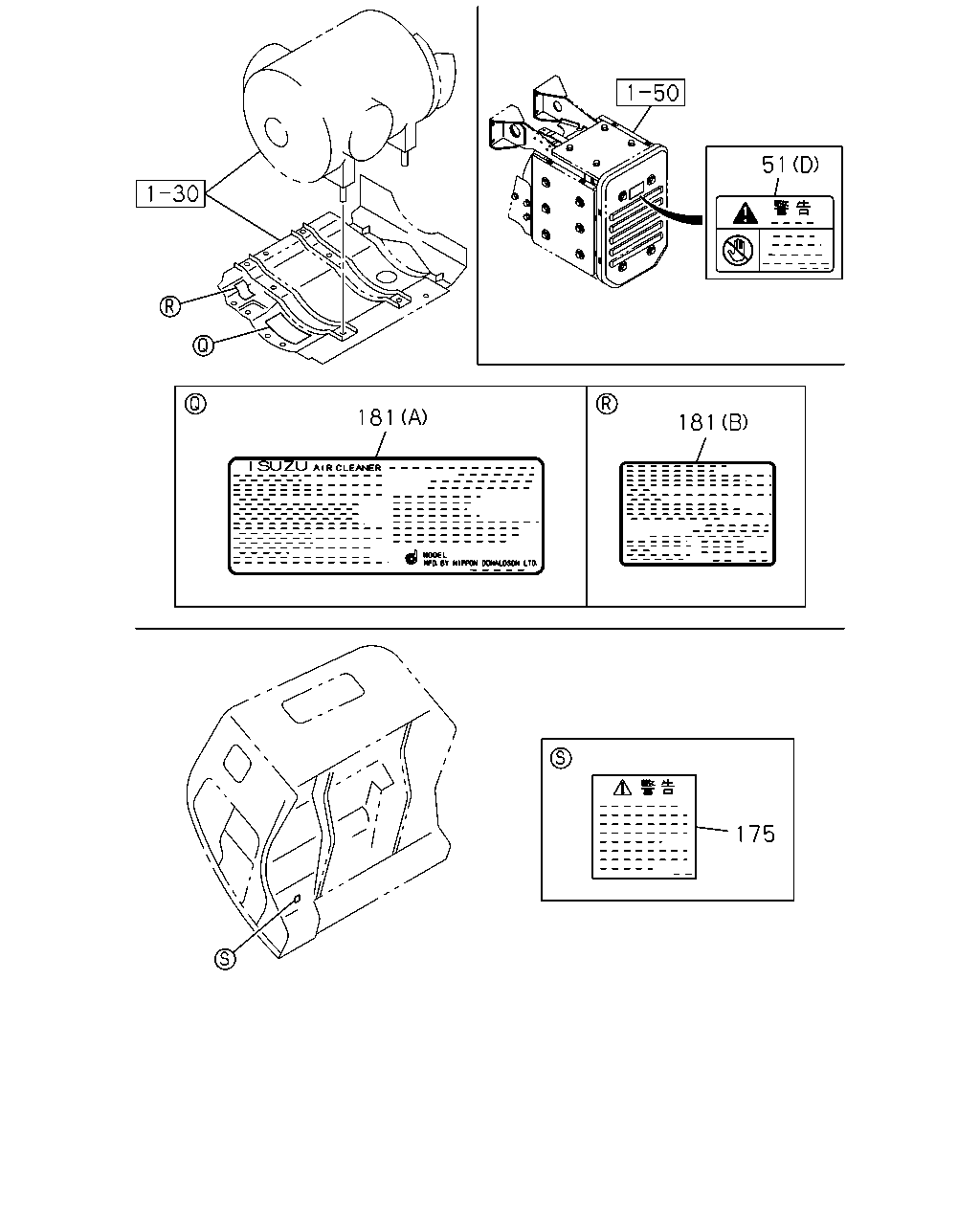

51 181 181 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	PLATE; CAUTION,WARNING SMOOTHER-G(C1W) CAUTIONS ENGLISH<RR8> (B)	1-85878-544-0	01	1	1412-
51	PLATE; CAUTION,WARNING (A)	1-85880-777-0	01	1	1009-1411
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7> (A)	1-85880-777-0	01	1	1412-1412
51	PLATE; CAUTION,WARNING CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> (A)	1-85880-777-0	01	1	1412-
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7> (C)	8-97616-500-0	01	1	1009-1302
51	PLATE; CAUTION,WARNING SMOOTHER-G(C1W) (C)	8-97616-500-0	01	1	1303-1411
51	PLATE; CAUTION,WARNING SMOOTHER-G(C1W) CAUTIONS CHINESE<SL7> (C)	8-97616-500-0	01	1	1412-
51	PLATE; CAUTION,WARNING CAUTIONS ENGLISH<RR8> (B)	1-85878-544-0	01	1	1009-1302
51	PLATE; CAUTION,WARNING (D)	1-85878-571-0	01	1	1303-
175	LABEL; STRG,AIR BAG CAUTIONS CHINESE<SL7> AIR BAG(TFQ)	1-85878-107-0	02	1	1009-1302
175	LABEL; STRG,AIR BAG	1-85878-107-0	02	1	1303-1411
175	LABEL; STRG,AIR BAG CAUTIONS CHINESE<SL7> AIR BAG(TFQ)	1-85878-107-0	02	1	1412-
175	LABEL; STRG,AIR BAG CAUTIONS ENGLISH<RR8> AIR BAG(TFQ)	1-85878-116-0	02	1	1009-1302
181	PLATE; CAUTION,AIR CLEANER (B)	1-85886-813-1	01	1	1303-
181	PLATE; CAUTION,AIR CLEANER (A)	1-85886-796-1	01	1	1009-
