◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11292 - EXR RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#70154) — 261 parça
çizim 131248
130 281 185 249 130 281 185 249
BalonParca AdiParca NoAdetTipApplied Date
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (E) 		1-53194-386-1 01 1 1412-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (E) 		8-98240-672-0 01 1 1412-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
(A) 		8-98225-727-0 01 1 1303-1411
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (A) 		8-98225-727-0 01 1 1412-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 1009-1411
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (A) 		1-53194-380-2 01 1 1412-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 1009-
130 PANEL; SHUTTER NOISE
(B) 		8-98079-170-1 01 1 1009-
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1009-
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (C) 		8-98167-256-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
(C) 		8-98167-256-0 01 1 1303-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		8-98079-171-0 01 1 1009-1302
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 31 1 1009-1302
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 1303-
185 CLIP; HEAT INSULATOR
HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 09 1 1009-1302
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 15 1 1303-1303
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 35 1 1304-
185 CLIP; HEAT INSULATOR
EXC. HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 04 1 1009-1302
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 20 1 1303-1303
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1009-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 1009-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1009-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1009-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1009-
249 RUBBER; SHUTTER
(D) 		8-98079-172-0 01 1 1009-
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1009-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-1302
281 INSULATOR; NOISE
(D) 		1-73237-445-4 01 1 1303-1411
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (D) 		1-73237-445-4 01 1 1412-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 1009-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 1009-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-931-0 01 1 1009-
281 INSULATOR; NOISE
HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-742-0 01 1 1009-1302
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 1303-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (D) 		1-73237-445-4 01 1 1009-1302
281 INSULATOR; NOISE
(C) 		8-98227-396-0 01 1 1303-

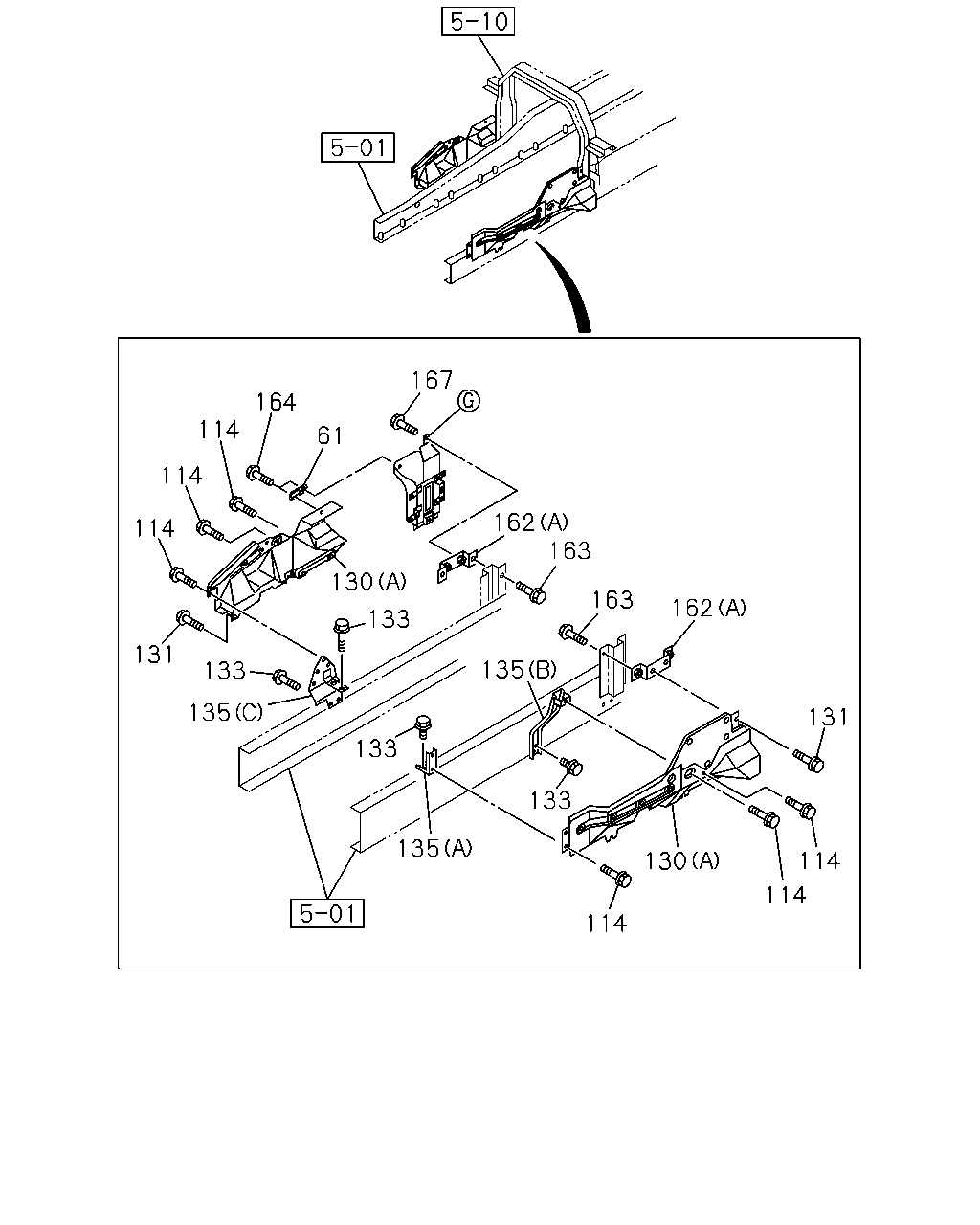

çizim 131292
131 114 114 130 114 162 163 135 133 163 162 167 61 164 114 114 114 131 133 135 130 133 133 135
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER 8-98039-501-1 01 1 1009-
114 BOLT
M8X20 FLANGE 		0-28650-820-0 05 1 1009-
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 1009-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (E) 		1-53194-386-1 01 1 1412-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (E) 		8-98240-672-0 01 1 1412-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
(A) 		8-98225-727-0 01 1 1303-1411
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (A) 		8-98225-727-0 01 1 1412-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 1009-1411
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (A) 		1-53194-380-2 01 1 1412-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 1009-
130 PANEL; SHUTTER NOISE
(B) 		8-98079-170-1 01 1 1009-
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1009-
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (C) 		8-98167-256-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
(C) 		8-98167-256-0 01 1 1303-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		8-98079-171-0 01 1 1009-1302
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1009-
131 BOLT; PANEL
M8X16 FLANGE 		0-28050-816-0 01 1 1009-1302
133 BOLT; FRAME
SMOOTHER-G(C1W) M10X35 FLANGE 		0-28651-035-0 01 1 1303-
133 BOLT; FRAME
SMOOTHER-G(C1W) M14X45 FLANGE 		0-28851-445-0 01 1 1303-
133 BOLT; FRAME
TRANSMISSION CONTROL CABLE TYPE(C1A) M10X35 FLANGE 		0-28651-035-0 01 1 1303-
133 BOLT; FRAME
TRANSMISSION CONTROL CABLE TYPE(C1A) M14X45 FLANGE 		0-28851-445-0 01 1 1303-
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 04 1 1009-1302
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 1303-
133 BOLT; FRAME
M10X35 FLANGE 		0-28651-035-0 02 1 1009-1302
133 BOLT; FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 1303-
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 1009-1302
135 BRACKET; SIDE PANEL
(A) 		8-98225-728-0 01 1 1303-
135 BRACKET; SIDE PANEL
(B) 		8-98127-905-0 01 1 1009-1302
135 BRACKET; SIDE PANEL
(B) 		8-98127-905-0 01 1 1303-
135 BRACKET; SIDE PANEL
(C) 		8-98039-211-2 01 1 1009-1302
135 BRACKET; SIDE PANEL
SMOOTHER-G(C1W) (C) 		8-98216-394-1 01 1 1303-
135 BRACKET; SIDE PANEL
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) 		8-98216-298-1 01 1 1303-
162 BRACKET
(A) 		1-53441-520-0 02 1 1009-
162 BRACKET
(B) 		1-71907-815-0 01 1 1009-
162 BRACKET
(D) 		8-98113-210-2 01 1 1009-1302
162 BRACKET
(E) 		1-53441-521-2 01 1 1009-
162 BRACKET
(C) 		1-53441-522-0 01 1 1009-
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1009-
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28650-820-0 02 1 1009-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 1009-

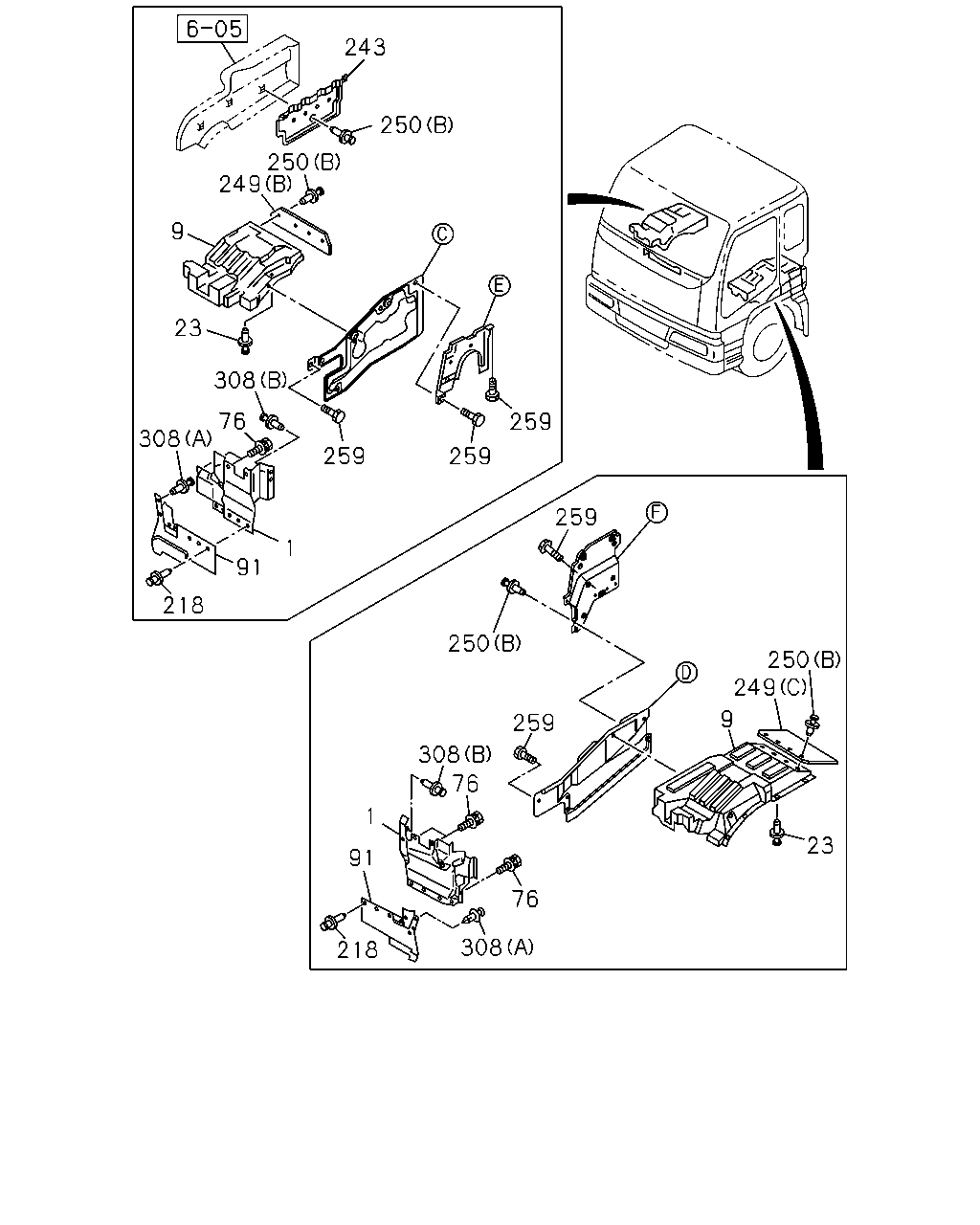

çizim 131475
243 250 250 249 9 23 308 308 91 1 218 259 259 259 259 250 259 308 76 1 91 218 76 308 250 249 9 23 76
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-894-6 01 1 1009-
1 GUARD; MUD,FRT 1-79937-895-5 01 1 1009-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 1009-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 1009-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 1009-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1009-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1009-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1009-
91 COVER; MUD,FRT 1-79931-204-1 01 1 1009-1302
91 COVER; MUD,FRT 8-98134-826-2 01 1 1303-
91 COVER; MUD,FRT 1-79931-203-1 01 1 1009-1302
91 COVER; MUD,FRT 8-98134-825-2 01 1 1303-
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 1009-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 1009-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1009-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 1009-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1009-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1009-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1009-
249 RUBBER; SHUTTER
(D) 		8-98079-172-0 01 1 1009-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1303-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 11 1 1009-1302
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 1303-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 1009-1302
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 1303-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 1009-1302
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 09 1 1303-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 1009-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 1009-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 1009-

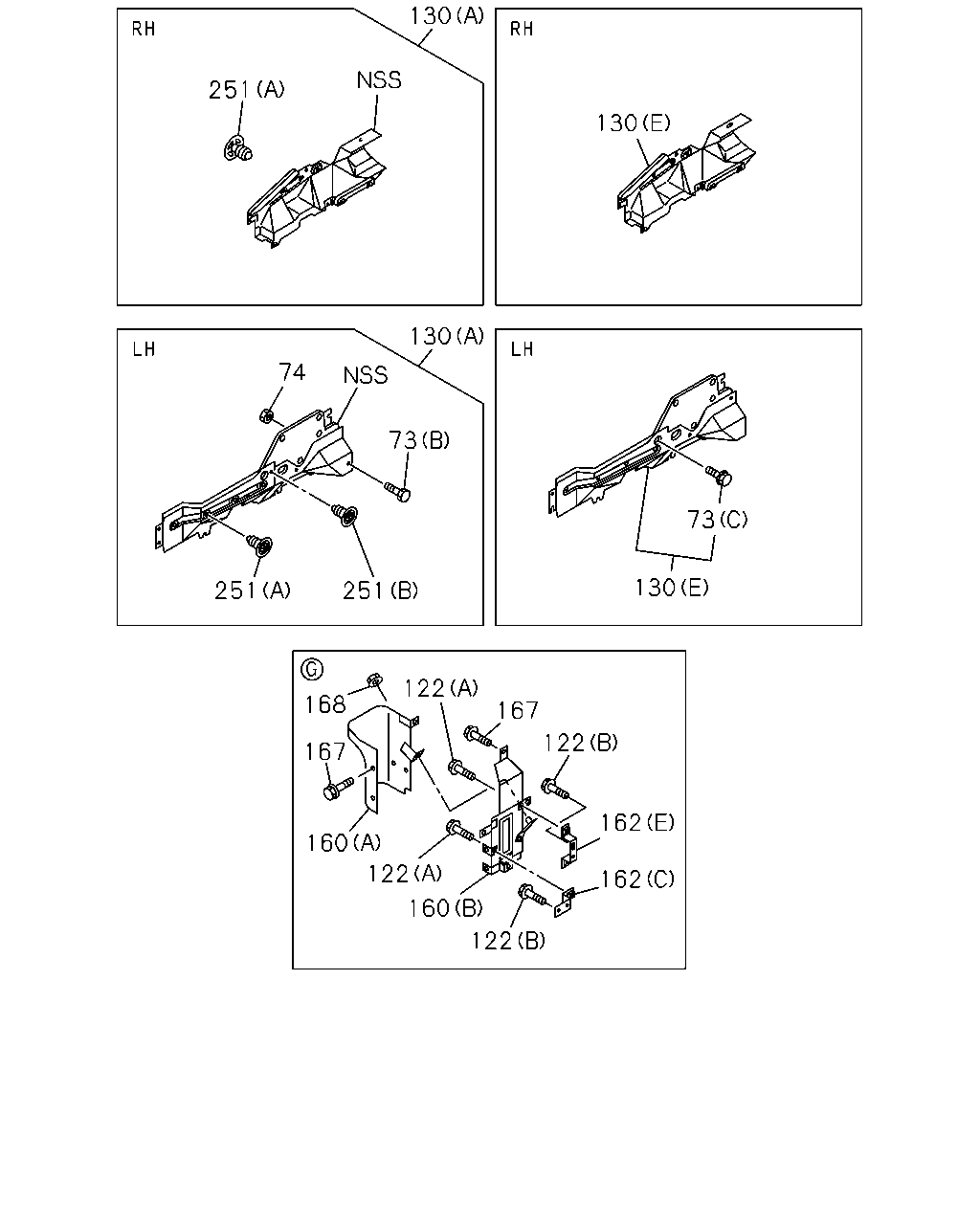

çizim 131565
122 160 122 160 167 168 122 167 122 162 162 130 73 130 73 251 251 74 130 130 251
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
EXC. HONG KONG EQUIPMENT(PQ1) (C) M8X16 FLANGE 		0-28050-816-0 03 1 1412-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 1009-1302
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28050-816-0 06 1 1303-1411
73 BOLT; MUD COVER BRKT
HONG KONG EQUIPMENT(PQ1) (B) M8X16 FLANGE 		0-28050-816-0 06 1 1412-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1009-
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 1303-
74 NUT
M8 FLANGE 		0-91180-108-0 07 1 1009-1302
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 1303-1411
74 NUT
HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 01 1 1412-
122 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1009-
122 BOLT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1009-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (E) 		1-53194-386-1 01 1 1412-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (E) 		8-98240-672-0 01 1 1412-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
(A) 		8-98225-727-0 01 1 1303-1411
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (A) 		8-98225-727-0 01 1 1412-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 1009-1411
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (A) 		1-53194-380-2 01 1 1412-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 1009-
130 PANEL; SHUTTER NOISE
(B) 		8-98079-170-1 01 1 1009-
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1009-
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (C) 		8-98167-256-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
(C) 		8-98167-256-0 01 1 1303-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		8-98079-171-0 01 1 1009-1302
160 COVER ASM; EXH
(A) 		1-79931-408-4 01 1 1009-1207
160 COVER ASM; EXH
(A) 		1-79931-411-2 01 1 1208-
160 COVER ASM; EXH
(B) 		1-79931-412-1 01 1 1009-
162 BRACKET
(A) 		1-53441-520-0 02 1 1009-
162 BRACKET
(B) 		1-71907-815-0 01 1 1009-
162 BRACKET
(D) 		8-98113-210-2 01 1 1009-1302
162 BRACKET
(E) 		1-53441-521-2 01 1 1009-
162 BRACKET
(C) 		1-53441-522-0 01 1 1009-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 1009-
168 NUT; EXH COVER
M8 FLANGE 		0-91180-108-0 01 1 1009-
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 09 1 1009-1411
251 CLIP; NOISE INSULATOR
HONG KONG EQUIPMENT(PQ1) (A) 		8-94165-394-0 09 1 1412-
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 1009-1411
251 CLIP; NOISE INSULATOR
HONG KONG EQUIPMENT(PQ1) (B) 		8-94279-048-0 05 1 1412-
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 04 1 1009-
çizim 188630
249 185 281 130 185 130
BalonParca AdiParca NoAdetTipApplied Date
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (E) 		1-53194-386-1 01 1 1412-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (E) 		8-98240-672-0 01 1 1412-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
(A) 		8-98225-727-0 01 1 1303-1411
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (A) 		8-98225-727-0 01 1 1412-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 1009-1411
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (A) 		1-53194-380-2 01 1 1412-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 1009-
130 PANEL; SHUTTER NOISE
(B) 		8-98079-170-1 01 1 1009-
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1009-
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (C) 		8-98167-256-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
(C) 		8-98167-256-0 01 1 1303-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		8-98079-171-0 01 1 1009-1302
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 31 1 1009-1302
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 1303-
185 CLIP; HEAT INSULATOR
HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 09 1 1009-1302
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 15 1 1303-1303
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 35 1 1304-
185 CLIP; HEAT INSULATOR
EXC. HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 04 1 1009-1302
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 20 1 1303-1303
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1009-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 1009-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1009-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1009-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1009-
249 RUBBER; SHUTTER
(D) 		8-98079-172-0 01 1 1009-
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1009-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-1302
281 INSULATOR; NOISE
(D) 		1-73237-445-4 01 1 1303-1411
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (D) 		1-73237-445-4 01 1 1412-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 1009-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 1009-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-931-0 01 1 1009-
281 INSULATOR; NOISE
HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-742-0 01 1 1009-1302
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 1303-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (D) 		1-73237-445-4 01 1 1009-1302
281 INSULATOR; NOISE
(C) 		8-98227-396-0 01 1 1303-

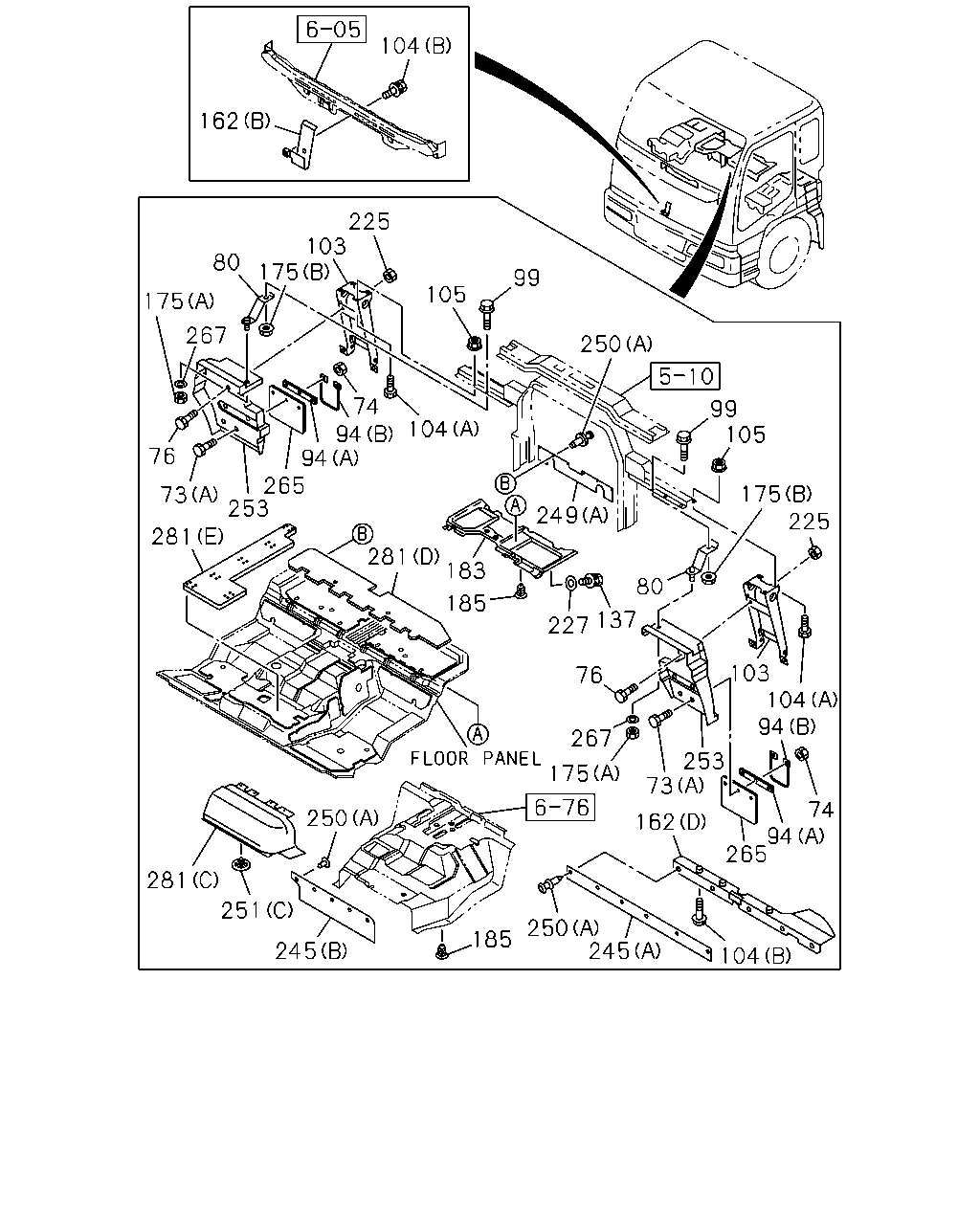

çizim 188642
104 162 225 103 175 80 175 267 76 73 265 253 281 94 94 104 74 105 99 250 99 105 249 175 225 80 137 227 183 185 281 76 103 104 94 253 74 94 265 73 162 267 175 104 245 250 185 250 245 251 281
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
EXC. HONG KONG EQUIPMENT(PQ1) (C) M8X16 FLANGE 		0-28050-816-0 03 1 1412-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 1009-1302
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28050-816-0 06 1 1303-1411
73 BOLT; MUD COVER BRKT
HONG KONG EQUIPMENT(PQ1) (B) M8X16 FLANGE 		0-28050-816-0 06 1 1412-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1009-
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 1303-
74 NUT
M8 FLANGE 		0-91180-108-0 07 1 1009-1302
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 1303-1411
74 NUT
HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 01 1 1412-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1009-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1009-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1009-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 1009-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 1009-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 02 1 1009-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 1009-
103 BRACKET ASM; RR MUD FLAP 1-79931-444-0 01 1 1009-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-892-0 01 1 1503-
103 BRACKET ASM; RR MUD FLAP 1-79931-445-0 01 1 1009-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-893-0 01 1 1503-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 1009-
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 04 1 1009-1302
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 01 1 1303-
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 1009-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1009-
162 BRACKET
(A) 		1-53441-520-0 02 1 1009-
162 BRACKET
(B) 		1-71907-815-0 01 1 1009-
162 BRACKET
(D) 		8-98113-210-2 01 1 1009-1302
162 BRACKET
(E) 		1-53441-521-2 01 1 1009-
162 BRACKET
(C) 		1-53441-522-0 01 1 1009-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 1009-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 1009-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 1009-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 31 1 1009-1302
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 1303-
185 CLIP; HEAT INSULATOR
HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 09 1 1009-1302
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 15 1 1303-1303
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 35 1 1304-
185 CLIP; HEAT INSULATOR
EXC. HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 04 1 1009-1302
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 20 1 1303-1303
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 1009-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 1009-
245 RUBBER; SHUTTER,RAD
(A) 		8-98113-211-0 01 1 1009-1302
245 RUBBER; SHUTTER,RAD
(B) 		8-98227-395-0 01 1 1303-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1009-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 1009-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1009-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1009-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1009-
249 RUBBER; SHUTTER
(D) 		8-98079-172-0 01 1 1009-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1303-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 11 1 1009-1302
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 1303-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 1009-1302
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 1303-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 1009-1302
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 09 1 1303-
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 09 1 1009-1411
251 CLIP; NOISE INSULATOR
HONG KONG EQUIPMENT(PQ1) (A) 		8-94165-394-0 09 1 1412-
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 1009-1411
251 CLIP; NOISE INSULATOR
HONG KONG EQUIPMENT(PQ1) (B) 		8-94279-048-0 05 1 1412-
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 04 1 1009-
253 GUARD; MUD 8-98134-766-1 01 1 1009-
253 GUARD; MUD 8-98134-759-0 01 1 1009-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 1009-
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 1009-
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1009-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-1302
281 INSULATOR; NOISE
(D) 		1-73237-445-4 01 1 1303-1411
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (D) 		1-73237-445-4 01 1 1412-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 1009-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 1009-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-931-0 01 1 1009-
281 INSULATOR; NOISE
HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-742-0 01 1 1009-1302
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 1303-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (D) 		1-73237-445-4 01 1 1009-1302
281 INSULATOR; NOISE
(C) 		8-98227-396-0 01 1 1303-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
