◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11292 - EXR RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#70149) — 84 parça

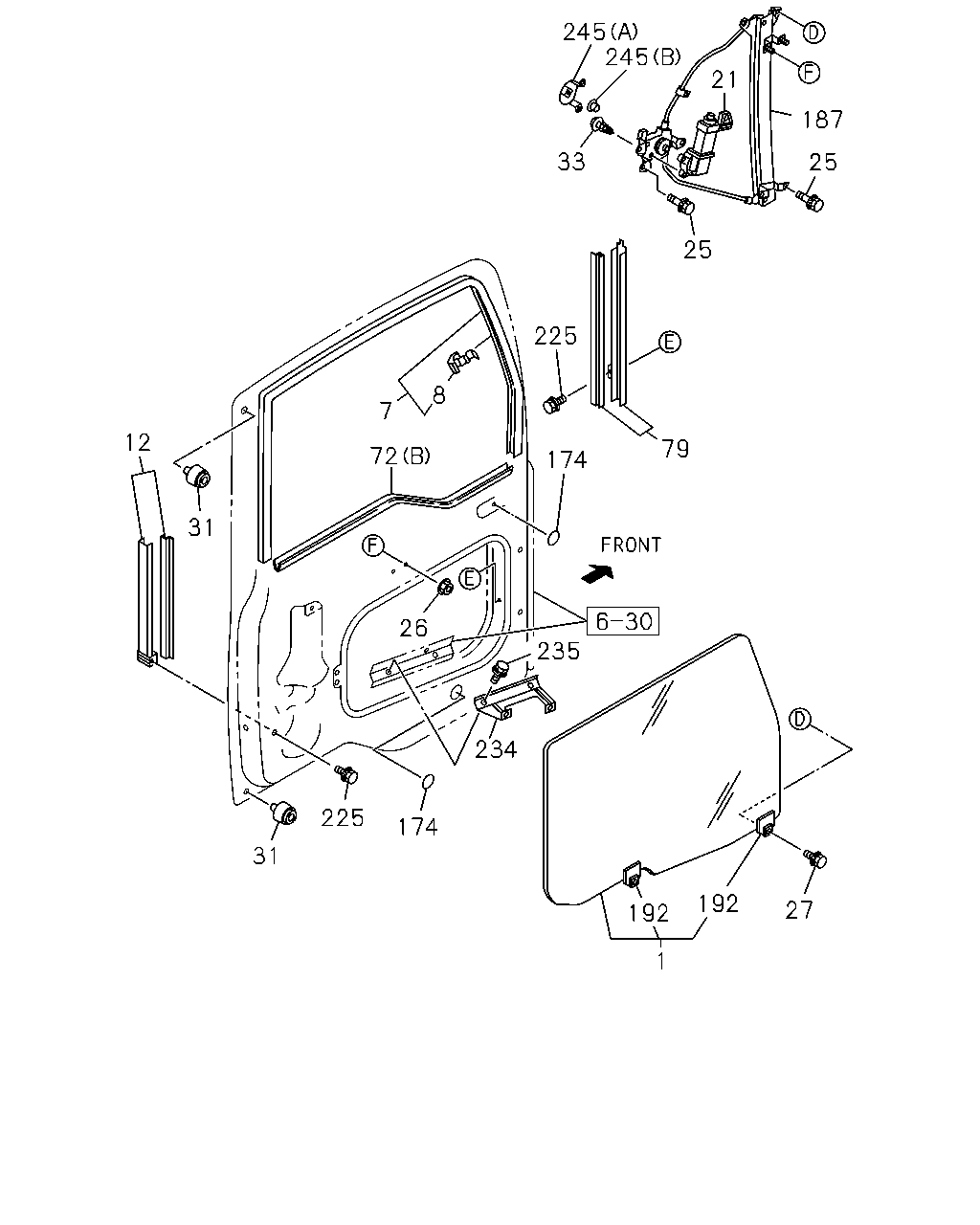

çizim 130674
1 27 192 192 234 174 225 31 235 174 225 79 72 7 8 31 12 26 25 25 187 21 245 245 33
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
WINDOW SIDE UV CUT<NNU> 		8-98208-684-0 01 1 1303-
1 GLASS; FRT DOOR
WINDOW SIDE UV CUT<NNU> 		8-98208-685-0 01 1 1303-
1 GLASS; FRT DOOR 1-76148-095-2 01 1 1009-1302
1 GLASS; FRT DOOR
EXC. WINDOW SIDE UV CUT<NNU> 		1-76148-095-2 01 1 1303-
1 GLASS; FRT DOOR 1-76167-177-2 01 1 1009-1302
1 GLASS; FRT DOOR
EXC. WINDOW SIDE UV CUT<NNU> 		1-76167-177-2 01 1 1303-
7 GLASS RUN; FRT DOOR 1-74318-022-8 01 1 1009-
7 GLASS RUN; FRT DOOR 1-74318-021-8 01 1 1009-
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 1009-
12 CHANNEL; GLASS RUN,FRT 1-74338-071-3 01 1 1009-
12 CHANNEL; GLASS RUN,FRT 1-74338-070-3 01 1 1009-
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-177-0 01 1 1009-
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-176-0 01 1 1009-
25 BOLT; WINDOW REG
M6X10 FLANGE 		0-28050-610-0 10 1 1009-
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		1-09984-141-0 06 1 1009-
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 1009-
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 1009-
33 SCREW; REG MOTOR 8-98099-646-0 06 1 1009-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 1009-1207
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 1009-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 1009-1207
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 1009-
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-3 01 1 1009-
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 1009-
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 16 1 1009-
187 REGULATOR ASM; DOOR 1-74418-179-3 01 1 1009-
187 REGULATOR ASM; DOOR 1-74418-178-3 01 1 1009-
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 1009-
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28050-610-0 04 1 1009-
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 1009-
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 1009-
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 1009-
245 DAMPER; WINDOW REGULATOR
(B) 		1-74417-074-0 02 1 1009-
245 DAMPER; WINDOW REGULATOR
(A) 		1-74418-181-0 01 1 1009-
245 DAMPER; WINDOW REGULATOR
(A) 		1-74418-180-0 01 1 1009-

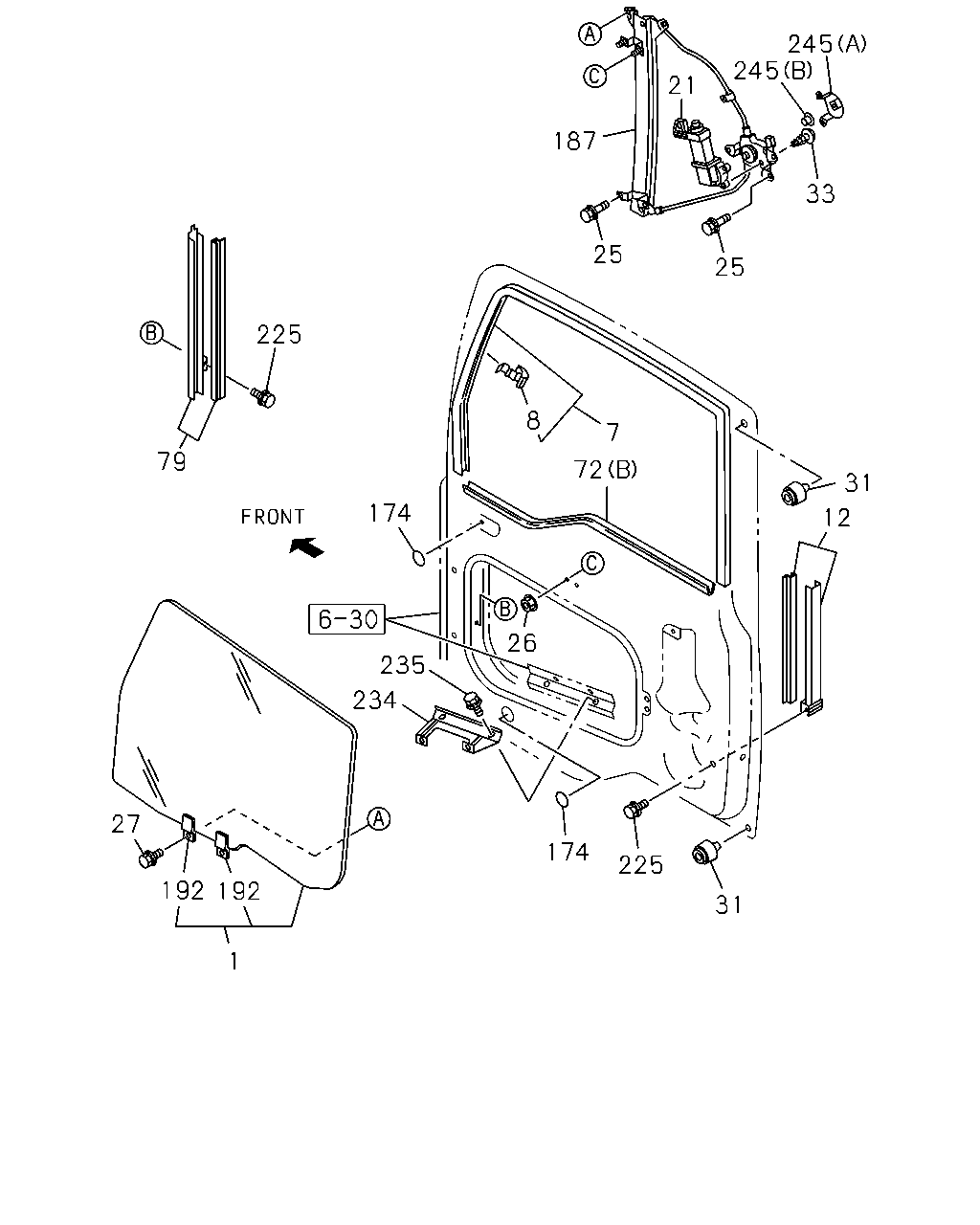

çizim 130742
192 192 27 1 174 225 31 12 31 72 8 7 174 235 234 26 79 225 25 25 187 21 245 245 33
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
WINDOW SIDE UV CUT<NNU> 		8-98208-684-0 01 1 1303-
1 GLASS; FRT DOOR
WINDOW SIDE UV CUT<NNU> 		8-98208-685-0 01 1 1303-
1 GLASS; FRT DOOR 1-76148-095-2 01 1 1009-1302
1 GLASS; FRT DOOR
EXC. WINDOW SIDE UV CUT<NNU> 		1-76148-095-2 01 1 1303-
1 GLASS; FRT DOOR 1-76167-177-2 01 1 1009-1302
1 GLASS; FRT DOOR
EXC. WINDOW SIDE UV CUT<NNU> 		1-76167-177-2 01 1 1303-
7 GLASS RUN; FRT DOOR 1-74318-022-8 01 1 1009-
7 GLASS RUN; FRT DOOR 1-74318-021-8 01 1 1009-
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 1009-
12 CHANNEL; GLASS RUN,FRT 1-74338-071-3 01 1 1009-
12 CHANNEL; GLASS RUN,FRT 1-74338-070-3 01 1 1009-
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-177-0 01 1 1009-
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-176-0 01 1 1009-
25 BOLT; WINDOW REG
M6X10 FLANGE 		0-28050-610-0 10 1 1009-
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		1-09984-141-0 06 1 1009-
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 1009-
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 1009-
33 SCREW; REG MOTOR 8-98099-646-0 06 1 1009-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 1009-1207
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 1009-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 1009-1207
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 1009-
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-3 01 1 1009-
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 1009-
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 16 1 1009-
187 REGULATOR ASM; DOOR 1-74418-179-3 01 1 1009-
187 REGULATOR ASM; DOOR 1-74418-178-3 01 1 1009-
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 1009-
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28050-610-0 04 1 1009-
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 1009-
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 1009-
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 1009-
245 DAMPER; WINDOW REGULATOR
(B) 		1-74417-074-0 02 1 1009-
245 DAMPER; WINDOW REGULATOR
(A) 		1-74418-181-0 01 1 1009-
245 DAMPER; WINDOW REGULATOR
(A) 		1-74418-180-0 01 1 1009-

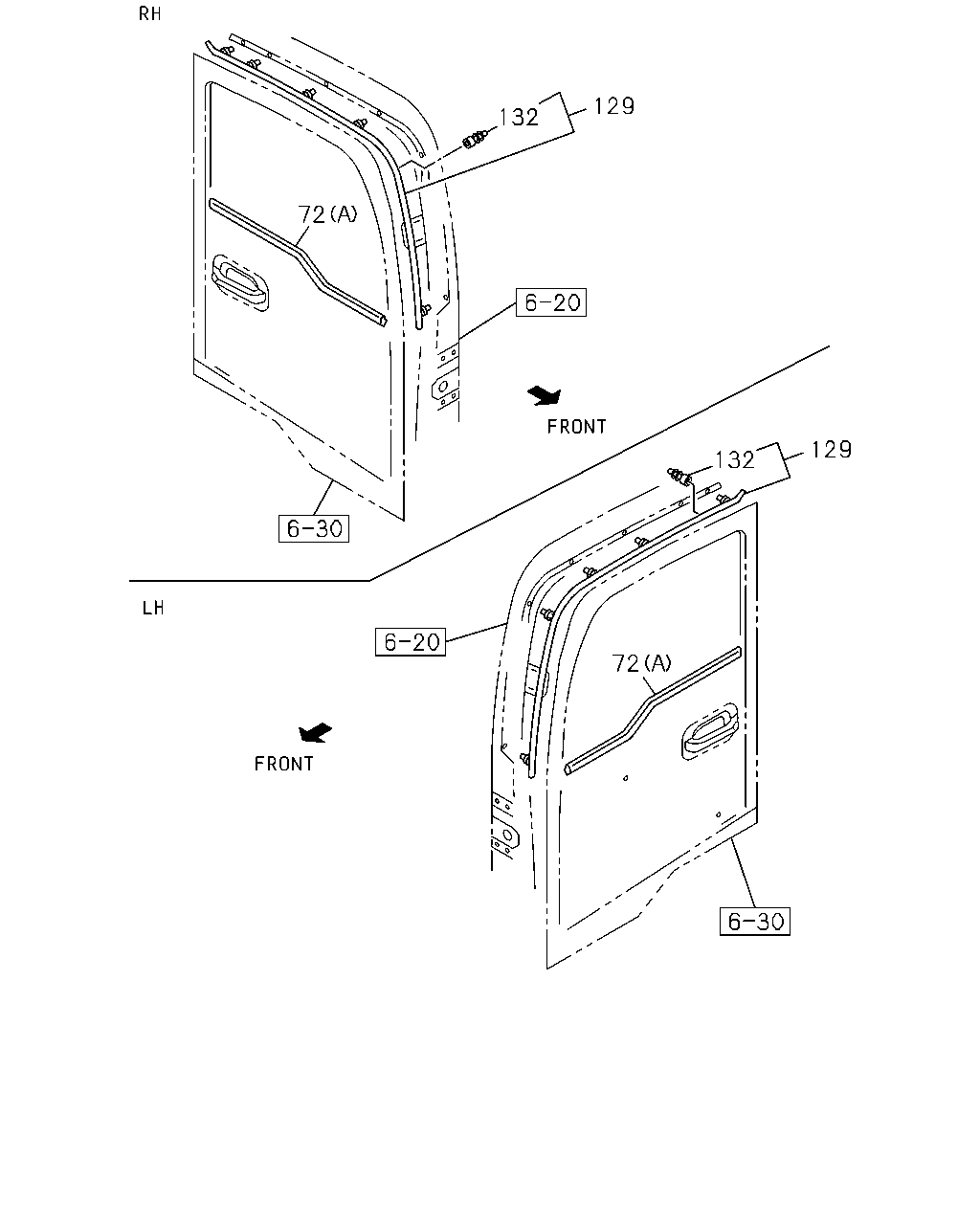

çizim 188635
72 132 129 72 132 129
BalonParca AdiParca NoAdetTipApplied Date
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 1009-1207
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 1009-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 1009-1207
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 1009-
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 1009-
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 1009-
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 1009-
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 1009-
