Sayfa 6-20 - Isuzu EPC

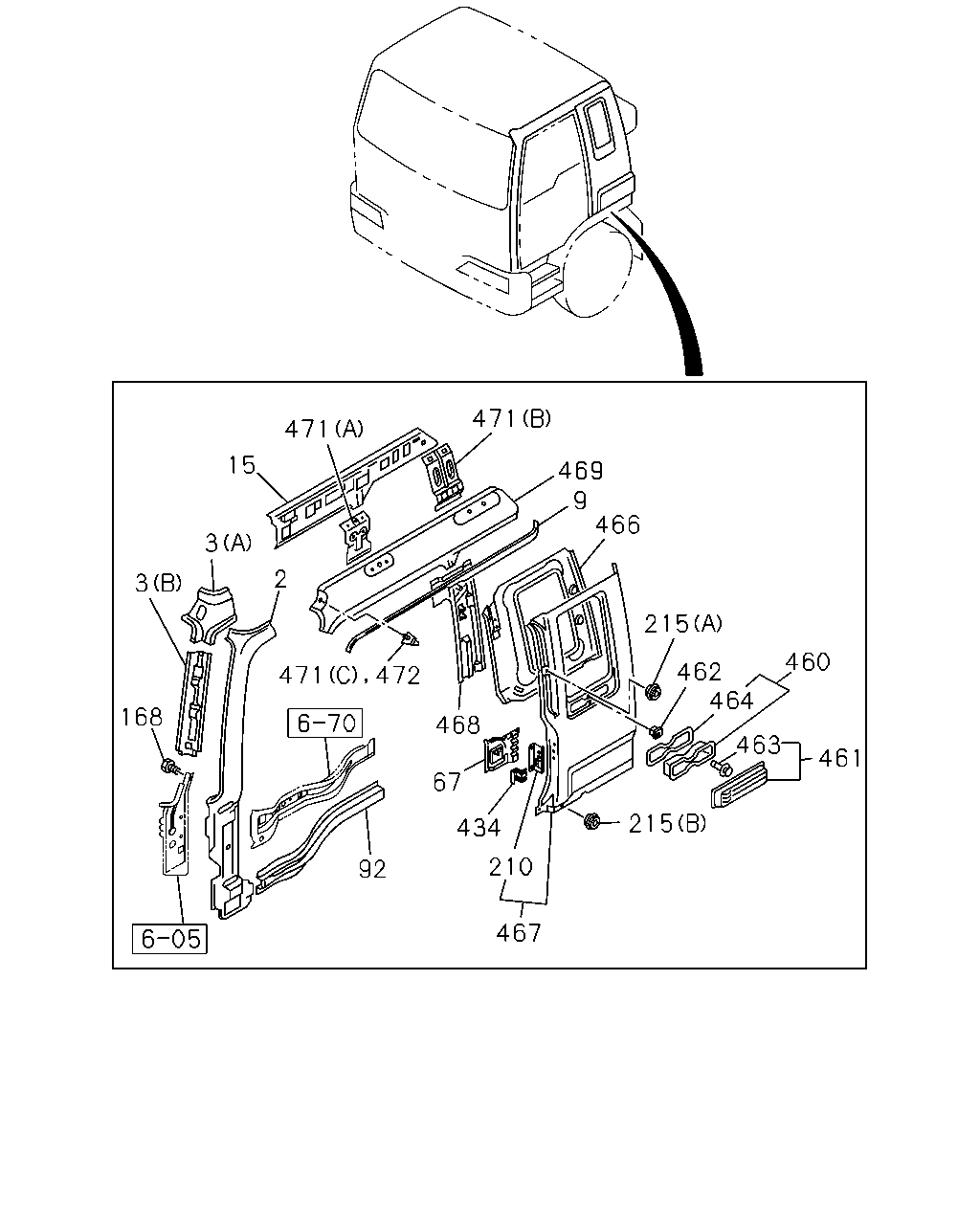

6-20 — SIDE PANEL AND STEP (#70147) — 530 parça

15 2 3 3 168 471 472 468 67 434 210 467 215 92 462 464 463 461 460 215 466 9 469 471 471

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	PILLAR; FRT HONG KONG EQUIPMENT(PQ1) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-61281-410-2	01	1	1412-1412
2	PILLAR; FRT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-61281-410-2	01	1	1412-
2	PILLAR; FRT	1-61281-156-4	01	1	1009-1411
2	PILLAR; FRT MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> HONG KONG EQUIPMENT(PQ1)	1-61281-156-4	01	1	1412-1412
2	PILLAR; FRT MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-61281-156-4	01	1	1412-
2	PILLAR; FRT	1-61281-155-4	01	1	1009-1411
2	PILLAR; FRT HONG KONG EQUIPMENT(PQ1)	1-61281-155-4	01	1	1412-1412
2	PILLAR; FRT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-61281-155-4	01	1	1412-
3	PANEL; CLOSING,FRT PILLAR (A)	1-61281-170-5	01	1	1009-1411
3	PANEL; CLOSING,FRT PILLAR HONG KONG EQUIPMENT(PQ1) (A)	1-61281-170-5	01	1	1412-1412
3	PANEL; CLOSING,FRT PILLAR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-61281-170-5	01	1	1412-
3	PANEL; CLOSING,FRT PILLAR (B)	1-61281-344-5	01	1	1009-1411
3	PANEL; CLOSING,FRT PILLAR HONG KONG EQUIPMENT(PQ1) (B)	1-61281-344-5	01	1	1412-1412
3	PANEL; CLOSING,FRT PILLAR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-61281-344-5	01	1	1412-
3	PANEL; CLOSING,FRT PILLAR (A)	1-61281-169-5	01	1	1009-1411
3	PANEL; CLOSING,FRT PILLAR HONG KONG EQUIPMENT(PQ1) (A)	1-61281-169-5	01	1	1412-1412
3	PANEL; CLOSING,FRT PILLAR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-61281-169-5	01	1	1412-
3	PANEL; CLOSING,FRT PILLAR (B)	1-61281-343-5	01	1	1009-1411
3	PANEL; CLOSING,FRT PILLAR HONG KONG EQUIPMENT(PQ1) (B)	1-61281-343-5	01	1	1412-1412
3	PANEL; CLOSING,FRT PILLAR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-61281-343-5	01	1	1412-
9	MOLDING; DRIP,CAB SIDE	1-61281-281-5	01	1	1009-1411
9	MOLDING; DRIP,CAB SIDE HONG KONG EQUIPMENT(PQ1)	1-61281-281-5	01	1	1412-1412
9	MOLDING; DRIP,CAB SIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-61281-281-5	01	1	1412-
9	MOLDING; DRIP,CAB SIDE	1-61281-280-5	01	1	1009-1411
9	MOLDING; DRIP,CAB SIDE HONG KONG EQUIPMENT(PQ1)	1-61281-280-5	01	1	1412-1412
9	MOLDING; DRIP,CAB SIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-61281-280-5	01	1	1412-
15	PANEL; CANT RAIL SIDE	1-61281-178-8	01	1	1009-1411
15	PANEL; CANT RAIL SIDE HONG KONG EQUIPMENT(PQ1)	1-61281-178-8	01	1	1412-1412
15	PANEL; CANT RAIL SIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-61281-178-8	01	1	1412-
15	PANEL; CANT RAIL SIDE	1-61281-177-8	01	1	1009-1411
15	PANEL; CANT RAIL SIDE HONG KONG EQUIPMENT(PQ1)	1-61281-177-8	01	1	1412-1412
15	PANEL; CANT RAIL SIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-61281-177-8	01	1	1412-
67	PANEL; INNER,RR PILLAR LWR	1-61281-195-5	01	1	1009-1411
67	PANEL; INNER,RR PILLAR LWR HONG KONG EQUIPMENT(PQ1)	1-61281-195-5	01	1	1412-1412
67	PANEL; INNER,RR PILLAR LWR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-61281-195-5	01	1	1412-
67	PANEL; INNER,RR PILLAR LWR	1-61281-194-5	01	1	1009-1411
67	PANEL; INNER,RR PILLAR LWR HONG KONG EQUIPMENT(PQ1)	1-61281-194-5	01	1	1412-1412
67	PANEL; INNER,RR PILLAR LWR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-61281-194-5	01	1	1412-
92	PANEL; SIDE SILL,CAB	1-61281-212-8	01	1	1009-1411
92	PANEL; SIDE SILL,CAB HONG KONG EQUIPMENT(PQ1)	1-61281-212-8	01	1	1412-1412
92	PANEL; SIDE SILL,CAB HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-61281-212-8	01	1	1412-
92	PANEL; SIDE SILL,CAB	1-61281-211-9	01	1	1009-1411
92	PANEL; SIDE SILL,CAB HONG KONG EQUIPMENT(PQ1)	1-61281-211-9	01	1	1412-1412
92	PANEL; SIDE SILL,CAB HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-61281-211-9	01	1	1412-
168	BOLT; BODY SIDE PANEL M6X10 FLANGE	0-28050-610-0	04	1	1009-
210	PANEL; DOOR STRIKER REINF	8-97851-446-1	01	1	1009-1411
210	PANEL; DOOR STRIKER REINF HONG KONG EQUIPMENT(PQ1)	8-97851-446-1	01	1	1412-1412
210	PANEL; DOOR STRIKER REINF HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-97851-446-1	01	1	1412-
215	GROMMET; RR PILLAR (A) OD=23.5	1-09983-101-0	02	1	1009-
215	GROMMET; RR PILLAR (B) OD=28.5	8-94279-711-0	02	1	1009-
434	PATCH; ASSIST GRIP	1-61270-763-1	02	1	1009-1302
434	PATCH; ASSIST GRIP	1-61270-763-1	01	1	1303-1411
434	PATCH; ASSIST GRIP	1-61270-763-1	01	1	1303-1411
434	PATCH; ASSIST GRIP HONG KONG EQUIPMENT(PQ1)	1-61270-763-1	01	1	1412-1412
434	PATCH; ASSIST GRIP HONG KONG EQUIPMENT(PQ1)	1-61270-763-1	01	1	1412-1412
434	PATCH; ASSIST GRIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-61270-763-1	01	1	1412-
434	PATCH; ASSIST GRIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-61270-763-1	01	1	1412-
460	VENTILATOR; BODY SIDE	1-76378-292-4	02	1	1009-
461	ORNAMENT; VENTILATOR	1-76378-303-6	01	1	1009-
461	ORNAMENT; VENTILATOR	1-76378-302-6	01	1	1009-
462	GROMMET; VENTILATOR OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	08	1	1009-
463	PIN; ORNAMENT D4.2X13	1-09983-161-0	08	1	1009-
464	SEAL; VENTILATOR	1-76378-299-0	02	1	1009-
466	PANEL; INNER,BACK CORNER	1-61281-416-1	01	1	1009-1411
466	PANEL; INNER,BACK CORNER HONG KONG EQUIPMENT(PQ1)	1-61281-416-1	01	1	1412-1412
466	PANEL; INNER,BACK CORNER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-61281-416-1	01	1	1412-
466	PANEL; INNER,BACK CORNER	1-61281-415-1	01	1	1009-1411
466	PANEL; INNER,BACK CORNER HONG KONG EQUIPMENT(PQ1)	1-61281-415-1	01	1	1412-1412
466	PANEL; INNER,BACK CORNER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-61281-415-1	01	1	1412-
467	PANEL; OUTER,BACK CORNER	1-61281-204-4	01	1	1009-1411
467	PANEL; OUTER,BACK CORNER HONG KONG EQUIPMENT(PQ1)	1-61281-204-4	01	1	1412-1412
467	PANEL; OUTER,BACK CORNER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-61281-204-4	01	1	1412-
467	PANEL; OUTER,BACK CORNER	1-61281-203-4	01	1	1009-1411
467	PANEL; OUTER,BACK CORNER HONG KONG EQUIPMENT(PQ1)	1-61281-203-4	01	1	1412-1412
467	PANEL; OUTER,BACK CORNER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-61281-203-4	01	1	1412-
468	REINFORCEMENT; SEAT BELT ANCHOR	1-61281-418-2	01	1	1009-1411
468	REINFORCEMENT; SEAT BELT ANCHOR HONG KONG EQUIPMENT(PQ1)	1-61281-418-2	01	1	1412-1412
468	REINFORCEMENT; SEAT BELT ANCHOR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-61281-418-2	01	1	1412-
468	REINFORCEMENT; SEAT BELT ANCHOR	1-61281-417-2	01	1	1009-1411
468	REINFORCEMENT; SEAT BELT ANCHOR HONG KONG EQUIPMENT(PQ1)	1-61281-417-2	01	1	1412-1412
468	REINFORCEMENT; SEAT BELT ANCHOR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-61281-417-2	01	1	1412-
469	ROOF; SIDE	1-61281-199-8	01	1	1009-1411
469	ROOF; SIDE HONG KONG EQUIPMENT(PQ1)	1-61281-199-8	01	1	1412-1412
469	ROOF; SIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-61281-199-8	01	1	1412-
469	ROOF; SIDE	1-61281-198-8	01	1	1009-1411
469	ROOF; SIDE HONG KONG EQUIPMENT(PQ1)	1-61281-198-8	01	1	1412-1412
469	ROOF; SIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-61281-198-8	01	1	1412-
471	PATCH; AIR DEFLECTOR (B)	1-61281-202-3	02	1	1009-1302
471	PATCH; AIR DEFLECTOR (B)	1-61281-202-3	01	1	1303-1411
471	PATCH; AIR DEFLECTOR (B)	1-61281-202-3	01	1	1303-1411
471	PATCH; AIR DEFLECTOR HONG KONG EQUIPMENT(PQ1) (B)	1-61281-202-3	01	1	1412-1412
471	PATCH; AIR DEFLECTOR HONG KONG EQUIPMENT(PQ1) (B)	1-61281-202-3	01	1	1412-1412
471	PATCH; AIR DEFLECTOR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-61281-202-3	01	1	1412-
471	PATCH; AIR DEFLECTOR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-61281-202-3	01	1	1412-
471	PATCH; AIR DEFLECTOR (A)	1-61281-201-3	01	1	1009-1411
471	PATCH; AIR DEFLECTOR HONG KONG EQUIPMENT(PQ1) (A)	1-61281-201-3	01	1	1412-1412
471	PATCH; AIR DEFLECTOR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-61281-201-3	01	1	1412-
471	PATCH; AIR DEFLECTOR (C)	8-98132-463-0	01	1	1009-1411
471	PATCH; AIR DEFLECTOR HONG KONG EQUIPMENT(PQ1) (C)	8-98132-463-0	01	1	1412-1412
471	PATCH; AIR DEFLECTOR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	8-98132-463-0	01	1	1412-
471	PATCH; AIR DEFLECTOR (A)	1-61281-200-3	01	1	1009-1411
471	PATCH; AIR DEFLECTOR HONG KONG EQUIPMENT(PQ1) (A)	1-61281-200-3	01	1	1412-1412
471	PATCH; AIR DEFLECTOR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-61281-200-3	01	1	1412-
472	PATCH; STAY,ROOF	1-61270-943-1	01	1	1009-1411
472	PATCH; STAY,ROOF HONG KONG EQUIPMENT(PQ1)	1-61270-943-1	01	1	1412-1412
472	PATCH; STAY,ROOF HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-61270-943-1	01	1	1412-

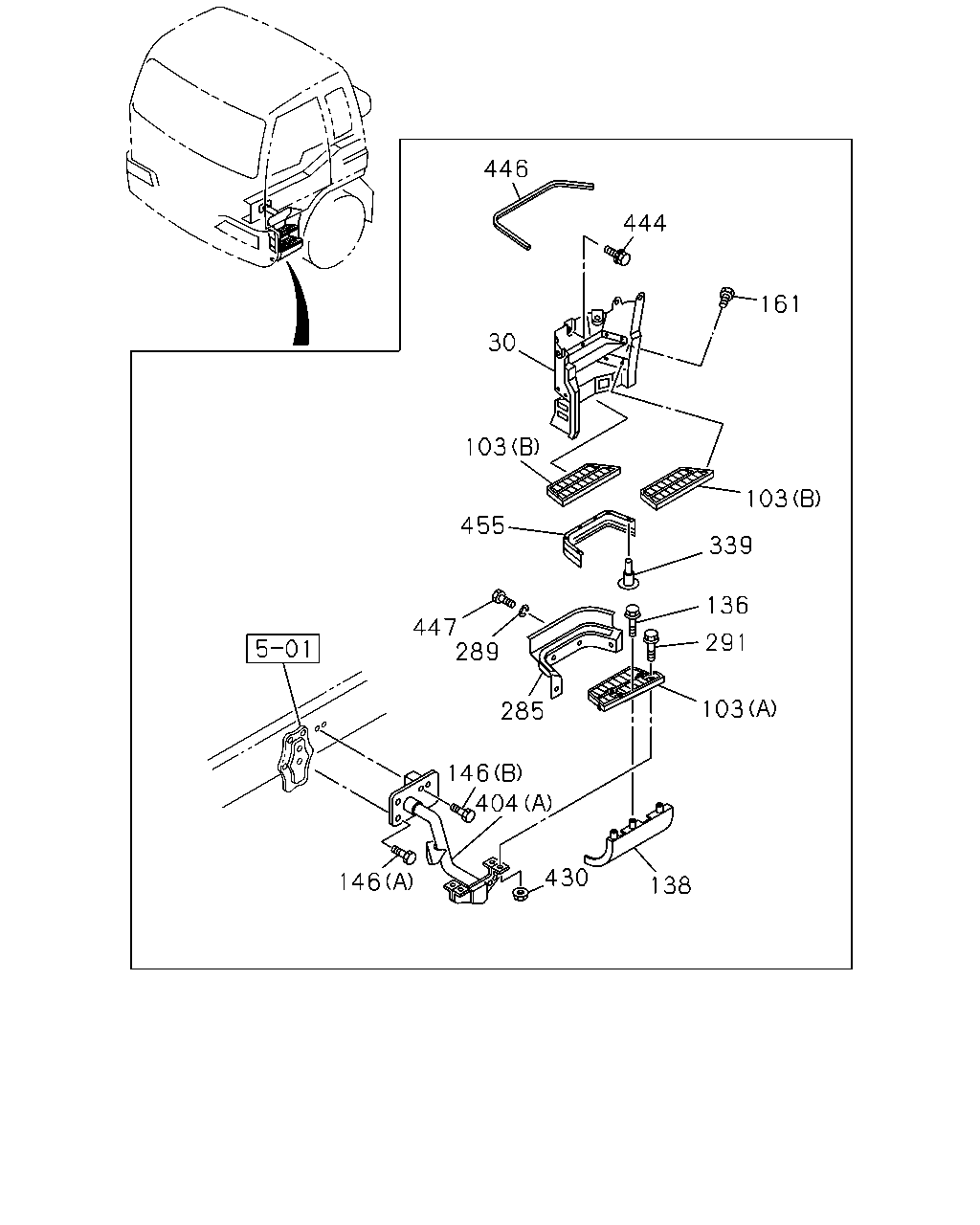

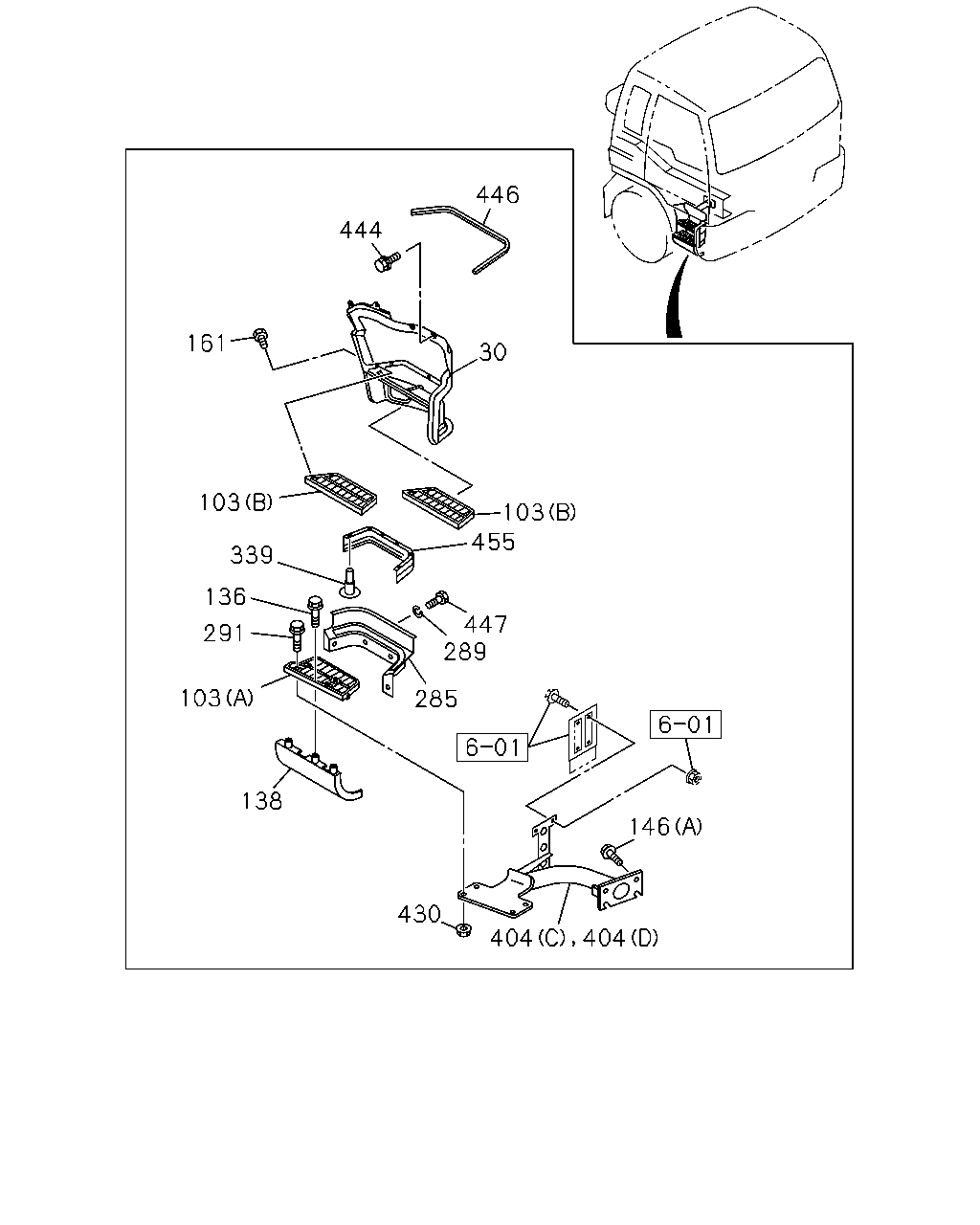

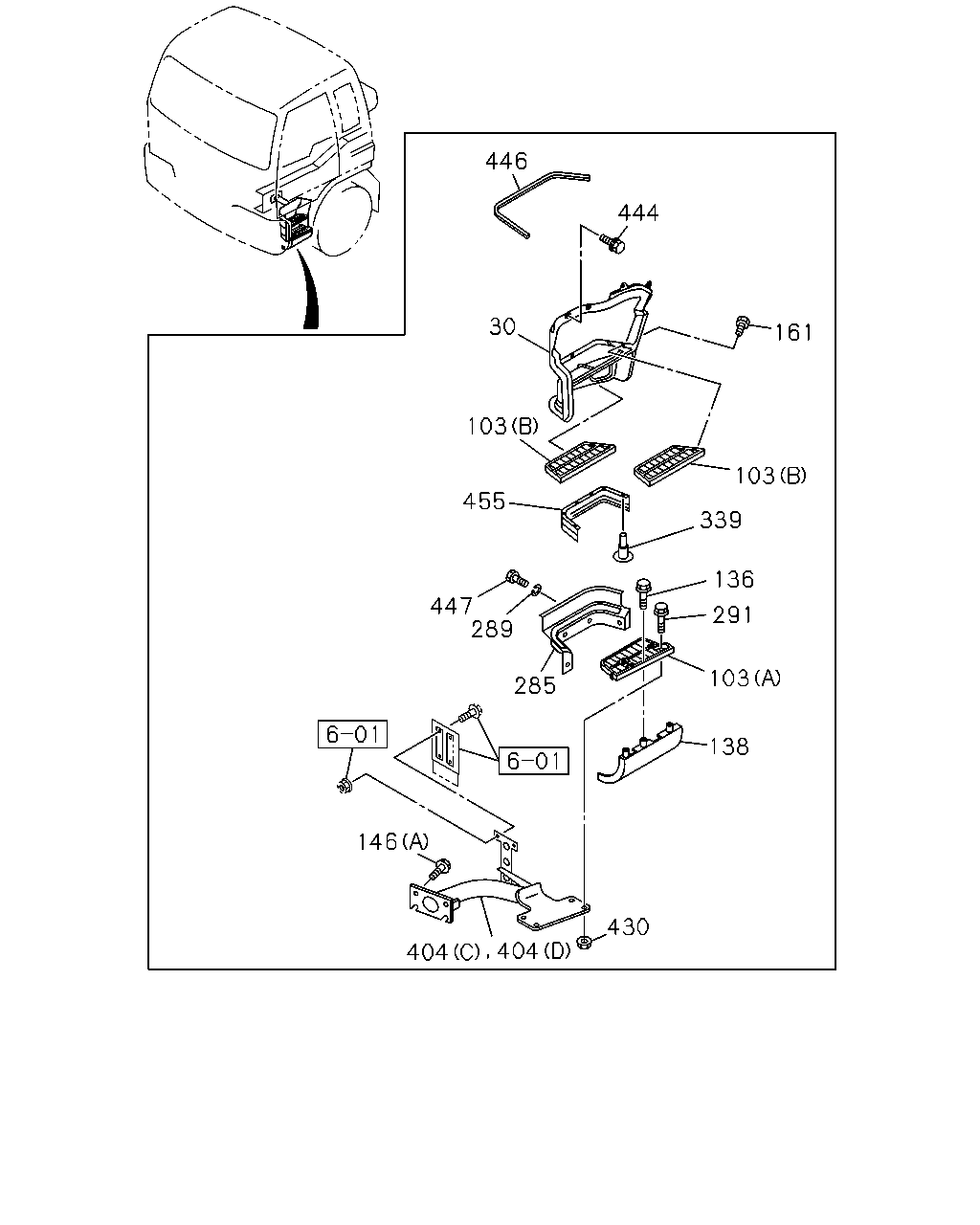

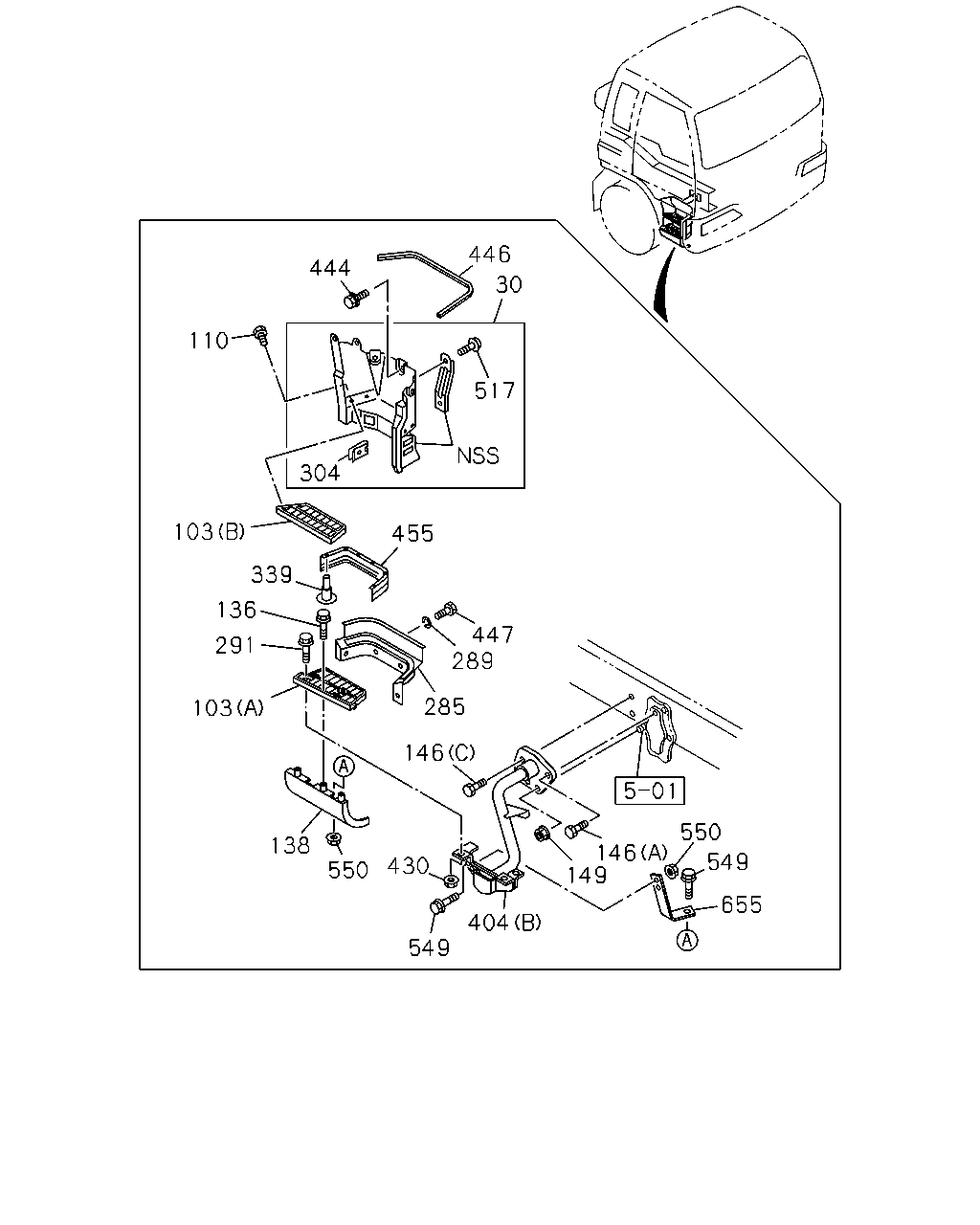

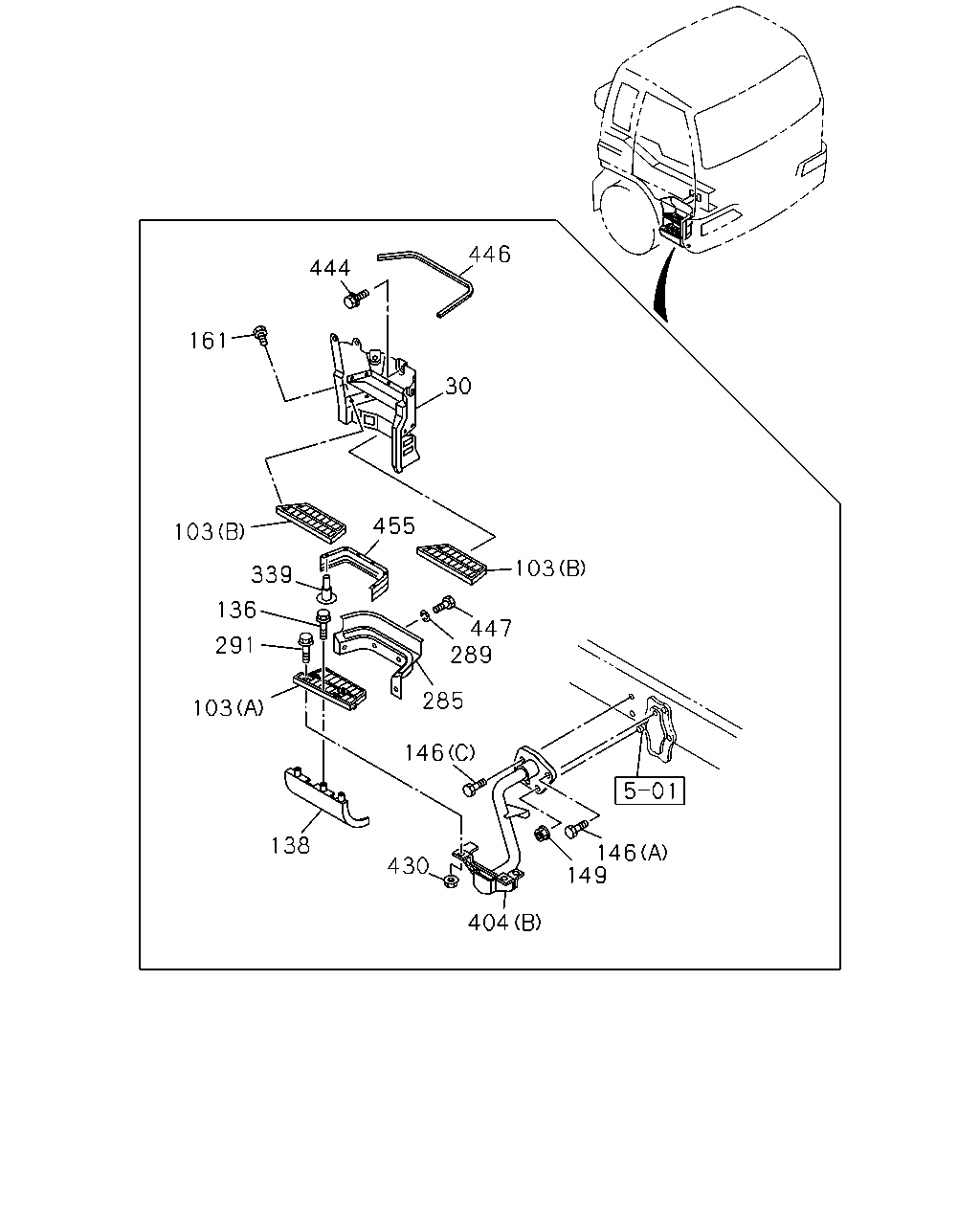

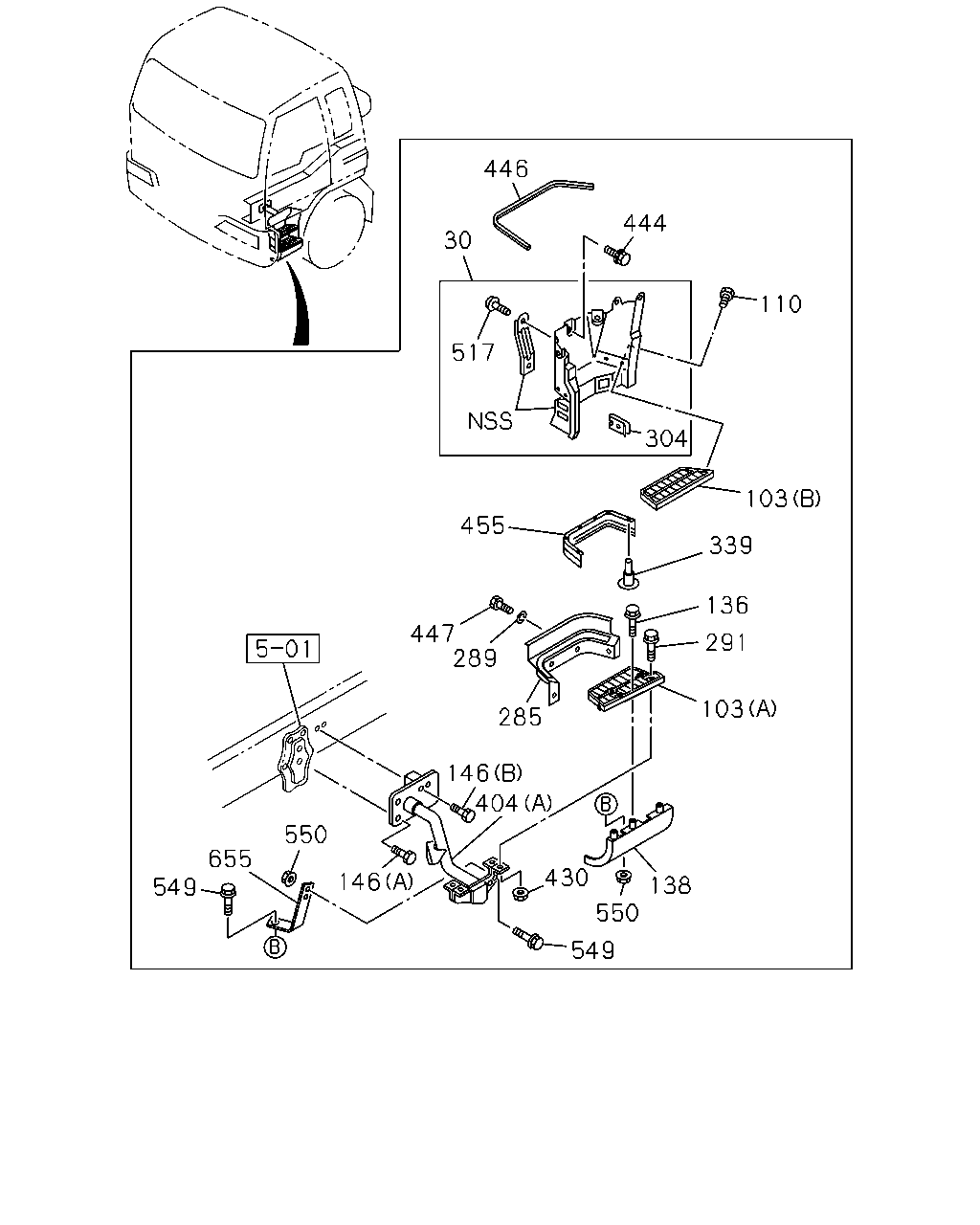

446 30 517 455 447 289 285 146 404 549 655 550 146 430 550 549 138 444 110 304 103 339 136 291 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-810-4	01	1	1009-1302
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1303-
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-809-4	01	1	1009-1302
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1303-
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-848-0	01	1	1009-1302
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-847-0	01	1	1009-1302
103	PLATE; STEP (A)	1-53414-181-0	01	1	1009-
103	PLATE; STEP (A)	1-53414-180-0	01	1	1009-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	02	1	1009-1302
103	PLATE; STEP (B)	1-71907-249-1	02	1	1303-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	02	1	1009-1302
103	PLATE; STEP (B)	1-71907-174-1	02	1	1303-
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	01	1	1009-1302
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	01	1	1009-1302
110	BOLT; 1ST STEP PLATE EXC. HONG KONG EQUIPMENT(PQ1) M8X29.5 W/LK+PL WASHER	8-94279-218-0	08	1	1009-1302
136	BOLT; OVER FENDER FRONT SPOILER<VP1> M5X22	8-97029-303-1	06	1	1009-1302
136	BOLT; OVER FENDER M5X22	8-97029-303-1	06	1	1303-1411
136	BOLT; OVER FENDER FRONT SPOILER<VP1> M5X22	8-97029-303-1	06	1	1412-
138	FENDER; OVER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> EXC. HONG KONG EQUIPMENT(PQ1) CHROMIUM PLATE	1-86792-078-0	01	1	1009-1302
138	FENDER; OVER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> EXC. HONG KONG EQUIPMENT(PQ1) CHROMIUM PLATE	1-86792-079-0	01	1	1009-1302
138	FENDER; OVER FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1),BUMPER-CHROME, FRONT<V46> WHITE	1-79931-447-1	01	1	1009-1302
138	FENDER; OVER FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1),BUMPER-CHROME, FRONT<V46> WHITE	1-79931-448-1	01	1	1009-1302
138	FENDER; OVER HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-79931-265-0	01	1	1009-1302
138	FENDER; OVER HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-79931-266-0	01	1	1009-1302
138	FENDER; OVER HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-79931-263-0	01	1	1009-1302
138	FENDER; OVER	1-79931-263-0	01	1	1303-1411
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-263-0	01	1	1412-
138	FENDER; OVER HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-79931-264-0	01	1	1009-1302
138	FENDER; OVER	1-79931-264-0	01	1	1303-1411
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-264-0	01	1	1412-
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	03	1	1009-1302
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	08	1	1303-1504
146	BOLT; STEP BRKT (A) M12X40 FLANGE	0-28051-240-0	08	1	1505-
146	BOLT; STEP BRKT (B) M12X70 FLANGE	0-28051-270-0	02	1	1009-1302
146	BOLT; STEP BRKT (C) M12X80 FLANGE	0-28051-280-0	02	1	1009-1302
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-091-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP	8-98227-947-1	01	1	1303-
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-094-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP	8-98227-948-1	01	1	1303-
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-528-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-529-0	01	1	1009-1302
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1009-
291	BOLT; STEP PLATE M8X40 FLANGE	0-28050-840-0	08	1	1009-1302
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1303-
304	NUT; SPIRE EXC. HONG KONG EQUIPMENT(PQ1) M6	1-09984-182-0	04	1	1009-1302
339	FASTENER; SIDE HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	10	1	1009-1302
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1303-
339	FASTENER; SIDE EXC. HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	12	1	1009-1302
404	BRACKET EXC. FRONT SPOILER<VP1> (D)	8-98227-951-0	01	1	1412-
404	BRACKET EXC. FRONT SPOILER<VP1> (D)	8-98227-952-0	01	1	1412-
404	BRACKET FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-53414-287-2	01	1	1009-1302
404	BRACKET FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-53414-288-2	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) (A)	1-53414-158-4	01	1	1009-1302
404	BRACKET (C)	8-98241-383-0	01	1	1303-1411
404	BRACKET FRONT SPOILER<VP1> (C)	8-98241-383-0	01	1	1412-
404	BRACKET HONG KONG EQUIPMENT(PQ1) (B)	1-53414-255-3	01	1	1009-1302
404	BRACKET (C)	8-98241-384-0	01	1	1303-1411
404	BRACKET FRONT SPOILER<VP1> (C)	8-98241-384-0	01	1	1412-
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1009-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1009-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1009-
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1009-
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-807-2	01	1	1009-1302
455	PROTECTOR; STEP	8-98125-807-2	01	1	1303-
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-808-2	01	1	1009-1302
455	PROTECTOR; STEP	8-98125-808-2	01	1	1303-
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-837-1	01	1	1009-1302
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-838-1	01	1	1009-1302
517	SCREW; TAP EXC. HONG KONG EQUIPMENT(PQ1) M5X10 TAPPING W/PL WASHER	0-74160-510-0	04	1	1009-1302
549	BOLT; STAY FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1) M6X20 FLANGE	0-28650-620-0	04	1	1009-1302
549	BOLT; STAY FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1) M5X16 W/LK&PL WASHER	8-94198-538-0	02	1	1009-1302
550	NUT; STAY FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1) M6 FLANGE	0-91180-206-0	04	1	1009-1302
550	NUT; STAY FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1) M5 FLANGE	1-09984-170-0	02	1	1009-1302
655	STAY; MUD GUARD FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1)	8-97608-965-1	01	1	1009-1302
655	STAY; MUD GUARD FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1)	8-97608-966-1	01	1	1009-1302

444 110 103 339 136 291 103 138 550 430 549 404 149 146 655 549 550 146 285 289 447 455 304 446 30 517

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-810-4	01	1	1009-1302
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1303-
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-809-4	01	1	1009-1302
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1303-
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-848-0	01	1	1009-1302
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-847-0	01	1	1009-1302
103	PLATE; STEP (A)	1-53414-181-0	01	1	1009-
103	PLATE; STEP (A)	1-53414-180-0	01	1	1009-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	02	1	1009-1302
103	PLATE; STEP (B)	1-71907-249-1	02	1	1303-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	02	1	1009-1302
103	PLATE; STEP (B)	1-71907-174-1	02	1	1303-
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	01	1	1009-1302
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	01	1	1009-1302
110	BOLT; 1ST STEP PLATE EXC. HONG KONG EQUIPMENT(PQ1) M8X29.5 W/LK+PL WASHER	8-94279-218-0	08	1	1009-1302
136	BOLT; OVER FENDER FRONT SPOILER<VP1> M5X22	8-97029-303-1	06	1	1009-1302
136	BOLT; OVER FENDER M5X22	8-97029-303-1	06	1	1303-1411
136	BOLT; OVER FENDER FRONT SPOILER<VP1> M5X22	8-97029-303-1	06	1	1412-
138	FENDER; OVER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> EXC. HONG KONG EQUIPMENT(PQ1) CHROMIUM PLATE	1-86792-078-0	01	1	1009-1302
138	FENDER; OVER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> EXC. HONG KONG EQUIPMENT(PQ1) CHROMIUM PLATE	1-86792-079-0	01	1	1009-1302
138	FENDER; OVER FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1),BUMPER-CHROME, FRONT<V46> WHITE	1-79931-447-1	01	1	1009-1302
138	FENDER; OVER FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1),BUMPER-CHROME, FRONT<V46> WHITE	1-79931-448-1	01	1	1009-1302
138	FENDER; OVER HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-79931-265-0	01	1	1009-1302
138	FENDER; OVER HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-79931-266-0	01	1	1009-1302
138	FENDER; OVER HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-79931-263-0	01	1	1009-1302
138	FENDER; OVER	1-79931-263-0	01	1	1303-1411
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-263-0	01	1	1412-
138	FENDER; OVER HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-79931-264-0	01	1	1009-1302
138	FENDER; OVER	1-79931-264-0	01	1	1303-1411
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-264-0	01	1	1412-
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	03	1	1009-1302
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	08	1	1303-1504
146	BOLT; STEP BRKT (A) M12X40 FLANGE	0-28051-240-0	08	1	1505-
146	BOLT; STEP BRKT (B) M12X70 FLANGE	0-28051-270-0	02	1	1009-1302
146	BOLT; STEP BRKT (C) M12X80 FLANGE	0-28051-280-0	02	1	1009-1302
149	NUT; STEP BRKT M12 FLANGE	0-91180-212-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-091-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP	8-98227-947-1	01	1	1303-
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-094-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP	8-98227-948-1	01	1	1303-
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-528-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-529-0	01	1	1009-1302
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1009-
291	BOLT; STEP PLATE M8X40 FLANGE	0-28050-840-0	08	1	1009-1302
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1303-
304	NUT; SPIRE EXC. HONG KONG EQUIPMENT(PQ1) M6	1-09984-182-0	04	1	1009-1302
339	FASTENER; SIDE HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	10	1	1009-1302
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1303-
339	FASTENER; SIDE EXC. HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	12	1	1009-1302
404	BRACKET EXC. FRONT SPOILER<VP1> (D)	8-98227-951-0	01	1	1412-
404	BRACKET EXC. FRONT SPOILER<VP1> (D)	8-98227-952-0	01	1	1412-
404	BRACKET FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-53414-287-2	01	1	1009-1302
404	BRACKET FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-53414-288-2	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) (A)	1-53414-158-4	01	1	1009-1302
404	BRACKET (C)	8-98241-383-0	01	1	1303-1411
404	BRACKET FRONT SPOILER<VP1> (C)	8-98241-383-0	01	1	1412-
404	BRACKET HONG KONG EQUIPMENT(PQ1) (B)	1-53414-255-3	01	1	1009-1302
404	BRACKET (C)	8-98241-384-0	01	1	1303-1411
404	BRACKET FRONT SPOILER<VP1> (C)	8-98241-384-0	01	1	1412-
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1009-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1009-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1009-
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1009-
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-807-2	01	1	1009-1302
455	PROTECTOR; STEP	8-98125-807-2	01	1	1303-
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-808-2	01	1	1009-1302
455	PROTECTOR; STEP	8-98125-808-2	01	1	1303-
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-837-1	01	1	1009-1302
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-838-1	01	1	1009-1302
517	SCREW; TAP EXC. HONG KONG EQUIPMENT(PQ1) M5X10 TAPPING W/PL WASHER	0-74160-510-0	04	1	1009-1302
549	BOLT; STAY FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1) M6X20 FLANGE	0-28650-620-0	04	1	1009-1302
549	BOLT; STAY FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1) M5X16 W/LK&PL WASHER	8-94198-538-0	02	1	1009-1302
550	NUT; STAY FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1) M6 FLANGE	0-91180-206-0	04	1	1009-1302
550	NUT; STAY FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1) M5 FLANGE	1-09984-170-0	02	1	1009-1302
655	STAY; MUD GUARD FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1)	8-97608-965-1	01	1	1009-1302
655	STAY; MUD GUARD FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1)	8-97608-966-1	01	1	1009-1302

444 161 103 339 136 291 103 138 446 30 455 103 447 289 285 146 430 404 146 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-810-4	01	1	1009-1302
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1303-
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-809-4	01	1	1009-1302
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1303-
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-848-0	01	1	1009-1302
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-847-0	01	1	1009-1302
103	PLATE; STEP (A)	1-53414-181-0	01	1	1009-
103	PLATE; STEP (A)	1-53414-180-0	01	1	1009-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	02	1	1009-1302
103	PLATE; STEP (B)	1-71907-249-1	02	1	1303-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	02	1	1009-1302
103	PLATE; STEP (B)	1-71907-174-1	02	1	1303-
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	01	1	1009-1302
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	01	1	1009-1302
136	BOLT; OVER FENDER FRONT SPOILER<VP1> M5X22	8-97029-303-1	06	1	1009-1302
136	BOLT; OVER FENDER M5X22	8-97029-303-1	06	1	1303-1411
136	BOLT; OVER FENDER FRONT SPOILER<VP1> M5X22	8-97029-303-1	06	1	1412-
138	FENDER; OVER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> EXC. HONG KONG EQUIPMENT(PQ1) CHROMIUM PLATE	1-86792-078-0	01	1	1009-1302
138	FENDER; OVER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> EXC. HONG KONG EQUIPMENT(PQ1) CHROMIUM PLATE	1-86792-079-0	01	1	1009-1302
138	FENDER; OVER FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1),BUMPER-CHROME, FRONT<V46> WHITE	1-79931-447-1	01	1	1009-1302
138	FENDER; OVER FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1),BUMPER-CHROME, FRONT<V46> WHITE	1-79931-448-1	01	1	1009-1302
138	FENDER; OVER HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-79931-265-0	01	1	1009-1302
138	FENDER; OVER HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-79931-266-0	01	1	1009-1302
138	FENDER; OVER HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-79931-263-0	01	1	1009-1302
138	FENDER; OVER	1-79931-263-0	01	1	1303-1411
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-263-0	01	1	1412-
138	FENDER; OVER HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-79931-264-0	01	1	1009-1302
138	FENDER; OVER	1-79931-264-0	01	1	1303-1411
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-264-0	01	1	1412-
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	03	1	1009-1302
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	08	1	1303-1504
146	BOLT; STEP BRKT (A) M12X40 FLANGE	0-28051-240-0	08	1	1505-
146	BOLT; STEP BRKT (B) M12X70 FLANGE	0-28051-270-0	02	1	1009-1302
146	BOLT; STEP BRKT (C) M12X80 FLANGE	0-28051-280-0	02	1	1009-1302
149	NUT; STEP BRKT M12 FLANGE	0-91180-212-0	01	1	1009-1302
161	BOLT; FIX HONG KONG EQUIPMENT(PQ1) M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1009-1302
161	BOLT; FIX M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1303-
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-091-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP	8-98227-947-1	01	1	1303-
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-094-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP	8-98227-948-1	01	1	1303-
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-528-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-529-0	01	1	1009-1302
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1009-
291	BOLT; STEP PLATE M8X40 FLANGE	0-28050-840-0	08	1	1009-1302
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1303-
339	FASTENER; SIDE HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	10	1	1009-1302
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1303-
339	FASTENER; SIDE EXC. HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	12	1	1009-1302
404	BRACKET EXC. FRONT SPOILER<VP1> (D)	8-98227-951-0	01	1	1412-
404	BRACKET EXC. FRONT SPOILER<VP1> (D)	8-98227-952-0	01	1	1412-
404	BRACKET FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-53414-287-2	01	1	1009-1302
404	BRACKET FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-53414-288-2	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) (A)	1-53414-158-4	01	1	1009-1302
404	BRACKET (C)	8-98241-383-0	01	1	1303-1411
404	BRACKET FRONT SPOILER<VP1> (C)	8-98241-383-0	01	1	1412-
404	BRACKET HONG KONG EQUIPMENT(PQ1) (B)	1-53414-255-3	01	1	1009-1302
404	BRACKET (C)	8-98241-384-0	01	1	1303-1411
404	BRACKET FRONT SPOILER<VP1> (C)	8-98241-384-0	01	1	1412-
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1009-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1009-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1009-
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1009-
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-807-2	01	1	1009-1302
455	PROTECTOR; STEP	8-98125-807-2	01	1	1303-
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-808-2	01	1	1009-1302
455	PROTECTOR; STEP	8-98125-808-2	01	1	1303-
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-837-1	01	1	1009-1302
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-838-1	01	1	1009-1302

446 30 103 455 447 289 285 146 404 146 430 138 103 291 339 103 161 444 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-810-4	01	1	1009-1302
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1303-
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-809-4	01	1	1009-1302
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1303-
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-848-0	01	1	1009-1302
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-847-0	01	1	1009-1302
103	PLATE; STEP (A)	1-53414-181-0	01	1	1009-
103	PLATE; STEP (A)	1-53414-180-0	01	1	1009-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	02	1	1009-1302
103	PLATE; STEP (B)	1-71907-249-1	02	1	1303-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	02	1	1009-1302
103	PLATE; STEP (B)	1-71907-174-1	02	1	1303-
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	01	1	1009-1302
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	01	1	1009-1302
136	BOLT; OVER FENDER FRONT SPOILER<VP1> M5X22	8-97029-303-1	06	1	1009-1302
136	BOLT; OVER FENDER M5X22	8-97029-303-1	06	1	1303-1411
136	BOLT; OVER FENDER FRONT SPOILER<VP1> M5X22	8-97029-303-1	06	1	1412-
138	FENDER; OVER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> EXC. HONG KONG EQUIPMENT(PQ1) CHROMIUM PLATE	1-86792-078-0	01	1	1009-1302
138	FENDER; OVER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> EXC. HONG KONG EQUIPMENT(PQ1) CHROMIUM PLATE	1-86792-079-0	01	1	1009-1302
138	FENDER; OVER FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1),BUMPER-CHROME, FRONT<V46> WHITE	1-79931-447-1	01	1	1009-1302
138	FENDER; OVER FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1),BUMPER-CHROME, FRONT<V46> WHITE	1-79931-448-1	01	1	1009-1302
138	FENDER; OVER HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-79931-265-0	01	1	1009-1302
138	FENDER; OVER HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-79931-266-0	01	1	1009-1302
138	FENDER; OVER HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-79931-263-0	01	1	1009-1302
138	FENDER; OVER	1-79931-263-0	01	1	1303-1411
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-263-0	01	1	1412-
138	FENDER; OVER HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-79931-264-0	01	1	1009-1302
138	FENDER; OVER	1-79931-264-0	01	1	1303-1411
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-264-0	01	1	1412-
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	03	1	1009-1302
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	08	1	1303-1504
146	BOLT; STEP BRKT (A) M12X40 FLANGE	0-28051-240-0	08	1	1505-
146	BOLT; STEP BRKT (B) M12X70 FLANGE	0-28051-270-0	02	1	1009-1302
146	BOLT; STEP BRKT (C) M12X80 FLANGE	0-28051-280-0	02	1	1009-1302
161	BOLT; FIX HONG KONG EQUIPMENT(PQ1) M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1009-1302
161	BOLT; FIX M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1303-
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-091-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP	8-98227-947-1	01	1	1303-
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-094-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP	8-98227-948-1	01	1	1303-
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-528-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-529-0	01	1	1009-1302
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1009-
291	BOLT; STEP PLATE M8X40 FLANGE	0-28050-840-0	08	1	1009-1302
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1303-
339	FASTENER; SIDE HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	10	1	1009-1302
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1303-
339	FASTENER; SIDE EXC. HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	12	1	1009-1302
404	BRACKET EXC. FRONT SPOILER<VP1> (D)	8-98227-951-0	01	1	1412-
404	BRACKET EXC. FRONT SPOILER<VP1> (D)	8-98227-952-0	01	1	1412-
404	BRACKET FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-53414-287-2	01	1	1009-1302
404	BRACKET FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-53414-288-2	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) (A)	1-53414-158-4	01	1	1009-1302
404	BRACKET (C)	8-98241-383-0	01	1	1303-1411
404	BRACKET FRONT SPOILER<VP1> (C)	8-98241-383-0	01	1	1412-
404	BRACKET HONG KONG EQUIPMENT(PQ1) (B)	1-53414-255-3	01	1	1009-1302
404	BRACKET (C)	8-98241-384-0	01	1	1303-1411
404	BRACKET FRONT SPOILER<VP1> (C)	8-98241-384-0	01	1	1412-
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1009-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1009-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1009-
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1009-
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-807-2	01	1	1009-1302
455	PROTECTOR; STEP	8-98125-807-2	01	1	1303-
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-808-2	01	1	1009-1302
455	PROTECTOR; STEP	8-98125-808-2	01	1	1303-
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-837-1	01	1	1009-1302
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-838-1	01	1	1009-1302

161 444 446 30 103 455 447 289 285 146 404 404 138 103 291 136 339 103 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-810-4	01	1	1009-1302
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1303-
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-809-4	01	1	1009-1302
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1303-
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-848-0	01	1	1009-1302
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-847-0	01	1	1009-1302
103	PLATE; STEP (A)	1-53414-181-0	01	1	1009-
103	PLATE; STEP (A)	1-53414-180-0	01	1	1009-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	02	1	1009-1302
103	PLATE; STEP (B)	1-71907-249-1	02	1	1303-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	02	1	1009-1302
103	PLATE; STEP (B)	1-71907-174-1	02	1	1303-
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	01	1	1009-1302
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	01	1	1009-1302
136	BOLT; OVER FENDER FRONT SPOILER<VP1> M5X22	8-97029-303-1	06	1	1009-1302
136	BOLT; OVER FENDER M5X22	8-97029-303-1	06	1	1303-1411
136	BOLT; OVER FENDER FRONT SPOILER<VP1> M5X22	8-97029-303-1	06	1	1412-
138	FENDER; OVER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> EXC. HONG KONG EQUIPMENT(PQ1) CHROMIUM PLATE	1-86792-078-0	01	1	1009-1302
138	FENDER; OVER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> EXC. HONG KONG EQUIPMENT(PQ1) CHROMIUM PLATE	1-86792-079-0	01	1	1009-1302
138	FENDER; OVER FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1),BUMPER-CHROME, FRONT<V46> WHITE	1-79931-447-1	01	1	1009-1302
138	FENDER; OVER FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1),BUMPER-CHROME, FRONT<V46> WHITE	1-79931-448-1	01	1	1009-1302
138	FENDER; OVER HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-79931-265-0	01	1	1009-1302
138	FENDER; OVER HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-79931-266-0	01	1	1009-1302
138	FENDER; OVER HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-79931-263-0	01	1	1009-1302
138	FENDER; OVER	1-79931-263-0	01	1	1303-1411
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-263-0	01	1	1412-
138	FENDER; OVER HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-79931-264-0	01	1	1009-1302
138	FENDER; OVER	1-79931-264-0	01	1	1303-1411
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-264-0	01	1	1412-
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	03	1	1009-1302
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	08	1	1303-1504
146	BOLT; STEP BRKT (A) M12X40 FLANGE	0-28051-240-0	08	1	1505-
146	BOLT; STEP BRKT (B) M12X70 FLANGE	0-28051-270-0	02	1	1009-1302
146	BOLT; STEP BRKT (C) M12X80 FLANGE	0-28051-280-0	02	1	1009-1302
161	BOLT; FIX HONG KONG EQUIPMENT(PQ1) M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1009-1302
161	BOLT; FIX M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1303-
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-091-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP	8-98227-947-1	01	1	1303-
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-094-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP	8-98227-948-1	01	1	1303-
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-528-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-529-0	01	1	1009-1302
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1009-
291	BOLT; STEP PLATE M8X40 FLANGE	0-28050-840-0	08	1	1009-1302
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1303-
339	FASTENER; SIDE HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	10	1	1009-1302
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1303-
339	FASTENER; SIDE EXC. HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	12	1	1009-1302
404	BRACKET EXC. FRONT SPOILER<VP1> (D)	8-98227-951-0	01	1	1412-
404	BRACKET EXC. FRONT SPOILER<VP1> (D)	8-98227-952-0	01	1	1412-
404	BRACKET FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-53414-287-2	01	1	1009-1302
404	BRACKET FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-53414-288-2	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) (A)	1-53414-158-4	01	1	1009-1302
404	BRACKET (C)	8-98241-383-0	01	1	1303-1411
404	BRACKET FRONT SPOILER<VP1> (C)	8-98241-383-0	01	1	1412-
404	BRACKET HONG KONG EQUIPMENT(PQ1) (B)	1-53414-255-3	01	1	1009-1302
404	BRACKET (C)	8-98241-384-0	01	1	1303-1411
404	BRACKET FRONT SPOILER<VP1> (C)	8-98241-384-0	01	1	1412-
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1009-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1009-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1009-
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1009-
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-807-2	01	1	1009-1302
455	PROTECTOR; STEP	8-98125-807-2	01	1	1303-
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-808-2	01	1	1009-1302
455	PROTECTOR; STEP	8-98125-808-2	01	1	1303-
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-837-1	01	1	1009-1302
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-838-1	01	1	1009-1302

446 444 161 30 103 455 447 289 285 103 339 136 291 103 138 430 404 404 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-810-4	01	1	1009-1302
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1303-
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-809-4	01	1	1009-1302
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1303-
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-848-0	01	1	1009-1302
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-847-0	01	1	1009-1302
103	PLATE; STEP (A)	1-53414-181-0	01	1	1009-
103	PLATE; STEP (A)	1-53414-180-0	01	1	1009-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	02	1	1009-1302
103	PLATE; STEP (B)	1-71907-249-1	02	1	1303-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	02	1	1009-1302
103	PLATE; STEP (B)	1-71907-174-1	02	1	1303-
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	01	1	1009-1302
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	01	1	1009-1302
136	BOLT; OVER FENDER FRONT SPOILER<VP1> M5X22	8-97029-303-1	06	1	1009-1302
136	BOLT; OVER FENDER M5X22	8-97029-303-1	06	1	1303-1411
136	BOLT; OVER FENDER FRONT SPOILER<VP1> M5X22	8-97029-303-1	06	1	1412-
138	FENDER; OVER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> EXC. HONG KONG EQUIPMENT(PQ1) CHROMIUM PLATE	1-86792-078-0	01	1	1009-1302
138	FENDER; OVER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> EXC. HONG KONG EQUIPMENT(PQ1) CHROMIUM PLATE	1-86792-079-0	01	1	1009-1302
138	FENDER; OVER FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1),BUMPER-CHROME, FRONT<V46> WHITE	1-79931-447-1	01	1	1009-1302
138	FENDER; OVER FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1),BUMPER-CHROME, FRONT<V46> WHITE	1-79931-448-1	01	1	1009-1302
138	FENDER; OVER HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-79931-265-0	01	1	1009-1302
138	FENDER; OVER HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-79931-266-0	01	1	1009-1302
138	FENDER; OVER HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-79931-263-0	01	1	1009-1302
138	FENDER; OVER	1-79931-263-0	01	1	1303-1411
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-263-0	01	1	1412-
138	FENDER; OVER HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-79931-264-0	01	1	1009-1302
138	FENDER; OVER	1-79931-264-0	01	1	1303-1411
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-264-0	01	1	1412-
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	03	1	1009-1302
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	08	1	1303-1504
146	BOLT; STEP BRKT (A) M12X40 FLANGE	0-28051-240-0	08	1	1505-
146	BOLT; STEP BRKT (B) M12X70 FLANGE	0-28051-270-0	02	1	1009-1302
146	BOLT; STEP BRKT (C) M12X80 FLANGE	0-28051-280-0	02	1	1009-1302
161	BOLT; FIX HONG KONG EQUIPMENT(PQ1) M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1009-1302
161	BOLT; FIX M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1303-
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-091-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP	8-98227-947-1	01	1	1303-
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-094-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP	8-98227-948-1	01	1	1303-
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-528-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-529-0	01	1	1009-1302
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1009-
291	BOLT; STEP PLATE M8X40 FLANGE	0-28050-840-0	08	1	1009-1302
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1303-
339	FASTENER; SIDE HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	10	1	1009-1302
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1303-
339	FASTENER; SIDE EXC. HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	12	1	1009-1302
404	BRACKET EXC. FRONT SPOILER<VP1> (D)	8-98227-951-0	01	1	1412-
404	BRACKET EXC. FRONT SPOILER<VP1> (D)	8-98227-952-0	01	1	1412-
404	BRACKET FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-53414-287-2	01	1	1009-1302
404	BRACKET FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-53414-288-2	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) (A)	1-53414-158-4	01	1	1009-1302
404	BRACKET (C)	8-98241-383-0	01	1	1303-1411
404	BRACKET FRONT SPOILER<VP1> (C)	8-98241-383-0	01	1	1412-
404	BRACKET HONG KONG EQUIPMENT(PQ1) (B)	1-53414-255-3	01	1	1009-1302
404	BRACKET (C)	8-98241-384-0	01	1	1303-1411
404	BRACKET FRONT SPOILER<VP1> (C)	8-98241-384-0	01	1	1412-
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1009-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1009-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1009-
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1009-
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-807-2	01	1	1009-1302
455	PROTECTOR; STEP	8-98125-807-2	01	1	1303-
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-808-2	01	1	1009-1302
455	PROTECTOR; STEP	8-98125-808-2	01	1	1303-
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-837-1	01	1	1009-1302
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-838-1	01	1	1009-1302

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
