Sayfa 6-01 - Isuzu EPC

6-01 — FRONT BUMPER (#70143) — 339 parça

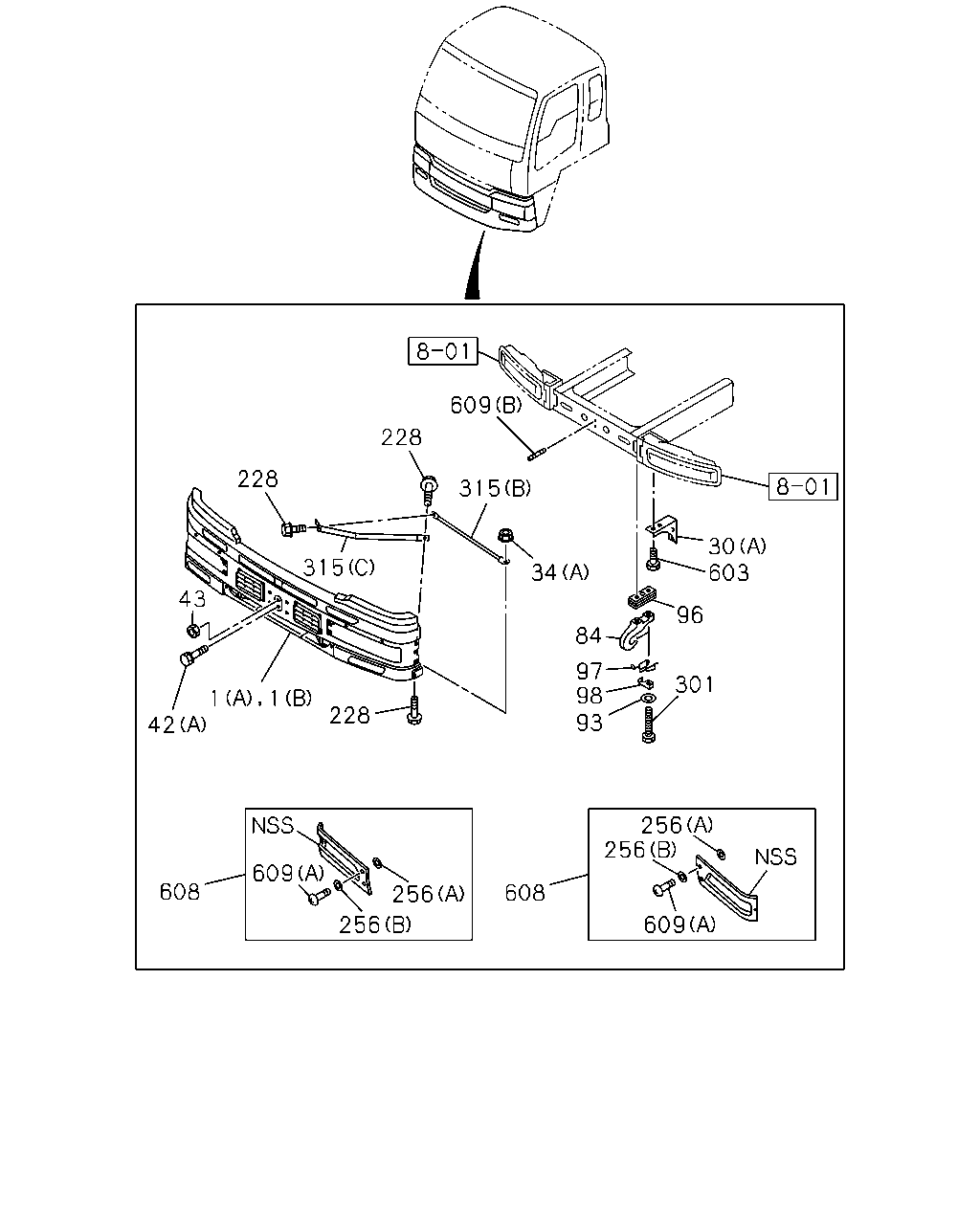

228 228 609 315 34 84 93 301 96 603 256 256 608 609 256 256 609 608 42 228 1 1 43 315 30 98 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (D) WHITE	8-97417-846-3	01	1	1412-
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> (B) CHROMIUM PLATE	8-98130-330-1	01	1	1009-1302
1	BUMPER ASM; FRT EXC. BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-599-1	01	1	1009-1302
1	BUMPER ASM; FRT (C) WHITE	8-97424-794-3	01	1	1303-1411
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (C) WHITE	8-97424-794-3	01	1	1412-
30	BRACKET; FRT BUMPER (B)	8-98135-977-1	01	1	1303-
30	BRACKET; FRT BUMPER (B)	8-98135-978-1	01	1	1303-
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (A)	1-71230-428-0	01	1	1009-1302
30	BRACKET; FRT BUMPER (C)	8-98139-907-0	01	1	1303-1411
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (C)	8-98139-907-0	01	1	1412-
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (A)	1-71230-429-0	01	1	1009-1302
30	BRACKET; FRT BUMPER (C)	8-98139-909-0	01	1	1303-1411
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (C)	8-98139-909-0	01	1	1412-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	04	1	1009-1302
34	NUT; BRKT,BUMPER (C) M6 FLANGE	0-91180-106-0	02	1	1303-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	17	1	1009-1302
34	NUT; BRKT,BUMPER (D) M10 FLANGE	0-91180-110-0	04	1	1303-
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1009-1302
42	BOLT; BUMPER EXC. FRONT SPOILER<VP1> (D) M10X30 FLANGE	8-98055-942-0	10	1	1412-
42	BOLT; BUMPER (D) M10X30 FLANGE	8-98055-942-0	14	1	1303-1411
42	BOLT; BUMPER FRONT SPOILER<VP1> (D) M10X30 FLANGE	8-98055-942-0	14	1	1412-
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1303-1411
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1303-1411
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X30 FLANGE	0-28051-030-0	04	1	1412-
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1412-
42	BOLT; BUMPER (A) M10X30 W/LK&PL WASHER	8-94279-213-0	09	1	1009-1302
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1303-
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91180-210-0	01	1	1009-1302
84	HOOK	1-57181-027-1	01	1	1009-1302
84	HOOK	8-98126-930-0	01	1	1303-
93	WASHER; LK,HOOK ID=16.2	0-91510-516-0	02	1	1009-1302
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1303-
96	PLATE; DIST,HOOK	1-53497-473-0	01	1	1009-1302
96	PLATE; DIST,HOOK	8-98169-197-0	01	1	1303-
97	SPRING; FRT HOOK	9-53519-003-0	01	1	1009-1302
98	STOPPER; SPR,FRT HOOK	9-53519-006-0	01	1	1009-1302
228	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	06	1	1009-1302
228	BOLT; BRKT M16X35 FLANGE	0-28851-635-0	06	1	1303-
256	WASHER; PL (A)	1-71260-173-0	06	1	1009-1302
256	WASHER; PL (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	1009-1302
301	BOLT; HOOK TO FRAME M16X95	0-10811-695-0	01	1	1009-1302
301	BOLT; HOOK TO FRAME M16X110	8-98074-591-0	02	1	1303-
301	BOLT; HOOK TO FRAME M16X90	0-10861-690-0	01	1	1009-1302
315	STAY; BUMPER (A)	1-71230-346-2	01	1	1009-1302
315	STAY; BUMPER (A)	1-71230-347-2	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-435-0	02	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	8-97608-941-0	02	1	1009-1302
603	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1009-1302
608	LID; BUMPER BUMPER-CHROME,FRONT<V46>	1-86792-014-2	01	1	1009-1302
608	LID; BUMPER BUMPER-CHROME,FRONT<V46>	1-86792-013-2	01	1	1009-1302
608	LID; BUMPER EXC. BUMPER-CHROME,FRONT<V46>	1-71210-753-6	01	1	1009-1302
608	LID; BUMPER EXC. BUMPER-CHROME,FRONT<V46>	1-71210-752-6	01	1	1009-1302
609	STUD; BUMPER (B) M10X28,M10X15 L=50	5-09300-050-0	01	1	1009-1302
609	STUD; BUMPER (A)	1-71260-175-0	06	1	1009-1302

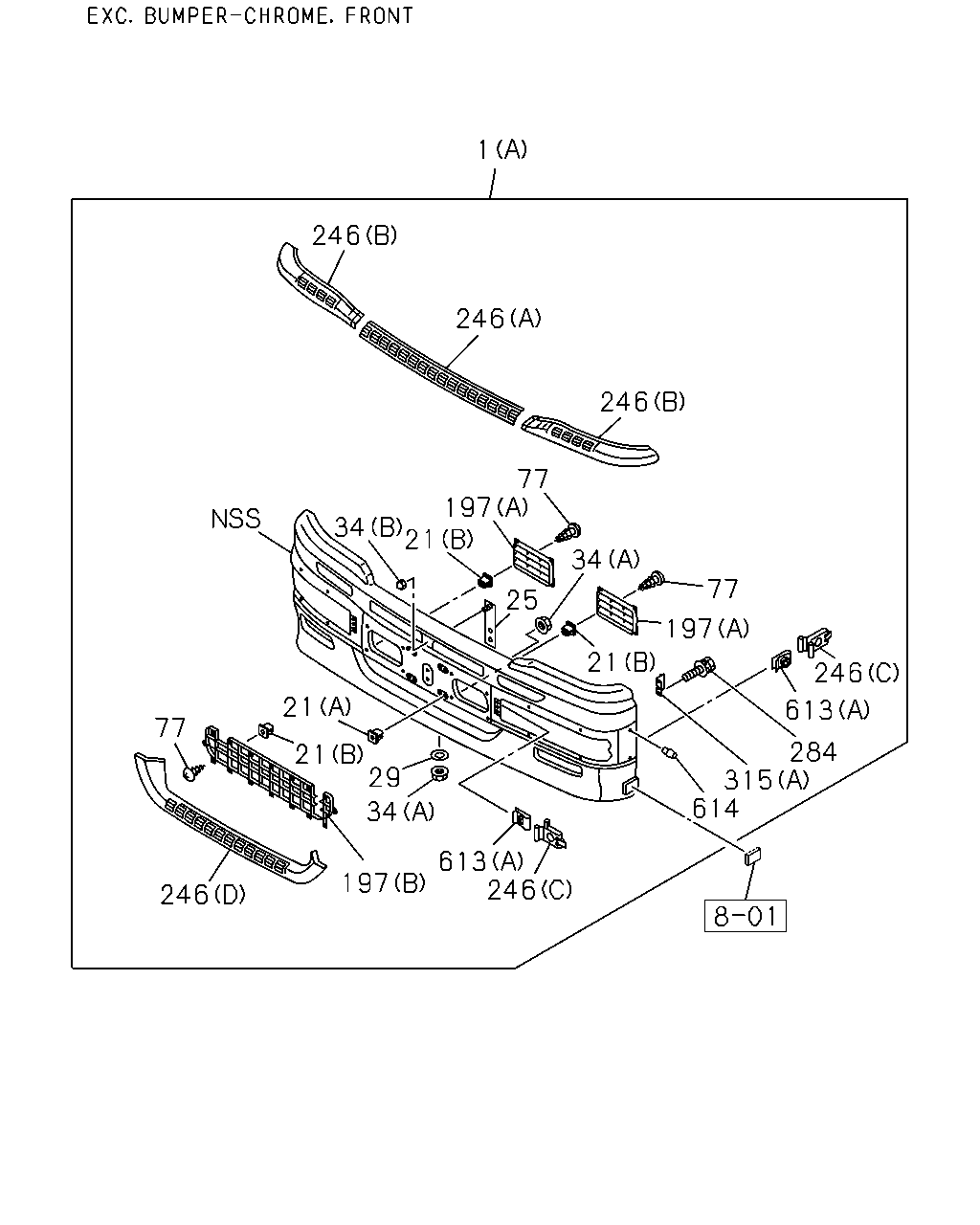

1 246 246 246 77 197 34 246 77 197 21 613 315 284 614 3 246 613 197 246 77 21 21 29 34 25 21 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (D) WHITE	8-97417-846-3	01	1	1412-
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> (B) CHROMIUM PLATE	8-98130-330-1	01	1	1009-1302
1	BUMPER ASM; FRT EXC. BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-599-1	01	1	1009-1302
1	BUMPER ASM; FRT (C) WHITE	8-97424-794-3	01	1	1303-1411
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (C) WHITE	8-97424-794-3	01	1	1412-
3	BUMPER; FRT,SIDE BUMPER-CHROME,FRONT<V46> CHROMIUM PLATE	1-86712-088-3	01	1	1009-1302
21	GROMMET; SCREW,BUMPER PROTECTOR (B) D=9X9 L=7 M5	8-94163-979-0	22	1	1009-1302
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	1303-
25	SPACER; PLATFORM	1-71230-640-0	01	1	1009-1302
29	WASHER; FRT BUMPER ID=8.4 OD=22	0-91610-708-0	17	1	1009-1302
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	04	1	1009-1302
34	NUT; BRKT,BUMPER (C) M6 FLANGE	0-91180-106-0	02	1	1303-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	17	1	1009-1302
34	NUT; BRKT,BUMPER (D) M10 FLANGE	0-91180-110-0	04	1	1303-
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1009-1302
77	SCREW; BRKT M5X16 TAPPING	0-71240-516-0	36	1	1009-1302
197	GRILLE; BUMPER (B)	8-97617-998-0	01	1	1009-1302
197	GRILLE; BUMPER (C)	8-98144-188-4	01	1	1303-
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-505-0	01	1	1009-1302
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-506-0	01	1	1009-1302
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-503-0	01	1	1009-1302
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-504-0	01	1	1009-1302
246	PROTECTOR; BUMPER (C)	1-71260-162-0	06	1	1009-1302
246	PROTECTOR; BUMPER (A)	8-97619-479-1	01	1	1009-1302
246	PROTECTOR; BUMPER (B)	8-97619-480-1	01	1	1009-1302
246	PROTECTOR; BUMPER (B)	8-97619-481-1	01	1	1009-1302
246	PROTECTOR; BUMPER (D)	8-97619-484-0	01	1	1009-1302
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	1009-1302
315	STAY; BUMPER (A)	1-71230-346-2	01	1	1009-1302
315	STAY; BUMPER (A)	1-71230-347-2	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-435-0	02	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	8-97608-941-0	02	1	1009-1302
613	CLIP (E)	8-97581-651-2	04	1	1303-
613	CLIP (B)	8-98025-698-0	08	1	1303-
613	CLIP (C)	8-98144-173-1	06	1	1303-
613	CLIP (A)	1-71260-174-0	06	1	1009-1302
613	CLIP (D) D8X13.5	1-09987-248-1	05	1	1303-
614	STOPPER; LID	1-71260-163-0	12	1	1009-1302

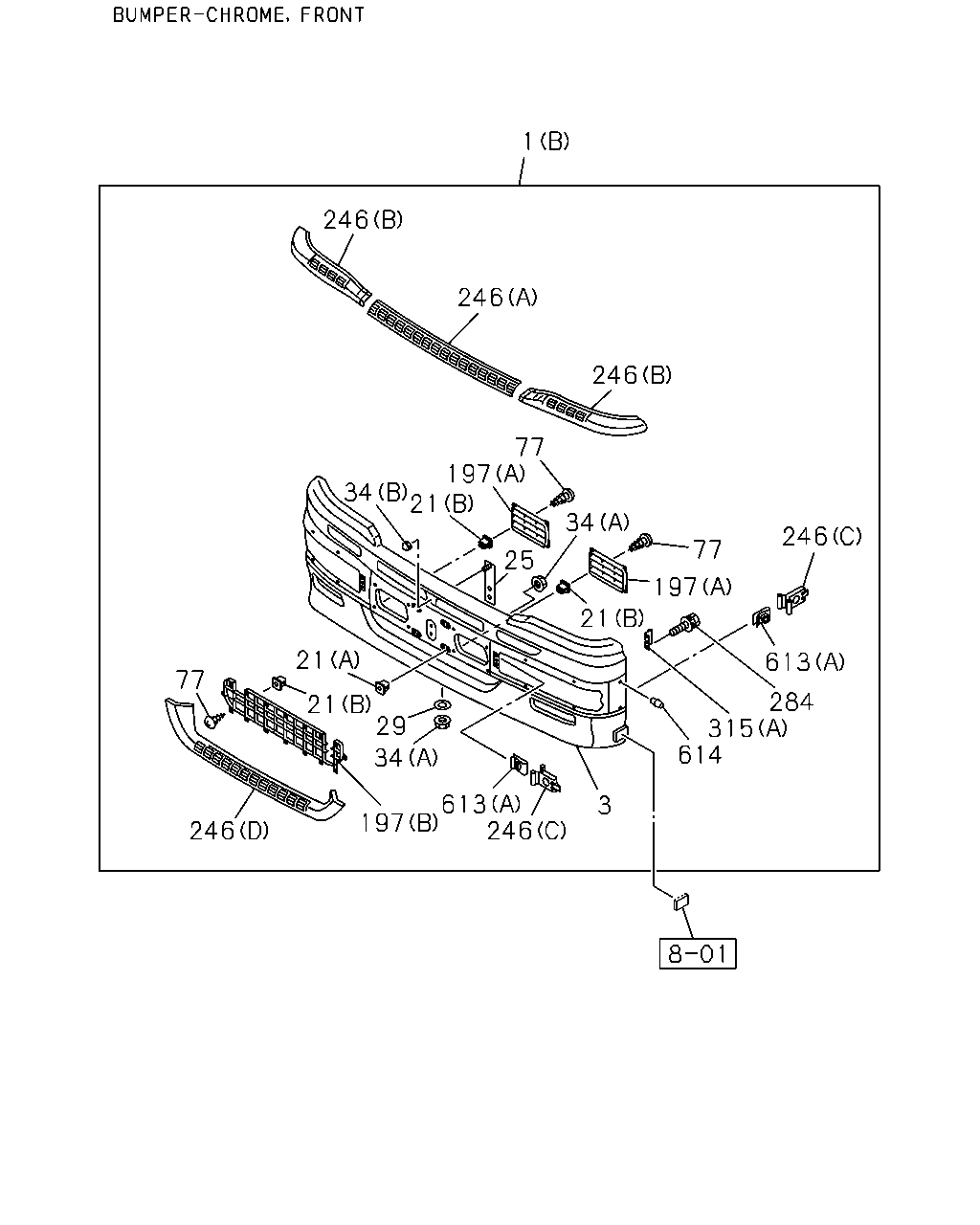

1 246 246 246 77 197 34 21 25 34 77 197 21 246 613 284 315 614 246 613 197 34 29 21 21 77 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (D) WHITE	8-97417-846-3	01	1	1412-
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> (B) CHROMIUM PLATE	8-98130-330-1	01	1	1009-1302
1	BUMPER ASM; FRT EXC. BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-599-1	01	1	1009-1302
1	BUMPER ASM; FRT (C) WHITE	8-97424-794-3	01	1	1303-1411
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (C) WHITE	8-97424-794-3	01	1	1412-
21	GROMMET; SCREW,BUMPER PROTECTOR (B) D=9X9 L=7 M5	8-94163-979-0	22	1	1009-1302
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	1303-
25	SPACER; PLATFORM	1-71230-640-0	01	1	1009-1302
29	WASHER; FRT BUMPER ID=8.4 OD=22	0-91610-708-0	17	1	1009-1302
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	04	1	1009-1302
34	NUT; BRKT,BUMPER (C) M6 FLANGE	0-91180-106-0	02	1	1303-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	17	1	1009-1302
34	NUT; BRKT,BUMPER (D) M10 FLANGE	0-91180-110-0	04	1	1303-
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1009-1302
77	SCREW; BRKT M5X16 TAPPING	0-71240-516-0	36	1	1009-1302
197	GRILLE; BUMPER (B)	8-97617-998-0	01	1	1009-1302
197	GRILLE; BUMPER (C)	8-98144-188-4	01	1	1303-
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-505-0	01	1	1009-1302
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-506-0	01	1	1009-1302
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-503-0	01	1	1009-1302
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-504-0	01	1	1009-1302
246	PROTECTOR; BUMPER (C)	1-71260-162-0	06	1	1009-1302
246	PROTECTOR; BUMPER (A)	8-97619-479-1	01	1	1009-1302
246	PROTECTOR; BUMPER (B)	8-97619-480-1	01	1	1009-1302
246	PROTECTOR; BUMPER (B)	8-97619-481-1	01	1	1009-1302
246	PROTECTOR; BUMPER (D)	8-97619-484-0	01	1	1009-1302
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	1009-1302
315	STAY; BUMPER (A)	1-71230-346-2	01	1	1009-1302
315	STAY; BUMPER (A)	1-71230-347-2	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-435-0	02	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	8-97608-941-0	02	1	1009-1302
613	CLIP (E)	8-97581-651-2	04	1	1303-
613	CLIP (B)	8-98025-698-0	08	1	1303-
613	CLIP (C)	8-98144-173-1	06	1	1303-
613	CLIP (A)	1-71260-174-0	06	1	1009-1302
613	CLIP (D) D8X13.5	1-09987-248-1	05	1	1303-
614	STOPPER; LID	1-71260-163-0	12	1	1009-1302

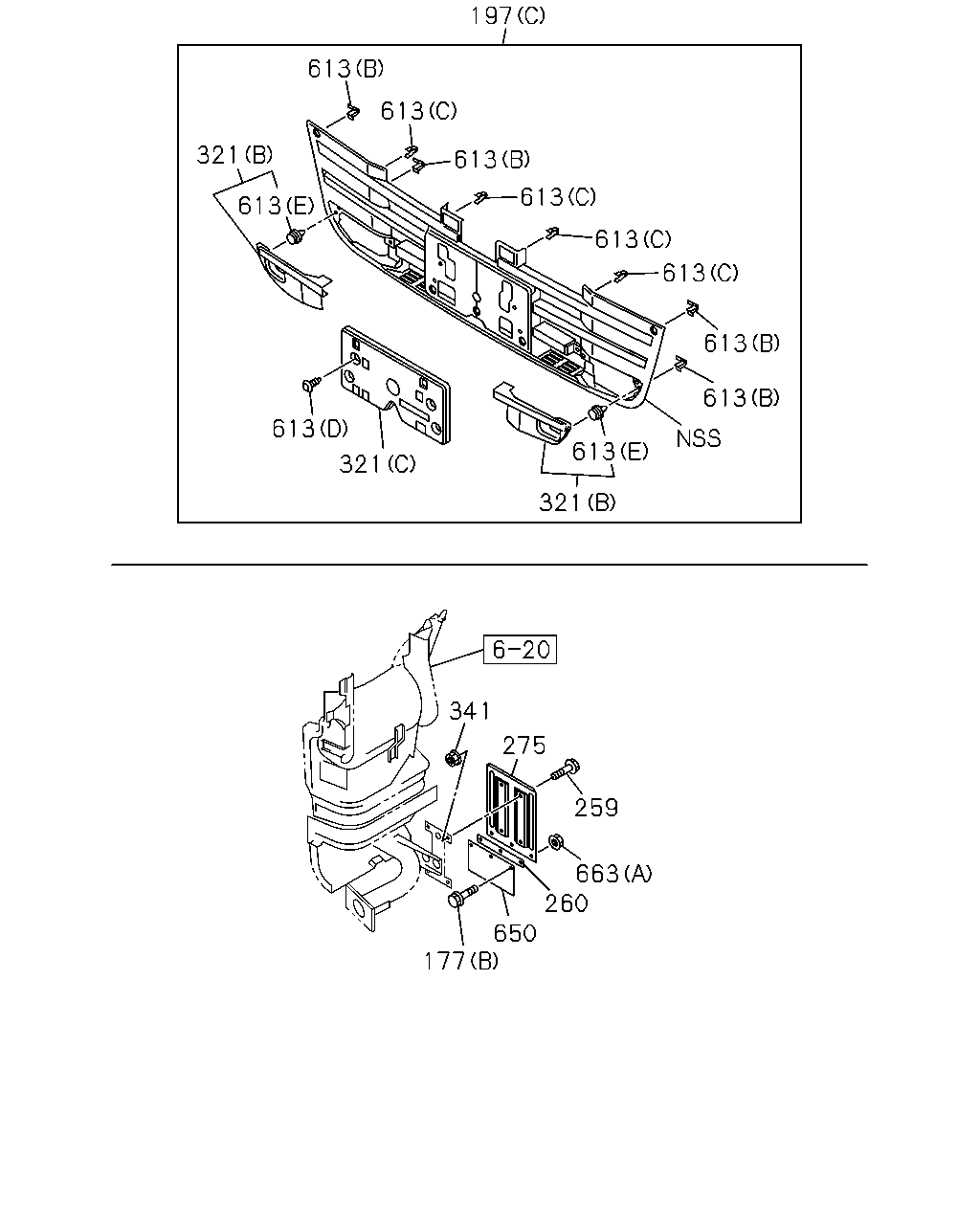

197 613 613 613 613 613 613 613 613 613 321 321 613 613 321 341 275 259 663 260 650 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
177	BOLT (A) M8X20 FLANGE	0-28050-820-0	04	1	1303-1411
177	BOLT FRONT SPOILER<VP1> (A) M8X20 FLANGE	0-28050-820-0	04	1	1412-
177	BOLT (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1303-
197	GRILLE; BUMPER (B)	8-97617-998-0	01	1	1009-1302
197	GRILLE; BUMPER (C)	8-98144-188-4	01	1	1303-
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-505-0	01	1	1009-1302
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-506-0	01	1	1009-1302
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-503-0	01	1	1009-1302
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-504-0	01	1	1009-1302
259	BOLT; COVER M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1303-
260	RETAINER; UPR SKIRT	8-98125-829-0	02	1	1303-
275	GUARD; FRT	8-98125-825-0	02	1	1303-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (A)	8-98123-457-1	01	1	1412-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (A)	8-98123-458-1	01	1	1412-
321	COVER; BUMPER FRT SIDE (B)	8-98123-446-1	01	1	1303-
321	COVER; BUMPER FRT SIDE (B)	8-98123-447-1	01	1	1303-
321	COVER; BUMPER FRT SIDE (A)	8-98123-455-1	01	1	1303-1411
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (A)	8-98123-455-1	01	1	1412-
321	COVER; BUMPER FRT SIDE (A)	8-98123-456-1	01	1	1303-1411
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (A)	8-98123-456-1	01	1	1412-
321	COVER; BUMPER FRT SIDE (C)	8-98132-737-1	01	1	1303-
341	NUT; COVER M8 FLANGE	0-91180-108-0	08	1	1303-
613	CLIP (E)	8-97581-651-2	04	1	1303-
613	CLIP (B)	8-98025-698-0	08	1	1303-
613	CLIP (C)	8-98144-173-1	06	1	1303-
613	CLIP (A)	1-71260-174-0	06	1	1009-1302
613	CLIP (D) D8X13.5	1-09987-248-1	05	1	1303-
650	RUBBER; MUD COVER	8-98125-828-0	02	1	1303-
663	NUT (C) M6 FLANGE	0-91180-106-0	13	1	1303-1411
663	NUT FRONT SPOILER<VP1> (C) M6 FLANGE	0-91180-106-0	13	1	1412-
663	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1303-
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1303-

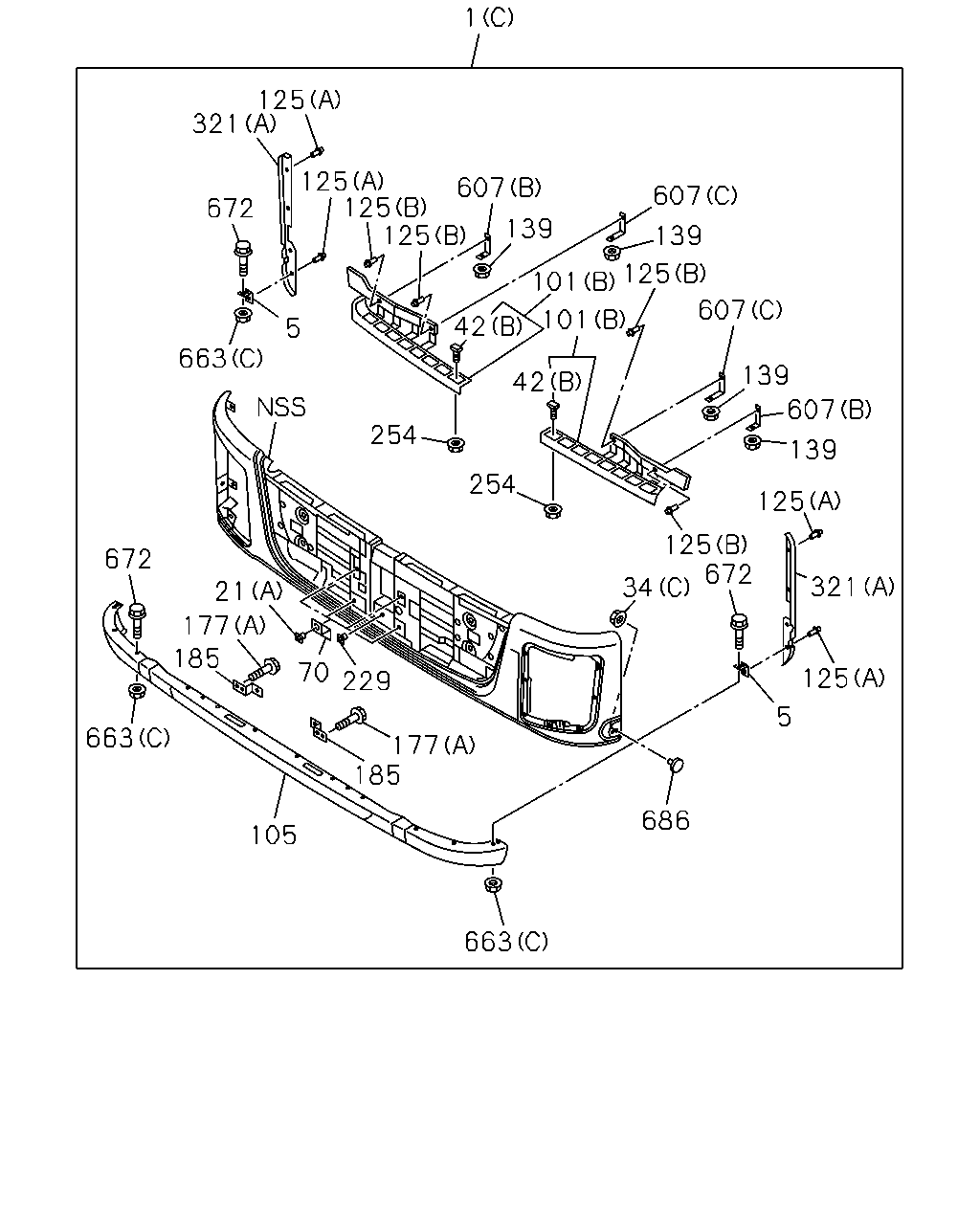

1 125 321 672 125 607 607 125 139 139 607 125 321 125 5 686 663 185 105 229 177 663 185 672 21 77 70 254 254 34 125 672 42 101 101 42 5 125 125 139 139 607 663

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (D) WHITE	8-97417-846-3	01	1	1412-
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> (B) CHROMIUM PLATE	8-98130-330-1	01	1	1009-1302
1	BUMPER ASM; FRT EXC. BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-599-1	01	1	1009-1302
1	BUMPER ASM; FRT (C) WHITE	8-97424-794-3	01	1	1303-1411
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (C) WHITE	8-97424-794-3	01	1	1412-
5	BRACKET; AIR DAM	8-98154-762-0	02	1	1303-1411
5	BRACKET; AIR DAM FRONT SPOILER<VP1>	8-98154-762-0	02	1	1412-
21	GROMMET; SCREW,BUMPER PROTECTOR (B) D=9X9 L=7 M5	8-94163-979-0	22	1	1009-1302
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	1303-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	04	1	1009-1302
34	NUT; BRKT,BUMPER (C) M6 FLANGE	0-91180-106-0	02	1	1303-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	17	1	1009-1302
34	NUT; BRKT,BUMPER (D) M10 FLANGE	0-91180-110-0	04	1	1303-
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1009-1302
42	BOLT; BUMPER EXC. FRONT SPOILER<VP1> (D) M10X30 FLANGE	8-98055-942-0	10	1	1412-
42	BOLT; BUMPER (D) M10X30 FLANGE	8-98055-942-0	14	1	1303-1411
42	BOLT; BUMPER FRONT SPOILER<VP1> (D) M10X30 FLANGE	8-98055-942-0	14	1	1412-
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1303-1411
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1303-1411
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X30 FLANGE	0-28051-030-0	04	1	1412-
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1412-
42	BOLT; BUMPER (A) M10X30 W/LK&PL WASHER	8-94279-213-0	09	1	1009-1302
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1303-
70	BRACKET; LICENSE PLATE,FRT	8-98128-625-0	04	1	1303-
77	SCREW; BRKT M5X16 TAPPING	0-71240-516-0	36	1	1009-1302
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1303-
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1303-
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1303-
105	AIR DAM WHITE	8-97417-859-4	01	1	1303-1411
105	AIR DAM FRONT SPOILER<VP1> WHITE	8-97417-859-4	01	1	1412-
125	CLIP; STEP EXC. FRONT SPOILER<VP1> (A)	8-98157-186-0	06	1	1412-
125	CLIP; STEP (B)	8-98157-167-0	04	1	1303-
125	CLIP; STEP (A)	8-98157-186-0	08	1	1303-1411
125	CLIP; STEP FRONT SPOILER<VP1> (A)	8-98157-186-0	08	1	1412-
139	NUT; BRKT FIX M8 FLANGE	0-91180-208-0	04	1	1303-
177	BOLT (A) M8X20 FLANGE	0-28050-820-0	04	1	1303-1411
177	BOLT FRONT SPOILER<VP1> (A) M8X20 FLANGE	0-28050-820-0	04	1	1412-
177	BOLT (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1303-
185	BRACKET; BUMPER,INNER	8-98139-739-0	02	1	1303-1411
185	BRACKET; BUMPER,INNER FRONT SPOILER<VP1>	8-98139-739-0	02	1	1412-
229	GROMMET D=7X7 L=7.5	8-94291-927-0	01	1	1303-
254	NUT; STEP M6 FLANGE	0-91180-106-0	06	1	1303-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (A)	8-98123-457-1	01	1	1412-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (A)	8-98123-458-1	01	1	1412-
321	COVER; BUMPER FRT SIDE (B)	8-98123-446-1	01	1	1303-
321	COVER; BUMPER FRT SIDE (B)	8-98123-447-1	01	1	1303-
321	COVER; BUMPER FRT SIDE (A)	8-98123-455-1	01	1	1303-1411
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (A)	8-98123-455-1	01	1	1412-
321	COVER; BUMPER FRT SIDE (A)	8-98123-456-1	01	1	1303-1411
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (A)	8-98123-456-1	01	1	1412-
321	COVER; BUMPER FRT SIDE (C)	8-98132-737-1	01	1	1303-
607	BRACKET (C)	8-98147-053-0	02	1	1303-
607	BRACKET (B)	8-98147-054-0	02	1	1303-
607	BRACKET (A)	8-98211-758-0	01	1	1303-
607	BRACKET (A)	8-98211-759-0	01	1	1303-
663	NUT (C) M6 FLANGE	0-91180-106-0	13	1	1303-1411
663	NUT FRONT SPOILER<VP1> (C) M6 FLANGE	0-91180-106-0	13	1	1412-
663	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1303-
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1303-
672	STUD; STEP M6X16 FLANGE	0-28050-616-0	13	1	1303-1411
672	STUD; STEP FRONT SPOILER<VP1> M6X16 FLANGE	0-28050-616-0	13	1	1412-
686	REFLECTOR; REFLEX	8-98121-023-0	02	1	1303-

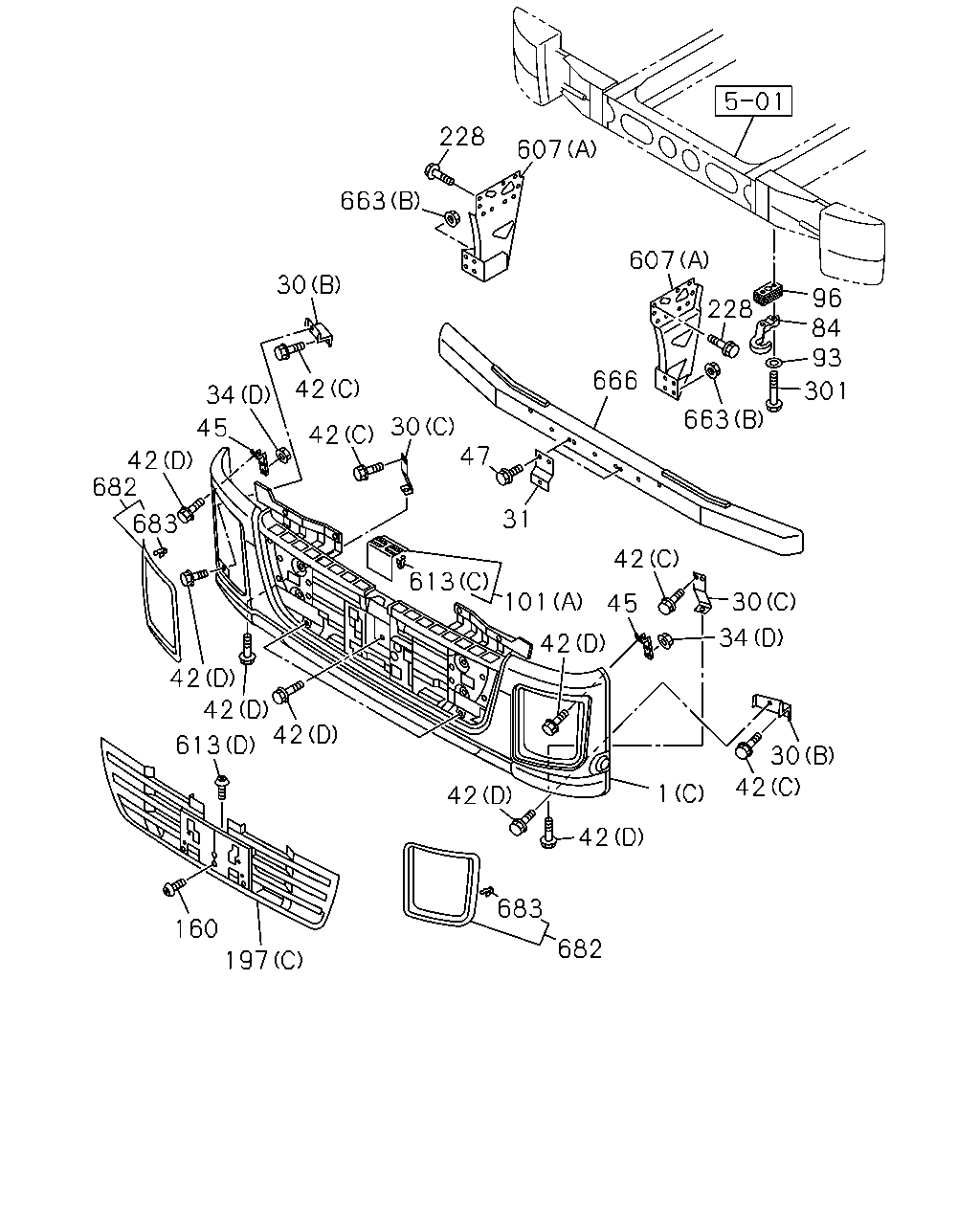

160 197 42 613 42 42 42 683 682 42 1 42 30 34 45 42 30 42 101 613 31 47 30 42 42 30 34 45 42 682 663 228 607 666 96 301 93 84 228 663 607 683

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (D) WHITE	8-97417-846-3	01	1	1412-
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> (B) CHROMIUM PLATE	8-98130-330-1	01	1	1009-1302
1	BUMPER ASM; FRT EXC. BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-599-1	01	1	1009-1302
1	BUMPER ASM; FRT (C) WHITE	8-97424-794-3	01	1	1303-1411
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (C) WHITE	8-97424-794-3	01	1	1412-
30	BRACKET; FRT BUMPER (B)	8-98135-977-1	01	1	1303-
30	BRACKET; FRT BUMPER (B)	8-98135-978-1	01	1	1303-
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (A)	1-71230-428-0	01	1	1009-1302
30	BRACKET; FRT BUMPER (C)	8-98139-907-0	01	1	1303-1411
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (C)	8-98139-907-0	01	1	1412-
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (A)	1-71230-429-0	01	1	1009-1302
30	BRACKET; FRT BUMPER (C)	8-98139-909-0	01	1	1303-1411
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (C)	8-98139-909-0	01	1	1412-
31	SUPPORT; FRT BUMPER,LWR	8-98139-742-0	02	1	1303-1411
31	SUPPORT; FRT BUMPER,LWR FRONT SPOILER<VP1>	8-98139-742-0	02	1	1412-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	04	1	1009-1302
34	NUT; BRKT,BUMPER (C) M6 FLANGE	0-91180-106-0	02	1	1303-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	17	1	1009-1302
34	NUT; BRKT,BUMPER (D) M10 FLANGE	0-91180-110-0	04	1	1303-
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1009-1302
42	BOLT; BUMPER EXC. FRONT SPOILER<VP1> (D) M10X30 FLANGE	8-98055-942-0	10	1	1412-
42	BOLT; BUMPER (D) M10X30 FLANGE	8-98055-942-0	14	1	1303-1411
42	BOLT; BUMPER FRONT SPOILER<VP1> (D) M10X30 FLANGE	8-98055-942-0	14	1	1412-
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1303-1411
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1303-1411
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X30 FLANGE	0-28051-030-0	04	1	1412-
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1412-
42	BOLT; BUMPER (A) M10X30 W/LK&PL WASHER	8-94279-213-0	09	1	1009-1302
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1303-
45	BRACKET; BRKT TO BUMPER	8-98126-935-2	02	1	1303-
47	BOLT; SUPPORT TO BODY M10X30 FLANGE	0-28051-030-0	04	1	1303-1411
47	BOLT; SUPPORT TO BODY FRONT SPOILER<VP1> M10X30 FLANGE	0-28051-030-0	04	1	1412-
84	HOOK	1-57181-027-1	01	1	1009-1302
84	HOOK	8-98126-930-0	01	1	1303-
93	WASHER; LK,HOOK ID=16.2	0-91510-516-0	02	1	1009-1302
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1303-
96	PLATE; DIST,HOOK	1-53497-473-0	01	1	1009-1302
96	PLATE; DIST,HOOK	8-98169-197-0	01	1	1303-
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1303-
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1303-
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1303-
160	SCREW M5X16	8-94380-268-0	01	1	1303-
197	GRILLE; BUMPER (B)	8-97617-998-0	01	1	1009-1302
197	GRILLE; BUMPER (C)	8-98144-188-4	01	1	1303-
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-505-0	01	1	1009-1302
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-506-0	01	1	1009-1302
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-503-0	01	1	1009-1302
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-504-0	01	1	1009-1302
228	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	06	1	1009-1302
228	BOLT; BRKT M16X35 FLANGE	0-28851-635-0	06	1	1303-
301	BOLT; HOOK TO FRAME M16X95	0-10811-695-0	01	1	1009-1302
301	BOLT; HOOK TO FRAME M16X110	8-98074-591-0	02	1	1303-
301	BOLT; HOOK TO FRAME M16X90	0-10861-690-0	01	1	1009-1302
607	BRACKET (C)	8-98147-053-0	02	1	1303-
607	BRACKET (B)	8-98147-054-0	02	1	1303-
607	BRACKET (A)	8-98211-758-0	01	1	1303-
607	BRACKET (A)	8-98211-759-0	01	1	1303-
613	CLIP (E)	8-97581-651-2	04	1	1303-
613	CLIP (B)	8-98025-698-0	08	1	1303-
613	CLIP (C)	8-98144-173-1	06	1	1303-
613	CLIP (A)	1-71260-174-0	06	1	1009-1302
613	CLIP (D) D8X13.5	1-09987-248-1	05	1	1303-
663	NUT (C) M6 FLANGE	0-91180-106-0	13	1	1303-1411
663	NUT FRONT SPOILER<VP1> (C) M6 FLANGE	0-91180-106-0	13	1	1412-
663	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1303-
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1303-
666	PROTECTOR; UNDER	8-98198-583-0	01	1	1303-
682	BEZEL; BUMPER	8-98123-444-2	01	1	1303-
682	BEZEL; BUMPER	8-98123-445-2	01	1	1303-
683	CLIP; BEZEL,BUMPER	8-98144-173-1	16	1	1303-

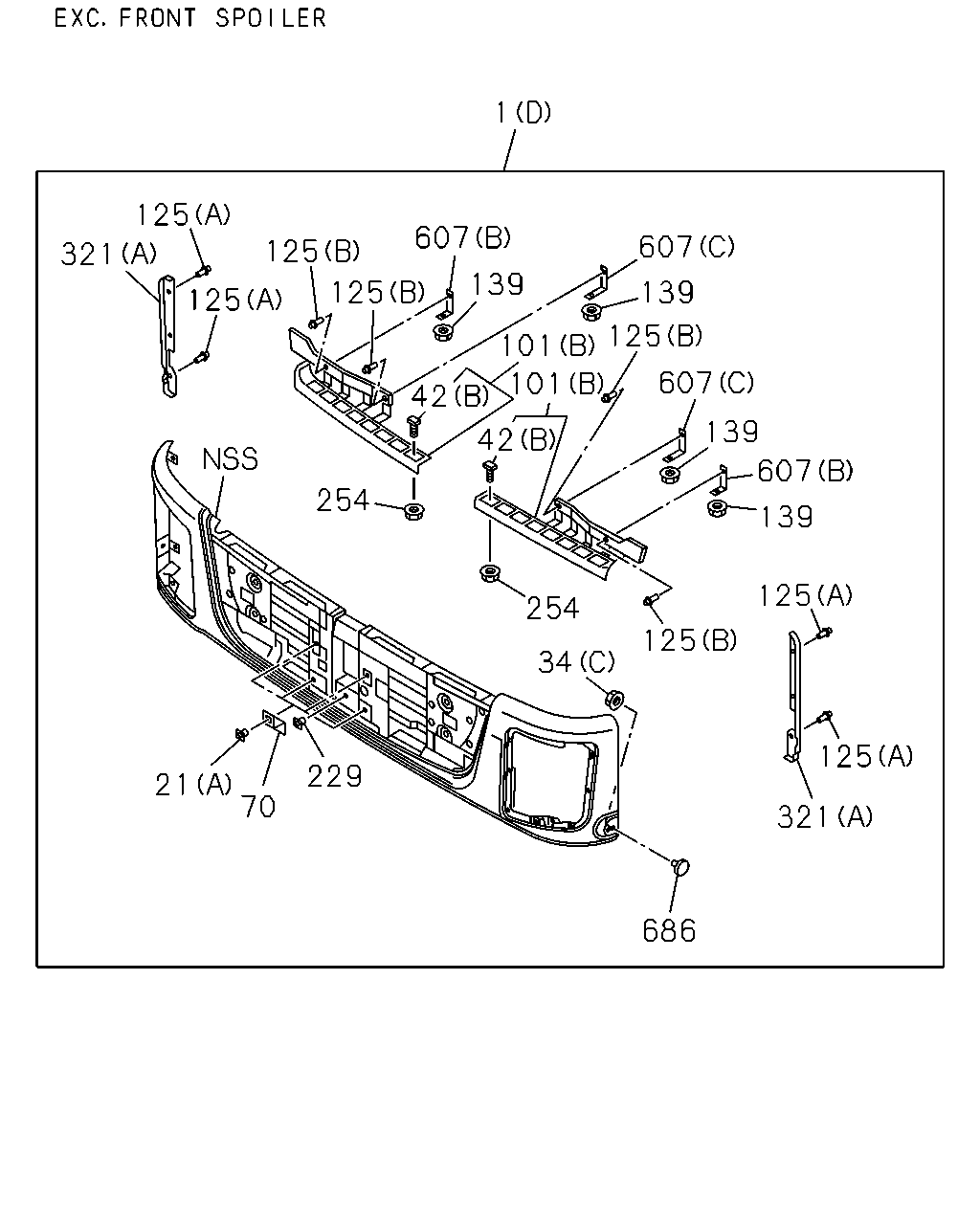

1 607 607 139 139 125 101 607 101 42 42 125 125 125 125 321 254 254 125 139 607 139 125 321 125 34 686 229 70 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (D) WHITE	8-97417-846-3	01	1	1412-
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> (B) CHROMIUM PLATE	8-98130-330-1	01	1	1009-1302
1	BUMPER ASM; FRT EXC. BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-599-1	01	1	1009-1302
1	BUMPER ASM; FRT (C) WHITE	8-97424-794-3	01	1	1303-1411
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (C) WHITE	8-97424-794-3	01	1	1412-
21	GROMMET; SCREW,BUMPER PROTECTOR (B) D=9X9 L=7 M5	8-94163-979-0	22	1	1009-1302
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	1303-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	04	1	1009-1302
34	NUT; BRKT,BUMPER (C) M6 FLANGE	0-91180-106-0	02	1	1303-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	17	1	1009-1302
34	NUT; BRKT,BUMPER (D) M10 FLANGE	0-91180-110-0	04	1	1303-
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1009-1302
42	BOLT; BUMPER EXC. FRONT SPOILER<VP1> (D) M10X30 FLANGE	8-98055-942-0	10	1	1412-
42	BOLT; BUMPER (D) M10X30 FLANGE	8-98055-942-0	14	1	1303-1411
42	BOLT; BUMPER FRONT SPOILER<VP1> (D) M10X30 FLANGE	8-98055-942-0	14	1	1412-
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1303-1411
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1303-1411
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X30 FLANGE	0-28051-030-0	04	1	1412-
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1412-
42	BOLT; BUMPER (A) M10X30 W/LK&PL WASHER	8-94279-213-0	09	1	1009-1302
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1303-
70	BRACKET; LICENSE PLATE,FRT	8-98128-625-0	04	1	1303-
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1303-
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1303-
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1303-
125	CLIP; STEP EXC. FRONT SPOILER<VP1> (A)	8-98157-186-0	06	1	1412-
125	CLIP; STEP (B)	8-98157-167-0	04	1	1303-
125	CLIP; STEP (A)	8-98157-186-0	08	1	1303-1411
125	CLIP; STEP FRONT SPOILER<VP1> (A)	8-98157-186-0	08	1	1412-
139	NUT; BRKT FIX M8 FLANGE	0-91180-208-0	04	1	1303-
229	GROMMET D=7X7 L=7.5	8-94291-927-0	01	1	1303-
254	NUT; STEP M6 FLANGE	0-91180-106-0	06	1	1303-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (A)	8-98123-457-1	01	1	1412-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (A)	8-98123-458-1	01	1	1412-
321	COVER; BUMPER FRT SIDE (B)	8-98123-446-1	01	1	1303-
321	COVER; BUMPER FRT SIDE (B)	8-98123-447-1	01	1	1303-
321	COVER; BUMPER FRT SIDE (A)	8-98123-455-1	01	1	1303-1411
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (A)	8-98123-455-1	01	1	1412-
321	COVER; BUMPER FRT SIDE (A)	8-98123-456-1	01	1	1303-1411
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (A)	8-98123-456-1	01	1	1412-
321	COVER; BUMPER FRT SIDE (C)	8-98132-737-1	01	1	1303-
607	BRACKET (C)	8-98147-053-0	02	1	1303-
607	BRACKET (B)	8-98147-054-0	02	1	1303-
607	BRACKET (A)	8-98211-758-0	01	1	1303-
607	BRACKET (A)	8-98211-759-0	01	1	1303-
686	REFLECTOR; REFLEX	8-98121-023-0	02	1	1303-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
