Isuzu WW
▶
TRUCKS
▶
EXR
▶
11292 - EXR RHD EURO5
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#70141) — 55 parça
◀

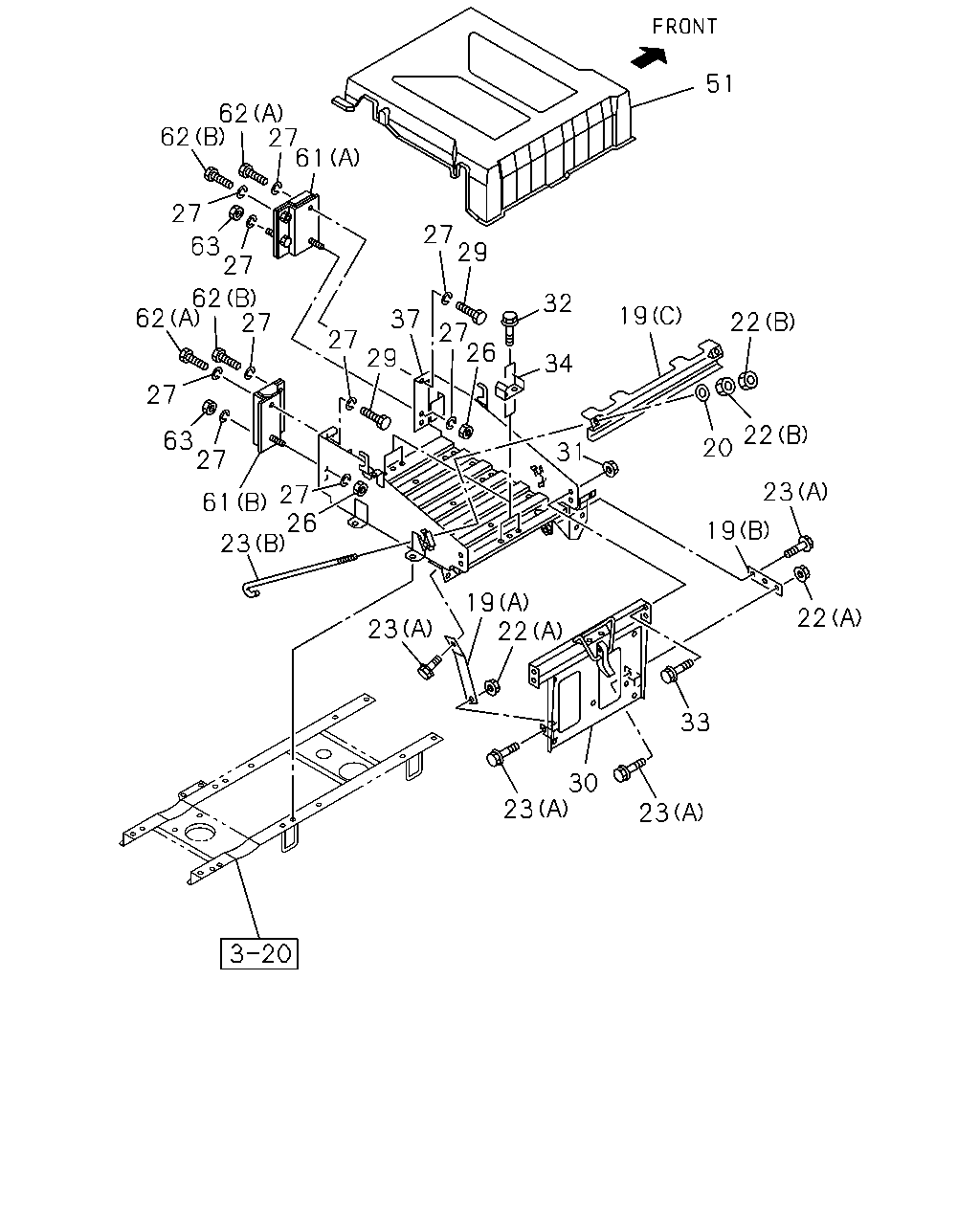

[520A] -'13/2 (28 parça)

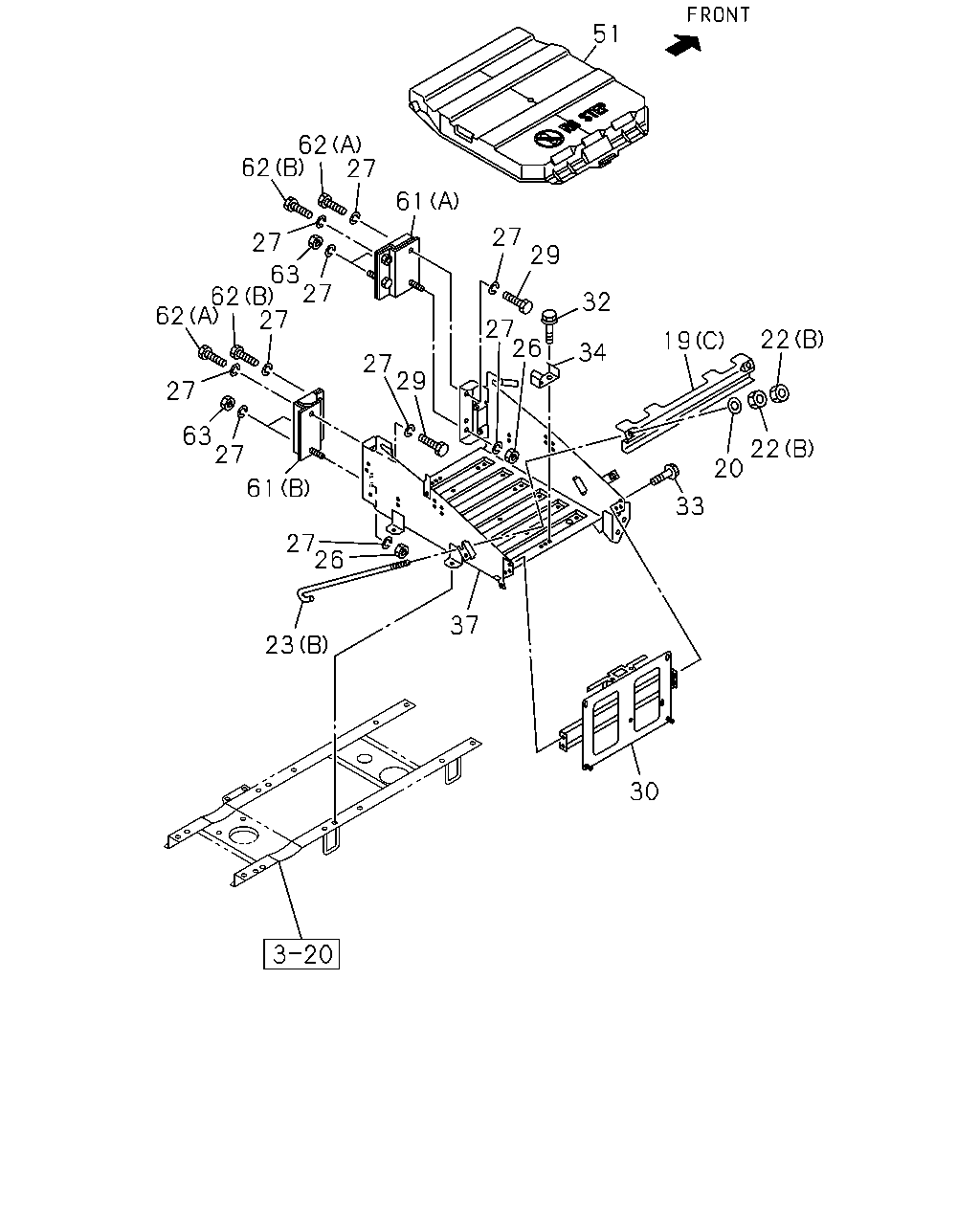

[520A] '13/3- (27 parça)
▶
51
62
62
27
27
61
63
27
62
62
27
27
63
27
61
27
23
26
27
37
29
27
29
27
26
32
34
31
19
23
22
23
30
23
33
22
19
23
22
20
22
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
(B)
1-47479-118-0
01
1
1009-1302
19
STAY; BATTERY
(A)
1-47479-874-0
01
1
1009-1302
19
STAY; BATTERY
(C)
1-53618-039-2
01
1
1009-
20
WASHER; PL,STAY
ID=8.4 OD=22
0-91614-708-0
02
1
1009-
22
NUT; STAY
(B) M8
0-91110-508-0
04
1
1009-
22
NUT; STAY
(A) M8 FLANGE
0-91180-108-0
02
1
1009-1302
23
BOLT; STAY
(A) M8X20 FLANGE
0-28650-820-0
04
1
1009-1302
23
BOLT; STAY
(B) L=250
1-53616-108-0
02
1
1009-
26
NUT; BRKT
M14
0-91110-514-0
02
1
1009-
27
WASHER; LK,BRKT
ID=14.2
0-91510-514-0
12
1
1009-
29
BOLT; BRKT TO FRAME
M14X30
0-20851-430-0
02
1
1009-
30
PLATE; BATTERY
1-53619-148-1
01
1
1009-1302
30
PLATE; BATTERY
8-97635-039-2
01
1
1303-
31
NUT; PLATE
M8 FLANGE
0-91180-108-0
04
1
1009-1302
32
BOLT; PLATE TO SPACER
BATTERY 115F51 N120<SJ3> M8X16 FLANGE
0-28050-816-0
04
1
1009-1302
32
BOLT; PLATE TO SPACER
M8X16 FLANGE
0-28050-816-0
04
1
1303-
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28650-820-0
04
1
1009-
34
SPACER; BATTERY BRKT
BATTERY 115F51 N120<SJ3>
1-53619-084-0
02
1
1009-1302
34
SPACER; BATTERY BRKT
1-53619-084-0
02
1
1303-
37
BRACKET; BATTERY
1-53610-159-2
01
1
1009-1302
37
BRACKET; BATTERY
8-98218-501-2
01
1
1303-
51
COVER; BATTERY
1-53612-068-0
01
1
1009-1302
51
COVER; BATTERY
8-98097-715-3
01
1
1303-
61
DISTANCE; BRKT,BATTERY
(A)
1-53613-504-0
01
1
1009-
61
DISTANCE; BRKT,BATTERY
(B)
1-53613-505-0
01
1
1009-
62
BOLT; DIST TO FRAME,BATTERY
(A) M14X45
1-09000-764-0
02
1
1009-
62
BOLT; DIST TO FRAME,BATTERY
(B) M14X60
1-09000-778-0
02
1
1009-
63
NUT; DIST TO FRAME
M14
1-09440-072-0
04
1
1009-
51
19
22
22
20
33
30
37
34
32
29
27
61
27
62
62
27
27
63
62
62
27
27
63
61
27
26
23
27
27
27
26
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
(B)
1-47479-118-0
01
1
1009-1302
19
STAY; BATTERY
(A)
1-47479-874-0
01
1
1009-1302
19
STAY; BATTERY
(C)
1-53618-039-2
01
1
1009-
20
WASHER; PL,STAY
ID=8.4 OD=22
0-91614-708-0
02
1
1009-
22
NUT; STAY
(B) M8
0-91110-508-0
04
1
1009-
22
NUT; STAY
(A) M8 FLANGE
0-91180-108-0
02
1
1009-1302
23
BOLT; STAY
(A) M8X20 FLANGE
0-28650-820-0
04
1
1009-1302
23
BOLT; STAY
(B) L=250
1-53616-108-0
02
1
1009-
26
NUT; BRKT
M14
0-91110-514-0
02
1
1009-
27
WASHER; LK,BRKT
ID=14.2
0-91510-514-0
12
1
1009-
29
BOLT; BRKT TO FRAME
M14X30
0-20851-430-0
02
1
1009-
30
PLATE; BATTERY
1-53619-148-1
01
1
1009-1302
30
PLATE; BATTERY
8-97635-039-2
01
1
1303-
32
BOLT; PLATE TO SPACER
BATTERY 115F51 N120<SJ3> M8X16 FLANGE
0-28050-816-0
04
1
1009-1302
32
BOLT; PLATE TO SPACER
M8X16 FLANGE
0-28050-816-0
04
1
1303-
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28650-820-0
04
1
1009-
34
SPACER; BATTERY BRKT
BATTERY 115F51 N120<SJ3>
1-53619-084-0
02
1
1009-1302
34
SPACER; BATTERY BRKT
1-53619-084-0
02
1
1303-
37
BRACKET; BATTERY
1-53610-159-2
01
1
1009-1302
37
BRACKET; BATTERY
8-98218-501-2
01
1
1303-
51
COVER; BATTERY
1-53612-068-0
01
1
1009-1302
51
COVER; BATTERY
8-98097-715-3
01
1
1303-
61
DISTANCE; BRKT,BATTERY
(A)
1-53613-504-0
01
1
1009-
61
DISTANCE; BRKT,BATTERY
(B)
1-53613-505-0
01
1
1009-
62
BOLT; DIST TO FRAME,BATTERY
(A) M14X45
1-09000-764-0
02
1
1009-
62
BOLT; DIST TO FRAME,BATTERY
(B) M14X60
1-09000-778-0
02
1
1009-
63
NUT; DIST TO FRAME
M14
1-09440-072-0
04
1
1009-
