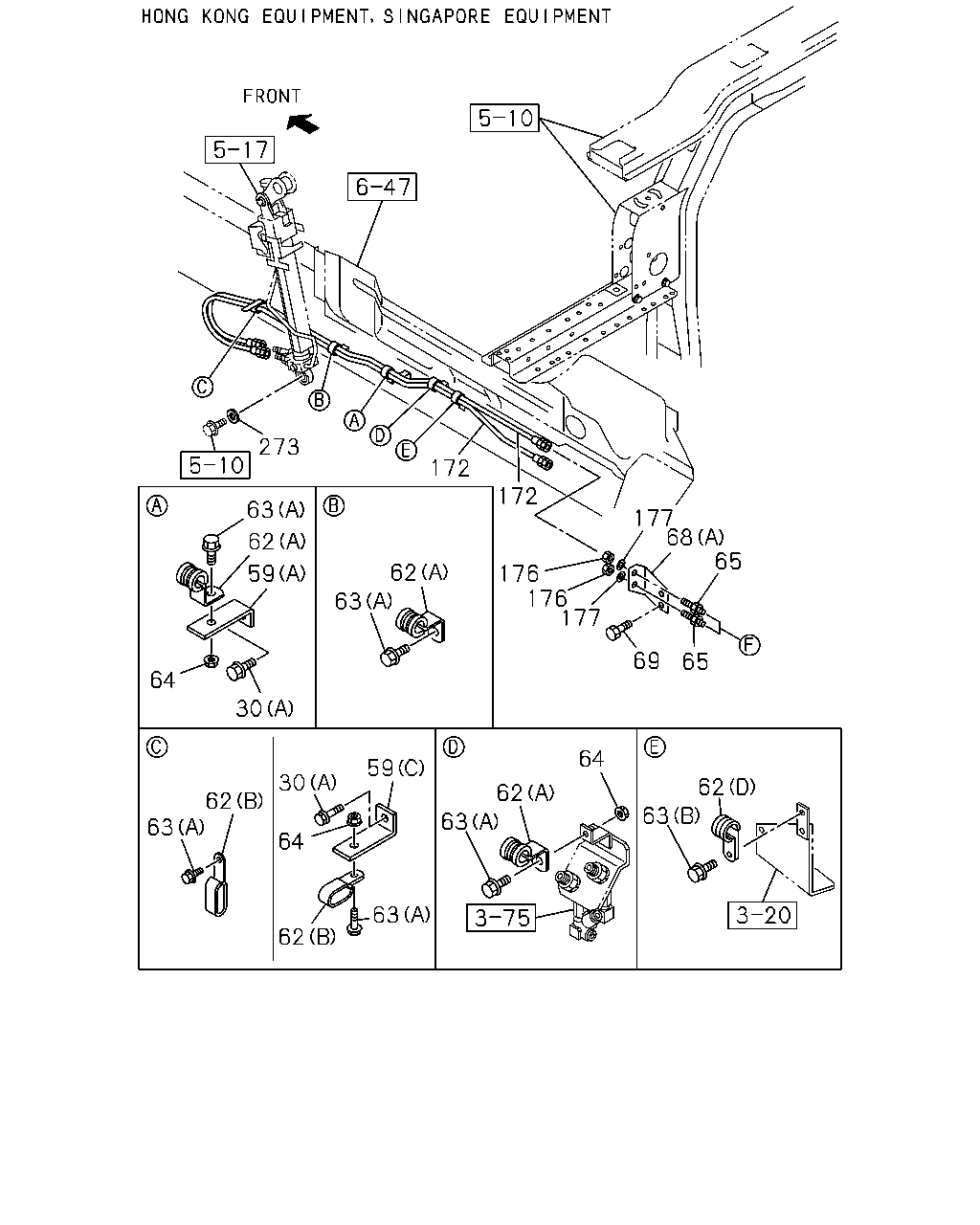

5-15 — CAB MOUNTING; CAB SIDE (#70138) — 102 parça

176 177 65 68 69 62 63 64 62 63 30 59 64 63 59 64 30 62 62 63 172 172 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	BOLT; BRKT FIX (B) M8X20 FLANGE	0-28650-820-0	02	1	1009-
30	BOLT; BRKT FIX (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-1302
30	BOLT; BRKT FIX (A) M8X30 FLANGE	0-28650-830-0	02	1	1303-
59	BRACKET; CLIP (C) L=65	1-47479-064-1	01	1	1303-
59	BRACKET; CLIP (A) L=115 B=25	1-47476-758-0	01	1	1009-
59	BRACKET; CLIP (B)	1-47477-317-0	01	1	1009-
62	CLIP; OIL PIPE (B) ID=9X2 L=16	0-95324-825-0	01	1	1009-1302
62	CLIP; OIL PIPE (B) ID=9X2 L=20	0-95324-835-0	01	1	1303-
62	CLIP; OIL PIPE (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	1009-
62	CLIP; OIL PIPE (D) ID=24 L=27	1-09700-809-0	01	1	1009-
62	CLIP; OIL PIPE (A) ID=21 L=30 H=40	1-09700-991-1	03	1	1009-
63	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-
63	BOLT; CLIP (B) M8X30 FLANGE	0-28650-830-0	01	1	1009-
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1009-1302
64	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1303-
65	UNION; OIL PIPE M12 L=66.5	0-92113-306-0	02	1	1009-
68	BRACKET; UNION EXC. HONG KONG EQUIPMENT(PQ1) (B)	8-98226-698-0	01	1	1412-1412
68	BRACKET; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	8-98226-698-0	01	1	1412-
68	BRACKET; UNION (A)	1-47479-429-0	01	1	1009-1411
68	BRACKET; UNION HONG KONG EQUIPMENT(PQ1) (A)	1-47479-429-0	01	1	1412-1412
68	BRACKET; UNION HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-47479-429-0	01	1	1412-
69	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1009-1302
69	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-
172	HOSE; FLEX,OIL TILT EXC. HONG KONG EQUIPMENT(PQ1)	8-98242-446-0	02	1	1412-1412
172	HOSE; FLEX,OIL TILT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98242-446-0	02	1	1412-
172	HOSE; FLEX,OIL TILT L=1600	8-97634-002-0	02	1	1009-1411
172	HOSE; FLEX,OIL TILT HONG KONG EQUIPMENT(PQ1) L=1600	8-97634-002-0	02	1	1412-1412
172	HOSE; FLEX,OIL TILT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=1600	8-97634-002-0	02	1	1412-
176	NUT; UNION M12	9-09840-280-0	02	1	1009-
177	WASHER; LK,UNION ID=12.2	0-91510-512-0	02	1	1009-
273	WASHER; PL,OIL CYL ID=10.5 OD=32	0-91614-810-0	01	1	1009-

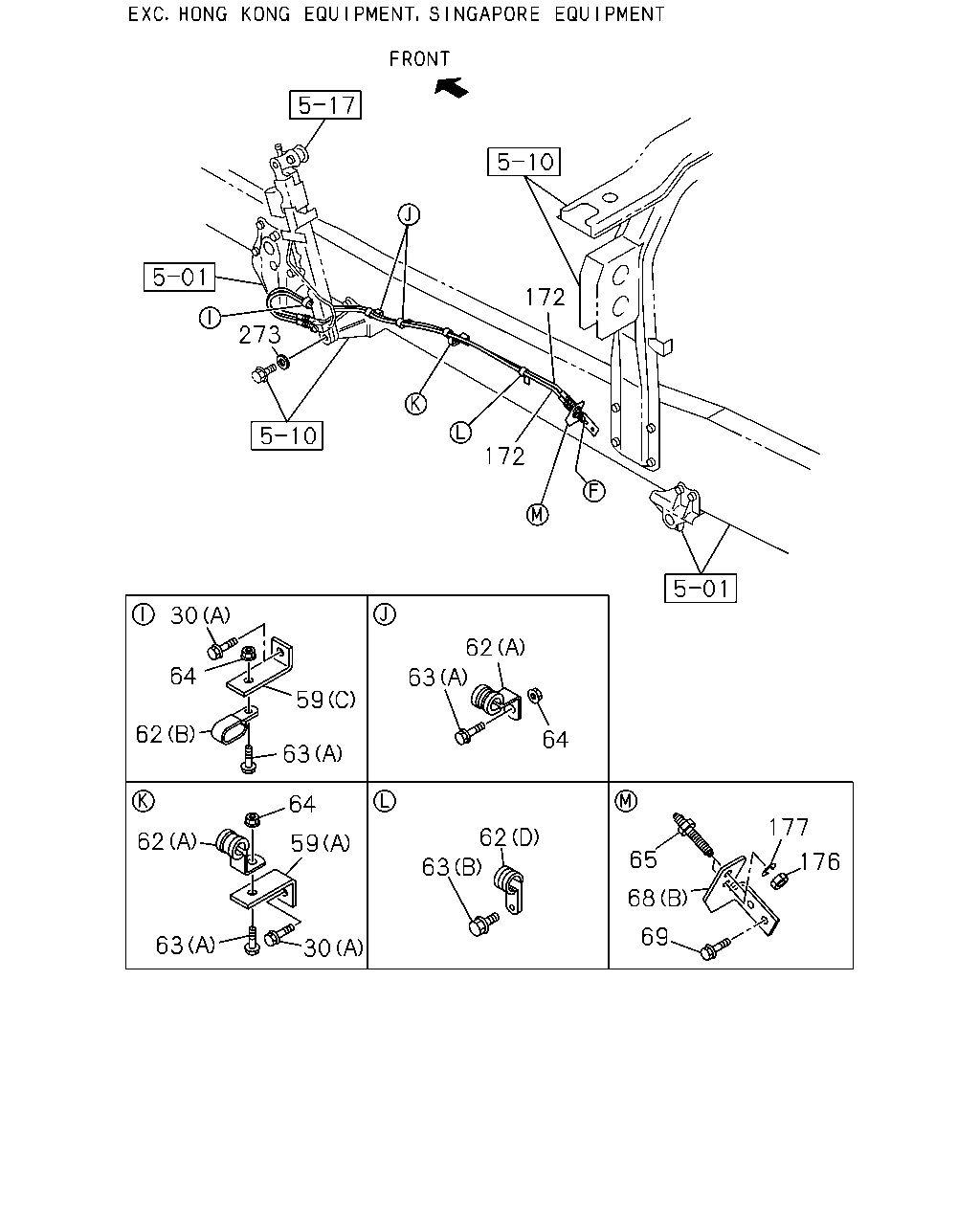

273 63 62 59 172 172 177 68 65 65 69 177 176 176 62 63 30 64 62 63 30 59 64 62 63 63 64 62 63 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	BOLT; BRKT FIX (B) M8X20 FLANGE	0-28650-820-0	02	1	1009-
30	BOLT; BRKT FIX (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-1302
30	BOLT; BRKT FIX (A) M8X30 FLANGE	0-28650-830-0	02	1	1303-
59	BRACKET; CLIP (C) L=65	1-47479-064-1	01	1	1303-
59	BRACKET; CLIP (A) L=115 B=25	1-47476-758-0	01	1	1009-
59	BRACKET; CLIP (B)	1-47477-317-0	01	1	1009-
62	CLIP; OIL PIPE (B) ID=9X2 L=16	0-95324-825-0	01	1	1009-1302
62	CLIP; OIL PIPE (B) ID=9X2 L=20	0-95324-835-0	01	1	1303-
62	CLIP; OIL PIPE (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	1009-
62	CLIP; OIL PIPE (D) ID=24 L=27	1-09700-809-0	01	1	1009-
62	CLIP; OIL PIPE (A) ID=21 L=30 H=40	1-09700-991-1	03	1	1009-
63	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-
63	BOLT; CLIP (B) M8X30 FLANGE	0-28650-830-0	01	1	1009-
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1009-1302
64	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1303-
65	UNION; OIL PIPE M12 L=66.5	0-92113-306-0	02	1	1009-
68	BRACKET; UNION EXC. HONG KONG EQUIPMENT(PQ1) (B)	8-98226-698-0	01	1	1412-1412
68	BRACKET; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	8-98226-698-0	01	1	1412-
68	BRACKET; UNION (A)	1-47479-429-0	01	1	1009-1411
68	BRACKET; UNION HONG KONG EQUIPMENT(PQ1) (A)	1-47479-429-0	01	1	1412-1412
68	BRACKET; UNION HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-47479-429-0	01	1	1412-
69	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1009-1302
69	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-
172	HOSE; FLEX,OIL TILT EXC. HONG KONG EQUIPMENT(PQ1)	8-98242-446-0	02	1	1412-1412
172	HOSE; FLEX,OIL TILT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98242-446-0	02	1	1412-
172	HOSE; FLEX,OIL TILT L=1600	8-97634-002-0	02	1	1009-1411
172	HOSE; FLEX,OIL TILT HONG KONG EQUIPMENT(PQ1) L=1600	8-97634-002-0	02	1	1412-1412
172	HOSE; FLEX,OIL TILT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=1600	8-97634-002-0	02	1	1412-
176	NUT; UNION M12	9-09840-280-0	02	1	1009-
177	WASHER; LK,UNION ID=12.2	0-91510-512-0	02	1	1009-
273	WASHER; PL,OIL CYL ID=10.5 OD=32	0-91614-810-0	01	1	1009-

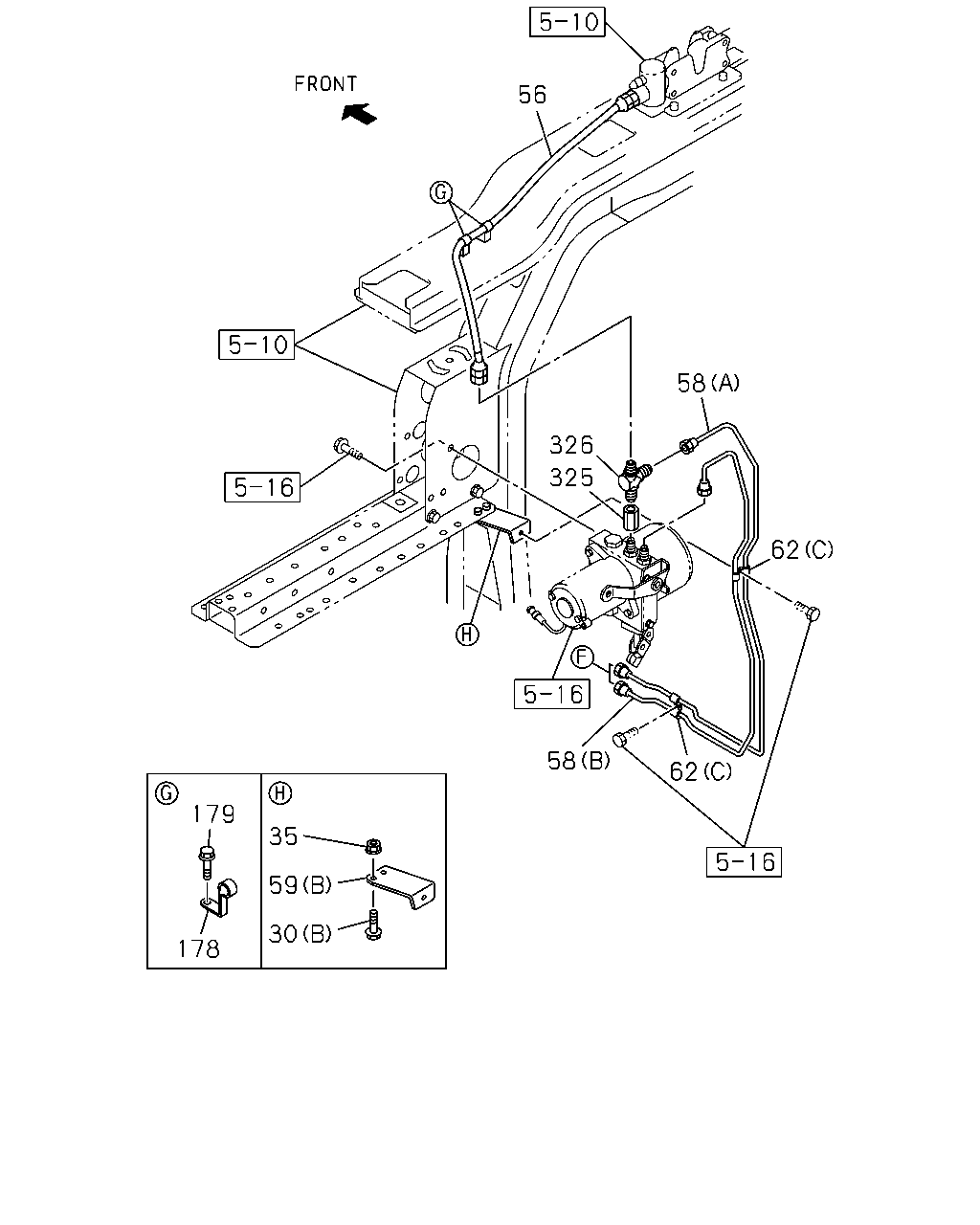

58 326 325 62 58 62 179 35 59 30 178 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	BOLT; BRKT FIX (B) M8X20 FLANGE	0-28650-820-0	02	1	1009-
30	BOLT; BRKT FIX (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-1302
30	BOLT; BRKT FIX (A) M8X30 FLANGE	0-28650-830-0	02	1	1303-
35	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-
56	HOSE; FLEX,OIL PIPE L=750	1-09365-058-0	01	1	1009-
58	PIPE; OIL,POWER UNIT EXC. HONG KONG EQUIPMENT(PQ1) (A) L=966 SERVICED BY L=1000	1-47428-730-0	01	1	1412-1412
58	PIPE; OIL,POWER UNIT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=966 SERVICED BY L=1000	1-47428-730-0	01	1	1412-
58	PIPE; OIL,POWER UNIT EXC. HONG KONG EQUIPMENT(PQ1) (B) L=1011 SERVICED BY L=1100	1-47428-731-0	01	1	1412-1412
58	PIPE; OIL,POWER UNIT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=1011 SERVICED BY L=1100	1-47428-731-0	01	1	1412-
58	PIPE; OIL,POWER UNIT (B) L=1017 SERVICED BY L=1100	1-47428-731-0	01	1	1009-1302
58	PIPE; OIL,POWER UNIT (A) L=916 SERVICED BY L=1000	1-47428-730-0	01	1	1303-1411
58	PIPE; OIL,POWER UNIT HONG KONG EQUIPMENT(PQ1) (A) L=916 SERVICED BY L=1000	1-47428-730-0	01	1	1412-1412
58	PIPE; OIL,POWER UNIT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=916 SERVICED BY L=1000	1-47428-730-0	01	1	1412-
58	PIPE; OIL,POWER UNIT (A) L=989	1-49166-916-0	01	1	1009-1302
58	PIPE; OIL,POWER UNIT (A) L=953 SERVICED BY L=1000	1-47428-730-0	01	1	1303-1411
58	PIPE; OIL,POWER UNIT HONG KONG EQUIPMENT(PQ1) (A) L=953 SERVICED BY L=1000	1-47428-730-0	01	1	1412-1412
58	PIPE; OIL,POWER UNIT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=953 SERVICED BY L=1000	1-47428-730-0	01	1	1412-
59	BRACKET; CLIP (C) L=65	1-47479-064-1	01	1	1303-
59	BRACKET; CLIP (A) L=115 B=25	1-47476-758-0	01	1	1009-
59	BRACKET; CLIP (B)	1-47477-317-0	01	1	1009-
62	CLIP; OIL PIPE (B) ID=9X2 L=16	0-95324-825-0	01	1	1009-1302
62	CLIP; OIL PIPE (B) ID=9X2 L=20	0-95324-835-0	01	1	1303-
62	CLIP; OIL PIPE (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	1009-
62	CLIP; OIL PIPE (D) ID=24 L=27	1-09700-809-0	01	1	1009-
62	CLIP; OIL PIPE (A) ID=21 L=30 H=40	1-09700-991-1	03	1	1009-
178	CLIP; FLEX HOSE ID=8 H=20 L=20	1-09700-604-0	02	1	1009-
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	02	1	1009-
325	ADAPTER; PUMP M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	1009-
326	UNION; PUMP M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1009-

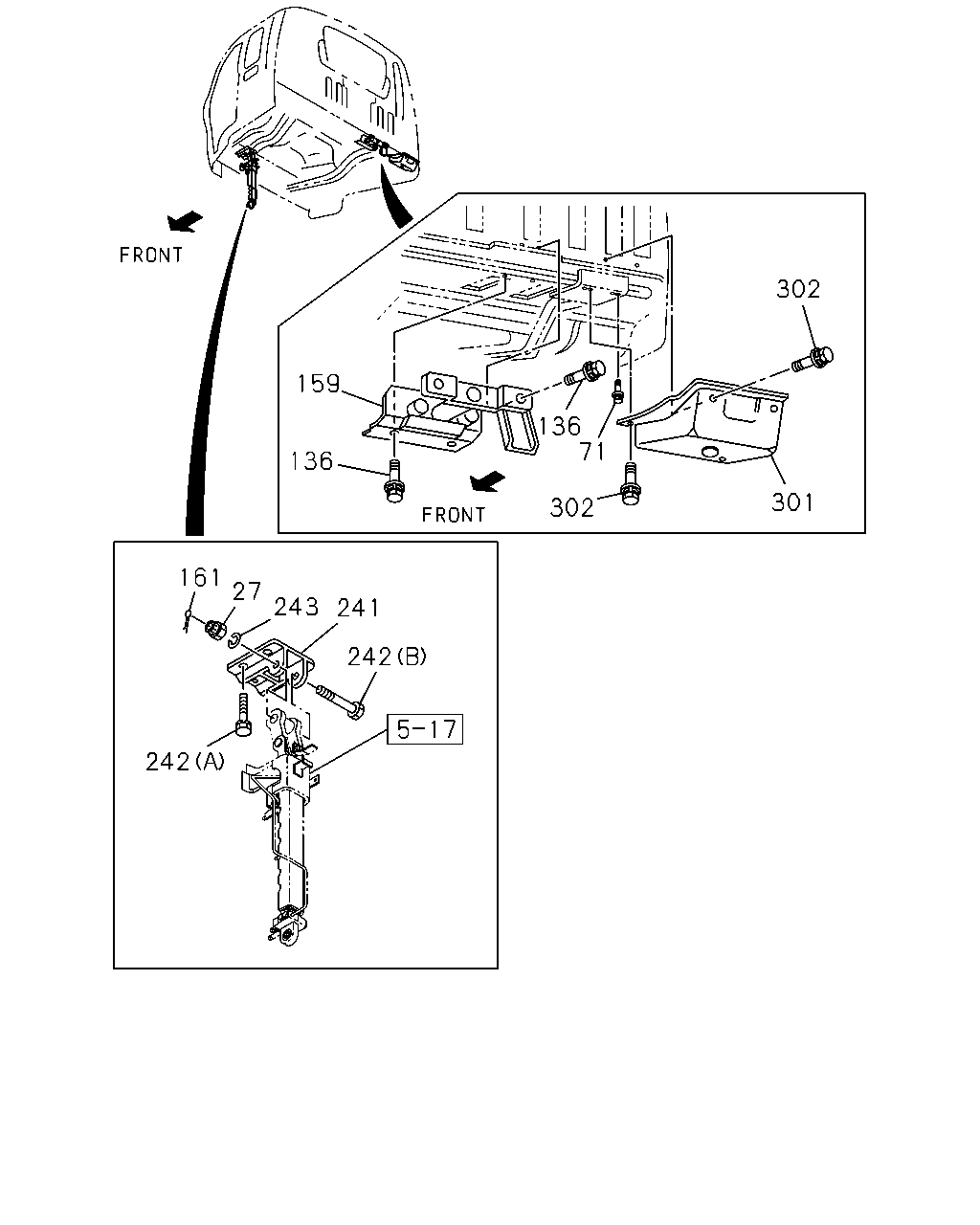

136 159 136 302 71 301 302 27 243 161 241 242 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	NUT; OIL CYL M14 SLOTTED	0-91116-514-0	01	1	1009-
71	BOLT M10X25 W/LK&PL WASHER	1-09980-488-0	02	1	1009-
136	BOLT; CAB LK M8X24.5 W/LK&PL WASHER	8-94279-217-0	04	1	1009-
159	PIN	1-79717-627-1	01	1	1009-
161	PIN; SPLIT OD=2.8 L=25	0-81123-025-0	01	1	1009-
241	BRACKET; POWER CYL UPR,CAB TILT	1-53458-338-1	01	1	1009-
242	BOLT; POWER CYL BRKT,CAB TILT (A) M10X30 W/SP WASHER	1-09980-546-0	05	1	1009-
242	BOLT; POWER CYL BRKT,CAB TILT (B) M14X70	1-53458-633-0	01	1	1009-
243	WASHER; LK,POWER CYL BRKT ID=14.2	0-91510-814-0	01	1	1009-
301	BRACKET; RR MTG,CAB	1-62570-866-1	02	1	1009-
302	BOLT; BRKT,CAB M10X25 W/LK&PL WASHER	1-09980-488-0	08	1	1009-
