Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#70137) — 557 parça

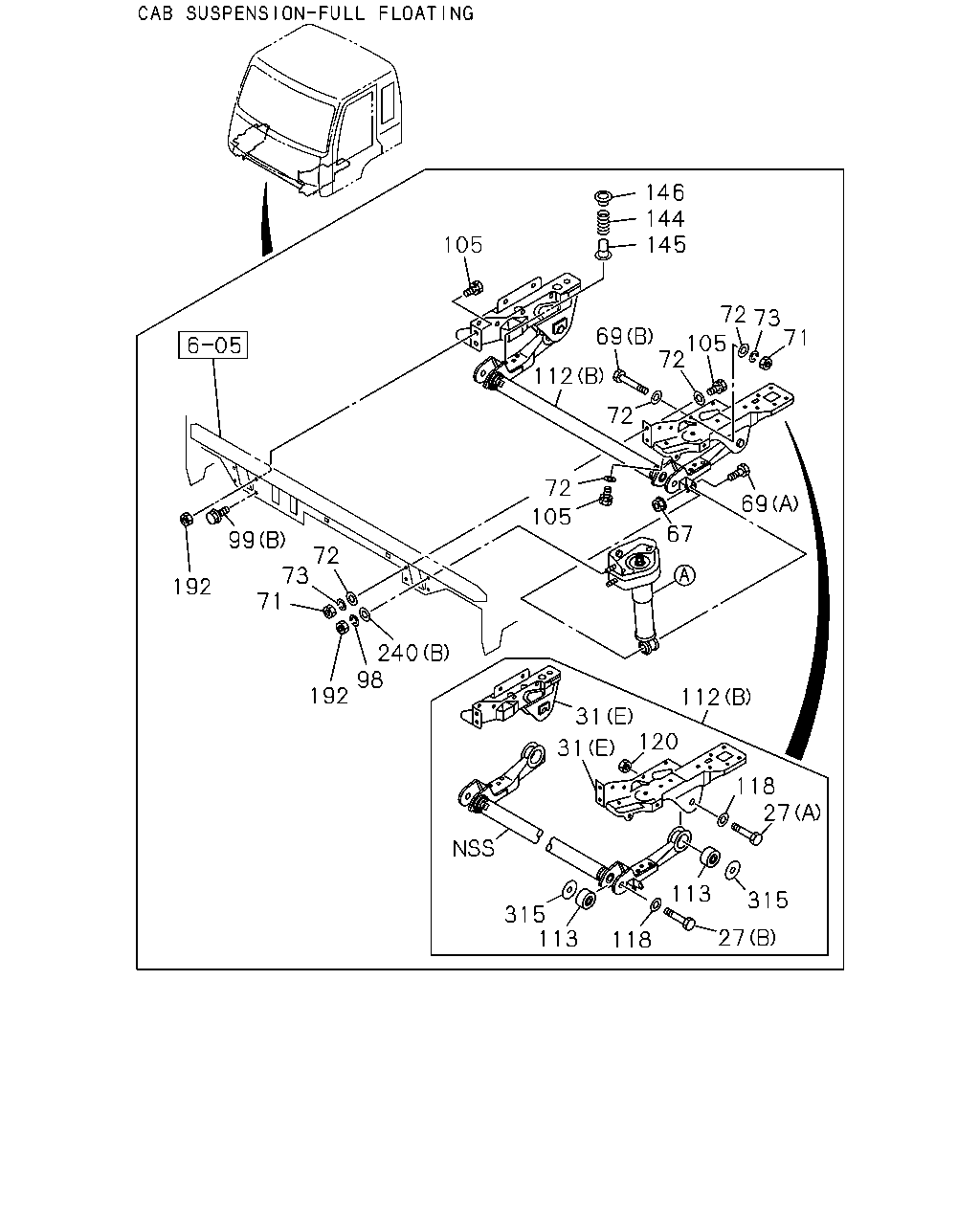

315 113 118 113 315 120 118 112 240 192 192 112 105 145 144 146 105 105 27 27 31 31 98 72 73 71 72 72 72 69 72 73 69 71 67 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; BUSHING (B) M18X120	1-09000-442-1	02	1	1009-1411
27	BOLT; BUSHING CAB SUSPENSION-FULL FLOATING(SMK),FULL FLOATING CAB(W16) (B) M18X120	1-09000-442-1	02	1	1412-
27	BOLT; BUSHING (A) M18X90	9-91066-890-0	02	1	1009-1411
27	BOLT; BUSHING CAB SUSPENSION-FULL FLOATING(SMK),FULL FLOATING CAB(W16) (A) M18X90	9-91066-890-0	02	1	1412-
31	BRACKET; CAB CAB SUSPENSION-FULL FLOATING(SMK) (E)	1-53453-273-2	01	1	1412-
31	BRACKET; CAB CAB SUSPENSION-FULL FLOATING(SMK) (E)	1-53453-274-1	01	1	1412-
31	BRACKET; CAB (A)	1-44226-178-1	01	1	1009-1302
31	BRACKET; CAB (A)	8-98152-139-0	01	1	1303-
31	BRACKET; CAB (D)	1-53453-224-4	01	1	1009-1411
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	1412-
31	BRACKET; CAB (D)	1-53453-225-3	01	1	1009-1411
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	1412-
31	BRACKET; CAB (B)	1-53458-374-1	01	1	1009-1411
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	1412-
31	BRACKET; CAB (C)	8-97619-220-1	01	1	1009-1304
31	BRACKET; CAB (C)	8-98131-521-2	01	1	1305-1411
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	8-98131-521-2	01	1	1412-
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91180-212-0	02	1	1009-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	1009-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	1009-
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	1009-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	23	1	1009-1302
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	22	1	1303-
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	1009-
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	1009-
99	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-
99	BOLT; BRKT (B) M10X30 W/SP WASHER	1-09980-546-0	01	1	1009-
105	BOLT; BRKT TO CAB FRAME M10X30 W/SP WASHER	1-09980-546-0	08	1	1009-
112	ARM ASM; LINK,CAB FRT SUSP CAB SUSPENSION-FULL FLOATING(SMK) (B)	1-53450-565-7	01	1	1412-
112	ARM ASM; LINK,CAB FRT SUSP (A)	8-98077-409-1	01	1	1009-1302
112	ARM ASM; LINK,CAB FRT SUSP (A)	8-98127-505-1	01	1	1303-1411
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB(W16) (A)	8-98127-505-1	01	1	1412-
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI	1-53458-714-0	04	1	1009-1411
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI CAB SUSPENSION-FULL FLOATING(SMK),FULL FLOATING CAB(W16)	1-53458-714-0	04	1	1412-
118	WASHER; PL,STOPPER RUBBER,LINK ARM ID=19 OD=30	1-09503-279-0	04	1	1009-1411
118	WASHER; PL,STOPPER RUBBER,LINK ARM CAB SUSPENSION-FULL FLOATING(SMK),FULL FLOATING CAB(W16) ID=19 OD=30	1-09503-279-0	04	1	1412-
120	NUT; STOPPER RUBBER,LINK ARM M18	0-91110-518-0	02	1	1009-1411
120	NUT; STOPPER RUBBER,LINK ARM CAB SUSPENSION-FULL FLOATING(SMK),FULL FLOATING CAB(W16) M18	0-91110-518-0	02	1	1412-
144	SPRING; COIL,CAB FRT SUSPENSION CAB SUSPENSION-FULL FLOATING(SMK)	1-09580-537-0	02	1	1412-
145	RUBBER; CUSHION,CAB FRT SUSPENSION CAB SUSPENSION-FULL FLOATING(SMK)	1-53366-139-0	02	1	1412-
146	SEAT; SPRING,CAB FRT SUSPENSION CAB SUSPENSION-FULL FLOATING(SMK)	1-53366-138-0	02	1	1412-
192	NUT; BRKT FIX M10	1-09984-142-0	05	1	1009-
240	WASHER; PL,BRKT (A) ID=12.5 OD=22	0-91610-512-0	02	1	1009-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	1009-
315	WASHER; CAB MTG ID=34.5	1-53458-281-1	04	1	1009-1411
315	WASHER; CAB MTG CAB SUSPENSION-FULL FLOATING(SMK),FULL FLOATING CAB(W16) ID=34.5	1-53458-281-1	04	1	1412-

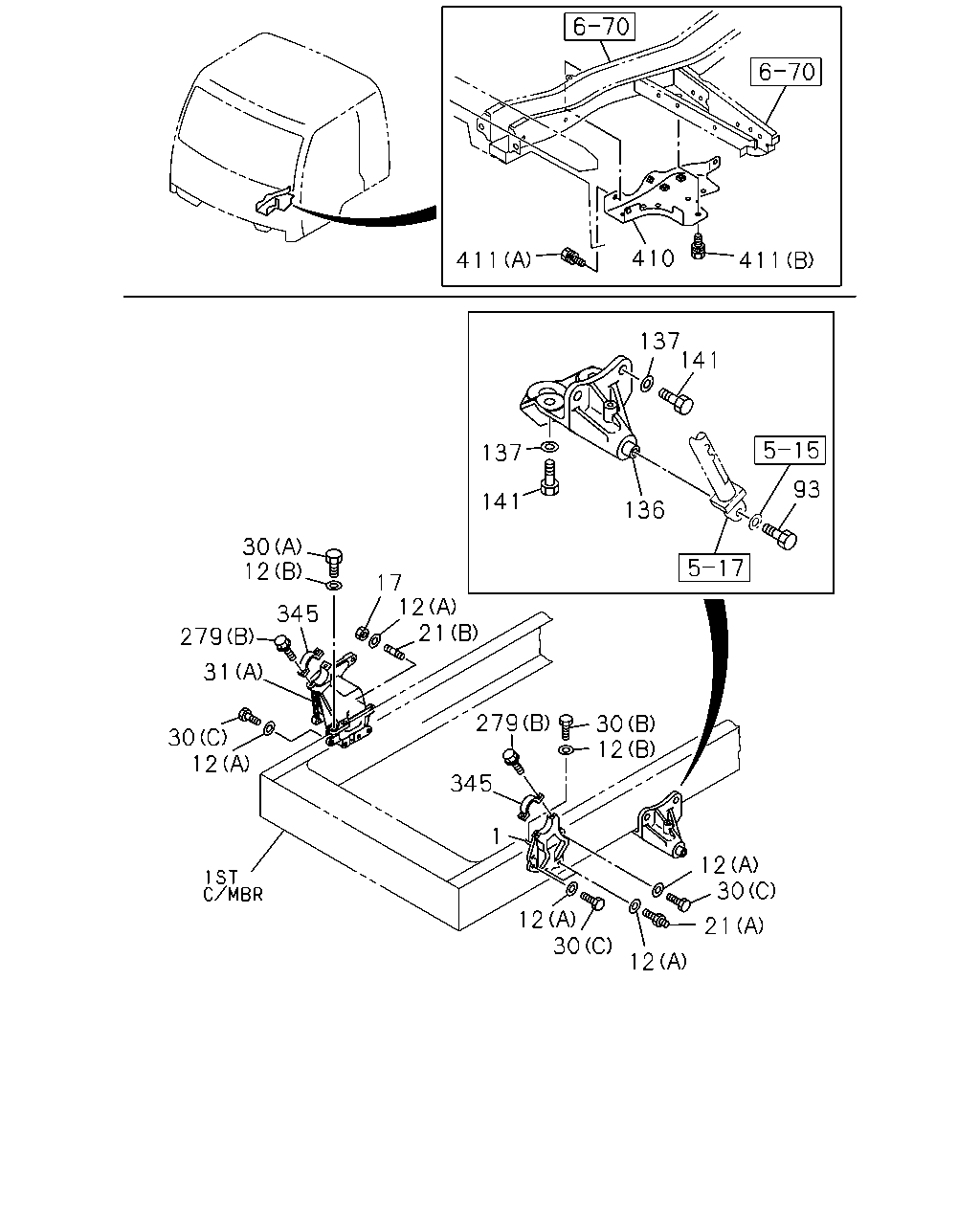

411 410 411 137 136 137 141 141 93 30 12 17 12 21 279 31 30 12 345 279 30 12 12 30 21 12 30 12 1 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG	8-98094-536-0	01	1	1009-1302
1	BRACKET; CAB MTG	8-98120-797-0	01	1	1303-
12	WASHER; LK,BRKT (A) ID=16.2	1-09503-316-0	11	1	1009-
12	WASHER; LK,BRKT (B) ID=15	8-98010-627-1	04	1	1009-
17	NUT; BRKT,CAB TILT M16	0-91110-516-0	01	1	1009-
21	STUD; BRKT,CAB TILT (A) M12X20,M16X45 L=76	1-09029-090-0	02	1	1009-1302
21	STUD; BRKT,CAB TILT (B) M16X50 L=74	1-09300-117-0	01	1	1009-
30	BOLT; CAB FRT FOOT (A) M14X60	0-20951-460-0	02	1	1009-
30	BOLT; CAB FRT FOOT (B) M14X45	9-92061-445-0	02	1	1009-1302
30	BOLT; CAB FRT FOOT (B) M14X50	0-20951-450-0	02	1	1303-
30	BOLT; CAB FRT FOOT (C) M16X45	9-92061-645-0	08	1	1009-1302
30	BOLT; CAB FRT FOOT (C) M16X50	0-20951-650-0	05	1	1303-
30	BOLT; CAB FRT FOOT (C) M16X50	0-20951-650-0	05	1	1303-
31	BRACKET; CAB CAB SUSPENSION-FULL FLOATING(SMK) (E)	1-53453-273-2	01	1	1412-
31	BRACKET; CAB CAB SUSPENSION-FULL FLOATING(SMK) (E)	1-53453-274-1	01	1	1412-
31	BRACKET; CAB (A)	1-44226-178-1	01	1	1009-1302
31	BRACKET; CAB (A)	8-98152-139-0	01	1	1303-
31	BRACKET; CAB (D)	1-53453-224-4	01	1	1009-1411
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	1412-
31	BRACKET; CAB (D)	1-53453-225-3	01	1	1009-1411
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	1412-
31	BRACKET; CAB (B)	1-53458-374-1	01	1	1009-1411
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	1412-
31	BRACKET; CAB (C)	8-97619-220-1	01	1	1009-1304
31	BRACKET; CAB (C)	8-98131-521-2	01	1	1305-1411
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	8-98131-521-2	01	1	1412-
93	BOLT; PIN M10X30	1-09000-283-0	01	1	1009-
136	BRACKET; OIL CYL	1-53458-829-0	01	1	1009-1411
136	BRACKET; OIL CYL HONG KONG EQUIPMENT(PQ1)	1-53458-829-0	01	1	1412-1412
136	BRACKET; OIL CYL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-53458-829-0	01	1	1412-
137	WASHER; PL,BRKT ID=15	8-98010-627-1	04	1	1009-1411
137	WASHER; PL,BRKT HONG KONG EQUIPMENT(PQ1) ID=15	8-98010-627-1	04	1	1412-1412
137	WASHER; PL,BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=15	8-98010-627-1	04	1	1412-
141	BOLT; BRKT M14X50	0-20951-450-0	04	1	1009-1411
141	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M14X50	0-20951-450-0	04	1	1412-1412
141	BOLT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M14X50	0-20951-450-0	04	1	1412-
279	BOLT (C) M8X16 FLANGE	0-28050-816-0	04	1	1009-1411
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	1412-
279	BOLT (D) M8X60 FLANGE	0-28050-860-0	02	1	1009-1411
279	BOLT FULL FLOATING CAB(W16) (D) M8X60 FLANGE	0-28050-860-0	02	1	1412-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	1009-1510
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-
279	BOLT (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-1302
279	BOLT (A) M8X20 FLANGE	0-28650-820-0	05	1	1303-1411
279	BOLT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28650-820-0	05	1	1412-
279	BOLT (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1009-1411
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1412-
279	BOLT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302
279	BOLT HONG KONG EQUIPMENT(PQ1) (E) M8X25 FLANGE	0-28650-825-0	02	1	1009-1302
279	BOLT (E) M8X25 FLANGE	0-28650-825-0	02	1	1303-1411
279	BOLT HONG KONG EQUIPMENT(PQ1) (E) M8X25 FLANGE	0-28650-825-0	02	1	1412-
345	CAP; CAB	1-53458-336-3	02	1	1009-
410	REINFORCEMENT; CAB TILT	1-62570-864-0	01	1	1009-
411	BOLT; REINFORCEMENT (B) M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	1009-
411	BOLT; REINFORCEMENT (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1009-

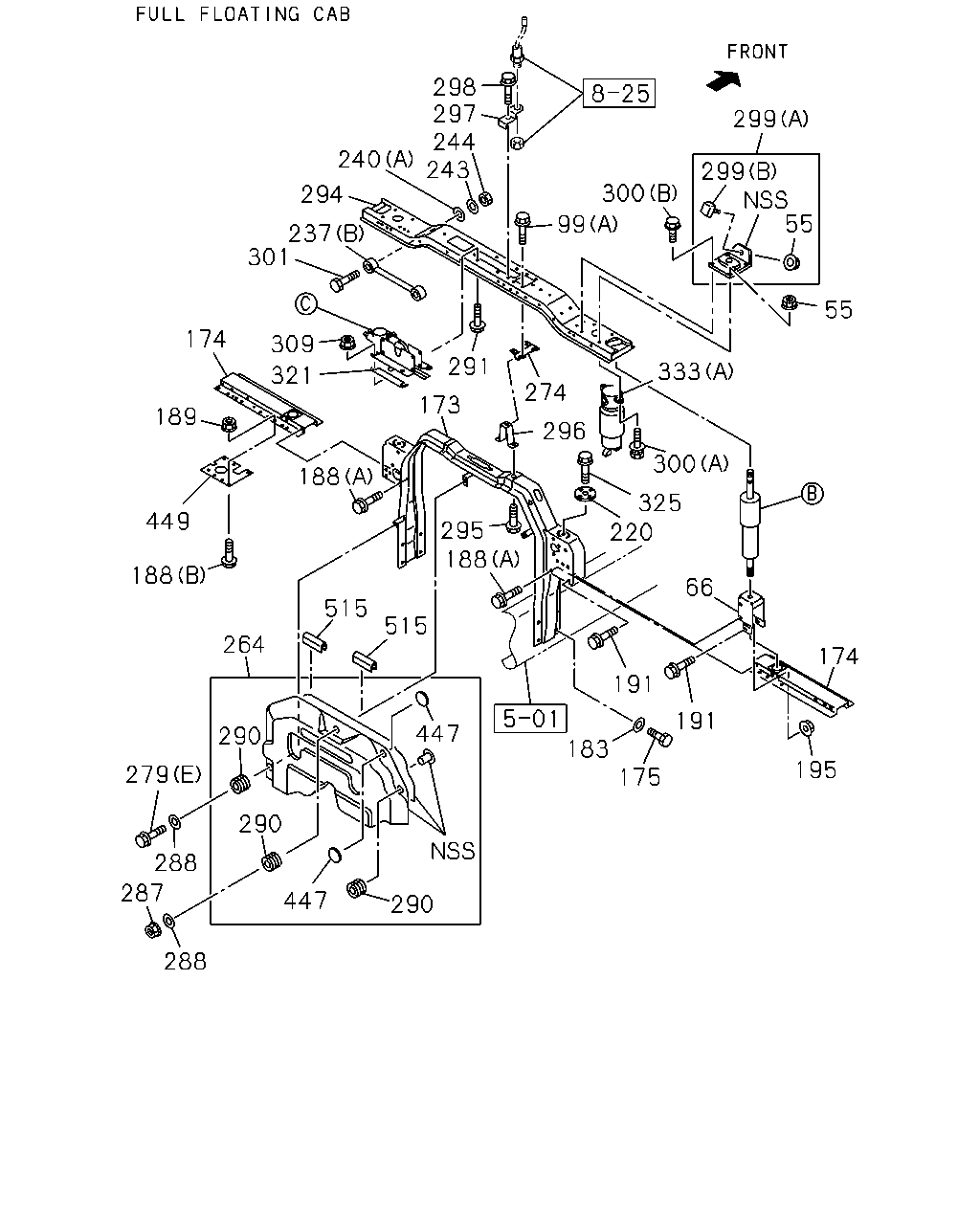

174 195 191 191 175 183 66 325 300 220 188 295 296 333 55 55 299 299 300 99 274 291 173 515 515 264 447 290 290 290 447 288 288 279 287 188 449 189 174 188 321 309 301 237 294 240 244 297 298 243

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	NUT; RUBBER M8 FLANGE	0-91180-108-0	06	1	1009-
66	BRACKET; S/ABS	1-53458-755-1	01	1	1009-1204
66	BRACKET; S/ABS	8-98214-572-0	01	1	1205-
66	BRACKET; S/ABS	1-53458-786-0	01	1	1009-
99	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-
99	BOLT; BRKT (B) M10X30 W/SP WASHER	1-09980-546-0	01	1	1009-
173	MEMBER; CAB MTG RR SINGAPORE EQUIPMENT(WQ3) FULL FLOATING CAB(W16)	8-98166-139-0	01	1	1412-
173	MEMBER; CAB MTG RR CAB SUSPENSION-FULL FLOATING(SMK)	8-98166-346-0	01	1	1412-
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1)	1-53450-670-1	01	1	1009-1010
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1)	8-98171-648-0	01	1	1011-1302
173	MEMBER; CAB MTG RR	8-98171-648-0	01	1	1303-1411
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1) FULL FLOATING CAB(W16)	8-98171-648-0	01	1	1412-
173	MEMBER; CAB MTG RR EXC. HONG KONG EQUIPMENT(PQ1)	8-98166-139-0	01	1	1009-1010
173	MEMBER; CAB MTG RR EXC. HONG KONG EQUIPMENT(PQ1)	8-98171-657-0	01	1	1011-1302
174	OUTRIGGER	1-53456-418-3	01	1	1009-
174	OUTRIGGER	1-53456-278-3	01	1	1009-1302
174	OUTRIGGER	8-98158-646-0	01	1	1303-
175	BOLT; MEMBER TO FRAME M14X40	0-20951-440-0	08	1	1009-
183	WASHER; PL,MEMBER ID=15	8-98010-627-1	08	1	1009-
188	BOLT; OUTRIGGER (B) M10X20 FLANGE	0-28651-020-0	04	1	1009-
188	BOLT; OUTRIGGER (A) M10X25 FLANGE	0-28651-025-0	08	1	1009-
189	NUT; OUTRIGGER M10 FLANGE	0-91180-210-0	04	1	1009-
191	BOLT; BRKT FIX M10X25 FLANGE	0-28651-025-0	07	1	1009-
195	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	1009-
220	GUIDE; SPR	1-53458-648-1	02	1	1009-1411
220	GUIDE; SPR FULL FLOATING CAB(W16)	1-53458-648-1	02	1	1412-
237	ROD ASM; LATERAL (A)	1-33670-407-0	01	1	1009-1411
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	1412-
237	ROD ASM; LATERAL (C)	1-33671-987-0	01	1	1009-1411
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33671-987-0	01	1	1412-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	1009-
240	WASHER; PL,BRKT (A) ID=12.5 OD=22	0-91610-512-0	02	1	1009-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	1009-
243	WASHER; LK,LATERAL ROD ID=12.2	0-91510-512-0	02	1	1009-
244	NUT; LATERAL ROD M12	0-91110-512-0	02	1	1009-
264	PANEL; BACK HONG KONG EQUIPMENT(PQ1)	1-53194-511-2	01	1	1009-1302
264	PANEL; BACK	1-53194-511-2	01	1	1303-1411
264	PANEL; BACK HONG KONG EQUIPMENT(PQ1)	1-53194-511-2	01	1	1412-
274	PIN	1-53458-996-0	01	1	1009-
279	BOLT (C) M8X16 FLANGE	0-28050-816-0	04	1	1009-1411
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	1412-
279	BOLT (D) M8X60 FLANGE	0-28050-860-0	02	1	1009-1411
279	BOLT FULL FLOATING CAB(W16) (D) M8X60 FLANGE	0-28050-860-0	02	1	1412-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	1009-1510
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-
279	BOLT (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-1302
279	BOLT (A) M8X20 FLANGE	0-28650-820-0	05	1	1303-1411
279	BOLT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28650-820-0	05	1	1412-
279	BOLT (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1009-1411
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1412-
279	BOLT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302
279	BOLT HONG KONG EQUIPMENT(PQ1) (E) M8X25 FLANGE	0-28650-825-0	02	1	1009-1302
279	BOLT (E) M8X25 FLANGE	0-28650-825-0	02	1	1303-1411
279	BOLT HONG KONG EQUIPMENT(PQ1) (E) M8X25 FLANGE	0-28650-825-0	02	1	1412-
287	NUT HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91180-108-0	01	1	1009-1302
287	NUT M8 FLANGE	0-91180-108-0	01	1	1303-1411
287	NUT HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91180-108-0	01	1	1412-
288	WASHER; PL HONG KONG EQUIPMENT(PQ1) ID=8.4 OD=26	0-91614-808-0	03	1	1009-1302
288	WASHER; PL ID=8.4 OD=26	0-91614-808-0	03	1	1303-1411
288	WASHER; PL HONG KONG EQUIPMENT(PQ1) ID=8.4 OD=26	0-91614-808-0	03	1	1412-
290	RUBBER; MTG HONG KONG EQUIPMENT(PQ1)	1-53459-702-1	03	1	1009-1302
290	RUBBER; MTG	1-53459-702-1	03	1	1303-1411
290	RUBBER; MTG HONG KONG EQUIPMENT(PQ1)	1-53459-702-1	03	1	1412-
291	BOLT; RATCH M10X25 FLANGE	0-28651-025-0	04	1	1009-
294	MEMBER; FLOATING CAB SUSPENSION-FULL FLOATING(SMK)	1-53454-950-3	01	1	1412-
294	MEMBER; FLOATING	1-53454-949-2	01	1	1009-1411
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-2	01	1	1412-
295	BOLT; STOPPER,UPR M10X20 FLANGE	0-28651-020-0	02	1	1009-
296	STOPPER; UPR	1-53458-973-1	01	1	1009-
297	BRACKET; LIMIT SW	1-53458-782-0	01	1	1009-
298	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1009-
299	RUBBER; MTG (B)	1-53366-155-0	02	1	1009-
299	RUBBER; MTG (A)	1-53366-194-0	02	1	1009-
300	BOLT; MTG RUBBER CAB SUSPENSION-FULL FLOATING(SMK) (A) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	1412-
300	BOLT; MTG RUBBER (B) M8X16 FLANGE	0-28050-816-0	04	1	1009-1411
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (B) M8X16 FLANGE	0-28050-816-0	04	1	1412-
300	BOLT; MTG RUBBER (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	1009-1411
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	1412-
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	1009-
309	NUT M10 FLANGE	0-91180-210-0	04	1	1009-
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	1009-
325	BOLT; GUIDE NUT M8X20 FLANGE	0-28650-820-0	02	1	1009-1411
325	BOLT; GUIDE NUT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28650-820-0	02	1	1412-
333	SPRING (B)	1-52110-142-4	02	1	1009-1411
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-4	02	1	1412-
333	SPRING (A)	1-52110-143-4	02	1	1009-1411
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-4	02	1	1412-
447	SEAL HONG KONG EQUIPMENT(PQ1) OD=45 BLACK	1-76798-017-0	02	1	1009-1302
447	SEAL OD=45 BLACK	1-76798-017-0	02	1	1303-1411
447	SEAL HONG KONG EQUIPMENT(PQ1) OD=45 BLACK	1-76798-017-0	02	1	1412-
449	BRACKET; OUTRIGGER	1-53456-279-0	01	1	1009-
515	FINISHER; BACK PANEL HONG KONG EQUIPMENT(PQ1) L=150	1-76710-004-0	01	1	1009-1302
515	FINISHER; BACK PANEL L=150	1-76710-004-0	01	1	1303-1411
515	FINISHER; BACK PANEL HONG KONG EQUIPMENT(PQ1) L=150	1-76710-004-0	01	1	1412-
515	FINISHER; BACK PANEL HONG KONG EQUIPMENT(PQ1) L=300	1-76710-006-0	01	1	1009-1302
515	FINISHER; BACK PANEL L=300	1-76710-006-0	01	1	1303-1411
515	FINISHER; BACK PANEL HONG KONG EQUIPMENT(PQ1) L=300	1-76710-006-0	01	1	1412-

201 202 203 202 204 205 66 174 202 204 203 205 202 294 204 203 204 203 205 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
66	BRACKET; S/ABS	1-53458-755-1	01	1	1009-1204
66	BRACKET; S/ABS	8-98214-572-0	01	1	1205-
66	BRACKET; S/ABS	1-53458-786-0	01	1	1009-
173	MEMBER; CAB MTG RR SINGAPORE EQUIPMENT(WQ3) FULL FLOATING CAB(W16)	8-98166-139-0	01	1	1412-
173	MEMBER; CAB MTG RR CAB SUSPENSION-FULL FLOATING(SMK)	8-98166-346-0	01	1	1412-
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1)	1-53450-670-1	01	1	1009-1010
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1)	8-98171-648-0	01	1	1011-1302
173	MEMBER; CAB MTG RR	8-98171-648-0	01	1	1303-1411
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1) FULL FLOATING CAB(W16)	8-98171-648-0	01	1	1412-
173	MEMBER; CAB MTG RR EXC. HONG KONG EQUIPMENT(PQ1)	8-98166-139-0	01	1	1009-1010
173	MEMBER; CAB MTG RR EXC. HONG KONG EQUIPMENT(PQ1)	8-98171-657-0	01	1	1011-1302
174	OUTRIGGER	1-53456-418-3	01	1	1009-
174	OUTRIGGER	1-53456-278-3	01	1	1009-1302
174	OUTRIGGER	8-98158-646-0	01	1	1303-
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-728-1	02	1	1009-
202	NUT; S/ABS (C) M10 FLANGE	0-91180-110-0	02	1	1009-
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	1009-
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	1009-
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	10	1	1009-
203	WASHER; RUBBER,SHOCK (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	1009-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	1009-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	1009-
294	MEMBER; FLOATING CAB SUSPENSION-FULL FLOATING(SMK)	1-53454-950-3	01	1	1412-
294	MEMBER; FLOATING	1-53454-949-2	01	1	1009-1411
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-2	01	1	1412-

65 70 72 69 203 202 204 203 202 205 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-604-1	02	1	1009-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	1009-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	1009-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-492-1	01	1	1009-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-493-1	01	1	1009-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	23	1	1009-1302
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	22	1	1303-
202	NUT; S/ABS (C) M10 FLANGE	0-91180-110-0	02	1	1009-
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	1009-
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	1009-
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	10	1	1009-
203	WASHER; RUBBER,SHOCK (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	1009-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	1009-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	1009-

195 174 66 191 175 183 191 188 295 211 212 213 274 300 55 55 299 299 300 99 291 243 244 297 298 296 173 240 294 237 301 309 174 321 189 449 191 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	NUT; RUBBER M8 FLANGE	0-91180-108-0	06	1	1009-
66	BRACKET; S/ABS	1-53458-755-1	01	1	1009-1204
66	BRACKET; S/ABS	8-98214-572-0	01	1	1205-
66	BRACKET; S/ABS	1-53458-786-0	01	1	1009-
99	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-
99	BOLT; BRKT (B) M10X30 W/SP WASHER	1-09980-546-0	01	1	1009-
173	MEMBER; CAB MTG RR SINGAPORE EQUIPMENT(WQ3) FULL FLOATING CAB(W16)	8-98166-139-0	01	1	1412-
173	MEMBER; CAB MTG RR CAB SUSPENSION-FULL FLOATING(SMK)	8-98166-346-0	01	1	1412-
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1)	1-53450-670-1	01	1	1009-1010
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1)	8-98171-648-0	01	1	1011-1302
173	MEMBER; CAB MTG RR	8-98171-648-0	01	1	1303-1411
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1) FULL FLOATING CAB(W16)	8-98171-648-0	01	1	1412-
173	MEMBER; CAB MTG RR EXC. HONG KONG EQUIPMENT(PQ1)	8-98166-139-0	01	1	1009-1010
173	MEMBER; CAB MTG RR EXC. HONG KONG EQUIPMENT(PQ1)	8-98171-657-0	01	1	1011-1302
174	OUTRIGGER	1-53456-418-3	01	1	1009-
174	OUTRIGGER	1-53456-278-3	01	1	1009-1302
174	OUTRIGGER	8-98158-646-0	01	1	1303-
175	BOLT; MEMBER TO FRAME M14X40	0-20951-440-0	08	1	1009-
183	WASHER; PL,MEMBER ID=15	8-98010-627-1	08	1	1009-
188	BOLT; OUTRIGGER (B) M10X20 FLANGE	0-28651-020-0	04	1	1009-
188	BOLT; OUTRIGGER (A) M10X25 FLANGE	0-28651-025-0	08	1	1009-
189	NUT; OUTRIGGER M10 FLANGE	0-91180-210-0	04	1	1009-
191	BOLT; BRKT FIX M10X25 FLANGE	0-28651-025-0	07	1	1009-
195	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	1009-
211	RUBBER; CUSHION,S/ABS CAB SUSPENSION-FULL FLOATING(SMK)	1-53366-128-0	02	1	1412-
212	SPRING; COIL CAB SUSPENSION-FULL FLOATING(SMK)	1-09580-515-0	02	1	1412-
213	SEAT; SPR,S/ABS CAB SUSPENSION-FULL FLOATING(SMK)	1-53366-132-1	02	1	1412-
237	ROD ASM; LATERAL (A)	1-33670-407-0	01	1	1009-1411
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	1412-
237	ROD ASM; LATERAL (C)	1-33671-987-0	01	1	1009-1411
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33671-987-0	01	1	1412-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	1009-
240	WASHER; PL,BRKT (A) ID=12.5 OD=22	0-91610-512-0	02	1	1009-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	1009-
243	WASHER; LK,LATERAL ROD ID=12.2	0-91510-512-0	02	1	1009-
244	NUT; LATERAL ROD M12	0-91110-512-0	02	1	1009-
274	PIN	1-53458-996-0	01	1	1009-
291	BOLT; RATCH M10X25 FLANGE	0-28651-025-0	04	1	1009-
294	MEMBER; FLOATING CAB SUSPENSION-FULL FLOATING(SMK)	1-53454-950-3	01	1	1412-
294	MEMBER; FLOATING	1-53454-949-2	01	1	1009-1411
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-2	01	1	1412-
295	BOLT; STOPPER,UPR M10X20 FLANGE	0-28651-020-0	02	1	1009-
296	STOPPER; UPR	1-53458-973-1	01	1	1009-
297	BRACKET; LIMIT SW	1-53458-782-0	01	1	1009-
298	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1009-
299	RUBBER; MTG (B)	1-53366-155-0	02	1	1009-
299	RUBBER; MTG (A)	1-53366-194-0	02	1	1009-
300	BOLT; MTG RUBBER CAB SUSPENSION-FULL FLOATING(SMK) (A) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	1412-
300	BOLT; MTG RUBBER (B) M8X16 FLANGE	0-28050-816-0	04	1	1009-1411
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (B) M8X16 FLANGE	0-28050-816-0	04	1	1412-
300	BOLT; MTG RUBBER (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	1009-1411
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	1412-
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	1009-
309	NUT M10 FLANGE	0-91180-210-0	04	1	1009-
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	1009-
449	BRACKET; OUTRIGGER	1-53456-279-0	01	1	1009-

27 113 118 113 315 315 27 118 120 31 31 112 279 67 69 71 73 72 105 72 99 192 72 69 112 72 105 279 279 250 45 426 426 333 279 98 192 292 292 292 292 426 71 240 73 72 31 250 45 237 278 427 292 279 237 451 452 261 452 451 333 426 427 292 278

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; BUSHING (B) M18X120	1-09000-442-1	02	1	1009-1411
27	BOLT; BUSHING CAB SUSPENSION-FULL FLOATING(SMK),FULL FLOATING CAB(W16) (B) M18X120	1-09000-442-1	02	1	1412-
27	BOLT; BUSHING (A) M18X90	9-91066-890-0	02	1	1009-1411
27	BOLT; BUSHING CAB SUSPENSION-FULL FLOATING(SMK),FULL FLOATING CAB(W16) (A) M18X90	9-91066-890-0	02	1	1412-
31	BRACKET; CAB CAB SUSPENSION-FULL FLOATING(SMK) (E)	1-53453-273-2	01	1	1412-
31	BRACKET; CAB CAB SUSPENSION-FULL FLOATING(SMK) (E)	1-53453-274-1	01	1	1412-
31	BRACKET; CAB (A)	1-44226-178-1	01	1	1009-1302
31	BRACKET; CAB (A)	8-98152-139-0	01	1	1303-
31	BRACKET; CAB (D)	1-53453-224-4	01	1	1009-1411
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	1412-
31	BRACKET; CAB (D)	1-53453-225-3	01	1	1009-1411
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	1412-
31	BRACKET; CAB (B)	1-53458-374-1	01	1	1009-1411
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	1412-
31	BRACKET; CAB (C)	8-97619-220-1	01	1	1009-1304
31	BRACKET; CAB (C)	8-98131-521-2	01	1	1305-1411
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	8-98131-521-2	01	1	1412-
45	NUT M5	0-91110-505-0	02	1	1009-1302
45	NUT M5	0-91110-505-0	02	1	1009-1302
45	NUT M5	0-91110-505-0	04	1	1303-1411
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	04	1	1412-
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91180-212-0	02	1	1009-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	1009-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	1009-
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	1009-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	23	1	1009-1302
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	22	1	1303-
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	1009-
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	1009-
99	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-
99	BOLT; BRKT (B) M10X30 W/SP WASHER	1-09980-546-0	01	1	1009-
105	BOLT; BRKT TO CAB FRAME M10X30 W/SP WASHER	1-09980-546-0	08	1	1009-
112	ARM ASM; LINK,CAB FRT SUSP CAB SUSPENSION-FULL FLOATING(SMK) (B)	1-53450-565-7	01	1	1412-
112	ARM ASM; LINK,CAB FRT SUSP (A)	8-98077-409-1	01	1	1009-1302
112	ARM ASM; LINK,CAB FRT SUSP (A)	8-98127-505-1	01	1	1303-1411
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB(W16) (A)	8-98127-505-1	01	1	1412-
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI	1-53458-714-0	04	1	1009-1411
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI CAB SUSPENSION-FULL FLOATING(SMK),FULL FLOATING CAB(W16)	1-53458-714-0	04	1	1412-
118	WASHER; PL,STOPPER RUBBER,LINK ARM ID=19 OD=30	1-09503-279-0	04	1	1009-1411
118	WASHER; PL,STOPPER RUBBER,LINK ARM CAB SUSPENSION-FULL FLOATING(SMK),FULL FLOATING CAB(W16) ID=19 OD=30	1-09503-279-0	04	1	1412-
120	NUT; STOPPER RUBBER,LINK ARM M18	0-91110-518-0	02	1	1009-1411
120	NUT; STOPPER RUBBER,LINK ARM CAB SUSPENSION-FULL FLOATING(SMK),FULL FLOATING CAB(W16) M18	0-91110-518-0	02	1	1412-
192	NUT; BRKT FIX M10	1-09984-142-0	05	1	1009-
237	ROD ASM; LATERAL (A)	1-33670-407-0	01	1	1009-1411
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	1412-
237	ROD ASM; LATERAL (C)	1-33671-987-0	01	1	1009-1411
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33671-987-0	01	1	1412-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	1009-
240	WASHER; PL,BRKT (A) ID=12.5 OD=22	0-91610-512-0	02	1	1009-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	1009-
250	WASHER; LK ID=5.1	0-91510-505-0	02	1	1009-1302
250	WASHER; LK ID=5.1	0-91510-505-0	02	1	1009-1302
250	WASHER; LK ID=5.1	0-91510-505-0	04	1	1303-1411
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	0-91510-505-0	04	1	1412-
261	ROD; LINK (B)	0-84100-506-0	01	1	1009-1411
261	ROD; LINK FULL FLOATING CAB(W16) (B)	0-84100-506-0	01	1	1412-
261	ROD; LINK (A)	9-08410-514-0	01	1	1009-1411
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	1412-
278	COVER (B) L=400 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1303-1411
278	COVER FULL FLOATING CAB(W16) (B) L=400 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1412-
278	COVER (A) L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	1009-1411
278	COVER FULL FLOATING CAB(W16) (A) L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	1412-
279	BOLT (C) M8X16 FLANGE	0-28050-816-0	04	1	1009-1411
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	1412-
279	BOLT (D) M8X60 FLANGE	0-28050-860-0	02	1	1009-1411
279	BOLT FULL FLOATING CAB(W16) (D) M8X60 FLANGE	0-28050-860-0	02	1	1412-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	1009-1510
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-
279	BOLT (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-1302
279	BOLT (A) M8X20 FLANGE	0-28650-820-0	05	1	1303-1411
279	BOLT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28650-820-0	05	1	1412-
279	BOLT (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1009-1411
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1412-
279	BOLT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302
279	BOLT HONG KONG EQUIPMENT(PQ1) (E) M8X25 FLANGE	0-28650-825-0	02	1	1009-1302
279	BOLT (E) M8X25 FLANGE	0-28650-825-0	02	1	1303-1411
279	BOLT HONG KONG EQUIPMENT(PQ1) (E) M8X25 FLANGE	0-28650-825-0	02	1	1412-
292	CONNECTOR; CAB SUSPENSION (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1009-1411
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1412-
292	CONNECTOR; CAB SUSPENSION (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	02	1	1009-1302
292	CONNECTOR; CAB SUSPENSION (G) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	1303-1411
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (G) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	1412-
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1009-1302
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1303-1411
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1412-
292	CONNECTOR; CAB SUSPENSION (D)	1-09661-577-0	01	1	1009-1302
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	1009-
292	CONNECTOR; CAB SUSPENSION (F) PT1/8 ELBOW	8-94338-418-1	01	1	1009-1302
315	WASHER; CAB MTG ID=34.5	1-53458-281-1	04	1	1009-1411
315	WASHER; CAB MTG CAB SUSPENSION-FULL FLOATING(SMK),FULL FLOATING CAB(W16) ID=34.5	1-53458-281-1	04	1	1412-
333	SPRING (B)	1-52110-142-4	02	1	1009-1411
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-4	02	1	1412-
333	SPRING (A)	1-52110-143-4	02	1	1009-1411
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-4	02	1	1412-
426	CLIP (A) ID=6 H=20 L=20	1-09700-603-0	02	1	1009-1411
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	1412-
426	CLIP (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1009-1302
426	CLIP (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1303-1411
426	CLIP FULL FLOATING CAB(W16) (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1412-
426	CLIP (B) ID=9.5	5-09709-020-0	01	1	1009-1411
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	1412-
426	CLIP (C) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-1411
426	CLIP FULL FLOATING CAB(W16) (C) ID=11 H=20 L=20	8-98033-780-0	01	1	1412-
426	CLIP FULL FLOATING CAB(W16) (E) ID=7 L=32	0-95234-665-0	01	1	1009-1302
426	CLIP (E) ID=7 L=32	0-95234-665-0	01	1	1303-1411
426	CLIP FULL FLOATING CAB(W16) (E) ID=7 L=32	0-95234-665-0	01	1	1412-
427	TUBE SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1009-1302
427	TUBE FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1009-1302
427	TUBE SERVICED BY L=2000 OD=6	1-87411-001-0	03	1	1303-1411
427	TUBE FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87411-001-0	03	1	1412-
451	JOINT; BALL (B)	1-09760-103-2	01	1	1009-1302
451	JOINT; BALL (B)	1-09760-103-2	01	1	1009-1302
451	JOINT; BALL (B)	1-09760-103-2	02	1	1303-1411
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-103-2	02	1	1412-
451	JOINT; BALL (A)	1-09760-104-2	01	1	1009-1302
451	JOINT; BALL (A)	1-09760-104-2	01	1	1009-1302
451	JOINT; BALL (A)	1-09760-104-2	02	1	1303-1411
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-104-2	02	1	1412-
452	NUT; BALL JOINT (A) M5	0-91110-505-0	01	1	1009-1302
452	NUT; BALL JOINT (A) M5	0-91110-505-0	01	1	1009-1302
452	NUT; BALL JOINT (A) M5	0-91110-505-0	02	1	1303-1411
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	02	1	1412-
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	01	1	1009-1302
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	01	1	1009-1302
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	02	1	1303-1411
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	1412-

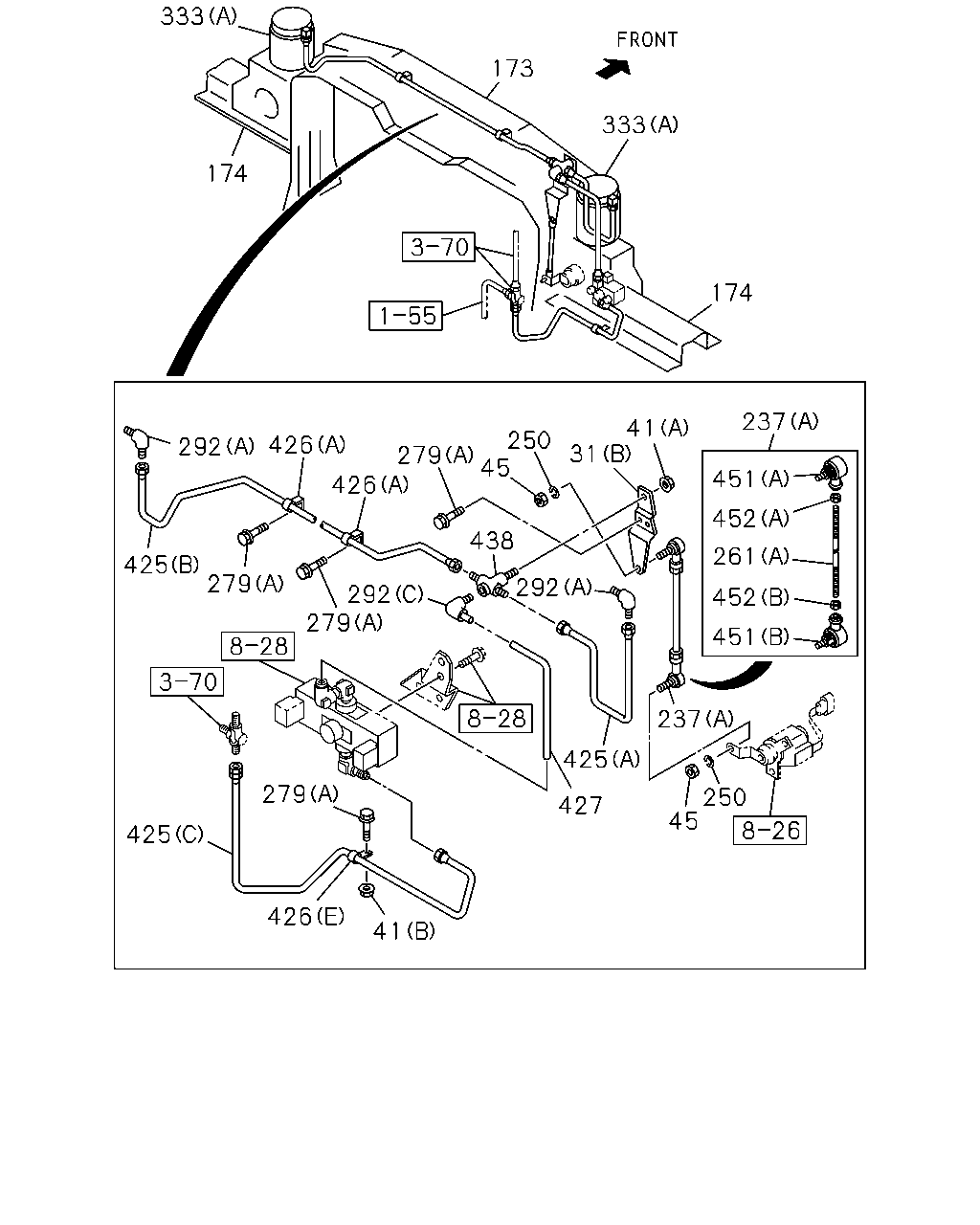

174 333 173 174 333 237 451 261 452 451 452 237 250 45 427 425 292 41 31 250 45 438 292 426 279 426 292 279 425 279 279 425 426 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BRACKET; CAB CAB SUSPENSION-FULL FLOATING(SMK) (E)	1-53453-273-2	01	1	1412-
31	BRACKET; CAB CAB SUSPENSION-FULL FLOATING(SMK) (E)	1-53453-274-1	01	1	1412-
31	BRACKET; CAB (A)	1-44226-178-1	01	1	1009-1302
31	BRACKET; CAB (A)	8-98152-139-0	01	1	1303-
31	BRACKET; CAB (D)	1-53453-224-4	01	1	1009-1411
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	1412-
31	BRACKET; CAB (D)	1-53453-225-3	01	1	1009-1411
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	1412-
31	BRACKET; CAB (B)	1-53458-374-1	01	1	1009-1411
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	1412-
31	BRACKET; CAB (C)	8-97619-220-1	01	1	1009-1304
31	BRACKET; CAB (C)	8-98131-521-2	01	1	1305-1411
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	8-98131-521-2	01	1	1412-
41	NUT (A) M12 FLANGE	0-91180-212-0	01	1	1009-1411
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91180-212-0	01	1	1412-
41	NUT FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91180-108-0	01	1	1009-1302
41	NUT (B) M8 FLANGE	0-91180-108-0	01	1	1303-1411
41	NUT FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91180-108-0	01	1	1412-
45	NUT M5	0-91110-505-0	02	1	1009-1302
45	NUT M5	0-91110-505-0	02	1	1009-1302
45	NUT M5	0-91110-505-0	04	1	1303-1411
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	04	1	1412-
173	MEMBER; CAB MTG RR SINGAPORE EQUIPMENT(WQ3) FULL FLOATING CAB(W16)	8-98166-139-0	01	1	1412-
173	MEMBER; CAB MTG RR CAB SUSPENSION-FULL FLOATING(SMK)	8-98166-346-0	01	1	1412-
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1)	1-53450-670-1	01	1	1009-1010
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1)	8-98171-648-0	01	1	1011-1302
173	MEMBER; CAB MTG RR	8-98171-648-0	01	1	1303-1411
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1) FULL FLOATING CAB(W16)	8-98171-648-0	01	1	1412-
173	MEMBER; CAB MTG RR EXC. HONG KONG EQUIPMENT(PQ1)	8-98166-139-0	01	1	1009-1010
173	MEMBER; CAB MTG RR EXC. HONG KONG EQUIPMENT(PQ1)	8-98171-657-0	01	1	1011-1302
174	OUTRIGGER	1-53456-418-3	01	1	1009-
174	OUTRIGGER	1-53456-278-3	01	1	1009-1302
174	OUTRIGGER	8-98158-646-0	01	1	1303-
237	ROD ASM; LATERAL (A)	1-33670-407-0	01	1	1009-1411
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	1412-
237	ROD ASM; LATERAL (C)	1-33671-987-0	01	1	1009-1411
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33671-987-0	01	1	1412-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	1009-
250	WASHER; LK ID=5.1	0-91510-505-0	02	1	1009-1302
250	WASHER; LK ID=5.1	0-91510-505-0	02	1	1009-1302
250	WASHER; LK ID=5.1	0-91510-505-0	04	1	1303-1411
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	0-91510-505-0	04	1	1412-
261	ROD; LINK (B)	0-84100-506-0	01	1	1009-1411
261	ROD; LINK FULL FLOATING CAB(W16) (B)	0-84100-506-0	01	1	1412-
261	ROD; LINK (A)	9-08410-514-0	01	1	1009-1411
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	1412-
279	BOLT (C) M8X16 FLANGE	0-28050-816-0	04	1	1009-1411
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	1412-
279	BOLT (D) M8X60 FLANGE	0-28050-860-0	02	1	1009-1411
279	BOLT FULL FLOATING CAB(W16) (D) M8X60 FLANGE	0-28050-860-0	02	1	1412-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	1009-1510
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-
279	BOLT (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-1302
279	BOLT (A) M8X20 FLANGE	0-28650-820-0	05	1	1303-1411
279	BOLT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28650-820-0	05	1	1412-
279	BOLT (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1009-1411
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1412-
279	BOLT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302
279	BOLT HONG KONG EQUIPMENT(PQ1) (E) M8X25 FLANGE	0-28650-825-0	02	1	1009-1302
279	BOLT (E) M8X25 FLANGE	0-28650-825-0	02	1	1303-1411
279	BOLT HONG KONG EQUIPMENT(PQ1) (E) M8X25 FLANGE	0-28650-825-0	02	1	1412-
292	CONNECTOR; CAB SUSPENSION (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1009-1411
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1412-
292	CONNECTOR; CAB SUSPENSION (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	02	1	1009-1302
292	CONNECTOR; CAB SUSPENSION (G) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	1303-1411
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (G) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	1412-
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1009-1302
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1303-1411
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1412-
292	CONNECTOR; CAB SUSPENSION (D)	1-09661-577-0	01	1	1009-1302
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	1009-
292	CONNECTOR; CAB SUSPENSION (F) PT1/8 ELBOW	8-94338-418-1	01	1	1009-1302
333	SPRING (B)	1-52110-142-4	02	1	1009-1411
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-4	02	1	1412-
333	SPRING (A)	1-52110-143-4	02	1	1009-1411
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-4	02	1	1412-
425	PIPE ASM; AIR (B) L=1149 SERVICED BY L=1200	1-47428-816-0	01	1	1009-1411
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (B) L=1149 SERVICED BY L=1200	1-47428-816-0	01	1	1412-
425	PIPE ASM; AIR (A) L=291	8-98095-656-0	01	1	1009-1411
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (A) L=291	8-98095-656-0	01	1	1412-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (C) L=566 SERVICED BY L=600	1-47428-809-0	01	1	1009-1302
425	PIPE ASM; AIR (C) L=566 SERVICED BY L=600	1-47428-809-0	01	1	1303-1411
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (C) L=566 SERVICED BY L=600	1-47428-809-0	01	1	1412-
426	CLIP (A) ID=6 H=20 L=20	1-09700-603-0	02	1	1009-1411
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	1412-
426	CLIP (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1009-1302
426	CLIP (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1303-1411
426	CLIP FULL FLOATING CAB(W16) (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1412-
426	CLIP (B) ID=9.5	5-09709-020-0	01	1	1009-1411
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	1412-
426	CLIP (C) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-1411
426	CLIP FULL FLOATING CAB(W16) (C) ID=11 H=20 L=20	8-98033-780-0	01	1	1412-
426	CLIP FULL FLOATING CAB(W16) (E) ID=7 L=32	0-95234-665-0	01	1	1009-1302
426	CLIP (E) ID=7 L=32	0-95234-665-0	01	1	1303-1411
426	CLIP FULL FLOATING CAB(W16) (E) ID=7 L=32	0-95234-665-0	01	1	1412-
427	TUBE SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1009-1302
427	TUBE FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1009-1302
427	TUBE SERVICED BY L=2000 OD=6	1-87411-001-0	03	1	1303-1411
427	TUBE FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87411-001-0	03	1	1412-
438	UNION M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	1009-1411
438	UNION FULL FLOATING CAB(W16) M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	1412-
451	JOINT; BALL (B)	1-09760-103-2	01	1	1009-1302
451	JOINT; BALL (B)	1-09760-103-2	01	1	1009-1302
451	JOINT; BALL (B)	1-09760-103-2	02	1	1303-1411
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-103-2	02	1	1412-
451	JOINT; BALL (A)	1-09760-104-2	01	1	1009-1302
451	JOINT; BALL (A)	1-09760-104-2	01	1	1009-1302
451	JOINT; BALL (A)	1-09760-104-2	02	1	1303-1411
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-104-2	02	1	1412-
452	NUT; BALL JOINT (A) M5	0-91110-505-0	01	1	1009-1302
452	NUT; BALL JOINT (A) M5	0-91110-505-0	01	1	1009-1302
452	NUT; BALL JOINT (A) M5	0-91110-505-0	02	1	1303-1411
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	02	1	1412-
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	01	1	1009-1302
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	01	1	1009-1302
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	02	1	1303-1411
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	1412-

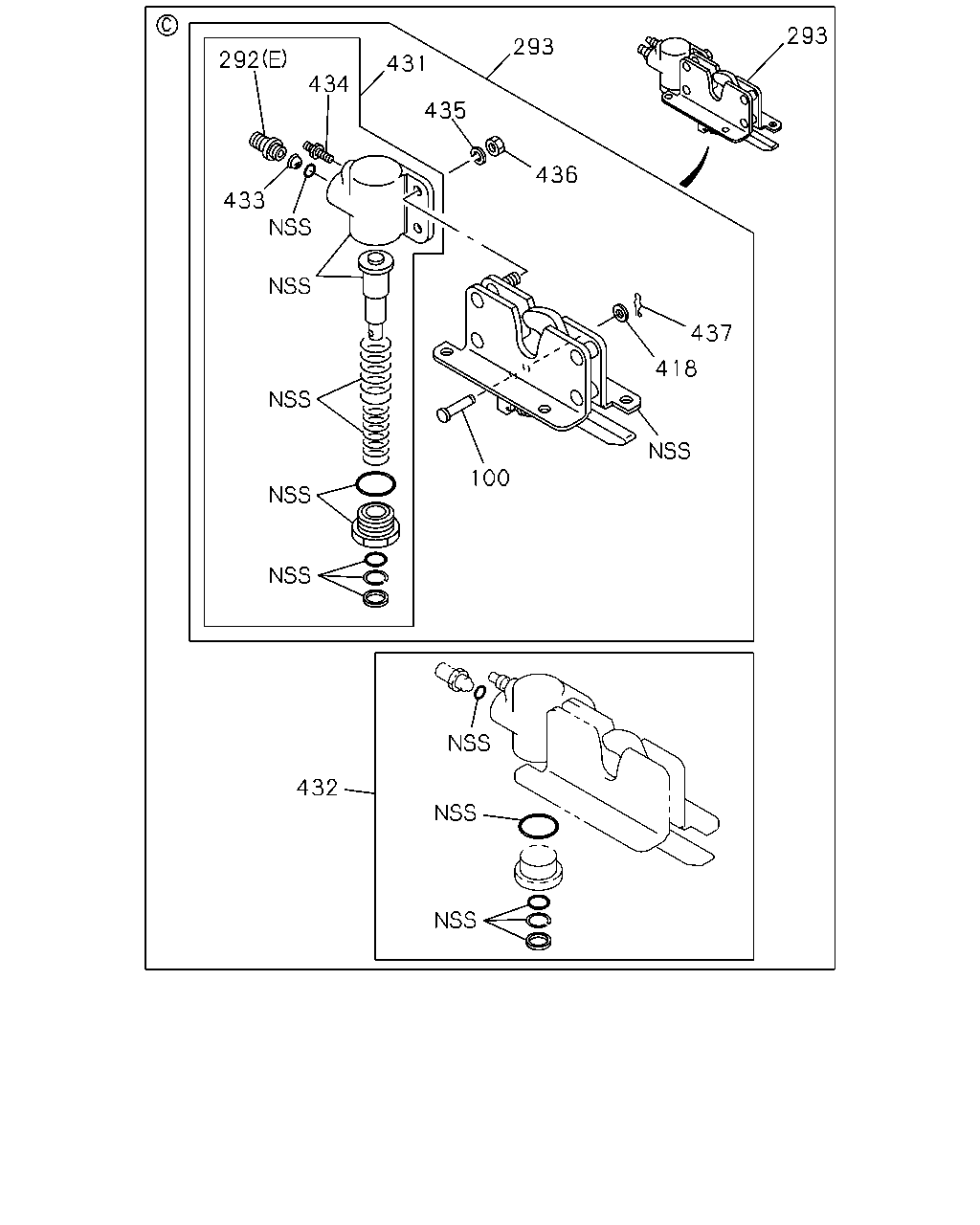

432 100 418 437 293 436 293 431 434 292 433 435

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	PIN; JOINT	1-53458-831-0	01	1	1009-
292	CONNECTOR; CAB SUSPENSION (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1009-1411
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1412-
292	CONNECTOR; CAB SUSPENSION (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	02	1	1009-1302
292	CONNECTOR; CAB SUSPENSION (G) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	1303-1411
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (G) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	1412-
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1009-1302
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1303-1411
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1412-
292	CONNECTOR; CAB SUSPENSION (D)	1-09661-577-0	01	1	1009-1302
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	1009-
292	CONNECTOR; CAB SUSPENSION (F) PT1/8 ELBOW	8-94338-418-1	01	1	1009-1302
293	RATCH; CAB SUSP,RR	1-53458-918-0	01	1	1009-
418	WASHER; PL,PIN	1-53458-059-0	01	1	1009-
431	CYLINDER; AIR,RATCH	1-53457-013-0	01	1	1009-
432	REPAIR KIT; AIR CYL	1-85579-052-0	01	1	1009-
433	FILTER; AIR CYL	1-53458-048-0	01	1	1009-
434	SCREW; AIR BLEEDER	1-53458-529-0	01	1	1009-
435	WASHER; LK,AIR CYL ID=10.2	9-09150-510-0	02	1	1009-
436	NUT; AIR CYL	1-53458-528-0	02	1	1009-
437	PIN; SNAP	1-53458-526-0	01	1	1009-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
