◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11292 - EXR RHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#70131) — 14 parça

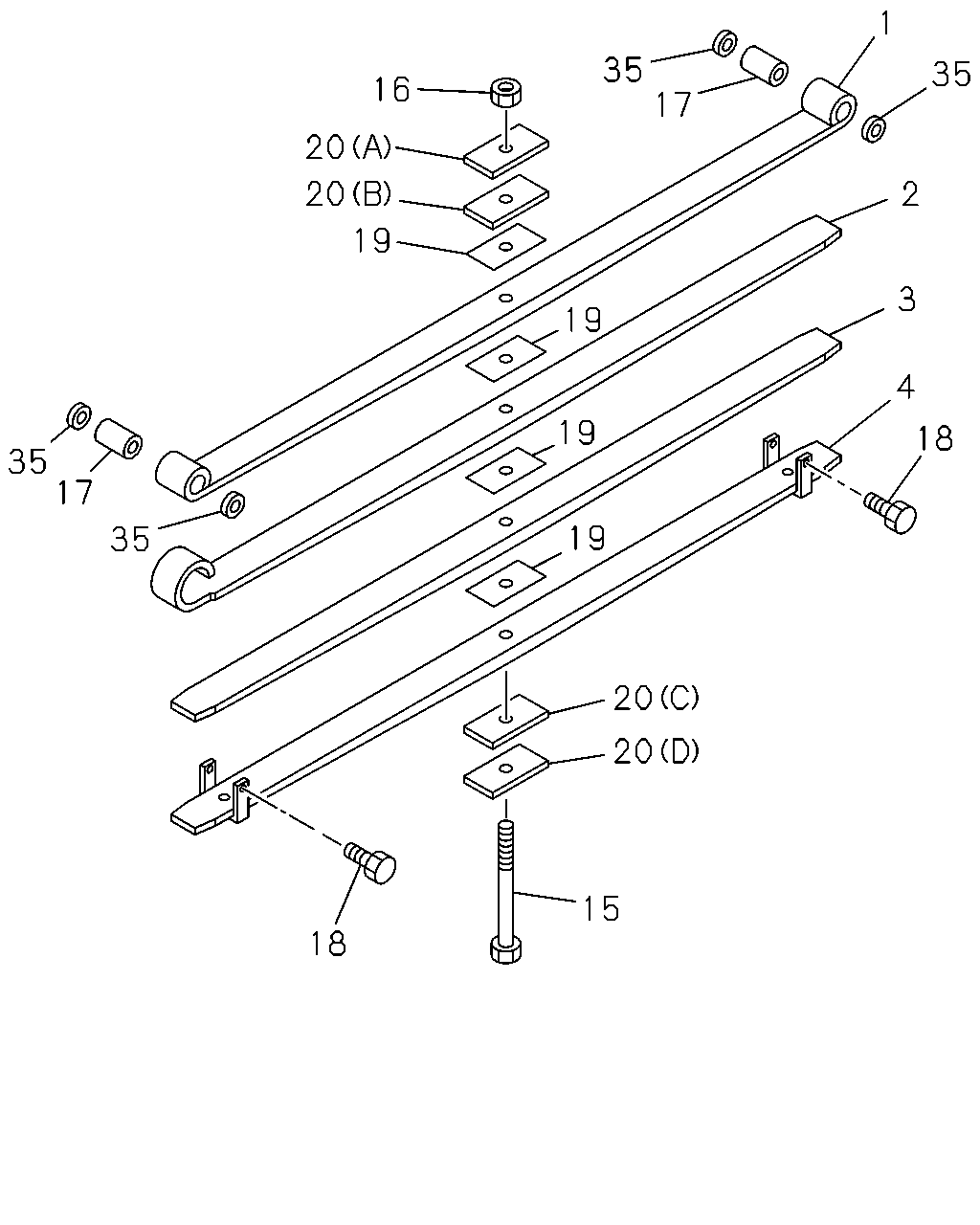

çizim 125103
16 20 20 35 35 17 19 35 1 2 35 3 4 19 19 19 20 20 15 18 18 17
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98140-090-0 		8-97613-959-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98140-090-0 		8-97613-960-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98140-090-0 		8-97613-961-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 8-98140-090-0 		8-97613-962-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=145 ASM PART: A = 8-98140-090-0 		1-51156-355-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98140-090-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=42 ASM PART: A = 8-98140-090-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X103 ASM PART: A = 8-98140-090-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98140-090-0 		1-51177-071-0 04 1 -
20 SEAT; LEAF SPR,FRT
(A), T=6 ASM PART: A = 8-98140-090-0 		1-51177-070-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=10 ASM PART: A = 8-98140-090-0 		1-51177-078-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=14 ASM PART: A = 8-98140-090-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=13 ASM PART: A = 8-98140-090-0 		1-51177-346-0 01 1 -
35 SEAL; DUST
ASM PART: A = 8-98140-090-0 		1-51177-321-0 04 1 -
