◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11292 - EXR RHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#70130) — 60 parça

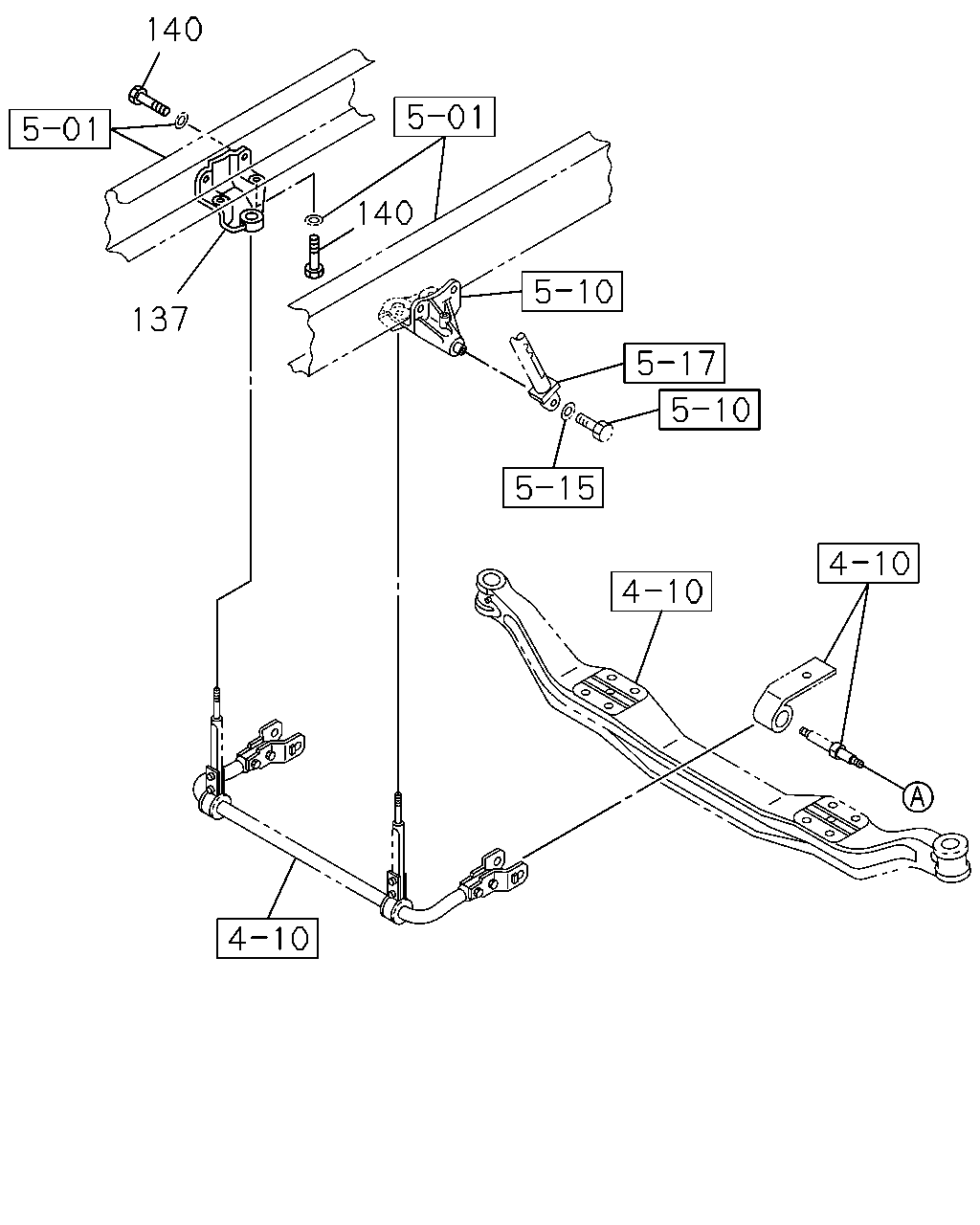

çizim 188617
140 137 140
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; STAB BAR TO FRAME 1-51781-111-0 01 1 1009-1411
137 BRACKET; STAB BAR TO FRAME
HONG KONG EQUIPMENT(PQ1) 		1-51781-111-0 01 1 1412-1412
137 BRACKET; STAB BAR TO FRAME
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-51781-111-0 01 1 1412-
140 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 1009-1411
140 BOLT; BRKT
HONG KONG EQUIPMENT(PQ1) M14X50 		0-20951-450-0 04 1 1412-1412
140 BOLT; BRKT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M14X50 		0-20951-450-0 04 1 1412-

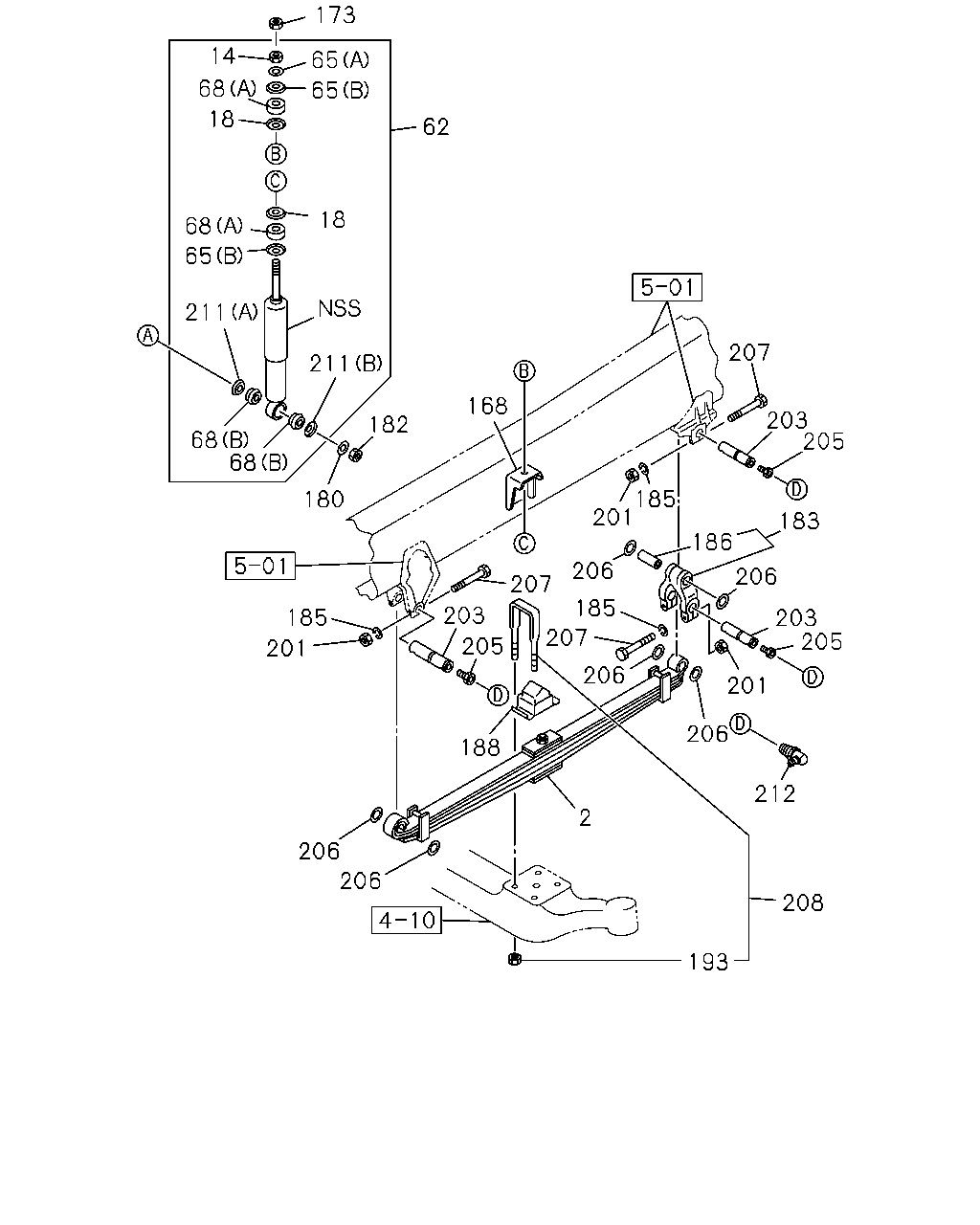

çizim 188618
173 62 65 65 14 18 68 68 18 65 211 211 68 68 182 168 201 206 185 207 207 203 205 185 201 206 206 2 188 206 206 201 205 206 183 205 203 207 185 193 208 212 186 180 203
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98140-090-0 02 1 1009-1411
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. HONG KONG EQUIPMENT(PQ1) 		8-98140-090-0 02 1 1412-1412
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98140-090-0 02 1 1412-
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1009-1411
14 NUT; S/ABS,UPR
HONG KONG EQUIPMENT(PQ1) M14 		9-99111-414-0 02 1 1412-1412
14 NUT; S/ABS,UPR
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M14 		9-99111-414-0 02 1 1412-
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 1009-1411
18 WASHER; CENTERING,S/ABS
HONG KONG EQUIPMENT(PQ1) ID=24 		1-51631-067-0 04 1 1412-1412
18 WASHER; CENTERING,S/ABS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=24 		1-51631-067-0 04 1 1412-
62 ABSORBER ASM; SHOCK,FRT 1-51630-830-0 02 1 1009-1411
62 ABSORBER ASM; SHOCK,FRT
HONG KONG EQUIPMENT(PQ1) 		1-51630-830-0 02 1 1412-1412
62 ABSORBER ASM; SHOCK,FRT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-51630-830-0 02 1 1412-
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 1009-1411
65 WASHER; S/ABS
HONG KONG EQUIPMENT(PQ1) (A) ID=16.5 		1-09503-266-0 02 1 1412-1412
65 WASHER; S/ABS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=16.5 		1-09503-266-0 02 1 1412-
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 1009-1411
65 WASHER; S/ABS
HONG KONG EQUIPMENT(PQ1) (B) ID=16.5 		1-51631-068-0 04 1 1412-1412
65 WASHER; S/ABS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=16.5 		1-51631-068-0 04 1 1412-
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 1009-1411
68 BUSHING; S/ABS
HONG KONG EQUIPMENT(PQ1) (A) ID=16 T=25 		1-51631-069-0 04 1 1412-1412
68 BUSHING; S/ABS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=16 T=25 		1-51631-069-0 04 1 1412-
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1009-1411
68 BUSHING; S/ABS
HONG KONG EQUIPMENT(PQ1) (B) 		9-51631-026-0 04 1 1412-1412
68 BUSHING; S/ABS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		9-51631-026-0 04 1 1412-
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 1009-1411
168 BRACKET; S/ABS,FRT SUSP
HONG KONG EQUIPMENT(PQ1) 		1-51681-616-0 02 1 1412-1412
168 BRACKET; S/ABS,FRT SUSP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-51681-616-0 02 1 1412-
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 1009-
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 1009-
182 NUT; S/ABS LWR
M20 		0-91110-520-0 02 1 1009-
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1009-
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 1009-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1009-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-096-2 02 1 1009-1411
188 RUBBER; CLAMP,U-BOLT,FRT SPR
HONG KONG EQUIPMENT(PQ1) 		1-51172-096-2 02 1 1412-1412
188 RUBBER; CLAMP,U-BOLT,FRT SPR
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-51172-096-2 02 1 1412-
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 1009-1206
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207-
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1009-
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 1009-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1009-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 1009-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 1009-
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-1 04 1 1009-1206
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-498-0 04 1 1207-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1009-1411
211 WASHER; BRKT,SHOCK
HONG KONG EQUIPMENT(PQ1) (A) ID=27 		9-51631-027-0 02 1 1412-1412
211 WASHER; BRKT,SHOCK
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=27 		9-51631-027-0 02 1 1412-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1009-1411
211 WASHER; BRKT,SHOCK
HONG KONG EQUIPMENT(PQ1) (B) ID=21 		9-51631-028-0 02 1 1412-1412
211 WASHER; BRKT,SHOCK
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=21 		9-51631-028-0 02 1 1412-
212 NIPPLE; GREASE,ELBOW
PT1/8 ELBOW 		0-90301-610-0 06 1 1009-1411
212 NIPPLE; GREASE,ELBOW
HONG KONG EQUIPMENT(PQ1) PT1/8 ELBOW 		0-90301-610-0 06 1 1412-1412
212 NIPPLE; GREASE,ELBOW
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) PT1/8 ELBOW 		0-90301-610-0 06 1 1412-
