4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#7013) — 76 parça

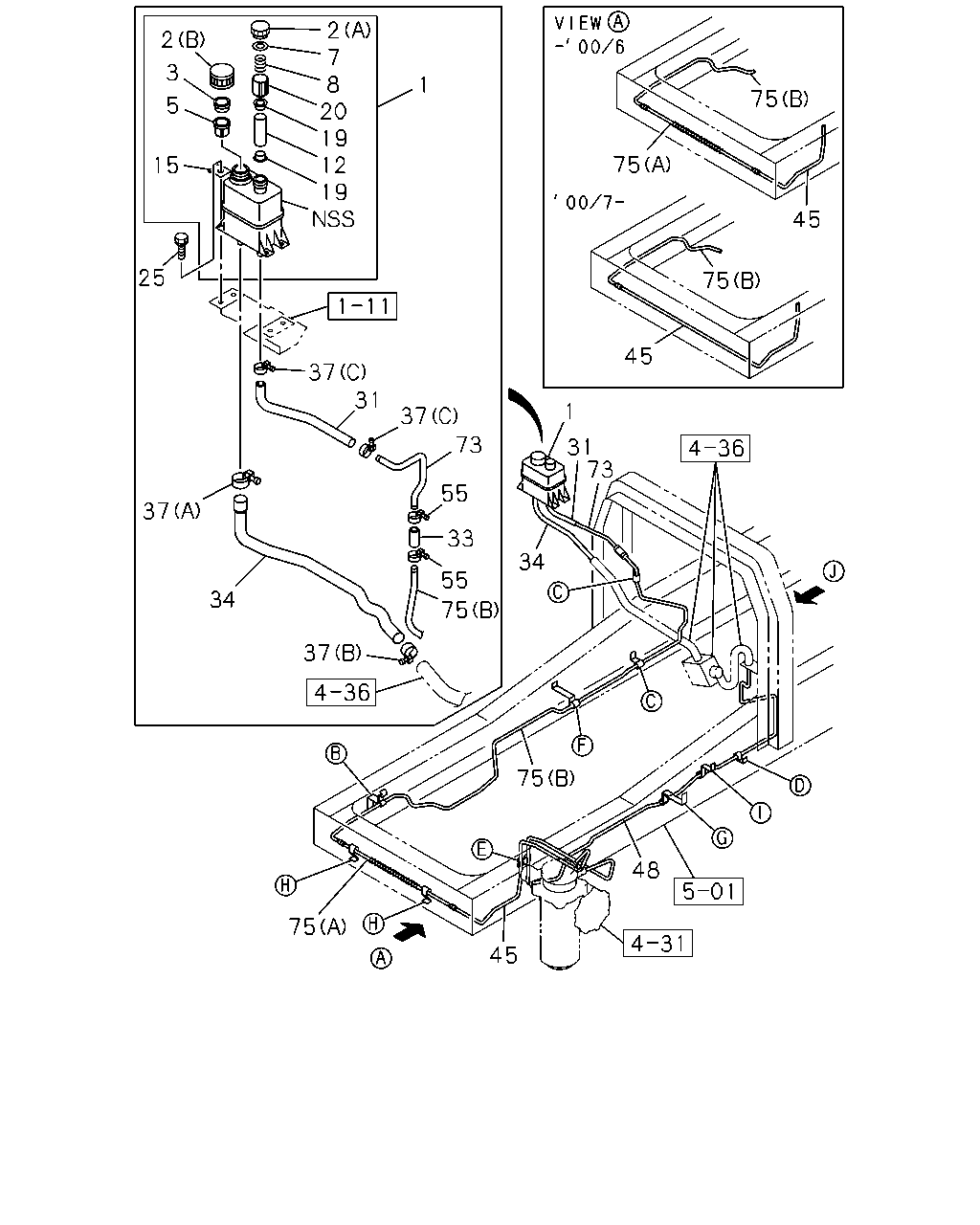

2 7 8 20 19 12 19 2 3 1 75 5 75 15 45 25 75 45 37 31 1 37 73 31 73 55 37 33 34 55 34 75 37 75 48 75 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9908-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	9908-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	9908-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	9908-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	9908-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	9908-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	9908-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9908-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9908-
19	SEAT; OIL TANK	1-21262-001-0	02	1	9908-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	9908-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	9908-
31	HOSE; P/S OIL TANK,INL	1-21114-262-0	01	1	9908-
33	HOSE; RUBBER,POWER STRG L=80	1-09360-570-0	01	1	9908-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-254-1	01	1	9908-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	01	1	9908-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	01	1	9908-
37	CLIP; HOSE,P/S (C) ID=28	9-09915-672-1	02	1	9908-
45	PIPE; OIL,P/S UNIT TO UNION	1-21115-570-0	01	1	9908-0006
45	PIPE; OIL,P/S UNIT TO UNION	1-21116-847-0	01	1	0007-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21115-753-0	01	1	9908-
55	CLIP; P/S RUBBER HOSE ID=28	9-09915-672-1	02	1	9908-
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE	1-21115-014-1	01	1	9908-
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21115-450-0	01	1	9908-0006
75	PIPE; OIL,P/S,UNION TO UNION (B)	1-21115-533-0	01	1	9908-0109
75	PIPE; OIL,P/S,UNION TO UNION (B)	1-21117-152-0	01	1	0110-

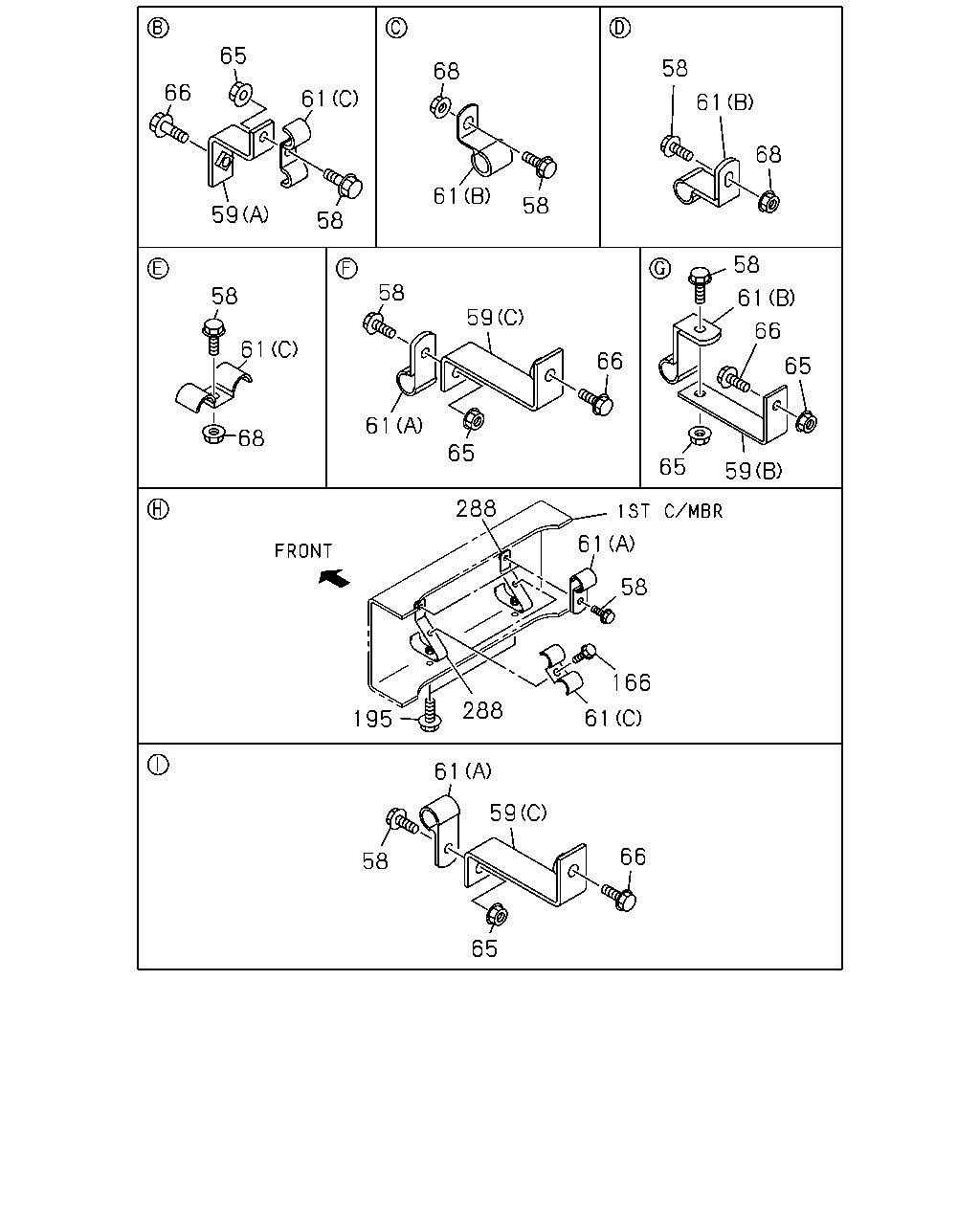

65 58 68 66 61 61 68 61 58 59 58 58 58 58 61 59 66 61 66 65 61 68 65 65 59 288 61 58 166 195 288 61 61 59 66 58 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	9908-
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	07	1	9908-0103
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	05	1	0104-
58	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	9908-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0104-
59	BRACKET; CLIP,OIL PIPE (B)	1-34656-009-0	01	1	9908-
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-881-0	01	1	9908-
59	BRACKET; CLIP,OIL PIPE (C) L=90	1-82699-856-0	02	1	9908-
61	CLIP; OIL PIPE (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9908-
61	CLIP; OIL PIPE (B) ID=15 H=24 L=20	1-09700-606-0	03	1	9908-
61	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9908-
61	CLIP; OIL PIPE (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	9908-
61	CLIP; OIL PIPE (A) ID=13 L=20	9-09525-235-0	01	1	9908-
61	CLIP; OIL PIPE (A) ID=16 L=20	9-09525-535-0	03	1	9908-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	08	1	9908-
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	9908-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9908-
166	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9908-
195	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9908-
288	BRACKET; CLIP,P/S	1-47477-621-1	02	1	9908-

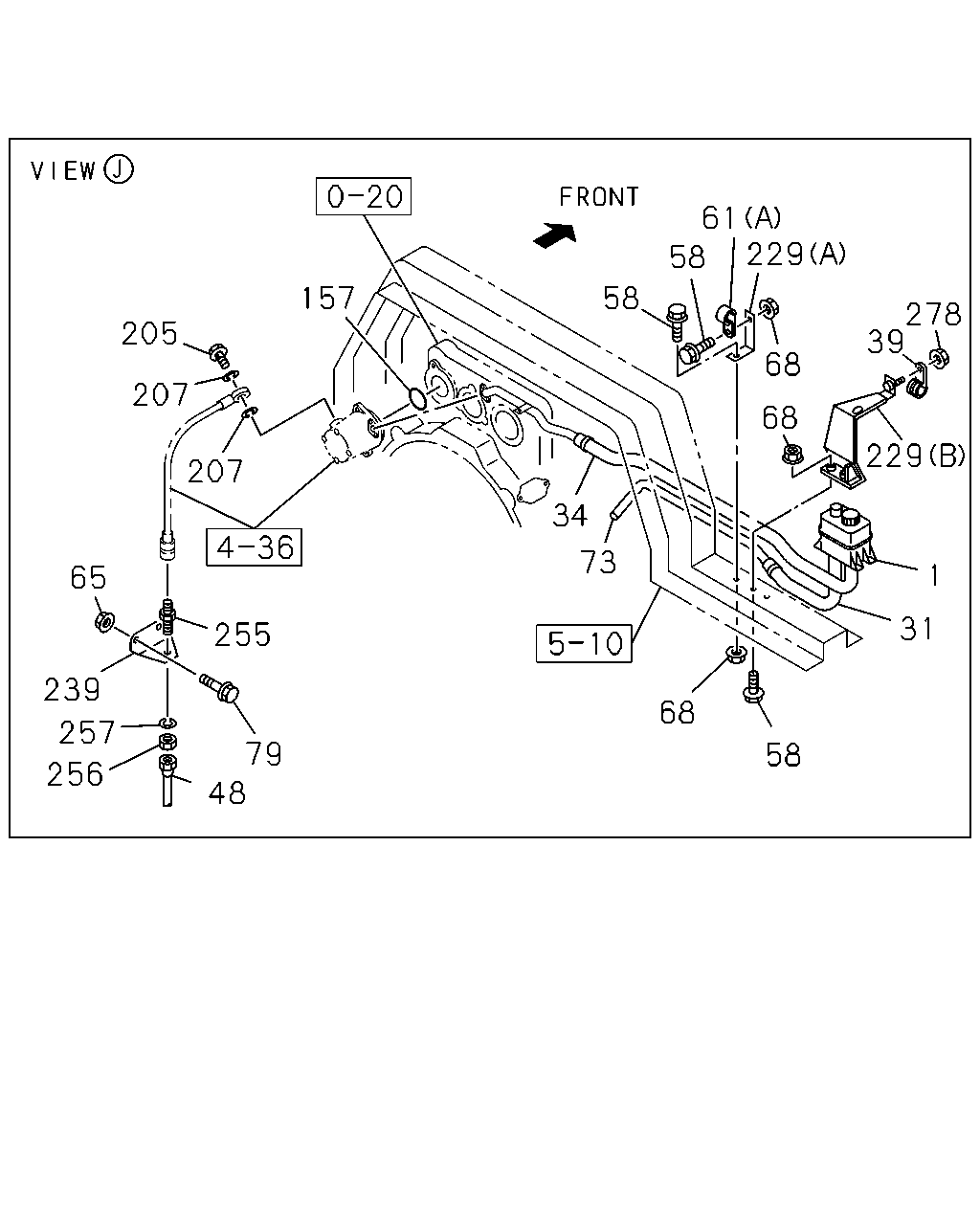

61 229 58 157 58 278 39 205 68 207 68 207 229 34 73 1 65 31 255 239 68 257 79 58 256 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9908-
31	HOSE; P/S OIL TANK,INL	1-21114-262-0	01	1	9908-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-254-1	01	1	9908-
39	CLIP; FLEX HOSE ID=31 L=35	1-09700-329-1	01	1	9908-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21115-753-0	01	1	9908-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	9908-
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	07	1	9908-0103
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	05	1	0104-
58	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	9908-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0104-
61	CLIP; OIL PIPE (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9908-
61	CLIP; OIL PIPE (B) ID=15 H=24 L=20	1-09700-606-0	03	1	9908-
61	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9908-
61	CLIP; OIL PIPE (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	9908-
61	CLIP; OIL PIPE (A) ID=13 L=20	9-09525-235-0	01	1	9908-
61	CLIP; OIL PIPE (A) ID=16 L=20	9-09525-535-0	03	1	9908-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	08	1	9908-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9908-
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE	1-21115-014-1	01	1	9908-
79	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9908-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	9908-
205	BOLT; EYE,FLEX HOSE,P/S M18X40	1-09675-153-0	01	1	9908-
207	GASKET; FLEX HOSE,P/S PUMP ID=18.2 OD=24.4	1-09630-087-0	02	1	9908-
229	BRACKET; HOSE,POWER STRG (B)	1-21464-480-0	01	1	9908-
229	BRACKET; HOSE,POWER STRG (A)	1-21464-481-0	01	1	9908-
239	BRACKET; FLEX HOSE	1-47477-336-0	01	1	9908-
255	UNION; FLEX HOSE M20 & M22 STRAIGHT	1-09654-167-1	01	1	9908-
256	NUT; UNION M22	9-09111-422-0	01	1	9908-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9908-
278	NUT; HOSE CLIP M8 FLANGE	0-91150-108-0	01	1	9908-
