◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11292 - EXR RHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#70119) — 173 parça

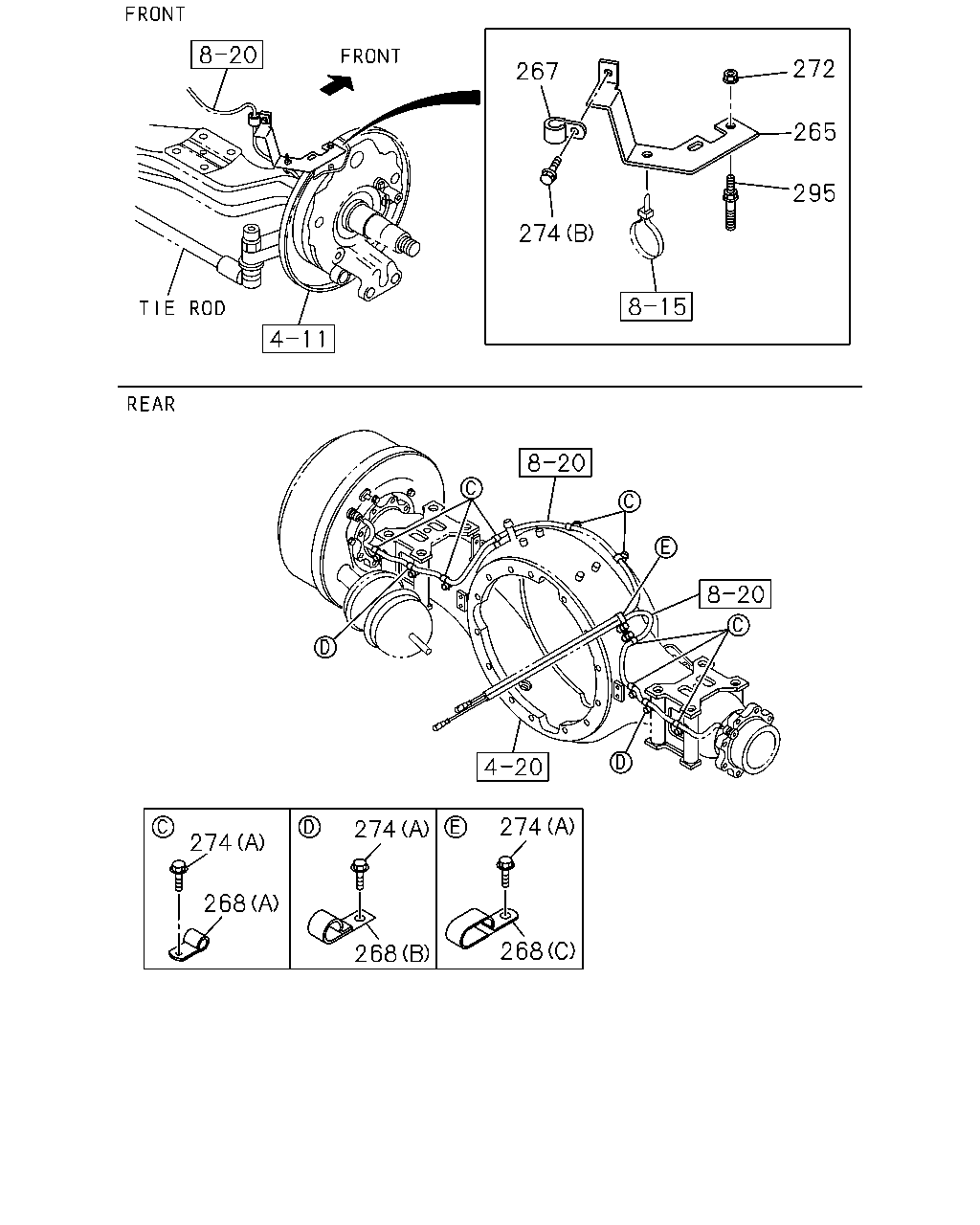

çizim 122872
267 274 295 265 272 274 274 274 268 268 268
BalonParca AdiParca NoAdetTipApplied Date
265 BRACKET; CLIP I BEAM 1-82698-505-0 01 1 1009-1411
265 BRACKET; CLIP I BEAM 1-82698-505-0 01 1 1412-
265 BRACKET; CLIP I BEAM 1-82698-506-0 01 1 1009-1411
265 BRACKET; CLIP I BEAM 1-82698-506-0 01 1 1412-
267 CLIP; HARNESS
ID=11 L=20 		0-95235-035-0 02 1 1009-
268 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 08 1 1009-
268 CLIP; HARNESS
(C) ID=11X2 L=20 		0-95325-035-0 01 1 1009-
268 CLIP; HARNESS
(B) ID=11 L=30 		1-09700-511-0 02 1 1009-
272 NUT; CLIP
M10 FLANGE 		0-91180-110-0 04 1 1009-
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 11 1 1009-
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1009-
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1009-

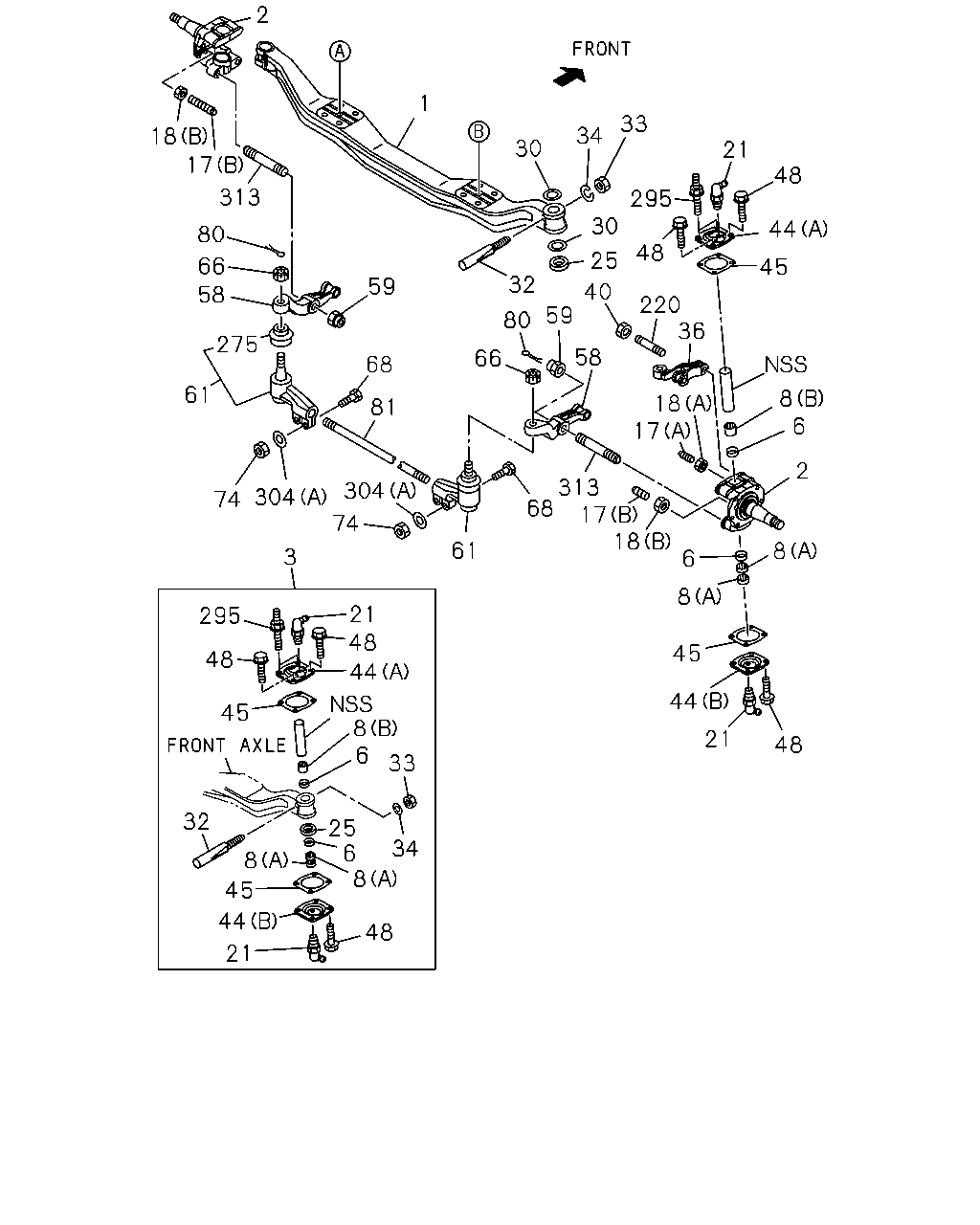

çizim 188609
2 18 17 313 80 66 58 275 61 74 304 3 74 304 61 68 81 68 59 1 30 34 33 66 80 32 59 58 40 25 30 295 48 220 36 18 17 21 48 44 45 8 6 2 8 48 21 44 45 8 6 18 17 313 295 48 21 48 44 8 6 33 34 25 6 8 48 21 44 45 8 32 45
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT
FRONT AXLE F066(FAU) 		1-43111-177-4 01 1 1009-1302
1 AXLE; FRT
FRONT AXLE F075(FH5) 		1-43111-178-3 01 1 1009-1302
1 AXLE; FRT 1-43111-178-3 01 1 1303-
2 KNUCKLE; FRT AXLE 1-43131-118-1 01 1 1009-1411
2 KNUCKLE; FRT AXLE 1-43131-118-1 01 1 1412-
2 KNUCKLE; FRT AXLE 1-43132-101-1 01 1 1009-1411
2 KNUCKLE; FRT AXLE 1-43132-101-1 01 1 1412-
3 KING PIN SET 1-87831-349-2 02 1 1009-
6 SEAL; KING PIN 9-09926-024-0 04 1 1009-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1009-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1009-
17 BOLT; STOPPER KNUCKLE
(A) M18X53 		1-09009-066-0 01 1 1009-
17 BOLT; STOPPER KNUCKLE
(B) M18X43 		1-09009-190-0 02 1 1009-
18 NUT; STOPPER BOLT,KNUCKLE
(B) M18 		0-91110-518-0 02 1 1009-
18 NUT; STOPPER BOLT,KNUCKLE
(A) OCTAGON M18 		1-09469-011-1 01 1 1009-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1009-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1009-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 1009-
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 1009-
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1009-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1009-
36 ARM; KNUCKLE 1-43133-083-3 01 1 1009-
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1009-
44 COVER; KING PIN
(A) 		8-98100-654-0 02 1 1009-
44 COVER; KING PIN
(B) 		8-98100-655-0 02 1 1009-
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 1009-
48 BOLT; COVER
M10X25 FLANGE 		0-28751-025-0 12 1 1009-
58 ARM; TIE ROD 1-43134-049-4 01 1 1009-1411
58 ARM; TIE ROD 1-43134-049-4 01 1 1412-
58 ARM; TIE ROD 1-43135-049-4 01 1 1009-1411
58 ARM; TIE ROD 1-43135-049-4 01 1 1412-
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1009-
61 ROD END; TIE ROD 8-98054-851-0 01 1 1009-1009
61 ROD END; TIE ROD 8-98096-753-0 01 1 1010-1306
61 ROD END; TIE ROD 8-98228-106-0 01 1 1307-1411
61 ROD END; TIE ROD 8-98228-106-0 01 1 1412-
61 ROD END; TIE ROD 8-98054-853-0 01 1 1009-1009
61 ROD END; TIE ROD 8-98096-754-0 01 1 1010-1306
61 ROD END; TIE ROD 8-98228-107-0 01 1 1307-1411
61 ROD END; TIE ROD 8-98228-107-0 01 1 1412-
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1009-
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1009-
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1009-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1009-
81 ROD; TIE 1-43151-154-0 01 1 1009-1009
81 ROD; TIE 8-98105-064-0 01 1 1010-
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 1009-
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 1009-1009
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1010-1306
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307-
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1009-
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1009-
304 WASHER; PL
(B) ID=21 		0-91614-520-0 02 1 1009-
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 1009-

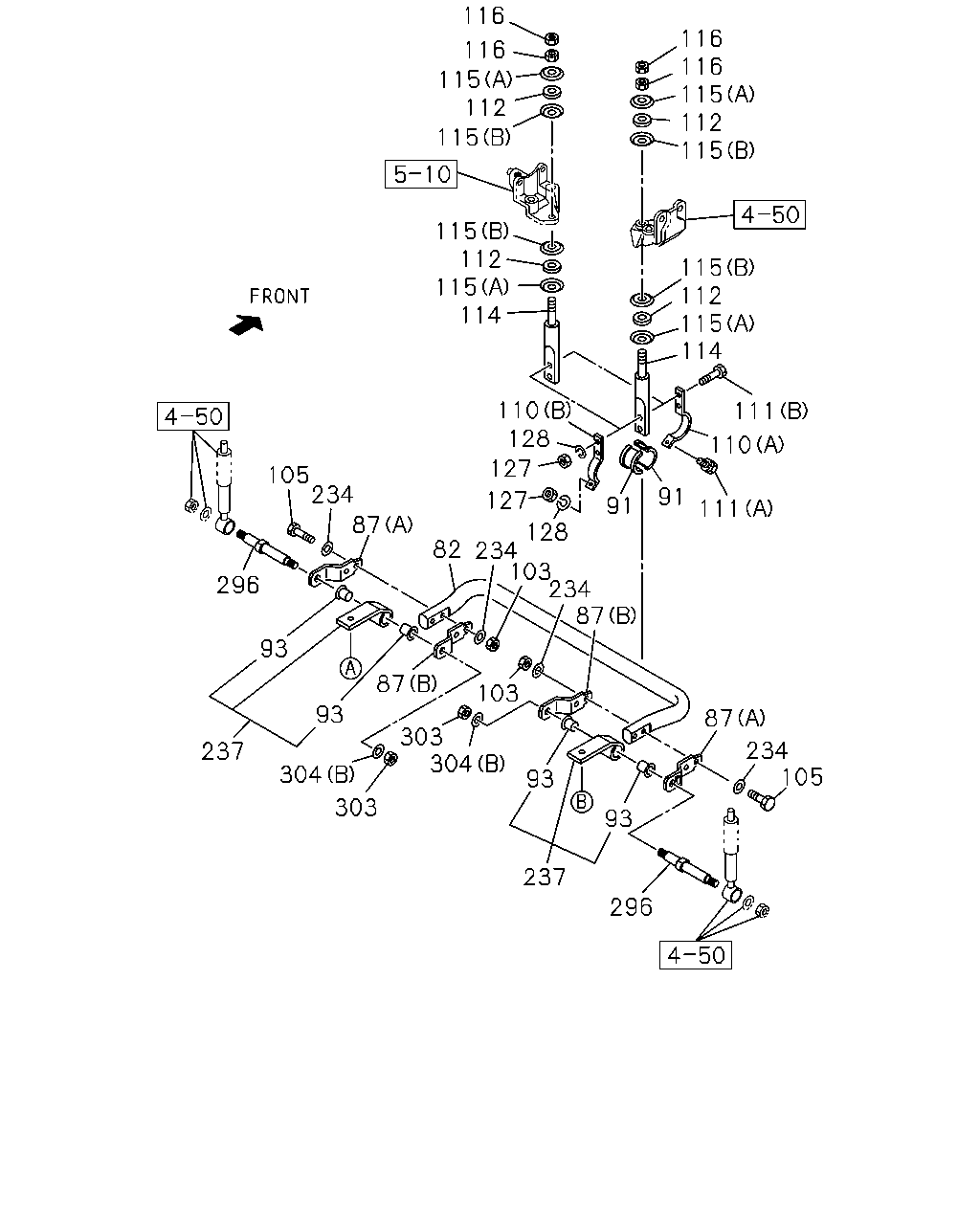

çizim 188611
116 116 115 112 115 116 116 115 112 115 115 112 115 114 115 112 115 114 111 110 111 91 110 128 127 127 128 234 103 234 87 82 87 234 105 296 93 87 93 237 304 303 303 304 103 87 234 105 296 93 93 237 91
BalonParca AdiParca NoAdetTipApplied Date
82 BAR; STAB,FRT SUSP 1-51771-136-1 01 1 1009-
87 BRACKET; STABILIZER
(A) 		8-98012-958-0 02 1 1009-
87 BRACKET; STABILIZER
(B) 		8-98012-959-0 02 1 1009-
91 BUSHING; RUBBER,STAB BAR 1-51779-087-1 04 1 1009-
93 BUSHING; STABILIZER 1-51689-015-3 04 1 1009-
103 NUT; BRKT FIX
M14 		0-91110-514-0 04 1 1009-
105 BOLT; BRKT FIX
M14X70 		0-10956-470-0 04 1 1009-
110 CLAMP; STAB TO ROD
(A) 		1-51789-027-2 02 1 1009-
110 CLAMP; STAB TO ROD
(B) 		1-51789-028-1 02 1 1009-
111 BOLT; CLAMP TO ROD
(A) M12X30 		0-20851-230-0 02 1 1009-
111 BOLT; CLAMP TO ROD
(B) M12X50 		0-20851-250-0 04 1 1009-
112 BUSHING; ROD 9-51631-039-0 04 1 1009-
114 ROD; STAB BAR 1-51773-072-2 02 1 1009-
115 WASHER; CENTER,STAB TO FRAME
(A) ID=16.5 		9-51631-040-0 04 1 1009-
115 WASHER; CENTER,STAB TO FRAME
(B) ID=20.8 		9-51631-041-0 04 1 1009-
116 NUT; LK,STAB TO FRAME
M14 		0-91111-514-0 04 1 1009-
127 NUT; CLAMP
M12 		0-91110-512-0 06 1 1009-
128 WASHER; LK,CLAMP
ID=12.2 		0-91510-812-0 06 1 1009-
234 WASHER; STAB
ID=15 		8-98010-627-1 08 1 1009-
237 SUPPORT; STAB BAR 1-51681-662-0 02 1 1009-
296 PIN; STAB 8-98022-874-1 02 1 1009-
303 NUT; PIN
M20 		0-91110-520-0 02 1 1009-
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1009-
304 WASHER; PL
(B) ID=21 		0-91614-520-0 02 1 1009-

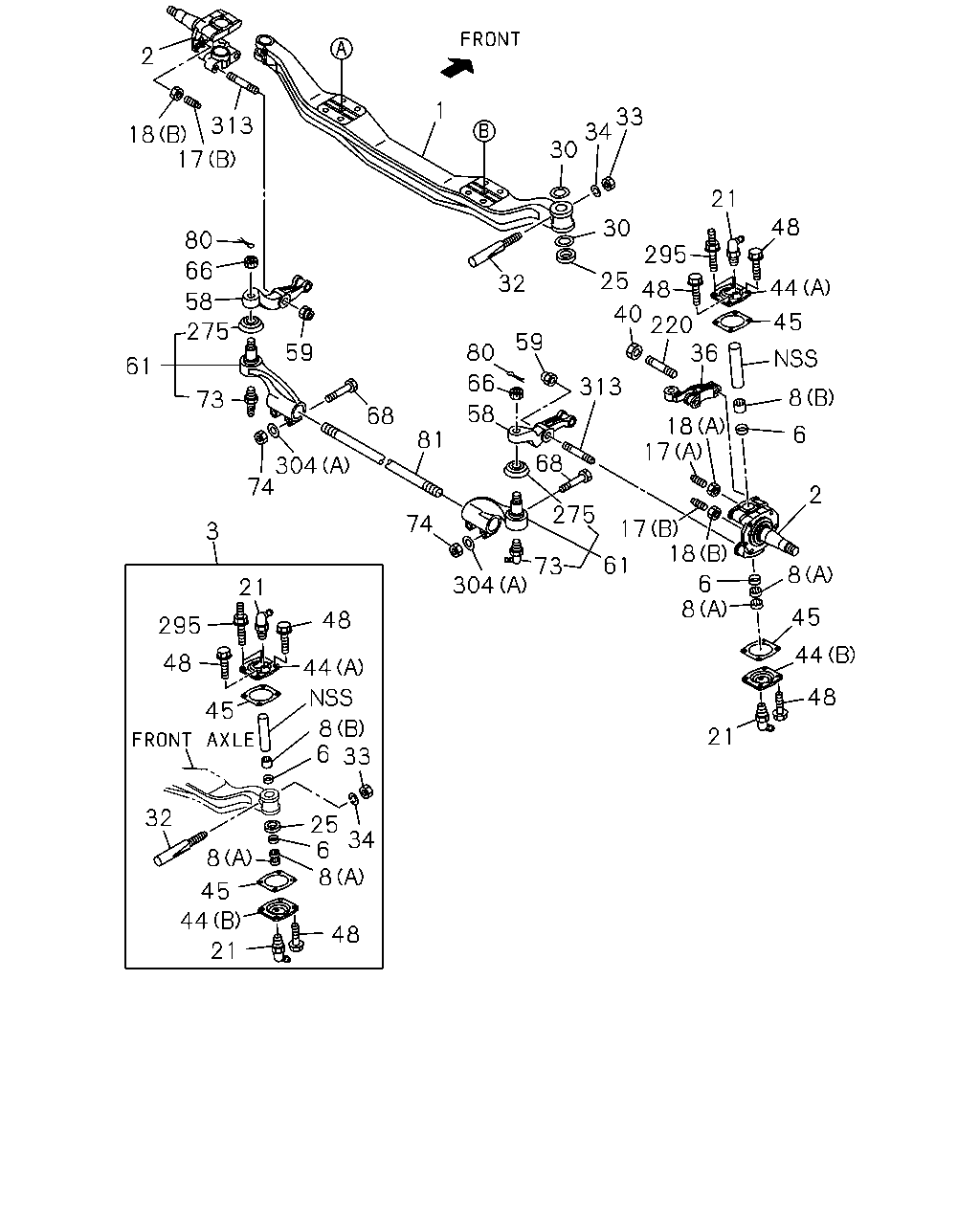

çizim 188612
2 313 18 17 80 66 58 275 61 59 73 3 74 304 68 81 74 1 30 34 33 58 66 80 59 32 30 25 48 40 220 295 21 48 44 45 36 8 6 2 18 17 313 68 275 17 61 18 6 8 8 45 44 48 21 304 21 48 44 8 6 33 45 48 295 32 8 45 44 21 48 8 6 34 25 73
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT
FRONT AXLE F066(FAU) 		1-43111-177-4 01 1 1009-1302
1 AXLE; FRT
FRONT AXLE F075(FH5) 		1-43111-178-3 01 1 1009-1302
1 AXLE; FRT 1-43111-178-3 01 1 1303-
2 KNUCKLE; FRT AXLE 1-43131-118-1 01 1 1009-1411
2 KNUCKLE; FRT AXLE 1-43131-118-1 01 1 1412-
2 KNUCKLE; FRT AXLE 1-43132-101-1 01 1 1009-1411
2 KNUCKLE; FRT AXLE 1-43132-101-1 01 1 1412-
3 KING PIN SET 1-87831-349-2 02 1 1009-
6 SEAL; KING PIN 9-09926-024-0 04 1 1009-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1009-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1009-
17 BOLT; STOPPER KNUCKLE
(A) M18X53 		1-09009-066-0 01 1 1009-
17 BOLT; STOPPER KNUCKLE
(B) M18X43 		1-09009-190-0 02 1 1009-
18 NUT; STOPPER BOLT,KNUCKLE
(B) M18 		0-91110-518-0 02 1 1009-
18 NUT; STOPPER BOLT,KNUCKLE
(A) OCTAGON M18 		1-09469-011-1 01 1 1009-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1009-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1009-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 1009-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 1009-
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 1009-
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1009-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1009-
36 ARM; KNUCKLE 1-43133-083-3 01 1 1009-
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1009-
44 COVER; KING PIN
(A) 		8-98100-654-0 02 1 1009-
44 COVER; KING PIN
(B) 		8-98100-655-0 02 1 1009-
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 1009-
48 BOLT; COVER
M10X25 FLANGE 		0-28751-025-0 12 1 1009-
58 ARM; TIE ROD 1-43134-049-4 01 1 1009-1411
58 ARM; TIE ROD 1-43134-049-4 01 1 1412-
58 ARM; TIE ROD 1-43135-049-4 01 1 1009-1411
58 ARM; TIE ROD 1-43135-049-4 01 1 1412-
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1009-
61 ROD END; TIE ROD 8-98054-851-0 01 1 1009-1009
61 ROD END; TIE ROD 8-98096-753-0 01 1 1010-1306
61 ROD END; TIE ROD 8-98228-106-0 01 1 1307-1411
61 ROD END; TIE ROD 8-98228-106-0 01 1 1412-
61 ROD END; TIE ROD 8-98054-853-0 01 1 1009-1009
61 ROD END; TIE ROD 8-98096-754-0 01 1 1010-1306
61 ROD END; TIE ROD 8-98228-107-0 01 1 1307-1411
61 ROD END; TIE ROD 8-98228-107-0 01 1 1412-
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1009-
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1009-
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1010-
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1009-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1009-
81 ROD; TIE 1-43151-154-0 01 1 1009-1009
81 ROD; TIE 8-98105-064-0 01 1 1010-
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 1009-
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 1009-1009
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1010-1306
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307-
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1009-
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1009-
304 WASHER; PL
(B) ID=21 		0-91614-520-0 02 1 1009-
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 1009-
