Sayfa 3-80 - Isuzu EPC

3-80 — BRAKE PIPING; TRAILER (#70116) — 77 parça

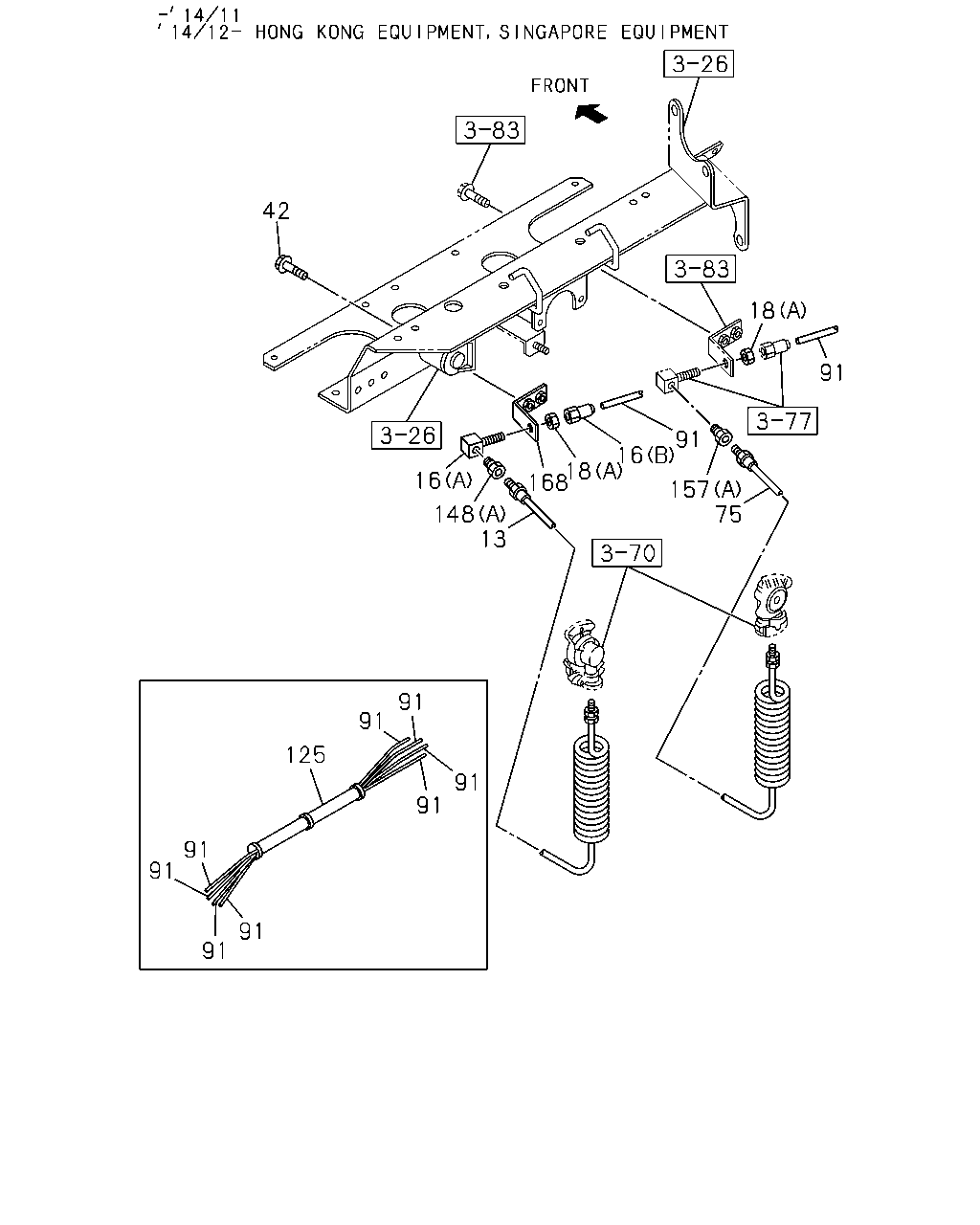

42 16 148 13 168 18 16 91 157 75 91 18 91 91 91 91 125 91 91 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	HOSE; FLEX,TRAILER SERVICE	1-49212-518-0	01	1	1009-
16	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (D)	1-09650-222-1	01	1	1412-1412
16	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	1-09650-222-1	01	1	1412-
16	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1412-1412
16	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1412-
16	UNION; AIR PIPE (A)	1-09650-003-1	01	1	1009-1411
16	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A)	1-09650-003-1	01	1	1412-1412
16	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-09650-003-1	01	1	1412-
16	UNION; AIR PIPE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1009-1411
16	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1412-1412
16	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1412-
18	NUT; UNION EXC. HONG KONG EQUIPMENT(PQ1) (B) M16	0-91111-516-0	02	1	1412-1412
18	NUT; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M16	0-91111-516-0	02	1	1412-
18	NUT; UNION (A) M20	0-91111-520-0	02	1	1009-1411
18	NUT; UNION HONG KONG EQUIPMENT(PQ1) (A) M20	0-91111-520-0	02	1	1412-1412
18	NUT; UNION HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M20	0-91111-520-0	02	1	1412-
42	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1009-1411
42	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE	0-28650-825-0	02	1	1412-1412
42	BOLT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X25 FLANGE	0-28650-825-0	02	1	1412-
75	HOSE; FLEX,TRAILER EMERGENCY	1-49212-518-0	01	1	1009-
91	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1009-
91	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-
91	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-
125	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1009-
125	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1009-
125	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1009-
125	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1412-
148	ADAPTER; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1) (B) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1412-1412
148	ADAPTER; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1412-
148	ADAPTER; NYLON TUBE (A)	1-09660-078-0	01	1	1009-
157	ADAPTER EXC. HONG KONG EQUIPMENT(PQ1) (B) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1412-1412
157	ADAPTER EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1412-
157	ADAPTER (A)	1-09660-078-0	01	1	1009-
168	BRACKET; UNION	1-47478-483-0	01	1	1009-1411
168	BRACKET; UNION HONG KONG EQUIPMENT(PQ1)	1-47478-483-0	01	1	1412-1412
168	BRACKET; UNION HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-47478-483-0	01	1	1412-

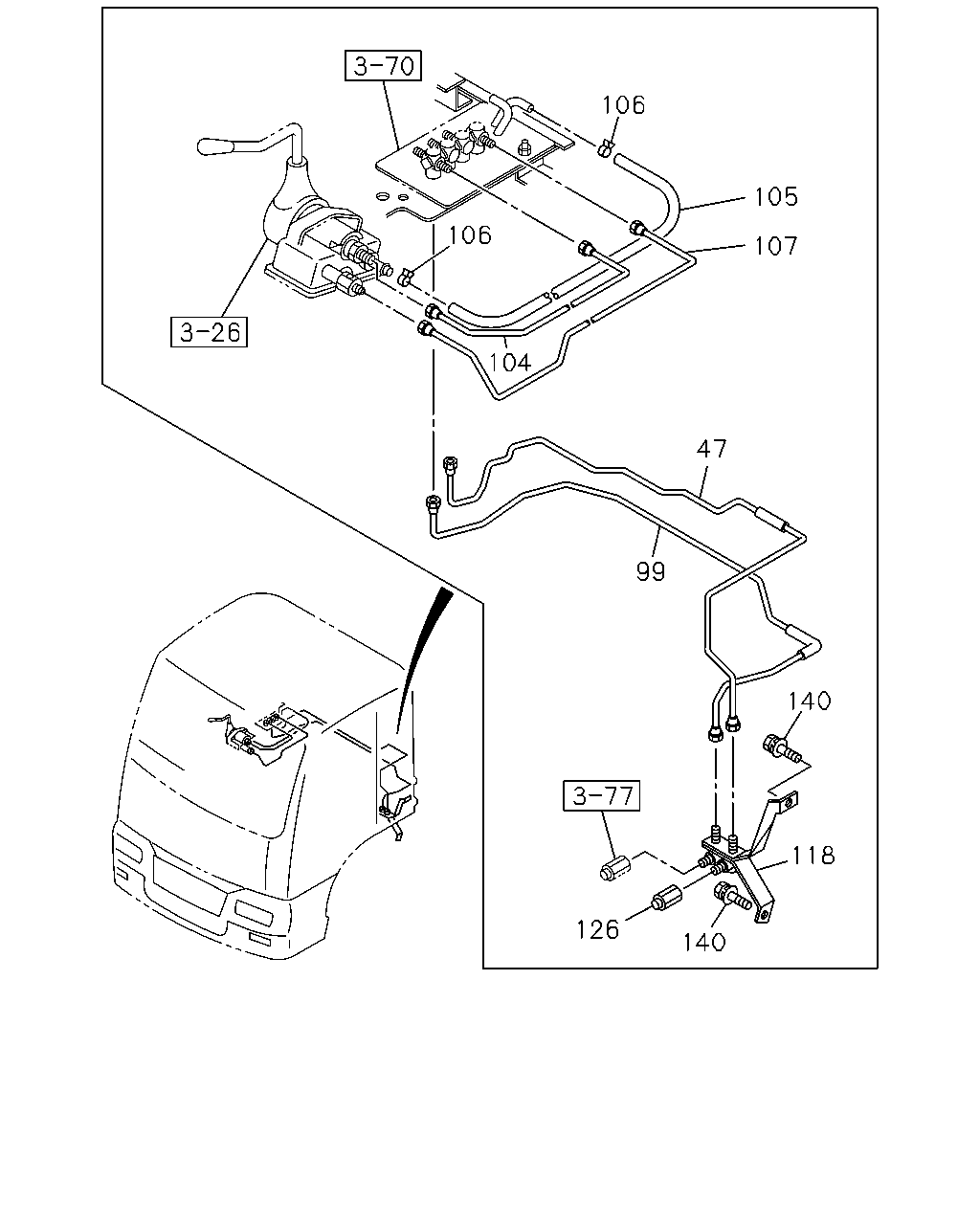

47 99 140 118 140 126 104 106 106 105 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	PIPE; AIR,UNION TO UNION L=1910 SERVICED BY L=1950	1-47428-854-0	01	1	1009-
99	PIPE; AIR,JOINT TO JOINT	1-49122-057-1	01	1	1009-
104	PIPE; AIR,JOINT TO PARKING BRK VLV	1-49121-477-0	01	1	1009-
105	PIPE; VINYL,EXH,PARKING BRK VLV L=400 SERVICED BY L=10000	9-09914-701-0	01	1	1009-
106	CLIP; PIPE ID=14	8-94238-572-0	02	1	1009-
107	PIPE; AIR,JOINT TO PARKING BRK VLV	1-47495-160-0	01	1	1009-
118	JOINT; AIR PIPE	1-47470-608-1	01	1	1009-
126	CONNECTOR; NYLON TUBE DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1009-
140	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1009-

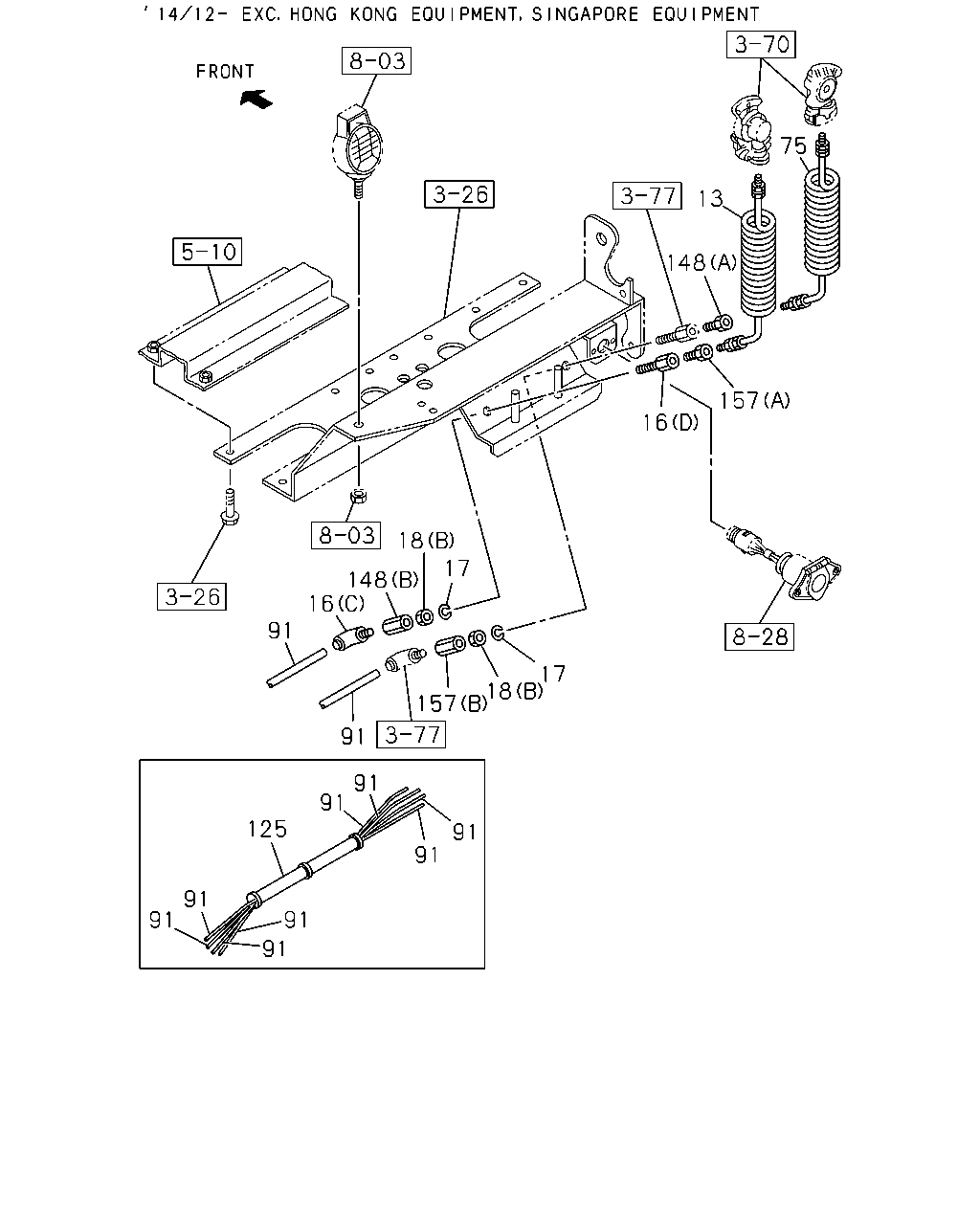

75 157 16 148 13 17 18 17 18 157 91 91 91 91 125 91 91 91 91 91 148 16 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	HOSE; FLEX,TRAILER SERVICE	1-49212-518-0	01	1	1009-
16	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (D)	1-09650-222-1	01	1	1412-1412
16	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	1-09650-222-1	01	1	1412-
16	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1412-1412
16	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1412-
16	UNION; AIR PIPE (A)	1-09650-003-1	01	1	1009-1411
16	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A)	1-09650-003-1	01	1	1412-1412
16	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-09650-003-1	01	1	1412-
16	UNION; AIR PIPE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1009-1411
16	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1412-1412
16	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1412-
17	WASHER; LK,UNION EXC. HONG KONG EQUIPMENT(PQ1) ID=16.2	0-91510-516-0	02	1	1412-1412
17	WASHER; LK,UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=16.2	0-91510-516-0	02	1	1412-
18	NUT; UNION EXC. HONG KONG EQUIPMENT(PQ1) (B) M16	0-91111-516-0	02	1	1412-1412
18	NUT; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M16	0-91111-516-0	02	1	1412-
18	NUT; UNION (A) M20	0-91111-520-0	02	1	1009-1411
18	NUT; UNION HONG KONG EQUIPMENT(PQ1) (A) M20	0-91111-520-0	02	1	1412-1412
18	NUT; UNION HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M20	0-91111-520-0	02	1	1412-
75	HOSE; FLEX,TRAILER EMERGENCY	1-49212-518-0	01	1	1009-
91	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1009-
91	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-
91	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-
125	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1009-
125	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1009-
125	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1009-
125	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1412-
148	ADAPTER; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1) (B) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1412-1412
148	ADAPTER; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1412-
148	ADAPTER; NYLON TUBE (A)	1-09660-078-0	01	1	1009-
157	ADAPTER EXC. HONG KONG EQUIPMENT(PQ1) (B) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1412-1412
157	ADAPTER EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1412-
157	ADAPTER (A)	1-09660-078-0	01	1	1009-
