◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11292 - EXR RHD EURO5 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#70115) — 292 parça

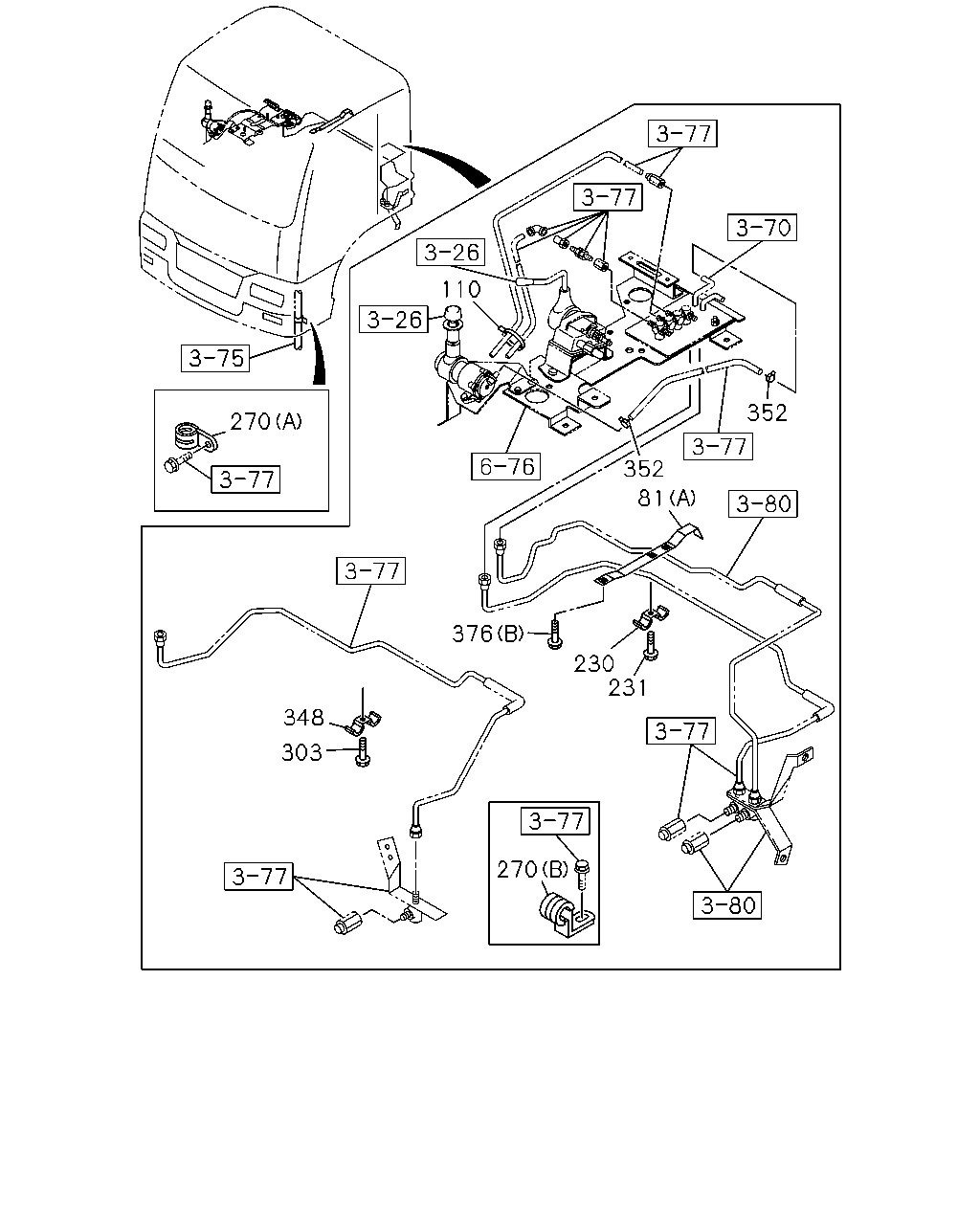

çizim 121784
270 110 81 352 376 230 231 270 303 348 352
BalonParca AdiParca NoAdetTipApplied Date
81 BRACKET; CLIP
EXC. HONG KONG EQUIPMENT(PQ1) (F) L=100 H=30 		1-47477-645-2 02 1 1412-1412
81 BRACKET; CLIP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (F) L=100 H=30 		1-47477-645-2 02 1 1412-
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 1009-
81 BRACKET; CLIP
(B) 		1-47471-274-0 01 1 1009-1302
81 BRACKET; CLIP
(B) 		8-98061-758-0 02 1 1303-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 1009-
81 BRACKET; CLIP
(F) L=100 H=30 		1-47477-645-2 02 1 1009-1302
81 BRACKET; CLIP
(F) L=100 H=30 		1-47477-645-2 01 1 1303-1411
81 BRACKET; CLIP
HONG KONG EQUIPMENT(PQ1) (F) L=100 H=30 		1-47477-645-2 01 1 1412-1412
81 BRACKET; CLIP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (F) L=100 H=30 		1-47477-645-2 01 1 1412-
81 BRACKET; CLIP
(C) 		1-47479-381-2 02 1 1009-1302
81 BRACKET; CLIP
(C) 		1-47479-381-2 01 1 1303-1411
81 BRACKET; CLIP
HONG KONG EQUIPMENT(PQ1) (C) 		1-47479-381-2 01 1 1412-1412
81 BRACKET; CLIP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) 		1-47479-381-2 01 1 1412-
81 BRACKET; CLIP
(D) 		8-98052-412-0 01 1 1009-
81 BRACKET; CLIP
(H) 		8-98052-413-0 01 1 1009-
81 BRACKET; CLIP
(I) 		8-98052-414-0 01 1 1009-
81 BRACKET; CLIP
(G) 		8-98052-415-0 01 1 1009-
110 CLIP; BAND,NYLON TUBE
L=140 		5-09707-031-1 02 1 1009-
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 1009-
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1009-
270 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 01 1 1303-
270 CLIP; NYLON TUBE
(B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1009-
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 1009-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1009-
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 02 1 1009-
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 1009-
376 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1009-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1009-
376 BOLT; BRKT
HONG KONG EQUIPMENT(PQ1) (C) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1302
376 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1303-

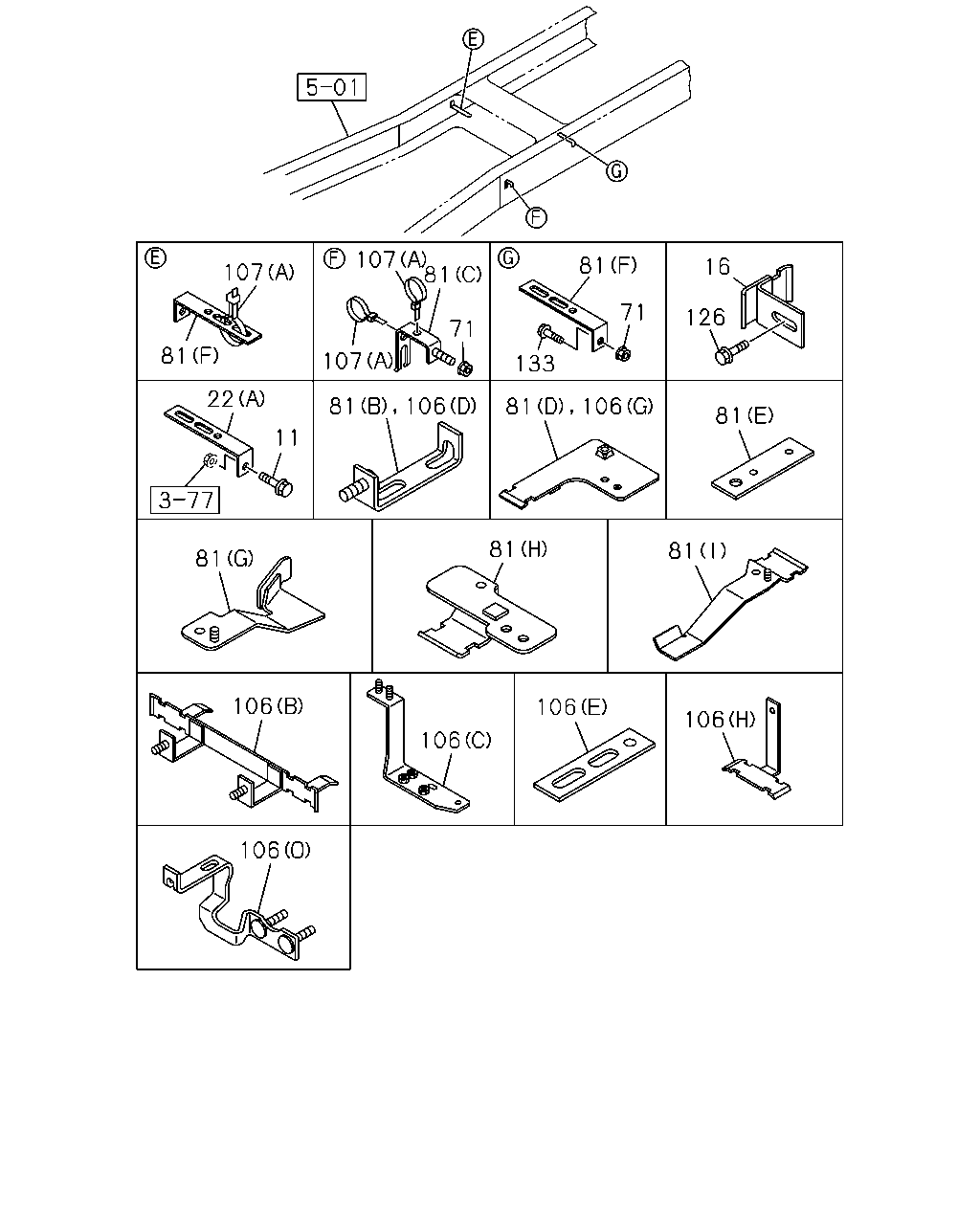

çizim 122507
107 81 11 22 81 107 71 107 81 133 81 16 126 71 81 106 81 106 81 81 81 106 106 106 106 106
BalonParca AdiParca NoAdetTipApplied Date
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1009-1302
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1303-
16 BRACKET; PIPE CLIP 1-47479-693-0 02 1 1009-
22 BRACKET; CLIP
(B) L=50 		1-47475-299-2 01 1 1303-
22 BRACKET; CLIP
(A) L=100 H=30 		1-47477-645-2 02 1 1009-1302
22 BRACKET; CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 1303-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 07 1 1009-1302
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1303-
81 BRACKET; CLIP
EXC. HONG KONG EQUIPMENT(PQ1) (F) L=100 H=30 		1-47477-645-2 02 1 1412-1412
81 BRACKET; CLIP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (F) L=100 H=30 		1-47477-645-2 02 1 1412-
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 1009-
81 BRACKET; CLIP
(B) 		1-47471-274-0 01 1 1009-1302
81 BRACKET; CLIP
(B) 		8-98061-758-0 02 1 1303-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 1009-
81 BRACKET; CLIP
(F) L=100 H=30 		1-47477-645-2 02 1 1009-1302
81 BRACKET; CLIP
(F) L=100 H=30 		1-47477-645-2 01 1 1303-1411
81 BRACKET; CLIP
HONG KONG EQUIPMENT(PQ1) (F) L=100 H=30 		1-47477-645-2 01 1 1412-1412
81 BRACKET; CLIP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (F) L=100 H=30 		1-47477-645-2 01 1 1412-
81 BRACKET; CLIP
(C) 		1-47479-381-2 02 1 1009-1302
81 BRACKET; CLIP
(C) 		1-47479-381-2 01 1 1303-1411
81 BRACKET; CLIP
HONG KONG EQUIPMENT(PQ1) (C) 		1-47479-381-2 01 1 1412-1412
81 BRACKET; CLIP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) 		1-47479-381-2 01 1 1412-
81 BRACKET; CLIP
(D) 		8-98052-412-0 01 1 1009-
81 BRACKET; CLIP
(H) 		8-98052-413-0 01 1 1009-
81 BRACKET; CLIP
(I) 		8-98052-414-0 01 1 1009-
81 BRACKET; CLIP
(G) 		8-98052-415-0 01 1 1009-
106 BRACKET; TUBE CLIP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (O) 		8-98302-600-0 01 1 1505-
106 BRACKET; TUBE CLIP
EXC. HONG KONG EQUIPMENT(PQ1) (M) 		8-98251-771-0 01 1 1412-1412
106 BRACKET; TUBE CLIP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (M) 		8-98251-771-0 01 1 1412-
106 BRACKET; TUBE CLIP
EXC. HONG KONG EQUIPMENT(PQ1) (N) L=82 B=20 		8-98259-390-0 01 1 1412-1412
106 BRACKET; TUBE CLIP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (N) L=82 B=20 		8-98259-390-0 01 1 1412-
106 BRACKET; TUBE CLIP
(C) 		1-47471-108-0 01 1 1009-
106 BRACKET; TUBE CLIP
(D) 		1-47471-274-0 01 1 1009-1302
106 BRACKET; TUBE CLIP
(D) 		8-98061-758-0 01 1 1303-1504
106 BRACKET; TUBE CLIP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) 		8-98061-758-0 01 1 1505-
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 1009-1302
106 BRACKET; TUBE CLIP
(K) 		8-97615-493-0 01 1 1009-1302
106 BRACKET; TUBE CLIP
(K) 		8-98226-741-1 01 1 1303-1312
106 BRACKET; TUBE CLIP
(L) 		8-98251-770-0 01 1 1401-1411
106 BRACKET; TUBE CLIP
HONG KONG EQUIPMENT(PQ1) (L) 		8-98251-770-0 01 1 1412-1412
106 BRACKET; TUBE CLIP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (L) 		8-98251-770-0 01 1 1412-
106 BRACKET; TUBE CLIP
(F) 		1-47479-381-2 02 1 1009-
106 BRACKET; TUBE CLIP
(B) 		1-47479-553-0 01 1 1009-
106 BRACKET; TUBE CLIP
(A) 		1-47479-870-0 01 1 1009-
106 BRACKET; TUBE CLIP
(G) 		8-98052-408-0 01 1 1009-1412
106 BRACKET; TUBE CLIP
(G) 		8-98297-188-0 01 1 1501-
106 BRACKET; TUBE CLIP
(H) 		8-98052-409-0 01 1 1009-
106 BRACKET; TUBE CLIP
(I) 		8-98052-410-0 01 1 1009-
106 BRACKET; TUBE CLIP
(J) 		8-98052-411-0 01 1 1009-
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 01 1 1009-1302
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 01 1 1303-
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 01 1 1303-
107 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09700-995-1 01 1 1009-1302
107 CLIP; NYLON TUBE
(C) ID=39 H=28 L=32 		1-09701-263-0 02 1 1009-
107 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 1009-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 1009-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1009-
133 BOLT; BRKT
EXC. HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE 		0-28650-830-0 09 1 1412-1412
133 BOLT; BRKT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE 		0-28650-830-0 09 1 1412-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1009-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1009-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 07 1 1009-1302
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1303-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 07 1 1009-1302
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1303-1305
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1303-1305
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 1306-1312
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 07 1 1401-1411
133 BOLT; BRKT
HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE 		0-28650-830-0 07 1 1412-1412
133 BOLT; BRKT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE 		0-28650-830-0 07 1 1412-

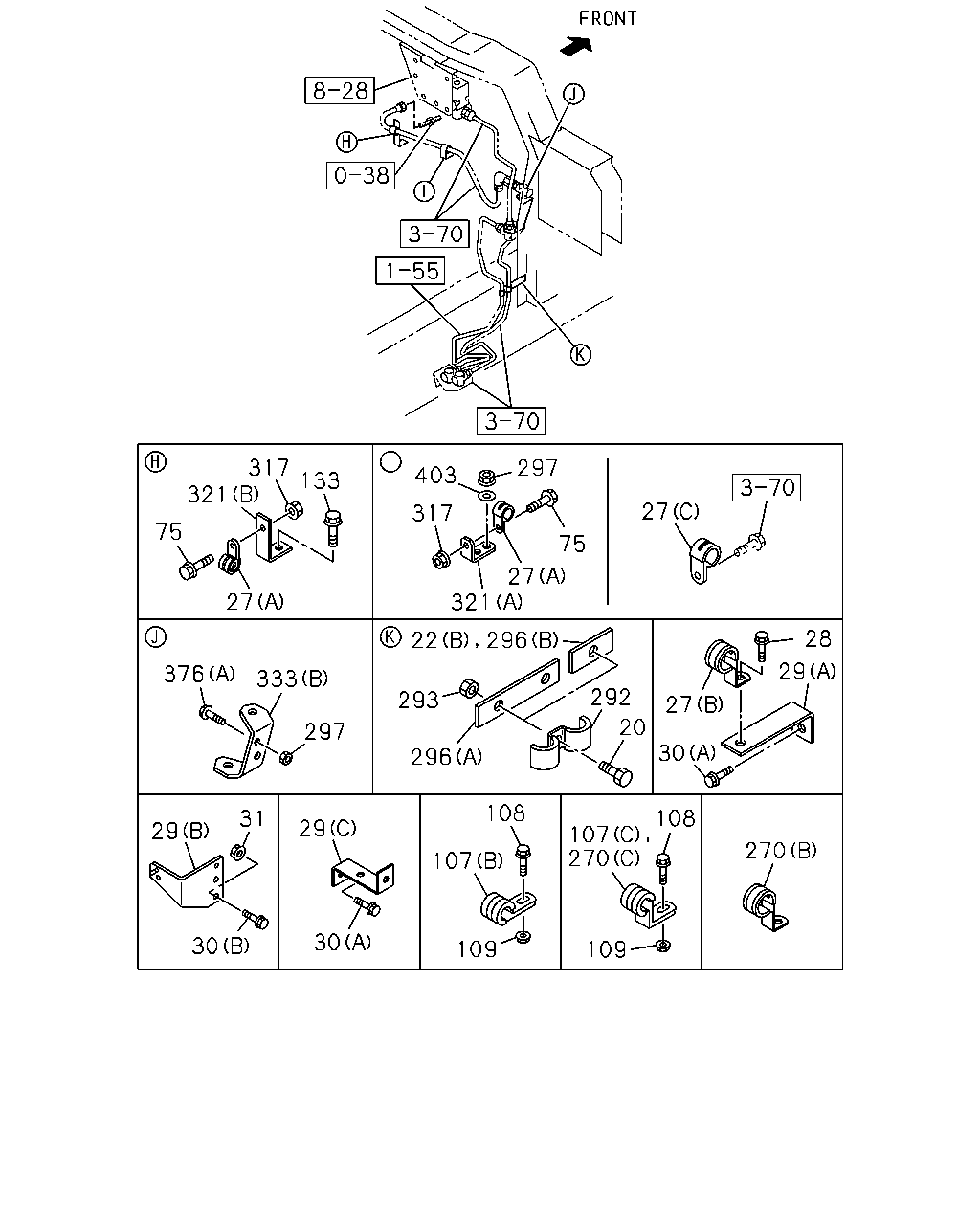

çizim 122622
317 321 75 133 27 376 333 297 29 31 29 30 30 109 107 108 296 293 22 296 292 20 321 27 75 297 403 317 27 28 29 27 30 270 108 107 270 109
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1303-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1009-
22 BRACKET; CLIP
(B) L=50 		1-47475-299-2 01 1 1303-
22 BRACKET; CLIP
(A) L=100 H=30 		1-47477-645-2 02 1 1009-1302
22 BRACKET; CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 1303-
27 CLIP; FLEX HOSE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 1009-1302
27 CLIP; FLEX HOSE
MJX12P M/T SMOOTHER-G(Y4S) (C) ID=11 L=50 		0-95235-085-0 01 1 1303-
27 CLIP; FLEX HOSE
(A) ID=15 L=28 		1-09701-216-0 02 1 1009-1302
27 CLIP; FLEX HOSE
MJT7S M/T(Y3E) (A) ID=15 L=28 		1-09701-216-0 01 1 1303-
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302
29 BRACKET; CLIP,AIR PIPE
(B) 		8-98169-621-1 01 1 1303-
29 BRACKET; CLIP,AIR PIPE
(A) L=60 		1-47476-217-0 01 1 1009-1302
29 BRACKET; CLIP,AIR PIPE
(C) 		1-47479-698-0 01 1 1303-
30 BOLT; CLIP BRKT
(B) M10X25 FLANGE 		0-28651-025-0 01 1 1303-
30 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1009-
31 NUT; CLIP BRKT
M10 FLANGE 		0-91180-210-0 01 1 1303-
75 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 01 1 1009-1302
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 01 1 1303-
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 01 1 1303-
107 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09700-995-1 01 1 1009-1302
107 CLIP; NYLON TUBE
(C) ID=39 H=28 L=32 		1-09701-263-0 02 1 1009-
107 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 1009-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 1009-
108 BOLT; TUBE CLIP
EXC. HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE 		0-28650-820-0 05 1 1412-1412
108 BOLT; TUBE CLIP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X20 FLANGE 		0-28650-820-0 05 1 1412-
108 BOLT; TUBE CLIP
EXC. HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE 		0-28650-830-0 01 1 1412-1412
108 BOLT; TUBE CLIP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE 		0-28650-830-0 01 1 1412-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1303-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1303-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1303-1411
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1303-1411
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1412-1412
108 BOLT; TUBE CLIP
HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE 		0-28650-830-0 02 1 1412-1412
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1412-
108 BOLT; TUBE CLIP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE 		0-28650-830-0 02 1 1412-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1009-1302
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1303-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 06 1 1009-1302
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 1303-1411
108 BOLT; TUBE CLIP
HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE 		0-28650-820-0 03 1 1412-1412
108 BOLT; TUBE CLIP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X20 FLANGE 		0-28650-820-0 03 1 1412-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 1009-1302
108 BOLT; TUBE CLIP
M8X35 FLANGE 		0-28650-835-0 01 1 1303-
109 NUT; TUBE CLIP
EXC. HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 04 1 1412-1412
109 NUT; TUBE CLIP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE 		0-91180-108-0 04 1 1412-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1306-1411
109 NUT; TUBE CLIP
HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 02 1 1412-1412
109 NUT; TUBE CLIP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE 		0-91180-108-0 02 1 1412-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1009-1302
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1303-1305
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1306-
133 BOLT; BRKT
EXC. HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE 		0-28650-830-0 09 1 1412-1412
133 BOLT; BRKT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE 		0-28650-830-0 09 1 1412-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1009-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1009-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 07 1 1009-1302
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1303-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 07 1 1009-1302
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1303-1305
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1303-1305
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 1306-1312
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 07 1 1401-1411
133 BOLT; BRKT
HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE 		0-28650-830-0 07 1 1412-1412
133 BOLT; BRKT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE 		0-28650-830-0 07 1 1412-
270 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 01 1 1303-
270 CLIP; NYLON TUBE
(B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1009-
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 1009-
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1009-1302
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 1303-
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1009-1302
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1303-
296 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 1009-1302
296 BRACKET; CLIP
(B) 		1-47475-648-0 01 1 1009-1302
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1009-1302
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1303-
297 NUT; BRKT
SMOOTHER-G(C1W) M12 FLANGE 		0-91180-212-0 01 1 1009-
317 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1009-1302
321 BRACKET; CLIP
(B) L=75 		1-47478-328-0 01 1 1009-1302
321 BRACKET; CLIP
SMOOTHER-G(C1W) (A) 		1-47477-337-1 01 1 1009-1302
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-045-0 01 1 1009-
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 1009-1302
333 BRACKET; BRK AIR PIPE
(A) 		8-98169-062-0 01 1 1303-1411
333 BRACKET; BRK AIR PIPE
FULL FLOATING CAB(W16) (A) 		8-98169-062-0 01 1 1412-
376 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1009-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1009-
376 BOLT; BRKT
HONG KONG EQUIPMENT(PQ1) (C) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1302
376 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1303-
403 WASHER; PL
SMOOTHER-G(C1W) D=12 		0-91614-612-0 01 1 1212-

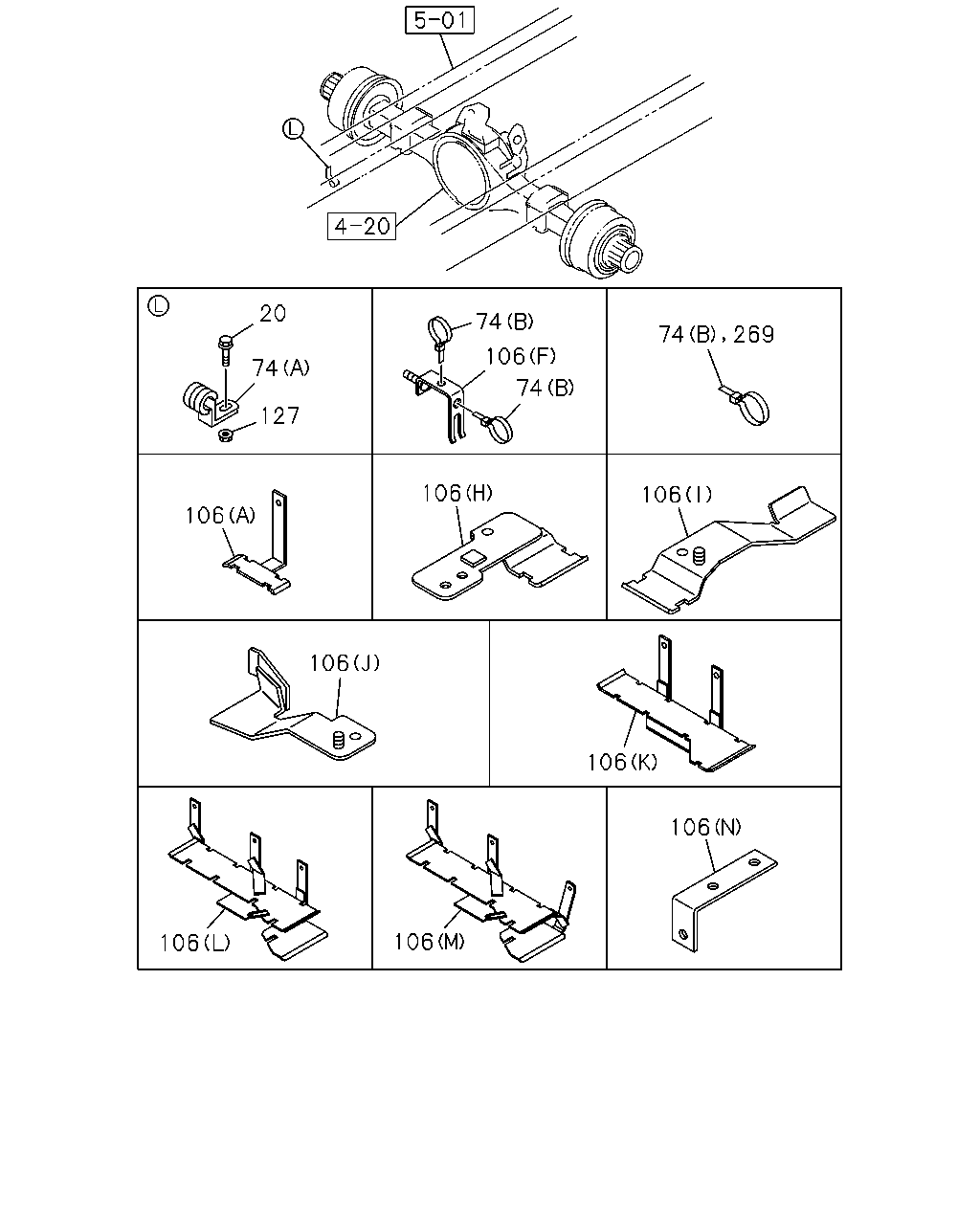

çizim 122723
74 74 106 74 269 20 74 127 106 106 106 106 106 106 106 106
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1303-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1009-
74 CLIP; NYLON TUBE
(A) ID=25 H=30 L=35 		1-09700-875-0 01 1 1009-
74 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 		1-09700-994-0 01 1 1009-
74 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 15 1 1009-1302
74 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 14 1 1303-
106 BRACKET; TUBE CLIP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (O) 		8-98302-600-0 01 1 1505-
106 BRACKET; TUBE CLIP
EXC. HONG KONG EQUIPMENT(PQ1) (M) 		8-98251-771-0 01 1 1412-1412
106 BRACKET; TUBE CLIP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (M) 		8-98251-771-0 01 1 1412-
106 BRACKET; TUBE CLIP
EXC. HONG KONG EQUIPMENT(PQ1) (N) L=82 B=20 		8-98259-390-0 01 1 1412-1412
106 BRACKET; TUBE CLIP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (N) L=82 B=20 		8-98259-390-0 01 1 1412-
106 BRACKET; TUBE CLIP
(C) 		1-47471-108-0 01 1 1009-
106 BRACKET; TUBE CLIP
(D) 		1-47471-274-0 01 1 1009-1302
106 BRACKET; TUBE CLIP
(D) 		8-98061-758-0 01 1 1303-1504
106 BRACKET; TUBE CLIP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) 		8-98061-758-0 01 1 1505-
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 1009-1302
106 BRACKET; TUBE CLIP
(K) 		8-97615-493-0 01 1 1009-1302
106 BRACKET; TUBE CLIP
(K) 		8-98226-741-1 01 1 1303-1312
106 BRACKET; TUBE CLIP
(L) 		8-98251-770-0 01 1 1401-1411
106 BRACKET; TUBE CLIP
HONG KONG EQUIPMENT(PQ1) (L) 		8-98251-770-0 01 1 1412-1412
106 BRACKET; TUBE CLIP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (L) 		8-98251-770-0 01 1 1412-
106 BRACKET; TUBE CLIP
(F) 		1-47479-381-2 02 1 1009-
106 BRACKET; TUBE CLIP
(B) 		1-47479-553-0 01 1 1009-
106 BRACKET; TUBE CLIP
(A) 		1-47479-870-0 01 1 1009-
106 BRACKET; TUBE CLIP
(G) 		8-98052-408-0 01 1 1009-1412
106 BRACKET; TUBE CLIP
(G) 		8-98297-188-0 01 1 1501-
106 BRACKET; TUBE CLIP
(H) 		8-98052-409-0 01 1 1009-
106 BRACKET; TUBE CLIP
(I) 		8-98052-410-0 01 1 1009-
106 BRACKET; TUBE CLIP
(J) 		8-98052-411-0 01 1 1009-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 04 1 1009-1302
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1303-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1303-
269 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 05 1 1009-1302
269 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 04 1 1303-

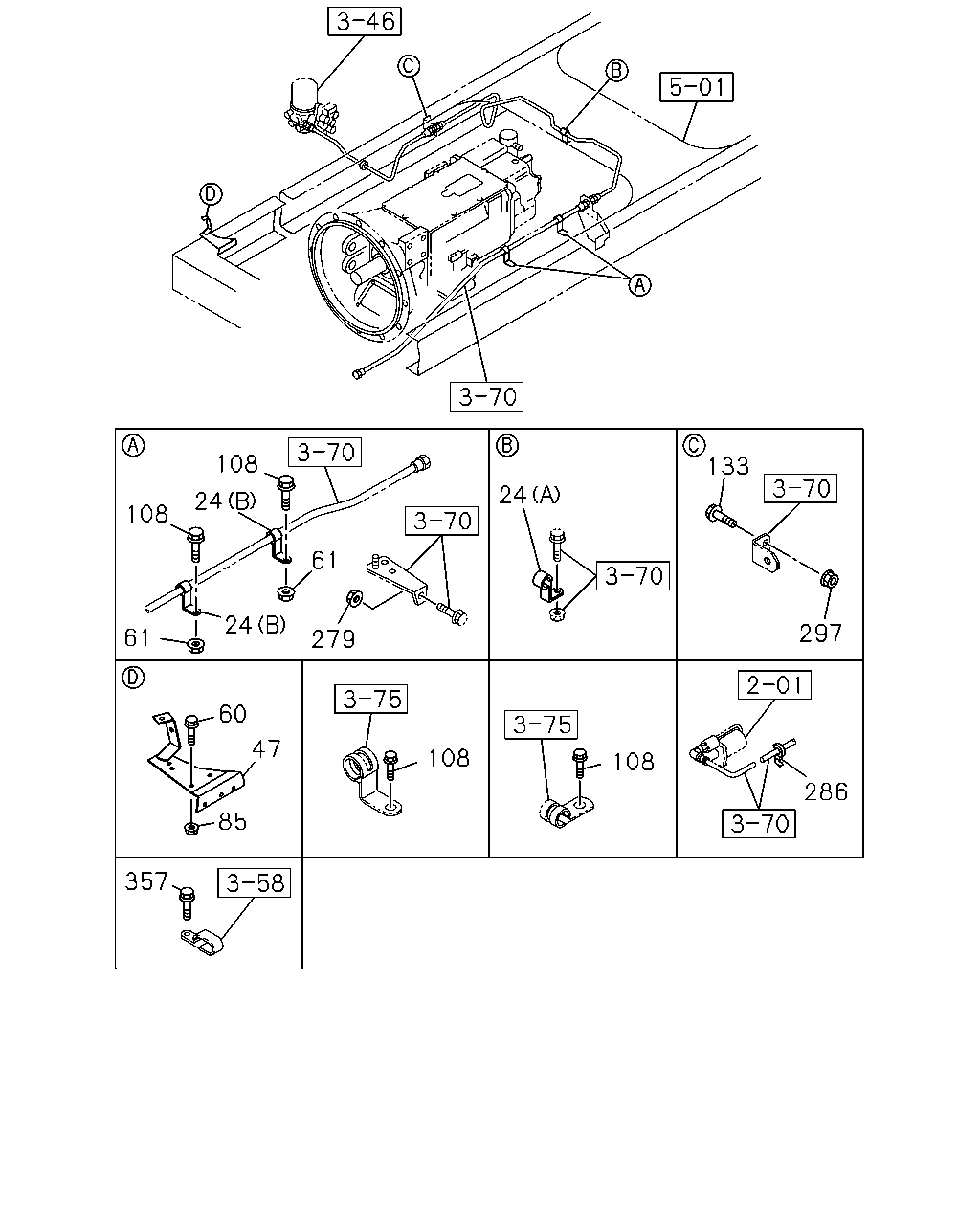

çizim 122885
108 24 108 24 61 61 279 24 133 297 286 108 108 47 60 357 85
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1009-1302
24 CLIP; PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 1009-1302
47 BRACKET; PIPE CLIP 1-47471-389-0 01 1 1009-1302
47 BRACKET; PIPE CLIP 8-98226-739-0 01 1 1303-
60 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1009-1302
60 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 01 1 1303-
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 02 1 1009-1302
85 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-1302
108 BOLT; TUBE CLIP
EXC. HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE 		0-28650-820-0 05 1 1412-1412
108 BOLT; TUBE CLIP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X20 FLANGE 		0-28650-820-0 05 1 1412-
108 BOLT; TUBE CLIP
EXC. HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE 		0-28650-830-0 01 1 1412-1412
108 BOLT; TUBE CLIP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE 		0-28650-830-0 01 1 1412-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1303-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1303-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1303-1411
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1303-1411
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1412-1412
108 BOLT; TUBE CLIP
HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE 		0-28650-830-0 02 1 1412-1412
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1412-
108 BOLT; TUBE CLIP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE 		0-28650-830-0 02 1 1412-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1009-1302
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1303-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 06 1 1009-1302
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 1303-1411
108 BOLT; TUBE CLIP
HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE 		0-28650-820-0 03 1 1412-1412
108 BOLT; TUBE CLIP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X20 FLANGE 		0-28650-820-0 03 1 1412-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 1009-1302
108 BOLT; TUBE CLIP
M8X35 FLANGE 		0-28650-835-0 01 1 1303-
133 BOLT; BRKT
EXC. HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE 		0-28650-830-0 09 1 1412-1412
133 BOLT; BRKT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE 		0-28650-830-0 09 1 1412-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1009-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1009-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 07 1 1009-1302
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1303-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 07 1 1009-1302
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1303-1305
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1303-1305
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 1306-1312
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 07 1 1401-1411
133 BOLT; BRKT
HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE 		0-28650-830-0 07 1 1412-1412
133 BOLT; BRKT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE 		0-28650-830-0 07 1 1412-
279 NUT; BRKT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE 		0-91180-108-0 08 1 1505-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 11 1 1009-1302
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 1303-1504
279 NUT; BRKT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE 		0-91180-108-0 09 1 1505-
286 CLIP; NYLON TUBE
MJT7 M/T<Y9E> ID=15 & 7 		1-09709-311-0 01 1 1009-1302
286 CLIP; NYLON TUBE
MJT7S M/T(Y3E) ID=15 & 7 		1-09709-311-0 01 1 1303-1411
286 CLIP; NYLON TUBE
MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1) ID=15 & 7 		1-09709-311-0 01 1 1412-1412
286 CLIP; NYLON TUBE
MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=15 & 7 		1-09709-311-0 01 1 1412-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1009-1302
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1303-
297 NUT; BRKT
SMOOTHER-G(C1W) M12 FLANGE 		0-91180-212-0 01 1 1009-
357 BOLT; CLIP FIX
EXC. HONG KONG EQUIPMENT(PQ1) M8X10 FLANGE 		0-28050-810-0 01 1 1412-1412
357 BOLT; CLIP FIX
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X10 FLANGE 		0-28050-810-0 01 1 1412-

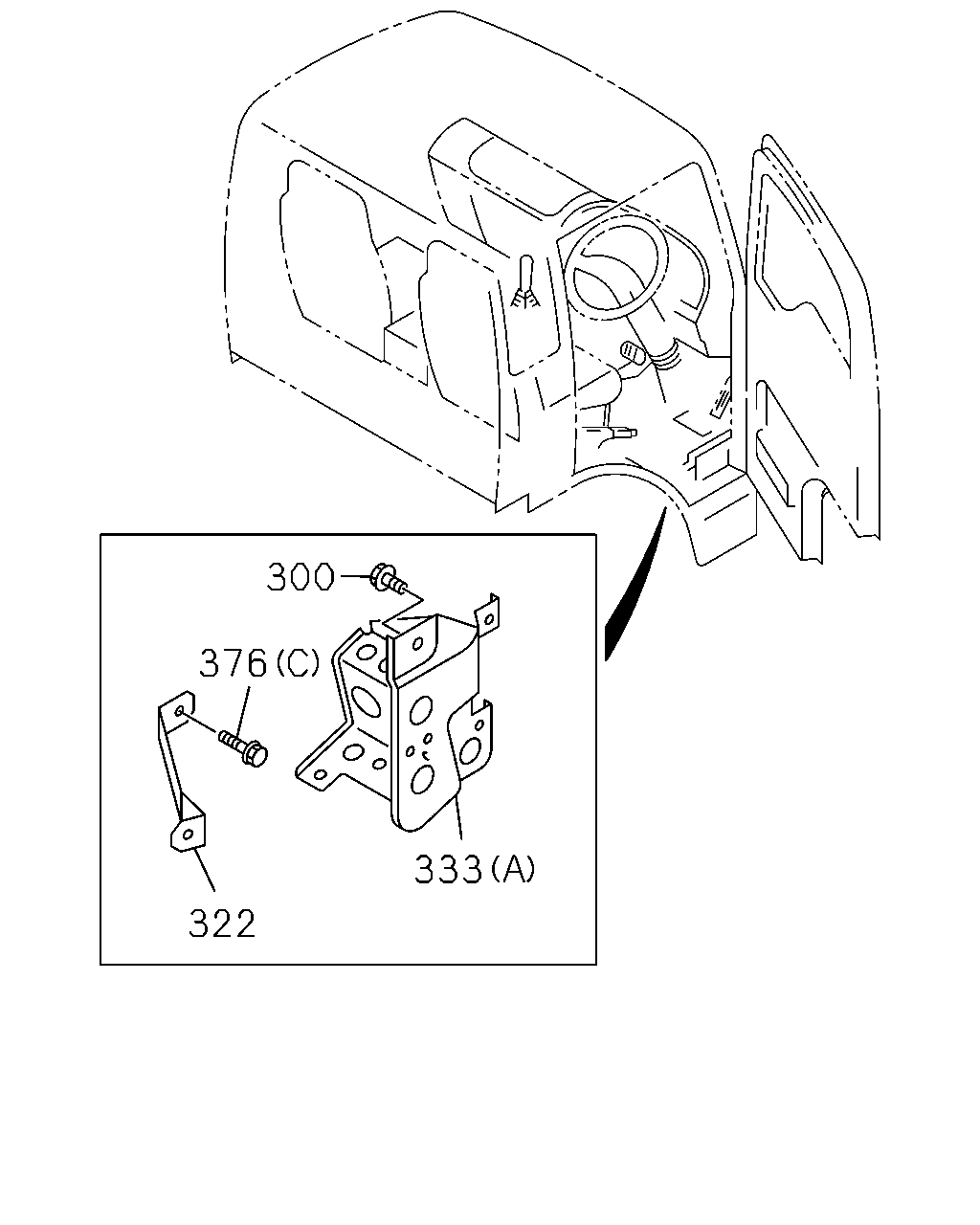

çizim 188608
300 376 333 322
BalonParca AdiParca NoAdetTipApplied Date
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1009-1411
300 BOLT; TUBE CLIP
FULL FLOATING CAB(W16) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1412-
322 BRACKET; CLIP
HONG KONG EQUIPMENT(PQ1) 		8-98152-740-1 01 1 1009-1302
322 BRACKET; CLIP 8-98227-231-0 01 1 1303-
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-045-0 01 1 1009-
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 1009-1302
333 BRACKET; BRK AIR PIPE
(A) 		8-98169-062-0 01 1 1303-1411
333 BRACKET; BRK AIR PIPE
FULL FLOATING CAB(W16) (A) 		8-98169-062-0 01 1 1412-
376 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1009-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1009-
376 BOLT; BRKT
HONG KONG EQUIPMENT(PQ1) (C) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1302
376 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1303-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
