3-77 — BRAKE PIPING; AIR,REAR (#70114) — 321 parça

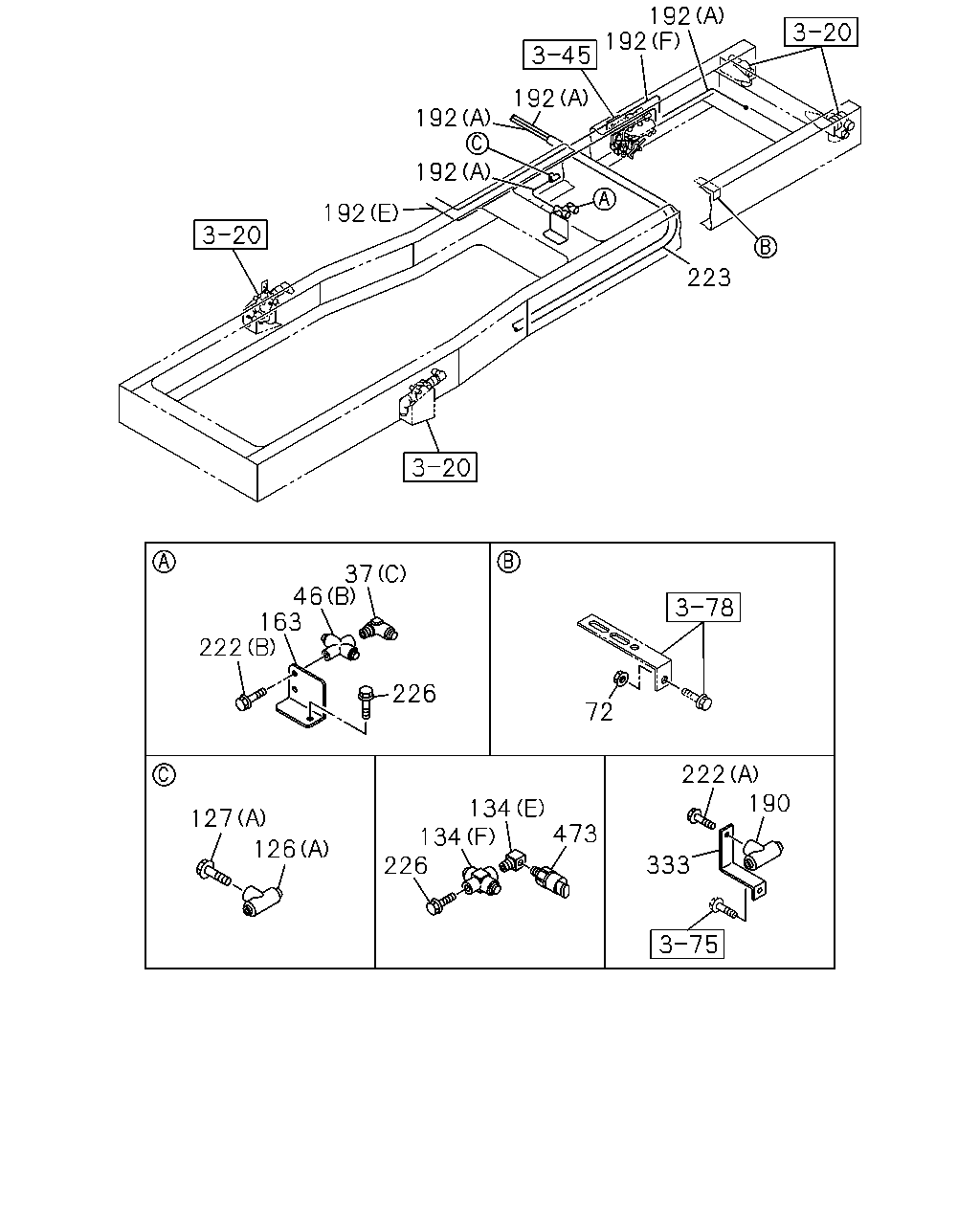

192 192 192 192 192 192 223 222 37 46 163 226 72 222 190 333 473 134 134 226 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (D)	1-09650-222-1	01	1	1412-1412
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	1-09650-222-1	01	1	1412-
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1412-1412
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1412-
37	UNION; AIR PIPE (A)	1-09650-003-1	01	1	1009-1411
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A)	1-09650-003-1	01	1	1412-1412
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-09650-003-1	01	1	1412-
37	UNION; AIR PIPE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1009-1411
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1412-1412
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1412-
37	UNION; AIR PIPE (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-
46	NIPPLE; AIR PIPE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	1009-
46	NIPPLE; AIR PIPE (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1009-
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-1302
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1303-
126	UNION; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1) (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1412-1412
126	UNION; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1412-
126	UNION; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1) (D) M22X2 STRAIGHT	8-98107-103-0	02	1	1412-1412
126	UNION; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) M22X2 STRAIGHT	8-98107-103-0	02	1	1412-
126	UNION; NYLON TUBE (A) 2WAY	1-09661-518-0	01	1	1009-1102
126	UNION; NYLON TUBE (B)	1-09661-612-1	01	1	1009-
126	UNION; NYLON TUBE (C) PT3/8	1-09664-210-0	01	1	1009-1411
126	UNION; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (C) PT3/8	1-09664-210-0	01	1	1412-1412
126	UNION; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) PT3/8	1-09664-210-0	01	1	1412-
127	NUT; UNION (B) M20	0-91111-520-0	03	1	1009-
127	NUT; UNION (A) M8 FLANGE	0-91180-108-0	01	1	1009-1302
127	NUT; UNION (A) M8 FLANGE	0-91180-108-0	03	1	1303-
127	NUT; UNION (A) M8 FLANGE	0-91180-108-0	02	1	1009-1302
134	CONNECTOR (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1009-
134	CONNECTOR (D) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	1009-
134	CONNECTOR (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1009-
134	CONNECTOR (A) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1009-
134	CONNECTOR MJX12P M/T SMOOTHER-G(Y4S) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-
134	CONNECTOR MJX12P M/T SMOOTHER-G(Y4S) (F) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1009-
163	BRACKET; FLEX HOSE	1-47471-145-0	01	1	1009-
190	UNION; 3 WAY DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1009-1302
192	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1) (B) L=990 OD=8	1-49218-618-1	02	1	1412-1412
192	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=990 OD=8	1-49218-618-1	02	1	1412-
192	TUBE; NYLON (B)	8-98128-020-0	01	1	1009-1411
192	TUBE; NYLON HONG KONG EQUIPMENT(PQ1) (B)	8-98128-020-0	01	1	1412-1412
192	TUBE; NYLON HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	8-98128-020-0	01	1	1412-
192	TUBE; NYLON (C)	8-98128-021-0	01	1	1009-1411
192	TUBE; NYLON HONG KONG EQUIPMENT(PQ1) (C)	8-98128-021-0	01	1	1412-1412
192	TUBE; NYLON HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	8-98128-021-0	01	1	1412-
192	TUBE; NYLON (F)	8-98135-887-0	01	1	1009-1302
192	TUBE; NYLON (E)	8-98135-889-0	01	1	1009-1302
192	TUBE; NYLON (F)	8-98229-895-0	01	1	1303-
192	TUBE; NYLON (D)	8-98176-127-0	01	1	1009-1302
192	TUBE; NYLON (E)	8-98229-896-0	01	1	1303-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1009-
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1009-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-
222	BOLT; CONNECTOR (A) M8X12 FLANGE	0-28050-812-0	01	1	1009-
222	BOLT; CONNECTOR (B) M8X16 FLANGE	0-28050-816-0	01	1	1009-1302
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1009-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1009-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1009-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1412-
226	BOLT; UNION EXC. HONG KONG EQUIPMENT(PQ1) M8X16 FLANGE	0-28050-816-0	01	1	1412-1412
226	BOLT; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X16 FLANGE	0-28050-816-0	01	1	1412-
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	01	1	1009-1102
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	02	1	1009-
226	BOLT; UNION M8X25 FLANGE	0-28650-825-0	01	1	1009-
226	BOLT; UNION MJX12P M/T SMOOTHER-G(Y4S) M8X25 FLANGE	0-28650-825-0	01	1	1009-
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1009-1302
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1303-
333	BRACKET; CONNECTOR	1-47479-248-0	01	1	1009-1302
473	SWITCH; BRAKE LOCK MJX12P M/T SMOOTHER-G(Y4S) STAMP 2.2	8-98010-858-0	01	1	1009-

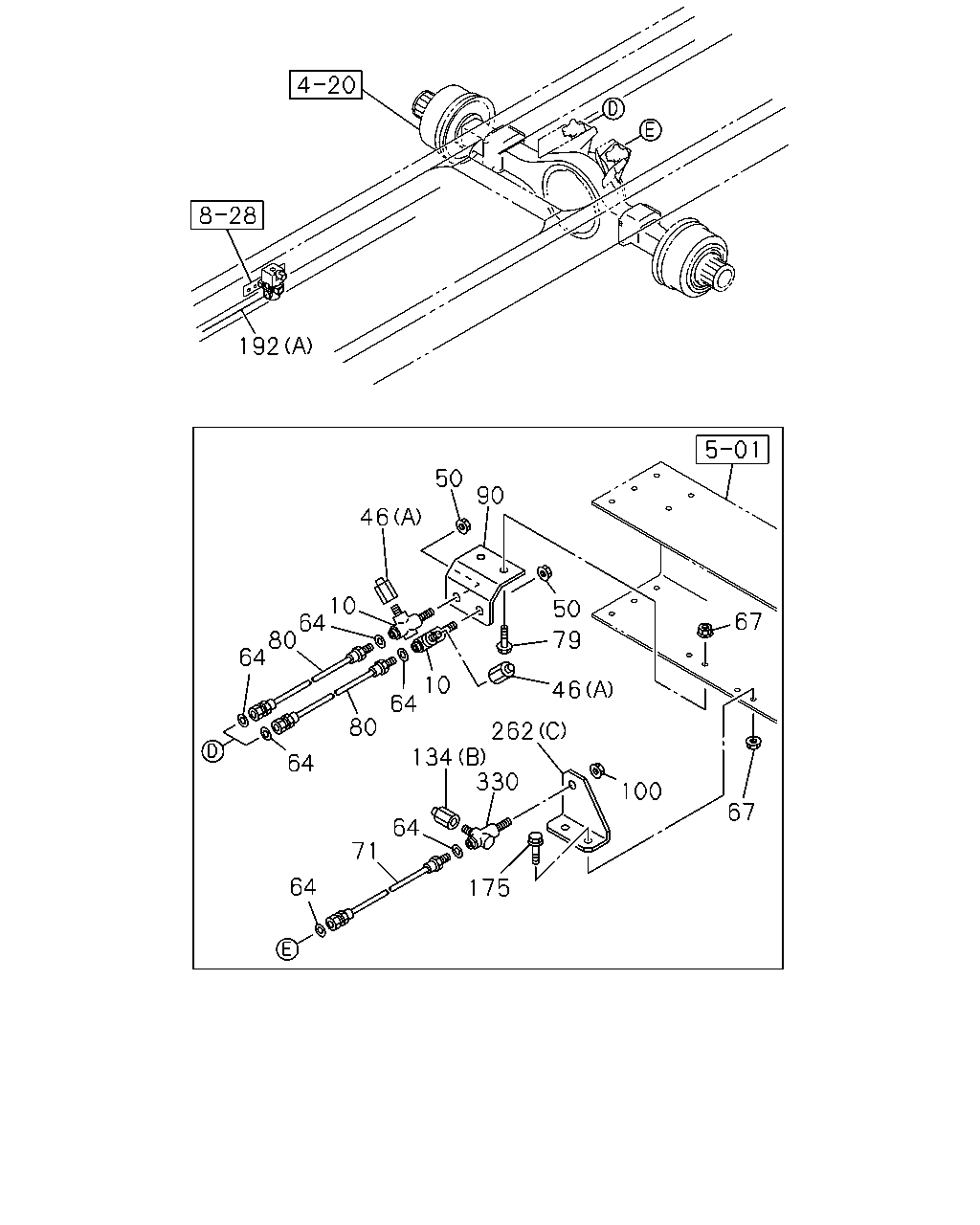

192 46 50 90 64 80 64 10 10 64 80 64 50 79 46 262 134 330 64 71 64 175 100 67 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	CONNECTOR; FLEX HOSE	1-09650-360-1	02	1	1009-
46	NIPPLE; AIR PIPE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	1009-
46	NIPPLE; AIR PIPE (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1009-
50	NUT; UNION BRKT M14 FLANGE	0-91150-114-0	02	1	1009-
64	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	06	1	1009-
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	04	1	1009-
71	HOSE; FLEX,RWD RR L=630	0-57846-630-1	01	1	1009-
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	1009-
80	HOSE; FLEX,POWER CHAMBER L=630	0-57846-630-1	02	1	1009-
90	BRACKET; PIPE UNION	1-47471-007-0	01	1	1009-
100	NUT; UNION M14 FLANGE	0-91150-114-0	01	1	1009-
134	CONNECTOR (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1009-
134	CONNECTOR (D) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	1009-
134	CONNECTOR (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1009-
134	CONNECTOR (A) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1009-
134	CONNECTOR MJX12P M/T SMOOTHER-G(Y4S) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-
134	CONNECTOR MJX12P M/T SMOOTHER-G(Y4S) (F) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1009-
175	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	1009-
192	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1) (B) L=990 OD=8	1-49218-618-1	02	1	1412-1412
192	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=990 OD=8	1-49218-618-1	02	1	1412-
192	TUBE; NYLON (B)	8-98128-020-0	01	1	1009-1411
192	TUBE; NYLON HONG KONG EQUIPMENT(PQ1) (B)	8-98128-020-0	01	1	1412-1412
192	TUBE; NYLON HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	8-98128-020-0	01	1	1412-
192	TUBE; NYLON (C)	8-98128-021-0	01	1	1009-1411
192	TUBE; NYLON HONG KONG EQUIPMENT(PQ1) (C)	8-98128-021-0	01	1	1412-1412
192	TUBE; NYLON HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	8-98128-021-0	01	1	1412-
192	TUBE; NYLON (F)	8-98135-887-0	01	1	1009-1302
192	TUBE; NYLON (E)	8-98135-889-0	01	1	1009-1302
192	TUBE; NYLON (F)	8-98229-895-0	01	1	1303-
192	TUBE; NYLON (D)	8-98176-127-0	01	1	1009-1302
192	TUBE; NYLON (E)	8-98229-896-0	01	1	1303-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1009-
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1009-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-
262	BRACKET (C)	1-47471-015-0	01	1	1009-
262	BRACKET (B)	1-79996-143-0	01	1	1009-
262	BRACKET (A)	1-79996-144-0	01	1	1009-
330	UNION; FLEX HOSE	1-09650-360-1	01	1	1009-

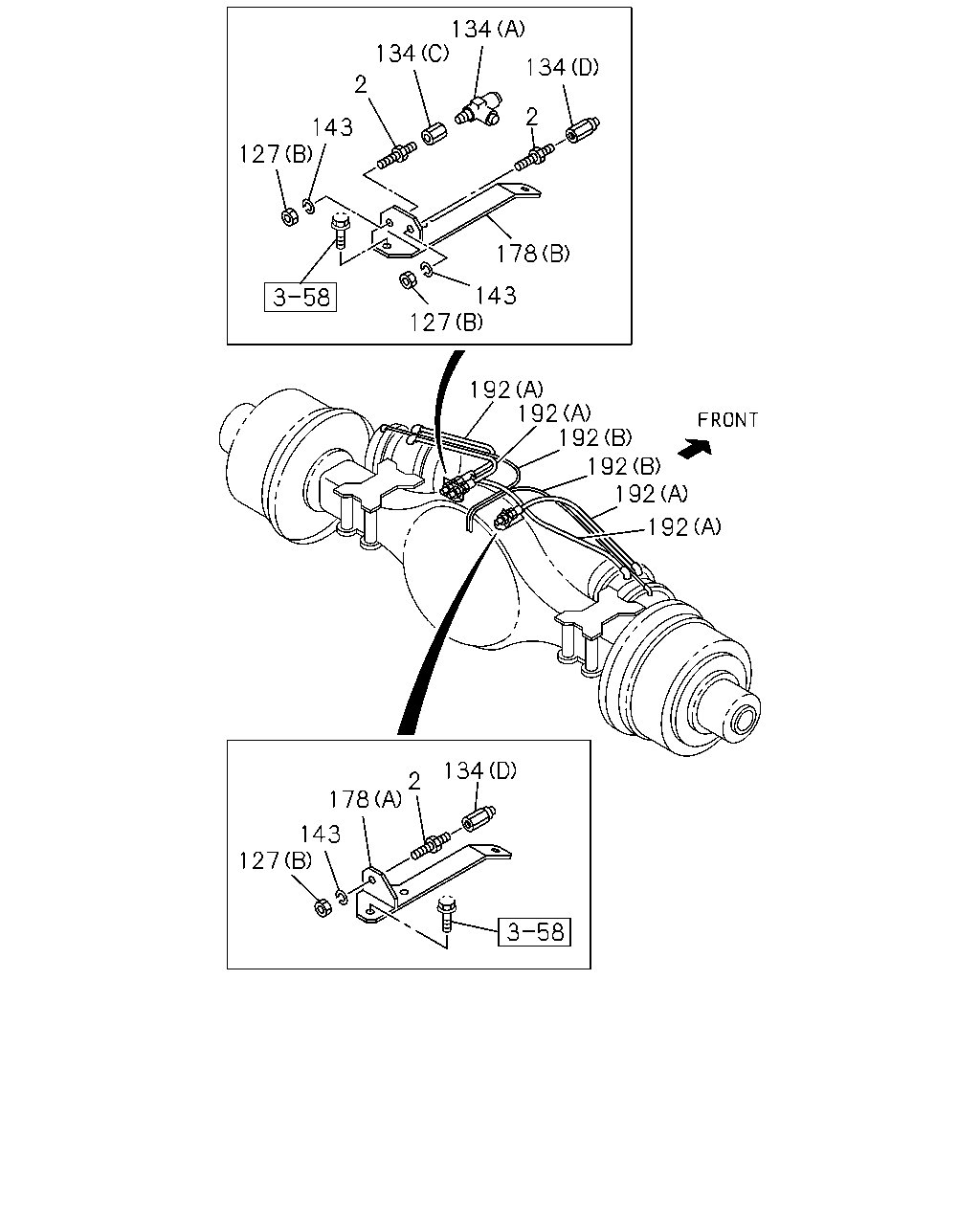

127 143 2 134 134 134 2 178 143 127 192 192 192 192 192 192 134 2 178 143 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE M20 STRAIGHT	1-09654-240-1	03	1	1009-
127	NUT; UNION (B) M20	0-91111-520-0	03	1	1009-
127	NUT; UNION (A) M8 FLANGE	0-91180-108-0	01	1	1009-1302
127	NUT; UNION (A) M8 FLANGE	0-91180-108-0	03	1	1303-
127	NUT; UNION (A) M8 FLANGE	0-91180-108-0	02	1	1009-1302
134	CONNECTOR (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1009-
134	CONNECTOR (D) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	1009-
134	CONNECTOR (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1009-
134	CONNECTOR (A) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1009-
134	CONNECTOR MJX12P M/T SMOOTHER-G(Y4S) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-
134	CONNECTOR MJX12P M/T SMOOTHER-G(Y4S) (F) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1009-
143	WASHER; LK,UNION ID=20.2	0-91510-620-0	03	1	1009-
178	BRACKET; UNION (A)	1-42119-186-0	01	1	1009-
178	BRACKET; UNION (B)	1-42119-187-0	01	1	1009-
192	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1) (B) L=990 OD=8	1-49218-618-1	02	1	1412-1412
192	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=990 OD=8	1-49218-618-1	02	1	1412-
192	TUBE; NYLON (B)	8-98128-020-0	01	1	1009-1411
192	TUBE; NYLON HONG KONG EQUIPMENT(PQ1) (B)	8-98128-020-0	01	1	1412-1412
192	TUBE; NYLON HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	8-98128-020-0	01	1	1412-
192	TUBE; NYLON (C)	8-98128-021-0	01	1	1009-1411
192	TUBE; NYLON HONG KONG EQUIPMENT(PQ1) (C)	8-98128-021-0	01	1	1412-1412
192	TUBE; NYLON HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	8-98128-021-0	01	1	1412-
192	TUBE; NYLON (F)	8-98135-887-0	01	1	1009-1302
192	TUBE; NYLON (E)	8-98135-889-0	01	1	1009-1302
192	TUBE; NYLON (F)	8-98229-895-0	01	1	1303-
192	TUBE; NYLON (D)	8-98176-127-0	01	1	1009-1302
192	TUBE; NYLON (E)	8-98229-896-0	01	1	1303-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1009-
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1009-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-

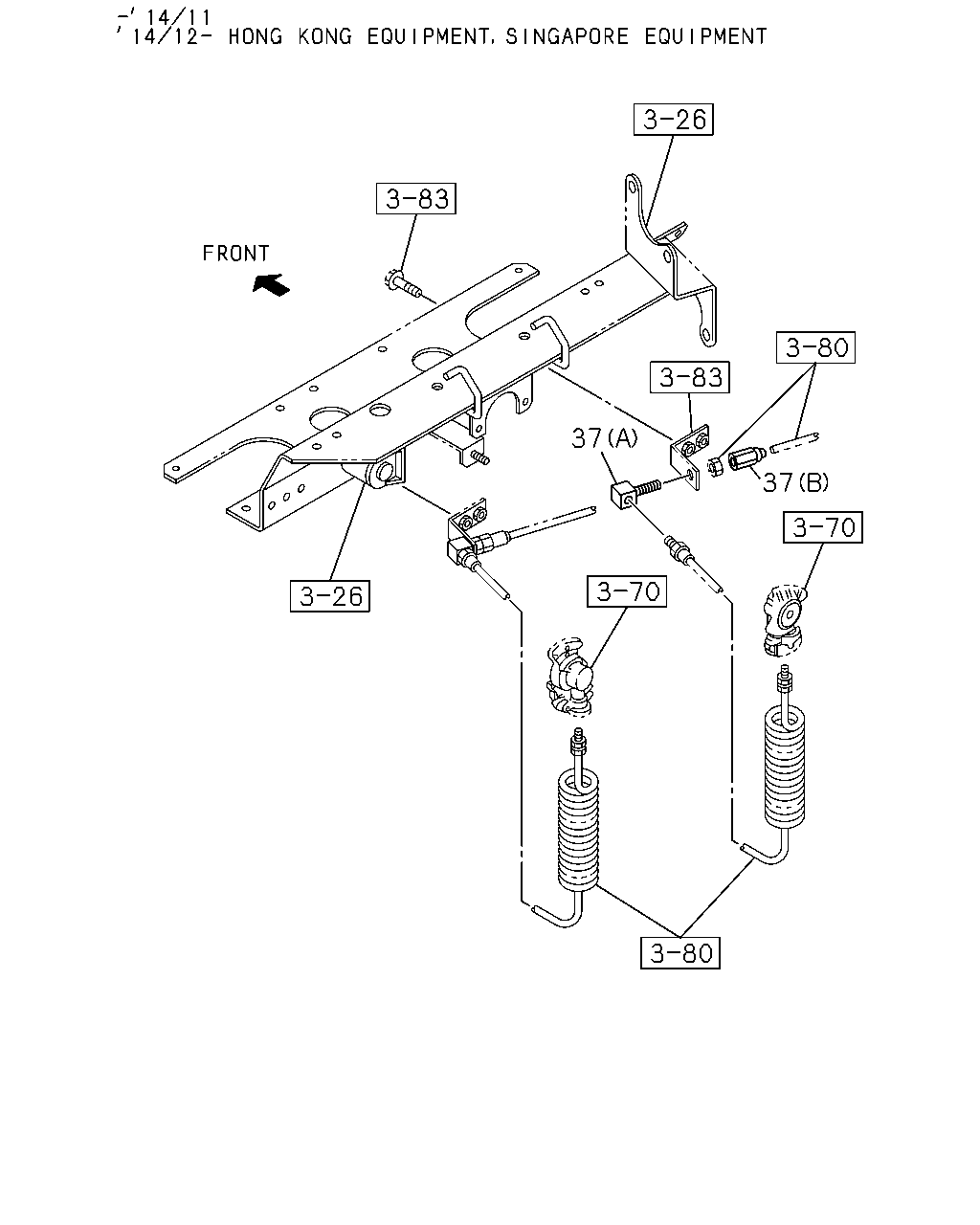

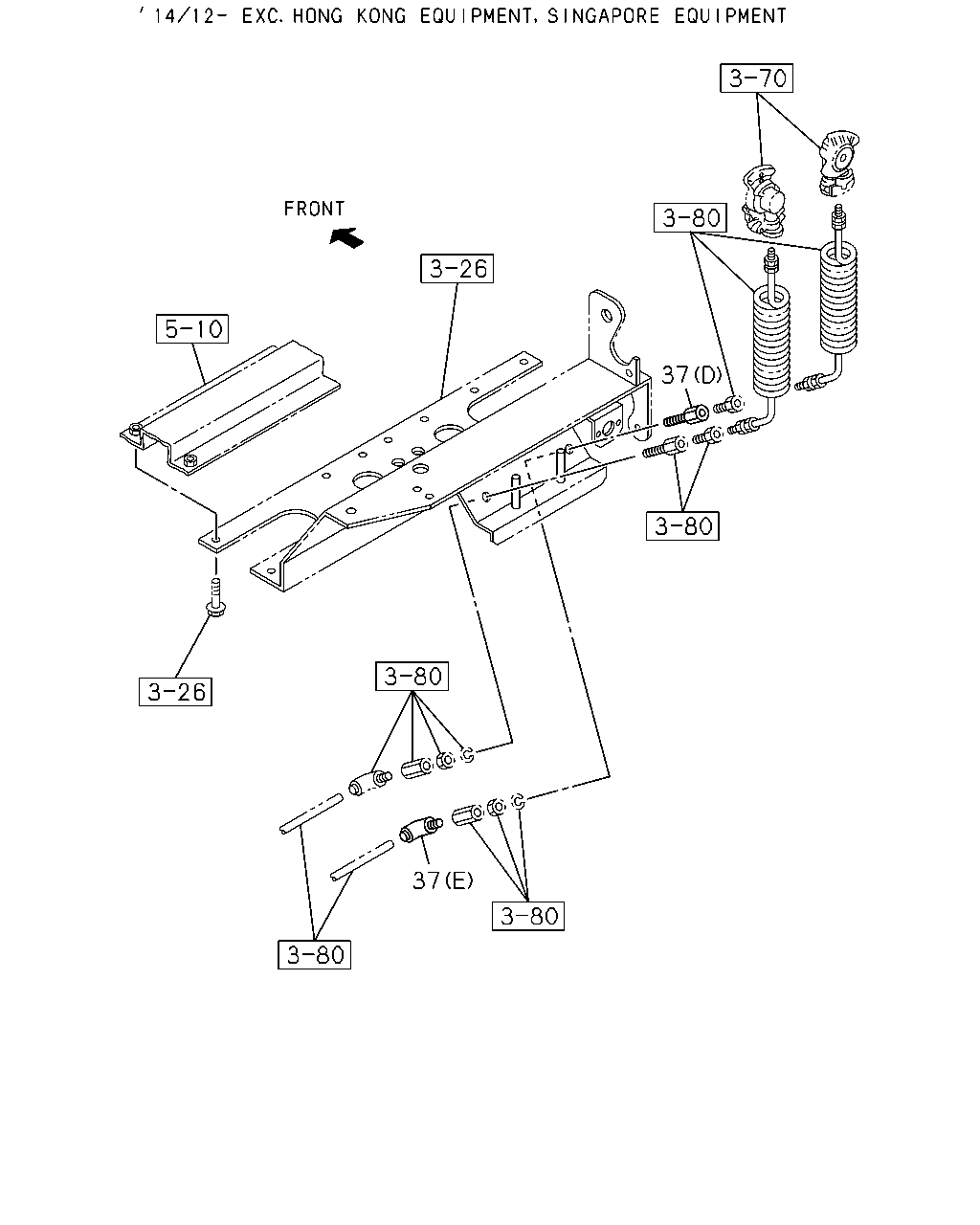

37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (D)	1-09650-222-1	01	1	1412-1412
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	1-09650-222-1	01	1	1412-
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1412-1412
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1412-
37	UNION; AIR PIPE (A)	1-09650-003-1	01	1	1009-1411
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A)	1-09650-003-1	01	1	1412-1412
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-09650-003-1	01	1	1412-
37	UNION; AIR PIPE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1009-1411
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1412-1412
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1412-
37	UNION; AIR PIPE (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-

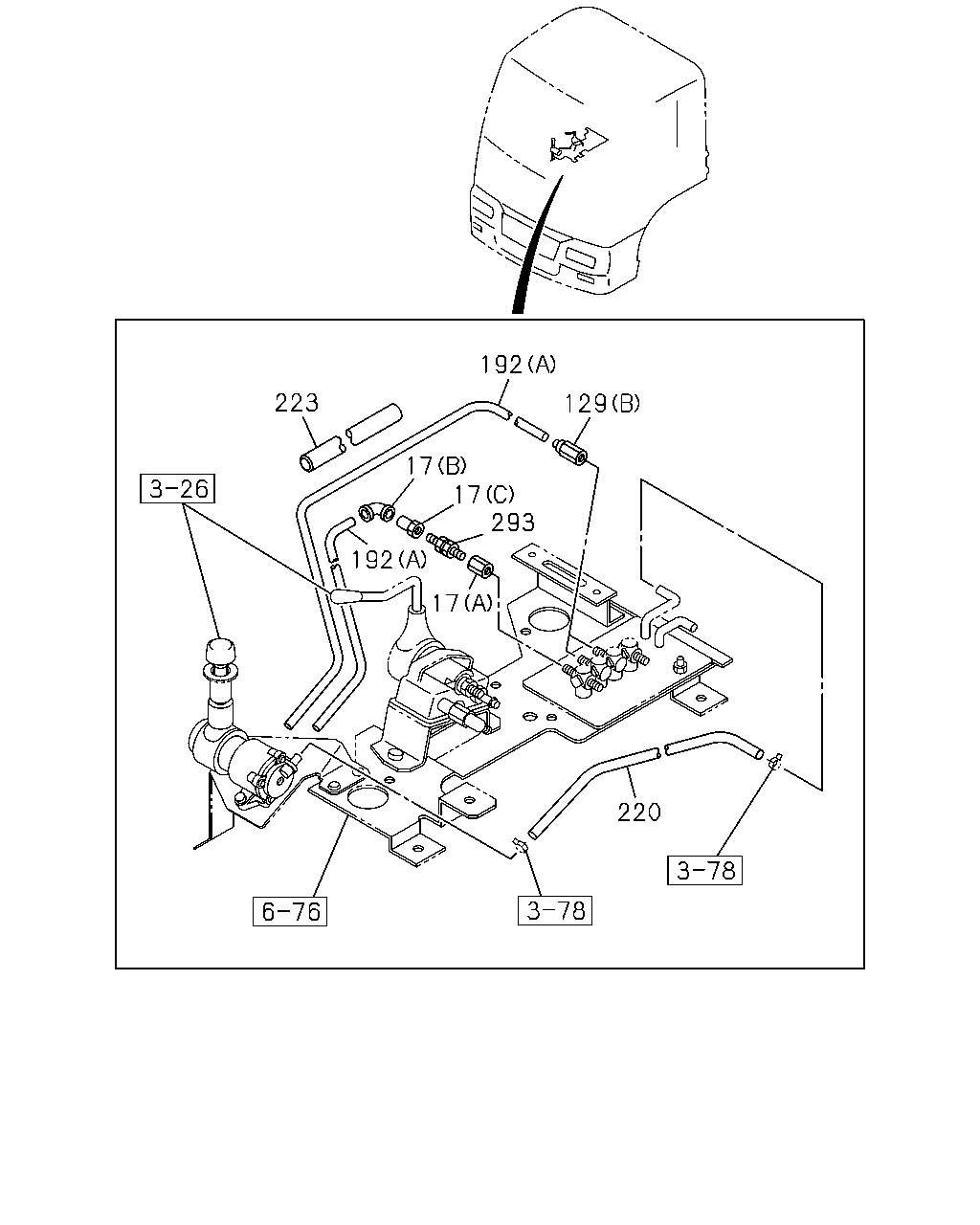

192 129 223 17 17 293 192 17 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	UNION; AIR PIPE (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1009-
17	UNION; AIR PIPE (D)	1-47470-609-0	01	1	1009-
17	UNION; AIR PIPE (B)	8-97633-775-0	01	1	1009-
17	UNION; AIR PIPE (C)	8-97633-777-0	01	1	1009-1303
17	UNION; AIR PIPE (C)	8-97633-777-0	01	1	1304-
129	CONNECTOR; NYLON TUBE (B) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1303-
129	CONNECTOR; NYLON TUBE (B) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1303-
129	CONNECTOR; NYLON TUBE (A) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1009-1411
129	CONNECTOR; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (A) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1412-1412
129	CONNECTOR; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1412-
129	CONNECTOR; NYLON TUBE (B) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	1009-1302
129	CONNECTOR; NYLON TUBE (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1303-
129	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-1411
129	CONNECTOR; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1412-1412
129	CONNECTOR; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1412-
192	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1) (B) L=990 OD=8	1-49218-618-1	02	1	1412-1412
192	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=990 OD=8	1-49218-618-1	02	1	1412-
192	TUBE; NYLON (B)	8-98128-020-0	01	1	1009-1411
192	TUBE; NYLON HONG KONG EQUIPMENT(PQ1) (B)	8-98128-020-0	01	1	1412-1412
192	TUBE; NYLON HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	8-98128-020-0	01	1	1412-
192	TUBE; NYLON (C)	8-98128-021-0	01	1	1009-1411
192	TUBE; NYLON HONG KONG EQUIPMENT(PQ1) (C)	8-98128-021-0	01	1	1412-1412
192	TUBE; NYLON HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	8-98128-021-0	01	1	1412-
192	TUBE; NYLON (F)	8-98135-887-0	01	1	1009-1302
192	TUBE; NYLON (E)	8-98135-889-0	01	1	1009-1302
192	TUBE; NYLON (F)	8-98229-895-0	01	1	1303-
192	TUBE; NYLON (D)	8-98176-127-0	01	1	1009-1302
192	TUBE; NYLON (E)	8-98229-896-0	01	1	1303-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1009-
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1009-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-
220	HOSE; VINYL,EXH,PARKING BRK VLV L=650 SERVICED BY L=10000	9-09914-701-0	01	1	1009-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1009-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1009-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1009-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1412-
293	VALVE; CHECK	1-48410-479-1	01	1	1009-

18 226 18 17 129 129 129 274 262 205 274 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	UNION; AIR PIPE (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1009-
17	UNION; AIR PIPE (D)	1-47470-609-0	01	1	1009-
17	UNION; AIR PIPE (B)	8-97633-775-0	01	1	1009-
17	UNION; AIR PIPE (C)	8-97633-777-0	01	1	1009-1303
17	UNION; AIR PIPE (C)	8-97633-777-0	01	1	1304-
18	PIPE; AIR,UNION TO UNION (A) L=1749	1-49121-758-1	01	1	1009-
18	PIPE; AIR,UNION TO UNION (B) L=1845	1-49122-059-1	01	1	1009-
129	CONNECTOR; NYLON TUBE (B) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1303-
129	CONNECTOR; NYLON TUBE (B) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1303-
129	CONNECTOR; NYLON TUBE (A) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1009-1411
129	CONNECTOR; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (A) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1412-1412
129	CONNECTOR; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1412-
129	CONNECTOR; NYLON TUBE (B) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	1009-1302
129	CONNECTOR; NYLON TUBE (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1303-
129	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-1411
129	CONNECTOR; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1412-1412
129	CONNECTOR; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1412-
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28050-816-0	02	1	1009-
226	BOLT; UNION EXC. HONG KONG EQUIPMENT(PQ1) M8X16 FLANGE	0-28050-816-0	01	1	1412-1412
226	BOLT; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X16 FLANGE	0-28050-816-0	01	1	1412-
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	01	1	1009-1102
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	02	1	1009-
226	BOLT; UNION M8X25 FLANGE	0-28650-825-0	01	1	1009-
226	BOLT; UNION MJX12P M/T SMOOTHER-G(Y4S) M8X25 FLANGE	0-28650-825-0	01	1	1009-
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1009-1302
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1303-
262	BRACKET (C)	1-47471-015-0	01	1	1009-
262	BRACKET (B)	1-79996-143-0	01	1	1009-
262	BRACKET (A)	1-79996-144-0	01	1	1009-
274	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	1009-
274	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1009-

37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (D)	1-09650-222-1	01	1	1412-1412
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	1-09650-222-1	01	1	1412-
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1412-1412
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1412-
37	UNION; AIR PIPE (A)	1-09650-003-1	01	1	1009-1411
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A)	1-09650-003-1	01	1	1412-1412
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-09650-003-1	01	1	1412-
37	UNION; AIR PIPE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1009-1411
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1412-1412
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1412-
37	UNION; AIR PIPE (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-

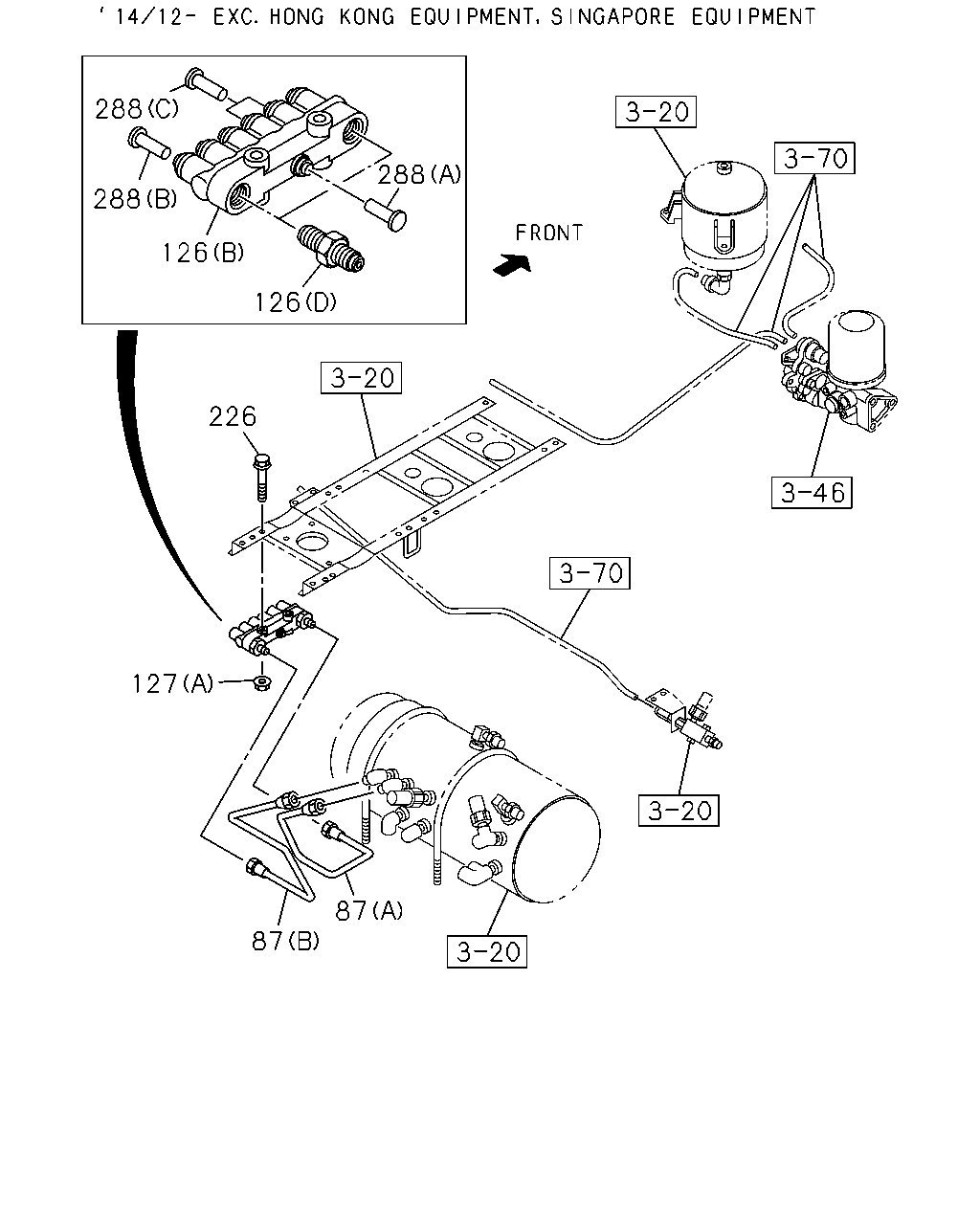

127 87 226 126 288 288 288 126 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
87	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1) (B) L=429	8-98239-053-0	01	1	1412-1412
87	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=429	8-98239-053-0	01	1	1412-
87	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1) (A) L=543	8-98239-054-0	01	1	1412-1412
87	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=543	8-98239-054-0	01	1	1412-
126	UNION; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1) (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1412-1412
126	UNION; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1412-
126	UNION; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1) (D) M22X2 STRAIGHT	8-98107-103-0	02	1	1412-1412
126	UNION; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) M22X2 STRAIGHT	8-98107-103-0	02	1	1412-
126	UNION; NYLON TUBE (A) 2WAY	1-09661-518-0	01	1	1009-1102
126	UNION; NYLON TUBE (B)	1-09661-612-1	01	1	1009-
126	UNION; NYLON TUBE (C) PT3/8	1-09664-210-0	01	1	1009-1411
126	UNION; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (C) PT3/8	1-09664-210-0	01	1	1412-1412
126	UNION; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) PT3/8	1-09664-210-0	01	1	1412-
127	NUT; UNION (B) M20	0-91111-520-0	03	1	1009-
127	NUT; UNION (A) M8 FLANGE	0-91180-108-0	01	1	1009-1302
127	NUT; UNION (A) M8 FLANGE	0-91180-108-0	03	1	1303-
127	NUT; UNION (A) M8 FLANGE	0-91180-108-0	02	1	1009-1302
226	BOLT; UNION EXC. HONG KONG EQUIPMENT(PQ1) M8X16 FLANGE	0-28050-816-0	01	1	1412-1412
226	BOLT; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X16 FLANGE	0-28050-816-0	01	1	1412-
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	01	1	1009-1102
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	02	1	1009-
226	BOLT; UNION M8X25 FLANGE	0-28650-825-0	01	1	1009-
226	BOLT; UNION MJX12P M/T SMOOTHER-G(Y4S) M8X25 FLANGE	0-28650-825-0	01	1	1009-
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1009-1302
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1303-
288	PLUG (A) OD=6 L=27	1-09661-615-0	01	1	1009-1102
288	PLUG EXC. HONG KONG EQUIPMENT(PQ1) (A) OD=6 L=27	1-09661-615-0	01	1	1412-1412
288	PLUG EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) OD=6 L=27	1-09661-615-0	01	1	1412-
288	PLUG (B) OD=8 PLASTIC	1-09661-616-0	01	1	1009-
288	PLUG (C) OD=12	1-09661-617-0	02	1	1009-

288 288 126 42 129 126 129 288 129 129 42 226 127 192 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	GASKET; CONNECTOR ID=22.5	9-09571-422-0	02	1	1009-1411
42	GASKET; CONNECTOR HONG KONG EQUIPMENT(PQ1) ID=22.5	9-09571-422-0	02	1	1412-1412
42	GASKET; CONNECTOR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=22.5	9-09571-422-0	02	1	1412-
126	UNION; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1) (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1412-1412
126	UNION; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1412-
126	UNION; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1) (D) M22X2 STRAIGHT	8-98107-103-0	02	1	1412-1412
126	UNION; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) M22X2 STRAIGHT	8-98107-103-0	02	1	1412-
126	UNION; NYLON TUBE (A) 2WAY	1-09661-518-0	01	1	1009-1102
126	UNION; NYLON TUBE (B)	1-09661-612-1	01	1	1009-
126	UNION; NYLON TUBE (C) PT3/8	1-09664-210-0	01	1	1009-1411
126	UNION; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (C) PT3/8	1-09664-210-0	01	1	1412-1412
126	UNION; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) PT3/8	1-09664-210-0	01	1	1412-
127	NUT; UNION (B) M20	0-91111-520-0	03	1	1009-
127	NUT; UNION (A) M8 FLANGE	0-91180-108-0	01	1	1009-1302
127	NUT; UNION (A) M8 FLANGE	0-91180-108-0	03	1	1303-
127	NUT; UNION (A) M8 FLANGE	0-91180-108-0	02	1	1009-1302
129	CONNECTOR; NYLON TUBE (B) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1303-
129	CONNECTOR; NYLON TUBE (B) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1303-
129	CONNECTOR; NYLON TUBE (A) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1009-1411
129	CONNECTOR; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (A) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1412-1412
129	CONNECTOR; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1412-
129	CONNECTOR; NYLON TUBE (B) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	1009-1302
129	CONNECTOR; NYLON TUBE (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1303-
129	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-1411
129	CONNECTOR; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1412-1412
129	CONNECTOR; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1412-
192	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1) (B) L=990 OD=8	1-49218-618-1	02	1	1412-1412
192	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=990 OD=8	1-49218-618-1	02	1	1412-
192	TUBE; NYLON (B)	8-98128-020-0	01	1	1009-1411
192	TUBE; NYLON HONG KONG EQUIPMENT(PQ1) (B)	8-98128-020-0	01	1	1412-1412
192	TUBE; NYLON HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	8-98128-020-0	01	1	1412-
192	TUBE; NYLON (C)	8-98128-021-0	01	1	1009-1411
192	TUBE; NYLON HONG KONG EQUIPMENT(PQ1) (C)	8-98128-021-0	01	1	1412-1412
192	TUBE; NYLON HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	8-98128-021-0	01	1	1412-
192	TUBE; NYLON (F)	8-98135-887-0	01	1	1009-1302
192	TUBE; NYLON (E)	8-98135-889-0	01	1	1009-1302
192	TUBE; NYLON (F)	8-98229-895-0	01	1	1303-
192	TUBE; NYLON (D)	8-98176-127-0	01	1	1009-1302
192	TUBE; NYLON (E)	8-98229-896-0	01	1	1303-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1009-
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1009-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-
226	BOLT; UNION EXC. HONG KONG EQUIPMENT(PQ1) M8X16 FLANGE	0-28050-816-0	01	1	1412-1412
226	BOLT; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X16 FLANGE	0-28050-816-0	01	1	1412-
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	01	1	1009-1102
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	02	1	1009-
226	BOLT; UNION M8X25 FLANGE	0-28650-825-0	01	1	1009-
226	BOLT; UNION MJX12P M/T SMOOTHER-G(Y4S) M8X25 FLANGE	0-28650-825-0	01	1	1009-
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1009-1302
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1303-
288	PLUG (A) OD=6 L=27	1-09661-615-0	01	1	1009-1102
288	PLUG EXC. HONG KONG EQUIPMENT(PQ1) (A) OD=6 L=27	1-09661-615-0	01	1	1412-1412
288	PLUG EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) OD=6 L=27	1-09661-615-0	01	1	1412-
288	PLUG (B) OD=8 PLASTIC	1-09661-616-0	01	1	1009-
288	PLUG (C) OD=12	1-09661-617-0	02	1	1009-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
