3-75 — BRAKE PIPING; AIR,FRONT (#70113) — 177 parça

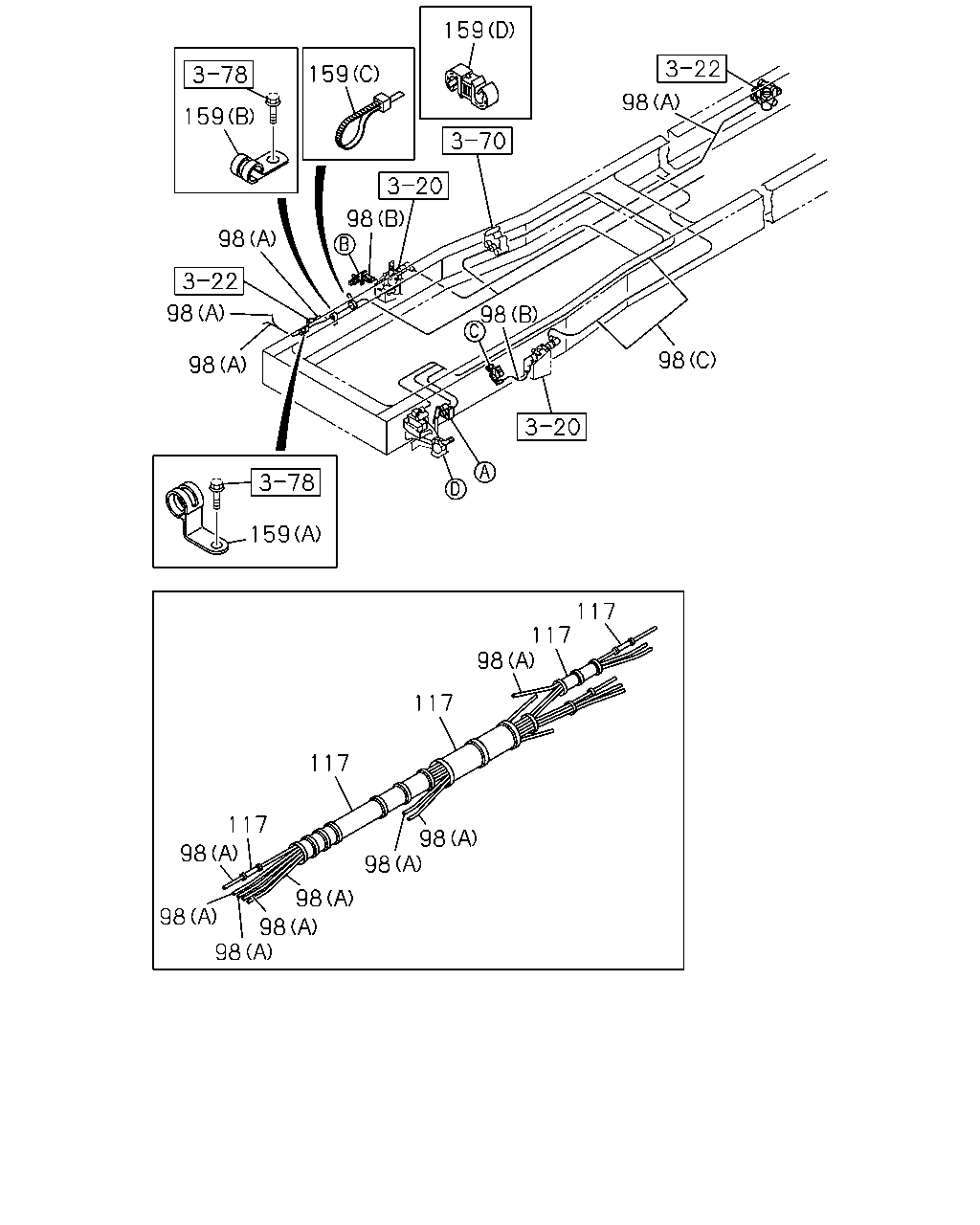

çizim 188604
98 98 98 159 159 159 98 98 98 98 159 117 117 117 98 98 98 98 98 98 98 98 117 117
BalonParca AdiParca NoAdetTipApplied Date
98 TUBE; NYLON
EXC. HONG KONG EQUIPMENT(PQ1) (B) 		8-98147-263-0 02 1 1412-1412
98 TUBE; NYLON
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		8-98147-263-0 02 1 1412-
98 TUBE; NYLON
POOR QUALITY DIESEL FUEL<KF0> (C) 		8-98186-598-0 01 1 1103-1302
98 TUBE; NYLON
(D) 		8-98226-743-0 01 1 1303-
98 TUBE; NYLON
(C) 		8-98176-121-0 01 1 1009-1102
98 TUBE; NYLON
EXC. POOR QUALITY DIESEL FUEL<KF0> (C) 		8-98176-121-0 01 1 1103-1302
98 TUBE; NYLON
(B) L=200 OD=12 		1-49222-062-0 02 1 1009-1411
98 TUBE; NYLON
HONG KONG EQUIPMENT(PQ1) (B) L=200 OD=12 		1-49222-062-0 02 1 1412-1412
98 TUBE; NYLON
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=200 OD=12 		1-49222-062-0 02 1 1412-
98 TUBE; NYLON
(C) 		8-98227-220-0 01 1 1303-1312
98 TUBE; NYLON
(C) 		8-98251-773-0 01 1 1401-
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1009-
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1009-
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1009-
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009-
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009-
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1009-
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1103-
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1103-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1009-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1009-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1009-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1009-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1009-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1009-
159 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. FULL FLOATING CAB(W16) (C) L=350 		1-09707-183-0 01 1 1412-
159 CLIP; NYLON TUBE
EXC. HONG KONG EQUIPMENT(PQ1) (A) ID=21 L=30 H=40 		1-09700-991-1 03 1 1412-1412
159 CLIP; NYLON TUBE
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=21 L=30 H=40 		1-09700-991-1 03 1 1412-
159 CLIP; NYLON TUBE
EXC. HONG KONG EQUIPMENT(PQ1) (B) ID=21 L=24 		8-98019-191-0 01 1 1412-1412
159 CLIP; NYLON TUBE
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=21 L=24 		8-98019-191-0 01 1 1412-
159 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 		1-09700-994-0 01 1 1303-
159 CLIP; NYLON TUBE
(B) ID=24 L=27 		1-09700-809-0 02 1 1009-1302
159 CLIP; NYLON TUBE
(A) ID=19 H=70 L=25 		1-09700-773-0 01 1 1303-1411
159 CLIP; NYLON TUBE
HONG KONG EQUIPMENT(PQ1) (A) ID=19 H=70 L=25 		1-09700-773-0 01 1 1412-1412
159 CLIP; NYLON TUBE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=19 H=70 L=25 		1-09700-773-0 01 1 1412-
159 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 03 1 1009-1302
159 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 02 1 1303-
159 CLIP; NYLON TUBE
(A) ID=21 L=30 H=40 		1-09700-991-1 02 1 1009-1411
159 CLIP; NYLON TUBE
HONG KONG EQUIPMENT(PQ1) (A) ID=21 L=30 H=40 		1-09700-991-1 02 1 1412-1412
159 CLIP; NYLON TUBE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=21 L=30 H=40 		1-09700-991-1 02 1 1412-
159 CLIP; NYLON TUBE
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1009-
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 24 1 1009-1302
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 18 1 1303-
159 CLIP; NYLON TUBE
(D) ID=12 & 15 		1-09709-281-1 01 1 1009-1302
159 CLIP; NYLON TUBE
(D) ID=12 & 15 		1-09709-281-1 01 1 1303-1411
159 CLIP; NYLON TUBE
HONG KONG EQUIPMENT(PQ1) (D) ID=12 & 15 		1-09709-281-1 01 1 1412-1412
159 CLIP; NYLON TUBE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) ID=12 & 15 		1-09709-281-1 01 1 1412-

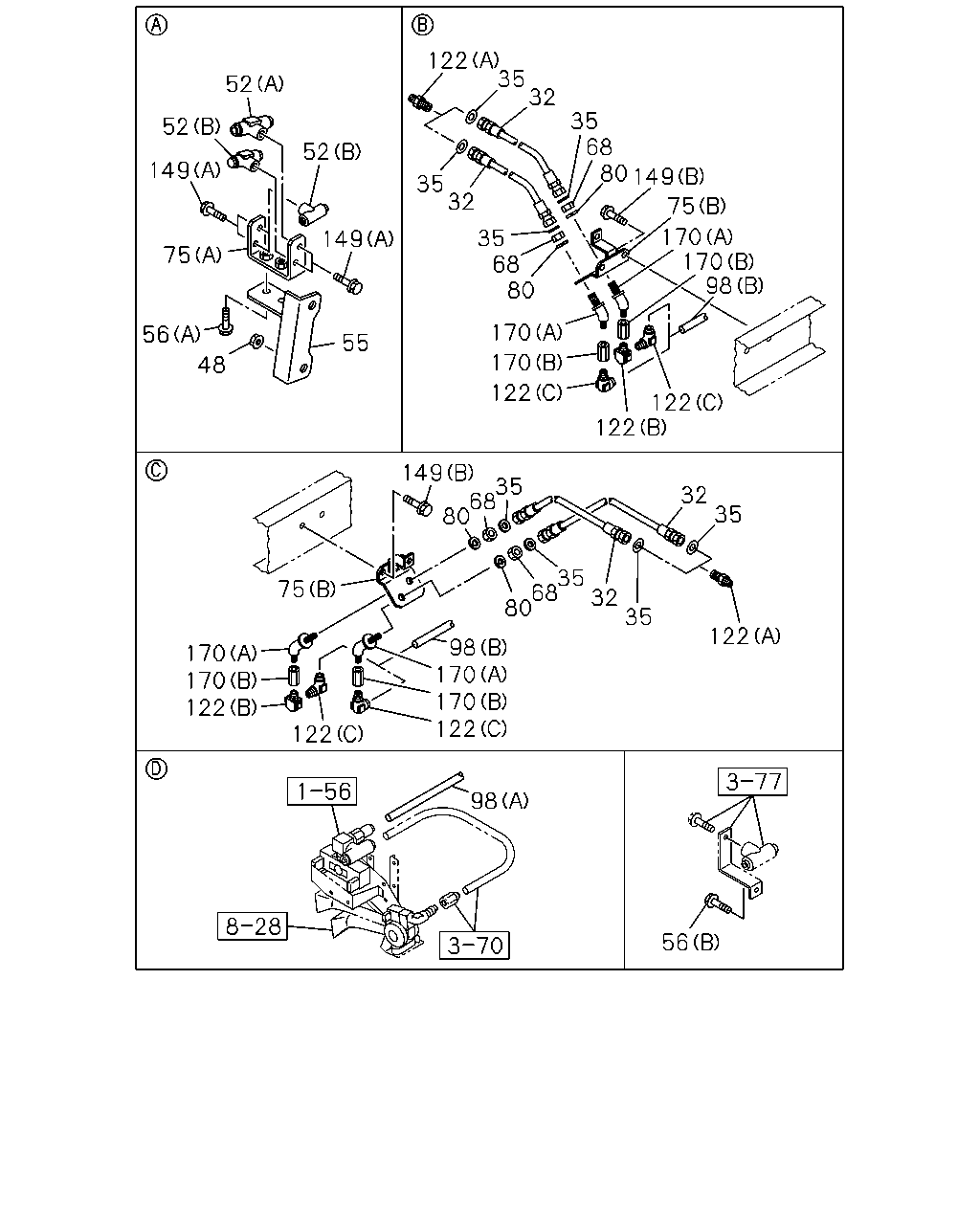

çizim 188607
52 52 52 149 75 149 55 48 56 122 35 35 32 32 35 35 68 68 80 80 149 170 75 170 170 98 170 122 122 122 32 122 35 35 68 80 80 35 32 35 68 149 75 98 170 170 122 122 122 170 170 98 56
BalonParca AdiParca NoAdetTipApplied Date
32 HOSE; FLEX,FRT
L=470 		0-57847-470-1 04 1 1009-
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 08 1 1009-
48 NUT; UNION BRKT
M12 FLANGE 		0-91180-212-0 02 1 1009-1302
52 CONNECTOR; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1009-
52 CONNECTOR; NYLON TUBE
(B) DIN8X2 & M8 2WAY 		1-09661-133-0 03 1 1009-
55 BRACKET; TUBE UNION 1-47478-381-1 01 1 1009-1302
56 BOLT; UNION BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1009-1302
56 BOLT; UNION BRKT
(C) M12X30 FLANGE 		0-28051-230-0 02 1 1303-
56 BOLT; UNION BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1009-1302
68 NUT; UNION
M20 		0-91111-520-0 04 1 1009-
75 BRACKET; UNION
(B) 		1-47471-367-0 01 1 1009-
75 BRACKET; UNION
(B) 		1-47471-368-0 01 1 1009-
75 BRACKET; UNION
(A) 		1-47478-382-0 01 1 1009-1302
80 WASHER; LK,UNION
ID=20.2 		0-91510-520-0 04 1 1009-
98 TUBE; NYLON
EXC. HONG KONG EQUIPMENT(PQ1) (B) 		8-98147-263-0 02 1 1412-1412
98 TUBE; NYLON
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		8-98147-263-0 02 1 1412-
98 TUBE; NYLON
POOR QUALITY DIESEL FUEL<KF0> (C) 		8-98186-598-0 01 1 1103-1302
98 TUBE; NYLON
(D) 		8-98226-743-0 01 1 1303-
98 TUBE; NYLON
(C) 		8-98176-121-0 01 1 1009-1102
98 TUBE; NYLON
EXC. POOR QUALITY DIESEL FUEL<KF0> (C) 		8-98176-121-0 01 1 1103-1302
98 TUBE; NYLON
(B) L=200 OD=12 		1-49222-062-0 02 1 1009-1411
98 TUBE; NYLON
HONG KONG EQUIPMENT(PQ1) (B) L=200 OD=12 		1-49222-062-0 02 1 1412-1412
98 TUBE; NYLON
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=200 OD=12 		1-49222-062-0 02 1 1412-
98 TUBE; NYLON
(C) 		8-98227-220-0 01 1 1303-1312
98 TUBE; NYLON
(C) 		8-98251-773-0 01 1 1401-
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1009-
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1009-
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1009-
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009-
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009-
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1009-
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1103-
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1103-
122 CONNECTOR; FLEX HOSE
(B) PT3/8 ELBOW 		1-09660-696-0 02 1 1009-
122 CONNECTOR; FLEX HOSE
(A) M20 & PT3/8 		1-09660-731-1 04 1 1009-
122 CONNECTOR; FLEX HOSE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1009-
149 BOLT; UNION
(C) M8X20 FLANGE 		0-28050-820-0 02 1 1303-
149 BOLT; UNION
(A) M8X16 FLANGE 		0-28050-816-0 04 1 1009-1302
149 BOLT; UNION
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1303-
149 BOLT; UNION
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1009-
170 UNION; FLARE
(A) M20 		1-09654-199-2 04 1 1009-
170 UNION; FLARE
(B) M20 & RC3/8 STRAIGHT 		1-09660-883-0 04 1 1009-

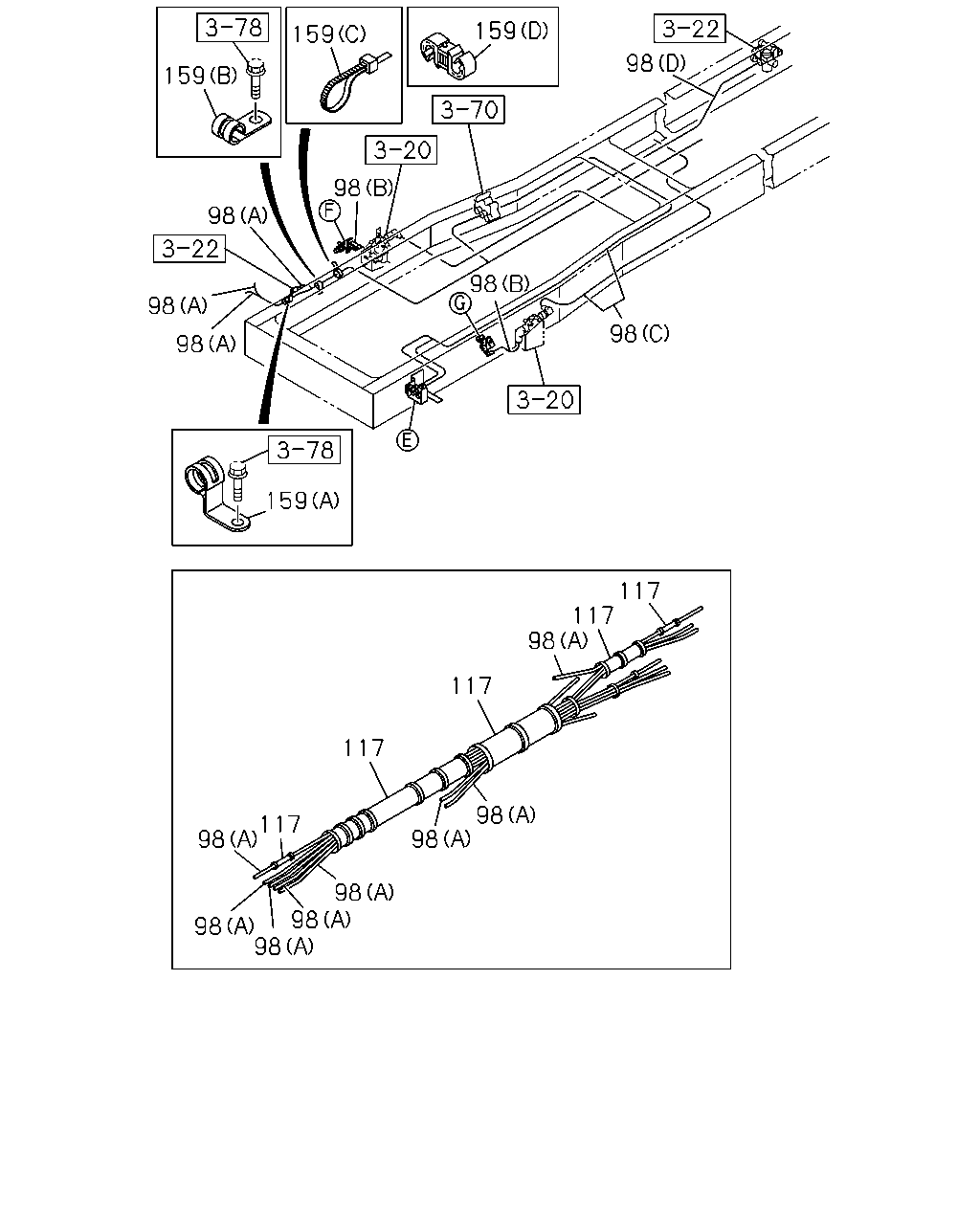

çizim 336363
159 98 98 98 98 98 159 98 98 159 159 117 117 98 117 117 117 98 98 98 98 98 98 98
BalonParca AdiParca NoAdetTipApplied Date
98 TUBE; NYLON
EXC. HONG KONG EQUIPMENT(PQ1) (B) 		8-98147-263-0 02 1 1412-1412
98 TUBE; NYLON
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		8-98147-263-0 02 1 1412-
98 TUBE; NYLON
POOR QUALITY DIESEL FUEL<KF0> (C) 		8-98186-598-0 01 1 1103-1302
98 TUBE; NYLON
(D) 		8-98226-743-0 01 1 1303-
98 TUBE; NYLON
(C) 		8-98176-121-0 01 1 1009-1102
98 TUBE; NYLON
EXC. POOR QUALITY DIESEL FUEL<KF0> (C) 		8-98176-121-0 01 1 1103-1302
98 TUBE; NYLON
(B) L=200 OD=12 		1-49222-062-0 02 1 1009-1411
98 TUBE; NYLON
HONG KONG EQUIPMENT(PQ1) (B) L=200 OD=12 		1-49222-062-0 02 1 1412-1412
98 TUBE; NYLON
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=200 OD=12 		1-49222-062-0 02 1 1412-
98 TUBE; NYLON
(C) 		8-98227-220-0 01 1 1303-1312
98 TUBE; NYLON
(C) 		8-98251-773-0 01 1 1401-
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1009-
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1009-
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1009-
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009-
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009-
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1009-
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1103-
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1103-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1009-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1009-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1009-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1009-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1009-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1009-
159 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. FULL FLOATING CAB(W16) (C) L=350 		1-09707-183-0 01 1 1412-
159 CLIP; NYLON TUBE
EXC. HONG KONG EQUIPMENT(PQ1) (A) ID=21 L=30 H=40 		1-09700-991-1 03 1 1412-1412
159 CLIP; NYLON TUBE
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=21 L=30 H=40 		1-09700-991-1 03 1 1412-
159 CLIP; NYLON TUBE
EXC. HONG KONG EQUIPMENT(PQ1) (B) ID=21 L=24 		8-98019-191-0 01 1 1412-1412
159 CLIP; NYLON TUBE
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=21 L=24 		8-98019-191-0 01 1 1412-
159 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 		1-09700-994-0 01 1 1303-
159 CLIP; NYLON TUBE
(B) ID=24 L=27 		1-09700-809-0 02 1 1009-1302
159 CLIP; NYLON TUBE
(A) ID=19 H=70 L=25 		1-09700-773-0 01 1 1303-1411
159 CLIP; NYLON TUBE
HONG KONG EQUIPMENT(PQ1) (A) ID=19 H=70 L=25 		1-09700-773-0 01 1 1412-1412
159 CLIP; NYLON TUBE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=19 H=70 L=25 		1-09700-773-0 01 1 1412-
159 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 03 1 1009-1302
159 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 02 1 1303-
159 CLIP; NYLON TUBE
(A) ID=21 L=30 H=40 		1-09700-991-1 02 1 1009-1411
159 CLIP; NYLON TUBE
HONG KONG EQUIPMENT(PQ1) (A) ID=21 L=30 H=40 		1-09700-991-1 02 1 1412-1412
159 CLIP; NYLON TUBE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=21 L=30 H=40 		1-09700-991-1 02 1 1412-
159 CLIP; NYLON TUBE
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1009-
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 24 1 1009-1302
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 18 1 1303-
159 CLIP; NYLON TUBE
(D) ID=12 & 15 		1-09709-281-1 01 1 1009-1302
159 CLIP; NYLON TUBE
(D) ID=12 & 15 		1-09709-281-1 01 1 1303-1411
159 CLIP; NYLON TUBE
HONG KONG EQUIPMENT(PQ1) (D) ID=12 & 15 		1-09709-281-1 01 1 1412-1412
159 CLIP; NYLON TUBE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) ID=12 & 15 		1-09709-281-1 01 1 1412-

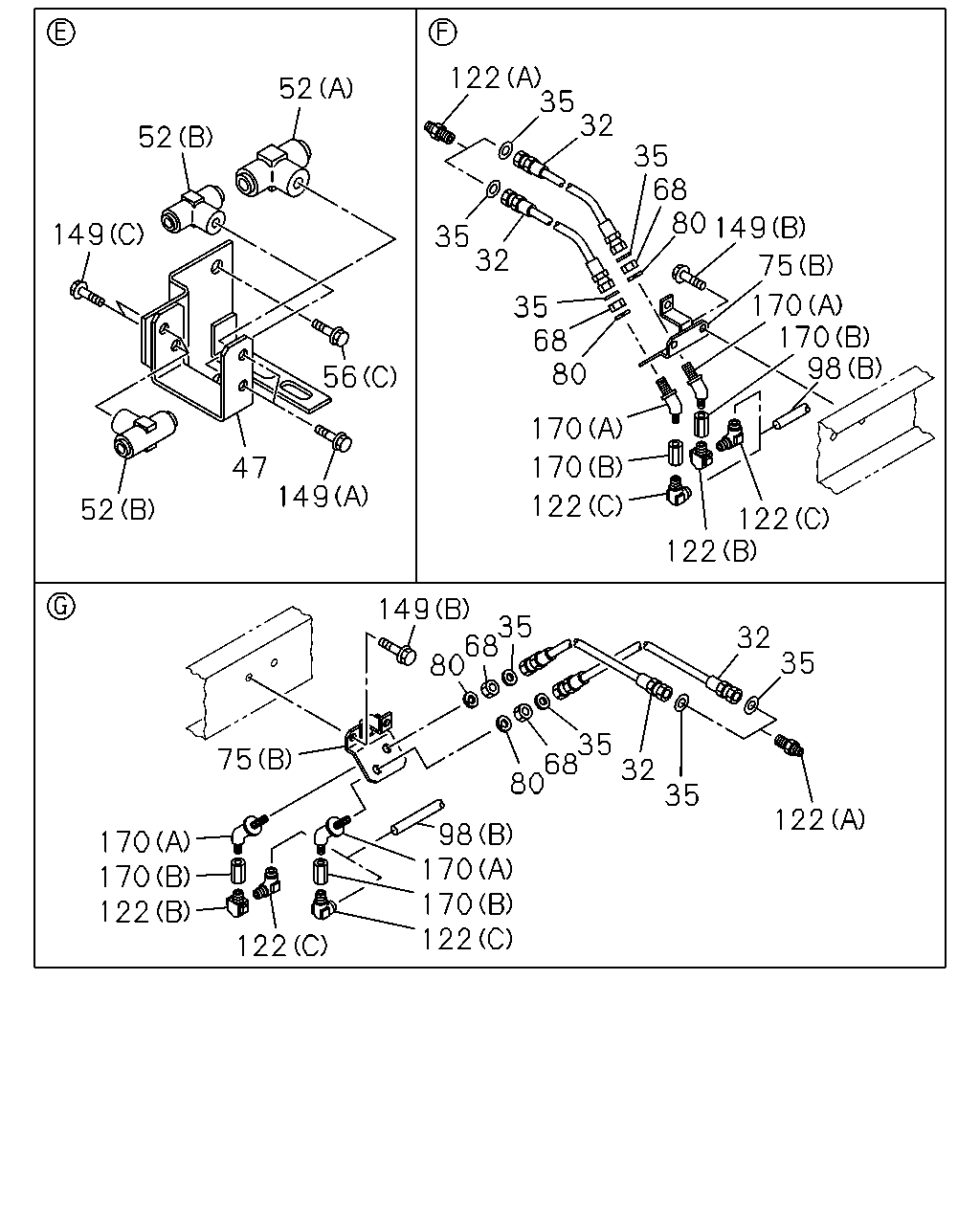

çizim 337270
52 52 56 149 47 52 149 122 35 35 32 68 80 149 75 170 170 98 122 122 122 170 170 80 68 35 32 35 149 35 68 80 32 35 122 35 32 35 68 80 98 170 170 122 122 170 170 122 75
BalonParca AdiParca NoAdetTipApplied Date
32 HOSE; FLEX,FRT
L=470 		0-57847-470-1 04 1 1009-
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 08 1 1009-
47 BRACKET; PIPE UNION 8-97636-508-0 01 1 1303-
52 CONNECTOR; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1009-
52 CONNECTOR; NYLON TUBE
(B) DIN8X2 & M8 2WAY 		1-09661-133-0 03 1 1009-
56 BOLT; UNION BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1009-1302
56 BOLT; UNION BRKT
(C) M12X30 FLANGE 		0-28051-230-0 02 1 1303-
56 BOLT; UNION BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1009-1302
68 NUT; UNION
M20 		0-91111-520-0 04 1 1009-
75 BRACKET; UNION
(B) 		1-47471-367-0 01 1 1009-
75 BRACKET; UNION
(B) 		1-47471-368-0 01 1 1009-
75 BRACKET; UNION
(A) 		1-47478-382-0 01 1 1009-1302
80 WASHER; LK,UNION
ID=20.2 		0-91510-520-0 04 1 1009-
98 TUBE; NYLON
EXC. HONG KONG EQUIPMENT(PQ1) (B) 		8-98147-263-0 02 1 1412-1412
98 TUBE; NYLON
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		8-98147-263-0 02 1 1412-
98 TUBE; NYLON
POOR QUALITY DIESEL FUEL<KF0> (C) 		8-98186-598-0 01 1 1103-1302
98 TUBE; NYLON
(D) 		8-98226-743-0 01 1 1303-
98 TUBE; NYLON
(C) 		8-98176-121-0 01 1 1009-1102
98 TUBE; NYLON
EXC. POOR QUALITY DIESEL FUEL<KF0> (C) 		8-98176-121-0 01 1 1103-1302
98 TUBE; NYLON
(B) L=200 OD=12 		1-49222-062-0 02 1 1009-1411
98 TUBE; NYLON
HONG KONG EQUIPMENT(PQ1) (B) L=200 OD=12 		1-49222-062-0 02 1 1412-1412
98 TUBE; NYLON
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=200 OD=12 		1-49222-062-0 02 1 1412-
98 TUBE; NYLON
(C) 		8-98227-220-0 01 1 1303-1312
98 TUBE; NYLON
(C) 		8-98251-773-0 01 1 1401-
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1009-
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1009-
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1009-
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009-
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009-
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1009-
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1103-
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1103-
122 CONNECTOR; FLEX HOSE
(B) PT3/8 ELBOW 		1-09660-696-0 02 1 1009-
122 CONNECTOR; FLEX HOSE
(A) M20 & PT3/8 		1-09660-731-1 04 1 1009-
122 CONNECTOR; FLEX HOSE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1009-
149 BOLT; UNION
(C) M8X20 FLANGE 		0-28050-820-0 02 1 1303-
149 BOLT; UNION
(A) M8X16 FLANGE 		0-28050-816-0 04 1 1009-1302
149 BOLT; UNION
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1303-
149 BOLT; UNION
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1009-
170 UNION; FLARE
(A) M20 		1-09654-199-2 04 1 1009-
170 UNION; FLARE
(B) M20 & RC3/8 STRAIGHT 		1-09660-883-0 04 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
