3-70 — BRAKE PIPING; AIR,AIR MASTER (#70112) — 190 parça

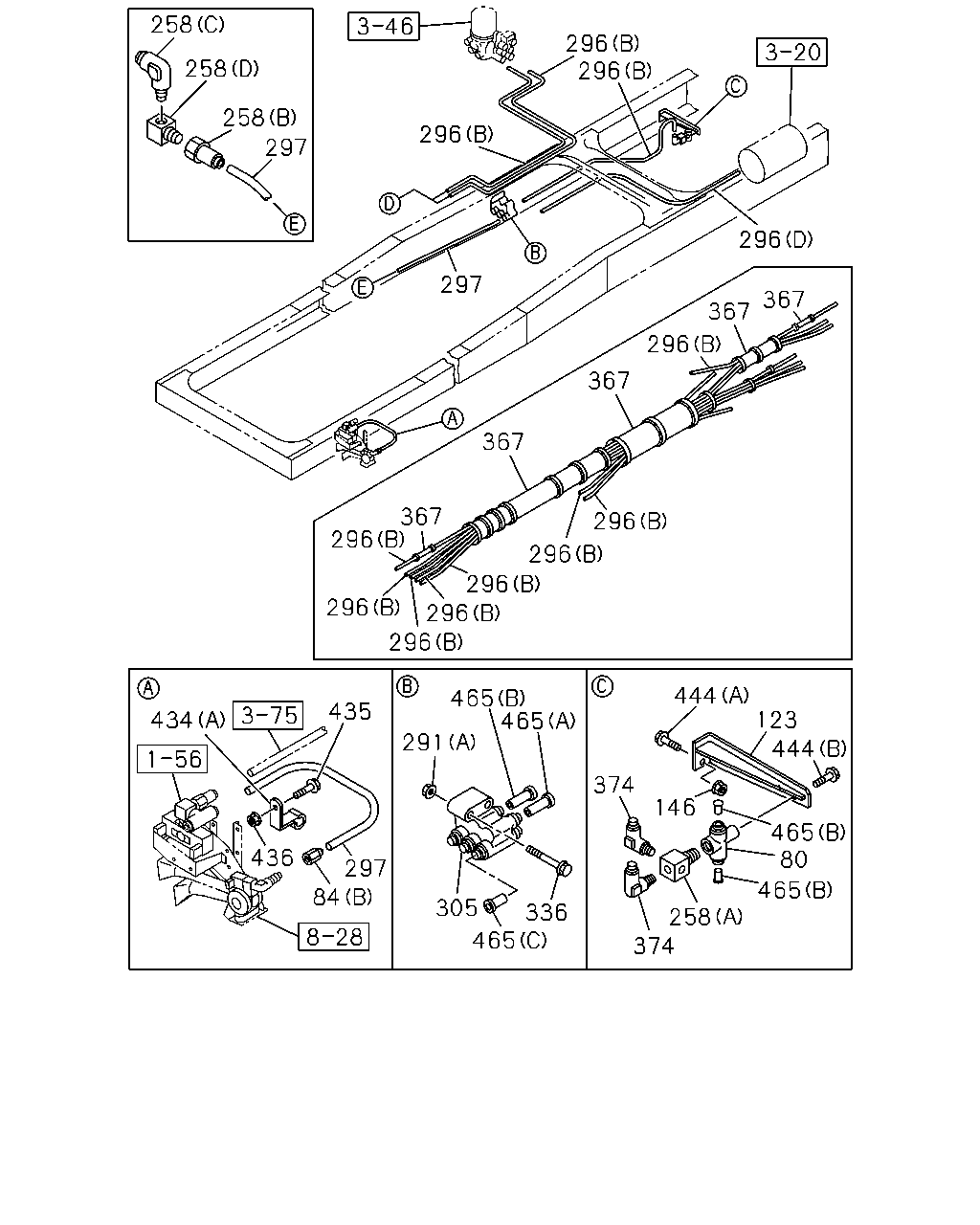

çizim 121426
258 258 258 297 296 296 296 297 296 367 367 296 367 367 367 296 296 296 296 296 296 296 434 435 297 84 436 465 465 291 336 305 465 444 123 444 465 80 465 146 374 374 258
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
MJT7S M/T(Y3E) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1009-
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 1009-1302
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1009-1302
123 BRACKET; UNION
MJT7S M/T(Y3E) 		1-47479-401-0 01 1 1009-
146 NUT; UNION
MJT7S M/T(Y3E) M8 FLANGE 		0-91180-108-0 02 1 1009-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1303-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1303-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (D) PT3/8 & PT3/8 		1-09661-303-0 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (D) PT3/8 & PT3/8 		1-09661-303-0 01 1 1303-
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (A) PT3/8 3WAY 		1-09661-300-0 01 1 1009-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
(E) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1303-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1009-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1009-
296 TUBE; NYLON
EXC. HONG KONG EQUIPMENT(PQ1) (D) 		8-98242-435-0 01 1 1412-1412
296 TUBE; NYLON
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) 		8-98242-435-0 01 1 1412-
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1303-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1009-1302
296 TUBE; NYLON
(A) L=1200 OD=6 		1-09366-256-1 01 1 1303-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1009-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009-
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 1009-
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28050-870-0 02 1 1009-1009
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 1009-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1009-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1009-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1009-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1412-
374 CONNECTOR
MJT7S M/T(Y3E) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1009-
434 CLIP
(B) ID=12 & 24 		1-09701-248-0 01 1 1303-
434 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 1009-1302
434 CLIP
(C) ID=24 L=27 		1-09700-809-0 03 1 1303-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1303-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1009-1302
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1303-
444 BOLT; UNION
MJT7S M/T(Y3E) (B) M8X16 FLANGE 		0-28050-816-0 01 1 1009-
444 BOLT; UNION
MJT7S M/T(Y3E) (A) M8X30 FLANGE 		0-28650-830-0 02 1 1009-
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1009-
465 PLUG
MJX12P M/T SMOOTHER-G(Y4S) (B) OD=8 PLASTIC 		1-09661-616-0 01 1 1009-
465 PLUG
MJT7S M/T(Y3E) (B) OD=8 PLASTIC 		1-09661-616-0 02 1 1009-
465 PLUG
MJX12P M/T SMOOTHER-G(Y4S) (C) OD=12 		1-09661-617-0 01 1 1009-
465 PLUG
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27 		1-09661-615-0 01 1 1009-1302
465 PLUG
EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 1009-1302
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1303-1411
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) OD=6 L=27 		1-09661-615-0 01 1 1303-1411
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) OD=6 L=27 		1-09661-615-0 01 1 1412-
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1412-
465 PLUG
MJT7S M/T(Y3E) CAB SUSPENSION-FULL FLOATING(SMK) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27 		1-09661-615-0 01 1 1412-

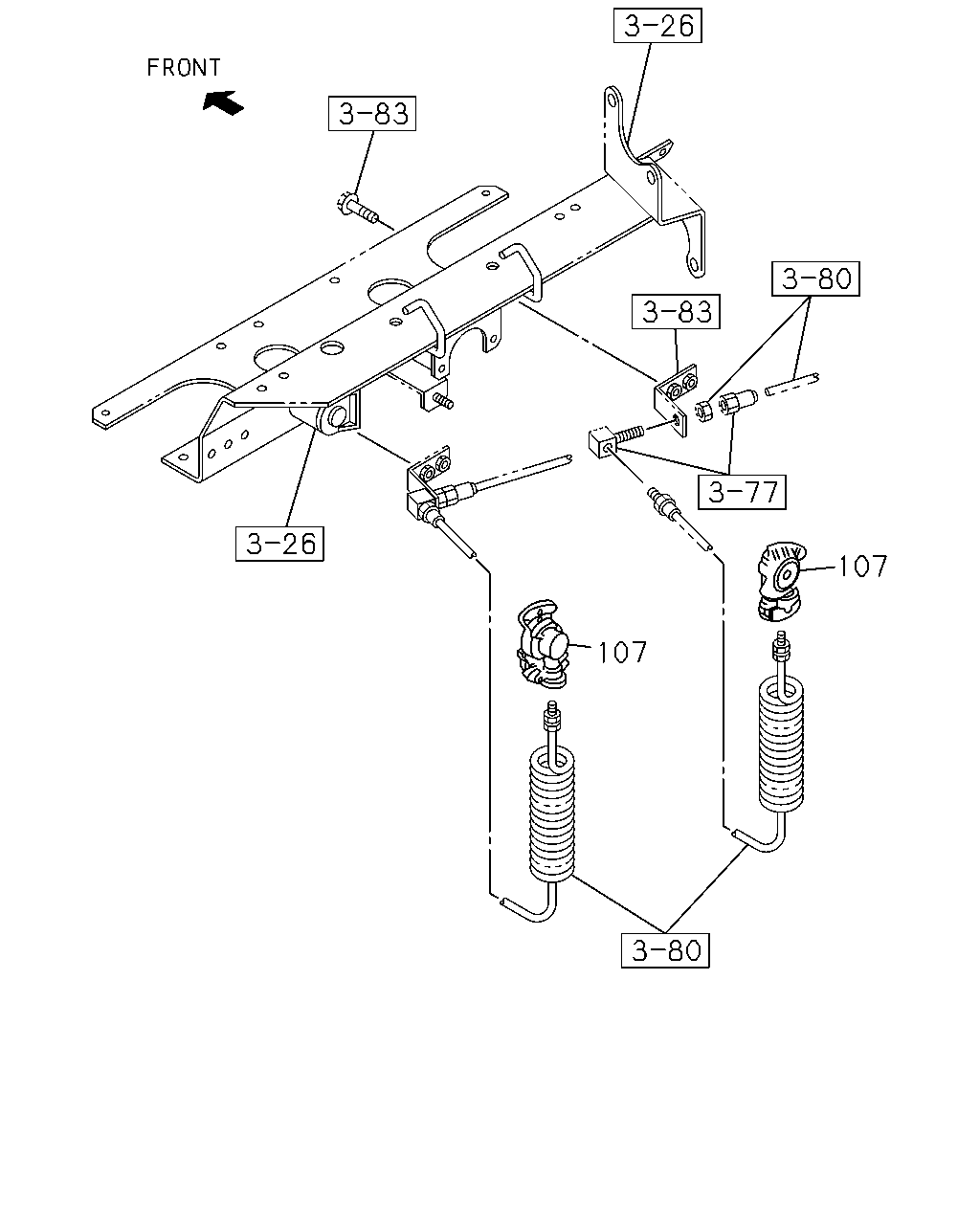

çizim 121532
107 107
BalonParca AdiParca NoAdetTipApplied Date
107 COUPLING; SERVICE
EMERGENCY 		1-47478-210-0 01 1 1009-
107 COUPLING; SERVICE
SERVICE 		1-47478-211-0 01 1 1009-

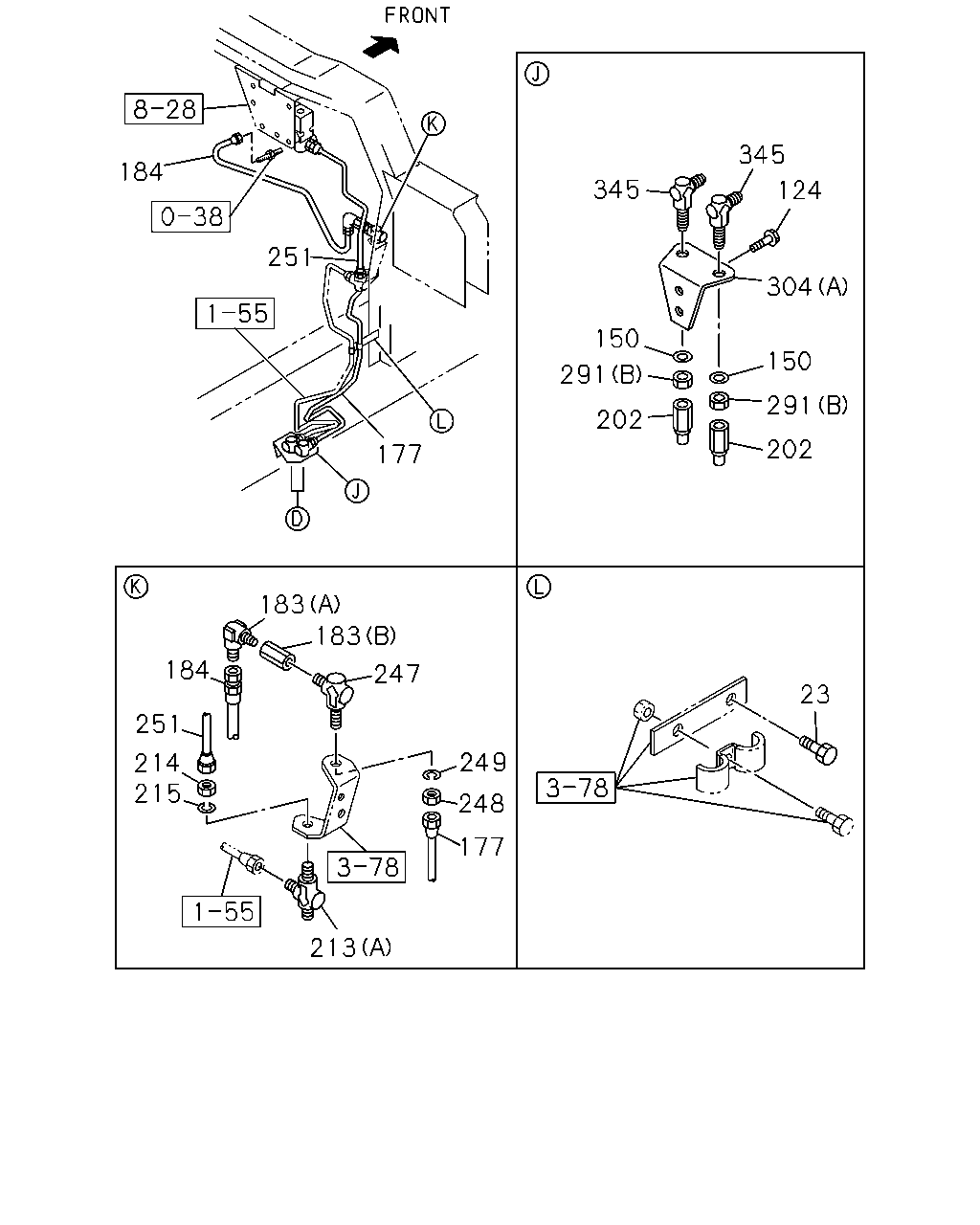

çizim 121603
184 251 177 345 345 124 304 150 291 202 150 291 202 183 184 251 214 215 249 248 177 247 183 23 213
BalonParca AdiParca NoAdetTipApplied Date
23 BOLT; BRKT,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1009-1302
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1009-
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1009-
177 PIPE; AIR,UNION TO UNION
L=785 SERVICED BY L=800 		1-47428-812-0 01 1 1009-1302
177 PIPE; AIR,UNION TO UNION
L=582 SERVICED BY L=600 		1-47428-809-0 01 1 1303-
183 UNION; FLEX HOSE,GOV
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1009-
183 UNION; FLEX HOSE,GOV
(B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1009-
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1009-
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1009-
213 UNION; AIR PIPE
CAB SUSPENSION-FULL FLOATING(SMK) (B) M12 ELBOW 		0-92125-206-0 01 1 1412-
213 UNION; AIR PIPE
(A) M12 3WAY 		0-92138-906-0 01 1 1009-1411
213 UNION; AIR PIPE
FULL FLOATING CAB(W16) (A) M12 3WAY 		0-92138-906-0 01 1 1412-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1009-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1009-
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1009-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1009-
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1009-
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1009-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1009-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1009-
304 BRACKET; UNION
(B) 		1-47471-262-0 01 1 1009-1302
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1009-1302
304 BRACKET; UNION
(A) 		8-98082-870-0 01 1 1303-
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 1009-

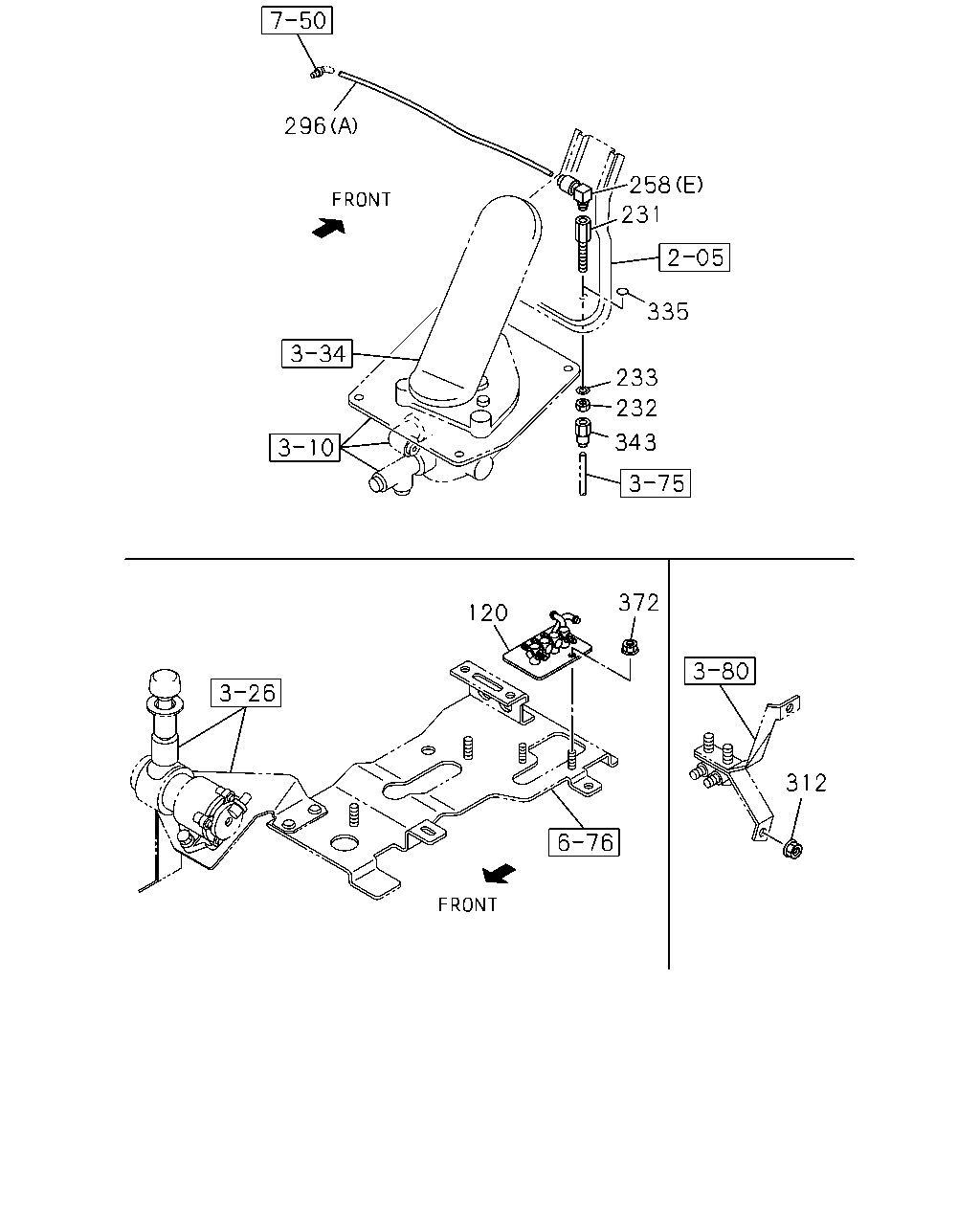

çizim 121730
296 258 231 335 233 232 343 120 372 312
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE 1-47470-604-0 01 1 1009-
231 UNION; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1009-1302
231 UNION; AIR PIPE
PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1303-
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 1009-1302
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 01 1 1303-
233 WASHER; LK,UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 1009-1302
233 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 01 1 1303-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1303-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1303-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (D) PT3/8 & PT3/8 		1-09661-303-0 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (D) PT3/8 & PT3/8 		1-09661-303-0 01 1 1303-
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (A) PT3/8 3WAY 		1-09661-300-0 01 1 1009-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
(E) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1303-
296 TUBE; NYLON
EXC. HONG KONG EQUIPMENT(PQ1) (D) 		8-98242-435-0 01 1 1412-1412
296 TUBE; NYLON
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) 		8-98242-435-0 01 1 1412-
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1303-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1009-1302
296 TUBE; NYLON
(A) L=1200 OD=6 		1-09366-256-1 01 1 1303-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009-
312 NUT; UNION
M8 		0-91110-508-0 01 1 1009-
335 SEAL; UNION
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 1009-1302
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DIN6 & M10 STRAIGHT 		1-09661-382-0 01 1 1009-1302
343 UNION; NYLON TUBE
DIN6 & M10 STRAIGHT 		1-09661-382-0 01 1 1303-
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 1009-

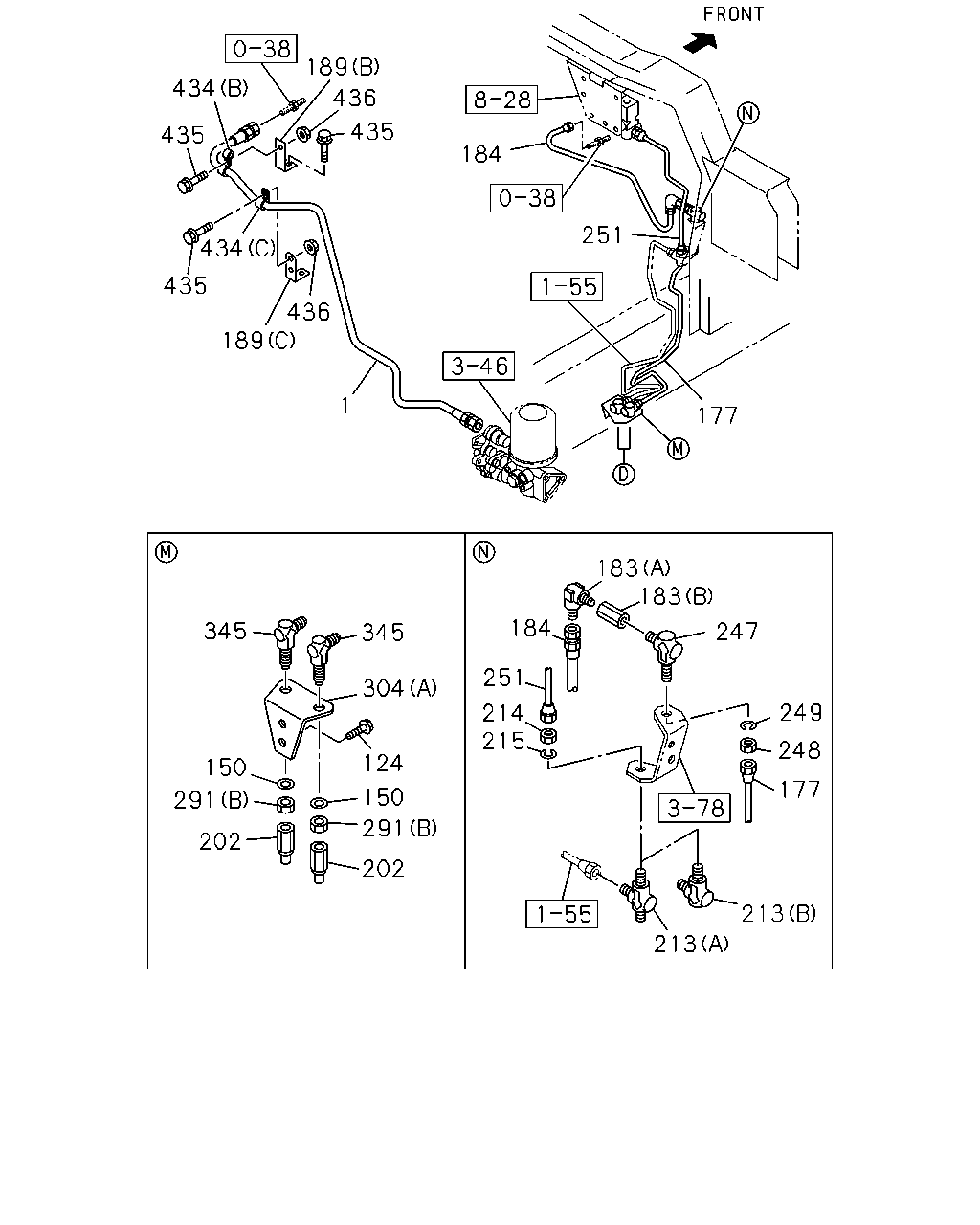

çizim 188601
189 436 435 434 435 434 435 436 189 1 184 251 177 345 345 304 124 150 291 202 202 291 150 184 183 183 247 249 248 177 213 213 215 214 251
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1350 		1-09363-925-0 01 1 1009-1302
1 HOSE; FLEX,AIR TANK
L=1480 		8-98169-578-0 01 1 1303-
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1009-
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1009-
177 PIPE; AIR,UNION TO UNION
L=785 SERVICED BY L=800 		1-47428-812-0 01 1 1009-1302
177 PIPE; AIR,UNION TO UNION
L=582 SERVICED BY L=600 		1-47428-809-0 01 1 1303-
183 UNION; FLEX HOSE,GOV
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1009-
183 UNION; FLEX HOSE,GOV
(B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1009-
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1009-
189 BRACKET; FLEX HOSE
MJX12P M/T SMOOTHER-G(Y4S) (C) 		1-47477-337-1 01 1 1303-
189 BRACKET; FLEX HOSE
(A) 		1-47479-473-0 01 1 1009-1302
189 BRACKET; FLEX HOSE
(B) L=75 		1-47478-328-0 01 1 1303-
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1009-
213 UNION; AIR PIPE
CAB SUSPENSION-FULL FLOATING(SMK) (B) M12 ELBOW 		0-92125-206-0 01 1 1412-
213 UNION; AIR PIPE
(A) M12 3WAY 		0-92138-906-0 01 1 1009-1411
213 UNION; AIR PIPE
FULL FLOATING CAB(W16) (A) M12 3WAY 		0-92138-906-0 01 1 1412-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1009-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1009-
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1009-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1009-
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1009-
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1009-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1009-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1009-
304 BRACKET; UNION
(B) 		1-47471-262-0 01 1 1009-1302
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1009-1302
304 BRACKET; UNION
(A) 		8-98082-870-0 01 1 1303-
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 1009-
434 CLIP
(B) ID=12 & 24 		1-09701-248-0 01 1 1303-
434 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 1009-1302
434 CLIP
(C) ID=24 L=27 		1-09700-809-0 03 1 1303-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1303-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1009-1302
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1303-

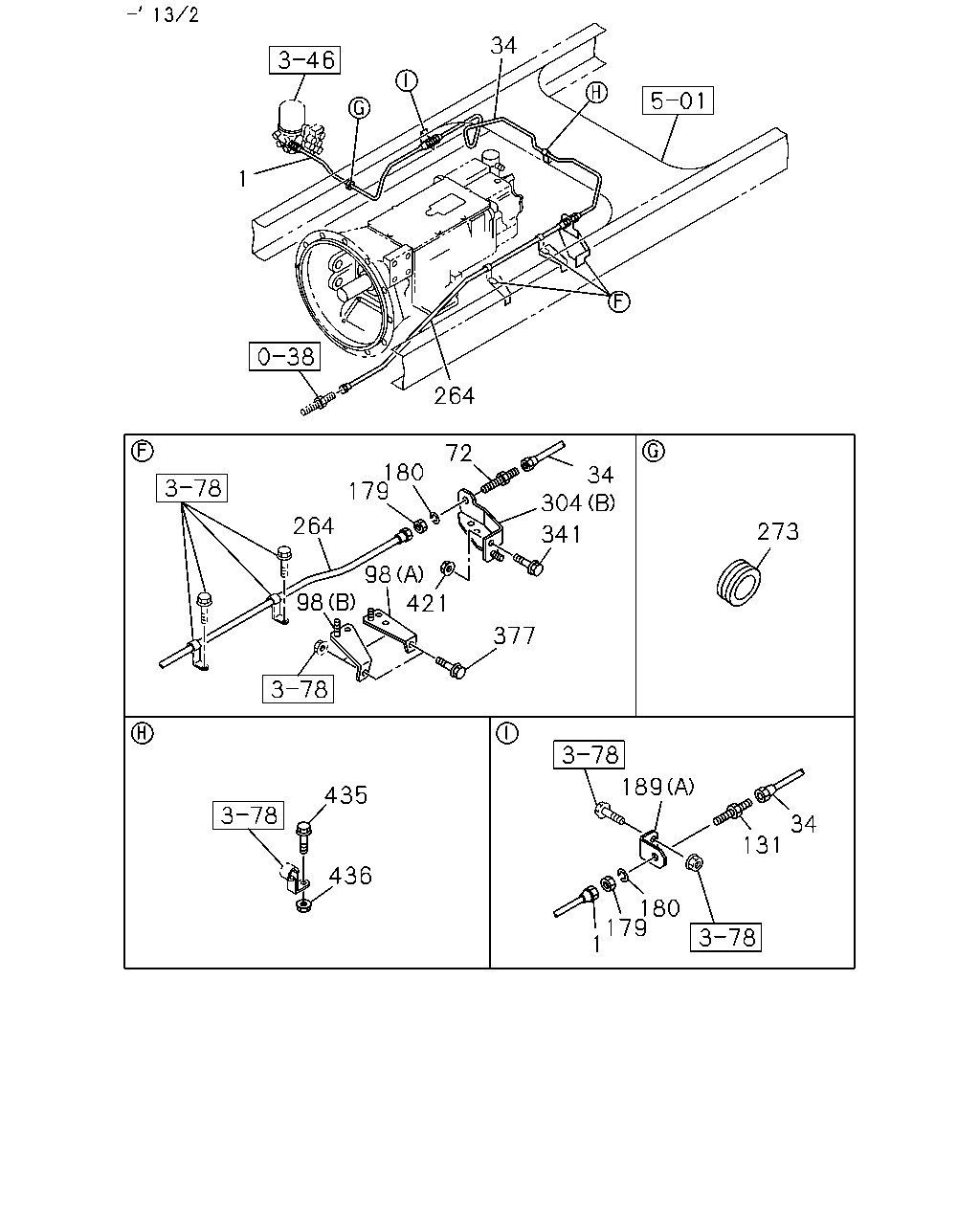

çizim 188605
34 264 34 304 72 180 179 98 264 98 421 377 273 1 189 131 34 180 179 1 436 435 341
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1350 		1-09363-925-0 01 1 1009-1302
1 HOSE; FLEX,AIR TANK
L=1480 		8-98169-578-0 01 1 1303-
34 PIPE; AIR
L=1114 		1-49124-668-0 01 1 1009-1302
72 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 1009-1302
98 BRACKET; AIR PIPE
(B) 		1-47479-639-0 01 1 1009-1302
98 BRACKET; AIR PIPE
(A) 		1-47479-723-0 01 1 1009-1302
131 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 1009-1302
179 NUT; UNION
M22 		0-91111-522-0 02 1 1009-1302
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 1009-1302
189 BRACKET; FLEX HOSE
MJX12P M/T SMOOTHER-G(Y4S) (C) 		1-47477-337-1 01 1 1303-
189 BRACKET; FLEX HOSE
(A) 		1-47479-473-0 01 1 1009-1302
189 BRACKET; FLEX HOSE
(B) L=75 		1-47478-328-0 01 1 1303-
264 HOSE; FLEX
L=1000 		1-09363-794-0 01 1 1009-1302
273 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1009-1302
304 BRACKET; UNION
(B) 		1-47471-262-0 01 1 1009-1302
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1009-1302
304 BRACKET; UNION
(A) 		8-98082-870-0 01 1 1303-
341 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1009-1302
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1009-1302
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-1302
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1303-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1009-1302
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1303-

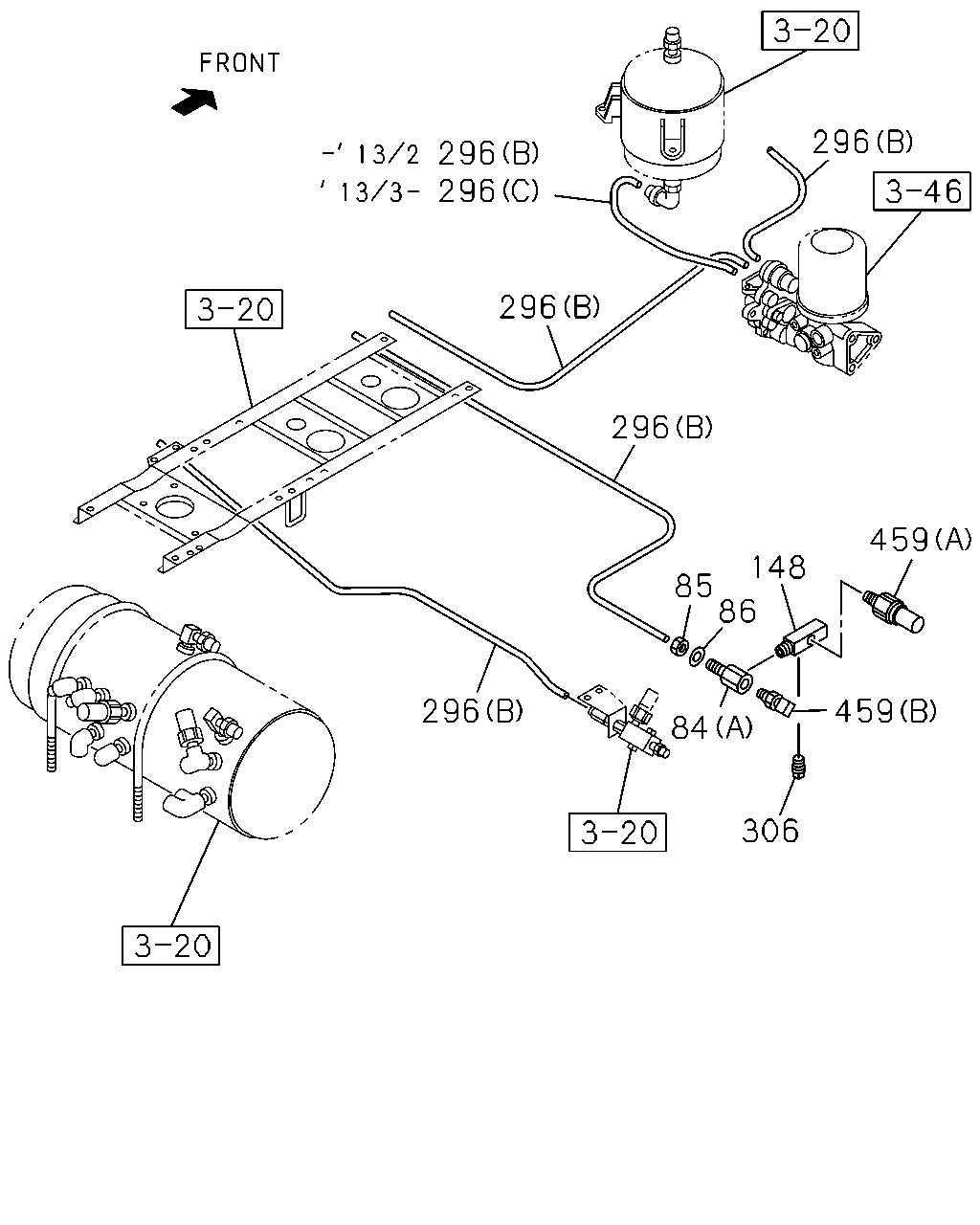

çizim 336356
296 296 296 296 296 148 459 85 86 459 306 84 296
BalonParca AdiParca NoAdetTipApplied Date
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 1009-1302
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1009-1302
85 NUT; UNION
M18 		0-91110-518-0 01 1 1009-1302
86 WASHER; LK,TUBE UNION
ID=18.2 		0-91510-518-0 01 1 1009-1302
148 CONNECTOR; UNION
DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1009-1302
296 TUBE; NYLON
EXC. HONG KONG EQUIPMENT(PQ1) (D) 		8-98242-435-0 01 1 1412-1412
296 TUBE; NYLON
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) 		8-98242-435-0 01 1 1412-
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1303-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1009-1302
296 TUBE; NYLON
(A) L=1200 OD=6 		1-09366-256-1 01 1 1303-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009-
306 PLUG; NYLON TUBE
PT1/4 		9-99204-513-0 01 1 1009-1302
459 SWITCH; PRESS
(B) THREAD R1/4 		1-80220-023-1 01 1 1009-1302
459 SWITCH; PRESS
(A) STAMP 5.5 		8-97609-249-0 01 1 1009-1302
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
