3-46 — AIR DRYER (#70109) — 54 parça

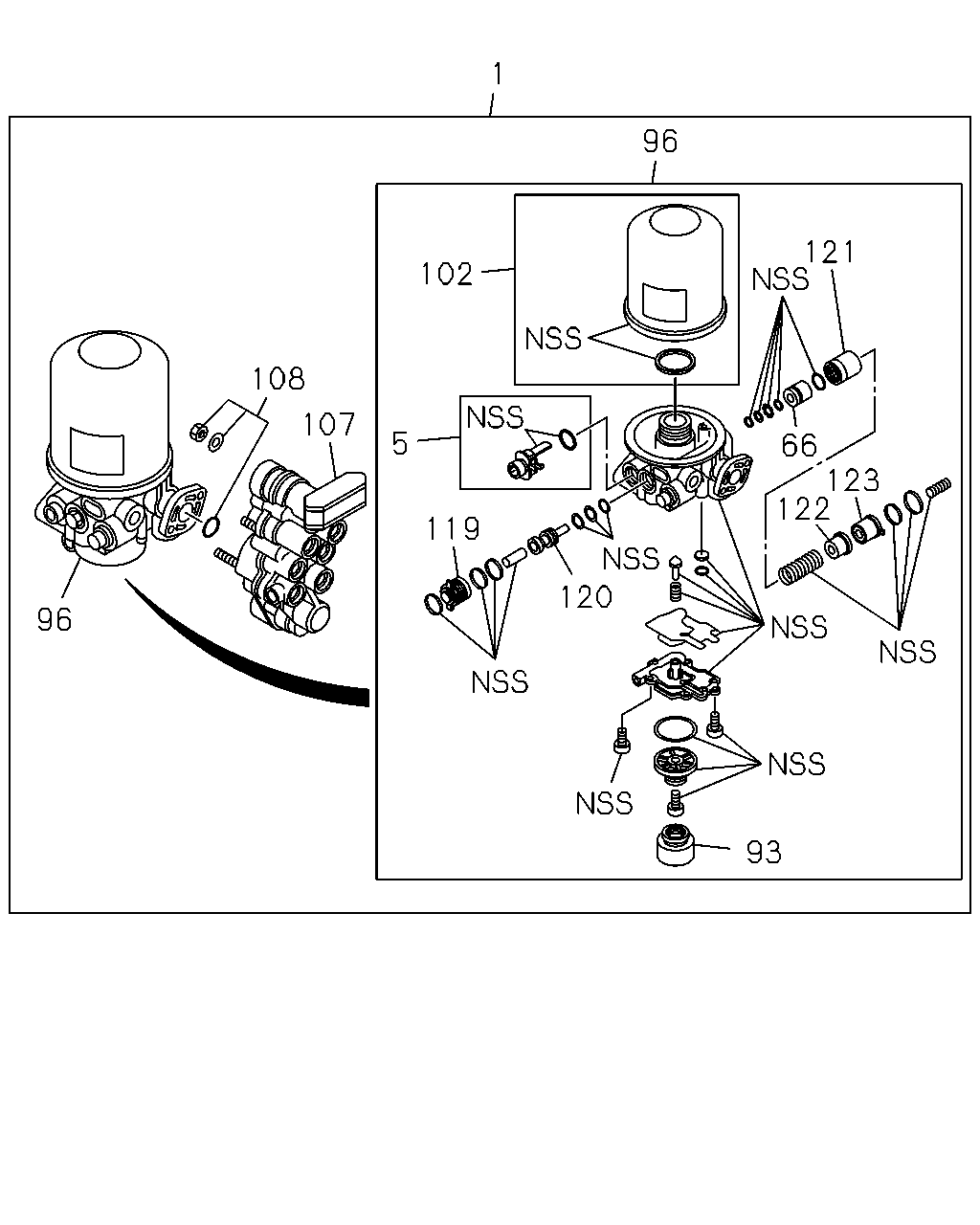

çizim 118377
1 96 102 108 121 123 122 93 120 5 107 119 96 66
BalonParca AdiParca NoAdetTipApplied Date
1 DRYER; AIR 1-48190-368-5 01 1 1009-1302
1 DRYER; AIR 8-98180-492-1 01 1 1303-
5 HEATER ASM; AIR DRYER 1-85576-363-0 01 1 1009-
66 PISTON; AIR DRYER 1-85576-475-0 01 1 1009-
93 SILENCER; AIR DRYER 1-85576-362-0 01 1 1009-
96 DRYER KIT; AIR 1-85576-455-1 01 1 1009-1102
96 DRYER KIT; AIR 8-98161-322-1 01 1 1103-1302
96 DRYER KIT; AIR 8-98185-663-1 01 1 1303-
102 CARTRIDGE; AIR DRYER 1-85576-450-2 01 1 1009-
107 VALVE ASM; PROTECTION,AIR DRYER 1-85576-369-3 01 1 1009-
108 FIXING KIT; PROTECTION,AIR DRYER 1-85576-371-0 01 1 1009-
119 COVER; PURGE VALVE 1-85576-473-0 01 1 1009-
120 TAPPET 1-85576-474-0 01 1 1009-1302
120 TAPPET 8-98185-666-0 01 1 1303-
121 HOLDER; SPRING 1-85576-476-0 01 1 1009-
122 SEAT; SPRING 1-85576-477-0 01 1 1009-
123 COVER; GOVERNER 1-85576-478-0 01 1 1009-

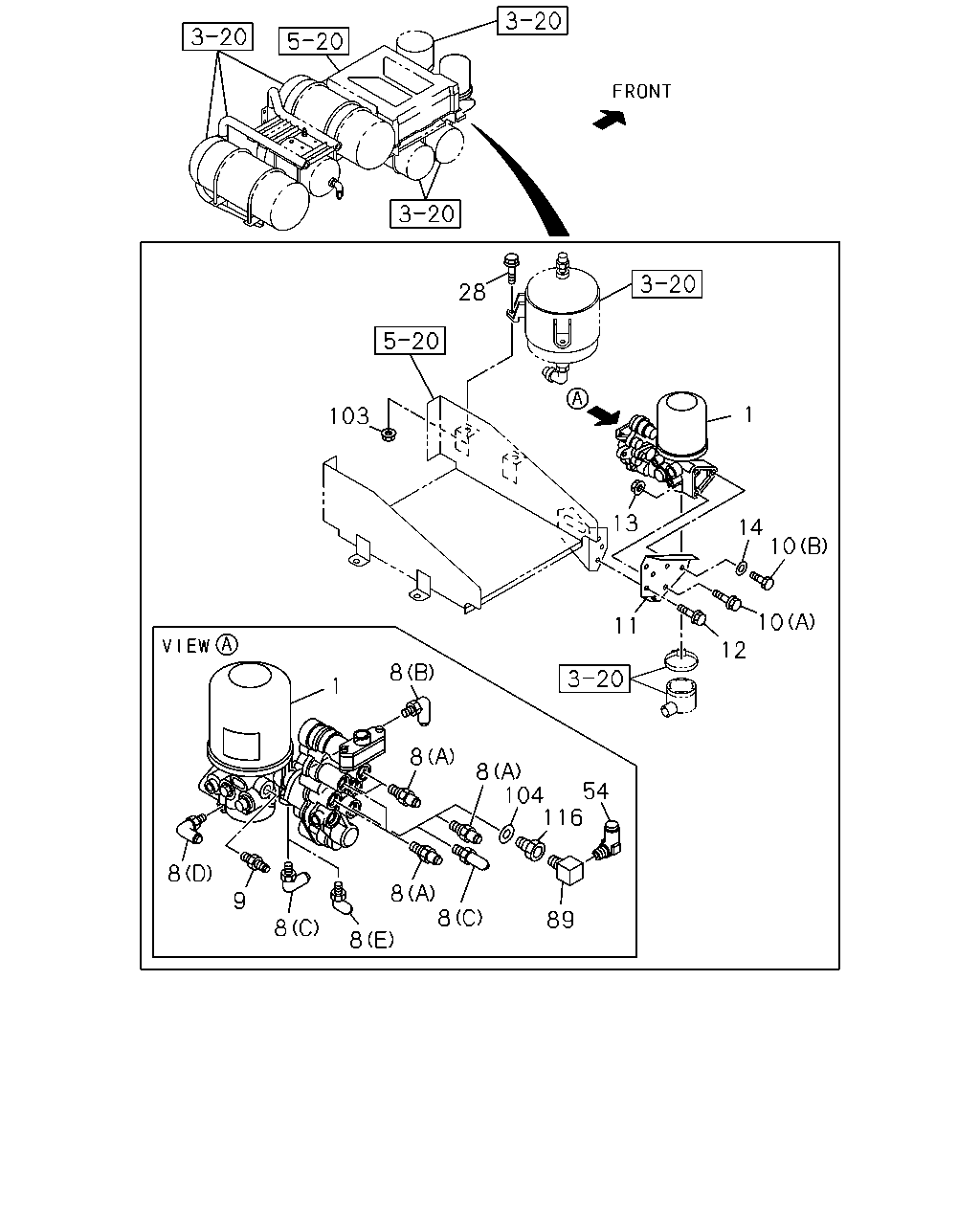

çizim 118447
28 103 1 13 14 10 10 12 11 1 8 8 8 104 116 54 89 8 8 8 8 9 8
BalonParca AdiParca NoAdetTipApplied Date
1 DRYER; AIR 1-48190-368-5 01 1 1009-1302
1 DRYER; AIR 8-98180-492-1 01 1 1303-
8 CONNECTOR; OUT,AIR DRYER
(E) 		1-09661-499-0 01 1 1009-1302
8 CONNECTOR; OUT,AIR DRYER
EXC. HONG KONG EQUIPMENT(PQ1) (E) 		1-09661-499-0 01 1 1412-1412
8 CONNECTOR; OUT,AIR DRYER
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E) 		1-09661-499-0 01 1 1412-
8 CONNECTOR; OUT,AIR DRYER
(A) DIN12 & M22 STRAIGHT 		1-09661-050-0 04 1 1009-
8 CONNECTOR; OUT,AIR DRYER
(B) DIN8 & M16 ELBOW 		1-09661-520-0 01 1 1009-
8 CONNECTOR; OUT,AIR DRYER
(C) DIN12 & M22 ELBOW 		1-09661-521-0 01 1 1009-
8 CONNECTOR; OUT,AIR DRYER
(D) DIN6 & M10 ELBOW 		1-09661-574-0 01 1 1009-
9 CONNECTOR; PIPE,AIR DRYER
M22X2 STRAIGHT 		8-98107-103-0 01 1 1009-
10 BOLT; AIR DRYER
(A) M12X50 FLANGE 		0-28051-250-0 01 1 1009-
10 BOLT; AIR DRYER
(B) M12X25 		1-09009-081-0 02 1 1009-
11 BRACKET; AIR DRYER 1-48316-019-0 01 1 1009-
12 BOLT; BRKT
M12X30 FLANGE 		0-28651-230-0 03 1 1009-
13 NUT; AIR DRYER
M12 FLANGE 		0-91180-212-0 01 1 1009-
14 WASHER; PL,AIR DRYER
ID=12.5 OD=22 		0-91610-512-0 02 1 1009-
28 BOLT; PURGE TANK
M10X25 FLANGE 		0-28651-025-0 02 1 1009-
54 CONNECTOR
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1303-1411
54 CONNECTOR
HONG KONG EQUIPMENT(PQ1) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1412-1412
54 CONNECTOR
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1412-
89 ADAPTER
PT3/8 ELBOW 		1-09660-696-0 01 1 1303-1411
89 ADAPTER
HONG KONG EQUIPMENT(PQ1) PT3/8 ELBOW 		1-09660-696-0 01 1 1412-1412
89 ADAPTER
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) PT3/8 ELBOW 		1-09660-696-0 01 1 1412-
103 NUT; PURGE TANK
M10 FLANGE 		0-91180-210-0 02 1 1009-
104 GASKET
ID=22.5 		9-09571-422-0 01 1 1303-1411
104 GASKET
HONG KONG EQUIPMENT(PQ1) ID=22.5 		9-09571-422-0 01 1 1412-1412
104 GASKET
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=22.5 		9-09571-422-0 01 1 1412-
116 CONNECTOR; STRAIGHT
INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 1303-1411
116 CONNECTOR; STRAIGHT
HONG KONG EQUIPMENT(PQ1) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 1412-1412
116 CONNECTOR; STRAIGHT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 1412-

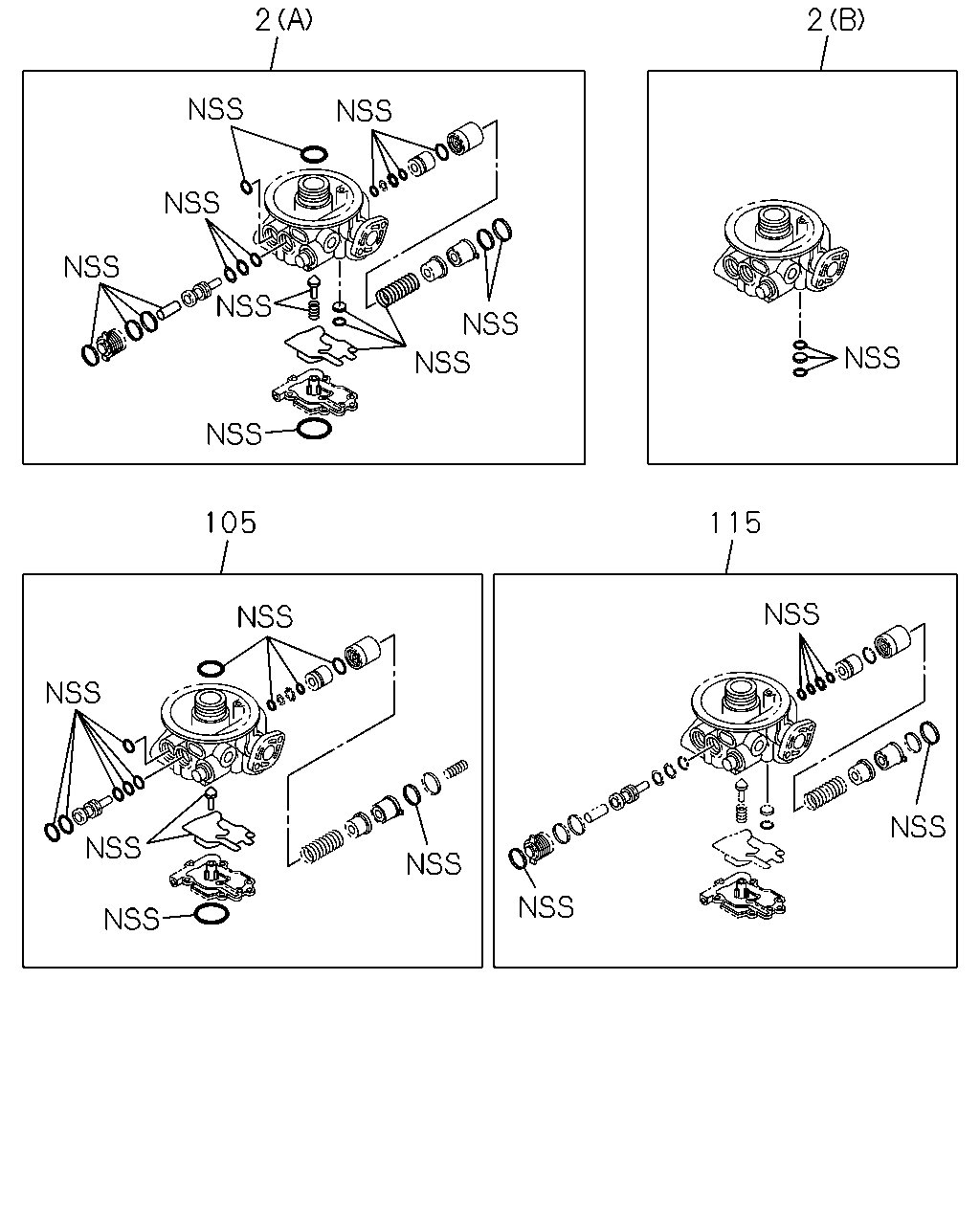

çizim 188603
2 115 105 2
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; AIR DRYER
(B) 		8-98302-391-0 01 1 1408-
2 REPAIR KIT; AIR DRYER
(A) 		1-85576-398-0 01 1 1009-1102
2 REPAIR KIT; AIR DRYER
(A) 		8-98161-324-0 01 1 1103-1302
2 REPAIR KIT; AIR DRYER
(A) 		8-98185-664-0 01 1 1303-
105 SEAL KIT; AIR DRYER 1-85576-397-0 01 1 1009-1302
105 SEAL KIT; AIR DRYER 8-98185-665-0 01 1 1303-
115 REPAIR KIT; GOVERNOR,AIR DRYER 1-85576-400-0 01 1 1009-
