◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11292 - EXR RHD EURO5 ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶
3-41 — REAR BRAKE POWER CHAMBER (#70107) — 60 parça
çizim 118438
1 1 32
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
HONG KONG EQUIPMENT(PQ1) 		1-87412-097-0 01 1 1412-1505
1 CHAMBER ASM; SPRING
HONG KONG EQUIPMENT(PQ1) 		1-87412-097-0 01 1 1506-
1 CHAMBER ASM; SPRING
HONG KONG EQUIPMENT(PQ1) 		1-87412-098-0 01 1 1412-1505
1 CHAMBER ASM; SPRING
HONG KONG EQUIPMENT(PQ1) 		1-87412-098-0 01 1 1506-
1 CHAMBER ASM; SPRING 1-87412-099-0 01 1 1009-1411
1 CHAMBER ASM; SPRING
FINAL GEAR 39/8 18.5"(W3D) SINGAPORE EQUIPMENT(WQ3) 		1-87412-099-0 01 1 1412-1505
1 CHAMBER ASM; SPRING
FINAL GEAR 39/9 18.5"(W4T) FINAL GEAR 18.5 INCH<C1C> 		1-87412-099-0 01 1 1412-1505
1 CHAMBER ASM; SPRING
FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 41/8 18.5"(W3M) SINGAPORE EQUIPMENT(WQ3) 		1-87412-099-0 01 1 1506-
1 CHAMBER ASM; SPRING
FINAL GEAR 39/9 18.5"(W4T) FINAL GEAR 18.5 INCH<C1C> 		1-87412-099-0 01 1 1506-
1 CHAMBER ASM; SPRING 1-87412-100-0 01 1 1009-1411
1 CHAMBER ASM; SPRING
FINAL GEAR 39/8 18.5"(W3D) SINGAPORE EQUIPMENT(WQ3) 		1-87412-100-0 01 1 1412-1505
1 CHAMBER ASM; SPRING
FINAL GEAR 39/9 18.5"(W4T) FINAL GEAR 18.5 INCH<C1C> 		1-87412-100-0 01 1 1412-1505
1 CHAMBER ASM; SPRING
FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 41/8 18.5"(W3M) SINGAPORE EQUIPMENT(WQ3) 		1-87412-100-0 01 1 1506-
1 CHAMBER ASM; SPRING
FINAL GEAR 39/9 18.5"(W4T) FINAL GEAR 18.5 INCH<C1C> 		1-87412-100-0 01 1 1506-
32 CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1009-

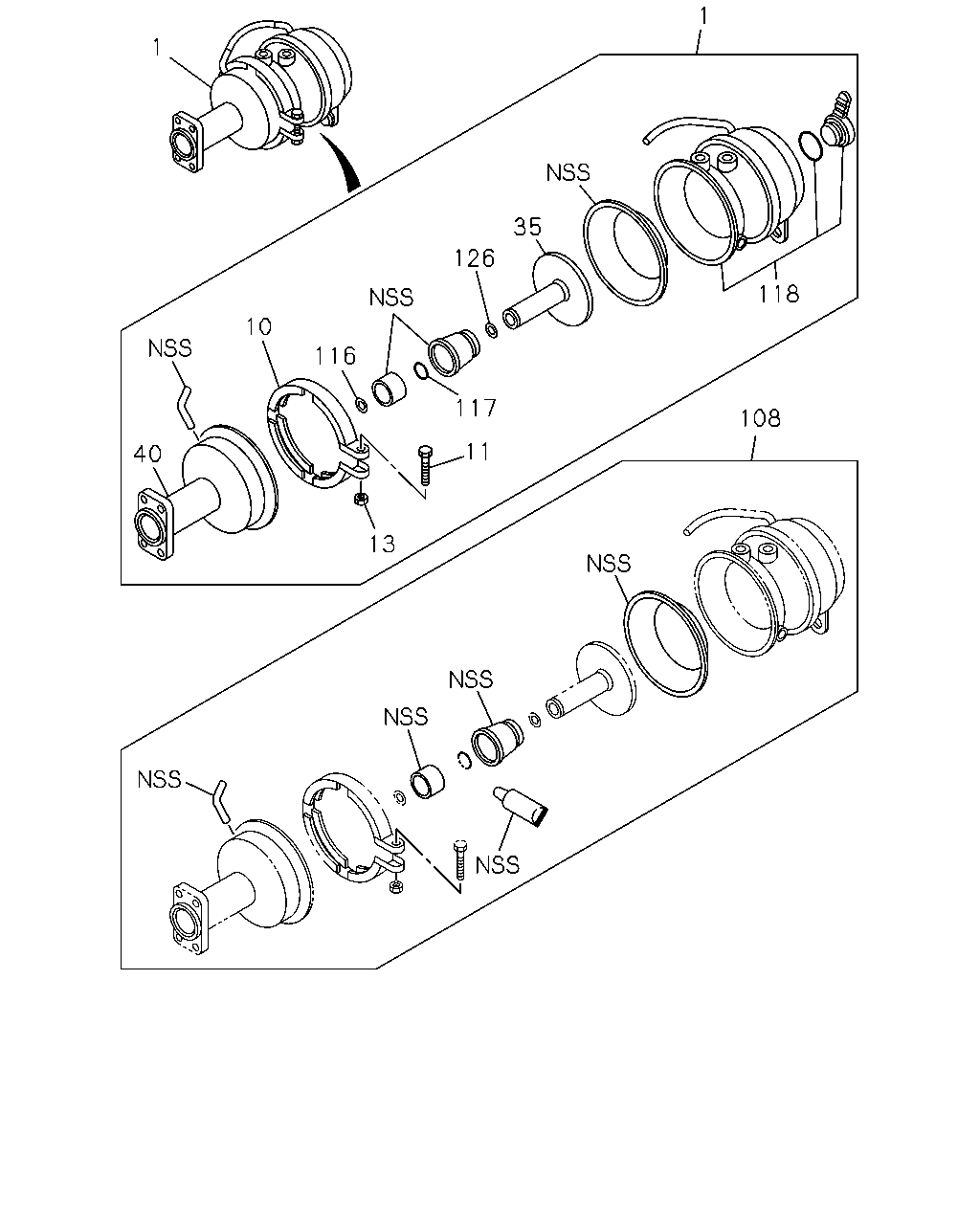

çizim 188600
1 35 118 126 117 116 10 40 11 13 108 1
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
HONG KONG EQUIPMENT(PQ1) 		1-87412-097-0 01 1 1412-1505
1 CHAMBER ASM; SPRING
HONG KONG EQUIPMENT(PQ1) 		1-87412-097-0 01 1 1506-
1 CHAMBER ASM; SPRING
HONG KONG EQUIPMENT(PQ1) 		1-87412-098-0 01 1 1412-1505
1 CHAMBER ASM; SPRING
HONG KONG EQUIPMENT(PQ1) 		1-87412-098-0 01 1 1506-
1 CHAMBER ASM; SPRING 1-87412-099-0 01 1 1009-1411
1 CHAMBER ASM; SPRING
FINAL GEAR 39/8 18.5"(W3D) SINGAPORE EQUIPMENT(WQ3) 		1-87412-099-0 01 1 1412-1505
1 CHAMBER ASM; SPRING
FINAL GEAR 39/9 18.5"(W4T) FINAL GEAR 18.5 INCH<C1C> 		1-87412-099-0 01 1 1412-1505
1 CHAMBER ASM; SPRING
FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 41/8 18.5"(W3M) SINGAPORE EQUIPMENT(WQ3) 		1-87412-099-0 01 1 1506-
1 CHAMBER ASM; SPRING
FINAL GEAR 39/9 18.5"(W4T) FINAL GEAR 18.5 INCH<C1C> 		1-87412-099-0 01 1 1506-
1 CHAMBER ASM; SPRING 1-87412-100-0 01 1 1009-1411
1 CHAMBER ASM; SPRING
FINAL GEAR 39/8 18.5"(W3D) SINGAPORE EQUIPMENT(WQ3) 		1-87412-100-0 01 1 1412-1505
1 CHAMBER ASM; SPRING
FINAL GEAR 39/9 18.5"(W4T) FINAL GEAR 18.5 INCH<C1C> 		1-87412-100-0 01 1 1412-1505
1 CHAMBER ASM; SPRING
FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 41/8 18.5"(W3M) SINGAPORE EQUIPMENT(WQ3) 		1-87412-100-0 01 1 1506-
1 CHAMBER ASM; SPRING
FINAL GEAR 39/9 18.5"(W4T) FINAL GEAR 18.5 INCH<C1C> 		1-87412-100-0 01 1 1506-
10 RING; CLAMP,SPR CHAMBER 1-48269-256-0 02 1 1009-
11 BOLT; CLAMP RING 1-48269-257-0 02 1 1009-
13 NUT; CLAMP RING 1-48269-147-0 02 1 1009-
35 PLATE; ROD END,SPR CHAMBER 8-98146-974-0 02 1 1009-
40 COVER ASM; LWR,SPR CHAMBER
HONG KONG EQUIPMENT(PQ1) 		1-48251-140-1 01 1 1412-1505
40 COVER ASM; LWR,SPR CHAMBER
HONG KONG EQUIPMENT(PQ1) 		1-48251-140-1 01 1 1506-
40 COVER ASM; LWR,SPR CHAMBER
HONG KONG EQUIPMENT(PQ1) 		1-48251-141-1 01 1 1412-1505
40 COVER ASM; LWR,SPR CHAMBER
HONG KONG EQUIPMENT(PQ1) 		1-48251-141-1 01 1 1506-
40 COVER ASM; LWR,SPR CHAMBER 1-48251-175-1 01 1 1009-1411
40 COVER ASM; LWR,SPR CHAMBER
FINAL GEAR 39/8 18.5"(W3D) SINGAPORE EQUIPMENT(WQ3) 		1-48251-175-1 01 1 1412-1505
40 COVER ASM; LWR,SPR CHAMBER
FINAL GEAR 39/9 18.5"(W4T) FINAL GEAR 18.5 INCH<C1C> 		1-48251-175-1 01 1 1412-1505
40 COVER ASM; LWR,SPR CHAMBER
FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 41/8 18.5"(W3M) SINGAPORE EQUIPMENT(WQ3) 		1-48251-175-1 01 1 1506-
40 COVER ASM; LWR,SPR CHAMBER
FINAL GEAR 39/9 18.5"(W4T) FINAL GEAR 18.5 INCH<C1C> 		1-48251-175-1 01 1 1506-
40 COVER ASM; LWR,SPR CHAMBER 1-48251-176-1 01 1 1009-1411
40 COVER ASM; LWR,SPR CHAMBER
FINAL GEAR 39/8 18.5"(W3D) SINGAPORE EQUIPMENT(WQ3) 		1-48251-176-1 01 1 1412-1505
40 COVER ASM; LWR,SPR CHAMBER
FINAL GEAR 39/9 18.5"(W4T) FINAL GEAR 18.5 INCH<C1C> 		1-48251-176-1 01 1 1412-1505
40 COVER ASM; LWR,SPR CHAMBER
FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 41/8 18.5"(W3M) SINGAPORE EQUIPMENT(WQ3) 		1-48251-176-1 01 1 1506-
40 COVER ASM; LWR,SPR CHAMBER
FINAL GEAR 39/9 18.5"(W4T) FINAL GEAR 18.5 INCH<C1C> 		1-48251-176-1 01 1 1506-
108 REPAIR KIT; SPR CHAMBER
FINAL GEAR 39/8 18.5"(W3D) SINGAPORE EQUIPMENT(WQ3) 		8-98146-980-0 02 1 1412-1505
108 REPAIR KIT; SPR CHAMBER
FINAL GEAR 39/9 18.5"(W4T) FINAL GEAR 18.5 INCH<C1C> 		8-98146-980-0 02 1 1412-1505
108 REPAIR KIT; SPR CHAMBER
FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 41/8 18.5"(W3M) SINGAPORE EQUIPMENT(WQ3) 		8-98146-980-0 02 1 1506-
108 REPAIR KIT; SPR CHAMBER
FINAL GEAR 39/9 18.5"(W4T) FINAL GEAR 18.5 INCH<C1C> 		8-98146-980-0 02 1 1506-
108 REPAIR KIT; SPR CHAMBER 8-98146-980-0 02 1 1009-1411
108 REPAIR KIT; SPR CHAMBER
HONG KONG EQUIPMENT(PQ1) 		8-98146-982-0 02 1 1412-
116 GUIDE; SPR CHAMBER 8-98146-963-0 02 1 1009-
117 RING; SPR CHAMBER 8-98146-966-0 02 1 1009-
118 CHAMBER; PIGGY BACK 1-87412-113-0 01 1 1009-1505
118 CHAMBER; PIGGY BACK 1-87412-113-0 01 1 1506-
118 CHAMBER; PIGGY BACK 1-87412-114-0 01 1 1009-1505
118 CHAMBER; PIGGY BACK 1-87412-114-0 01 1 1506-
126 SHIM 8-98146-965-0 AR 1 1009-
