Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#70104) — 251 parça

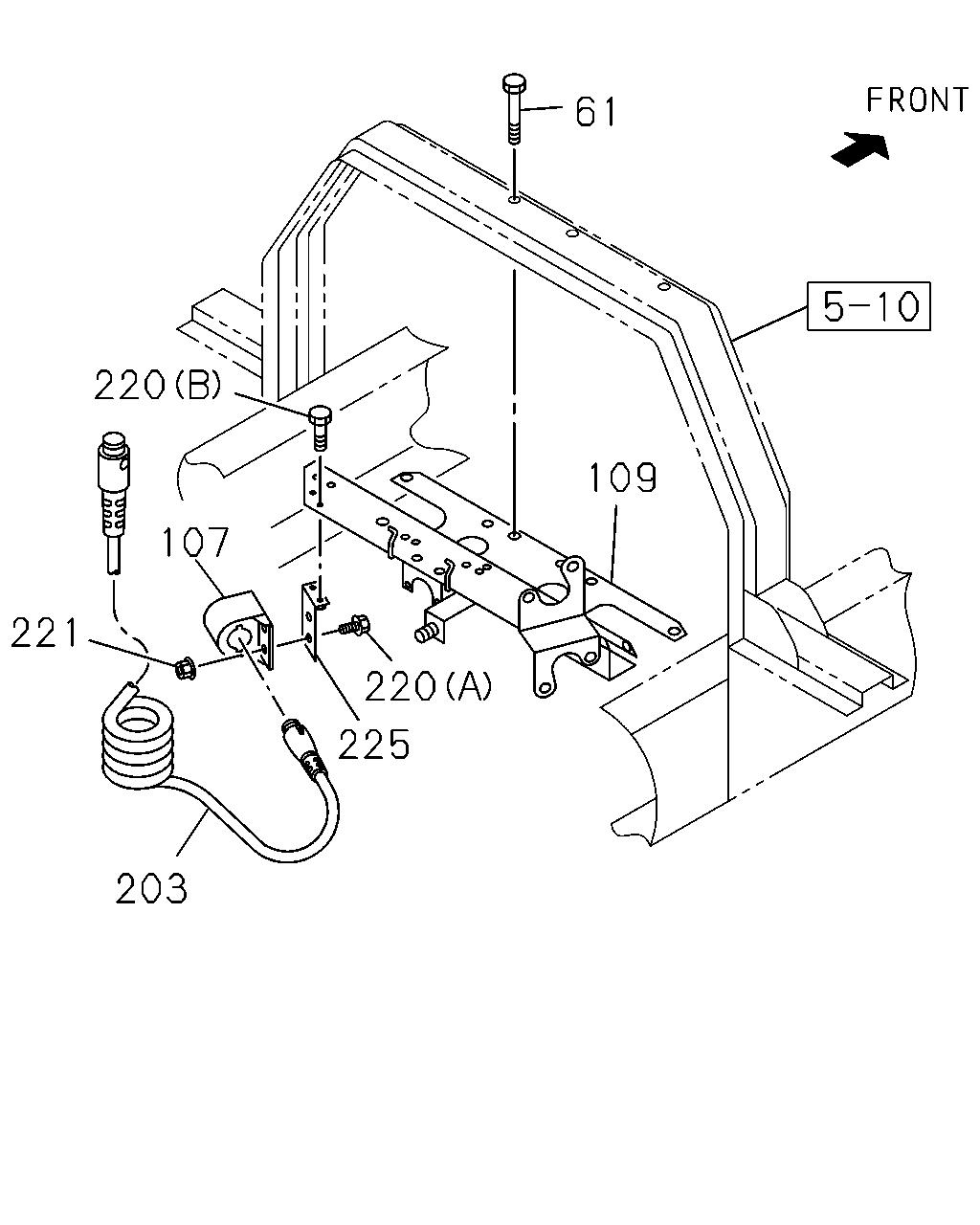

61 109 220 107 221 220 225 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
61	BOLT; STEP BOARD M10X30 FLANGE	0-28651-030-0	06	1	1009-
107	HANGER; JUMPER HOSE	1-57550-022-2	01	1	1009-
109	BRACKET; HOSE HANGER EXC. HONG KONG EQUIPMENT(PQ1)	8-98146-281-1	01	1	1412-1412
109	BRACKET; HOSE HANGER EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98146-281-1	01	1	1412-
109	BRACKET; HOSE HANGER	8-98049-443-0	01	1	1009-1411
109	BRACKET; HOSE HANGER HONG KONG EQUIPMENT(PQ1)	8-98049-443-0	01	1	1412-1412
109	BRACKET; HOSE HANGER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98049-443-0	01	1	1412-
203	CABLE; JUMPER L=4000	8-98107-177-0	01	1	1009-
220	BOLT; HANGER (A) M6X16 FLANGE	0-28650-616-0	02	1	1009-
220	BOLT; HANGER (B) M8X25 FLANGE	0-28650-825-0	02	1	1009-
221	NUT; HANGER M6 FLANGE	0-91180-106-0	02	1	1009-
225	BRACKET; HANGER	1-82698-002-0	01	1	1009-

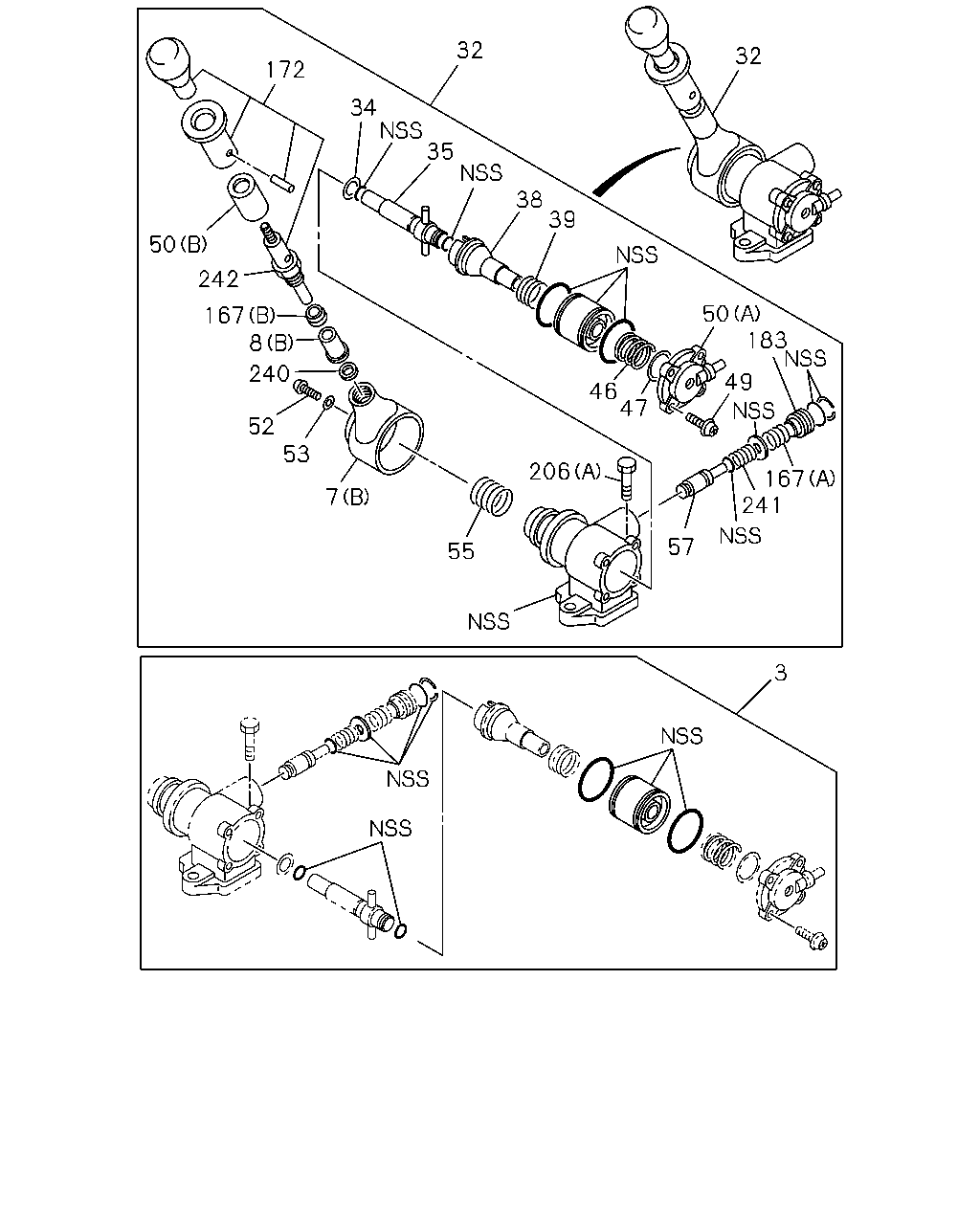

32 32 34 35 38 39 50 183 49 46 47 167 241 57 206 55 7 53 52 240 8 167 242 50 3 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; HAND BRK VLV	1-85576-376-0	01	1	1009-
7	HEAD; BRK VLV (A)	1-48119-131-1	01	1	1009-
7	HEAD; BRK VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-201-0	01	1	1009-1302
7	HEAD; BRK VLV BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-209-0	01	1	1009-1302
7	HEAD; BRK VLV (B)	1-48469-209-0	01	1	1303-1411
7	HEAD; BRK VLV HONG KONG EQUIPMENT(PQ1) (B)	1-48469-209-0	01	1	1412-
7	HEAD; BRK VLV EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-48469-201-0	01	1	1412-
8	STOPPER; BRK VLV (A)	1-48119-239-0	01	1	1009-
8	STOPPER; BRK VLV (B)	1-48469-200-0	01	1	1009-
32	VALVE; BRK,HAND CONT EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48460-339-1	01	1	1009-1302
32	VALVE; BRK,HAND CONT BRAKE REGULATION HONG KONG<TCZ>	1-48460-341-1	01	1	1009-1302
32	VALVE; BRK,HAND CONT	1-48460-341-1	01	1	1303-1411
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1)	1-48460-341-1	01	1	1412-
32	VALVE; BRK,HAND CONT EXC. HONG KONG EQUIPMENT(PQ1)	1-48460-339-1	01	1	1412-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	1009-
35	HOLDER; CAM EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48469-171-0	01	1	1009-1302
35	HOLDER; CAM BRAKE REGULATION HONG KONG<TCZ>	1-48469-207-0	01	1	1009-1302
35	HOLDER; CAM	1-48469-207-0	01	1	1303-1411
35	HOLDER; CAM HONG KONG EQUIPMENT(PQ1)	1-48469-207-0	01	1	1412-
35	HOLDER; CAM EXC. HONG KONG EQUIPMENT(PQ1)	1-48469-171-0	01	1	1412-
38	SEAT; EXH VLV EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48469-172-0	01	1	1009-1302
38	SEAT; EXH VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-211-0	01	1	1009-1302
38	SEAT; EXH VLV	1-48469-211-0	01	1	1303-1411
38	SEAT; EXH VLV HONG KONG EQUIPMENT(PQ1)	1-48469-211-0	01	1	1412-
38	SEAT; EXH VLV EXC. HONG KONG EQUIPMENT(PQ1)	1-48469-172-0	01	1	1412-
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	1009-
46	SPRING; MAIN,PISTON	1-48469-173-0	01	1	1009-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	1009-
49	SCREW; COVER	1-48469-169-0	04	1	1009-
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	1009-
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	1009-
52	SCREW; HANDLE	1-48469-062-0	01	1	1009-
53	WASHER; HANDLE	1-48469-061-0	01	1	1009-
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	1009-
57	PLUNGER; HAND BRK VLV	1-48469-180-0	01	1	1009-
167	SPRING; VALVE (A)	1-48469-177-0	01	1	1009-
167	SPRING; VALVE (B)	1-48469-184-0	01	1	1009-
172	KNOB; VALVE EXC. HONG KONG EQUIPMENT(PQ1)	1-48469-203-0	01	1	1412-
172	KNOB; VALVE BRAKE REGULATION HONG KONG<TCZ>	1-48469-210-0	01	1	1009-1302
172	KNOB; VALVE	1-48469-210-0	01	1	1303-1411
172	KNOB; VALVE HONG KONG EQUIPMENT(PQ1)	1-48469-210-0	01	1	1412-
172	KNOB; VALVE EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48469-203-0	01	1	1009-1302
183	RETAINER; VALVE	1-48469-185-0	01	1	1009-
206	BOLT; HAND BRK VALVE (B) M10X20 W/LK WASHER	0-50541-020-0	02	1	1009-
206	BOLT; HAND BRK VALVE (A)	1-48469-160-0	01	1	1009-
240	RING; STOPPER EXC. HONG KONG EQUIPMENT(PQ1)	1-48469-199-0	01	1	1412-
240	RING; STOPPER BRAKE REGULATION HONG KONG<TCZ>	1-48469-208-0	01	1	1009-1302
240	RING; STOPPER	1-48469-208-0	01	1	1303-1411
240	RING; STOPPER HONG KONG EQUIPMENT(PQ1)	1-48469-208-0	01	1	1412-
240	RING; STOPPER EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48469-199-0	01	1	1009-1302
241	SPRING; RETURN	1-48469-182-0	01	1	1009-
242	NUT; LK	1-48469-179-0	01	1	1009-

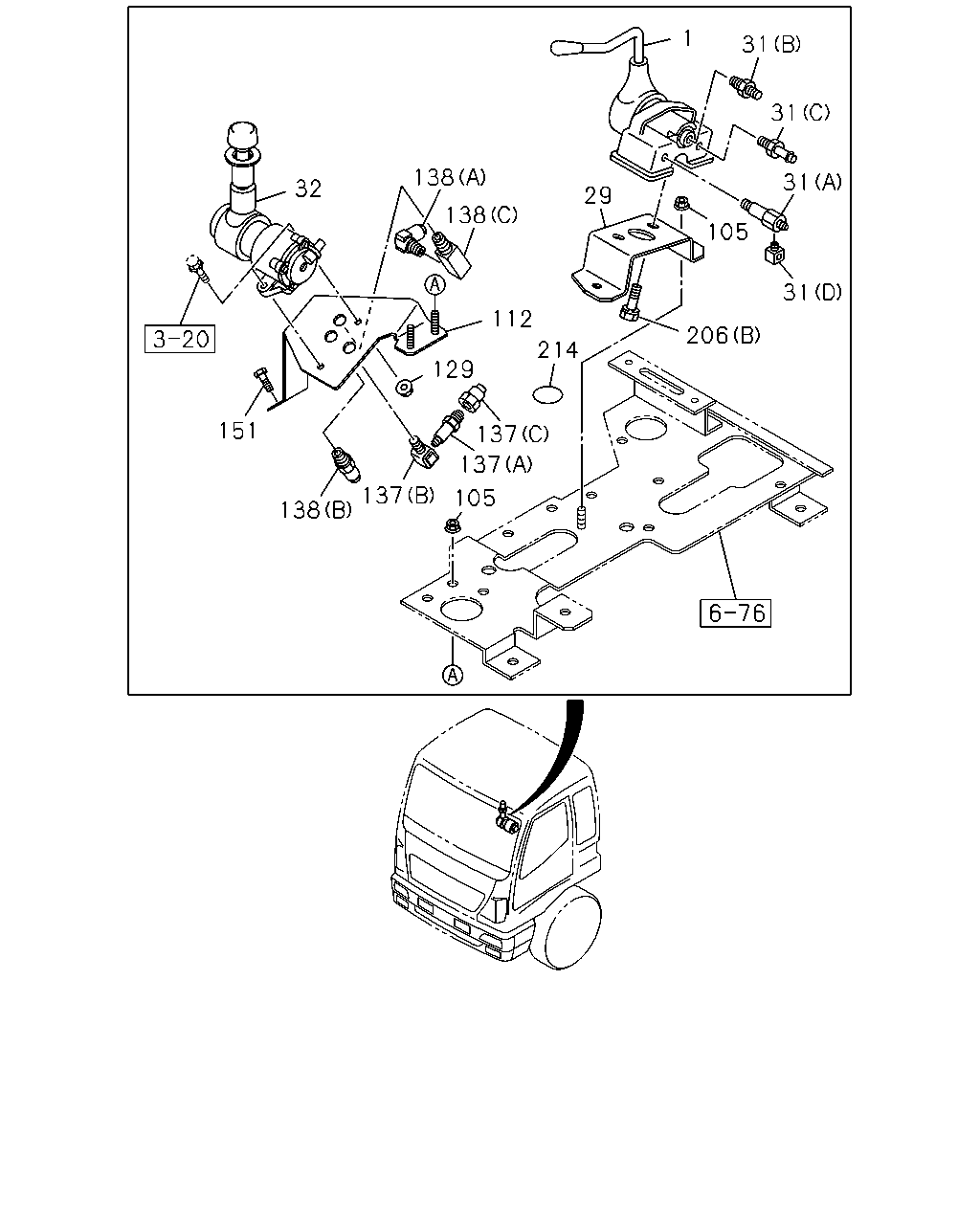

151 138 105 206 105 31 31 31 31 1 29 112 129 214 137 137 137 32 138 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK	1-48100-848-0	01	1	1009-
29	BRACKET; HAND BRK	1-79997-357-1	01	1	1009-
31	CONNECTOR; HAND BRK VLV (B) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	1009-
31	CONNECTOR; HAND BRK VLV (A) M14	1-09656-391-2	01	1	1009-
31	CONNECTOR; HAND BRK VLV (D) PT1/4 2WAY	1-09660-693-0	01	1	1009-
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	1009-
32	VALVE; BRK,HAND CONT EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48460-339-1	01	1	1009-1302
32	VALVE; BRK,HAND CONT BRAKE REGULATION HONG KONG<TCZ>	1-48460-341-1	01	1	1009-1302
32	VALVE; BRK,HAND CONT	1-48460-341-1	01	1	1303-1411
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1)	1-48460-341-1	01	1	1412-
32	VALVE; BRK,HAND CONT EXC. HONG KONG EQUIPMENT(PQ1)	1-48460-339-1	01	1	1412-
105	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1009-1302
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-
112	BRACKET; CONT VLV	1-79996-387-0	01	1	1009-
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	1009-
137	CONNECTOR; SUPPLY (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1009-
137	CONNECTOR; SUPPLY (B) PT1/4 2WAY	1-09660-693-0	01	1	1009-
137	CONNECTOR; SUPPLY (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1009-
138	CONNECTOR; DELIVERY (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1009-
138	CONNECTOR; DELIVERY (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1009-
138	CONNECTOR; DELIVERY (C) DIN14 & R1/4 & RC1/4	1-09661-729-0	01	1	1009-
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1009-
206	BOLT; HAND BRK VALVE (B) M10X20 W/LK WASHER	0-50541-020-0	02	1	1009-
206	BOLT; HAND BRK VALVE (A)	1-48469-160-0	01	1	1009-
214	SEAL; COVER,HAND BRK OD=25 BLACK	1-76798-019-0	02	1	1009-1302
214	SEAL; COVER,HAND BRK OD=25 BLACK	1-76798-019-0	01	1	1303-

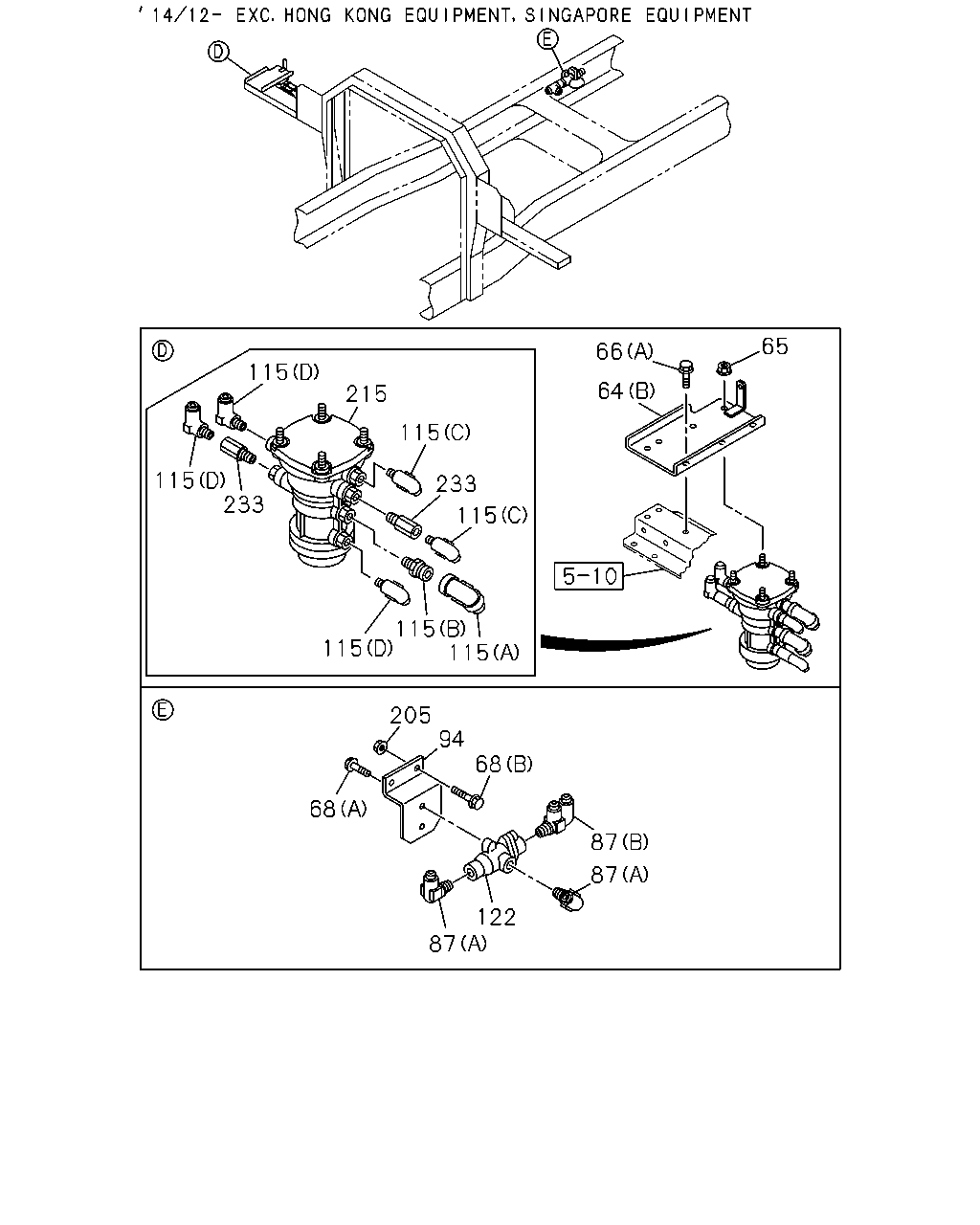

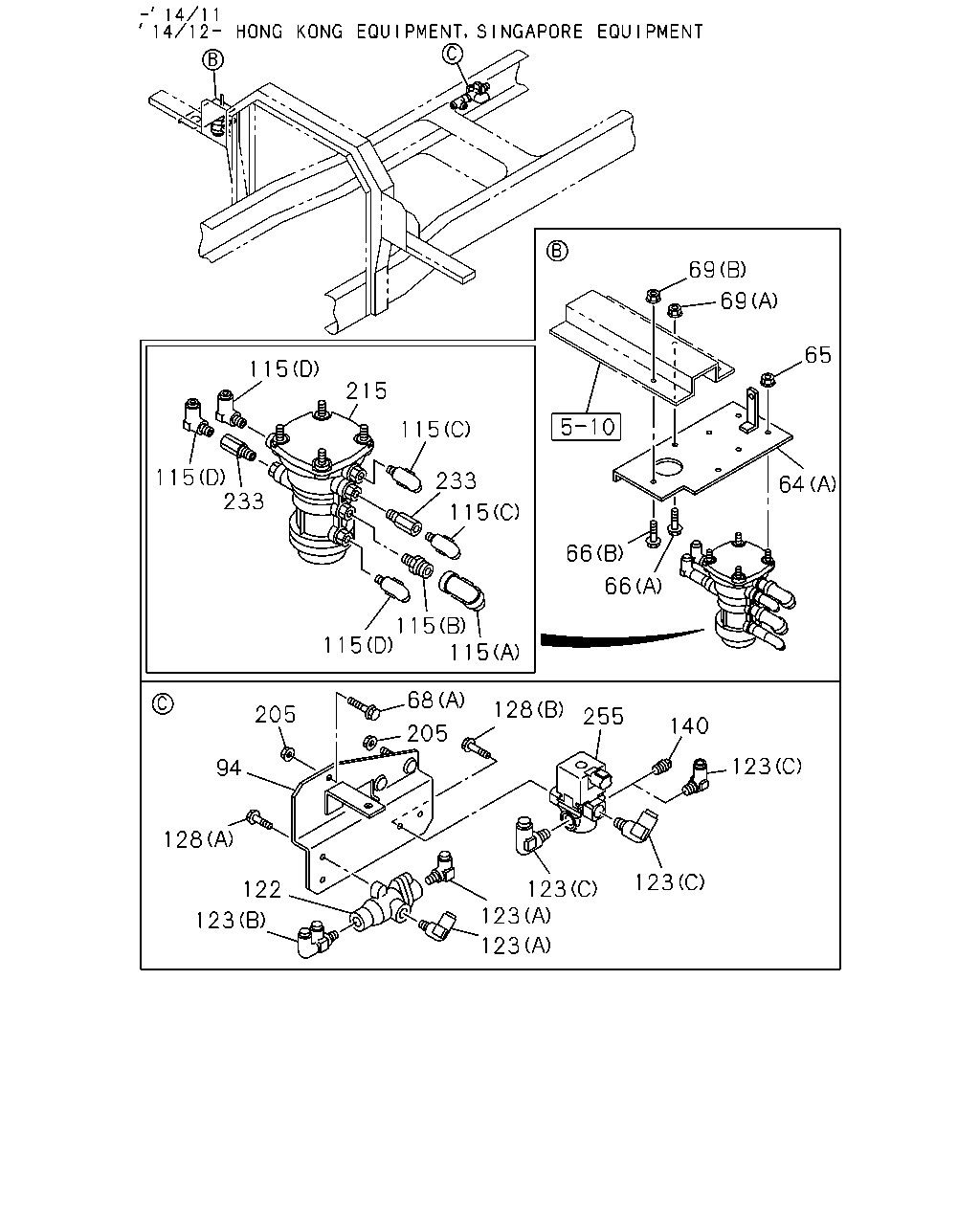

115 115 115 115 233 215 115 115 115 68 205 94 128 122 123 205 128 255 140 123 66 66 69 65 69 64 123 23 123 123 233

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	BODY; BRK VLV	1-48111-060-1	01	1	1009-
64	BRACKET; RELAY VLV (A)	8-98036-587-0	01	1	1009-1411
64	BRACKET; RELAY VLV HONG KONG EQUIPMENT(PQ1) (A)	8-98036-587-0	01	1	1412-1412
64	BRACKET; RELAY VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	8-98036-587-0	01	1	1412-
64	BRACKET; RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1) (B)	8-98242-054-1	01	1	1412-1412
64	BRACKET; RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	8-98242-054-1	01	1	1412-
65	NUT; RELAY VLV M8 FLANGE	0-91180-108-0	04	1	1009-
66	BOLT; VLV BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1009-1411
66	BOLT; VLV BRKT HONG KONG EQUIPMENT(PQ1) (A) M8X25 FLANGE	0-28650-825-0	01	1	1412-1412
66	BOLT; VLV BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X25 FLANGE	0-28650-825-0	01	1	1412-
66	BOLT; VLV BRKT EXC. HONG KONG EQUIPMENT(PQ1) (A) M8X25 FLANGE	0-28650-825-0	03	1	1412-1412
66	BOLT; VLV BRKT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X25 FLANGE	0-28650-825-0	03	1	1412-
66	BOLT; VLV BRKT (B) M10X25 FLANGE	0-28651-025-0	02	1	1009-1411
66	BOLT; VLV BRKT HONG KONG EQUIPMENT(PQ1) (B) M10X25 FLANGE	0-28651-025-0	02	1	1412-1412
66	BOLT; VLV BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M10X25 FLANGE	0-28651-025-0	02	1	1412-
68	BOLT; DOUBLE CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1) (B) M8X14 FLANGE	0-28080-814-0	02	1	1412-1412
68	BOLT; DOUBLE CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8X14 FLANGE	0-28080-814-0	02	1	1412-
68	BOLT; DOUBLE CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1) (B) M8X30 FLANGE	0-28650-830-0	02	1	1412-1412
68	BOLT; DOUBLE CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8X30 FLANGE	0-28650-830-0	02	1	1412-
68	BOLT; DOUBLE CHECK VLV (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-1411
68	BOLT; DOUBLE CHECK VLV HONG KONG EQUIPMENT(PQ1) (A) M8X30 FLANGE	0-28650-830-0	01	1	1412-1412
68	BOLT; DOUBLE CHECK VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X30 FLANGE	0-28650-830-0	01	1	1412-
69	NUT; VLV BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1009-1411
69	NUT; VLV BRKT HONG KONG EQUIPMENT(PQ1) (A) M8 FLANGE	0-91180-108-0	01	1	1412-1412
69	NUT; VLV BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8 FLANGE	0-91180-108-0	01	1	1412-
69	NUT; VLV BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1009-1411
69	NUT; VLV BRKT HONG KONG EQUIPMENT(PQ1) (B) M10 FLANGE	0-91180-210-0	02	1	1412-1412
69	NUT; VLV BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M10 FLANGE	0-91180-210-0	02	1	1412-
94	BRACKET; CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1)	8-97614-381-0	01	1	1412-1412
94	BRACKET; CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-97614-381-0	01	1	1412-
94	BRACKET; CHECK VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) BRAKE SYSTEM RETARDER<RE2>	8-98036-330-0	01	1	1009-1302
94	BRACKET; CHECK VLV EXC. BRAKE SYSTEM RETARDER<RE2>	8-98036-330-0	01	1	1009-1302
94	BRACKET; CHECK VLV	8-98036-330-0	01	1	1303-1411
94	BRACKET; CHECK VLV HONG KONG EQUIPMENT(PQ1)	8-98036-330-0	01	1	1412-1412
94	BRACKET; CHECK VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98036-330-0	01	1	1412-
115	CONNECTOR; DUAL RELAY VLV (C) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1009-
115	CONNECTOR; DUAL RELAY VLV (D) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1009-
115	CONNECTOR; DUAL RELAY VLV (A)	8-97633-756-0	01	1	1009-
115	CONNECTOR; DUAL RELAY VLV (B)	8-97633-771-0	01	1	1009-
122	VALVE ASM; DOUBLE CHECK TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) BRAKE SYSTEM RETARDER<RE2>	1-48410-531-1	01	1	1009-1302
122	VALVE ASM; DOUBLE CHECK EXC. BRAKE SYSTEM RETARDER<RE2>	1-48410-531-1	01	1	1009-1302
122	VALVE ASM; DOUBLE CHECK	1-48410-531-1	01	1	1303-
123	CONNECTOR; DBL CHECK VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	03	1	1009-1302
123	CONNECTOR; DBL CHECK VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1303-1411
123	CONNECTOR; DBL CHECK VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) HONG KONG EQUIPMENT(PQ1) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1412-1412
123	CONNECTOR; DBL CHECK VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1412-
123	CONNECTOR; DBL CHECK VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1009-1302
123	CONNECTOR; DBL CHECK VLV EXC. BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1009-1302
123	CONNECTOR; DBL CHECK VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1303-1411
123	CONNECTOR; DBL CHECK VLV HONG KONG EQUIPMENT(PQ1) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1412-1412
123	CONNECTOR; DBL CHECK VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1412-
123	CONNECTOR; DBL CHECK VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) BRAKE SYSTEM RETARDER<RE2> (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1009-1302
123	CONNECTOR; DBL CHECK VLV EXC. BRAKE SYSTEM RETARDER<RE2> (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1009-1302
123	CONNECTOR; DBL CHECK VLV (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1303-1411
123	CONNECTOR; DBL CHECK VLV HONG KONG EQUIPMENT(PQ1) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1412-1412
123	CONNECTOR; DBL CHECK VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1412-
123	CONNECTOR; DBL CHECK VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER<RE2> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1009-1302
128	BOLT; VLV EXC. BRAKE SYSTEM RETARDER<RE2> (A) M8X14 FLANGE	0-28080-814-0	02	1	1009-1302
128	BOLT; VLV (A) M8X14 FLANGE	0-28080-814-0	02	1	1303-1411
128	BOLT; VLV HONG KONG EQUIPMENT(PQ1) (A) M8X14 FLANGE	0-28080-814-0	02	1	1412-1412
128	BOLT; VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X14 FLANGE	0-28080-814-0	02	1	1412-
128	BOLT; VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A) M8X12 FLANGE	0-28050-812-0	02	1	1009-1302
128	BOLT; VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302
128	BOLT; VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M8X20 FLANGE	0-28650-820-0	02	1	1303-1411
128	BOLT; VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) HONG KONG EQUIPMENT(PQ1) (B) M8X20 FLANGE	0-28650-820-0	02	1	1412-1412
128	BOLT; VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8X20 FLANGE	0-28650-820-0	02	1	1412-
140	PLUG TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	1009-1302
140	PLUG TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) PT1/4	9-99204-513-0	01	1	1303-1411
140	PLUG TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) HONG KONG EQUIPMENT(PQ1) PT1/4	9-99204-513-0	01	1	1412-1412
140	PLUG TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) PT1/4	9-99204-513-0	01	1	1412-
205	NUT; DOUBLE CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91180-108-0	02	1	1412-1412
205	NUT; DOUBLE CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	02	1	1412-
205	NUT; DOUBLE CHECK VLV M8 FLANGE	0-91180-108-0	03	1	1009-1411
205	NUT; DOUBLE CHECK VLV HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91180-108-0	03	1	1412-1412
205	NUT; DOUBLE CHECK VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	03	1	1412-
215	VALVE; TRAILER CONT	8-98091-694-0	01	1	1009-
233	ADAPTER; VLV PT3/8	1-48319-058-0	02	1	1009-
255	VALVE; MAG TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	1009-1302
255	VALVE; MAG TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-82563-871-2	01	1	1303-1411
255	VALVE; MAG TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) HONG KONG EQUIPMENT(PQ1)	1-82563-871-2	01	1	1412-1412
255	VALVE; MAG TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-82563-871-2	01	1	1412-

115 115 215 233 15 115 233 115 115 205 68 94 68 122 87 87 87 64 66 65 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	CAM; FOLLOWER	1-48129-134-0	01	1	1009-
64	BRACKET; RELAY VLV (A)	8-98036-587-0	01	1	1009-1411
64	BRACKET; RELAY VLV HONG KONG EQUIPMENT(PQ1) (A)	8-98036-587-0	01	1	1412-1412
64	BRACKET; RELAY VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	8-98036-587-0	01	1	1412-
64	BRACKET; RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1) (B)	8-98242-054-1	01	1	1412-1412
64	BRACKET; RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	8-98242-054-1	01	1	1412-
65	NUT; RELAY VLV M8 FLANGE	0-91180-108-0	04	1	1009-
66	BOLT; VLV BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1009-1411
66	BOLT; VLV BRKT HONG KONG EQUIPMENT(PQ1) (A) M8X25 FLANGE	0-28650-825-0	01	1	1412-1412
66	BOLT; VLV BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X25 FLANGE	0-28650-825-0	01	1	1412-
66	BOLT; VLV BRKT EXC. HONG KONG EQUIPMENT(PQ1) (A) M8X25 FLANGE	0-28650-825-0	03	1	1412-1412
66	BOLT; VLV BRKT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X25 FLANGE	0-28650-825-0	03	1	1412-
66	BOLT; VLV BRKT (B) M10X25 FLANGE	0-28651-025-0	02	1	1009-1411
66	BOLT; VLV BRKT HONG KONG EQUIPMENT(PQ1) (B) M10X25 FLANGE	0-28651-025-0	02	1	1412-1412
66	BOLT; VLV BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M10X25 FLANGE	0-28651-025-0	02	1	1412-
68	BOLT; DOUBLE CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1) (B) M8X14 FLANGE	0-28080-814-0	02	1	1412-1412
68	BOLT; DOUBLE CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8X14 FLANGE	0-28080-814-0	02	1	1412-
68	BOLT; DOUBLE CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1) (B) M8X30 FLANGE	0-28650-830-0	02	1	1412-1412
68	BOLT; DOUBLE CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8X30 FLANGE	0-28650-830-0	02	1	1412-
68	BOLT; DOUBLE CHECK VLV (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-1411
68	BOLT; DOUBLE CHECK VLV HONG KONG EQUIPMENT(PQ1) (A) M8X30 FLANGE	0-28650-830-0	01	1	1412-1412
68	BOLT; DOUBLE CHECK VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X30 FLANGE	0-28650-830-0	01	1	1412-
87	CONNECTOR; DBL CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1412-1412
87	CONNECTOR; DBL CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1412-
87	CONNECTOR; DBL CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1412-1412
87	CONNECTOR; DBL CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1412-
94	BRACKET; CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1)	8-97614-381-0	01	1	1412-1412
94	BRACKET; CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-97614-381-0	01	1	1412-
94	BRACKET; CHECK VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) BRAKE SYSTEM RETARDER<RE2>	8-98036-330-0	01	1	1009-1302
94	BRACKET; CHECK VLV EXC. BRAKE SYSTEM RETARDER<RE2>	8-98036-330-0	01	1	1009-1302
94	BRACKET; CHECK VLV	8-98036-330-0	01	1	1303-1411
94	BRACKET; CHECK VLV HONG KONG EQUIPMENT(PQ1)	8-98036-330-0	01	1	1412-1412
94	BRACKET; CHECK VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98036-330-0	01	1	1412-
115	CONNECTOR; DUAL RELAY VLV (C) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1009-
115	CONNECTOR; DUAL RELAY VLV (D) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1009-
115	CONNECTOR; DUAL RELAY VLV (A)	8-97633-756-0	01	1	1009-
115	CONNECTOR; DUAL RELAY VLV (B)	8-97633-771-0	01	1	1009-
122	VALVE ASM; DOUBLE CHECK TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) BRAKE SYSTEM RETARDER<RE2>	1-48410-531-1	01	1	1009-1302
122	VALVE ASM; DOUBLE CHECK EXC. BRAKE SYSTEM RETARDER<RE2>	1-48410-531-1	01	1	1009-1302
122	VALVE ASM; DOUBLE CHECK	1-48410-531-1	01	1	1303-
205	NUT; DOUBLE CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91180-108-0	02	1	1412-1412
205	NUT; DOUBLE CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	02	1	1412-
205	NUT; DOUBLE CHECK VLV M8 FLANGE	0-91180-108-0	03	1	1009-1411
205	NUT; DOUBLE CHECK VLV HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91180-108-0	03	1	1412-1412
205	NUT; DOUBLE CHECK VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	03	1	1412-
215	VALVE; TRAILER CONT	8-98091-694-0	01	1	1009-
233	ADAPTER; VLV PT3/8	1-48319-058-0	02	1	1009-

1 1 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 25 24 28 2 5 11 13 14 15 18 21 28 20 21 22 23 25 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK	1-48100-848-0	01	1	1009-
2	REPAIR KIT; HAND BRK VLV	1-85576-181-0	01	1	1009-
4	HANDLE ASM; BRK VLV	1-48119-517-0	01	1	1009-
5	GASKET; HANDLE	1-48119-128-0	01	1	1009-
6	PIN; SPR	1-48119-143-0	01	1	1009-
7	HEAD; BRK VLV (A)	1-48119-131-1	01	1	1009-
7	HEAD; BRK VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-201-0	01	1	1009-1302
7	HEAD; BRK VLV BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-209-0	01	1	1009-1302
7	HEAD; BRK VLV (B)	1-48469-209-0	01	1	1303-1411
7	HEAD; BRK VLV HONG KONG EQUIPMENT(PQ1) (B)	1-48469-209-0	01	1	1412-
7	HEAD; BRK VLV EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-48469-201-0	01	1	1412-
8	STOPPER; BRK VLV (A)	1-48119-239-0	01	1	1009-
8	STOPPER; BRK VLV (B)	1-48469-200-0	01	1	1009-
9	WASHER; LK,ADJ	1-48119-123-0	01	1	1009-
10	RING; ADJ	1-48119-122-0	01	1	1009-
11	GASKET; HD TO COVER	1-48119-130-0	01	1	1009-
12	COVER; BRK VLV	1-48129-097-1	01	1	1009-
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	1009-
14	FOLLOWER; CAM	1-48129-135-0	01	1	1009-
15	CAM; FOLLOWER	1-48129-134-0	01	1	1009-
16	SPRING; GRUDUATING	1-48129-101-0	01	1	1009-
17	PISTON; SPR	1-48129-095-0	01	1	1009-
18	GASKET; BODY	1-48129-096-0	01	1	1009-
19	SPRING; PISTON	1-48129-094-0	01	1	1009-
20	GUIDE; VLV	1-48129-090-0	01	1	1009-
21	VALVE; IN & EXH	1-48121-017-0	01	1	1009-
22	SPRING; VLV	1-48123-024-0	01	1	1009-
23	BODY; BRK VLV	1-48111-060-1	01	1	1009-
24	BOLT; EXH VLV	1-48129-092-0	02	1	1009-
25	WASHER; LK,EXH VLV	1-48129-093-0	02	1	1009-
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	1009-

180

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	180	REPAIR KIT; RELAY VLV	1-85576-449-0	01	1	1009-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
