0-50 — OIL COOLER AND OIL FILTER (#701) — 137 parça

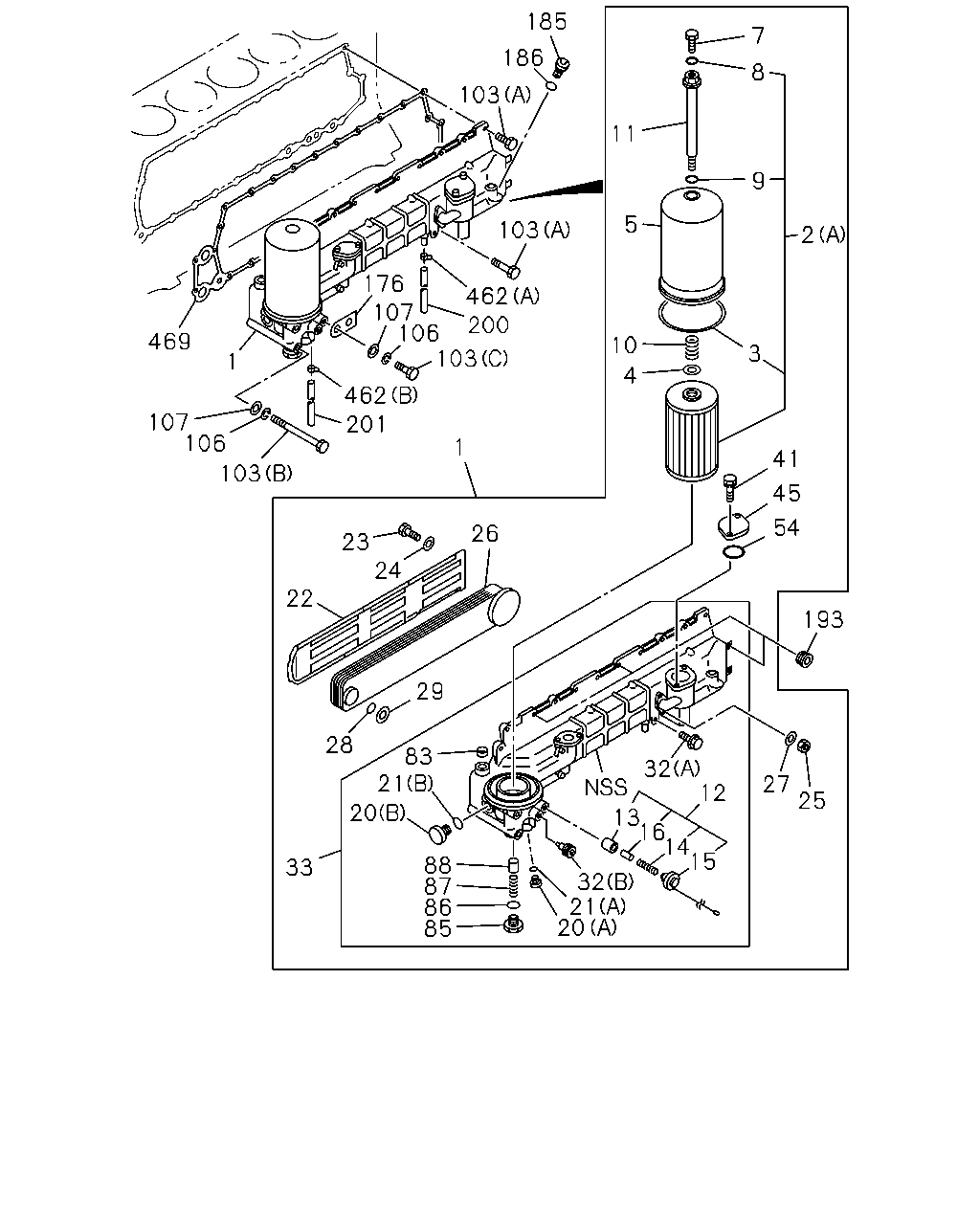

185 7 186 8 103 11 9 5 103 2 176 107 106 103 462 200 469 10 3 1 4 462 107 106 201 1 41 103 45 54 26 23 24 22 193 29 28 83 21 32 12 27 25 20 13 16 14 15 88 87 86 85 33 32 21 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FILTER & COOLER ASM; OIL	1-13200-904-0	01	1	9204-	●	●
2	ELEMENT; OIL FILTER (B)	1-13240-077-1	01	1	9204-	●
2	ELEMENT; OIL FILTER (A)	1-87810-075-2	01	1	9204-	●	●
2	ELEMENT; OIL FILTER (A)	1-13240-132-0	01	1	9505-			●
2	ELEMENT; OIL FILTER (B)	1-87810-372-1	01	1	9505-			●
3	GASKET	9-09920-311-0	01	1	9204-	●	●
4	WASHER; ELEMENT	1-13219-173-0	01	1	9204-	●	●
5	CASE; OIL FILTER	1-13211-125-1	01	1	9204-	●	●
7	PLUG; CENTER BOLT M10	1-09000-105-0	01	1	9204-	●	●
8	GASKET; PLUG ID=9.8	1-09623-055-0	01	1	9204-	●	●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=15.5	9-09920-694-0	01	1	9204-	●	●
10	SPRING; ELEMENT	9-09941-283-0	01	1	9204-	●	●
11	BOLT; CENTER	1-13231-047-0	01	1	9204-	●	●
12	VALVE ASM; BYPASS	1-13260-070-0	01	1	9204-	●	●
13	VALVE; RELIEF	9-13262-010-0	01	1	9204-	●	●
14	SPRING; RELIEF VLV	1-13263-006-0	01	1	9204-	●	●
15	PLUG; RELIEF VLV	1-13265-021-0	01	1	9204-	●	●
16	VALVE ASM; RELIEF	1-13269-002-0	01	1	9204-	●	●
20	PLUG; COOLER BODY (A) M20	1-13219-152-0	03	1	9204-	●	●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	02	1	9204-	●	●
21	GASKET; PLUG (A) M20	1-13219-158-0	03	1	9204-	●	●
21	GASKET; PLUG (B) M26	1-13219-159-0	02	1	9204-	●	●
22	GUIDE; WATER	1-13219-155-1	01	1	9204-	●	●
23	SCREW; WATER GUIDE	1-13219-156-0	07	1	9204-	●	●
24	WASHER; WATER GUIDE	1-13219-157-0	07	1	9204-	●	●
25	NUT; CORE TO BODY	1-21729-074-0	04	1	9204-	●	●
26	CORE ASM; OIL COOLER	1-21723-039-0	01	1	9204-	●	●
27	WASHER; PL,CORE TO BODY	1-21729-075-0	04	1	9204-	●	●
28	GASKET; CORE TO BODY	1-21729-076-0	02	1	9204-	●	●
29	GASKET; CORE TO BODY	1-21729-077-0	02	1	9204-	●	●
32	PLUG; DRAIN (A)	1-13219-151-0	01	1	9204-	●	●
32	PLUG; DRAIN (B)	1-13219-295-0	01	1	9204-	●	●
33	HOUSING ASM; COOLER	1-13211-176-2	01	1	9204-	●	●
41	BOLT; COVER FIX	1-13219-161-0	02	1	9204-	●	●
45	COVER; OIL PORT	1-13219-172-0	01	1	9204-	●	●
54	GASKET; OIL PIPE	1-13219-162-0	01	1	9204-	●	●
83	CUP; SEALING,BODY,OIL COOLER & FILTER OD=20	9-11129-128-0	01	1	9204-	●	●
85	PLUG; DRAIN UNIT,OIL FILTER	1-13219-146-0	01	1	9204-	●	●
86	GASKET; DRAIN UNIT,OIL FILTER	1-13219-147-0	01	1	9204-	●	●
87	SPRING; DRAIN UNIT,OIL FILTER	1-13219-148-0	01	1	9204-	●	●
88	VALVE; DRAIN UNIT,OIL FILTER	9-13262-009-0	01	1	9204-	●	●
103	BOLT; OIL COOLER (A) M8X28 W/LK&PL WASHER	0-50140-828-0	24	1	9204-	●	●
103	BOLT; OIL COOLER (B) M8X138	5-09000-031-1	02	1	9204-	●	●
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	9204-	●	●
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	25	1	9505-			●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28080-835-0	02	1	9505-			●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	9204-	●	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	9204-	●	●
176	BRACKET; HARNESS CLIP	1-82699-182-0	01	1	9204-	●	●
185	VALVE; OIL RELIEF,OIL COOLER	1-13160-017-1	01	1	9204-	●	●
186	GASKET; RELIEF VLV,OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09565-228-0	01	1	9204-	●	●
193	PLUG; TAPER EXC. HEATER & DEFROSTER(C41) PT3/8 T=8.0	1-09605-066-0	01	1	9204-	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03157-300-0	01	1	9204-	●	●
201	PIPE; VINYL,OIL DRAIN L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9204-	●	●
462	CLIP; HOSE,DRAIN (A)	1-09704-100-0	01	1	9204-	●	●
462	CLIP; HOSE,DRAIN (B) ID=13.5	8-97015-754-0	01	1	9204-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-159-0	01	1	9204-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9505-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9505-			●

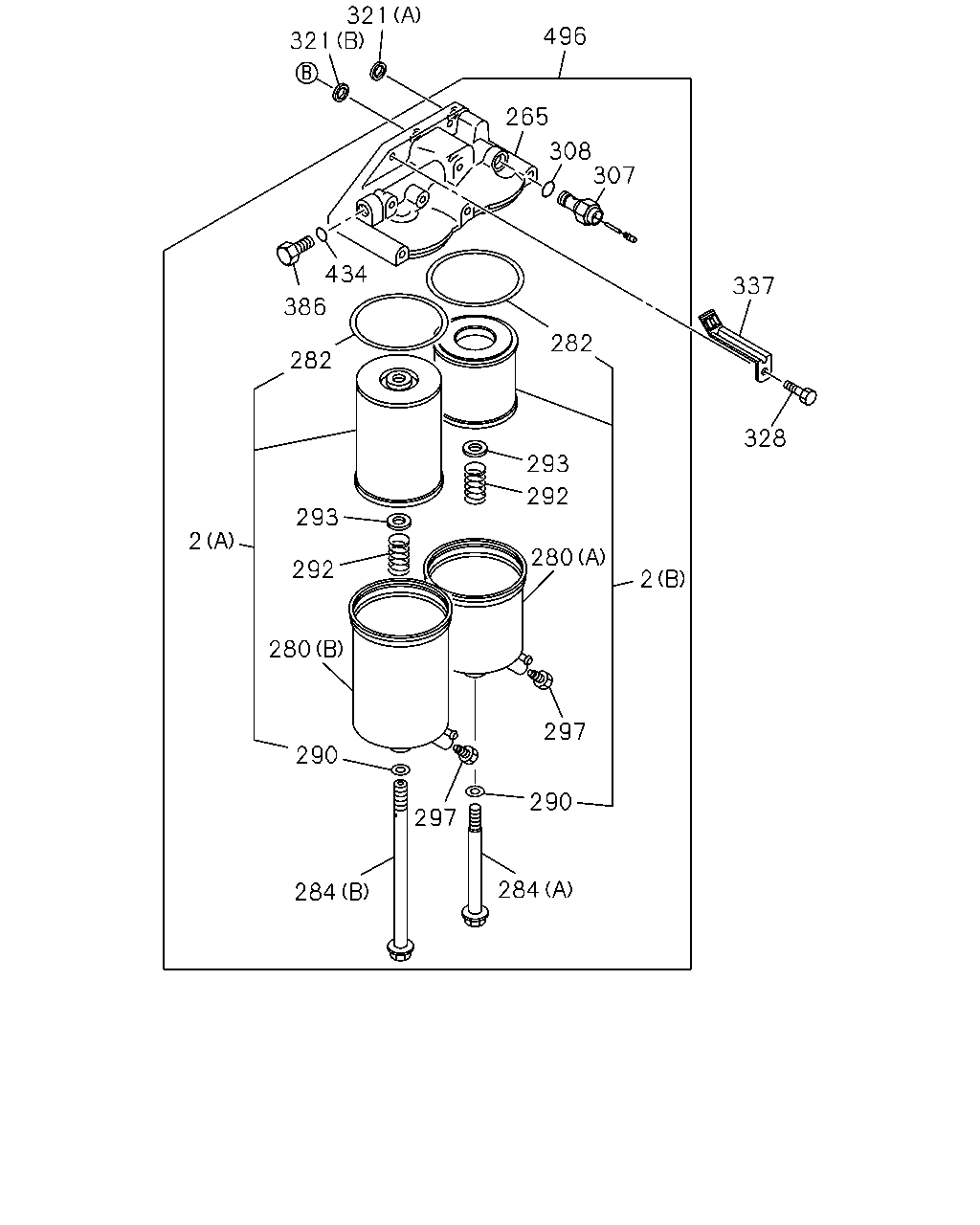

321 321 496 265 308 307 434 337 386 282 282 328 293 292 293 2 280 292 2 280 297 290 290 297 284 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	ELEMENT; OIL FILTER (B)	1-13240-077-1	01	1	9204-	●
2	ELEMENT; OIL FILTER (A)	1-87810-075-2	01	1	9204-	●	●
2	ELEMENT; OIL FILTER (A)	1-13240-132-0	01	1	9505-			●
2	ELEMENT; OIL FILTER (B)	1-87810-372-1	01	1	9505-			●
265	BODY; OIL FILTER	8-94393-503-0	01	1	9505-			●
280	CASE ASM; OIL FILTER	1-13212-150-0	01	1	9204-	●
280	CASE ASM; OIL FILTER (A)	8-94393-504-1	01	1	9505-			●
280	CASE ASM; OIL FILTER (B)	8-94393-505-1	01	1	9505-			●
282	GASKET; BODY TO CASE ID=27.7	1-09623-170-0	01	1	9204-	●
282	GASKET; BODY TO CASE	9-09920-311-0	02	1	9505-			●
284	BOLT; CENTER,OIL FILTER	1-13212-064-1	01	1	9204-	●
284	BOLT; CENTER,OIL FILTER (A)	1-13231-069-0	01	1	9505-			●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-070-1	01	1	9505-			●
290	GASKET; PLUG,OIL DRAIN ID=9.8	1-09623-055-0	01	1	9204-	●
290	GASKET; PLUG,OIL DRAIN ID=15.5	9-09920-694-0	02	1	9505-			●
292	SPRING; ELEMENT	9-09941-283-0	01	1	9204-	●
292	SPRING; ELEMENT	9-09941-283-0	02	1	9505-			●
293	SEAT; SPR	1-13219-173-0	01	1	9204-	●
293	SEAT; SPR	9-13239-025-0	02	1	9505-			●
297	PLUG; COVER	1-13219-275-0	02	1	9505-			●
307	VALVE; OVERFLOW	1-13260-066-1	01	1	9505-			●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9505-			●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=9.8	8-94399-339-0	02	1	9505-			●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=22.1	8-94399-399-0	02	1	9505-			●
328	BOLT; OIL FILTER M10X30 FLANGE	0-28181-030-0	02	1	9505-			●
328	BOLT; OIL FILTER M10X135	8-94397-139-1	03	1	9505-			●
337	BRACKET; FUEL PIPE	8-94399-726-0	01	1	9505-			●
386	PLUG; OIL FILTER M16X9	9-13226-011-0	01	1	9505-			●
434	GASKET; PLUG,OIL FILTER	9-09920-526-0	01	1	9505-			●
496	FILTER ASM; OIL	8-94393-427-1	01	1	9505-			●

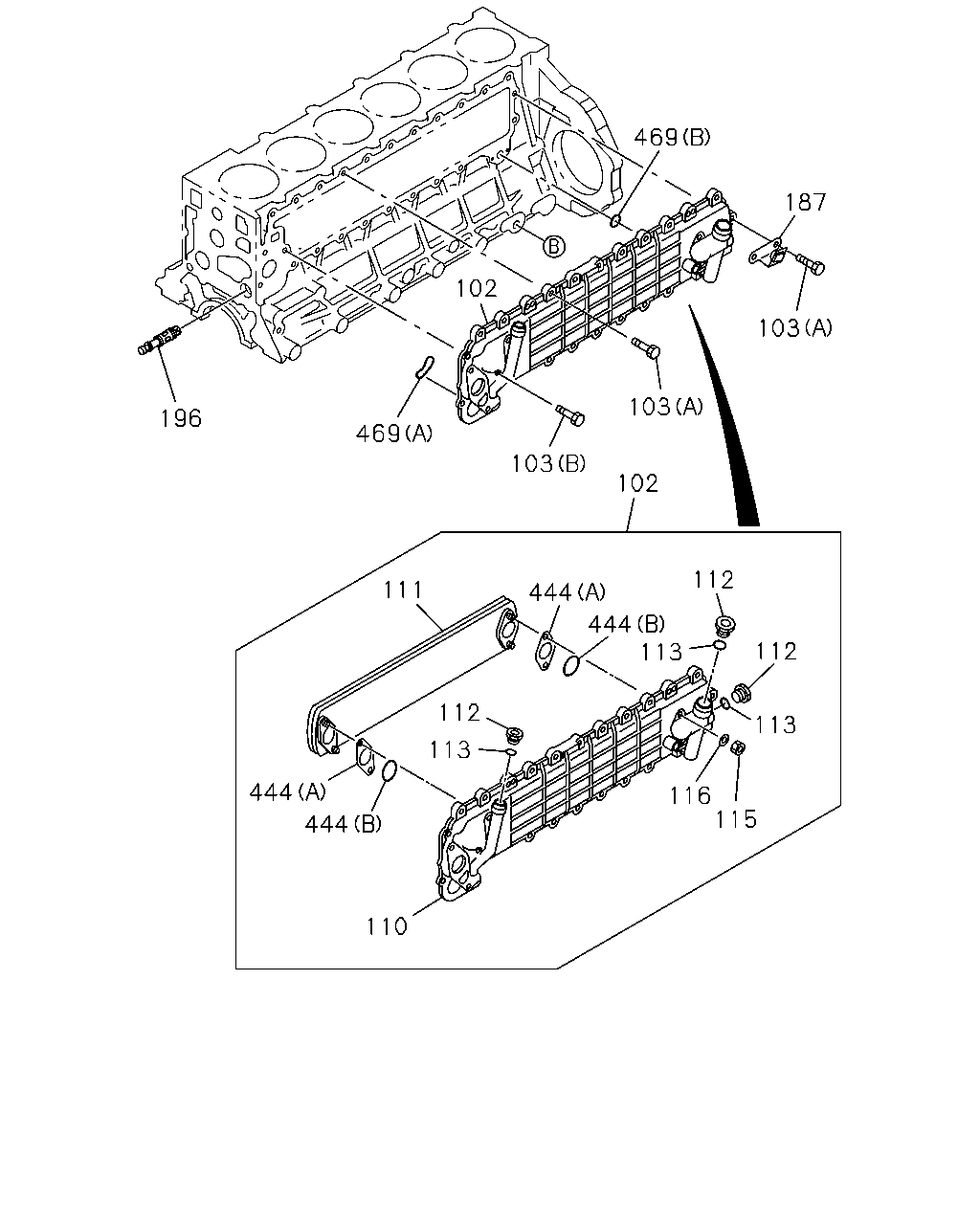

469 187 102 103 103 196 469 103 102 112 111 444 444 113 112 112 113 113 444 116 115 444 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
102	COOLER ASM; OIL	8-94393-320-1	01	1	9505-			●
103	BOLT; OIL COOLER (A) M8X28 W/LK&PL WASHER	0-50140-828-0	24	1	9204-	●	●
103	BOLT; OIL COOLER (B) M8X138	5-09000-031-1	02	1	9204-	●	●
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	9204-	●	●
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	25	1	9505-			●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28080-835-0	02	1	9505-			●
110	BODY; CASE,OIL COOLER	8-94396-714-2	01	1	9505-			●
111	CORE; OIL COOLER	8-94396-716-0	01	1	9505-			●
112	PLUG; OIL COOLER CASE	8-94396-753-0	03	1	9505-			●
113	GASKET; PLUG,OIL COOLER CASE M24	8-94396-755-0	03	1	9505-			●
115	NUT; ELEMENT M10	9-09111-410-0	04	1	9505-			●
116	WASHER; PL,ELEMENT ID=10.5	9-09164-510-0	04	1	9505-			●
187	CLIP; PIPE TO PIPE	8-94396-688-1	01	1	9505-			●
196	THERMOSTAT; OIL COOLER 90?C	8-94394-815-2	01	1	9505-			●
444	GASKET; ELEMENT TO BODY (A)	8-94396-754-0	02	1	9505-			●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9505-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-159-0	01	1	9204-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9505-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9505-			●

339 339 338 338 390 390 391 340 282 340 341 341 293 292 2 280 291 284 290 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	ELEMENT; OIL FILTER (B)	1-13240-077-1	01	1	9204-	●
2	ELEMENT; OIL FILTER (A)	1-87810-075-2	01	1	9204-	●	●
2	ELEMENT; OIL FILTER (A)	1-13240-132-0	01	1	9505-			●
2	ELEMENT; OIL FILTER (B)	1-87810-372-1	01	1	9505-			●
132	PLUG; PARTIAL OIL FILTER M10	1-09000-105-0	01	1	9204-	●
280	CASE ASM; OIL FILTER	1-13212-150-0	01	1	9204-	●
280	CASE ASM; OIL FILTER (A)	8-94393-504-1	01	1	9505-			●
280	CASE ASM; OIL FILTER (B)	8-94393-505-1	01	1	9505-			●
282	GASKET; BODY TO CASE ID=27.7	1-09623-170-0	01	1	9204-	●
282	GASKET; BODY TO CASE	9-09920-311-0	02	1	9505-			●
284	BOLT; CENTER,OIL FILTER	1-13212-064-1	01	1	9204-	●
284	BOLT; CENTER,OIL FILTER (A)	1-13231-069-0	01	1	9505-			●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-070-1	01	1	9505-			●
290	GASKET; PLUG,OIL DRAIN ID=9.8	1-09623-055-0	01	1	9204-	●
290	GASKET; PLUG,OIL DRAIN ID=15.5	9-09920-694-0	02	1	9505-			●
291	GASKET; OIL DRAIN,CENTER BOLT ID=15.5	9-09920-694-0	01	1	9204-	●
292	SPRING; ELEMENT	9-09941-283-0	01	1	9204-	●
292	SPRING; ELEMENT	9-09941-283-0	02	1	9505-			●
293	SEAT; SPR	1-13219-173-0	01	1	9204-	●
293	SEAT; SPR	9-13239-025-0	02	1	9505-			●
338	FILTER ASM; OIL PARTIAL (A)	1-13200-704-1	01	1	9204-	●
338	FILTER ASM; OIL PARTIAL (B)	1-13200-744-0	01	1	9204-		●
339	BRACKET; PARTIAL OIL FILTER	1-19755-062-1	01	1	9204-	●	●
340	BOLT; BRKT M10X25 W/LK WASHER	0-50051-025-0	04	1	9204-	●	●
341	BOLT; OIL FILTER,PARTIAL M10X35 W/LK&PL WASHER	0-50141-035-0	03	1	9204-	●	●
390	BODY; OIL FILTER,PARTIAL (A)	1-13212-141-0	01	1	9204-	●
390	BODY; OIL FILTER,PARTIAL (B)	1-13212-089-2	01	1	9204-		●
391	CARTRIDGE; OIL FILTER,PARTIAL	1-13240-103-0	01	1	9204-9302		●
391	CARTRIDGE; OIL FILTER,PARTIAL	1-13240-163-2	01	1	9303-		●
