Sayfa 3-08 - Isuzu EPC

3-08 — PARKING BRAKE (#70099) — 62 parça

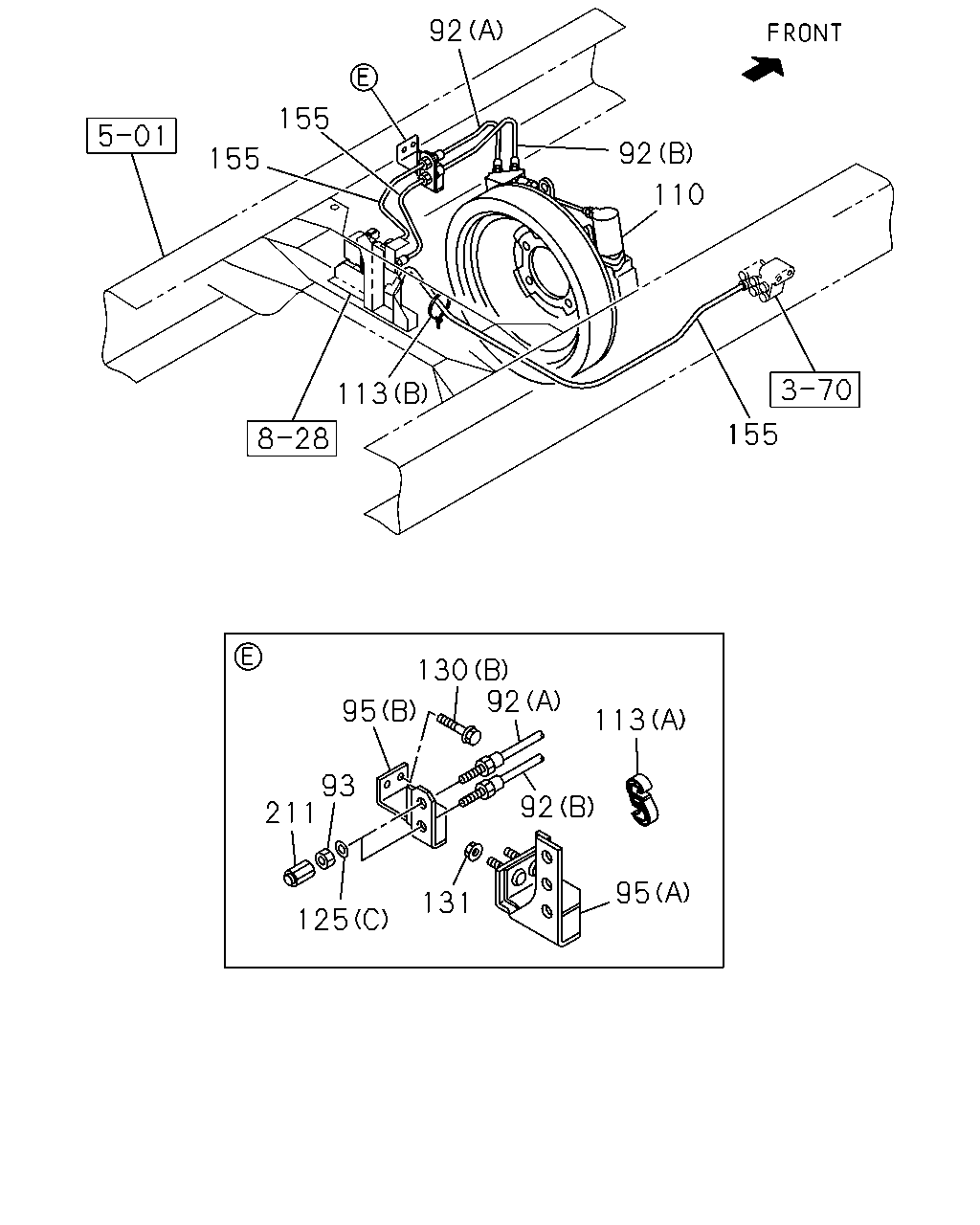

155 155 92 92 113 155 130 92 92 113 211 95 93 131 95 125 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> (B) L=300	1-09363-608-0	01	1	1009-1302
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> (A) L=260	1-09363-609-0	01	1	1009-1302
93	NUT; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> M12	9-09840-280-0	02	1	1009-1302
95	BRACKET; FLEX HOSE,RETARDER BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B)	1-47471-088-0	01	1	1009-1302
95	BRACKET; FLEX HOSE,RETARDER TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A)	8-98061-851-0	01	1	1009-1302
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-497-3	01	1	1009-1302
113	CLIP; HOSE BRAKE SYSTEM RETARDER<RE2> (B) L=350	1-09707-183-0	01	1	1009-1302
113	CLIP; HOSE BRAKE SYSTEM RETARDER<RE2> (A) ID=10 & 10	1-09709-277-1	01	1	1009-1302
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (C) ID=12.2	0-91510-512-0	02	1	1009-1302
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2	0-91510-516-0	04	1	1009-1302
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-429-0	02	1	1009-1302
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M6X14 HEX SOCKET	1-48629-145-0	04	1	1009-1302
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M8X30 FLANGE	0-28650-830-0	02	1	1009-1302
131	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91180-108-0	02	1	1009-1302
155	TUBE BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) SERVICED BY L=2000 OD=6	1-87411-001-0	02	1	1009-1302
155	TUBE BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) SERVICED BY L=4000 OD=6	1-87411-002-0	01	1	1009-1302
155	TUBE TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 OD=6	1-87411-001-0	03	1	1009-1302
211	ADAPTER BRAKE SYSTEM RETARDER<RE2> DIN6 & M12 STRAIGHT	1-09661-379-0	02	1	1009-1302

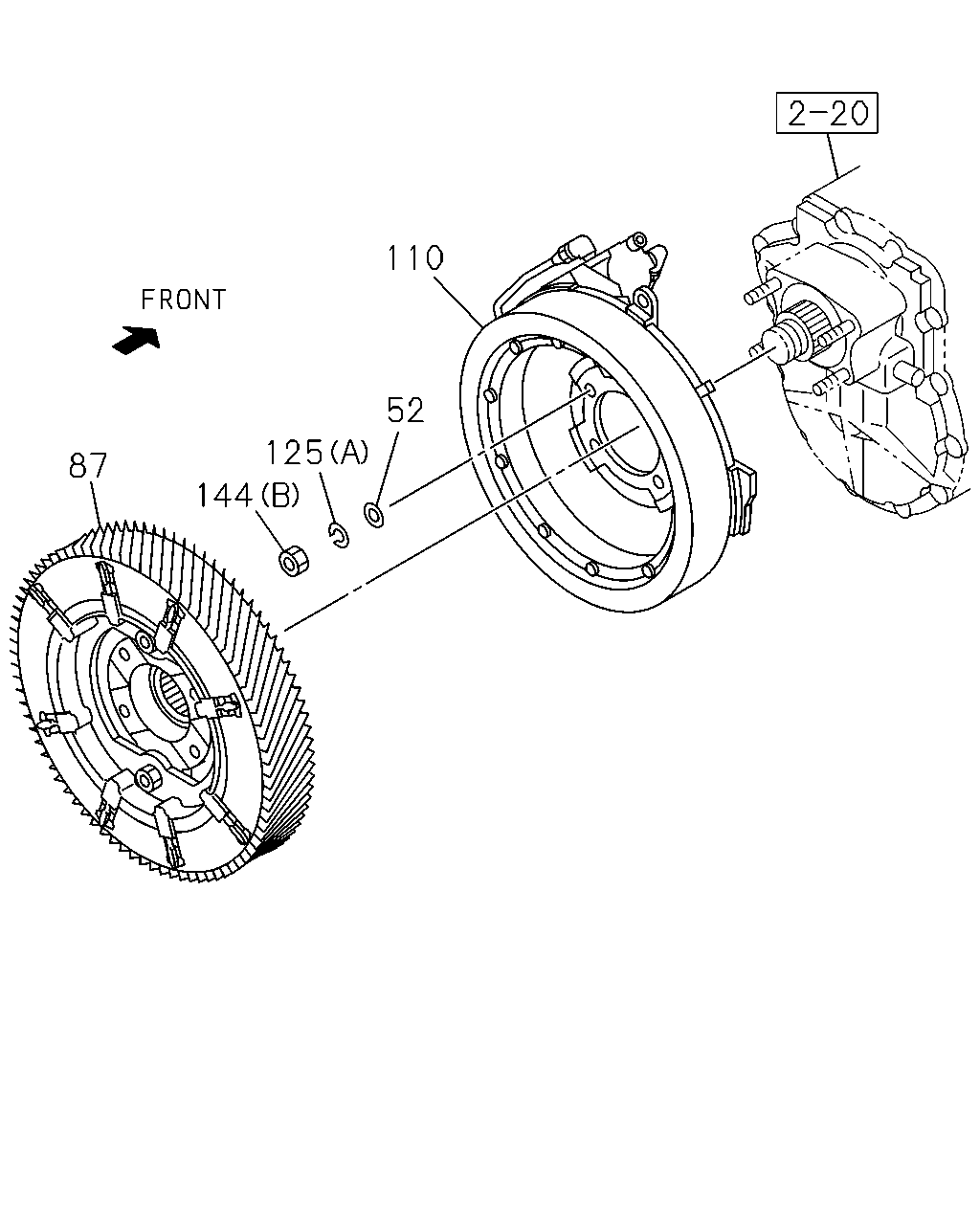

110 52 125 144 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> ID=17	9-09164-516-0	04	1	1009-1011
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> ID=17	0-91614-516-0	04	1	1012-1302
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-48610-498-1	01	1	1009-1302
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-497-3	01	1	1009-1302
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (C) ID=12.2	0-91510-512-0	02	1	1009-1302
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2	0-91510-516-0	04	1	1009-1302
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-429-0	02	1	1009-1302
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M16	0-91110-516-0	04	1	1009-1302
144	NUT BRAKE SYSTEM RETARDER<RE2> (A) M12	9-09840-280-0	02	1	1009-1302

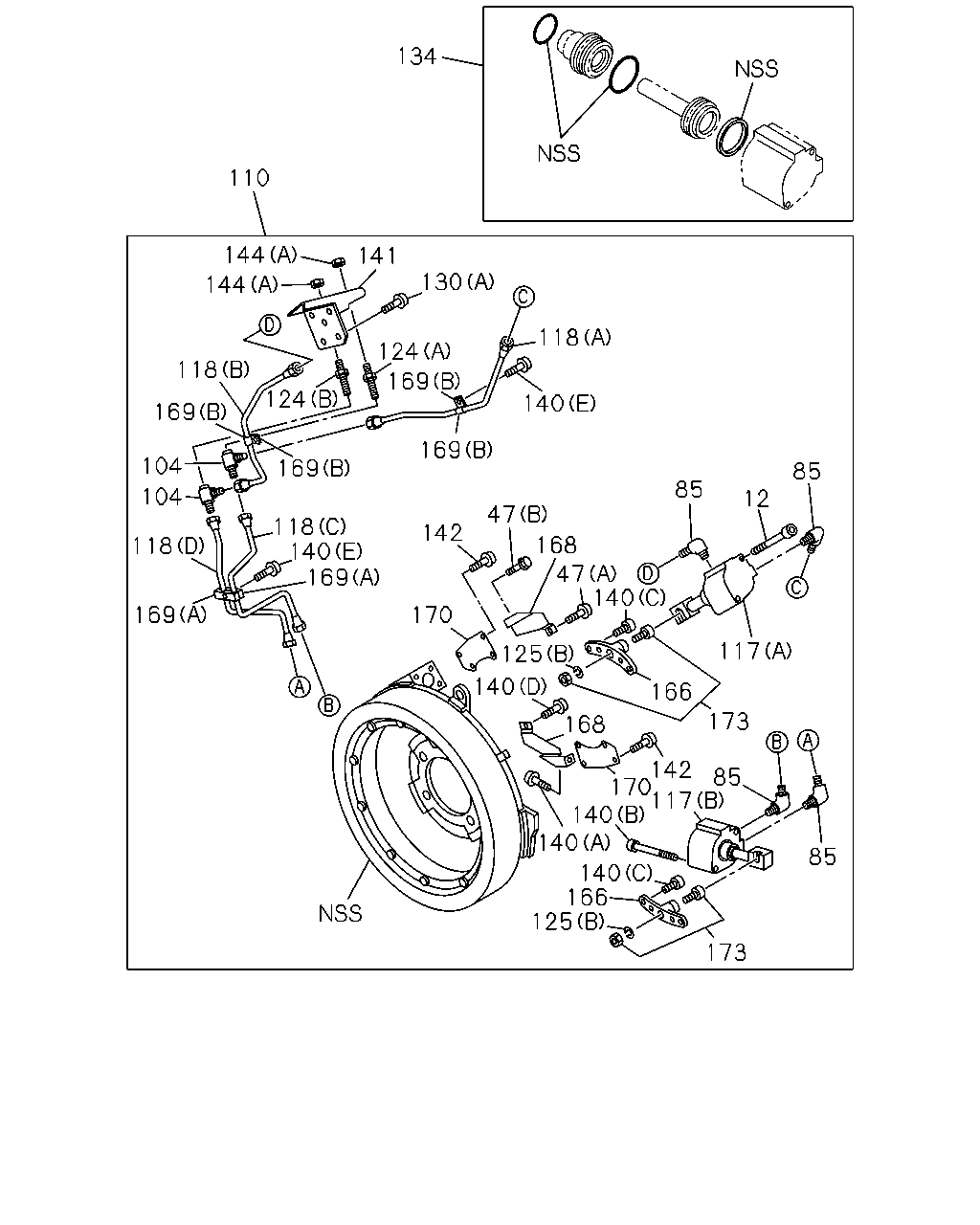

130 141 144 144 118 169 104 104 118 169 140 169 118 124 169 140 47 142 170 140 140 170 117 173 117 12 85 85 118 110 134 169 124 168 168 85 140 166 85 173 125 140 142 169 140 47 125 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	BOLT; FIX BRAKE SYSTEM RETARDER<RE2>	1-48629-461-0	02	1	1009-1302
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER<RE2> (B) M6X10 HEX SOCKET	1-48629-133-0	01	1	1009-1302
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-471-0	01	1	1009-1302
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> M12 & PT1/8	0-92124-306-0	04	1	1009-1302
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2>	1-48629-202-0	02	1	1009-1302
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-497-3	01	1	1009-1302
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (B) SUB	1-48629-464-0	01	1	1009-1302
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (A) MAIN	1-48629-465-0	01	1	1009-1302
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-457-0	01	1	1009-1302
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-458-0	01	1	1009-1302
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-459-0	01	1	1009-1302
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-460-0	01	1	1009-1302
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (A) M12 2WAY	1-09654-257-1	01	1	1009-1302
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-452-0	01	1	1009-1302
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (C) ID=12.2	0-91510-512-0	02	1	1009-1302
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2	0-91510-516-0	04	1	1009-1302
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-429-0	02	1	1009-1302
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M6X14 HEX SOCKET	1-48629-145-0	04	1	1009-1302
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M8X30 FLANGE	0-28650-830-0	02	1	1009-1302
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2>	1-48629-463-0	02	1	1009-1302
140	BOLT BRAKE SYSTEM RETARDER<RE2> (A) M6X10 HEX SOCKET	1-48629-133-0	01	1	1009-1302
140	BOLT BRAKE SYSTEM RETARDER<RE2> (E) M6X20 HEX SOCKET	1-48629-270-0	03	1	1009-1302
140	BOLT BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-461-0	02	1	1009-1302
140	BOLT BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-462-0	08	1	1009-1302
140	BOLT BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-471-0	01	1	1009-1302
141	BRACKET BRAKE SYSTEM RETARDER<RE2>	1-48629-450-0	01	1	1009-1302
142	SCREW BRAKE SYSTEM RETARDER<RE2> M6X10 HEX SOCKET	1-48629-133-0	08	1	1009-1302
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M16	0-91110-516-0	04	1	1009-1302
144	NUT BRAKE SYSTEM RETARDER<RE2> (A) M12	9-09840-280-0	02	1	1009-1302
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER<RE2>	1-48629-446-0	02	1	1009-1302
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER<RE2>	1-48629-447-0	02	1	1009-1302
169	CLAMP BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-249-0	04	1	1009-1302
169	CLAMP BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-276-0	02	1	1009-1302
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2>	1-48629-448-0	02	1	1009-1302
173	FOLLOWER BRAKE SYSTEM RETARDER<RE2>	1-48629-468-0	02	1	1009-1302
