◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11292 - EXR RHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#70096) — 45 parça

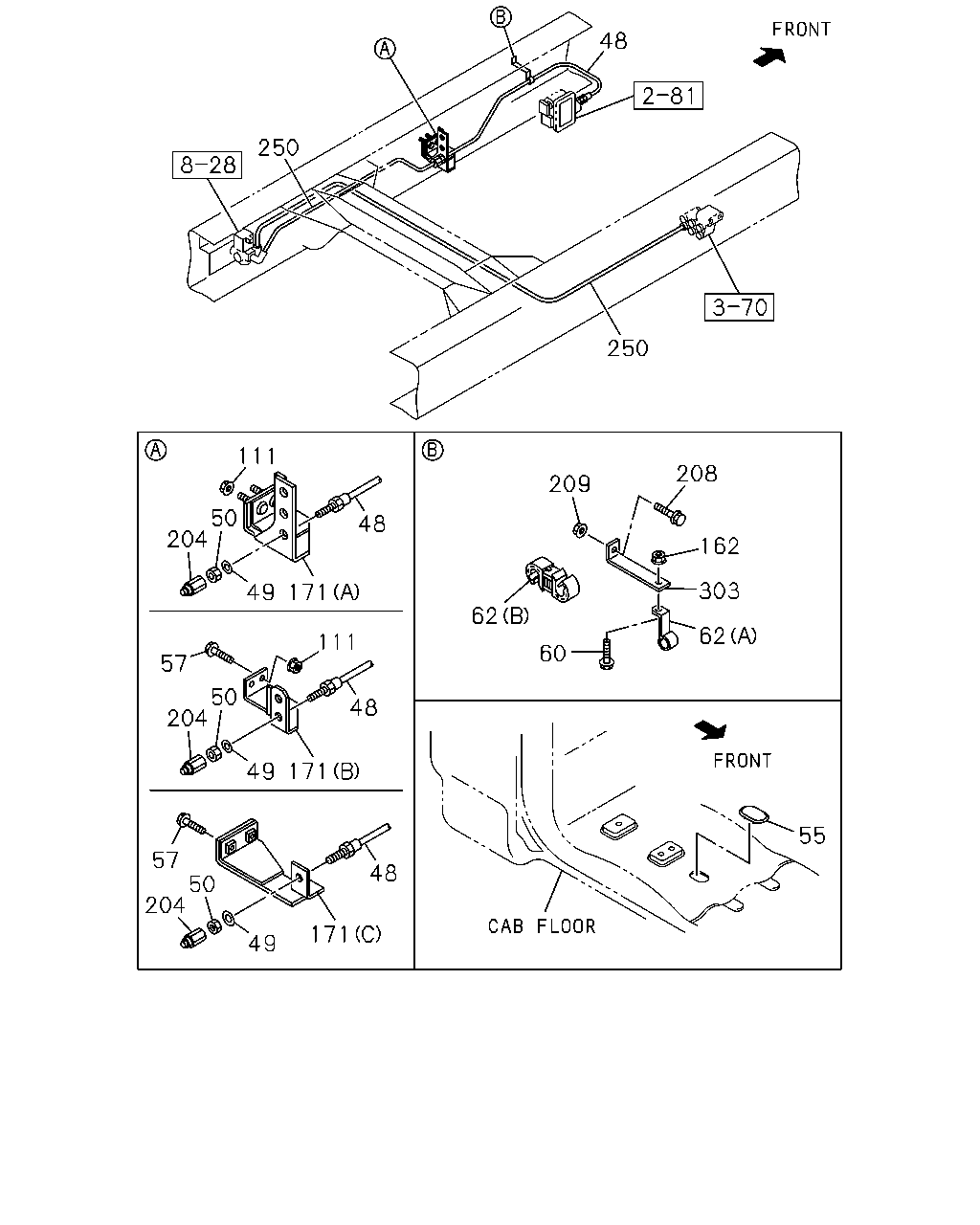

çizim 114490
49 48 50 204 57 55 62 303 162 208 209 62 60 48 171 49 204 57 50 111 49 171 48 111 50 204 250 48 250 171
BalonParca AdiParca NoAdetTipApplied Date
48 HOSE; FLEX,PTO
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. HONG KONG EQUIPMENT(PQ1) OD=12.7 L=450 		1-09363-631-0 01 1 1412-1412
48 HOSE; FLEX,PTO
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) OD=12.7 L=450 		1-09363-631-0 01 1 1412-
48 HOSE; FLEX,PTO
MJX12P M/T SMOOTHER-G(Y4S) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) L=380 		1-09363-884-0 01 1 1009-1302
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) L=380 		1-09363-884-0 01 1 1303-1411
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) HONG KONG EQUIPMENT(PQ1) L=380 		1-09363-884-0 01 1 1412-1412
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=380 		1-09363-884-0 01 1 1412-
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) MJT7 M/T<Y9E> L=800 		1-09363-695-0 01 1 1009-1302
49 WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2 		0-91510-512-0 01 1 1009-1302
49 WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) ID=12.2 		0-91510-512-0 01 1 1303-
50 NUT; FLEX HOSE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		9-09840-280-0 01 1 1009-1302
50 NUT; FLEX HOSE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M12 		9-09840-280-0 01 1 1303-
55 GROMMET; CABLE 1-09983-068-0 01 1 1009-
57 BOLT; BRKT
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE 		0-28650-830-0 02 1 1412-1412
57 BOLT; BRKT
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE 		0-28650-830-0 02 1 1412-
57 BOLT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE 		0-28650-835-0 02 1 1009-1302
57 BOLT; BRKT
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X35 FLANGE 		0-28650-835-0 02 1 1303-1411
57 BOLT; BRKT
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) HONG KONG EQUIPMENT(PQ1) M8X35 FLANGE 		0-28650-835-0 02 1 1412-1412
57 BOLT; BRKT
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X35 FLANGE 		0-28650-835-0 02 1 1412-
60 BOLT; CLIP FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1302
62 CLIP; PIPE,AIR
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (B) ID=10 & 10 		1-09709-277-1 01 1 1009-1302
62 CLIP; PIPE,AIR
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) ID=15 L=22 H=30 		1-09701-215-1 01 1 1009-1302
111 NUT; BRKT
TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91180-108-0 02 1 1009-1302
111 NUT; BRKT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M8 FLANGE 		0-91180-108-0 02 1 1303-1411
111 NUT; BRKT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 02 1 1412-1412
111 NUT; BRKT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE 		0-91180-108-0 02 1 1412-
162 NUT; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 1009-1302
171 BRACKET; FLEX HOSE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. HONG KONG EQUIPMENT(PQ1) (C) 		8-97634-061-0 01 1 1412-1412
171 BRACKET; FLEX HOSE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) 		8-97634-061-0 01 1 1412-
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A) 		8-98061-851-0 01 1 1009-1302
171 BRACKET; FLEX HOSE
MJX12P M/T SMOOTHER-G(Y4S) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) 		8-98061-851-0 01 1 1303-
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-47471-088-0 01 1 1009-1302
171 BRACKET; FLEX HOSE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) 		1-47471-088-0 01 1 1303-1411
171 BRACKET; FLEX HOSE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) HONG KONG EQUIPMENT(PQ1) (B) 		1-47471-088-0 01 1 1412-1412
171 BRACKET; FLEX HOSE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		1-47471-088-0 01 1 1412-
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1009-1302
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1303-
208 BOLT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE 		0-28650-835-0 01 1 1009-1302
209 NUT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 1009-1302
250 TUBE; NYLON
TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1009-1302
250 TUBE; NYLON
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1303-1411
250 TUBE; NYLON
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1412-1412
250 TUBE; NYLON
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1412-1412
250 TUBE; NYLON
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1412-
250 TUBE; NYLON
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1412-
303 BRACKET; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=95 		1-82699-085-0 01 1 1009-1302
