Sayfa 2-53 - Isuzu EPC

2-53 — TRANSMISSION OIL COOLER SYSTEM (#70094) — 297 parça

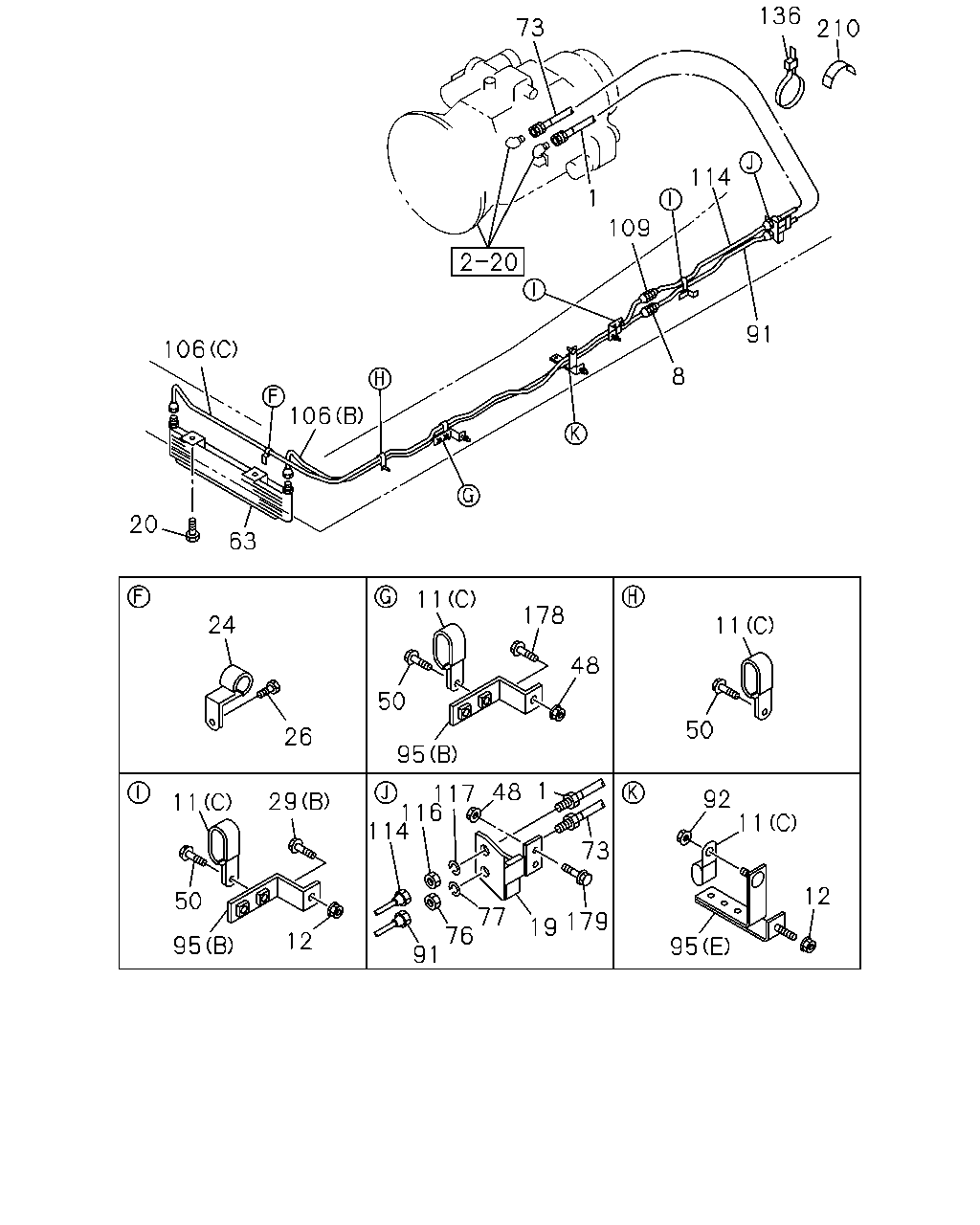

106 106 20 63 109 8 91 114 1 73 136 210 24 26 11 50 95 178 48 50 11 11 12 92 95 117 48 73 1 116 114 179 19 77 76 91 29 12 11 50 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJX12P M/T SMOOTHER-G(Y4S) L=550	1-09365-231-0	01	1	1009-1302
1	HOSE; ATF MJX12P M/T SMOOTHER-G(Y4S) L=620	1-09365-350-0	01	1	1303-
1	HOSE; ATF MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	1009-1302
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1303-
8	UNION MJT7 M/T<Y9E> M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1303-
8	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	02	1	1009-1302
8	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
8	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
11	CLIP; PIPE MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1009-1302
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	05	1	1303-
11	CLIP; PIPE MJT7 M/T<Y9E> (B) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-1302
11	CLIP; PIPE MJT7 M/T<Y9E> (C) ID=11X2 L=20	9-09535-036-0	04	1	1009-1302
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (E) ID=19 L=28	0-95235-856-0	02	1	1009-
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (D) ID=16X2 L=20	0-95325-535-0	05	1	1009-
12	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1009-1302
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1303-
19	BRACKET; FLEX HOSE MJT7 M/T<Y9E>	1-47479-559-0	01	1	1009-1302
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47479-559-0	01	1	1303-
19	BRACKET; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S)	1-47479-561-1	01	1	1009-
20	BOLT; COOLER TO BRKT MJT7 M/T<Y9E> M10X20 FLANGE	0-28051-020-0	02	1	1009-1302
20	BOLT; COOLER TO BRKT MJT7S M/T(Y3E) M10X20 FLANGE	0-28051-020-0	02	1	1303-
24	CLIP; OIL PIPE MJT7 M/T<Y9E> ID=11 H=20 L=20	8-98033-780-0	02	1	1009-1302
24	CLIP; OIL PIPE MJT7S M/T(Y3E) ID=11 H=20 L=20	8-98033-780-0	01	1	1303-
24	CLIP; OIL PIPE MJX12P M/T SMOOTHER-G(Y4S) ID=15 H=24 L=20	1-09700-606-0	01	1	1009-
26	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1009-
26	BOLT; PIPE CLIP MJT7 M/T<Y9E> M8X30 FLANGE	0-28650-830-0	01	1	1009-1302
29	BOLT; FILTER TO BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1009-1302
29	BOLT; FILTER TO BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1303-
29	BOLT; FILTER TO BRKT MJT7 M/T<Y9E> (A) M10X30 FLANGE	0-28651-030-0	02	1	1009-1302
29	BOLT; FILTER TO BRKT MJX12P M/T SMOOTHER-G(Y4S) (B) M10X20 FLANGE	0-28051-020-0	01	1	1009-
29	BOLT; FILTER TO BRKT MJX12P M/T SMOOTHER-G(Y4S) (B) M8X20 FLANGE	0-28650-820-0	01	1	1009-
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-
50	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	1009-1302
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	1303-
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	1009-1302
50	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	02	1	1303-
63	COOLER; OIL MJT7 M/T<Y9E>	1-21700-394-0	01	1	1009-1302
63	COOLER; OIL MJT7S M/T(Y3E)	8-98199-221-0	01	1	1303-1303
63	COOLER; OIL MJT7S M/T(Y3E)	8-98240-506-0	01	1	1303-1405
63	COOLER; OIL MJT7S M/T(Y3E)	8-98269-767-0	01	1	1406-
73	HOSE; FLEX,TRANS MJX12P M/T SMOOTHER-G(Y4S) L=500	1-09365-247-0	01	1	1009-1302
73	HOSE; FLEX,TRANS MJX12P M/T SMOOTHER-G(Y4S) L=560	1-09365-369-0	01	1	1303-
73	HOSE; FLEX,TRANS MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	1009-1302
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1303-
76	NUT; FLEX HOSE MJT7 M/T<Y9E> M16	0-91111-516-0	01	1	1009-1302
76	NUT; FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1303-
77	WASHER; LK MJT7 M/T<Y9E> ID=16.2	0-91510-516-0	01	1	1009-1302
77	WASHER; LK MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1303-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7 M/T<Y9E> L=876 SERVICED BY L=900	1-47428-873-0	01	1	1009-1302
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1303-
91	PIPE; OIL,FLEX HOSE TO UNION MJX12P M/T SMOOTHER-G(Y4S) L=919	1-49166-987-1	01	1	1009-
92	NUT; CLIP MJT7 M/T<Y9E> M8 FLANGE	0-91180-108-0	01	1	1009-1302
92	NUT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	02	1	1009-
95	BRACKET; CLIP (B)	1-47479-482-0	04	1	1009-1302
95	BRACKET; CLIP (B)	1-47479-482-0	01	1	1009-1302
95	BRACKET; CLIP (B)	1-47479-482-0	03	1	1303-
95	BRACKET; CLIP MJT7 M/T<Y9E> (A) L=50	1-47475-299-2	01	1	1009-1302
95	BRACKET; CLIP (E)	8-98199-287-2	01	1	1303-
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (C)	8-97610-663-0	01	1	1009-
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (D)	8-97610-664-0	01	1	1009-
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (C)	8-98240-381-0	01	1	1303-
106	PIPE ASM; OIL,COOLER TO UNION MJT7 M/T<Y9E> (A)	8-98034-834-0	01	1	1009-1302
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (B)	8-98240-377-0	01	1	1303-
109	UNION MJT7 M/T<Y9E> M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1303-
109	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	02	1	1009-1302
109	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
109	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7 M/T<Y9E> L=841	8-98100-827-0	01	1	1009-1302
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=841	8-98100-827-0	01	1	1303-
114	PIPE; OIL,UNION TO FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=849	1-49167-146-0	01	1	1009-
116	NUT; BRKT,FLEX HOSE MJT7 M/T<Y9E> M16	0-91111-516-0	01	1	1009-1302
116	NUT; BRKT,FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1303-
117	WASHER; LK,FLEX HOSE MJT7 M/T<Y9E> ID=16.2	0-91510-516-0	01	1	1009-1302
117	WASHER; LK,FLEX HOSE MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1303-
136	CLIP; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=350	1-09707-183-0	02	1	1303-
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	1009-1302
136	CLIP; FLEX HOSE MJT7S M/T(Y3E) L=350	1-09707-183-0	01	1	1303-
178	BOLT; BRKT,CLIP M8X30 FLANGE	0-28650-830-0	01	1	1009-1302
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1303-
179	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1009-1302
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-
210	BAND; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=175	1-09707-178-0	02	1	1303-
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1009-1302
210	BAND; FLEX HOSE MJT7S M/T(Y3E) L=175	1-09707-178-0	01	1	1303-

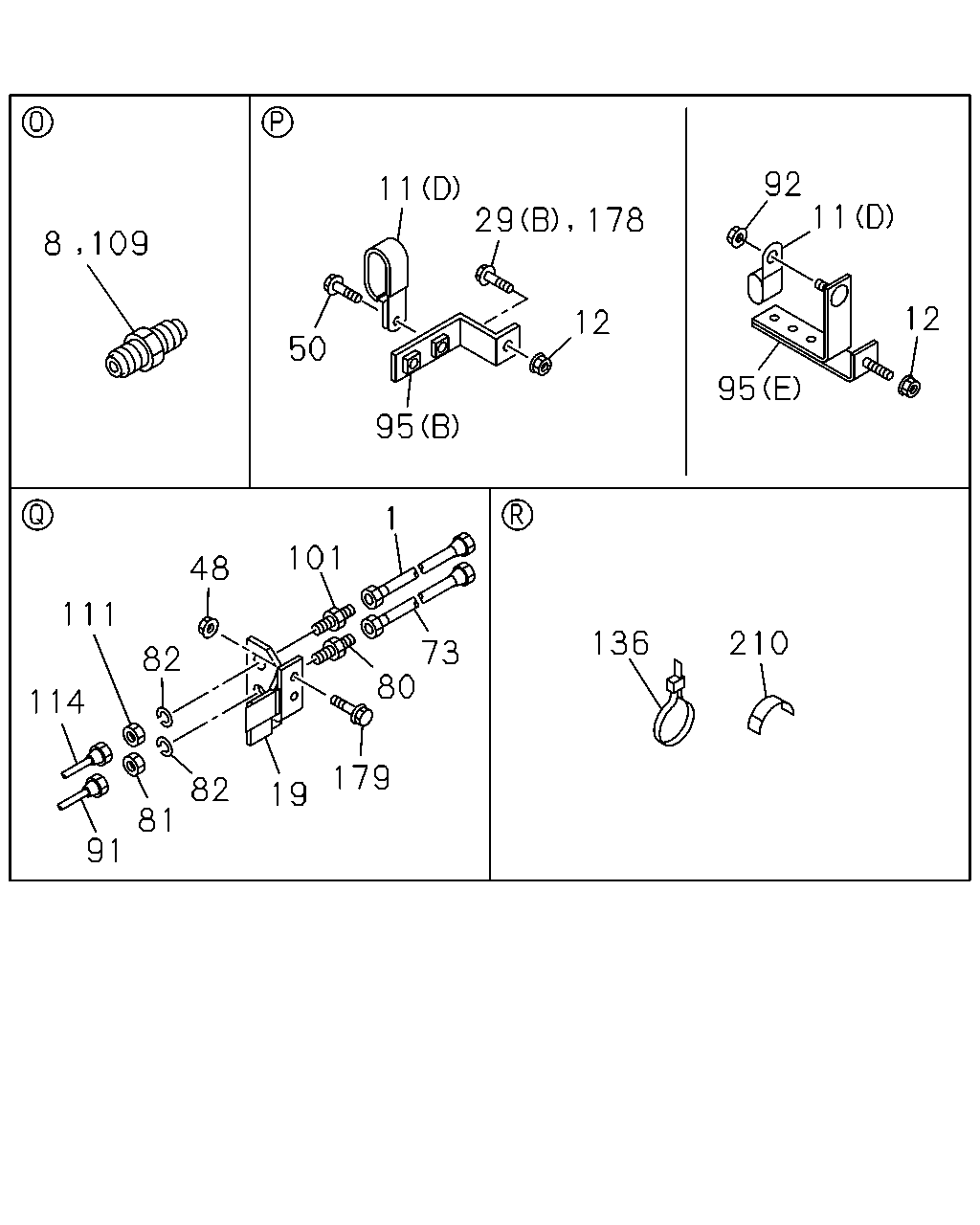

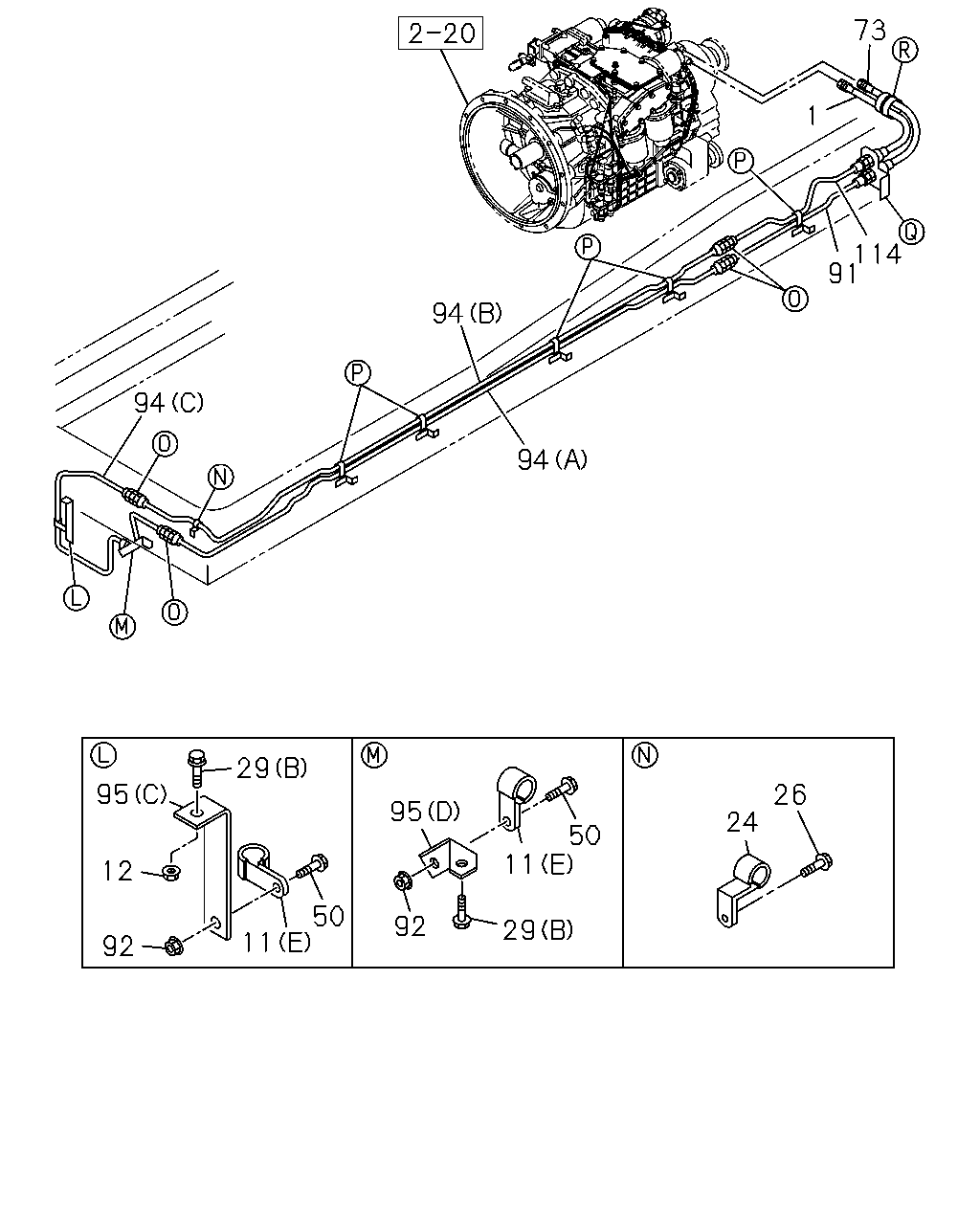

94 94 94 91 114 73 1 95 11 29 92 50 24 26 29 11 12 92 95 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJX12P M/T SMOOTHER-G(Y4S) L=550	1-09365-231-0	01	1	1009-1302
1	HOSE; ATF MJX12P M/T SMOOTHER-G(Y4S) L=620	1-09365-350-0	01	1	1303-
1	HOSE; ATF MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	1009-1302
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1303-
11	CLIP; PIPE MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1009-1302
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	05	1	1303-
11	CLIP; PIPE MJT7 M/T<Y9E> (B) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-1302
11	CLIP; PIPE MJT7 M/T<Y9E> (C) ID=11X2 L=20	9-09535-036-0	04	1	1009-1302
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (E) ID=19 L=28	0-95235-856-0	02	1	1009-
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (D) ID=16X2 L=20	0-95325-535-0	05	1	1009-
12	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1009-1302
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1303-
24	CLIP; OIL PIPE MJT7 M/T<Y9E> ID=11 H=20 L=20	8-98033-780-0	02	1	1009-1302
24	CLIP; OIL PIPE MJT7S M/T(Y3E) ID=11 H=20 L=20	8-98033-780-0	01	1	1303-
24	CLIP; OIL PIPE MJX12P M/T SMOOTHER-G(Y4S) ID=15 H=24 L=20	1-09700-606-0	01	1	1009-
26	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1009-
26	BOLT; PIPE CLIP MJT7 M/T<Y9E> M8X30 FLANGE	0-28650-830-0	01	1	1009-1302
29	BOLT; FILTER TO BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1009-1302
29	BOLT; FILTER TO BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1303-
29	BOLT; FILTER TO BRKT MJT7 M/T<Y9E> (A) M10X30 FLANGE	0-28651-030-0	02	1	1009-1302
29	BOLT; FILTER TO BRKT MJX12P M/T SMOOTHER-G(Y4S) (B) M10X20 FLANGE	0-28051-020-0	01	1	1009-
29	BOLT; FILTER TO BRKT MJX12P M/T SMOOTHER-G(Y4S) (B) M8X20 FLANGE	0-28650-820-0	01	1	1009-
50	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	1009-1302
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	1303-
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	1009-1302
50	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	02	1	1303-
73	HOSE; FLEX,TRANS MJX12P M/T SMOOTHER-G(Y4S) L=500	1-09365-247-0	01	1	1009-1302
73	HOSE; FLEX,TRANS MJX12P M/T SMOOTHER-G(Y4S) L=560	1-09365-369-0	01	1	1303-
73	HOSE; FLEX,TRANS MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	1009-1302
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1303-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7 M/T<Y9E> L=876 SERVICED BY L=900	1-47428-873-0	01	1	1009-1302
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1303-
91	PIPE; OIL,FLEX HOSE TO UNION MJX12P M/T SMOOTHER-G(Y4S) L=919	1-49166-987-1	01	1	1009-
92	NUT; CLIP MJT7 M/T<Y9E> M8 FLANGE	0-91180-108-0	01	1	1009-1302
92	NUT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	02	1	1009-
94	PIPE; OIL,UNION TO UNION MJX12P M/T SMOOTHER-G(Y4S) (A) L=1610	1-49167-565-0	01	1	1009-1302
94	PIPE; OIL,UNION TO UNION MJX12P M/T SMOOTHER-G(Y4S) (A) L=1592	8-98240-376-0	01	1	1303-
94	PIPE; OIL,UNION TO UNION MJX12P M/T SMOOTHER-G(Y4S) (B) L=2045	1-49167-291-0	01	1	1009-1302
94	PIPE; OIL,UNION TO UNION MJX12P M/T SMOOTHER-G(Y4S) (B) L=2001	8-98240-385-0	01	1	1303-
94	PIPE; OIL,UNION TO UNION MJX12P M/T SMOOTHER-G(Y4S) (C) L=1010	1-49167-738-0	01	1	1009-
95	BRACKET; CLIP (B)	1-47479-482-0	04	1	1009-1302
95	BRACKET; CLIP (B)	1-47479-482-0	01	1	1009-1302
95	BRACKET; CLIP (B)	1-47479-482-0	03	1	1303-
95	BRACKET; CLIP MJT7 M/T<Y9E> (A) L=50	1-47475-299-2	01	1	1009-1302
95	BRACKET; CLIP (E)	8-98199-287-2	01	1	1303-
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (C)	8-97610-663-0	01	1	1009-
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (D)	8-97610-664-0	01	1	1009-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7 M/T<Y9E> L=841	8-98100-827-0	01	1	1009-1302
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=841	8-98100-827-0	01	1	1303-
114	PIPE; OIL,UNION TO FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=849	1-49167-146-0	01	1	1009-

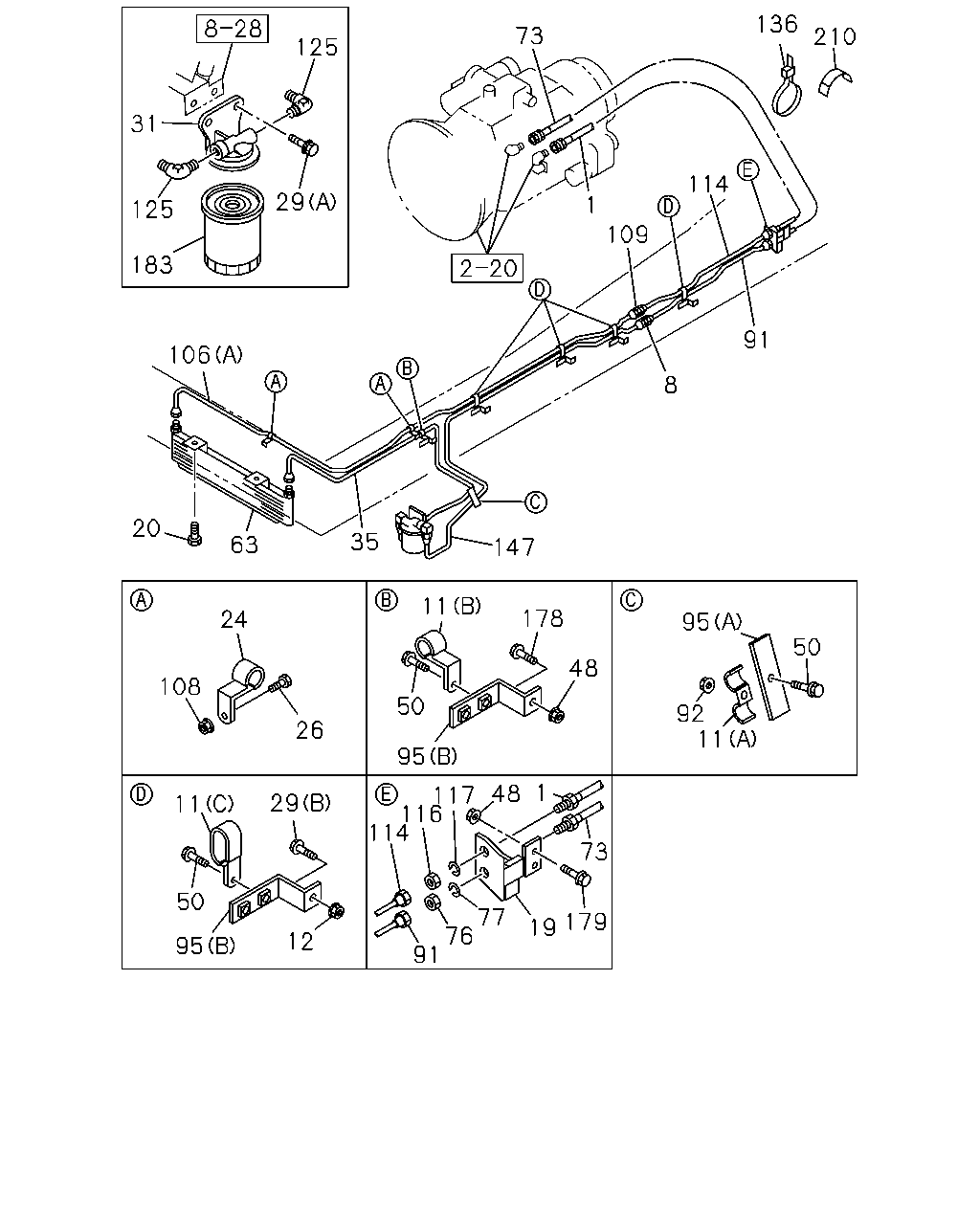

210 136 114 109 1 73 91 8 50 95 92 11 48 178 147 11 35 50 95 63 106 183 125 31 125 29 20 24 26 108 29 11 50 95 12 91 114 116 117 48 1 73 179 19 77 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJX12P M/T SMOOTHER-G(Y4S) L=550	1-09365-231-0	01	1	1009-1302
1	HOSE; ATF MJX12P M/T SMOOTHER-G(Y4S) L=620	1-09365-350-0	01	1	1303-
1	HOSE; ATF MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	1009-1302
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1303-
8	UNION MJT7 M/T<Y9E> M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1303-
8	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	02	1	1009-1302
8	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
8	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
11	CLIP; PIPE MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1009-1302
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	05	1	1303-
11	CLIP; PIPE MJT7 M/T<Y9E> (B) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-1302
11	CLIP; PIPE MJT7 M/T<Y9E> (C) ID=11X2 L=20	9-09535-036-0	04	1	1009-1302
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (E) ID=19 L=28	0-95235-856-0	02	1	1009-
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (D) ID=16X2 L=20	0-95325-535-0	05	1	1009-
12	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1009-1302
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1303-
19	BRACKET; FLEX HOSE MJT7 M/T<Y9E>	1-47479-559-0	01	1	1009-1302
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47479-559-0	01	1	1303-
19	BRACKET; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S)	1-47479-561-1	01	1	1009-
20	BOLT; COOLER TO BRKT MJT7 M/T<Y9E> M10X20 FLANGE	0-28051-020-0	02	1	1009-1302
20	BOLT; COOLER TO BRKT MJT7S M/T(Y3E) M10X20 FLANGE	0-28051-020-0	02	1	1303-
24	CLIP; OIL PIPE MJT7 M/T<Y9E> ID=11 H=20 L=20	8-98033-780-0	02	1	1009-1302
24	CLIP; OIL PIPE MJT7S M/T(Y3E) ID=11 H=20 L=20	8-98033-780-0	01	1	1303-
24	CLIP; OIL PIPE MJX12P M/T SMOOTHER-G(Y4S) ID=15 H=24 L=20	1-09700-606-0	01	1	1009-
26	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1009-
26	BOLT; PIPE CLIP MJT7 M/T<Y9E> M8X30 FLANGE	0-28650-830-0	01	1	1009-1302
29	BOLT; FILTER TO BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1009-1302
29	BOLT; FILTER TO BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1303-
29	BOLT; FILTER TO BRKT MJT7 M/T<Y9E> (A) M10X30 FLANGE	0-28651-030-0	02	1	1009-1302
29	BOLT; FILTER TO BRKT MJX12P M/T SMOOTHER-G(Y4S) (B) M10X20 FLANGE	0-28051-020-0	01	1	1009-
29	BOLT; FILTER TO BRKT MJX12P M/T SMOOTHER-G(Y4S) (B) M8X20 FLANGE	0-28650-820-0	01	1	1009-
31	BRACKET; OIL FILTER MJT7 M/T<Y9E>	1-33119-222-0	01	1	1009-1302
35	PIPE; OIL,OIL COOLER TO FILTER MJT7 M/T<Y9E> L=1328 SERVICED BY L=1400	1-47428-878-0	01	1	1009-1302
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-
50	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	1009-1302
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	1303-
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	1009-1302
50	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	02	1	1303-
63	COOLER; OIL MJT7 M/T<Y9E>	1-21700-394-0	01	1	1009-1302
63	COOLER; OIL MJT7S M/T(Y3E)	8-98199-221-0	01	1	1303-1303
63	COOLER; OIL MJT7S M/T(Y3E)	8-98240-506-0	01	1	1303-1405
63	COOLER; OIL MJT7S M/T(Y3E)	8-98269-767-0	01	1	1406-
73	HOSE; FLEX,TRANS MJX12P M/T SMOOTHER-G(Y4S) L=500	1-09365-247-0	01	1	1009-1302
73	HOSE; FLEX,TRANS MJX12P M/T SMOOTHER-G(Y4S) L=560	1-09365-369-0	01	1	1303-
73	HOSE; FLEX,TRANS MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	1009-1302
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1303-
76	NUT; FLEX HOSE MJT7 M/T<Y9E> M16	0-91111-516-0	01	1	1009-1302
76	NUT; FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1303-
77	WASHER; LK MJT7 M/T<Y9E> ID=16.2	0-91510-516-0	01	1	1009-1302
77	WASHER; LK MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1303-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7 M/T<Y9E> L=876 SERVICED BY L=900	1-47428-873-0	01	1	1009-1302
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1303-
91	PIPE; OIL,FLEX HOSE TO UNION MJX12P M/T SMOOTHER-G(Y4S) L=919	1-49166-987-1	01	1	1009-
92	NUT; CLIP MJT7 M/T<Y9E> M8 FLANGE	0-91180-108-0	01	1	1009-1302
92	NUT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	02	1	1009-
95	BRACKET; CLIP (B)	1-47479-482-0	04	1	1009-1302
95	BRACKET; CLIP (B)	1-47479-482-0	01	1	1009-1302
95	BRACKET; CLIP (B)	1-47479-482-0	03	1	1303-
95	BRACKET; CLIP MJT7 M/T<Y9E> (A) L=50	1-47475-299-2	01	1	1009-1302
95	BRACKET; CLIP (E)	8-98199-287-2	01	1	1303-
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (C)	8-97610-663-0	01	1	1009-
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (D)	8-97610-664-0	01	1	1009-
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (C)	8-98240-381-0	01	1	1303-
106	PIPE ASM; OIL,COOLER TO UNION MJT7 M/T<Y9E> (A)	8-98034-834-0	01	1	1009-1302
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (B)	8-98240-377-0	01	1	1303-
108	NUT; PIPE CLIP MJT7 M/T<Y9E> M8 FLANGE	0-91180-108-0	01	1	1009-1302
109	UNION MJT7 M/T<Y9E> M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1303-
109	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	02	1	1009-1302
109	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
109	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7 M/T<Y9E> L=841	8-98100-827-0	01	1	1009-1302
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=841	8-98100-827-0	01	1	1303-
114	PIPE; OIL,UNION TO FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=849	1-49167-146-0	01	1	1009-
116	NUT; BRKT,FLEX HOSE MJT7 M/T<Y9E> M16	0-91111-516-0	01	1	1009-1302
116	NUT; BRKT,FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1303-
117	WASHER; LK,FLEX HOSE MJT7 M/T<Y9E> ID=16.2	0-91510-516-0	01	1	1009-1302
117	WASHER; LK,FLEX HOSE MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1303-
125	CONNECTOR; OIL FILTER MJT7 M/T<Y9E> M16 & PT1/4 ELBOW	0-92134-310-0	02	1	1009-1302
136	CLIP; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=350	1-09707-183-0	02	1	1303-
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	1009-1302
136	CLIP; FLEX HOSE MJT7S M/T(Y3E) L=350	1-09707-183-0	01	1	1303-
147	PIPE; OIL,UNION TO FILTER MJT7 M/T<Y9E> L=1764	8-98069-775-0	01	1	1009-1302
178	BOLT; BRKT,CLIP M8X30 FLANGE	0-28650-830-0	01	1	1009-1302
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1303-
179	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1009-1302
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-
183	CARTRIDGE; OIL FILTER MJT7 M/T<Y9E>	8-94459-700-1	01	1	1009-1302
210	BAND; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=175	1-09707-178-0	02	1	1303-
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1009-1302
210	BAND; FLEX HOSE MJT7S M/T(Y3E) L=175	1-09707-178-0	01	1	1303-

8 109 111 114 82 48 101 1 73 80 179 19 82 81 91 136 210 11 12 92 95 95 12 178 29 11 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJX12P M/T SMOOTHER-G(Y4S) L=550	1-09365-231-0	01	1	1009-1302
1	HOSE; ATF MJX12P M/T SMOOTHER-G(Y4S) L=620	1-09365-350-0	01	1	1303-
1	HOSE; ATF MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	1009-1302
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1303-
8	UNION MJT7 M/T<Y9E> M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1303-
8	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	02	1	1009-1302
8	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
8	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
11	CLIP; PIPE MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1009-1302
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	05	1	1303-
11	CLIP; PIPE MJT7 M/T<Y9E> (B) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-1302
11	CLIP; PIPE MJT7 M/T<Y9E> (C) ID=11X2 L=20	9-09535-036-0	04	1	1009-1302
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (E) ID=19 L=28	0-95235-856-0	02	1	1009-
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (D) ID=16X2 L=20	0-95325-535-0	05	1	1009-
12	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1009-1302
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1303-
19	BRACKET; FLEX HOSE MJT7 M/T<Y9E>	1-47479-559-0	01	1	1009-1302
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47479-559-0	01	1	1303-
19	BRACKET; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S)	1-47479-561-1	01	1	1009-
29	BOLT; FILTER TO BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1009-1302
29	BOLT; FILTER TO BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1303-
29	BOLT; FILTER TO BRKT MJT7 M/T<Y9E> (A) M10X30 FLANGE	0-28651-030-0	02	1	1009-1302
29	BOLT; FILTER TO BRKT MJX12P M/T SMOOTHER-G(Y4S) (B) M10X20 FLANGE	0-28051-020-0	01	1	1009-
29	BOLT; FILTER TO BRKT MJX12P M/T SMOOTHER-G(Y4S) (B) M8X20 FLANGE	0-28650-820-0	01	1	1009-
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-
50	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	1009-1302
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	1303-
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	1009-1302
50	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	02	1	1303-
73	HOSE; FLEX,TRANS MJX12P M/T SMOOTHER-G(Y4S) L=500	1-09365-247-0	01	1	1009-1302
73	HOSE; FLEX,TRANS MJX12P M/T SMOOTHER-G(Y4S) L=560	1-09365-369-0	01	1	1303-
73	HOSE; FLEX,TRANS MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	1009-1302
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1303-
80	UNION; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1009-
81	NUT; UNION MJX12P M/T SMOOTHER-G(Y4S) M22	0-91111-522-0	01	1	1009-
82	WASHER; LK,UNION MJX12P M/T SMOOTHER-G(Y4S) ID=22.5	0-91510-522-0	02	1	1009-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7 M/T<Y9E> L=876 SERVICED BY L=900	1-47428-873-0	01	1	1009-1302
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1303-
91	PIPE; OIL,FLEX HOSE TO UNION MJX12P M/T SMOOTHER-G(Y4S) L=919	1-49166-987-1	01	1	1009-
92	NUT; CLIP MJT7 M/T<Y9E> M8 FLANGE	0-91180-108-0	01	1	1009-1302
92	NUT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	02	1	1009-
95	BRACKET; CLIP (B)	1-47479-482-0	04	1	1009-1302
95	BRACKET; CLIP (B)	1-47479-482-0	01	1	1009-1302
95	BRACKET; CLIP (B)	1-47479-482-0	03	1	1303-
95	BRACKET; CLIP MJT7 M/T<Y9E> (A) L=50	1-47475-299-2	01	1	1009-1302
95	BRACKET; CLIP (E)	8-98199-287-2	01	1	1303-
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (C)	8-97610-663-0	01	1	1009-
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (D)	8-97610-664-0	01	1	1009-
101	UNION; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1009-
109	UNION MJT7 M/T<Y9E> M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1303-
109	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	02	1	1009-1302
109	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
109	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
111	NUT; UNION MJX12P M/T SMOOTHER-G(Y4S) M22	0-91111-522-0	01	1	1009-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7 M/T<Y9E> L=841	8-98100-827-0	01	1	1009-1302
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=841	8-98100-827-0	01	1	1303-
114	PIPE; OIL,UNION TO FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=849	1-49167-146-0	01	1	1009-
136	CLIP; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=350	1-09707-183-0	02	1	1303-
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	1009-1302
136	CLIP; FLEX HOSE MJT7S M/T(Y3E) L=350	1-09707-183-0	01	1	1303-
178	BOLT; BRKT,CLIP M8X30 FLANGE	0-28650-830-0	01	1	1009-1302
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1303-
179	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1009-1302
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-
210	BAND; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=175	1-09707-178-0	02	1	1303-
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1009-1302
210	BAND; FLEX HOSE MJT7S M/T(Y3E) L=175	1-09707-178-0	01	1	1303-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
